USER MANUAL FIC11B Fortress

- Multi-Function Induction Cooker User's Manual

To use the induction cooker properly, please read this User's Manual carefully before power-on.

Any technical improvements shall be placed in the revised manual without notice; for any changes in appearance and color, those of the actual product shall prevail.

型號/Model：FIC11B

目錄

產品簡介	1
部件圖示	1
規格型號	1
安全操作須知	1-3
使用說明	3-4
功能烹飪模式說明	5-6
保養方法	6
適用銷具	6
排解疑難	7
保養	8
Product Introduction	9
Part Illustrations	9
Specifications & Models	9
Safety Notice	9-11
Operation Instruction	11-13
Instruction on Function
Cooking Mode	14-15
Maintenance	15
Suitable Pots	16
Troubleshooting	16-17
Warranty	18

產品簡介

Two blue circular icons with plus and minus signs, no text or symbols present

This induction cooker is designed for heating food in indoor use, and characterized by small size, more functions, no Pollution, energy saving and convenient use.

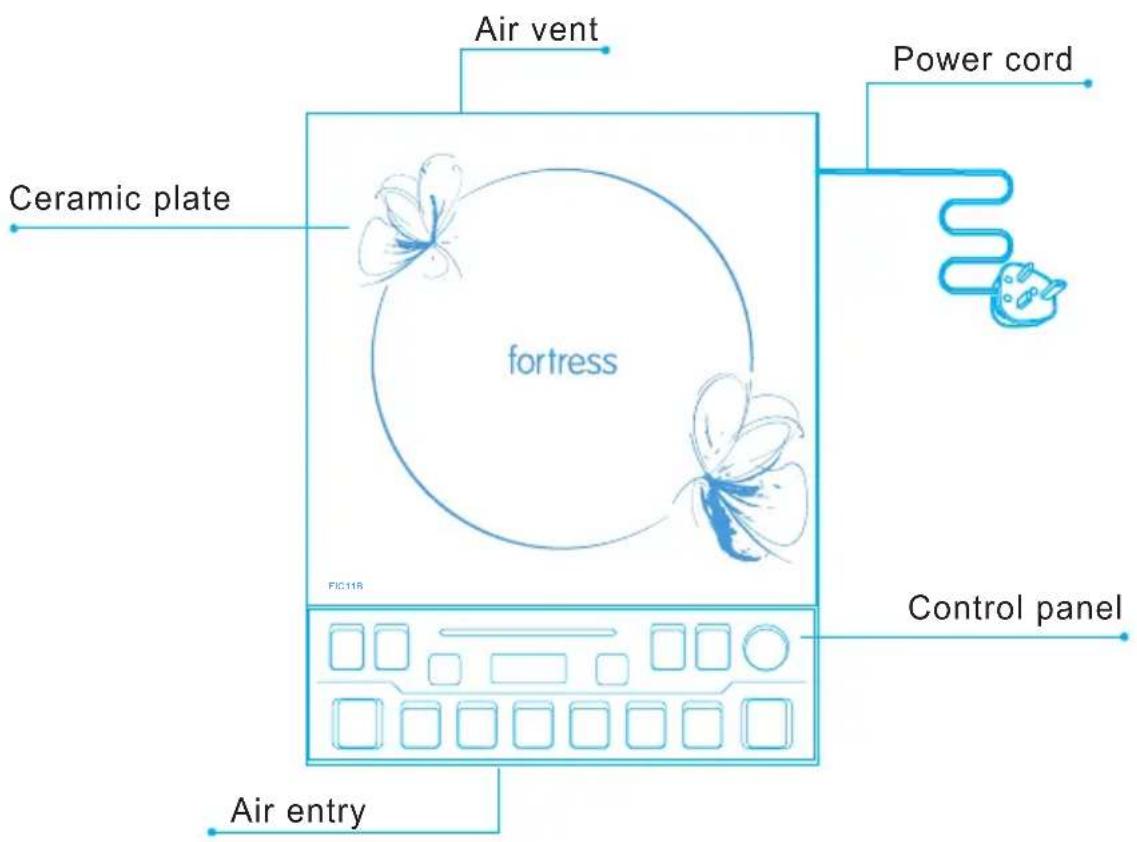

Part Illustrations

Specifications & Models

Model	Applied voltage/ frequency	Rated power	Power adjustment range	Appearance dimension (LxWxH)mm	Net Weight (kg)
FIC11B	220-240V~ 50/60Hz	120W-2100W	375 x 290 x 59	2.12100W

Safety Notice

To ensure safety use, this User's Manual shows different expression methods. Noncompliance with the safety warnings and improper use may cause accidents.

Meanings of the symbols:

Operate carefully in accordance with the requirements.
Such operation is not allowed.
Be sure to operate like this.

Attention

Caution
Please use an individual socket of more than 13A, and never use a universal socket or share a socket with other appliances.

Caution
During the use, the induction cooker shall be placed horizontally, with at least 10 cm from its sides and the wall.

Prohibit
Do not use the induction cooker near a gas stove, kerosene stove, gas cooker or in any space with an open fire or an environment with high temperature.

Washing prohibited
Indoor use only Never directly wash the induction cooker with water so as to avoid dangers.

Prohibit
Never use the induction cooker on a gas stove (magnetic force lines may heat iron parts of the gas stove) to avoid accidents.

Prohibit
Never heat the iron piece on the ceramic plate so as to avoid any dangers due to high temperature.

Prohibit
Keep electrical appliance out of reach from children or inform person. Do not let them use the appliances without supervision.

Prohibit
Never place the induction cooker on any metal (iron, aluminum, etc.) platform, including a non-metal cushion thinner than 10cm.

Prohibit
Never have the induction cooker to work without food inside, otherwise its operational performance may be affected and danger may happen.

Caution
The induction cooker shall be cleaned regularly to prevent foreign objects from entering the fan. This can influence the normal operation.

Warning

Metallic objects such as knives, forks, spoons and lids should not be placed on the induction cooker since they can get hot.

Prohibit
The utensils provided for the induction cooker can only be used for cooking with it. These cooking utensils cannot be used on both induction cooker and gas stove.

Caution
If the power cord is damaged, it must be replaced by the manufacturer, its service agent in order to avoid a hazard.

Prohibit
For sealed food such as canned goods, please do not heat them before opening their covers so as to avoid any dangers of explosion due to heating expansion.

Caution
Person using a heart pacemaker shall consult a doctor before using this product.

Prohibit
Be sure not to insert foreign objects such as an iron wire or block the air vent and air entry so as to avoid dangers.

Prohibit
During heating, never put paper, aluminum foil, cloth and other unrelated objects on the ceramic plate for indirect heating to avoid any accident.

Caution
Do not use this unit on a carpet, table cloth or tissue, as this may block the air entry and air vent and affect radiation from the cavity.

Caution
Avoid using great force to strike the plate and panel as this may cause damage. In the event of damage, please stop using, and send it to a service facility for repair.

Warning
If the surface is cracked, switch off the appliance to avoid the possibility of electric shock

Touch prohibited

After being used for a long time, the corresponding heating zone of the induction cooker is still hot. Never touch the ceramic surface to avoid burning.

Safety Notice

Special Attention

During and after using the induction cooker, keep it clean. Prevent the machine from insects, dust and damp and cockroaches from entering and causing short-circuit; when not in use for a long time, it is recommended to be stored in a plastic bag after cleaning.

Never splash water or soupinto the induction cooker toprevent the short circuit .

After using, unplug the unit to avoid damage to electronic elements or even fire due to long-term on-position. After the ceramic plate cools, clean it with soft cloth dipped with little detergent .Do not .

Never use this induction cooker on a table or bottom plate made of iron or stainless steel, as this may cause burning of the unit.

As the bearing of the ceramic plate for the induction cooker is limited, never put too heavy objects on the ceramic plate as this may cause damage to the plastic lid and ceramic plate.

When in use, never leave it unattended for a long time. If leaving is necessary, make sure that there is enough water inside the pot to prevent dry-burning and due to excessively little water damage to the pot.

It is recommended to use a high-power socket rather than a defective one. Do not share a socket with other electrical appliances to avoid over-current from causing fire.

Never use the induction cooker in narrow space. Do not block the air entry and air vent with foreign objects, as this may affect radiation.

Operation Instruction

Caution:

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.
The surface are liable to get hot during use. Avoid touching the heating elements inside the oven.
The appliances are not intended to be operated by means of an external timer or separate remote-control system.

Operation Instruction

Power-on

■ Before using, please check whether the plug and socket are in good condition.

Before positioning a pot, please clear water mark/greasy dirt or other attached substance off the pot surface and ceramic panel.

- Put a pot to be heated on the center of the induction cooker. Never put an empty pot on the ceramic plate.

■ After the 📄 button is pressed, the induction cooker enters the working status.

If, the 📷 button is pressed, there is no suitable pot, the buzzer will sound, and shut down automatically, after one minute.

Function Selection

■ After power-on, press an appropriate key to enter a corresponding cooking function.

For the heating process of a corresponding cooking function, please refer to the instruction on function cooking modes.

Firepower Adjustment

■ After selection of a function, to adjust firepower, press firepower + - keys to adjust the firepower.

■ Individual functions may be limited in firepower adjustment because of cooking effects.

For some functions, the induction cooker can, during heating, control its firepower automatically based on the cooking effect.

Timing Adjustment

If no timing operation is conducted, the induction cooker will heat based on the default heating time. (For specific time, please refer the instruction on the function cooking mode).

For the purpose of timing, first press the ⏻ key, and after numbers on the display screen flash, press the + or - keys to carry out timing adjustment.

■ After the countdown elapses, the induction cooker will stop heating automatically and shut down.

■ After timing adjustment, the numbers will be steadily shown after flashing for 5s, and the induction cooker will begin to countdown.

■ Timing adjustment is not suitable for some individual function (eg: the time for boiling water uses the count-up form.)

Operation Instruction

Power-off

■ After the work time elapses, the induction cooker will shut down automatically.
■ To shut down ahead of time, press the 🔒 key.

Adjustment preset

If pre-set is needed, first press the "Pre-set" key. When the pre-set indicator lights up and the number on the display blinks, press the "+" or "-" key to adjust the preset time.
■ After the pre-set is finished, the number on the display will be shown after blinking for several seconds. The induction cooker starts counting down to the preset time.
- When the presetting time is met, the induction cooker will automatically return to the normal working mode.

Electricity consumption display

Press the "Electricity consumption" key, the electricity consumption indicator lights up. Now the Electricity consumption display may be accessed. After the electricity consumption is shown for several seconds, the induction cooker will switch to time display automatically.
The electricity consumption is shown in four digits. The first digit “d” illustrates that this is a display for electricity consumption. The following three digits show the amount of the electricity consumption. For example, if “d1.23” is shown, it illustrates that the electricity consumption is 1.23 kilowatt-hour.

Caution:

1. The electricity consumption displayed is an accumulative amount. After switching on the appliance, clear the accumulative amount number of the electric consumption of the induction cooker and start to recalculate. If the used electricity consumption exceeds 9.99 kilowatt-hour, the display will blinkingly show dH.
2. Deviation exists between the displayed electricity consumption and the real ones. Please refer to the real electricity consumption as a standard value. This displayed electricity consumption is only for user's reference and is not used for an accurate calculation.

Instruction on Function Cooking Mode

Based on desired cooking result, you can select different function cooking modes. For the sake of convenient operation, we provide the following instructions:

1	The hot pot mode applies to heating modes such as Hot pot and Boil. During heating, you can adjust time and firepower at any moment. When water in the pot is burned out or the temperature is abnormally high, the machine will automatically switch to self-protection.
2	Cooking modes such as Deep Fry and Fry are applicable to high-temperature cooking such as chafing dish.During cooking, the firepower for separate function can only be adjusted on the basis of levels ,while the time and firepower can be adjusted at any moment for other function. When food in the pot reaches a temperature point required by the function (highest temperatures may vary with different functions), the induction cooker may heat intermittently or stop heating, and resume heating after the temperature decreases .
3	For cooking modes such as Soup and Braise other than Hot Pot, the induction cooker will control its heating firepower on the basis of timing and temperature of food in the pot. In these models , firepower can be adjusted at any time in the adjustable range, but the induction cooker will resume automatic firepower control based on cooking effects after 2 minutes. After the working time elapses, Soup functions will go into two-hour warm keeping automatically.
4	The Boil cooking mode is applied to boiling water. After water boiling for some time, the induction cooker can shut down in an automatic manner.⚠Caution:It is recommended that water volume to be boiled should occupy 30%-80% of the pot.The effect of boiling may be a little different due to various factors such as the uneven bottom of the pot or weather.A special soup pot or kettle can be selected for water boiling.
5	“Stir - fry” cooking mode is for heating with strong power.When the temperature of the ingredients reaches the temperature level provided by the selected mode (the highest temperature of various modes are different), the induction cooker will switch to interval heating or stops heating. After the temperature cools down, the induction cooker restarts heating.

Instruction on Function Cooking Mode

6

The cooking mode of “Stew” with slow stewing fits to the situation that needs continuous heating with gentle power. When using this mode to stew soup or boil congee, please first use the “Hotpot” mode to boil the ingredients and then heat it by using “Stew”. The stewing duration can be set according to the feature of ingredients or personal taste.

Caution:

1. Under this mode, the power cannot be adjusted.
   If adjustment is needed, please switch to the other modes, such as "Hotpot".
   For some models, gentle power is specified to "braising", "stewing" and "boiling".
2. Press the "Stew" key to shift among the specified "Stew" modes.

7

Temp mode is for cooking methods that require a certain temperature for the ingredients. Under this mode, the induction cooker can control the power according to the temperature of the ingredients.

Default heating duration are shown in the table below:

8

Function	Hot pot	Fry	Soup		Boil	Deep fryBraise
Default heating duration (min)	120	60	120	60	15	60

Note: the above table indicates default heating duration and does not itemize all default heating duration for some products. Detailed duration shall be based on actual products.

Maintenance

1、Before cleaning, please shut down the induction cooker first and then unplug the unit. Carry out the cleaning when the ceramic panel is not scalding.
2、After a long period of use, some dust or other dirt may be accumulated at the air entry/air vent. The body of the induction cooker shall be cleaned lightly with flexible dry cloth. The dust around the air entry and air vent can be cleaned with a soft brush or cleaner.

Note: Never wash using water.

3、When the ceramic plate is stained, clean with soft wet cloth dipped in little toothpaste or neutral detergent until no residue remains.

4、When not in use for a long time, please unplug the unit, and protect against dust and insects

Suitable Pots

a

Stainless steel pot

b

Enamel cooking utensils(for IC cooker use only)

C

Iron kettle

d

Enamel stainless steel kettle

efg

Iron oil frying pan

Iron pan

Iron plate

Please use the pots sold along with the unit. Do not to use other substitutes (especially pressure vessels and pots) as to avoid any unfavorable influence on operational performance. The frying pan bear the maximue weight of 4kg. To avoid danger, the food cannot exceed the weight when use.

If using other pots, please follow the following conditions:

* Requirement for pot materials: containing magnetic conductivity materials;
* Shape requirement: Flat bottom, with the diameter not less than 12cm and not larger than 21cm.
* Induction cooker cannot carry more than 5kg at one time.

Note: To achieve a better result, please use standard pots or kettles.

Troubleshooting

Problems Check Points

After power is supplied, the "ON/OFF" indicator and nixie tube fail to light up.

The "ON/OFF" indicator lights up, but heating does not start.

Heating stops suddenly during operation.

• Whether the plug is plugged tightly?
- Whether the switch, socket, fuse and power cord are in good condition?
- Whether the pot contains nonconforming materials?
- Whether the unit is in preset condition?
- For other reasons, please send it to a service center for repair.

- Whether oil temperatures in the pot is too high during chafing dish?

- Whether the ambient temperature is too high?

- Whether the air entry or the air vent is blocked?

• Whether the timing period elapses?

- The system protection works, and the unit shall work a few minutes later.

Troubleshooting

Problems Check			Points
Failure codes occur	E:06E6	Protection against high-temperature inside the cooker	The unit experiences a high temperature. Heating will resume after the temperature drops and the “ON/OFF” key is pressed again.
	E:03 E3E:10 EA	Protection against high-temperature on the ceramic panel	Protection against high-temperature on the ceramic panel.Heating will resume after the temperature drops and the “ON/OFF” key is pressed again.
	E:07 E7E:08 E8	Protection against over or under-voltage	When voltage is back to normal, the unit restores its heating.
	E:01 E1E:02E2E4E:05 E5E:11 £b	Protection against abnormality of external sensor inside the induction cooker	When the ambient temperature is too low, the induction cooker will perform automatic protection. Restar or preheat the unit, it will resume the operation.Please contact the service department.

• The above are the judgment and inspection of common Problems. If the problems remains through simple treatment, send the machine to the service agency.
• Please do not disassemble the unit by yourself to avoid any danger and damage to the induction cooker.

Warranty

1. The product has 2 years warranty from the date of purchase.
2. The warranty shall not apply:

A. to any Product subjected to accident, misuse, neglect, alteration, Acts of God, improper handling, improper transport, improper use, improper testing or unauthorized repair;
B. to cosmetic problems or defects which result from normal wear and tear under ordinary use, and do not affect the performance or use of the product. All warranties are void if the product is opened, altered, and/or damaged;
C.to any packing, transportation, export / import tax or any related expenses.
3. CUSTOMER MUST PRESENT THE SALES INVOICE OR RECEIPT FOR 2 YEARS WARRANTY SERVICES.
4. Please bring along the product and sales invoice or receipt to our services center for warranty services during office hour:.

Address: Unit D, 20/F, Yip Shing Ind Bldg, No.19, Yip Shing Street, Kwai Chung.

Service Hotline: [phone]

Service Hours:

Monday-Friday: 9:00am - 1:00pm / 2:00pm - 6:00pm

Saturday: 9:00am - 1:00pm

Sunday & Public Holiday : Closed

1. THE UNIT IS FOR DOMESTIC USE ONLY.

Important Notices

THE UNIT IS FOR DOMESTIC USE ONLY

IN NO EVENT SHALL OUR COMPANY OR THE SUPPLIER BE LIABLE TO YOU OR ANY OTHER PARTY FOR ANY DIRECT, INDIRECT, GENERAL SPECIAL, INCIDENTAL, CONSEQUENTIAL, EXEMPLARY OR OTHER DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR INJURY, LOSS OF PROPERTY, BUSINESS PROFITS, BUSINESS INTERRUPTION) OR FROM ANY BREACH OF WARRANTY, EVEN IF OUR COMPANY OR SUPPLIER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO CASE SHALL OUR COMPANY OR SUPPLIER'S LIABILITY EXCEED THE AMOUNT YOU PAID FOR THE PRODUCT.

Specifications, designs and dimensions subject to change without prior notice.
