USER MANUAL HSWM-65S Heinner

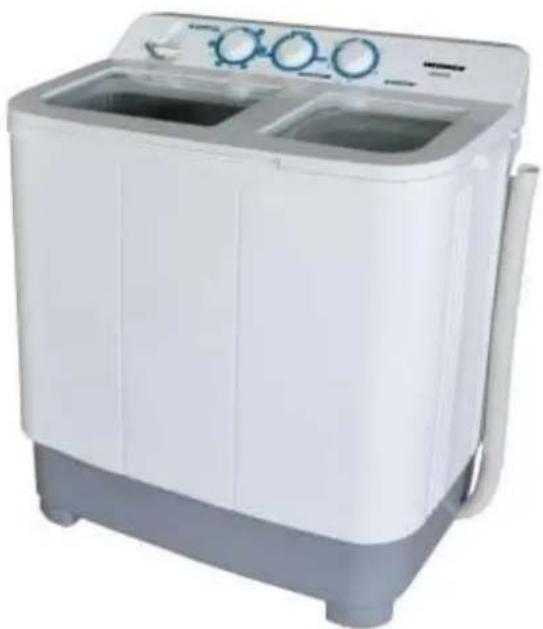

White and gray portable washing machine with two side compartments and control knobs (no visible text or symbols)

• Semi-automatic washing machine
• Capacity: 6.5 kg

Thank you for purchasing this product!

I. INTRODUCTION

Before using the appliance, please read carefully this instruction manual and keep it for future reference.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

II. CONTENT OF YOUR PACKAGE

Washing machine
User manual
Warranty card

III. SAFETY MEASURES

Be sure to comply with the following to prevent damage to body and property of you and others:

The sign stands for "pay attention", and the picture of specific items needs

attention shows in

The sign stands for "forbid", and the picture of specific items forbidden shows in.

The sign stands for "must do", and the picture of specific items must be done shows in

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

This appliance is for indoor use only.

Children should be supervised to ensure that they do not play with the appliance.

When choosing the water inflowing to wash tub or spin tub, please do not move the water inlet valve during the process of water inflowing.

The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The openings must not be obstructed by a carpet.

If strong vibration occurs in time of spinning, open the spin cover immediately. Make sure that the washing machine is placed on a flat and stable floor, and then adjust washing materials, distribute them evenly.

To do spinning and draining together, please spin for 1 minute before draining.

Do not wash or spin waterproof clothes or clothes that float easily to avoid abnormal vibration or damage to the clothes.

WARNING

1. Do not dismantle the machine by yourself.

1. Do not install the machine in damp or rainy environment to avoid electric shock, fire, machine failure, or deformation.

1. Do not place inflammable materials like burning candle, mosquito incense, cigaret etc. or heating source like electric stove, calorifier etc. on the machine.

1. Do not spray water directly to the machine.

1. Do not let baby sit on it or place heavy things on it.

1. Do not wash clothes that are stained with kerosene, petrol, alcohol, and other flammable substance.

1. Make sure that the water inlet hose is connected and the tapis opened before washing.

1. Do not exceed the max. water level to avoid water overflowing and machine failure.

1. To avoid electric shock resulting from electric leakage, please connect grounding wire of the plug properly.

1. Do not let baby climb to the machine or play near running tub to avoid accident.

1. If use warm water, the water temperature should not exceed 50^ C.

Simple line drawing of a container with liquid and a small object above it (no text or symbols)

1. Do not wash down-filled coat, raincoat or similar clothes.

1. Wipe off dirty and dust on the plug of ten to prevent poor contact with power supply.

1. Do not put hands into the tub before it stopping running.

1. Do not replace power cord by yourself.

1. Do not damage the power cord and plug to avoid electric shock, short circuit or fire.

1. Insert the plug tightly when use.

1. Do not pull the cord when unplug the plug.

Hand holding a wall socket with a warning symbol (no text or labels present)

1. Do not insert or unplug the plug with wet hands to avoid electric shock.

1. Unplug the plug from socket after use.

ATTENTION TO INSTALLATION

Lay upper drain hose

- Needs a drain hose with minimum diameter of 3 cm, and minimum carry away capacity of 40 liters per minute. - For upper drain system, the drain hose must be placed at least 86 cm(30 inches) from the bottom of washer, but not higher than 100 cm.

Change the position of the drain hose

The ex-factory installation position of the drain hose is located at the spin side. According to the installation site, the drain hose can also be installed at the wash side of the machine. The method is as follows:

• Unplug the power cord and empty water in the drain hose completely.

• Spread a piece of soft cloth on the floor (e.g. a blanket) and place the washing machine on it gently.
• Take the drain hose out from the buckle at the spin side, and put it into the buckle at the wash side.
• Hang up the drain hose kit.

Installation site

In order to avoid electrical failure, discoloration and deformation, do not install the machine in the following places:

● Locations exposed to direct sunlight

● Locations exposed to rain or snow

Two diagrams showing a showerhead and a refrigerator with X marks, no text or symbols present.

● Locations with uneven or unstable ground

IV. PRODUCT DESCRIPTION

ACCESORIES

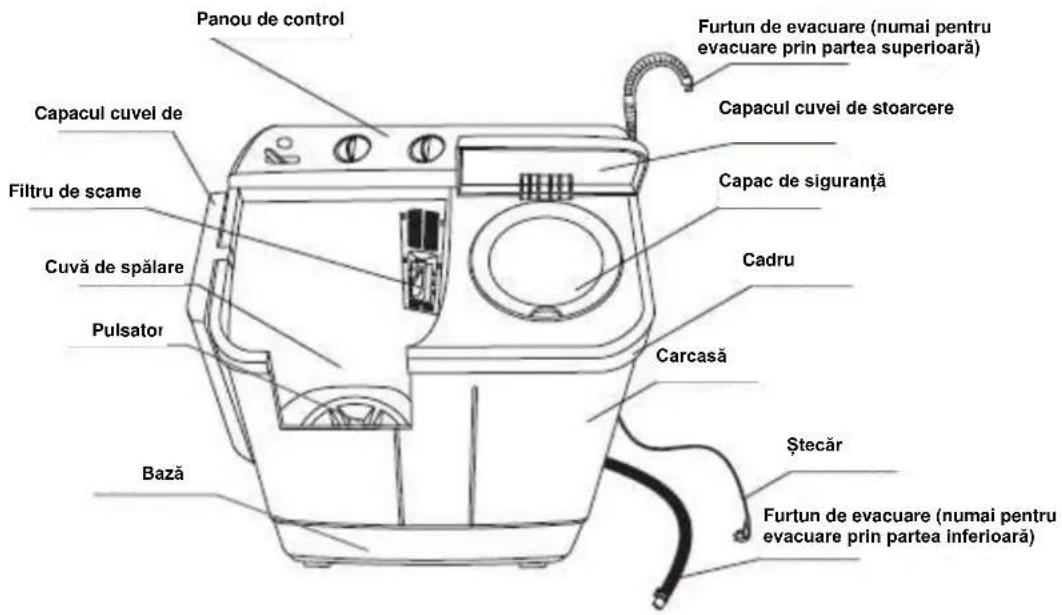

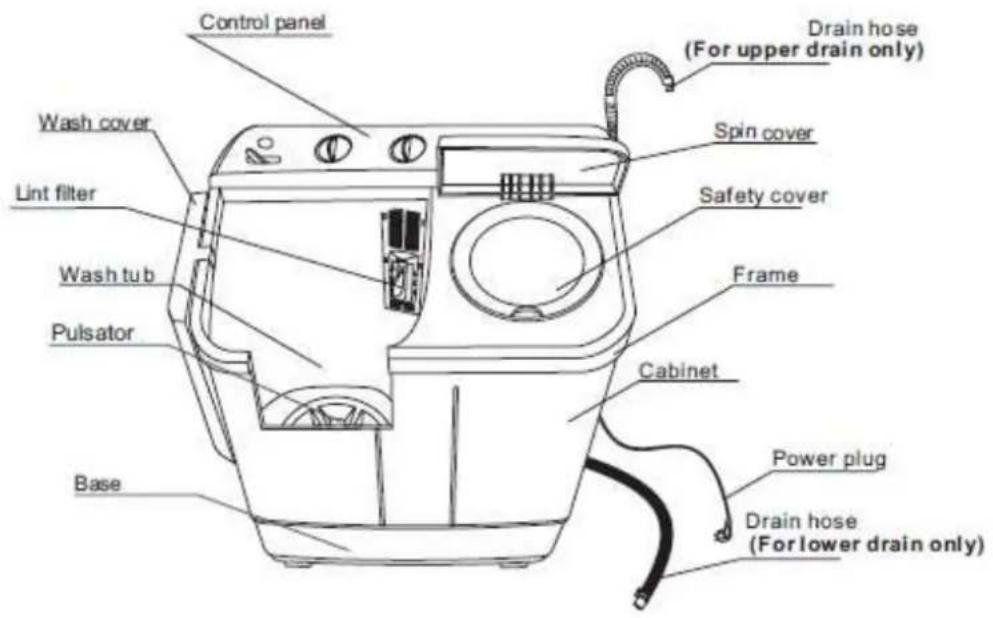

CONTROL PANEL

THE DRAWING ABOVE IS FOR REFERENCE ONLY, SPECIFIC DRAWING IS SUBJECT TO ACTUAL MODELS.

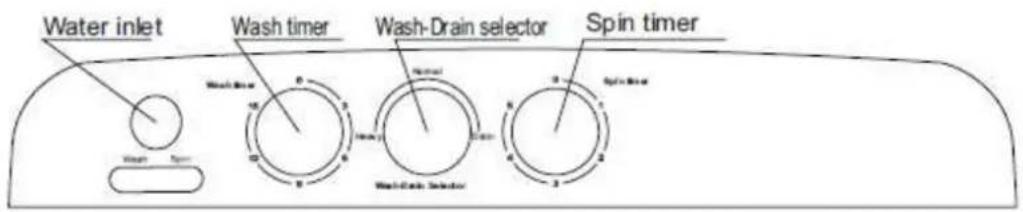

• Water inlet: be used to inject water.

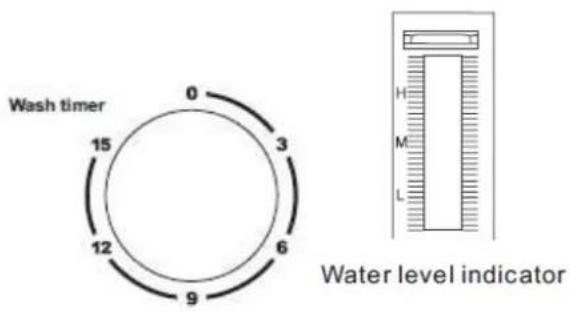

• Wash timer: be used to select required washing time.
• Spin timer: be used to select required spinning time.
• Wash-Drain selector: For washing or rinsing, select "Normal" or "Heavy". For Draining, select "Drain".

V. USING INSTRUCTIONS

PREPARATION INSTRUCTIONS

1. Plug in power and connect the water inlet hose.
2. Lay down the lower drain hose and connect it to the sewer, or lay the upper drain hose to places as indicated in page 3.
3. Check that there are no objects such as coins, hairpins, mud or sand in the pocket.
4. Strings should be knotted in advance to prevent entanglement.
5. Clothes can be classified for washing according to the texture, dirty degree and color.
6. For small pieces (e.g., stockings) or fluffy clothes, put them into a nylon net for washing.

Attachment: Reference of laundry quantity corresponding to different capacities

CAPACITY	SHIRT about 500g	UNIFORM about 650g	JEANS about 900g	JACKET about 1600g
6,5 kg	About 12 pcs	About 9 pcs	About 6pcs	About 3pcs

NOTE: The TABLE above is for reference only, specific weights are subject to actual clothes.

Attachment : Laundry volume and detergent dosage reference

FABRIC TYPE	Laundry capacity(kg)	Water level	Water flow	Wash time (minutes)	Detergent amount(g)
Synthetics, silk, Delicate fabrics	0 – 3,0	Low	Normal	5	About 39
	3,0 – 5,0	Mid		3-5	About 51
Cotton or linen	0 – 5,0	Mid	Normal	7	About 51
	5,0 – 6,5	High		7-10	About 59
Heavy soils	0 – 5,0	Mid	Heavy	10	About 51
	5,0 -6,5	High		10-35	About 59

NOTE: The dosage of washing detergent varies according to dirty degree and texture of laundries.

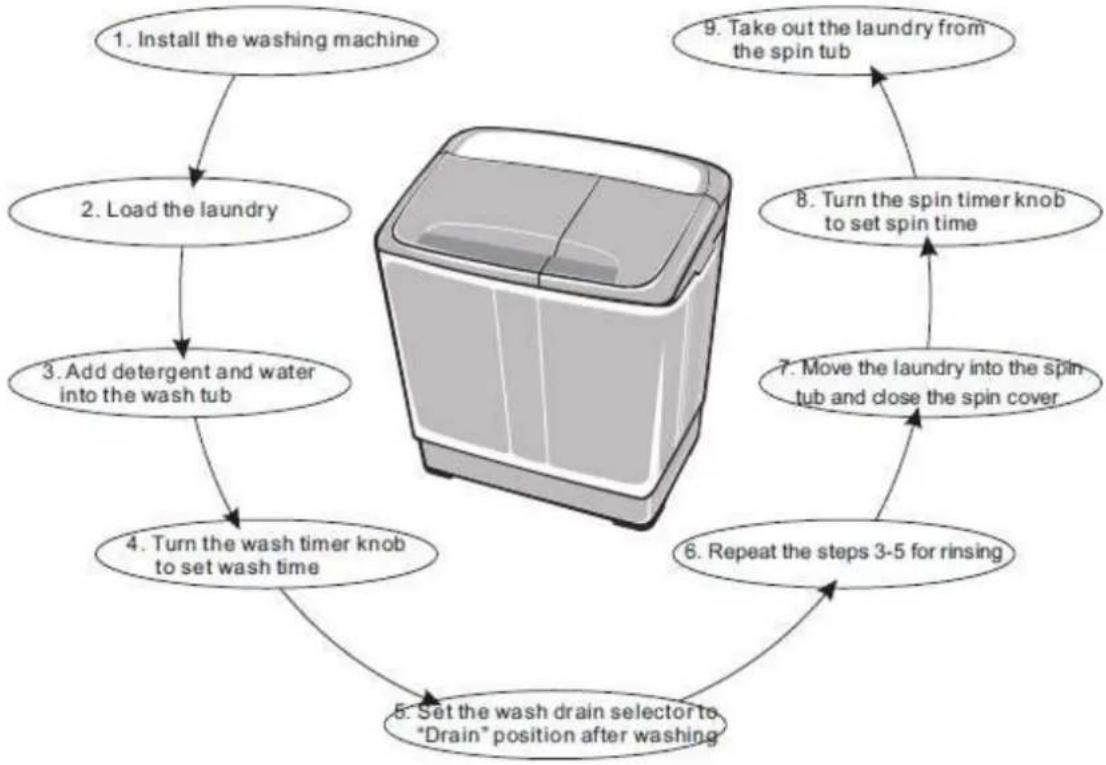

QUICK START

Washing Method

1. Insert the inlet hose into t water he water inlet mouth, and choose injecting water to the wash tub.
2. Put the laundry into the wash tub, and add detergent into it. When fill water to half of the desired water level, turn off the water tap and let laundries soak in the solution for minutes, then fill water to desired water level.
3. Set wash program "Normal" or "Heavy" as per amount and texture of laundries.
4. Turn the wash timer knob to set wash time.
5. After washing, set the wash drain selector to "Drain" position for draining.

Rinsing Method

A. Spraying rinse (rinse in the spin tub)

- Put the laundry into the spin tub after washing.

- Turn on the water tap, choose to fill water into the spin tub for 3-4 minutes, and then turn off the water tap.

- Set the spin timer for 2-5 minutes for rinsing.

- The above steps can be repeated.

Note:

If there is red rust in water, do not choose spraying rinse, for the rust is easy to adhere to laundries. Ensure that do not fill water into spin tub when spinning.

B. Common rinse (rinse in the wash tub)

①To save time, water and energy, can do pre-spinning before rinsing.

②Put laundries which have already been dehydrated into the wash tub.

③After filling water to the desired level, turn off the water tap to save water.

④Turn the “Wash selector” knob to the "Normal" or “Heavy”.

⑤Set the “wash timer” to the desired time (about 3-5 minutes) for rinsing.

⑥After rinsing, put the washing materials into the spin tub to spin for 1 to 5 minutes.

⑦Drain out the rinsing water in the wash tub.

⑧The above steps can be repeated.

Spinning Method

1. Shake out the laundry and put them into the spin tub.

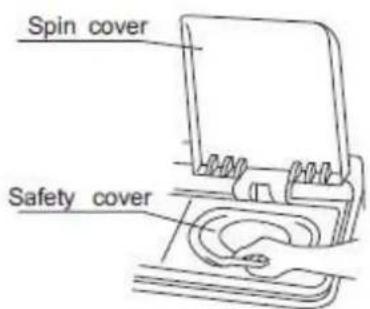

2. Put the inner spin cover on the laundry. Confirm the inner spin cover is placed horizontally.

1. Close the safety cover and the spin cover.

1. Refer to the following table to select spinning time.

Washing materials	Spin time
Silk	About 50 seconds
Light clothes (fiber/blended)	About 1 minute
Knitwear (fiber)	About 1-2 minutes
Underwear (cotton)	Aout 2-3 minutes
Slipover (cotton/linen)	About 3-4 minutes
Toweling coverlet (cotton)	About 5 minutes

Efficiency Program

Heavy” wash, 15 minutes with 40^ C warm water, spin twice, 3 minutes each; Rinse once for 5 minutes with 20^ C cold water, spin twice, 3 minutes each; Rinse once for 5 minutes with 20^ C cold water, spin twice, 4 minutes each Water level “H” used for all wash and rinse.

Special Features

A.Soak function

For seriously stained clothes, Soak wash is useful to achieve better wash result. 15-35 minutes of the wash timer is for soak wash:(illustrate as follows)

- work time

- static time

This machine can wash blended blanket (less than 3 kg) marked with the "hand washing" label. Washing method is as follows:

1. Dilute detergent with adequate water (below 50^ C), then pour the solution into the wash tube.
2. Fold the blanket as shown in the figure, and put it into the wash tub.

-> Fold in half along the long edge

-> 1/3 fold in the same direction

-> Roll up the blanket

-> Put into the tub with blanket edge facing down

B. Buzzer function

Function of the buzzer is to alarm finish of washing, and it is helpful to control wash process. Buzzer will alarm the completion of washing.

VI. CLEANING AND MAINTENANCE

Cabinet maintenance

After using the washing machine, wipe the moisture and stain on it with a piece of soft cloth. To avoid damage to the surface, do not use corrosive or volatile chemicals.

Cleaning the lint filter

• Press the button head, and pull the lint filter out.
• Turn the filter net inside out, and rinse it in water.
• After inserting the claw, press the button to insert it into place.
• A sound of "ba" means proper installation.

Anti-freezing protection

▲ To prevent from freezing:

• Turn off the water tap, remove the water inlet hose and empty water in the water inlet hose completely
• Lay the drain hose and turn the drain selector knob to the "Drain" position to empty the water in the tub.
  ▲ If the water is frozen, please take the following steps:

- Put the water inlet hose into warm water of about 50°C.

Keep about 2 liters of warm water below 50^ C in the wash tub for about 10 minutes and then lay the drain hose and turn the wash drain selector knob to the "Drain" position to empty the water.

Fit the water inlet hose and turn on the water tap to confirm water filling and draining work properly.

Operation when objects are dropped into the outside of the spin tub

①Remove all screws on the frame with a screw driver and loosen the connector of the brake belt.
②Pull up the frame with both hands and turn it backwards.
③Take out the clothes dropped into the outside of the spin tub.
④Fasten the connector of the brake belt, Press the frame to reset and tighten screws.

After you use the washing machine, never forget to do the following two things:

1. Disconnect the power plug
2. Remove the water inlet hose.

MAINTENANCE

• Do not connect to the hot water supply.
  • After using, be sure to unplug the power plug.
• Be sure to use plug that is properly grounded.

• The maximum gradient of the supporting surface for the washing machine should not exceed 2°.

- Do not tear down electrical wires and components in the machine by yourself.

- There are holes on the base for ventilation. These holes should not be blocked by foreign objects (carpets, etc.).

- Never connect the grounding wire with the live wire, or it may lead to an electric shock.

• If the power cord is damaged, it must be replaced by a qualified person to avoid a hazard.

If the following symptoms occur, please disconnect the power plug and perform the following checks:

Symptom	Reason
The washing machine does not work.	Check that the power supply is in good condition.Check that the power plug is inserted properly.Check that the wash timer knob or the spin timer knob is not in the "0" position.
The drain hose does not work.	Check that the drain hose is not laid too high.Check that the drain hose is not frozen.Check that the drain hose is not blocked by foreign matter.
There is abnormal noise during washing.	Check that the drain hose is not blocked by foreign matter.Check that there are no coins or any other foreign objects dropped into the wash tub.
There is abnormal noise and violent vibration during spinning.	Check that the washing machine is placed on flat, stable floor.Check that clothes are evenly distributed in the spin tub.Check that there are no washing materials or foaming debris dropped into the outside of the spin tub.

PRODUCT FICHE SEMI AUTOMATIC WASHING MACHINE HEINNER - HSWM-65S
Brand name		HEINNER
Category		Semi-automatic washing machine
Code		HSWM-65S
PERFORMANCE
Wash power	W	320
Spin power	W	120
Rated Power Supply	V	220
Rated Frequency	Hz	50
Water protection
FEATURES
Washing capacity	kg	6.5
Spin capacity	kg	4.6
Lint filter
Program selector		Easy/Normal/Drain
Time wash selector		1-15 min
Spin Time selector		1-5 min
Water supply hose
Wash/spin selector
Water inlet Hose
Drain hose
LOGISTIC DATA
Wash tub dimensions(about)	mm	414 x 418 x 502
Spin tub dimensions(about)	mm	248 × 387
Net Dimensions (W x D x H)	mm	761 x 448 x 885
Gross Dimensions (W x D x H)	mm	778 x 475 x 918
Net Weight	kg	19.5
Gross Weight	kg	23.5

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

This product is in conformity with norms and standards of European Community.

Importer: Network One Distribution

Marcel Iancu, 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro

HEINNER

MAŞINĂ DE SPĂLAT SEMIAUTOMATĂ Model: HSWM-65S

White and gray washing machine with dual washers and control panel (no visible text or symbols)

Simple line drawing of a container with liquid and a small object above it (no text or symbols)

Illustration of hands holding a thin plant with an exclamation mark (no text or symbols on the plant itself)

Hand holding a wall socket with a hand inserting a plug into it, no text or symbols present

Two diagrams showing a showerhead and a kitchen appliance with a cross symbol indicating no need or absence.

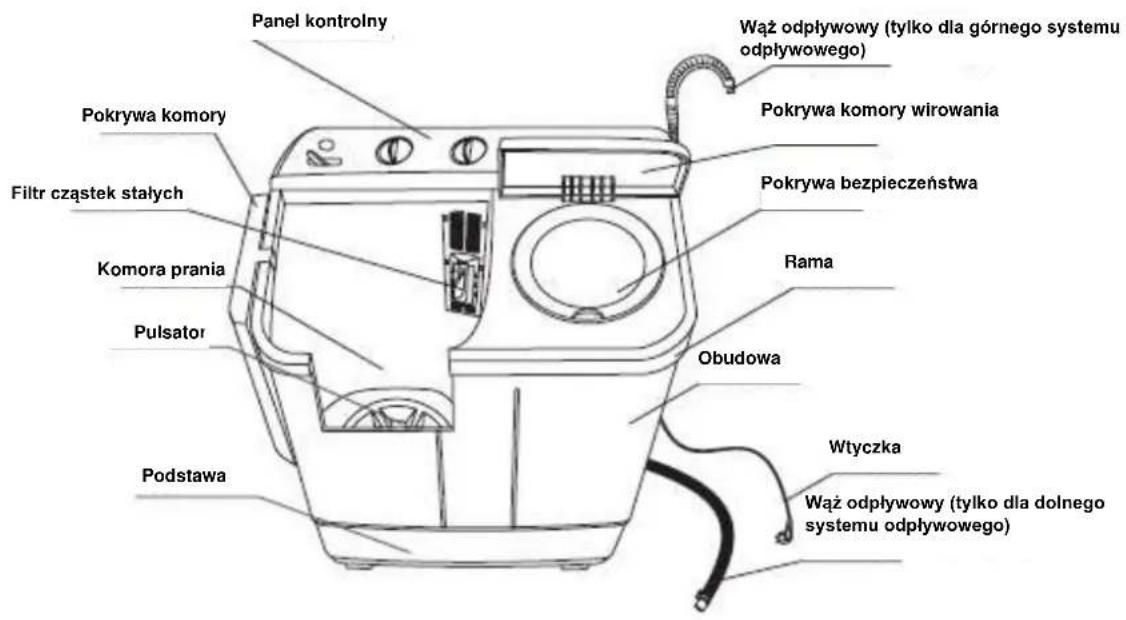

IV. DESCRIEREA PRODUSULUI

White and gray washing machine with two side compartments and control knobs (no visible text or symbols)

• Полуавтоматична перална машина
• Капацитет: 6,5 кг

Simple line drawing of a washing machine with a magnified inset showing a small object (no text or symbols)

Illustration of a hand using a power plug to clean electrical socket (no text or symbols)

Two diagrams showing household appliances: one with a shower spraying water, the other with a microwave oven (no text or symbols)

Copyright © 2013 Network One Distribution. All rights reserved.

http://www.heinner.com, http://www.nod.ro

White and gray washing machine with two side compartments and control knobs (no visible text or symbols)

Simple line drawing of a container with a handle and a small object above it (no text or symbols)

Tilos!

Simple line drawing of a washing machine with a magnified inset showing a small object (no text or symbols)

Illustration of a hand inserting a plug into an electrical outlet (no text or symbols)

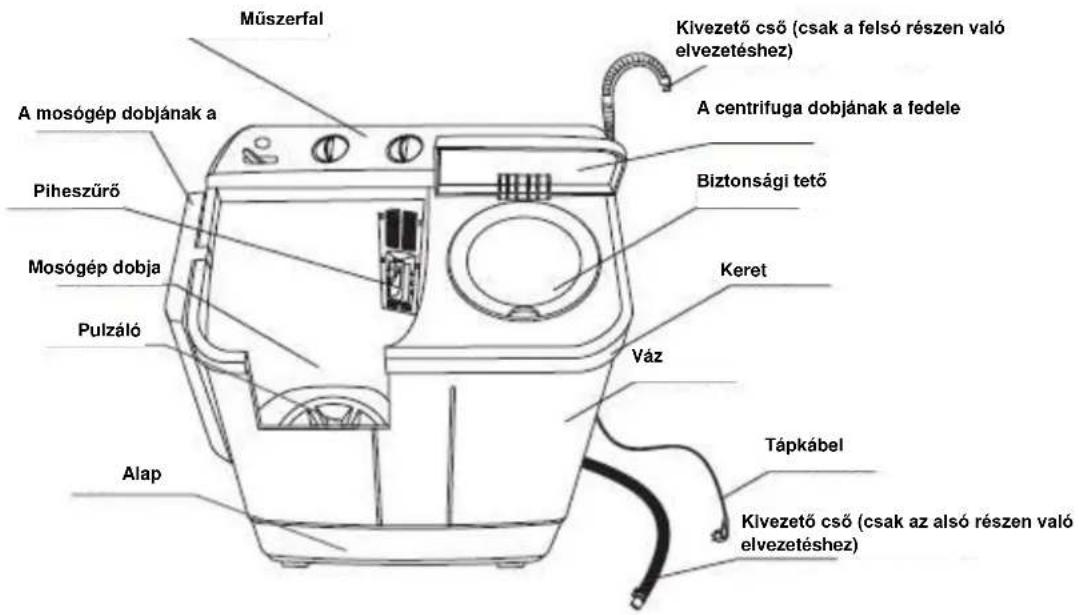

IV. A TERMÉK LEÍRÁSA

Technical line drawing of a mechanical component with no visible text or symbols

Copyright © 2013 Network One Distribution. All rights reserved. http://www.heinner.com, http://www.nod.ro

White and gray washing machine with two side compartments and control knobs (no visible text or symbols)

Zabronione

Hand holding a wall socket with a warning symbol (no text or labels)

Two diagrams showing a kitchen appliance with a showerhead and a washing machine, both marked with 'X' symbols (no text or labels present)

IV. OPIS PRODUKTU

Technical line drawing of a mechanical device with no visible text or symbols

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, www.nod.ro

Marcel Iancu Street, 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro
