PCR-50 - Hi-Fi System ROLAND - Free user manual and instructions

Product Type	USB MIDI Keyboard Controller
Model	Roland PCR-50 (49 keys with velocity)
Dimensions (W x D x H)	32-13/16 x 9-3/16 x 3-7/16 inches (834 x 232 x 86.4 mm)
Weight	3.3 kg (7 lbs 5 oz) excluding AC adapter
Power Supply	DC 9V (AC adapter) or USB bus powered
Current Draw	300 mA (AC adapter or USB bus power)
Keyboard	49 velocity-sensitive keys
Controllers	8 assignable rotary knobs (R1-R8), 8 assignable sliders (S1-S8), 6 assignable buttons (B1-B6), 3 assignable buttons (L1-L3), 2 pedal jacks (P1, P2), bender/modulation lever
Display	7-segment, 3-character LED
Connectors	MIDI IN/OUT, USB, DC IN, Hold pedal jack, Expression pedal jack
Modes	PLAY, MIDI CH, PROGRAM CHANGE, BANK, MEMORY, SNAPSHOT, PANIC, EDIT, V-LINK
MIDI Messages	Note, Aftertouch, Control Change, Program Change, RPN/NRPN, System Exclusive, Pitch Bend, Channel Pressure
Memory Sets	16 internal memories (factory presets including GM2, Cubase, Pro Tools, etc.)
Compatible OS	Windows XP/2000/Me/98, Mac OS 9/8, Mac OS X
Included Accessories	AC adapter (ACP series), CD-ROM, USB cable, Owner's manual, Template sheets (GM2/BLANK)
Safety	Use only supplied AC adapter; avoid exposure to extreme temperatures, moisture, or dust; do not disassemble
Maintenance	Clean with soft dry cloth; never use benzine, thinners, alcohol or solvents
Repairability	Refer servicing to authorized Roland/EDIROL service centers; do not attempt internal repairs

Frequently Asked Questions - PCR-50 ROLAND

How do I install the driver for the PCR-50 on Windows XP?

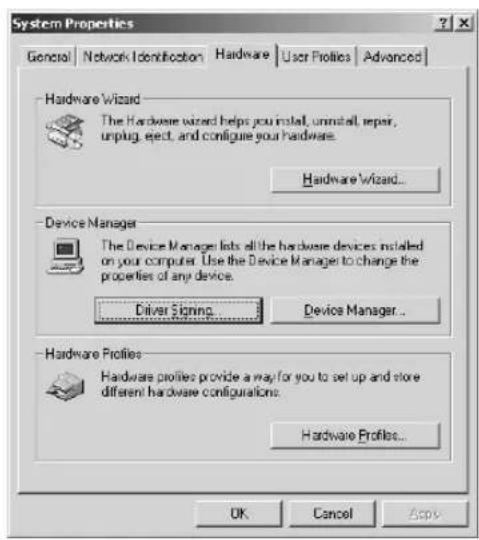

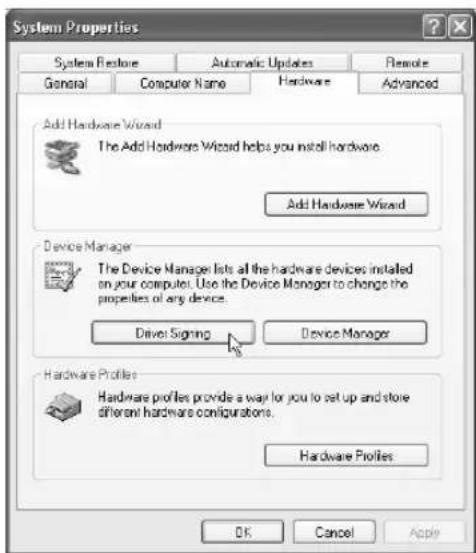

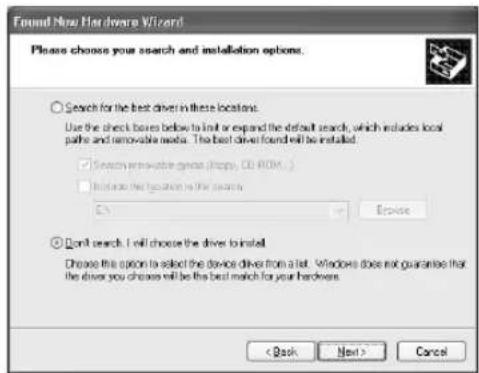

Disconnect the PCR-50, start Windows, open System Properties > Hardware > Driver Signing and set to 'Ignore'. Insert the included CD-ROM, run D:\Driver\USB_XP2K\SETUPINF.EXE, then connect the PCR-50 via USB and turn it on. Follow the Found New Hardware Wizard, selecting 'Install from a list or specific location' and pointing to the driver folder on the CD. Restart when prompted.

How do I change the MIDI transmit channel on the PCR-50?

Press the [MIDI CH] button (it will light). Use the [DEC]/[INC] buttons or the keyboard keys [0]-[F] to select the desired channel (1-16 in decimal, 0-F in hex). Press [ENTER] to confirm.

How do I send a program change message?

Press the [PROGRAM CHANGE] button (it lights). Use [DEC]/[INC] or keyboard keys to enter the program number (1-128 decimal or 00-7F hex). Press [ENTER] to transmit.

How can I assign a controller to send a specific MIDI message?

Press [EDIT] to enter Edit mode. Slightly move the controller (knob, slider, button) you want to assign. Press [ENTER], then press the key corresponding to the message type (e.g., [NOTE] for Note). Follow the display prompts to set channel, note number, velocity, etc. Finally, press [ENTER] to confirm. Remember to save the memory with [SAVE] if you want to keep the assignment.

What does the Panic function do and how do I use it?

The Panic function transmits All Sound Off, All Notes Off, and Reset All Controllers on all channels to stop stuck notes or glitches. Press [PROGRAM CHANGE] and [EDIT] simultaneously (both light), then press [ENTER] to execute.

Can I use the PCR-50 without an AC adapter?

Yes, the PCR-50 can be powered via USB bus power if your computer provides sufficient current. Set the power switch to USB position. However, some computers may not supply enough power; in that case, use the included AC adapter set to DC.

How do I recall a memory set?

Press the [MEMORY] button (lights up). Use [DEC]/[INC] or keyboard keys to select a memory number (0-F). Press [ENTER] to load that memory. Unsaved edits will be lost if you change memory without saving.

What is V-LINK mode?

V-LINK mode allows the PCR-50 to control video effects when connected to a V-LINK compatible video device. Press the [V-LINK] button to enter this mode (button lights). In V-LINK mode, the controllers send visual parameters instead of audio MIDI messages.

How do I clean the PCR-50?

Turn off the power and unplug the AC adapter. Use a soft, dry cloth for everyday cleaning. For stubborn dirt, dampen the cloth with water and a mild non-abrasive detergent, then wipe thoroughly with a dry cloth. Never use benzine, thinners, alcohol, or solvents.

What should I do if I encounter a driver installation error on Windows?

Ensure Driver Signing is set to 'Ignore' temporarily (restore after). If the device shows as unknown or with a yellow exclamation in Device Manager, delete the driver from that location and reinstall following the manual steps. For Windows Me/98, the driver installs automatically after running SETUPINF.EXE from the CD. If problems persist, refer to the Troubleshooting section in the manual (p. 170) for more guidance.

USER MANUAL PCR-50 ROLAND

Thank you for purchasing the PCR-30/50/80 USB MIDI controller.

Before using this unit, carefully read the sections entitled: "USING THE UNIT SAFELY" and "IMPORTANT NOTES" (pp. 2–4). These sections provide important information concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, Owner's manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference.

USING THE UNIT SAFELY

INSTRUCTIONS FOR THE PREVENTION OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

About ⚠️ WARNING and ⚠️ CAUTION Notices

	Used for instructions intended to alert the user to the risk of death or severe injury should the unit be used improperly.
	Used for instructions intended to alert the user to the risk of injury or material damage should the unit be used improperly.* Material damage refers to damage or other adverse effects caused with respect to the home and all its furnishings, as well to domestic animals or pets.

About the Symbols

	The △ symbol alerts the user to important instructions or warnings. The specific meaning of the symbol is determined by the design contained within the triangle. In the case of the symbol at left, it is used for general cautions, warnings, or alerts to danger.
	The Ⓧ symbol alerts the user to items that must never be carried out (are forbidden). The specific thing that must not be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the unit must never be disassembled.
	The ● symbol alerts the user to things that must be carried out. The specific thing that must be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the power-cord plug must be unplugged from the outlet.

ALWAYS OBSERVE THE FOLLOWING

WARNING

- Before using this unit, make sure to read the instructions below, and the Owner's Manual.

- Do not open (or modify in any way) the unit or its AC adaptor.

- Do not attempt to repair the unit, or replace parts within it (except when this manual provides specific instructions directing you to do so). Refer all servicing to your retailer, the nearest EDIROL/Roland Service Center, or an authorized EDIROL/Roland distributor, as listed on the "Information" page.

- Never use or store the unit in places that are:

- Subject to temperature extremes (e.g., direct sunlight in an enclosed vehicle, near a heating duct, on top of heat-generating equipment); or are

- Damp (e.g., baths, washrooms, on wet floors); or are

- Humid; or are

- Exposed to rain; or are

- Dusty; or are

- Subject to high levels of vibration.

• Make sure you always have the unit placed so it is level and sure to remain stable. Never place it on stands that could wobble, or on inclined surfaces.

WARNING

- Be sure to use only the AC adaptor supplied with the unit. Also, make sure the line voltage at the installation matches the input voltage specified on the AC adaptor's body. Other AC adaptors may use a different polarity, or be designed for a different voltage, so their use could result in damage, malfunction, or electric shock.

- Do not excessively twist or bend the power cord, nor place heavy objects on it. Doing so can damage the cord, producing severed elements and short circuits. Damaged cords are fire and shock hazards!

- Do not allow any objects (e.g., flammable material, coins, pins); or liquids of any kind (water, soft drinks, etc.) to penetrate the unit.

- Immediately turn the power off, remove the AC adaptor from the outlet, and request servicing by your retailer, the nearest EDIROL/Roland Service Center, or an authorized EDIROL/Roland distributor, as listed on the "Information" page when:

- The AC adaptor or the power-supply cord has been damaged; or

• If smoke or unusual odor occurs

- Objects have fallen into, or liquid has been spilled onto the unit; or

- The unit has been exposed to rain (or otherwise has become wet); or

- The unit does not appear to operate normally or exhibits a marked change in performance.

WARNING

- In households with small children, an adult should provide supervision until the child is capable of following all the rules essential for the safe operation of the unit.

- Protect the unit from strong impact. (Do not drop it!)

- Do not force the unit's power-supply cord to share an outlet with an unreasonable number of other devices. Be especially careful when using extension cords—the total power used by all devices you have connected to the extension cord's outlet must never exceed the power rating (watts/amperes) for the extension cord. Excessive loads can cause the insulation on the cord to heat up and eventually melt through.

- Before using the unit in a foreign country, consult with your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" page.

- DO NOT play a CD-ROM disc on a conventional audio CD player. The resulting sound may be of a level that could cause permanent hearing loss. Damage to speakers or other system components may result.

CAUTION

- The unit and the AC adaptor should be located so their location or position does not interfere with their proper ventilation.

• Always grasp only the output plug or the body of the AC adaptor when plugging into, or unplugging from, this unit or an outlet.

- At regular intervals, you should unplug the AC adaptor and clean it by using a dry cloth to wipe all dust and other accumulations away from its prongs. Also, disconnect the power plug from the power outlet whenever the unit isto remain unused for an extended period of time. Any accumulation of dust between the power plug and the power outlet can result in poor insulation and lead to fire.

- Try to prevent cords and cables from becoming entangled. Also, all cords and cables should be placed so they are out of the reach of children.

- Never climb on top of, nor place heavy objects on the unit.

- Never handle the AC adaptor body, or its output plugs, with wet hands when plugging into, or unplugging from, an outlet or this unit.

- Before moving the unit, disconnect the AC adaptor and all cords coming from external devices.

- Before cleaning the unit, turn off the power and unplug the AC adaptor from the outlet.

- Whenever you suspect the possibility of lightning in your area, disconnect the AC adaptor from the outlet.

IMPORTANT NOTES

In addition to the items listed under “USING THE UNIT SAFELY” on page 2 -3, please read and observe the following:

Power Supply

• Do not use this unit on the same power circuit with any device that will generate line noise (such as an electric motor or variable lighting system).
• The AC adaptor will begin to generate heat after long hours of consecutive use. This is normal, and is not a cause for concern.
• Before connecting this unit to other devices, turn off the power to all units. This will help prevent malfunctions and/or damage to speakers or other devices.

Placement

• This device may interfere with radio and television reception. Do not use this device in the vicinity of such receivers.
• Noise may be produced if wireless communications devices, such as cell phones, are operated in the vicinity of this unit. Such noise could occur when receiving or initiating a call, or while conversing. Should you experience such problems, you should relocate such wireless devices so they are at a greater distance from this unit, or switch them off.
• Do not expose the unit to direct sunlight, place it near devices that radiate heat, leave it inside an enclosed vehicle, or otherwise subject it to temperature extremes. Excessive heat can deform or discolor the unit.
• When moved from one location to another where the temperature and/or humidity is very different, water droplets (condensation) may form inside the unit. Damage or malfunction may result if you attempt to use the unit in this condition. Therefore, before using the unit, you must allow it to stand for several hours, until the condensation has completely evaporated.
• Do not allow objects to remain on top of the keyboard. This can be the cause of malfunction, such as keys ceasing to produce sound.

Handling CD-ROMs

- Avoid touching or scratching the shiny underside (encoded surface) of the disc. Damaged or dirty CD-ROM discs may not be read properly. Keep your discs clean using a commercially available CD cleaner.

Maintenance

• For everyday cleaning wipe the unit with a soft, dry cloth or one that has been slightly dampened with water. To remove stubborn dirt, use a cloth impregnated with a mild, non-abrasive detergent. Afterwards, be sure to wipe the unit thoroughly with a soft, dry cloth.
• Never use benzine, thinners, alcohol or solvents of any kind, to avoid the possibility of discoloration and/or deformation.

Additional Precautions

• Please be aware that the contents of memory can be irretrievably lost as a result of a malfunction, or the improper operation of the unit. To protect yourself against the risk of loosing important data, we recommend that you periodically save a backup copy of important data you have stored in the unit's memory in another MIDI device (e.g., a sequencer).
• Unfortunately, it may be impossible to restore the contents of data that was stored in another MIDI device (e.g., a sequencer) once it has been lost. Roland Corporation assumes no liability concerning such loss of data.

- Use a reasonable amount of care when using the unit's buttons, sliders, or other controls; and when using its jacks and connectors. Rough handling can lead to malfunctions.

- When connecting / disconnecting all cables, grasp the connector itself—never pull on the cable. This way you will avoid causing shorts, or damage to the cable's internal elements.

- To avoid disturbing your neighbors, try to keep the unit's volume at reasonable levels (especially when it is late at night).

- When you need to transport the unit, package it in the box (including padding) that it came in, if possible. Otherwise, you will need to use equivalent packaging materials.

- Use only the specified expression pedal (EV-5; sold separately). By connecting any other expression pedals, you risk causing malfunction and/or damage to the unit.

Contents

Contents of the package....9

Names of things and what they do....10

Setup 13

English

Installing & Setting Up the Driver (Windows) 14

Driver Installation....14

Windows XP users....14

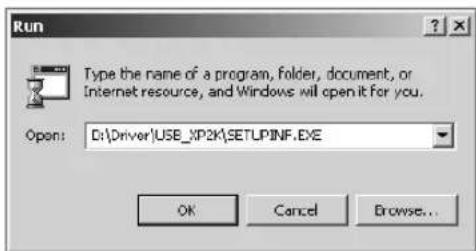

Windows 2000 users....18

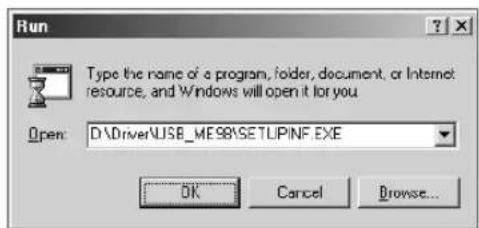

Windows Me/98 users....21

Settings 23

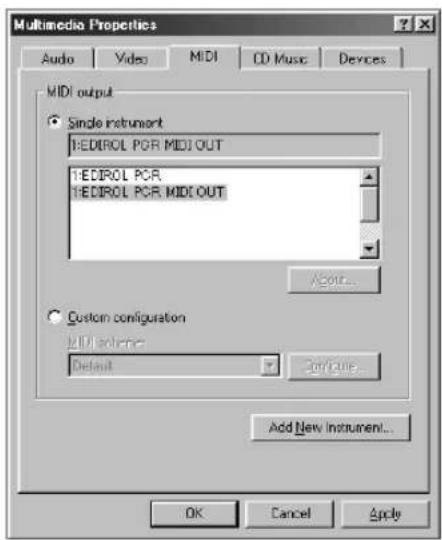

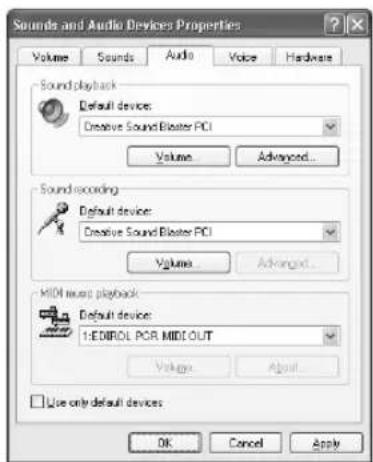

MIDI input and output destinations....23

Installing & Setting Up the Driver (Macintosh) 25

Mac OS 9/8 users....25

Installing the driver 25

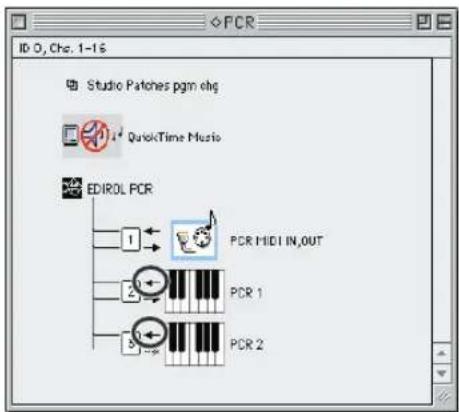

Setting the driver....26

FreeMIDI settings....29

Mac OS X Users 31

Installing the driver 31

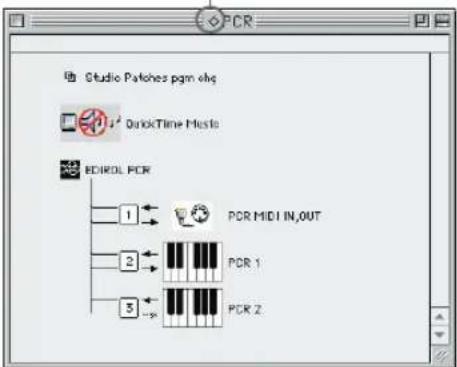

Setting the driver....32

Deutsch

Treiberinstallation....33

Windows XP-Anwender....33

Windows 2000-Anwender....38

Windows Me/98-Anwender....42

Einstellungen....44

Connection and MIDI data flow....114

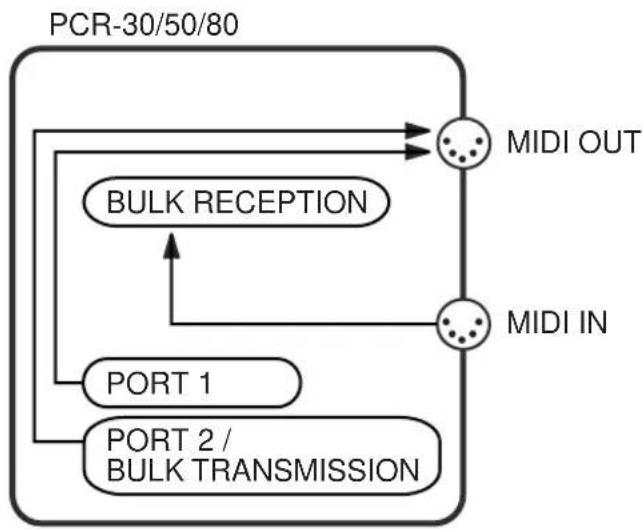

When using MIDI connections....114

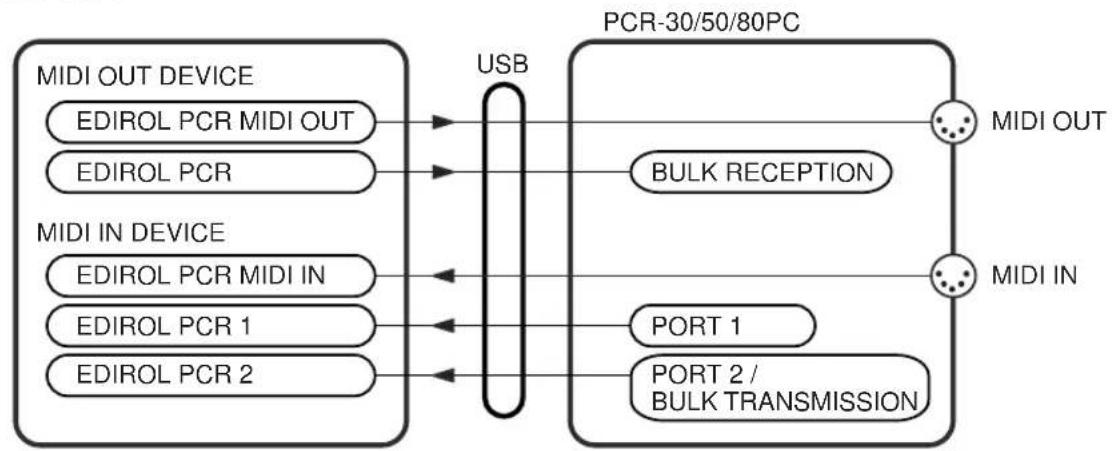

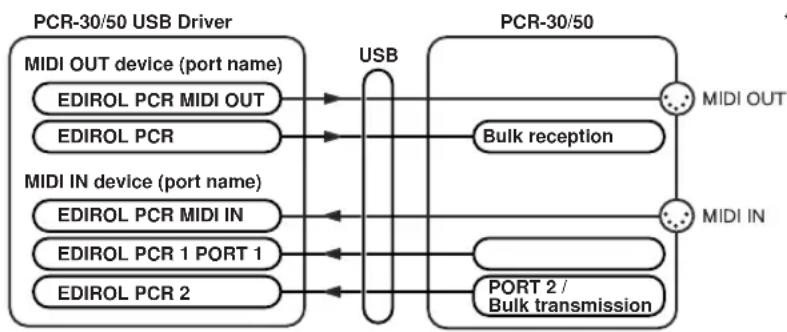

When using a USB connection....115

Basic operation....116

How to switch modes....116

PLAY mode....117

Controllers you can operate ....117

MIDI Channel mode (MIDI CH)....118

Program Change mode (PROGRAM CHANGE)....119

Bank mode (BANK)....120

Memory mode (MEMORY)....121

Snapshot mode (SNAPSHOT) 122

Panic mode (PANIC)....123

Edit mode (EDIT)......125

Controller settings....126

NOTE ASSIGN....127

AFTERTOUCH ASSIGN....129

CONTROL CHANGE ASSIGN ....132

PROGRAM CHANGE ASSIGN 135

RPN/NRPN ASSIGN....138

SYS EX. ASSIGN 140

TEMPO ASSIGN....146

NO ASSIGN....146

ASSIGN COPY 147

SAVE....148

OMNI....149

PROTECT 150

BULK....151

Receive mode....151

Transmit mode 153

SYSTEM....154

Setting method A ....155

Setting method B....155

Setting method C....155

Setting method D 156

Setting method E....156

Setting method F....156

Appendices ......157

Convenient functions....158

Setting the input mode....158

Specifying the button mode ....158

Specifying the port....159

Sys Ex. ASSIGN items 160

Specifying the checksum....160

Specifying the location of the data ....161

Inputting channel/block data....162

V-LINK mode 163

Memory sets 164

GM2 set (MEMORY: 0)....164

MCR-8 MODE 3(SONAR 2) SET 165

MCR-8 MODE 4(Cubase 5/SX) SET 166

H-COMPATIBLE (ProTools LE, Digital Performer) SET (MEMORY: 9)......167

GS SET 167

XG SET....169

Troubleshooting....170

Problems related to the USB driver....170

Deleting the driver....173

MIDI implementation ....174

Main specifications ....179

INDEX 180

* Microsoft and Windows are registered trademarks of Microsoft Corporation.
* Windows® is known officially as: "Microsoft® Windows® operating system".
* Screen shots in this documents are reprinted with permission from Microsoft Corporation.
* Apple and Macintosh are registered trademark of Apple Computer, Inc.
* MacOS is a trademark of Apple Computer, Inc.
* All product names mentioned in this document are trademarks or registered trademarks of their respective owners.
* OMS is a registered trademark of Opcode Systems, Inc.
* FreeMIDI is a trademark of Mark of the Unicorn, Inc.

Contents of the package

The PCR-30/50/80 includes the following items. When you open the package, first make sure that all items are included. If any are missing, contact the dealer where you purchased the PCR-30/50/80.

• MIDI Keyboard Controller

PCR-30/50/80

*This figure is the PCR-30.

- AC adaptor

This is the only AC adaptor you should use with the PCR-30/50/80. Do not use any AC adaptor other than the supplied one, since doing so may cause malfunction.

- USB cable

Use this to connect the USB connector of your computer with the USB connector of the PCR-30/50/80. For details on connections and driver installation, refer to Setup (p. 13).

* Please use only the included USB cable. If you require a replacement due to loss or damage, please contact a "EDIROL/Roland Service Center" listed in the "Information" section at the end of this manual.

- CD-ROM

This contains drivers and editors for use with the PCR-30/50/80.

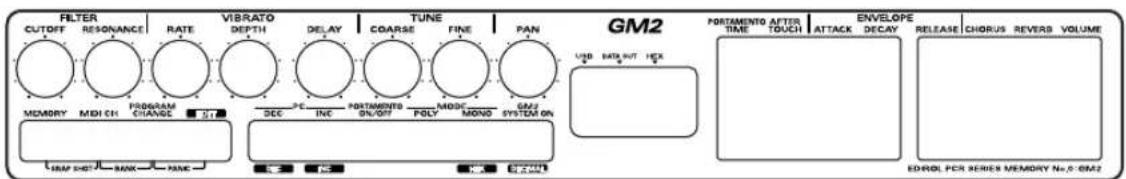

- Template sheets (two sheets)

One of these templates lists the messages that are assigned to the knobs and sliders (controllers) by GM2 memory (memory no. 0). A blank sheet is also included for you to make a note of your own controller settings.

- Owner's Manual

This is the manual you are reading. Please keep it on hand for reference.

Names of things and what they do

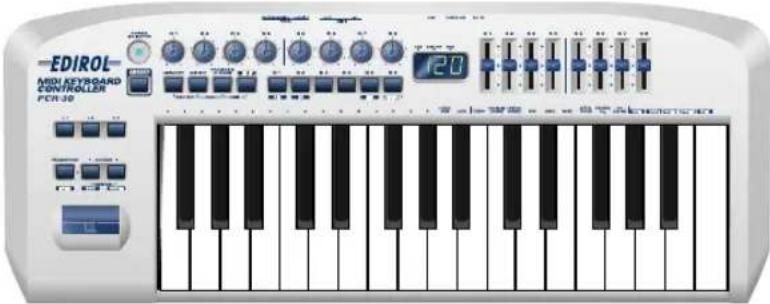

Panel

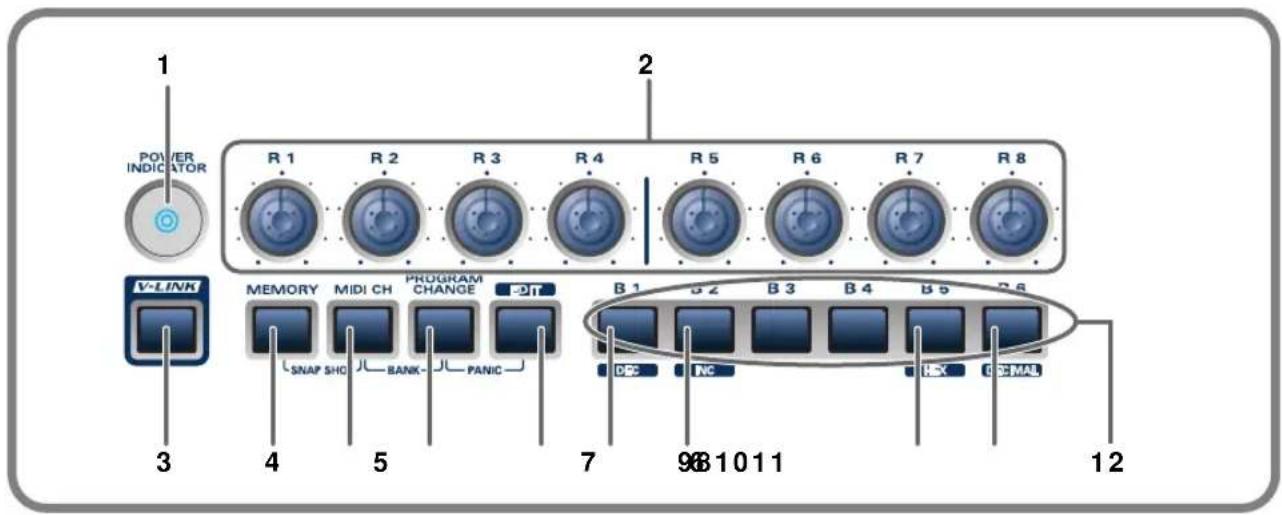

1. Power Indicator

Lights when the power is on.

1. Controllers [R1]–[R8]

You can assign MIDI messages to these controllers.

1. V-LINK Button

Press the V-LINK button to enter V-LINK mode (p. 163). When V-LINK mode is on, the V-LINK button will light.

V-LINK

V-LINK ( ) V-LINK that lets you play music and images. By using this with a V-LINK compatible video device, you can enjoy various video effects that are linked to your performance.

1. MEMORY Button

Accesses memories that are stored within the PCR-30/50/80.

1. MIDI CH Button

Specifies the transmission channel ("current channel") for the keyboard and bender.

1. PROGRAM CHANGE Button

Transmits program change messages on the current channel.

1. EDIT Button

Used to assign MIDI messages to the controllers.

1. DEC Button

Decreases the value of a setting by one (except in PLAY mode (p. 116)).

1. INC Button

Increases the value of a setting by one (except in PLAY mode (p. 116)).

1. HEX Button

When not in PLAY mode, sets the input mode to hexadecimal (HEX input mode).

11. DECIMAL Button

When not in PLAY mode, sets the input mode to decimal (DECIMAL input mode).

12. Controllers [B1]–[B6]

You can assign MIDI messages to these controllers.

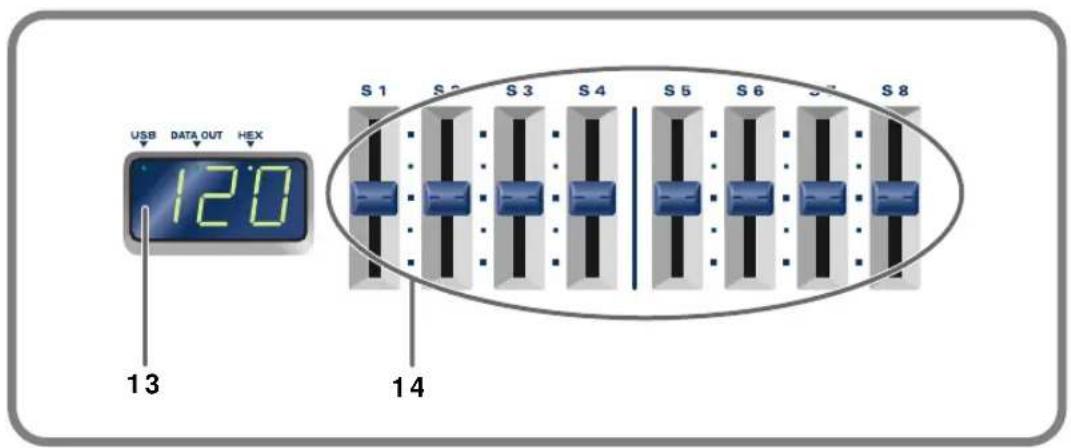

13. Display

Indicates the current status and various other information.

USB Lights if the PCR-30/50/80 is connected to your computer via USB.

DATA OUT This will blink when MIDI messages are transmitted via USB or MIDI OUT.

HEX Lights when the value shown in the display is hexadecimal.

14. Controllers [S1]–[S8]

You can assign MIDI messages to these controllers.

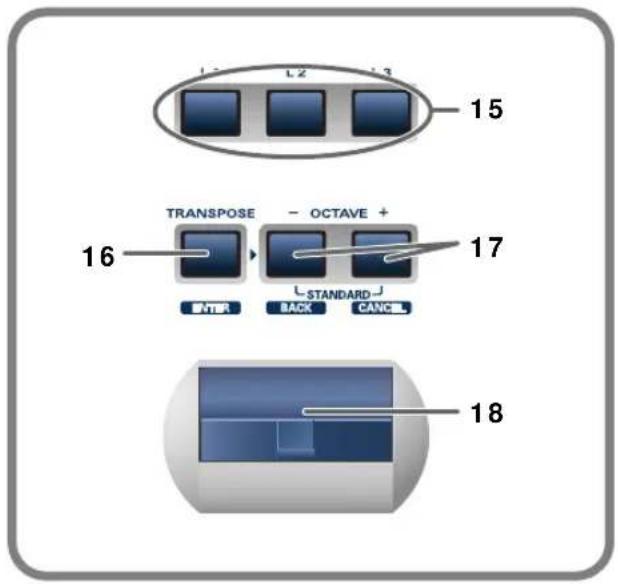

15. Controllers [L1]–[L3]

You can assign MIDI messages to these controllers.

16. TRANSPOSE/ENTER Button

Use [TRANSPOSE] + [OCTAVE -/+ ] to transpose the pitch of the keyboard in semitone steps. Also, in any mode except PLAY mode, it functions as the [ENTER] button, which you need to press to confirm the settings you've made.

17.OCTAVE -/+

Press [OCTAVE -/+] to shift the pitch of the keyboard up or down in steps of an octave. When not in PLAY mode, use these buttons to return to the previous setting item (the [BACK] button) or to cancel the setting and return to PLAY mode (the [CANCEL] button).

18. BENDER Lever

This lever can be used to modify the pitch or apply vibrato.

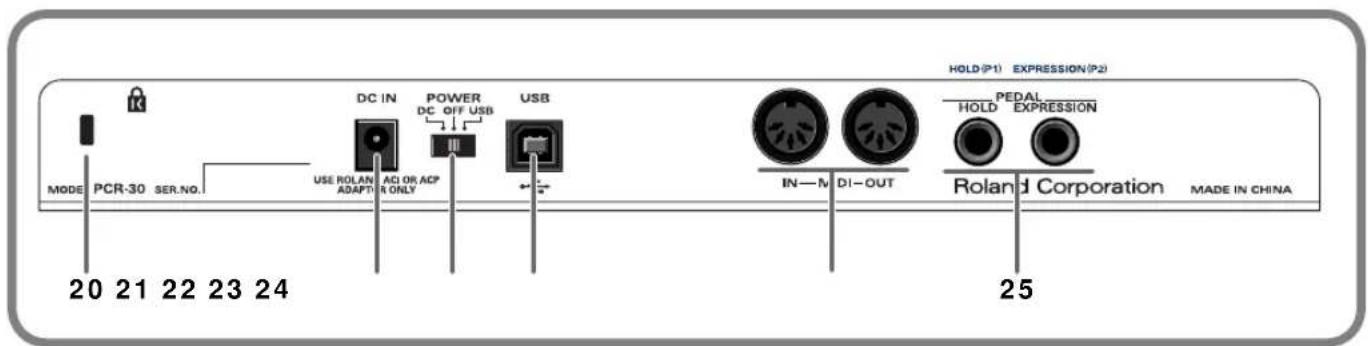

Rear Panel

20. Security Slot (KPCR-30/50]

A commercially available security lock can be attached here.

http://www.kensington.com/

21. AC adaptor jack

Connect the include AC adaptor to this jack. Insert the plug firmly so it won't get unplugged accidentally.

22. Power switch

DC Power on using the AC adaptor

OFF Power is off

USB *1 Power on using a USB cable (when not using the AC adaptor)

\*1 Bus power (USB)

BUS power can be used when the PCR-30/50/80 is connected to your computer via a USB cable. In this case, the power will be supplied from your computer via the USB cable. To use the PCR-30/50/80 with bus power, set the power switch to USB.

* For some computers, the PCR-30/50/80 may not operate if bus power is used. In this case, use the included AC adaptor.

23. USB connector

Use this when connecting the PCR-30/50/80 to your computer via a USB cable.

24. MIDI IN/OUT connectors

These can be connected to the MIDI connectors of other MIDI devices to transmit and receive MIDI messages.

25. Controller [P1] and [P2]

You can connect the appropriate type of pedals to these jacks and use them as controllers.

HOLD Connect a pedal switch to this jack and use it as a Hold pedal.
EXPRESSION	Connect an expression pedal to this jack and use it to control tone or volume in real time.

You can also assign MIDI messages to these controllers as desired.

Setup

This section explains how to install the drivers needed for connecting the PCR-30/50/80 to a computer, and make the necessary settings.

English

Installing & Setting Up the Driver (Windows) ...... (p. 14)

Installing & Setting Up the Driver (Macintosh) ...... (p. 25)

Deutsch

A “driver” is software that transfers data between the PCR-30/50/80 and application software running on your computer, when your computer and the PCR-30/50/80 are connected by a USB cable. The driver sends data from your application to the PCR-30/50/80, and from the PCR-30/50/80 to your application.

Installing & Setting Up the Driver (Windows)

Driver Installation

The installation procedure will differ depending on your system.

Please proceed to one of the following sections, depending on the system you use.

• Windows XP users ......(p. 14)
• Windows 2000 users ......(p. 18)
• Windows Me/98 users ...... (p. 21)

■ Windows XP users

1

With the PCR-30/50/80 disconnected, start up Windows.

Disconnect all USB cables except for a USB keyboard and USB mouse (if used).

2

Open the System Properties dialog box.

1. Click the Windows Start menu, and from the menu, select Control Panel.
2. In "Pick a category", click "Performance and Maintenance".
3. In "or pick a Control Panel icon", click the System icon.

3

Click the Hardware tab, and then click [Driver Signing].

Open the Driver Signing Options dialog box.

4

Make sure that "What action do you want Windows to take?"

is set to "Ignore".

If it is set to "Ignore", simply click [OK].

If it is not set to "Ignore", make a note of the current setting ("Warn" or "Block"). Then change the setting to "Ignore" and click [OK].

If you are using Windows XP Professional, you must log on using a user name with an administrative account type (e.g., Administrator). For details on user accounts, please consult the system administrator of your computer.

Depending on how your system is set up, the System icon may be displayed directly in the Control Panel (the Classic display). In this case, double-click the System icon.

If you changed "What action do you want Windows to take?" in step 4, you must restore the previous setting after you have installed the driver.

5

Click [OK] to close the System Properties dialog box.

6

Exit all currently running software (applications).

Also close any open windows. If you are using virus checking or similar software, be sure to exit it as well.

7

Prepare the CD-ROM.

Insert the CD-ROM into the CD-ROM drive of your computer.

8

Click the Windows start button. From the menu that appears, select "Run...".

Open the "Run..." dialog box.

9

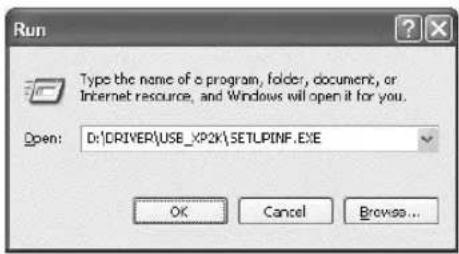

In the dialog box that appears, input the following into the "Open" field, and click [OK].

D:\Driver\USB\_XP2K\SETUPINF.EXE

* The drive name "D:" may be different for your system. Specify the drive name of your CD-ROM drive.

10

The SetupInf dialog box will appear.

You are now ready to install the driver.

11

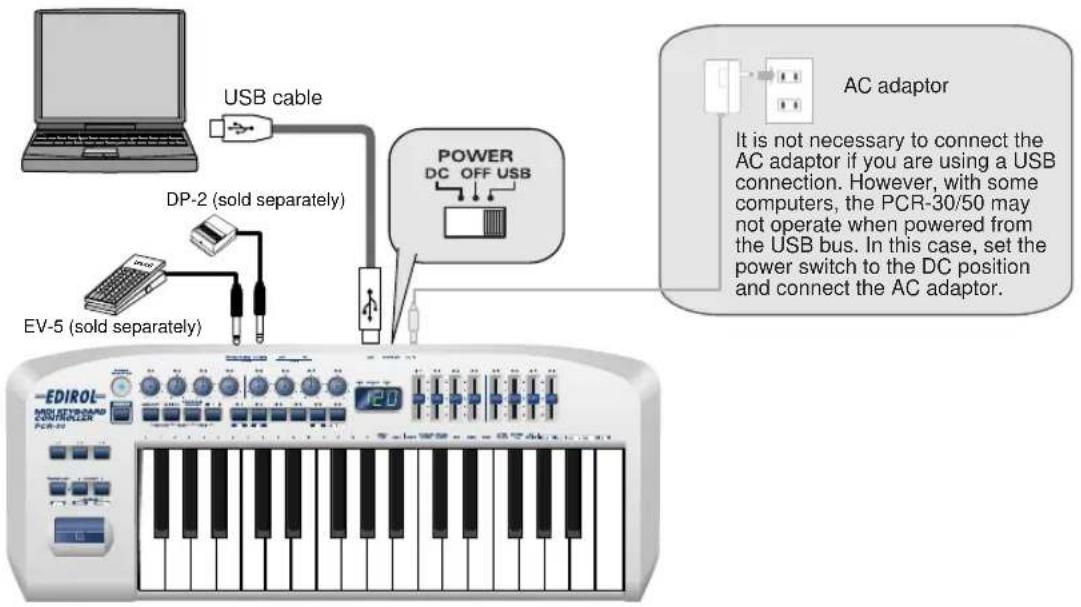

Use the USB cable to connect the PCR-30/50/80 to your computer.

1. With the power switch turned OFF, connect the AC adaptor to the PCR-30/50/80.

2. Connect the AC adaptor to an electrical outlet.

3. Use the USB cable to connect the PCR-30/50/80 to your computer.

12

Set the PCR-30/50/80's power switch to the ON position.

Near the task bar, your computer will indicate "Found New Hardware". Please wait.

MEMO

Once the connections have been completed, turn on power to your various devices in the order specified. By turning on devices in the wrong order, you risk causing malfunction and/or damage to speakers and other devices.

MEMO

This unit is equipped with a protection circuit. A brief interval (a few seconds) after power up is required before the unit will operate normally.

13

The Found New Hardware Wizard will appear.

Make sure that the screen indicates "EDIROL PCR", select "Install from a list or specific location (Advanced)", and click [Next].

14

The screen will indicate "Please choose your search and installation options".

Select "Don't search. I will choose the driver to install", and click [Next].

15

Make sure that the "Model" field indicates "EDIROL PCR", and click [Next]. Driver installation will begin.

If the "What action do you want Windows to take?" setting was not set to "Ignore", a "Hardware Installation" dialog box will appear.

If "What action do you want Windows to take?" is set to "Warn"

1. Click [Continue Anyway].
2. Continue the installation.

If "What action do you want Windows to take?" is set to "Block"

1. Click [OK].
2. When the "Found New Hardware Wizard" appears, click [Finish].
3. Perform the installation as described in the "Troubleshooting" section on Device Manager shows "?", "!", or "USB Composite Device" (p. 172).

16

The Insert Disk dialog box will appear.

Click [OK].

17

The Files Needed dialog box will appear.

Input the following into the "Copy files from" field, and click [OK].

D:\Driver\USB_XP2K

* The drive name "D:" may be different for your system. Specify the drive name of your CD-ROM drive.

MEMO

The Insert Disk dialog may not appear. In that case, proceed to step 17.

18

The Found New Hardware Wizard will appear.

Make sure that the display indicates "EDIROL PCR", and click [Finish].

Wait until "Found New Hardware" appears near the taskbar.

19

When driver installation has been completed, the System Setting Change dialog box will appear.

Click [Yes]. Windows will restart automatically.

If you changed "What action do you want Windows to take?"

If you changed the What action do you want Windows to take? setting, restore the original setting after Windows restarts.

1. If you are using Windows XP Professional, log on to Windows using the user name of an administrative account (e.g., Administrator).
2. Click the Windows start menu, and from the menu, select Control Panel.
3. In "Pick a category", click "Performance and Maintenance".
4. In "or pick a Control Panel icon", click the System icon. The System Properties dialog box will appear.

* Depending on how your system is set up, the System icon may be displayed directly in the Control Panel (the Classic display). In this case, double-click the System icon.

1. Click the Hardware tab, and then click [Driver Signing]. The Driver Signing Options dialog box will appear.

2. Return the What action do you want Windows to take? setting to the original setting (either "Warn" or "Block"), and click [OK].

3. Click [OK]. The System properties dialog box will close.

Next, you need to make the driver settings.

(→ MIDI input and output destinations (p. 23))

■ Windows 2000 users

1

With the PCR-30/50/80 disconnected, start up Windows.

Disconnect all USB cables except for a USB keyboard and USB mouse (if used).

2

Log on to Windows as a user with administrative privileges (such as Administrator).

3

Open the System Properties dialog box.

Click the Windows Start button, and from the menu that appears, select Settings | Control Panel. In Control Panel, double-click the System icon.

4

Click the Hardware tab, and then click [Driver Signing].

Open the Driver Signing Options dialog box.

5

Make sure that "File signature verification" is set to "Ignore".

If it is set to "Ignore", simply click [OK].

If it is not set to "Ignore", make a note of the current setting ("Warn" or "Block"). Then change the setting to "Ignore" and click [OK].

6

Close the System Properties dialog box.

Click [OK].

7

Exit all currently running software (applications).

Also close any open windows. If you are using virus checking or similar software, be sure to exit it as well.

8

Prepare the CD-ROM.

Insert the CD-ROM into the CD-ROM drive of your computer.

If you changed the "File signature verification" setting in step 5, you must restore the previous setting after you have installed the driver.

9

Click the Windows Start button. From the menu that appears, select "Run...".

Open the "Run..." dialog box.

10

In the dialog box that appears, input the following into the "Open" field, and click [OK].

D:\Driver\USB\_XP2K\SETUPINF.EXE

* The drive name "D:" may be different for your system. Specify the drive name of your CD-ROM drive.

11

The SetupInf dialog box will appear.

You are now ready to install the driver.

12

Use the USB cable to connect the PCR-30/50/80 to your computer.

1. With the power switch turned OFF, connect the AC adaptor to the PCR-30/50/80.
2. Connect the AC adaptor to an electrical outlet.
3. Use the USB cable to connect the PCR-30/50/80 to your computer.

13

Set the PCR-30/50/80's power switch to the ON position.

MEMO

Once the connections have been completed, turn on power to your various devices in the order specified. By turning on devices in the wrong order, you risk causing malfunction and/or damage to speakers and other devices.

MEMO

This unit is equipped with a protection circuit. A brief interval (a few seconds) after power up is required before the unit will operate normally.

If the "File signature verification" setting was not set to "Ignore", a "Digital Signature Not Found" dialog box will appear.

If "File signature verification" is set to "Warn"

1. Click [Yes].
2. Continue the installation.

If "File signature verification" is set to "Block"

1. Click [OK].
2. When the "Found New Hardware Wizard" appears, click [Finish].
3. Perform the installation as described in the "Troubleshooting" section on Device Manager shows "?", "!", or "USB Composite Device" (p. 172).

14

The Insert Disk dialog box will appear.

Click [OK].

15

The Files Needed dialog box will appear.

Input the following into the "Copy files from" field, and click [OK].

D:\Drivers\USB_XP2K

* The drive name "D:" may be different for your system. Specify the drive name of your CD-ROM drive.

16

The "Found New Hardware Wizard" may be displayed.

Verify that "EDIROL PCR" is displayed, and click [Finish].

17

The System Settings Change dialog box may appear.

Click [Yes]. Windows will restart automatically.

NOTE

If the Insert Disk dialog box does not appear, please read The "Insert Disk" dialog box does not appear (p. 171).

If you changed "File signature verification"

If you changed the "File signature verification" setting, restore the original setting after Windows restarts.

1. After Windows restarts, log in to Windows as a user with administrative privileges, (such as Administrator).
2. In the Windows desktop, right-click the My Computer icon, and from the menu that appears, select Properties. The System Properties dialog box will appear.
3. Click the Hardware tab, and then click [Driver signature]. The Driver Signing Options dialog box will appear.
4. Return the "File signature verification" setting to the original setting (either "Warn" or "Block"), and click [OK].
5. Click [OK]. The System properties dialog box will close.

Next, you need to make the driver settings.

(→ MIDI input and output destinations (p. 23))

■ Windows Me/98 users

1

With the PCR-30/50/80 disconnected, start up Windows.

Disconnect all USB cables except for a USB keyboard and USB mouse (if used).

2

Exit all currently running software (applications).

Also close any open windows. If you are using virus checking or similar software, be sure to exit it as well.

3

Prepare the CD-ROM.

Insert the CD-ROM into the CD-ROM drive of your computer.

4

Click the Windows Start button. From the menu that appears, select "Run...".

Open the "Run..." dialog box.

5

In the dialog box that appears, input the following into the "Open" field, and click [OK].

D:\Driver\USB\_ME98\SETUPINF.EXE

* The drive name "D:" may be different for your system. Specify the drive name of your CD-ROM drive.

6

The SetupInf dialog box will appear.

You are now ready to install the driver.

7

Use the USB cable to connect the PCR-30/50/80 to your computer.

1. With the power switch turned OFF, connect the AC adaptor to the PCR-30/50/80.

2. Connect the AC adaptor to an electrical outlet.

3. Use the USB cable to connect the PCR-30/50/80 to your computer.

8

Set the PCR-30/50/80's power switch to the ON position.

NOTE

Once the connections have been completed, turn on power to your various devices in the order specified. By turning on devices in the wrong order, you risk causing malfunction and/or damage to speakers and other devices.

MEMO

This unit is equipped with a protection circuit. A brief interval (a few seconds) after power up is required before the unit will operate normally.

9

The driver will be installed automatically.

10

In the dialog box, click [OK].

* If a message recommends that you restart Windows, restart Windows as directed.

Next, you need to make the driver settings.

(→ MIDI input and output destinations (p. 23))

Settings

■ MIDI input and output destinations

Windows XP/2000/Me users

1

Open Control Panel.

Click the Windows Start button, and from the menu that appears, select Settings | Control Panel.

Windows XP

Click the Windows start button, and from the menu that appears, select Control Panel.

2

Open the Sounds and Audio Devices Properties dialog box (or in Windows 2000/Me, Sounds and Multimedia Properties).

Windows XP

In "Pick a category", click "Sound, Speech, and Audio Devices". Next, in "or pick a Control Panel icon", click the sounds and Audio Devices icon.

Windows 2000/Me

In Control Panel, double-click the Sounds and Multimedia icon to open the "Sounds and Multimedia Properties" dialog box.

3

Click the Audio tab.

4

For MIDI music playback, click the ▼ located at the right of [Default device] (or in Windows 2000/Me, [Preferred device]), and select the MIDI device from the list that appears.

If you want to use Media Player to play a sound module connected to the PCR's MIDI OUT connector, select EDIROL PCR MIDI OUT.

5

Close the Sounds and Audio Devices Properties dialog box. Click OK to complete the settings.

Depending on how your system is set up, the Sounds and Audio Devices icon may be displayed directly in the Control Panel (the Classic display). In this case, double-click the Sounds and Audio Devices icon.

Select the appropriate MIDI device for your system. You do not necessarily have to select EDIROL PCR MIDI OUT.

For details on port, refer to . "About the ports when using a USB connection" (p. 159).

6

Make MIDI device settings on your sequencer software. For details on the MIDI OUT/IN device to select, refer to About the ports when using a USB connection (p. 159).

This completes driver settings.

Windows 98 users

1

Open Control Panel.

Click the Windows Start button, and from the menu that appears, select Settings | Control Panel.

2

Open the Multimedia Properties dialog box.

In Control Panel, double-click the Multimedia icon to open the "Multimedia Properties" dialog box.

3

Click the MIDI tab.

4

Set "MIDI output".

Select [Single instrument], and select the MIDI device from the list that appears.

If you want to use Media Player to play a sound module connected to the PCR's MIDI OUT connector, select EDIROL PCR MIDI OUT.

5

Close the Multimedia Properties dialog box.

Click OK to complete the settings.

6

Make MIDI device settings on your sequencer software. For details on the MIDI OUT/IN device to select, refer to “About the ports when using a USB connection” (p. 159).

This completes driver settings.

MEMO

For details on MIDI device settings, refer to the owner's manual for the software you are using.

MEMO

Select the appropriate MIDI device for your system. You do not necessarily have to select EDIROL PCR MIDI OUT.

MEMO

For details on port, refer to "About the ports when using a USB connection" (p. 159).

MEMO

For details on MIDI device settings, refer to the owner's manual for the software you are using.

Installing & Setting Up the Driver (Macintosh)

The installation procedure will differ depending on your system.

Please proceed to one of the following sections, depending on the system you use.

• Mac OS 9/8 users .....(p. 25)
- Mac OS X users....(p. 31)

Mac OS 9/8 users

■ Installing the driver

Use either OMS or FreeMIDI as the MIDI driver.

The included PCR driver is an add-on module for using the PCR-30/50/80 with OMS or FreeMIDI.

* Either OMS or FreeMIDI must be installed in your Macintosh, as appropriate for the sequencer software you are using.
* Disconnect the PCR-30/50/80 from the Macintosh before you perform the installation.

MEMO

OMS can be found in the OMS 2.3.8 E folder within the OMS folder of the CD-ROM. If you would like to know more about

OMS, refer to

OMS_2.0E_Mac.pdf

which can be found in the same folder.

If a PCR-30/50/80 is already connected to your Macintosh when you install the driver, a message like the following will appear when the Macintosh is started up. Perform the steps described below as appropriate for the message that is displayed.

If the screen indicates:

"Driver required for USB device 'unknown device' is not available. Search for driver on the Internet?" → click [Cancel].

If the screen indicates:

"Software required for using device 'unknown device' cannot be found. Please refer to the manual included with the device, and install the necessary software".

→ click [OK].

Use the following procedure to install the PCR-30/50/80 driver.

1

Exit all currently running software (applications).

If you are using a virus checker or similar software, be sure to exit this as well.

2

Prepare the CD-ROM.

Insert the CD-ROM into the CD-ROM drive.

3

Double-click the PCR Driver-E Installer icon (found in the Driver E (Mac OS 9, 8) folder of the CD-ROM) to start up the installer.

4

Verify the Install Location, and click [Install].

5

If a message like the following is displayed, click [Continue].

The other currently running applications will exit, and installation will continue.

This installation requires your computer to restart after installing this software. Click Continue to automatically quit all other running applications. Click Cancel to leave your disks untouched.

Cancel

Continue

6

A dialog box will indicate Installation completed.

Click [Restart] to restart your Macintosh.

■ Setting the driver

OMS settings

1

Use the USB cable to connect the PCR-30/50/80 to your computer.

1. With the power switch turned OFF, connect the AC adaptor to the PCR-30/50/80.
2. Connect the AC adaptor to an electrical outlet.
3. Use the USB cable to connect the PCR-30/50/80 to your computer.

2

Set the PCR-30/50/80's power switch to the ON position.

3

From the CD-ROM, drag the Driver E (Mac OS 9, 8) - OMS Setting folder to the hard disk of your Macintosh to copy it.

OMS Setting

4

In the Opcode-OMS Application folder where you installed OMS, double-click OMS Setup to start it up.

OMS Setup

MEMO

Once the connections have been completed, turn on power to your various devices in the order specified. By turning on devices in the wrong order, you risk causing malfunction and/or damage to speakers and other devices.

MEMO

This unit is equipped with a protection circuit. A brief interval (a few seconds) after power up is required before the unit will operate normally.

5

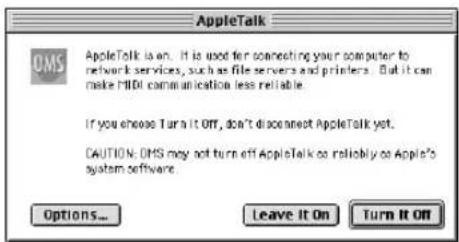

If a dialog box like the one shown here appears, click [Turn It Off]. A confirmation dialog box will then appear, so click [OK].

MEMO

We recommend that you turn off AppleTalk, by selecting Chooser from the Apple menu.

6

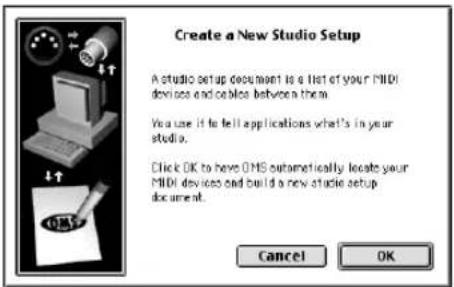

The Create a New Studio Setup dialog box will appear. Click [Cancel].

If you accidentally clicked [OK], click [Cancel] in the next screen.

7

Choose "Open" from the File menu.

From the Setting folder that you copied in step 3, select the PCR file, and click [Open]. A screen like the one shown here will appear.

8

From the Edit menu, select OMS MIDI Setup.

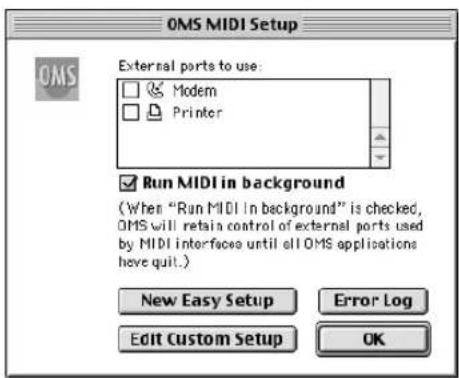

In the OMS MIDI Setup dialog box that appears, check Run MIDI in background, and click [OK].

9

From the File menu, choose Make Current.

If you are unable to select Make Current, it has already been applied, and you may continue to the next step.

A diamond mark (◇) indicate in the settings are enabled.

10

Verify that MIDI transmission and reception can be performed correctly. From the Studio menu, choose Test Studio.

11

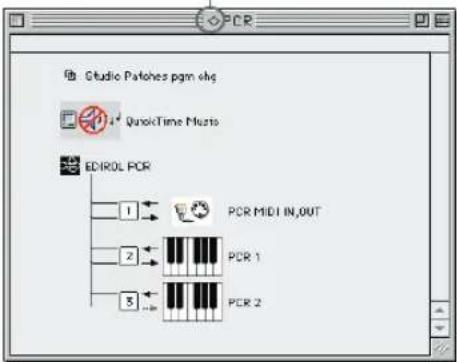

Try playing the keyboard of the PCR-30/50/80. If the arrow beside number 2 or 3 in the diagram at right blinks, the settings have been made correctly.

When you move the mouse cursor near the MIDI connector icon, the cursor will change to a ♪ shape. If a MIDI sound module is connected to the PCR-30/50/80's MIDI OUT connector, click the MIDI connector icon shown in the diagram at the right. If you hear sound, the settings have been made correctly.

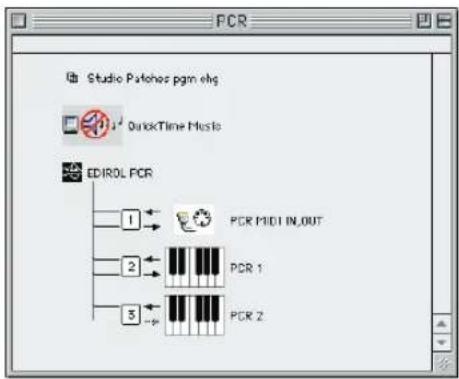


12

Exit OMS Setup.

From the File menu, choose [Exit]. If the AppleTalk confirmation dialog box appears, click [OK] to close the dialog box.

13

Make MIDI device settings on your sequencer software. For details on the MIDI OUT/IN device to select, refer to “About the ports when using a USB connection” (p. 159).

This completes the series of steps needed to connect the PCR-30/50/80 to the Macintosh, install the MIDI driver, and make the driver settings.

For details on port, refer to "About the ports when using a USB connection" (p. 159).

For details on connecting a MIDI sound module, refer to the owner's manual for your MIDI sound module.

For details on MIDI device settings, refer to the owner's manual for the software you are using.

■ FreeMIDI settings

1

Use the USB cable to connect the PCR-30/50/80 to your computer.

1. With the power switch turned OFF, connect the AC adaptor to the PCR-30/50/80.
2. Connect the AC adaptor to an electrical outlet.
3. Use the USB cable to connect the PCR-30/50/80 to your computer.

2

Set the PCR-30/50/80's power switch to the ON position.

3

From the CD-ROM, copy the Driver E (Mac OS 9, 8) – FreeMIDI Setting folder onto the hard disk of your Macintosh.

4

Open the FreeMIDI Applications folder from the location into which you installed FreeMIDI, and double-click the FreeMIDI Setup icon to start it up.

5

The first time you start up, use the following procedure.

1. A dialog box saying "Welcome to FreeMIDI!" will appear. Click [Continue].
2. When the FreeMIDI Preferences dialog box appear. Click [Cancel].
3. The About Quick Setup dialog box will appear. Click [Cancel].

6

From the File menu, choose Open.

7

Select PCR from the FreeMIDI Setting folder you copied in step 3, and click [Open].

8

Verify that MIDI transmission and reception occur correctly. From the MIDI menu, choose Check Connections.

MEMO

Once the connections have been completed, turn on power to your various devices in the order specified. By turning on devices in the wrong order, you risk causing malfunction and/or damage to speakers and other devices.

MEMO

This unit is equipped with a protection circuit. A brief interval (a few seconds) after power up is required before the unit will operate normally.

MEMO

When "OMS is installed on this computer..." appears, click [FreeMIDI].

MEMO

If you are unable to select Open, make settings as follows.

1. From the File menu, choose FreeMIDI
   Preference.

2. Uncheck "Use OMS when available."

3. Close FreeMIDI.

4. Return to step 4 and continue the procedure.

9

Try playing the keyboard of the PCR-30/50/80. If the number 2 or 3 in the diagram at right blinks, the settings have been made correctly.

If a MIDI sound module is connected to the PCR-30/50/80's MIDI OUT connector, click the MIDI connector icon shown in the diagram at the right. If you hear sound, the settings have been made correctly.

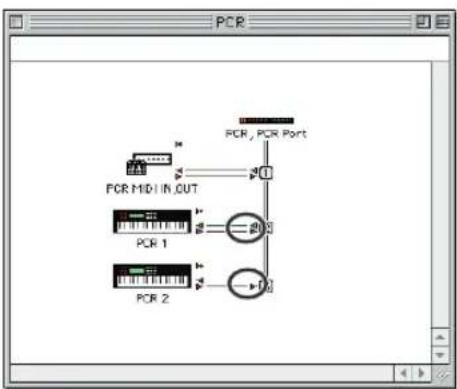


10

Once again choose the MIDI menu command Check Connections to end the test.

11

From the File menu, choose Quit to exit FreeMIDI Setup.

12

Make MIDI device settings on your sequencer software. For details on the MIDI OUT/IN device to select, refer to “About the ports when using a USB connection” (p. 159).

This completes the series of steps needed to connect the PCR-30/50/80 to the Macintosh, install the MIDI driver, and make the driver settings.

MEMO

For details on port, refer to "About the ports when using a USB connection" (p. 159).

MEMO

For details on connecting a MIDI sound module, refer to the owner's manual for your MIDI sound module.

MEMO

For details on MIDI device settings, refer to the owner's manual for the software you are using.

■ Installing the driver

1

Disconnect all USB cables other than those for your keyboard and mouse, and restart your Macintosh.

2

Prepare the CD-ROM.

Insert the CD-ROM into the CD-ROM drive of your computer.

3

In the Driver (Mac OS X) folder of the CD-ROM, double-click PCRUSBDriver.pkg.

In Mac OS X v10.1.5, click the lock symbol for authentication.

4

In the authentication dialog box, input the password and click [OK].

5

The display will indicate “Welcome to EDIROL PCR USB Driver installation”.

Click [Continue].

6

The display will indicate "Important message".

Read the contents and click [Continue].

7

The display will indicate "Select the location for installation".

Click the drive in which the operating system is installed to select it, and then click [Continue].

8

The display will indicate "Easy installation".

Click Install or Upgrade.

9

The display will indicate “When you install this software, you must restart your computer after the installation is complete”.

Click [Continue installation].

10

The display will indicate “The software was successfully installed”.

Click [Restart] to restart your computer.

Cautions when using the PCR

Before you use your sequencer software, please note the following points.

* Connect the PCR-30/50/80 to your computer via a USB cable before you start up your sequencer or other software.
* Do not disconnect the USB cable from the PCR-30/50/80 while your sequencer or other software is running.
* Disconnect the USB cable from the PCR-30/50/80 only after you have quit your sequencer or other software.
* Leave the Sleep function of your Macintosh turned off.
* The PCR-30/50/80 will not work in the Classic environment of Mac OS X. Use the PCR when the Classic environment is not running.

■ Setting the driver

1

Use the USB cable to connect the PCR-30/50/80 to your computer.

1. With the power switch turned OFF, connect the AC adaptor to the PCR-30/50/80.
2. Connect the AC adaptor to an electrical outlet.
3. Use the USB cable to connect the PCR-30/50/80 to your computer.

2

Set the PCR-30/50/80's power switch to the ON position.

3

Make MIDI device settings on your sequencer software. For details on the MIDI OUT/IN device to select, refer to “About the ports when using a USB connection” (p. 159).

This completes the series of steps needed to connect the PCR-30/50/80 to the Macintosh, install the MIDI driver, and make the driver settings.

MEMO

For details on MIDI device settings, refer to the owner's manual for the software you are using.

5

D:\Driver\USB\_XP2K\SETUPINF.EXE

MEMO

6

D:\Driver\USB\_XP2K\SETUPINF.EXE

D:\Driver\USB\_ME98\SETUPINF.EXE

MEMO

The installation procedure will differ depending on your system.

Please proceed to one of the following sections, depending on the system you use.

• Mac OS 9/8 users ....(S. 46)
• Mac OS X users....(S. 52)

Mac OS 9/8-Benutzer

■ Installation des Treibers

“Software required for using device ‘unknown device’ cannot be found. Please refer to the manual included with the device, and install the necessary software” → klicken Sie auf [OK].

This installation requires your computer to restart after installing this software. Click Continue to automatically quit all other running applications. Click Cancel to leave your disks untouched.

MEMO

A diamond mark (◇) indicate in the settings are enabled.

10

In der Anzeige erscheint anschließend: "When you install this software, you must restart your computer after the installation is complete"

Si vous utilisez

15

6

D:\Driver\USB\_XP2K\SETUPINF.EXE

D:\Driver\USB\_ME98\SETUPINF.EXE

5

The installation procedure will differ depending on your system.

Please proceed to one of the following sections, depending on the system you use.

• Mac OS 9/8 users .....(p. 66)
• Mac OS X users....(p. 71)

"Driver required for USB device ‘unknown device’ is not available. Search for driver on the Internet?" → Cliquez sur [Cancel].

"Software required for using device ‘unknown device’ cannot be found. Please refer to the manual included with the device, and install the necessary software"

→ Cliquez sur [OK].

1

This installation requires your computer to restart after installing this software. Click Continue to automatically quit all other running applications. Click Cancel to leave your disks untouched.

Cancel

Continue

6

A diamond mark (◇) indicate in the settings are enabled.

10

D:\Driver\USB\_XP2K\SETUPINF.EXE

15

D:\Driver\USB\_XP2K\SETUPINF.EXE

D:\Driver\USB\_ME98\SETUPINF.EXE

The installation procedure will differ depending on your system.

Please proceed to one of the following sections, depending on the system you use.

• Mac OS 9/8 users ......(pag. 85)
• Mac OS X users....(pag. 91)

Utenti Mac OS 9/8

"Driver required for USB device ‘unknown device’ is not available. Search for driver on the Internet?" → fare clic su [Cancel].

“Software required for using device ‘unknown device’ cannot be found. Please refer to the manual included with the device, and install the necessary software”

This installation requires your computer to restart after installing this software. Click Continue to automatically quit all other running applications. Click Cancel to leave your disks untouched.

6

6

7

9

A diamond mark (◇) indicate in the settings are enabled.

10

D:\DRIVER\USB\_XP2K\SETUPINF.EXE

15

6

D:\DRIVER\USB\_XP2K\SETUPINF.EXE

D:\Driver\USB\_ME98\SETUPINF.EXE

The installation procedure will differ depending on your system.

Please proceed to one of the following sections, depending on the system you use.

"Driver required for USB device 'unknown device' is not available. Search for driver on the Internet?" → Haga clic en [Cancel].

Si la pantalla indica:

"Software required for using device 'unknown device' cannot be found. Please refer to the manual included with the device, and install the necessary software" → Haga clic en [OK].

1

This installation requires your computer to restart after installing this software. Click Continue to automatically quit all other running applications. Click Cancel to leave your disks untouched.

Cancel Continue

6

6

7

A diamond mark (◇) indicate in the settings are enabled.

10

13

La pantalla indicará “The software was successfully installed”

The PCR-30/50/80 is a controller that transmits MIDI messages. You cannot perform using only the PCR-30/50/80 by itself. You will need to connect it to a sound module or computer. The various controllers ([R1--R8], [S1--S8], [B1--B6], [L1--L3], [P1, P2]) can be assigned almost any message you want to get the control you need for your particular setup. For details on the messages that can be assigned, refer to “Controller settings” (p. 126).

Connection and MIDI data flow

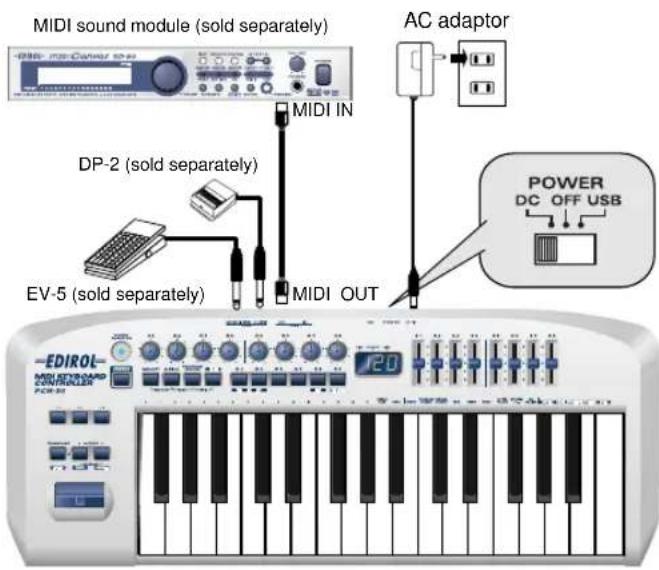

This section explains how to make basic connections for the PCR-30/50/80.

* To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn off the power on all devices before making any connections.

* Use only the specified expression pedal (EV-5; sold separately). By connecting any other expression pedals, you risk causing malfunction and/or damage to the unit.

When using MIDI connections

* For an explanation of the items in the diagram, refer to “About the ports when using a USB connection” (p. 159).

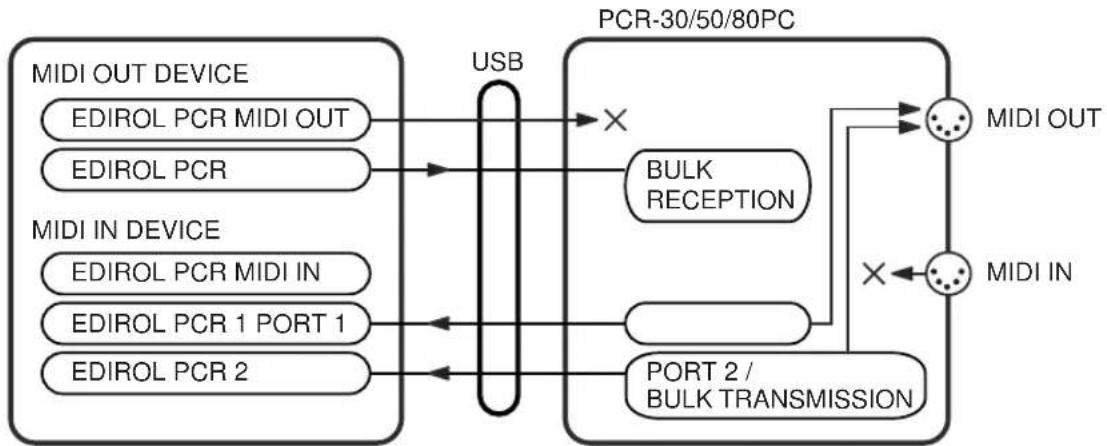

When using a USB connection
    note right of F: It is not necessary to connect the AC adaptor if you are using a USB connection. However, with some computers, the PCR-30/50 may not operate when powered from the USB bus. In this case, set the power switch to the DC position and connect the AC adaptor.

V-LINK OFF

V-LINK ON

* If V-LINK is ON, PCR 1 and PCR 2 messages will be sent both to USB and to the MIDI connector.
* For an explanation of the items in the diagram, refer to “About the ports when using a USB connection” (p. 159).

Basic operation

How to switch modes

You can switch modes at any time, as shown below.

Mode Switching modes Explanation
PLAY mode(p. 117)	When you turn on the power, the PCR-30/50/80 will start up in PLAY mode.	Transmit MIDI messages by playing the keyboard or operating the controllers.
MIDI Channel mode(MIDI CH)(p. 118)	Press the [MIDI CH] button.	Set the transmit channel(current channel) for the keyboard and bender lever.
Program Change mode(PROGRAM CHANGE)(p. 119)	Press the [PROGRAM CHANGE] button.	Transmit program change messages on the current channel.
Bank mode(BANK)(p. 120)	Simultaneously press the [PROGRAM CHANGE]button and [MIDI CH]button.	Transmit bank select messages (MSB, LSB) on the current channel.
Memory mode(MEMORY)(p. 121)	Press the [MEMORY]button.	Recall a memory set from internal memory into the current memory (p. 136).
Snapshot mode(SNAPSHOT)(p. 122)	Simultaneously press the [MEMORY] button and the [MIDI CH] button.	Transmit the current values of all controllers ([R1--R8], [S1--S8]) at once.
Panic mode(PANIC)(p. 123)	Simultaneously press the [PROGRAM CHANGE]button and the [EDIT]button.	Stop "stuck" notes or other problems with the sound on a connected MIDI sound module.
Edit mode(EDIT)(p. 125)	Press the [EDIT] button.	Assign MIDI messages to the controllers, transmit/receive bulk data, or make system settings.

You are returned to Play mode once a setting or a process has been completed within the other modes. If you want to return to Play mode without completing a setting or operation, press the button for the current mode (i.e., the button that is lit). Alternatively, press the [CANCEL] button. The setting you were in the process of making will be discarded.

PLAY mode

When you power up the PCR-30/50/80, it will start up in PLAY mode. The display will show the current channel (p. 118).

* The PCR-30/50/80 will start up according to the Startup Memory settings (p. 164). With the factory settings, it will start up with the GM2 MEMORY. For the messages that are assigned to each controller by the GM2 MEMORY, refer to p. 164.

■ Controllers you can operate

[R1-R8], [S1-S8], [B1-B6] [L1-L3], [P1, P2]	These controllers will transmit the messages that are assigned to each.* The transmitted value will be shown in the display.
[OCTAVE -/+]	Octave shift* [OCTAVE -] or [OCTAVE +] will light depending on the current octave shift setting. The actual octave shift value will appear in the display only while you are editing the setting (-4-5).
[TRANSPOSE]+[OCTAVE -/+]	Transpose* If you hold down [TRANSPOSE] for a while, [OCTAVE -] or [OCTAVE +] will light depending on the current transpose setting. The actual transpose value will appear in the display only while you are editing the setting (-12-12).
Bender lever	Bender or modulation messages will be transmitted on the current channel
Keyboard Note messages will be	transmitted on the current channel

* Octave Shift and Transpose are set independently.
* If you simultaneously press [OCTAVE -] and [OCTAVE +], the Octave Shift setting will be reset to 0.
* If you hold down [TRANSPOSE] and press [OCTAVE -] and [OCTAVE +] simultaneously, the Transpose setting will be reset to 0.

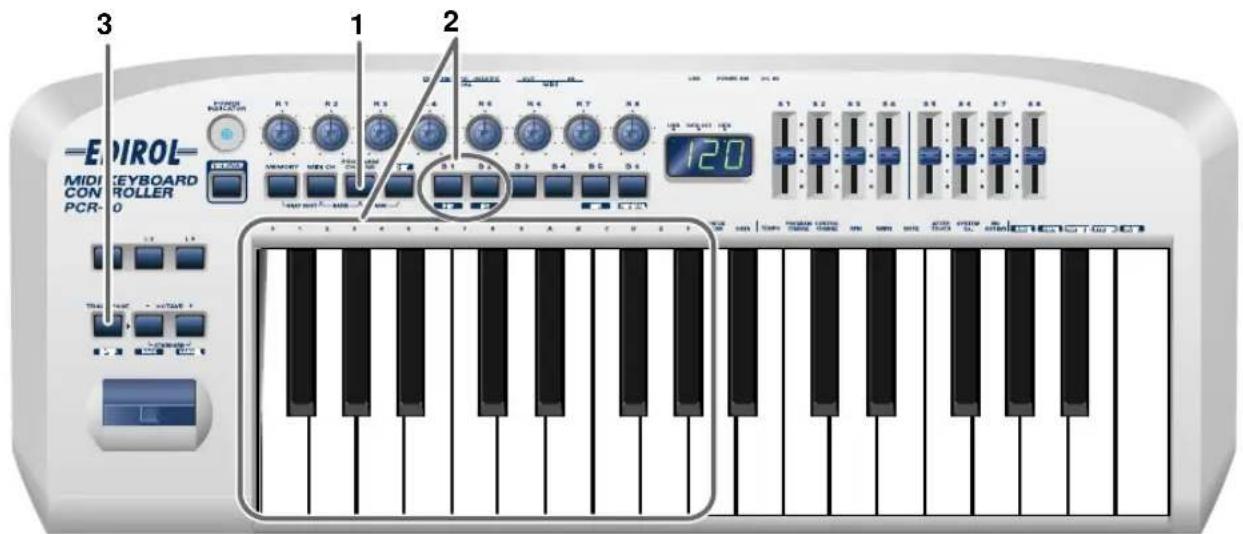

MIDI Channel mode (MIDI CH)

This mode lets you set the transmission channel (current channel) of the keyboard and bender lever.

Each controller has its own independent transmission channel setting. However, if OMNI mode (p. 149) is on, the controllers will also transmit on the current channel you specify here.

1

Press the [MIDI CH] button.

The [MIDI CH] button will light. The display will show the current channel setting.

* The [HEX] or [DECIMAL] button will also light according to the input mode (p. 158).

2

Use the [DEC] [INC] buttons or the [0]–[F] keys of the keyboard to specify the desired channel number.

DEC Change the current value by -1
INC Change the current value by +1
0-F	The input valueHEX...0-FDECIMAL...1-16

3

Press the [ENTER] button.

The setting will be cancelled if you press another button instead of the [ENTER] button.

The current channel has now been set.

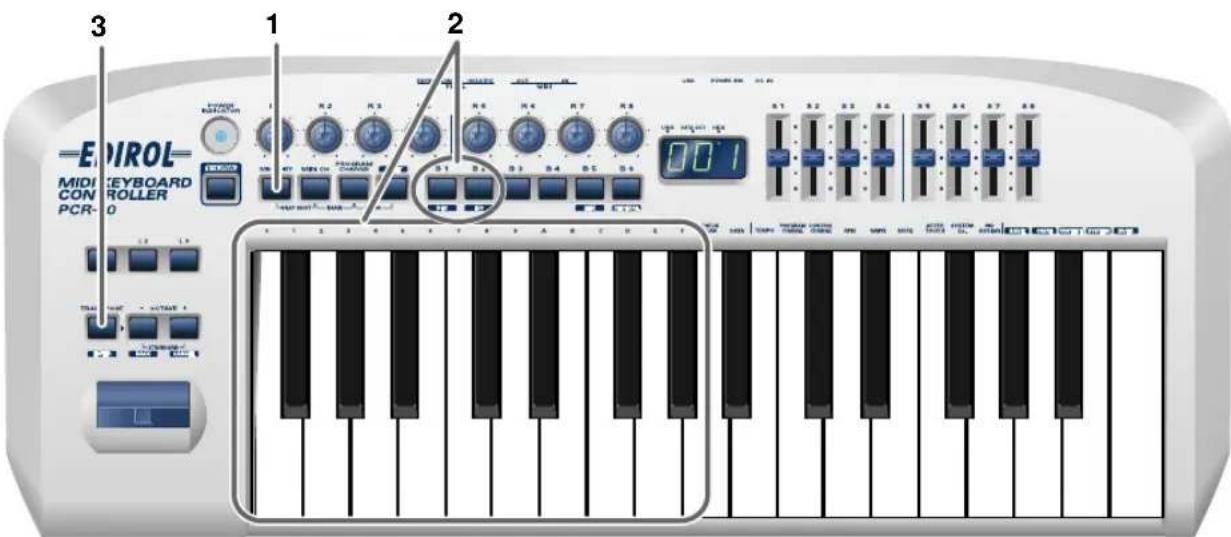

Program Change mode (PROGRAM CHANGE)

This mode lets you transmit a program change message on the current channel.

1

Press the [PROGRAM CHANGE] button.

The [PROGRAM CHANGE] button will light. The display will indicate the program change that was transmitted most recently.

* The [HEX] or [DECIMAL] button will also light according to the input mode (p. 158).

2

Use the [DEC][INC] buttons or the [0]–[F] keys of the keyboard to specify the program change you want to transmit.

DEC Change the current value by -1
INC Change the current value by +1
0-F	The input valueHEX...00-7FDECIMAL...1-128

3

Press the [ENTER] button.

The setting will be cancelled if you press another button instead of the [ENTER] button. The program change has now been transmitted.

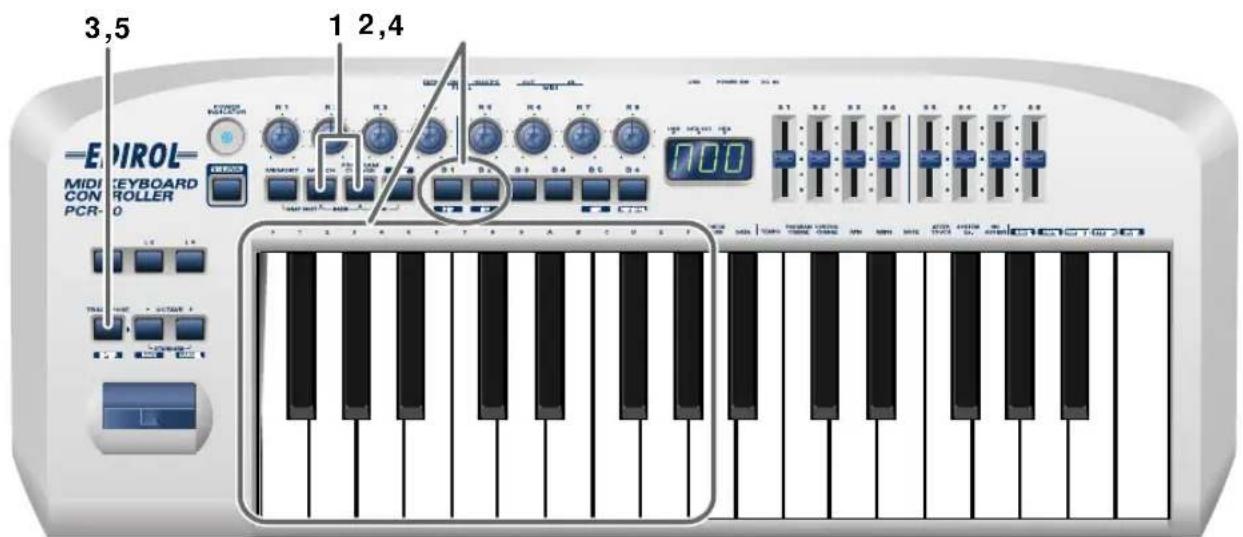

Bank mode (BANK)

This mode lets you transmit a bank select (MSB, LSB) message on the current channel. The program change message you most recently transmitted (specified) in Program Change mode (p. 119) will also be transmitted following the bank select message.

1

Simultaneously press the [PROGRAM CHANGE] button and [MIDI CH] button.

The [PROGRAM CHANGE] and [MIDI CH] buttons will light. The display will indicate the most recently transmitted bank select (MSB) value.

* The [HEX] or [DECIMAL] button will also light according to the input mode (p. 158).

2

First, specify the bank select MSB (CC#00).

Use the [DEC][INC] buttons or the [0]–[F] keys of the keyboard to specify the bank select MSB that you want to transmit.

*1 Reference

3

Press the [ENTER] button.

The setting will be cancelled if you press another button instead of the [ENTER] button.

4

Next, specify the bank select LSB (CC#32).

The display will indicate the most recently transmitted bank select (LSB) value.

Use the [DEC][INC] buttons or the [0]–[F] keys of the keyboard to specify the bank select LSB that you want to transmit.

*1 Reference

5

Press the [ENTER] button.

The setting will be cancelled if you press another button instead of the [ENTER] button. The bank select has now been transmitted.

Memory mode (MEMORY)

This mode lets you recall one of the stored memory sets into the current memory (p. 148).

When the PCR-30/50/80 is shipped, its internal memory contains sixteen different settings.

For details on the contents of each memory number, refer to "Memory sets" (p. 164).

If you edit the controller settings of a memory you recall, and want to keep your changes, you must save the memory before powering down the PCR-30/50/80. For the procedure, refer to

"EDIT-Save" p. 148.

For details on customizing (editing) the controller settings, refer to "Edit mode (EDIT)" (p. 125).

1

Press the [MEMORY] button.

The [MEMORY] button will light. The display will indicate the memory number that you selected most recently.

2

Use the [DEC][INC] buttons or the [0]–[F] keys of the keyboard to specify the memory number that you want to recall.

3

Press the [ENTER] button.

The setting will be cancelled if you press another button instead of the [ENTER] button. The memory has now been recalled.

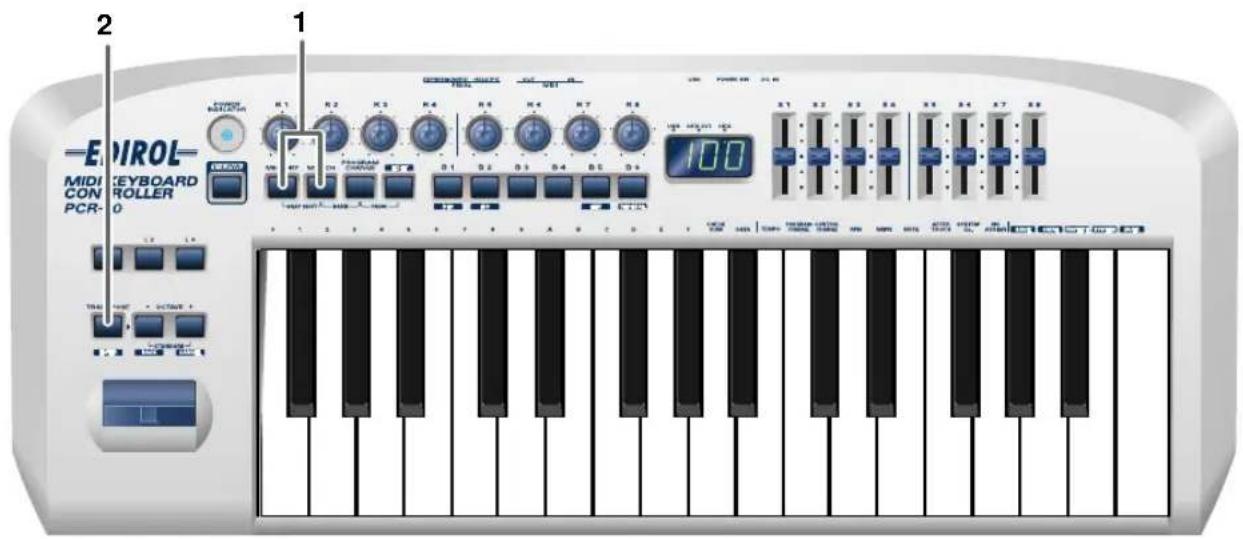

Snapshot mode (SNAPSHOT)

Once you have set the various controllers to the desired settings, you can transmit a detailed description of this state in the form of a “snapshot”. When you execute this function, the current values of the controllers ([R1–R8], [S1–S8]) will be transmitted.

This is convenient when you want to record the state of these controllers together at the beginning of a song in your sequencer, as the initial values.

1 Simultaneously press the [MEMORY] button and the [MIDI CH] button. The [MEMORY] and [MIDI CH] buttons will light.

2 Press the [ENTER] button. The [MEMORY] button and [MIDI CH] button will blink several times. The snapshot will be transmitted.

Panic mode (PANIC)

If notes on a connected MIDI sound module become "stuck", or if there is something wrong with the sound, you can execute the Panic function to solve the problem.

When you execute the Panic function, All Sound Off, All Notes Off, and Reset All Controllers messages will be transmitted on all channels.

Simultaneously press the [PROGRAM CHANGE] button and [EDIT] button.

The [PROGRAM CHANGE] button and [EDIT] button will light.

Press the [ENTER] button.

The [PROGRAM CHANGE] button and [EDIT] button will blink.

The Panic function has now been executed.

MEMO

Edit mode (EDIT)

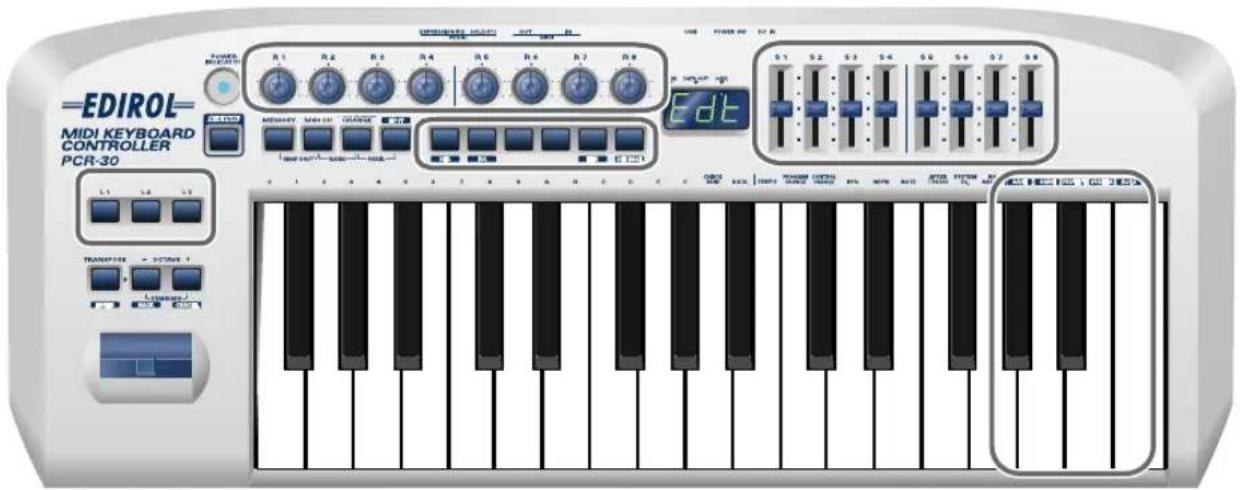

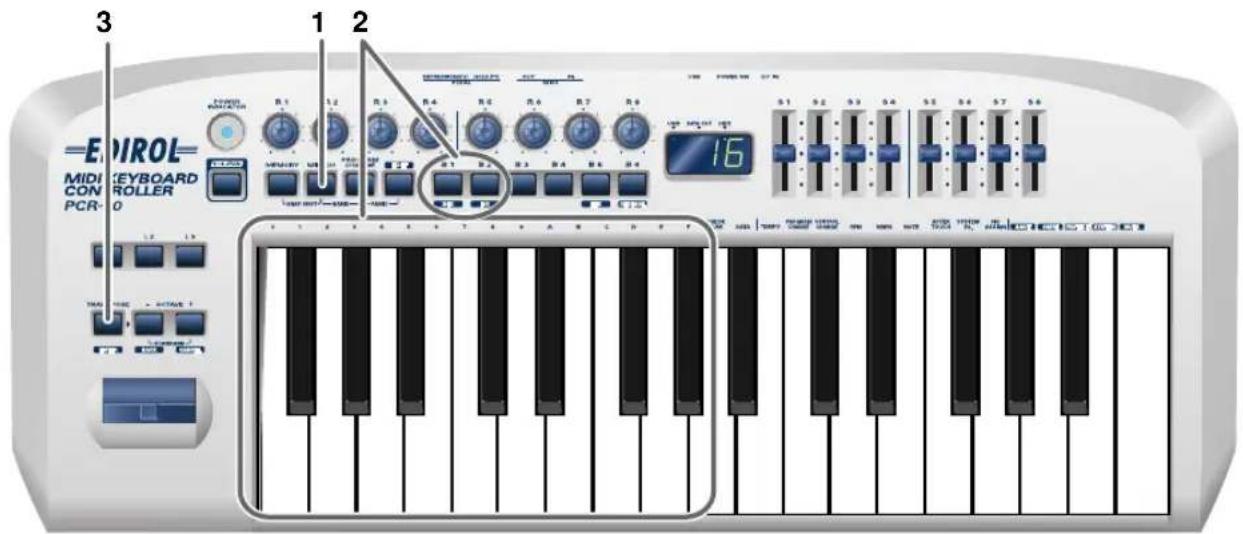

Press the [EDIT] button to enter Edit mode. In Edit mode you can make the following settings.

Selected item Display Refer to Description
[R1--R8][S1--S8][B1--B6][L1--L3][P1, P2]	Indicates the number of the selected controller	“Controller settings”(p. 126)	Assign a desired MIDI message to the controller.
Keyboard[BULK]		“BULK” (p. 151)	Transmit or receive the contents of a memory set as bulk data.
Keyboard[SYSTEM]		“SYSTEM” (p. 154) Make system settings for the PCR.
Keyboard[SAVE]		“SAVE” (p. 148)	Save the current memory settings into a memory.
Keyboard[OMNI]		“OMNI” (p. 149)	Specify whether the output channel and output port for messages will follow the setting of the controller or the system setting.
Keyboard[PROTECT]		“PROTECT” (p. 150)	Specify whether ALL BULK reception and SAVE operations will be prohibited.

For details, refer to the explanation of how to set each item.

Controller settings

You can assign the following functions to a controller.

* After you have modified the controller settings, perform the "SAVE" (p. 148) operation as needed. If you turn off the power without executing "SAVE", your changes will be lost.

NOTE “NOTE ASSIGN” (p
AFTERTOUCH “AFTERTC (p. 129)
CONTROL CHANGE “CON E ASSIGN” (p. 132)
PROGRAM CHANGE “PR E ASSIGN” (p. 135)
RPN “RPN/NRPN ASSIGN
NRPN “RPN/NRPN ASSIG
SYSTEM Ex. “SYS EX. AS
TEMPO “TEMPO ASSIGN
NO ASSIGN “NO ASSIGN

A Copy function is also available. For the procedure, refer to "ASSIGN COPY" (p. 147).

* For NOTE, AFTERTOUCH, CONTROL CHANGE, PROGRAM CHANGE, RPN, NRPN, and SYSTEM Ex., the rightmost digit (third place) in the display is a number that indicates the mode (Basic mode or Advanced mode).

* If you want to assign a single-byte system message (system realtime message, tune request) or a freely specified message of up to 24 bytes, refer to "SYS EX. ASSIGN" (p. 140).

How Basic mode and Advanced mode differ

Each assignment can be made either in Basic mode or Advanced mode.

Use the mode that is appropriate for your purpose.

- Basic mode You can make assignments easily, with the minimum number of steps.

- Advanced mode A greater number of steps are required, but you can specify more parameters and make more sophisticated assignments.

■ NOTE ASSIGN

Here's how to assign a Note message to a controller. In addition to being used to play sounds, note messages can also be used to control a sequencer.

Mode Keyboard Velocity Port
Basic mode 0 100 (64H) PCR 1
Advanced mode 1	Assignable Assignable

Basic mode

1

Press the [EDIT] button.

The display will indicate "EDT."

2

Slightly move the controller to which you want to assign a Note message. In the case of a button, press that button.

The display will indicate the number of the selected controller.

3

Verify that the display shows the correct controller number, and press the [ENTER] button.

4

Press the [NOTE] key.

The display will indicate "NT0."

5

Press the [ENTER] button.

The display will indicate "C--."

*1 Reference

6

Input the channel. Use the [DEC][INC] buttons or the [0]-[F] keys to specify the channel.

7

Press the [ENTER] button.

The display will indicate "N--." *1 Reference

8

Input the note number. Use the [DEC][INC] buttons or the [0]–[F] keys to specify the note number.

9

Press the [ENTER] button.

10

If you are making an assignment for a button, specify the button mode. (→“Specifying the button mode” (p. 158))

Advanced mode

Advanced mode 1 of NOTE ASSIGN lets you specify the velocity value in addition to the items of Basic mode.

1. Press the [EDIT] button.
2. Slightly move the controller to which you want to assign a Note message. In the case of a button, press that button.
   The display will indicate the number of the selected controller.
3. Verify that the display indicates the correct controller, and press the [ENTER] button.
4. Press the [NOTE] key and then press key [1].
   The display will indicate "NT1."
5. Press the [ENTER] button.
6. Input the channel.
7. Press the [ENTER] button.
8. Input the note number.
9. Press the [ENTER] button.

The display will indicate "V--."

*1 Reference

1. Input the velocity.

2. Press the [ENTER] button.

The display will indicate "P--."

*1 Reference

1. Specify the output port. ( “Specifying the port” (p. 159))

2. If you are making an assignment for a button, specify the button mode.

(→“Specifying the button mode” (p. 158))

• If you set [S1--S8], [R1--R8], or [P2] to NOTE ASSIGN, setting the controller to the maximum position will transmit the specified velocity value. Setting the controller to the minimum position will transmit a note message with a velocity of 0.
• If you assign this to [B1--B6] or [P1], the specified velocity value will be transmitted when you turn the controller on. When you turn the controller off, a note message with a velocity value of 0 will be transmitted.

■ AFTERTOUCH ASSIGN

Here's how to assign an Aftertouch message to a controller.

Mode Keyboard Message Value		range Port
Basic mode 0 Channel Pressure 00-7FH Port 1
Advanced mode 1 1	Channel Pressure Assignable Assignable
Advanced mode 2 2	Polyphonic Key Pressure 00-7FH Port 1
Advanced mode 3 3	Polyphonic Key Pressure Assignable Assignable

Basic mode

1

Press the [EDIT] button.

The display will indicate "EDT."

2

Slightly move the controller to which you want to assign an Aftertouch message. In the case of a button, press that button.

The display will indicate the number of the selected controller.

3

Verify that the display shows the correct controller number, and press the [ENTER] button.

4

Press the [AFTERTOUCH] key.

The display will indicate "AT0".

5

Verify that the display is correct, and press the [ENTER] button.

The display will indicate "C--".

*1 Reference

6

Input the channel. Use the [DEC][INC] buttons or the [0]–[F] keys to specify the channel.

7

Press the [ENTER] button.

8

If you are making an assignment for a button, specify the button mode. (→“Specifying the button mode” (p. 158))

Advanced mode 1–3

Advanced mode 1 of AFTERTOUCH ASSIGN lets you specify the upper and lower limits of the aftertouch value in addition to the items of Basic mode. Advanced modes 2 and 3 let you specify an aftertouch message for an individual note (Polyphonic Key Pressure) instead of specifying the channel.

1. Press the [EDIT] button.
2. Slightly move the controller to which you want to assign an Aftertouch message. In the case of a button, press that button. The display will indicate the number of the selected controller.
3. Verify that the display indicates the correct controller, and press the [ENTER] button.

4. Press the [AFTERTOUCH] key and then press a key [1]-[3]. The display will indicate the selected mode.

5. Press the [ENTER] button.

6. Input the channel.

7. Press the [ENTER] button.

8. If you are using Advanced modes 2 or 3, input the note number.

9. If you are using Advanced modes 2 or 3, Press the [ENTER] button.

10. If you are using Advanced modes 1 or 3, specify the upper limit and lower limit of the value as described in “Aftertouch Assign upper/lower limit and port settings” (p. 131), and specify the output port.

11. If you are making an assignment for a button, specify the button mode. (→“Specifying the button mode” (p. 158))

Aftertouch Assign upper/lower limit and port settings

In the case of Aftertouch Assign 1 or 3, you can set the upper limit and lower limit of the value, and specify the port.

1. The following display will appear.

*1 Reference

1. Use the [DEC][INC] buttons or the [0]–[F] keys to specify the upper limit.

2. Press the [ENTER] button.

The following display will appear.

*1 Reference

1. Use the [DEC][INC] buttons or the [0]–[F] keys to specify the lower limit.

2. Press the [ENTER] button.

The display will indicate "P--".

*1 Reference

1. Specify the output port. ( “Specifying the port” (p. 159))

■ CONTROL CHANGE ASSIGN

Here's how to assign a control change message to a controller.

Mode keyboard Value range Port
Basic mode 0 00-7FH PCR 1
Advanced mode 1 1 Assignable Assignable
Advanced mode 2 2 Simulates a rotary encoder Assignable

Basic mode

1

Press the [EDIT] button.

The display will indicate "EDT".

2

Slightly move the controller to which you want to assign a Control Change message. In the case of a button, press that button.

The display will indicate the number of the selected controller.

3

Confirm what's indicated, and press the [ENTER] button.

4

Press the [CONTROL CHANGE] key.

The display will indicate "CC0".

5

Confirm what's indicated, and press the [ENTER] button.

The display will indicate "C--".

*1 Reference

6

Input the channel. Use the [DEC][INC] buttons or the [0]-[F] keys to specify the channel.

7

Press the [ENTER] button.

The display will indicate "N--".

*1 Reference

8

Use the [DEC][INC] buttons or the [0]–[F] keys to specify the control change number.

9

Press the [ENTER] button.

1

If you are making an assignment for a button, specify the button mode. (→“Specifying the button mode” (p. 158))

Advanced mode 1

Advanced mode 1 of CONTROL CHANGE ASSIGN lets you specify the upper and lower limits of the control change value in addition to the items of Basic mode.

1. Press the [EDIT] button.

2. Slightly move the controller to which you want to assign a Control Change message. In the case of a button, press that button. The display will indicate the number of the selected controller.

3. Confirm what's indicated, and press the [ENTER] button.

4. Press the [CONTROL CHANGE] key and then press key [1]. The display will indicate "CC1".

5. Press the [ENTER] button.

6. Input the channel.

7. Press the [ENTER] button.

8. Input the control change number.

9. Press the [ENTER] button.

10. The following display will appear.

*1 Reference

1. Use the [DEC][INC] buttons or the [0]-[F] keys to specify the upper limit value.

2. Press the [ENTER] button.

3. The following display will appear.

*1 Reference

1. Use the [DEC][INC] buttons or the [0]-[F] keys to specify the lower limit value.

2. Press the [ENTER] button.

3. The display will indicate "P--".

*1 Reference

1. Specify the output port. (→“Specifying the port” (p. 159))

2. If you are making an assignment for a button, specify the button mode. (→“Specifying the button mode” (p. 158))

Advanced mode 2

Advanced mode 2 simulates the operation of a conventional rotary encoder. If this is assigned to a controller, moving that controller toward the right (upward) of center will have the same effect as turning the encoder clockwise, and moving the controller toward the left (downward) of center will have the same effect as turning the encoder counterclockwise. As the controller is moved further away from the center, the result will be the same as if the rotary encoder were moved more quickly. You can assign advanced mode 2 to a button, but it will not function.

1. Press the [EDIT] button.

2. Slightly move the controller to which you want to assign a Control Change message. The display will indicate the number of the selected controller.

3. Confirm what's indicated, and press the [ENTER] button.

4. Press the [CONTROL CHANGE] key and then press key [2]. The display will indicate "CC2".

5. Press the [ENTER] button.

6. Input the channel.

7. Press the [ENTER] button.

8. Input the control change number. Use the [DEC][INC] buttons or the [0]–[F] keys to specify the control change number.

9. Press the [ENTER] button.

10. The display will indicate "P--".

*1 Reference

1. Specify the output port. ( “Specifying the port” (p. 159))

■ PROGRAM CHANGE ASSIGN

Here's how to assign a program change message to a controller.

Mode Number Effect Bank Port
Basic mode 0 Fixed	value Not output PCR 1
Advanced mode 1 1	Assignable range of values Not output PCR 1
Advanced mode 2 2	Fixed value Output Assignable
Advanced mode 3 3	PC DEC Not output KEYBOARD PORT (p. 154)
Advanced mode 4 4	PC INC Not output KEYBOARD PORT (p. 154)

Basic mode

1

Press the [EDIT] button.

The display will indicate "EDT."

2

Slightly move the controller to which you want to assign a Program Change message. In the case of a button, press that button.

The display will indicate the number of the selected controller.

3

Confirm what's indicated, and press the [ENTER] button.

4

Press the [PROGRAM CHANGE] key.

The display will indicate "PC0".

5

Confirm what's indicated, and press the [ENTER] button.

The display will indicate "C--".

*1 Reference

6

Input the channel. Use the [DEC][INC] buttons or the [0]–[F] keys to specify the channel.

7

Press the [ENTER] button.

The display will indicate "N--".

*1 Reference

8

Use the [DEC][INC] buttons or the [0]–[F] keys to specify the program change number.

9

Press the [ENTER] button.

* If you assign Basic mode to [S1--S8], [R1--R8], or [P2], moving the controller from the minimum to the maximum position will transmit the assigned control change messages.

Advance mode 1, 2

Advanced mode 1 of PROGRAM CHANGE ASSIGN lets you specify the upper and lower limits of the program change value. Advanced mode 2 lets you transmit BANK LSB/MSB settings in addition to the program change.

1. Press the [EDIT] button.
2. Slightly move the controller to which you want to assign a Program Change message. In the case of a button, press that button. The display will indicate the number of the selected controller.
3. Confirm what's indicated, and press the [ENTER] button.

Advanced mode 1 —Specifying the range of values

1. Press the [PROGRAM CHANGE] key and then press key [1].
2. Press the [ENTER] button.
3. Input the channel.
4. Press the [ENTER] button.
5. The following display will appear.

*1 Reference

1. Use the [DEC][INC] buttons or the [0]-[F] keys to specify the upper value limit.
2. Press the [ENTER] button.
3. The following display will appear.

*1 Reference

1. Use the [DEC][INC] buttons or the [0]–[F] keys to specify the lower value limit.
2. Press the [ENTER] button.

Advanced mode 2 —Transmitting bank data

1. Press the [PROGRAM CHANGE] key and then press key [2].
2. Press the [ENTER] button.
3. Input the channel.
4. Press the [ENTER] button.
5. Specify the bank select MSB (CC#00). Use the [DEC][INC] buttons or the [O]-[F] keys to specify the MSB.

*1 Reference

1. Press the [ENTER] button.
2. Specify the bank select LSB (CC#32). Use the [DEC][INC] buttons or the [0]-[F] keys to specify the LSB.

*1 Reference

1. Press the [ENTER] button.
2. Input the program change number.
3. Press the [ENTER] button.
4. The display will indicate "P--".

*1 Reference

1. Specify the output port. (→“Specifying the port” (p. 159))

Advanced modes 3 and 4

Advanced mode 3 lets you assign the Program Change Decrement function (PC DEC) to a controller.

Advanced mode 4 lets you assign the Program Change Increment function (PC INC) to a controller.

1. Press the [EDIT] button.
2. Slightly move the controller to which you want to assign Program Change DEC/INC. In the case of a button, press that button.
   The display will indicate the number of the selected controller.
3. Confirm what's indicated, and press the [ENTER] button.
4. Press the [PROGRAM CHANGE] key and then press key [3] or [4].
5. Press the [ENTER] button.

Program Change Decrement function (PC DEC)

This transmits a program change that is one less than the previously transmitted program change number.

Program Change Increment function (PC INC)

This transmits a program change that is one greater than the previously transmitted program change number.

The PC DEC or PC INC is transmitted on the current channel, just as in “Program Change mode (PROGRAM CHANGE)” (p. 119). The value that is actually transmitted will appear in the display.

* In the explanation here, the "previously transmitted program number" refers to the one that was last transmitted by Advanced Mode 3 or 4 or in "Program Change mode (PROGRAM CHANGE)" (p. 119).
* Program changes transmitted by basic mode or advanced modes 1 and 2 will not affect the increment/decrement functions.

■ RPN/NRPN ASSIGN

Here's how you can assign an RPN or NRPN message to a controller.

Mode Keyboard		Data entry MSB (CC#6) range	Data entry LSB (CC#38) range	Port
Basic mode 0 00-7FH	Not transmitted PCR 1
Advanced mode 1 1	Assignable 00-7FH Assignable

1

Press the [EDIT] button.

The display will indicate "EDT".

2

Slightly move the controller to which you want to assign an RPN or NRPN message. In the case of a button, press that button.

The display will indicate the number of the selected controller.

3

Confirm what's indicated, and press the [ENTER] button.

4

Press the [RPN] key.

The display will indicate "RP0".

* If you want to assign an NRPN message, press the [NRPN] key. The following procedure is the same as for RPN.

5

Confirm what's indicated, and press the [ENTER] button.

The display will blink "C--".

*1 Reference

6

Input the channel. Use the [DEC][INC] buttons or the [0]–[F] keys to specify the channel.

7

Press the [ENTER] button.

8

Use the [DEC][INC] buttons or the [0]-[F] keys to specify the RPN MSB (CC#101) or NRPN MSB (CC#99). *1 Reference

9

Press the [ENTER] button.

10

Use the [DEC][INC] buttons or the [0]–[F] keys to specify the RPN LSB (CC#100) or NRPN LSB (CC#98).

*1 Reference

11

Press the [ENTER] button.

12

If you are making an assignment for a button, specify the button mode. (→“Specifying the button mode” (p. 158))

Advanced mode

In Advanced mode for RPN/NRPN, you can specify the upper and lower limit of the data entry MSB (CC#6) value when the RPN/NRPN message is transmitted, as well as the various settings available in Basic mode.

1. Press the [EDIT] button.
2. Slightly move the controller to which you want to assign the RPN or NRPN message. In the case of a button, press that button. The display will indicate the number of the selected controller.
3. Confirm what's indicated, and press the [ENTER] button.
4. Press the [RPN] key and then press key [1].

* If you want to assign an NRPN message, press the [NRPN] key. The following procedure is the same as for RPN.

1. Press the [ENTER] button.
2. Input the channel. Use the [DEC][INC] buttons or the [0]–[F] keys to specify the channel.

3. Press the [ENTER] button.

4. Use the [DEC][INC] buttons or the [0]-[F] keys to specify the RPN MSB (CC#101) or NRPN MSB (CC#99).

5. Press the [ENTER] button.

6. Use the [DEC][INC] buttons or the [0]–[F] keys to specify the RPN LSB (CC#100) or NRPN LSB (CC#98).

7. Press the [ENTER] button.

8. The following display will appear.
9. Use the [0]–[F] keys to specify the upper limit of the data entry MSB (CC#6) value.
10. Press the [ENTER] button.
11. The following display will appear.

*1 Reference

*1 Reference

1. Use the [0]–[F] keys to specify the lower limit of the data entry MSB (CC#6) value.
2. Press the [ENTER] button.
3. The display will indicate "P--."

*1 Reference

1. Specify the output port. (→“Specifying the port” (p. 159))
2. If you are making an assignment for a button, specify the button mode. (→“Specifying the button mode” (p. 158))

■ SYS EX. ASSIGN

Here's how you can assign a system exclusive message to a controller. Advanced mode 2 lets you assign a single-byte system message (System realtime message, tune request).

Advanced modes 3 and 4 let you assign any desired message.(Input up to 24 bytes)

Mode number	Key-board	Mode Value range Required ending Notes/restrictions
Basic mode 0	Sys Ex. message Default range Input F7	1st byte fixed at F0
Advanced mode 1	1 Sys	Ex. message Assignable Input	F7 1st byte fixed at F0
Advanced mode 2	2 Single byte system message --				[0-5, 7, 9, D, E] [DATA][CHECKSUM] buttons are invalid
Advanced mode 3	3 Any	desired MIDI message Default range		Specified number of bytes	[CHECKSUM] button is invalid
Advanced mode 4	4 Any	desired MIDI message Assignable		Specified number of bytes	[CHECKSUM] button is invalid

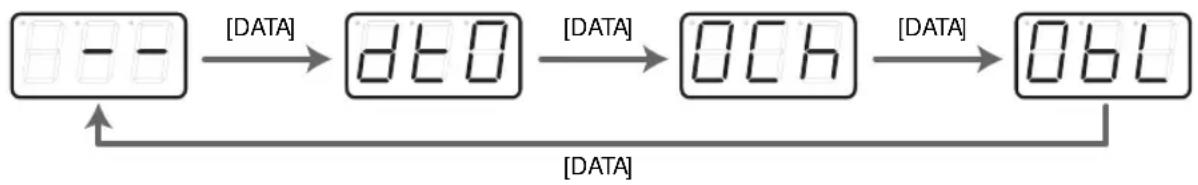

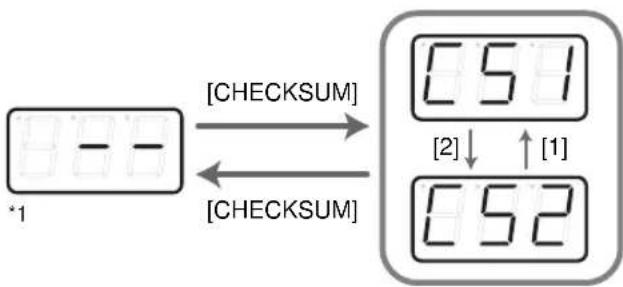

SYS EX. ASSIGN can calculate the checksum automatically, and lets you specify a variable (data) range or embed a channel/block number within the message. ("Sys Ex. ASSIGN items" (p. 160)) In SYS EX. ASSIGN, the input mode will be HEX mode.

1

Press the [EDIT] button.

The display will indicate "EDT".

2

Slightly move the controller to which you want to assign the system exclusive message. In the case of a button, press that button.

The display will indicate the number of the selected controller.

3

Confirm what's indicated, and press the [ENTER] button.

4

Press the [SYSTEM Ex.] key.

5

If you want to select an Advanced mode, press a key from [1] to [4].

The selected mode will blink in the display.

6

Confirm what's indicated, and press the [ENTER] button.

For Basic mode or Advanced mode 1

The display will blink "F0", which is the first byte (starting status byte) of a system exclusive message. (This cannot be changed.)

7

Confirm what's indicated, and press the [ENTER] button.

8

Use the [0]–[F] keys to input the second byte.

9

Press the [ENTER] button.

10

Input the third and subsequent bytes in the same way.

11

When you have finished inputting the message, use the keyboard to enter [F] and [7], specifying the ending status byte "F7".

12

Press the [ENTER] button.

13

Specify the output port. ( “Specifying the port” (p. 159))

14

If you are making an assignment for a button, specify the button mode. (→“Specifying the button mode” (p. 158))

For Advanced mode 2

The display will indicate "F-."

7

Use the [6], [8], [A]–[C], [F] keys to specify the system message.

8

Press the [ENTER] button.

9

Specify the output port. ( “Specifying the port” (p. 159))

For Advanced modes 3 or 4

The display will indicate "L--".

7

Use the [0]–[F] keys of the keyboard to specify the number (decimal) of bytes you want to input.

*1 Reference

8

Press the [ENTER] button.

9

Use the [0] – [F] keys to input the first byte.

10

Press the [ENTER] button.

11

Input the second and subsequent bytes in the same way.

12

After you have input the number of bytes you specified in step 7, the PCR-30/50/80 will check whether the messages you've input are indeed valid MIDI messages. If there is a problem, the display will indicate "ERR".

In this case, you should press the [ENTER] button, which takes you back to step 7, where you can input the values over again.

13

In the case of Advanced mode 4, specify the upper and lower limits.

14

Specify the output port. (→“Specifying the port” (p. 159))

15

If you are making an assignment for a button, specify the button mode. (→“Specifying the button mode” (p. 158))

Here are some examples of inputting various actual system exclusive messages.

- GM2 System On

F0 7E 7F 09 03 F7

Here's how to assign a GM2 System On system exclusive message in Basic mode.

1. Press the [EDIT] button.
   The display will indicate "EDT".
2. Slightly move the controller to which you want to assign the system exclusive message. In the case of a button, press that button.
   The display will indicate the number of the selected controller.
3. Confirm what's indicated, and press the [ENTER] button.
4. Press the [SYSTEM Ex.] key.
   The display will indicate "SE0".
5. Confirm what's indicated, and press the [ENTER] button.
   The display will indicate "F0", which is the first byte (beginning status) of a system exclusive message. This cannot be changed. (This cannot be changed.)
6. Confirm what's indicated, and press the [ENTER] button.
7. Use the [7] and [E] keys to input the second byte "7E".
8. Confirm what's indicated, and press the [ENTER] button.
9. Use the [7] and [F] keys to input the third byte "7F".
10. Confirm what's indicated, and press the [ENTER] button. Input the fourth and fifth bytes in the same way.
11. Finally, use the [F] and [7] keys to input the ending status byte "F7".
12. Confirm what's indicated, and press the [ENTER] button.
13. Specify the output port. ( “Specifying the port” (p. 159))
14. If you are making an assignment for a button, specify the button mode. (→“Specifying the button mode” (p. 158))
    The GM2 System On message has now been assigned.

- Master Volume

F0 7F 7F 04 01 vL vM F7

Since a Master Volume message has a data range of 00 00–7F 7F and we do not need to specify the range, we will use Basic mode. Since the two bytes of data are in the order of LSB and then MSB, we will select "DT3" when we input the data.

1. Press the [EDIT] button.

The display will indicate "EDT".

1. Slightly move the controller to which you want to assign the system exclusive message. In the case of a button, press that button.

The display will indicate the number of the selected controller.

1. Confirm what's indicated, and press the [ENTER] button.

2. Press the [SYSTEM Ex.] key.

The display will blink "SE0".

1. Confirm what's indicated, and press the [ENTER] button.

The display will indicate "F0," which is the first byte (beginning status) of a system exclusive message. (This cannot be changed.)

1. Confirm what's indicated, and press the [ENTER] button.

2. Use the [7] and [F] keys to input the second byte "7F".

3. Confirm what's indicated, and press the [ENTER] button.

Input the third, fourth and fifth bytes in the same way.

1. Since the sixth byte is the data area, press the [DATA] key, and then press [3].

The display will indicate "DT3".

1. Confirm what's indicated, and press the [ENTER] button.

2. Since we selected "DT3" as the sixth byte, the seventh byte will automatically be allocated as the data area and cannot be modified.

3. Confirm what's indicated, and press the [ENTER] button.

4. Use the [F] and [7] keys to input the ending status byte "F7".

5. Confirm what's indicated, and press the [ENTER] button.

6. Specify the output port. ( “Specifying the port” (p. 159))

7. If you are making an assignment for a button, specify the button mode.

(→“Specifying the button mode” (p. 158))

The Master Volume message has now been assigned.

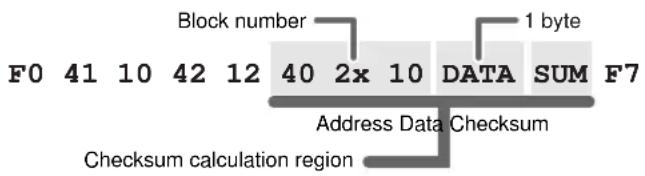

- Bend Pitch Control

Since the GS Bend Pitch Control message has a data range of 40H–58H (0–24 semitones), we will select Advanced mode 1, which lets us specify the range. Since the data format is one byte, we will select "DT0" (p. 161) when inserting the data.

1. Press the [EDIT] button.
   The display will indicate "EDT".

2. Slightly move the controller to which you want to assign the system exclusive message. In the case of a button, press that button.
   The display will indicate the number of the selected controller.

3. Confirm what's indicated and press [ENTER].

4. Press the [SYSTEM Ex.] key, and then press the [1] key. The display will indicate "SE1".

5. Confirm what's indicated and press [ENTER]. The display will blink "F0", which is the first byte (beginning status) of a system exclusive message. (This cannot be changed.)

6. Confirm what's indicated and press [ENTER].

7. Use the [4] and [1] keys to input the second byte "41".

8. Confirm what's indicated and press [ENTER]. Input the third, fourth and fifth bytes in the same way.

9. Since the sixth byte is the beginning of the checksum calculation area, press the [CHECKSUM] key to specify this byte as the beginning of the area for which the checksum will be calculated.

10. Confirm what's indicated and press [ENTER].

11. Input the sixth byte.

12. Since the seventh byte will have "2" in the upper bits and the block number in the lower bits, press [DATA] three times. The display will indicate "0BL".

13. To specify "2" for the upper bits, press the [2] key. The display will indicate "2BL".

14. Confirm what's indicated and press [ENTER].
15. In the same way, enter bytes 8.
16. Since the ninth byte is the data area, press the [DATA] key. The display will indicate "DT0."
17. Confirm what's indicated and press [ENTER].
18. Since the ten byte will contain the checksum, press the [CHECKSUM] key to specify the location at which the checksum will be input. The display will blink "CS1" (Checksum Type 1).
19. Confirm what's indicated and press [ENTER].
20. Press the [F] and then [7] keys to input the ending status "F7."
21. Confirm what's indicated and press [ENTER].
22. Next, specify an upper limit value of "58" for the data area.
23. Press [ENTER].
24. Specify a lower limit value of "40" for the data area.
25. Press [ENTER].
26. Specify the output port. (→“Specifying the port” (p. 159))
27. If you are making an assignment for a button, specify the button mode. (→“Specifying the button mode” (p. 158))

The GS Bend Pitch Control message has been assigned.

■ TEMPO ASSIGN

You can assign a controller to adjust the speed (20–250) of the F8 Clock message.

* In order to transmit F8 Clock messages, the F8 CLOCK setting must be "ON".

(→“F8 CLOCK ON/OFF”(p. 154))

1

Press the [EDIT] button.

The display will indicate "EDT."

2

Slightly move the controller to which you want to assign TEMPO. In the case of a button, press that button.

The display will indicate the number of the selected controller.

3

Confirm what's indicated and press the [ENTER] button.

4

Press the [TEMPO] key.

The display will indicate "TMP".

5

Confirm what's indicated and press the [ENTER] button.

6

If you are making the assignment for a button, specify the button mode.

(→“Specifying the button mode” (p. 158))

* In the case of a button, the value will be fixed at maximum (250) for ON, and minimum (20) for OFF.

■ NO ASSIGN

Here's how you can cancel the message assigned to a controller. Once its assignment is cancelled, no message will be transmitted when you operate that particular controller.

1

Press the [EDIT] button.

The display will indicate "EDT".

2

Slightly move the controller whose assignment you want to cancel. In the case of a button, press that button.

The display will indicate the number of the selected controller.

3

Confirm what's indicated and press the [ENTER] button.

4

Press the [NO ASSIGN] key.

The display will indicate "NOA".

5

Press the [ENTER] button.

6

The display will blink "YES," so press the [ENTER] button once again.

■ ASSIGN COPY

Here's how a message assigned to a controller can be copied to another controller.

1

Press the [EDIT] button.

The display will indicate "EDT".

2

Slightly move the controller to which you want to copy the assignment (the "copy destination"). In the case of a button, press that button.

The display will indicate the number of the selected controller.

3

Confirm what's indicated and press the [ENTER] button.

4

Slightly move the controller whose assignment you want to copy (the "copy source"). In the case of a button, press that button.

The display will indicate "CPY".

5

Press the [ENTER] button.

The display will blink the copy-source controller number.

6

Confirm what's indicated and press the [ENTER] button.

SAVE

Here's how to save the settings of the current memory into internal memory.

You can save settings into internal memory numbers 1-F.

You cannot save to memory number 0 (GM2).

* After you edit the settings, perform the “SAVE” (p. 148) operation as needed. If you turn off the power without performing “SAVE”, your changes will be lost.

1

Press the [EDIT] button.

The display will indicate "EDT".

2

Press the [SAVE] key.

The display will blink "SAV."

3

Confirm what's indicated and press the [ENTER] button.

* If the display indicates "PTC", it means that the Save could not be carried out because the PROTECT setting (p. 62) is on. Turn PROTECT off, and then try the operation once again from step 1.

4

Select a memory number 1-F. Use the [DEC] [INC] buttons or the [1]-[F] keys to specify the save-destination memory number.

The specified memory number will blink in the display.

5

Confirm what's indicated and press the [ENTER] button.

About the memories of the PCR

The PCR has the following sixteen memories.

Memory number 0 GM2 SET Cannot be saved
Memory number 1: Memory number F	User memories (15) Can be saved

“Current memory” is a location into which you can recall one of these memories.

In order to use one of the saved memories, you must recall it into current memory as described in

"Memory mode (MEMORY)" (p. 121).

The contents of current memory will be lost when you turn off the power. If you have modified the settings in current memory, perform the "SAVE" operation if you want to keep your changes.

You can set the “STARTUP MEMORY” (p. 154) setting to specify the memory that will be loaded into current memory when you turn on the power.

OMNI

If you turn the Omni setting ON, all messages will be transmitted on the current channel (p. 118) regardless of the channel that is specified for each controller.

Also, all messages will be transmitted to the "KEYBOARD PORT SET" (p. 154) regardless of the port that is specified for each controller.

1

Press the [EDIT] button.

The display will indicate "EDT".

2

Press the [OMNI] key.

The display will blink "OMN".

3

Confirm what's indicated and press the [ENTER] button.

4

The display will show the current setting.

0 OMNI OFF		Messages will be transmitted on the channel and port specified for each controller.
1 OMNI ON		Messages will be transmitted on the current channel from the Keyboard Port, regardless of the channel and port specified for each controller.

5

Use the [DEC] [INC] buttons or the [0] [1] keys to select the mode.

6

Press the [ENTER] button.

PROTECT

If you turn the Protect setting ON, All Bulk (p. 151) reception and Save (p. 148) operations will be disabled.

1

Press the [EDIT] button.

The display will indicate "EDT".

2

Press the [PROTECT] key.

The display will blink "PTC".

3

Confirm what's indicated and press the [ENTER] button.

4

The display will show the current setting.

0 PROTECT OFF Allow changes.
1 PROTECT ON Prohibit changes.

5

Use the [DEC] [INC] buttons or the [0] [1] keys to select the mode.

6

Press the [ENTER] button.

BULK

Controller assignments can be received or transmitted as bulk data.

* When you transmit or receive Bulk data, the contents of the current memory will be lost. Save the current memory settings as needed before you perform this operation.

■ Receive mode

1

Press the [EDIT] button.

The display will indicate "EDT".

2

Press the [BULK] key.

The display will blink "BLR" (Bulk Receive).

3

Confirm what's indicated and press the [ENTER] button.

The display will indicate "RS", and the "S" will blink.

4

Use the [DEC] [INC] buttons or the [0] [1] keys to select the mode.

0 SINGLE BULK		A memory will be received as bulk data.The received data will overwrite the currentmemory. Memories 1-F will not be affected.
1 ALL BULK		All memories will be received as bulk data.The received data will overwrite memories 1-F.

5

Confirm what's indicated and press the [ENTER] button.

The third digit of the display will blink, and the PCR-30/50/80 will wait to receive bulk data.

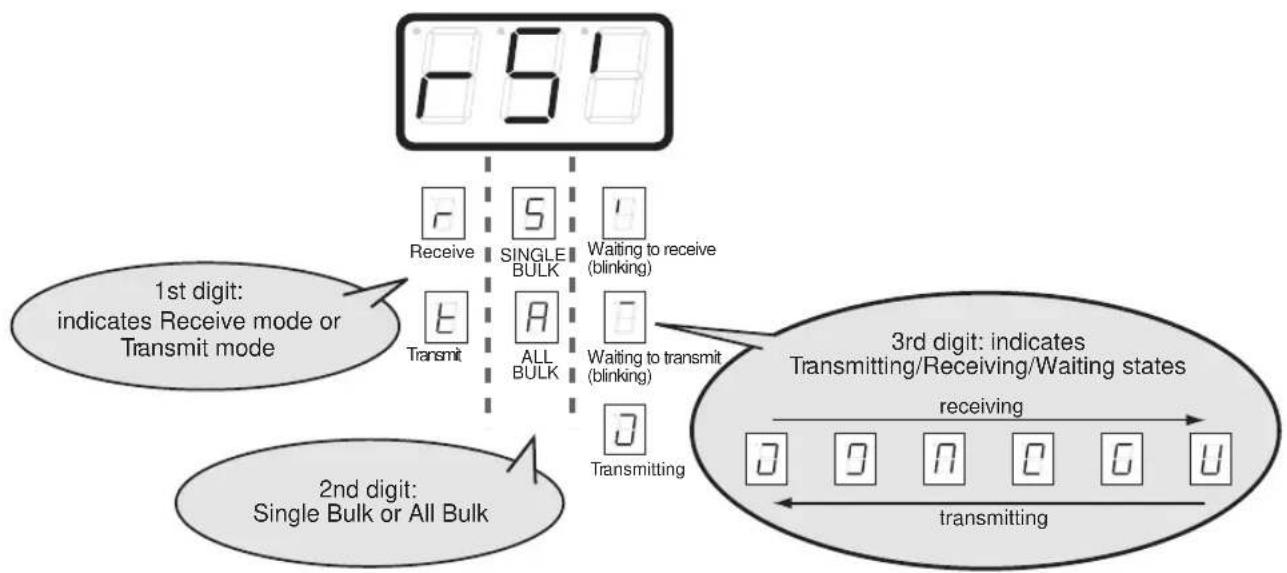

About the display in Bulk mode

6

Transmit bulk data from your sequencer or other device.

Specify "PCR" (Mac OS 9/8: PCR 1) as the MIDI output device for your sequencer software.

For details on this setting, refer to the manual of your sequencer software.

For details on the port that will be used to transfer bulk data, refer to "About the ports when using a USB connection" (p. 159).

7

When the PCR finishes receiving the bulk data, the display will indicate "END".

Error display

If the data could not be received correctly, the display will blink "ERR".

If this occurs, press the [CANCEL] button to cancel the "ERR" display.

Once "ERR" has been dismissed, perform the bulk reception procedure over again, from step 1.

8

Confirm what's indicated and press the [ENTER] button.

■ Transmit mode

1

Press the [EDIT] button.

The display will indicate "EDT".

2

Press the [BULK] key.

3

Press the [1] key.

The display will blink "BLT" (Bulk Transmit).

4

Confirm what's indicated and press the [ENTER] button.

The display will indicate "TS", and the "S" will blink.

5

Use the [DEC] [INC] buttons or the [0] [1] keys to select the mode.

0 SINGLE BULK		The currently recalled memory (the current memory) will be transmitted as bulk data
1 ALL BULK		All memories (memories 1-F) will be transmitted as bulk data.

6

Confirm what's indicated and press the [ENTER] button.

7

The third digit of the display will blink, and the PCR-30/50/80 will wait to transmit bulk data.

8

Press the [ENTER] button.

On your sequencer software, specify "PCR 2" as the MIDI input device. For details on this setting, refer to the manual of your sequencer software.

For details on the port that will be used to transfer bulk data, refer to “About the ports when using a USB connection” (p. 159).

9

When the PCR finishes receiving the bulk data, the display will indicate "END".

10

Confirm what's indicated and press the [ENTER] button.

SYSTEM

Here's how you can make various system settings for the PCR-30/50/80.

1

Press the [EDIT] button.

The display will indicate "EDT".

2

Press the [SYSTEM] key.

The display will indicate "SY0".

3

Use the [0]–[8] keys to specify the System setting that you want to set, and then press the [ENTER] button.

Confirm what's indicated and use the appropriate method to make the setting.

Keyboard	Mode Content of the setting	Default		Setting method
0 F8	CLOCK ON/OFF Specify whether F8 Clock is to be transmitted.		OFF A (p. 155)
1 F8	CLOCK DEFAULT TEMPO	If “F8 CLOCK ON/OFF” is ON, specify the default value of the F8 Clock. After the power is turned on, this tempo will continue to be output until you move a controller to which TEMPO is assigned.	120 B (p. 155)
2 F8	CLOCK PORT SET If “F8 CLOCK ON/OFF” is ON, specify the port from which the F8 Clock is to be transmitted.		PCR 1 C (p. 155)
3 VELOCITY OFFSET The value you specify here will be added to the velocity of the notes played from the keyboard.* If the result of the addition would exceed 7FH, the velocity will be 7FH.			0 B (p. 155)
4 KEYBOARD PORT SET Specify the port from which messages produced by the BENDER lever of the keyboard are to be transmitted.			PCR 1 C (p. 155)
5 H-ACTIVITY ON/OFF Turn this ON if you are using certain applications (such as Pro Tools LE). When ON, “90 00 7F” will be output from PCR 2 approximately every 500 ms.			OFF A (p. 155)
6 USB	DRIVER MODE Specify the type of driver used for USB connection.		Original Driver	D (p. 156)
7 STARTUP MEMORY Specify the memory that will be selected when the power is turned on.			GM2 E (p. 156)
8 FACTORY RESET Restore all settings of the PCR-30/50/80 to their factory-set condition.			-	F (p. 156)

■ Setting method A

Perform steps 1–3.

Use the [DEC][INC] buttons or the [0] or [1] keys to switch F8 CLOCK or H-ACTIVITY on/off.

0 OFF

1 ON

The display will indicate either "ON" or "OFF".

Press the [ENTER] button.

■ Setting method B

Perform steps 1–3.

Use the [DEC][INC] buttons or the [0]–[F] keys to specify the F8 CLOCK DEFAULT TEMPO or the VELOCITY OFFSET value.

Keyboard Mode Value range
1 F8 CLOCK DEFAULT TEMPO 20-250
3 VELOCITY OFFSET 0-127

The display will indicate the value.

Press the [ENTER] button.

■ Setting method C

Perform steps 1–3.

Use the [DEC][INC] buttons or the [0]–[F] keys to specify F8 CLOCK PORT SET or KEYBOARD PORT SET. (→“Specifying the port” (p. 159))

The specified port will indicate in the display.

Press the [ENTER] button.

■ Setting method D

Perform steps 1–3.

4

Use the [DEC][INC] buttons or the [0] or [1] keys to specify the USB DRIVER MODE.

		FPT technology is used to perform high-speed MIDI transfer. Normally, we recommend that you use this mode.
		Select this if you are using the standard MIDI driver provided by your operating system.

* FPT = Fast Processing Technology for MIDI Transmission:

Effective use is made of the USB bandwidth according to the amount of MIDI data to be transmitted, ensuring that MIDI data processing will always occur optimally.

5

Press the [ENTER] button.

■ Setting method E

Perform steps 1–3.

4

Use the [DEC][INC] buttons or the [0] or [1] keys to specify the GM2/LAST ACCESS MEMORY setting.

0 GM2 MEMORY		When the PCR starts up, memory number 0 (GM2) will be loaded into current memory (p. 148) regardless of the state in which the power was turned off.
1		Upon power-up, the PCR-30/50/80 will recall the memory that was last recalled or saved into current memory (p. 148).

5

Press the [ENTER] button.

■ Setting method F

Perform steps 1–3.

4

The display will indicate "RST".

5

Press the [ENTER] button.

6

The display will blink "YES".

7

Press the [ENTER] button.

Appendices

This section contains troubleshooting information and explanations of convenient functions. You may read this material as necessary.

Convenient functions....p. 158

Memory sets ......p. 164

If you are not in Play mode, you can use one of two ways to input a numerical value into the PCR-30/50/80; Decimal input mode or Hexadecimal input mode.

If you want to input decimal numbers, press the [DECIMAL] button. If you want to input hexadecimal numbers, press the [HEX] button. When you turn on the power, the PCR-30/50/80 will start up in Decimal mode.

Decimal and hexadecimal numbers correspond as follows.

Decimal: 0-127

Hexadecimal: 00-7F

However, for MIDI CH and PROGRAM CHANGE, the values are as follows.

	Decimal Hexadecimal
MIDI CH 1-16 0-F
PROGRAM CHANGE 1-128 00-7F

* Normally, the display will show three digits when using Decimal input mode. For this reason, there will be no indication of the parameter you are now inputting, and you may lose track of what you are doing. If this occurs, you can temporarily switch back to Hexadecimal mode to check the parameter you are inputting. Then switch back to Decimal mode and continue.

Specifying the button mode

When you make Assign settings (p. 126) in Edit mode to assign a message to a button, you must specify the operating mode of the button (button mode).

1. Press the [0] or [1] key to select either Latch mode or Toggle mode.

0 Lat		The setting will turn on when you press the button, and off when you release it. The button will remain lit while you are pressing it.
1 Toç		The setting will alternate on/off each time you press the button. The button will light when an On message is transmitted, and will go dark when an Off message is transmitted.

1. Press the [ENTER] button.

* When you use a button as a controller, turning the button on will transmit the maximum specified value, and turning it off will transmit the minimum value.

Specifying the port

When you are making Assign settings (p. 41) in Edit mode and have selected Advanced mode, you must specify the USB port to which the message assigned to the controller will be sent when using a USB connection.

1. Press a key [1]–[3] to select the port.

1 PO		will be sent to “PCR 1.”
2 PO		will be sent to “PCR 2.”
3 PO		will be sent to both “PCR 1” and “PCR 2.”

1. Press the [ENTER] button.

* If you are using the PCR-30/50/80 with a MIDI connection, the messages will be transmitted from the MIDI OUT connector regardless of this port setting.

About the ports when using a USB connection

The ports correspond to the PCR-30/50/80 as follows.

* As seen from the PCR-30/50/80, each section of the diagram does the following.

Bulk reception

This section receives bulk data

PORT 1

Of the keyboard, bender level, and controllers, those assigned to PORT 1 are transmitted from here

PORT 2

Of the keyboard, bender level, and controllers, those assigned to PORT 2 are transmitted from here

Bulk transmission

This section transmits bulk data

MIDI OUT device
PCR MIDI OUT(Mac OS 9/8 : PCR MIDI IN, OUT)	If you specify PCR MIDI OUT as the output port for your sequencer software, the MIDI messages will be sent from the MIDI OUT connector of the PCR-30/50/80.
PCR(Mac OS 9/8 : PCR 1)	This is the Bulk reception port. When receiving bulk data into the PCR-30/50/80, specify PCR as the output port for your sequencer software.
MIDI IN device
PCR MIDI IN(Mac OS 9/8 : PCR MIDI IN, OUT)	If you specify PCR MIDI IN as the input port for your sequencer software, MIDI messages from the MIDI IN connector of the PCR-30/50/80 can be received.
PCR 1PCR 2	This is the port at which messages from the keyboard, BENDER lever, and controllers will be input.The keyboard, BENDER lever, and controllers will be mapped to PCR 1 and/or PCR 2 according to the port setting.You may find it convenient to specify PCR 1 for messages used to play a software synthesizer or for realtime recording on a sequencer track, and specify PCR 2 for messages used to control the sequencer, such as sequencer play/stop or track fader control. PCR 2 is the bulk transmission port. When transmitting bulk data from the PCR-30/50/80, specify PCR 2 as the input port for your sequencer software.

Sys Ex. ASSIGN items

■ Specifying the checksum

The PCR-30/50/80 can automatically calculate the checksum of a system exclusive message and embed it in the message. In order to use this function, you must use the following procedure to specify the starting location from which the checksum is calculated, and the location at which the checksum is inserted. You can also select the type of checksum.

For an actual example, please read the Sys Ex.ASSIGN section "Bend Pitch Control" (p. 144)

1. Press the [CHECKSUM] key before you input the byte at which checksum calculation should begin.

The display will indicate "CSS" (Checksum Start).

If you press the [CHECKSUM] key once again, "CSS" (Checksum

Start) will be cancelled.

1. Press the [ENTER] button.

2. Continue inputting data.

3. Press the [CHECKSUM] key at the location where the checksum should be inserted.

The display will indicate "CS1" (Checksum type 1).

1. Press the [ENTER] button.

Checksum types

There are two types of checksum, as follows.

1			CHECKSUM TYPE 1	This is the method used by Roland and most other manufacturers
2			CHECKSUM TYPE 2	Select this if the method other than type 1 is used

Switching the type

If you want to switch to type 2, press the [2] key after you press [CHECKSUM] in step 4. To switch back to type 1, press the [1] key.

■ Specifying the location of the data

Here's how to specify the location and data type of the variable portion (data) within a system exclusive message.

The range of data values will be the default range in the case of Basic mode or Advanced mode 3.

In the case of Advanced modes 1 and 4, you can specify the range of data values.

For an actual example, please read the Sys Ex, ASSIGN section "Master Volume" (p. 143).

1. Press the [DATA] key at the location where you want to input the data.
   The display will indicate "DT0".

2. Use the [0]–[4] keys to select the type of data.

Data number	Data type	Default range Target of	range setting	Example (specified upper/lower limits)
DT0	7bit 00H-7F		Specify the range of data (00-7FH)	04-45(lower limit 4H, upper limit 45H)
DT1	4bit/4bit 0H/0H-FH/FH		Specify the range of the first byte (0-FH), second byte is fixed at 0-FH	0/0-D/F(lower limit 0H, upper limit DH)
DT2	7bit/7bit(MSB/LSB)	00H/00H-7FH/7FH	Specify the MSB range (00-7F), LSB is fixed at 00-7F	23/00-68/7F(lower limit 23H, upper limit 68H)
DT3	7bit/7bit(LSB/MSB)	00H/00H-7FH/7FH	Specify the MSB range (00-7F), LSB is fixed at 00-7F	00/23-7F/68(lower limit 23H, upper limit 68H)
DT4	4bit/4bit/4bit/4bit	7H/FH/0H/1H-8H/0H/FH/FH	Specify the limits of positive/negative change as a value from 00H to FFH, centered on 8000H.	7/F/0/2-8/0/5/0(lower limit FEH, upper limit 50H)

* In the case of DT1--DT4 (data consisting of two or more bytes), a data location will automatically be allocated for the next byte, and "-DT" will be displayed. (This cannot be changed.)

1. Press the [ENTER] button.

2. If you selected DT1 through DT4, the display will indicate "-DT". Press the [ENTER] button.

■ Inputting channel/block data

If a system exclusive message includes a channel or GS block number, here's how to specify the type and the value of the upper bits. For the channel and block number, the setting of the current channel (p. 118) will be inserted as the lower bits. (The block number is not actually a channel, but corresponds to the "part" within a GS sound module. On the PCR-30/50/80, this corresponds to the channel for the sake of convenience.)

Current channel	1 2	3 4 5	6 7 8	9 10	11 12	13 14	15 16
CH 0 1 2 3 4	5 6 7	8 9 A	B C D	E F
BL 1 2 3 4 5	6 7 8	9 0 A	B C D	E F

For an actual example, refer to “Bend Pitch Control” (p. 144) in the section on the Edit Mode.

1. Press the [DATA] key several times at the location where you want to input the channel/block number, to select "0CH" for the channel or "0BL" for the block.

1. Use the [0]–[7] keys to input the value of the upper four bits. The “0” in the display will change to the numerical value that you input.

2. Press the [ENTER] button.

V-LINK mode

When you press the [V-LINK] button, the PCR will transmit a V-LINK ON message and will enter V-LINK mode. When you press the [V-LINK] button once again, the PCR will transmit a V-LINK OFF message and will exit V-LINK mode.

When the PCR enters V-LINK mode, it will transmit the following parameters to the V-LINK host.

• Clip Ctrl Rx MIDI ch : 16
  • Color Ctrl Rx MIDI ch : 16
• Sender Model Name : EDIROL PCR

In V-LINK mode, the PCR will operate as follows.

• Messages from the PCR itself will be transmitted to both the MIDI connector and the USB connector.
  * In V-LINK mode, you cannot use the MIDI connectors as a USB MIDI interface.
• When you play the keyboard, program change messages or bank select MSB messages will be transmitted in addition to note messages.
  * The program change messages and bank select MSB messages will be transmitted on channel 16.

Note Number	Program Change	Bank Select MSB
C2 36 1
C#2 37 0
D2 38 2
D#2 39 1
E2 40 3
F2 41 4
F#2 42 2
G2 43 5
G#2 44 3
A2 45 6
A#2 46 4
B2 47 7
C3 48 8
C#3 49 5
D3 50 9
D#3 51 6
E3 52 10
F3 53 11
F#3 54 7
G3 55 12
G#3 56 8
A3 57 13
A#3 58 9
B3 59 14
C4 60 15
C#4 61 10
D4 62 16
D#4 63 11
E4 64 17
F4 65 18
F#4 66 12
G4 67 19
G#4 68 13
A4 69 20
A#4 70 14
B4 71 21
C5 72 22
C#5 73 15
D5 74 23
D#5 75 16
E5 76 24
F5 77 25
F#5 78 17
G5 79 26
G#5 80 18
A5 81 27
A#5 82 19
B5 83 28
C6 84 29
C#6 85
D6 86 30
D#6 87
E6 88 31
F6 89 21

Memory sets

With the factory settings, the GM2 set shown in the illustration is assigned to the controllers.

Use the included template.

The following memory sets are also provided.

GM2 set (MEMORY: 0)....(p. 164)

MCR-8 MODE 3(SONAR 2) SET....(p. 165)

MCR-8 MODE 3(SONAR 2) - A (MEMORY: 1).....(p. 165)

MCR-8 MODE 3(SONAR 2) - B (MEMORY: 2) ......(p. 165)

MCR-8 MODE 3(SONAR 2) - C (MEMORY: 3).....(p. 165)

MCR-8 MODE 3(SONAR 2) - D (MEMORY: 4).....(p. 165)

MCR-8 MODE 4(Cubase 5/SX) SET .....(p. 166)

MCR-8 MODE 4(Cubase 5/SX) - A (MEMORY: 5)....(p. 166)

MCR-8 MODE 4(Cubase 5/SX) - B (MEMORY: 6) ....(p. 166)

MCR-8 MODE 4(Cubase 5/SX) - C (MEMORY: 7)....(p. 166)

H-COMPATIBLE (ProTools LE, Digital Performer) SET

(MEMORY: 9).... (p. 167)

GS SET....(p. 167)

GS-A (MEMORY: A)....(p. 167)

GS-B (MEMORY: B).... (p. 168)

GS-C (MEMORY: C).... (p. 168)

XG SET....(p. 169)

XG-A (MEMORY: D)....(p. 169)

XG-B (MEMORY: E).... (p. 169)

For details on settings for actually using each memory set with your application, refer to the Read Me file for each memory set, located in the Memory Files folder of the CD-ROM.

You can download the latest additional memory sets from the following website.

■ GM2 set (MEMORY: 0)

	Parameter Message (Hex.) Range (Hex.) Ch.				Port
R1 F	LTER CUTOFF CC 74(4A) 0(00) - 127(7F) 1 1
R2 F	LTER RESONANCE CC 71(47) 0(00) - 127(7F) 1 1
R3 V	IBRATO RATE CC 76(4C)	0(00) - 127(7F) 1 1
R4 V	IBRATO DEPTH CC 77(4D) 0(00) - 127(7F) 1 1
R5 V	IBRATO DELAY CC 78(4E)		0(00) - 127(7F) 1 1
R6	COARSE TUNING	RPN 0/2(00/02)	0/-(00/--)-127/-(7F/--)	1	1
R7	FINE TUNING	RPN 0/1(00/01)	0/0(00/00) - 127/127(7F/7F)	1	1
R8 P	AN (CHANNEL) CC 10(0A) 0(00) - 127(7F) 1 1
S1	PORTAMENTO TIME CC 5(05)		0(00) - 127(7F) 1 1
S2	AFTERTOUCH	CHANNEL PRESSURE	0(00) - 127(7F)	1	1
S3	ENVELOPE ATTACK	CC 73(49) 0(00) - 127(7F) 1 1
S4	ENVELOPE DECAY	CC 75(4B)	0(00) - 127(7F)	1	1
S5	ENVELOPE RELEASE	CC 72(48) 0(00) - 127(7F) 1 1
S6	CHORUS	CC 93(5D) 0(00) - 127(7F) 1 1
S7	REVERB	CC 91(5B)	0(00) - 127(7F) 1 1
S8	VOLUME (CHANNEL)	CC 7(07)	0(00) - 127(7F)	1	1
B1	PROGRAM CHANGE DEC	PROGRAM CHANGE	min:1(00)	-	-
B2	PROGRAM CHANGE INC	PROGRAM CHANGE	max:128(7F)	-	-
B3	PORTAMENTO ON/OFF	CC 65(41)	0(00) / 127(7F)	1	1
B4 POLY MODE ON B0 7F 00			-	1 1
B5 MONO MODE ON B0 7E 01			-	1 1
B6	GM2 SYSTEM ON	F0 7E 7F 09 03 F7	-	-	1
L1	STOP	FC	-	-	2
L2	START	FA	-	-	2
L3	CONTINUE	FB	-	-	2
P1 HOLD CC 64(40)			0(00) / 127(7F)	1 1
P2 EXPRESSION CC 11(0B)			0(00) - 127(7F) 1 1

■ MCR-8 MODE 3(SONAR 2) SET

When using this memory set, turn the PCR-30/50/80's OMNI (p. 149) setting OFF.

* To display the external controller toolbar, open Display | Toolbars, and select External Controllers.

MCR-8 MODE 3(SONAR 2) - A (MEMORY: 1)

	Parameter	Message (Hex.)	Range (Hex.)	Ch. Port
R1	TRACK 1 *1 CC 16(10) 0(00) - 127(7F) 1 2
R2	TRACK 2 *1 CC 16(10) 0(00) - 127(7F) 2 2
R3	TRACK 3 *1 CC 16(10) 0(00) - 127(7F) 3 2
R4	TRACK 4 *1 CC 16(10) 0(00) - 127(7F) 4 2
R5	TRACK 5 *1 CC 16(10) 0(00) - 127(7F) 5 2
R6	TRACK 6 *1 CC 16(10) 0(00) - 127(7F) 6 2
R7	TRACK 7 *1 CC 16(10) 0(00) - 127(7F) 7 2
R8	TRACK 8 *1 CC 16(10) 0(00) - 127(7F) 8 2
S1	TRACK 1 *2 CC 17(11) 0(00) - 127(7F) 1 2
S2	TRACK 2 *2 CC 17(11) 0(00) - 127(7F) 2 2
S3	TRACK 3 *2 CC 17(11) 0(00) - 127(7F) 3 2
S4	TRACK 4 *2 CC 17(11) 0(00) - 127(7F) 4 2
S5	TRACK 5 *2 CC 17(11) 0(00) - 127(7F) 5 2
S6	TRACK 6 *2 CC 17(11) 0(00) - 127(7F) 6 2
S7	TRACK 7 *2 CC 17(11) 0(00) - 127(7F) 7 2
S8	TRACK 8 *2 CC 17(11) 0(00) - 127(7F) 8 2
B1	TRACK 1 *3 CC 80(50) 0(00) / 127(7F) 1 2
B2	TRACK 2 *3 CC 80(50) 0(00) / 127(7F) 2 2
B3	TRACK 3 *3 CC 80(50) 0(00) / 127(7F) 3 2
B4	TRACK 4 *3 CC 80(50) 0(00) / 127(7F) 4 2
B5	TRACK 5 *3 CC 80(50) 0(00) / 127(7F) 5 2
B6	TRACK 6 *3 CC 80(50) 0(00) / 127(7F) 6 2
L1	< CC 82(52) 0(00) / 127(7F) 13 2
L2	■ Stop CC 82(52) 0(00) / 127(7F) 14 2
L3	> Play CC 82(52) 0(00) / 127(7F) 15 2
P1	HOLD CC 64(40) 0(00) / 127(7F) 1 1
P2	EXPRESSION	CC 11(0B)	0(00) - 127(7F) 1 1

MCR-8 MODE 3(SONAR 2) - B (MEMORY: 2)

	Parameter	Message (Hex.)	Range (Hex.)	Ch. Port
R1	TRACK 1 *1 CC 16(10) 0(00) - 127(7F) 1 2
R2	TRACK 2 *1 CC 16(10) 0(00) - 127(7F) 2 2
R3	TRACK 3 *1 CC 16(10) 0(00) - 127(7F) 3 2
R4	TRACK 4 *1 CC 16(10) 0(00) - 127(7F) 4 2
R5	TRACK 5 *1 CC 16(10) 0(00) - 127(7F) 5 2
R6	TRACK 6 *1 CC 16(10) 0(00) - 127(7F) 6 2
R7	TRACK 7 *1 CC 16(10) 0(00) - 127(7F) 7 2
R8	TRACK 8 *1 CC 16(10) 0(00) - 127(7F) 8 2
S1	TRACK 1 *2 CC 17(11) 0(00) - 127(7F) 1 2
S2	TRACK 2 *2 CC 17(11) 0(00) - 127(7F) 2 2
S3	TRACK 3 *2 CC 17(11) 0(00) - 127(7F) 3 2
S4	TRACK 4 *2 CC 17(11) 0(00) - 127(7F) 4 2
S5	TRACK 5 *2 CC 17(11) 0(00) - 127(7F) 5 2
S6	TRACK 6 *2 CC 17(11) 0(00) - 127(7F) 6 2
S7	TRACK 7 *2 CC 17(11) 0(00) - 127(7F) 7 2
S8	TRACK 8 *2 CC 17(11) 0(00) - 127(7F) 8 2
B1	TRACK 1 *4 CC 81(51) 0(00) / 127(7F) 1 2
B2	TRACK 2 *4 CC 81(51) 0(00) / 127(7F) 2 2
B3	TRACK 3 *4 CC 81(51) 0(00) / 127(7F) 3 2
B4	TRACK 4 *4 CC 81(51) 0(00) / 127(7F) 4 2
B5	TRACK 5 *4 CC 81(51) 0(00) / 127(7F) 5 2
B6	TRACK 6 *4 CC 81(51) 0(00) / 127(7F) 6 2
L1	< CC 82(52) 0(00) / 127(7F) 13 2
L2	■ Stop CC 82(52) 0(00) / 127(7F) 14 2
L3	> Play CC 82(52) 0(00) / 127(7F) 15 2
P1	HOLD CC 64(40) 0(00) / 127(7F) 1 1
P2	EXPRESSION	CC 11(0B)	0(00) - 127(7F) 1 1

MCR-8 MODE 3(SONAR 2) - C (MEMORY: 3)

	Parameter	Message (Hex.)	Range (Hex.)	Ch. Port
R1	TRACK 9 *1 CC 16(10) 0(00) - 127(7F) 9 2
R2	TRACK 10 *1 CC 16(10) 0(00) - 127(7F)	10 2
R3	TRACK 11 *1 CC 16(10) 0(00) - 127(7F)	11 2
R4	TRACK 12 *1 CC 16(10) 0(00) - 127(7F)	12 2
R5	TRACK 13 *1 CC 16(10) 0(00) - 127(7F)	13 2
R6	TRACK 14 *1 CC 16(10) 0(00) - 127(7F)	14 2
R7	TRACK 15 *1 CC 16(10) 0(00) - 127(7F)	15 2
R8	TRACK 16 *1 CC 16(10) 0(00) - 127(7F)	16 2
S1	TRACK 9 *2 CC 17(11) 0(00) - 127(7F) 9 2
S2	TRACK 10 *2 CC 17(11) 0(00) - 127(7F)	10 2
S3	TRACK 11 *2 CC 17(11) 0(00) - 127(7F)	11 2
S4	TRACK 12 *2 CC 17(11) 0(00) - 127(7F)	12 2
S5	TRACK 13 *2 CC 17(11) 0(00) - 127(7F)	13 2
S6	TRACK 14 *2 CC 17(11) 0(00) - 127(7F)	14 2
S7	TRACK 15 *2 CC 17(11) 0(00) - 127(7F)	15 2
S8	TRACK 16 *2 CC 17(11) 0(00) - 127(7F)	16 2
B1	TRACK 9 *3 CC 80(50) 0(00) / 127(7F)	9 2
B2	TRACK 10 *3 CC 80(50) 0(00) / 127(7F) 10	2
B3	TRACK 11 *3 CC 80(50) 0(00) / 127(7F) 11	2
B4	TRACK 12 *3 CC 80(50) 0(00) / 127(7F) 12	2
B5	TRACK 13 *3 CC 80(50) 0(00) / 127(7F) 13	2
B6	TRACK 14 *3 CC 80(50) 0(00) / 127(7F) 14	2
L1	Automation Write	CC 82(52) 0(00) / 127(7F) 12 2
L2	Stop CC 82(52) 0(00) / 127(7F) 14 2
L3	Rc	CC 82(52) 0(00) / 127(7F) 11 2
P1	HOLD CC 64(40) 0(00) / 127(7F) 1 1
P2	EXPRESSION	CC 11(0B)	0(00) - 127(7F) 1 1

MCR-8 MODE 3(SONAR 2) - D (MEMORY: 4)

	Parameter	Message (Hex.)	Range (Hex.)	Ch. Port
R1	TRACK 9 *1 CC 16(10) 0(00) - 127(7F) 9 2
R2	TRACK 10 *1 CC 16(10) 0(00) - 127(7F)	10 2
R3	TRACK 11 *1 CC 16(10) 0(00) - 127(7F)	11 2
R4	TRACK 12 *1 CC 16(10) 0(00) - 127(7F)	12 2
R5	TRACK 13 *1 CC 16(10) 0(00) - 127(7F)	13 2
R6	TRACK 14 *1 CC 16(10) 0(00) - 127(7F)	14 2
R7	TRACK 15 *1 CC 16(10) 0(00) - 127(7F)	15 2
R8	TRACK 16 *1 CC 16(10) 0(00) - 127(7F)	16 2
S1	TRACK 9 *2 CC 17(11) 0(00) - 127(7F) 9 2
S2	TRACK 10 *2 CC 17(11) 0(00) - 127(7F)	10 2
S3	TRACK 11 *2 CC 17(11) 0(00) - 127(7F)	11 2
S4	TRACK 12 *2 CC 17(11) 0(00) - 127(7F)	12 2
S5	TRACK 13 *2 CC 17(11) 0(00) - 127(7F)	13 2
S6	TRACK 14 *2 CC 17(11) 0(00) - 127(7F)	14 2
S7	TRACK 15 *2 CC 17(11) 0(00) - 127(7F)	15 2
S8	TRACK 16 *2 CC 17(11) 0(00) - 127(7F)	16 2
B1	TRACK 9 *4 CC 81(51) 0(00) / 127(7F)	9 2
B2	TRACK 10 *4 CC 81(51) 0(00) / 127(7F) 10	2
B3	TRACK 11 *4 CC 81(51) 0(00) / 127(7F) 11	2
B4	TRACK 12 *4 CC 81(51) 0(00) / 127(7F) 12	2
B5	TRACK 13 *4 CC 81(51) 0(00) / 127(7F) 13	2
B6	TRACK 14 *4 CC 81(51) 0(00) / 127(7F) 14	2
L1	Automation Write	CC 82(52) 0(00) / 127(7F) 12 2
L2	Stop CC 82(52) 0(00) / 127(7F) 14 2
L3	Rec	CC 82(52) 0(00) / 127(7F) 11 2
P1	HOLD CC 64(40) 0(00) / 127(7F) 1 1
P2	EXPRESSION	CC 11(0B)	0(00) - 127(7F) 1 1

Generic Surface Preset	*1	*2	*3	*4
Roland MCR-8 (Aux Send 1)	Aux Send 1 Pan	Aux Send 1 Level	Aux Send 1 Pre/Post	Aux Send 1 Enable
Roland MCR-8 (Aux Send 2)	Aux Send 2 Pan	Aux Send 2 Level	Aux Send 2 Pre/Post	Aux Send 2 Enable
Roland MCR-8 (Mute + Solo)	Pan	Volume	Mute	Solo
Roland MCR-8 (Record Arming)	Pan	Volume	White Arm	Record Arm

■ MCR-8 MODE 4(Cubase 5/SX) SET

When using this memory set, turn the PCR-30/50/80's OMNI (p. 149) setting OFF.

MCR-8 MODE 4(Cubase 5/SX) - A (MEMORY: 5)

	Parameter	Message (Hex.)	Range (Hex.)	Ch. Port
R1	TRACK 1 PAN CC 72(48)	0(00) - 127(7F) 16	2
R2	TRACK 2 PAN CC 73(49)	0(00) - 127(7F) 16	2
R3	TRACK 3 PAN CC 74(4A)	0(00) - 127(7F) 16	2
R4	TRACK 4 PAN CC 75(4B)	0(00) - 127(7F) 16	2
R5	TRACK 5 PAN CC 76(4C)	0(00) - 127(7F) 16	2
R6	TRACK 6 PAN CC 77(4D)	0(00) - 127(7F) 16	2
R7	TRACK 7 PAN CC 78(4E)	0(00) - 127(7F) 16	2
R8	TRACK 8 PAN CC 79(4F)	0(00) - 127(7F) 16	2
S1	TRACK 1 FADER CC 64(40)	0(00) - 127(7F)	16 2
S2	TRACK 2 FADER CC 65(41)	0(00) - 127(7F)	16 2
S3	TRACK 3 FADER CC 66(42)	0(00) - 127(7F)	16 2
S4	TRACK 4 FADER CC 67(43)	0(00) - 127(7F)	16 2
S5	TRACK 5 FADER CC 68(44)	0(00) - 127(7F)	16 2
S6	TRACK 6 FADER CC 69(45)	0(00) - 127(7F)	16 2
S7	TRACK 7 FADER CC 70(46)	0(00) - 127(7F)	16 2
S8	TRACK 8 FADER CC 71(47)	0(00) - 127(7F)	16 2
B1	TRACK 1 SOLO CC 0(00)	0(00) / 127(7F) 16	2
B2	TRACK 2 SOLO CC 1(01)	0(00) / 127(7F) 16	2
B3	TRACK 3 SOLO CC 2(02)	0(00) / 127(7F) 16	2
B4	TRACK 4 SOLO CC 3(03)	0(00) / 127(7F) 16	2
B5	TRACK 5 SOLO CC 4(04)	0(00) / 127(7F) 16	2
B6	TRACK 6 SOLO CC 5(05)	0(00) / 127(7F) 16	2
L1	< <	CC 19(13) 0(00)	/ 127(7F) 16 2
L2	■ Stop	CC 21(15) 0(00)	/ 127(7F) 16 2
L3	> Play	CC 22(16) 0(00)	/ 127(7F) 16 2
P1	HOLD	CC 64(40) 0(00)	/ 127(7F) 1	1
P2	EXPRESSION	CC 11(0B)	0(00) - 127(7F)	1

MCR-8 MODE 4(Cubase 5/SX) - C (MEMORY: 7)

	Parameter	Message (Hex.)	Range (Hex.)	Ch. Port
R1	TRACK 9 PAN CC 56(38)	0(00) - 127(7F) 16	2
R2	TRACK 10 PAN	CC 57(39) 0(00)	- 127(7F) 16 2
R3	TRACK 11 PAN	CC 58(3A) 0(00)	- 127(7F) 16 2
R4	TRACK 12 PAN	CC 59(3B) 0(00)	- 127(7F) 16 2
R5	TRACK 13 PAN	CC 60(3C) 0(00)	- 127(7F) 16 2
R6	TRACK 14 PAN	CC 61(3D) 0(00)	- 127(7F) 16 2
R7	TRACK 15 PAN	CC 62(3E) 0(00)	- 127(7F) 16 2
R8	TRACK 16 PAN	CC 63(3F) 0(00)	- 127(7F) 16 2
S1	TRACK 9 FADER CC 48(30)	0(00) - 127(7F)	16 2
S2	TRACK 10 FADER	CC 49(31) 0(00)	- 127(7F) 16 2
S3	TRACK 11 FADER	CC 50(32) 0(00)	- 127(7F) 16 2
S4	TRACK 12 FADER	CC 51(33) 0(00)	- 127(7F) 16 2
S5	TRACK 13 FADER	CC 52(34) 0(00)	- 127(7F) 16 2
S6	TRACK 14 FADER	CC 53(35) 0(00)	- 127(7F) 16 2
S7	TRACK 15 FADER	CC 54(36) 0(00)	- 127(7F) 16 2
S8	TRACK 16 FADER	CC 55(37) 0(00)	- 127(7F) 16 2
B1	TRACK 9 SOLO	CC 32(20) 0(00)	/ 127(7F) 16 2
B2	TRACK 10 SOLO	CC 33(21) 0(00)	/ 127(7F) 16 2
B3	TRACK 11 SOLO	CC 34(22) 0(00)	/ 127(7F) 16 2
B4	TRACK 12 SOLO	CC 35(23) 0(00)	/ 127(7F) 16 2
B5	TRACK 13 SOLO	CC 36(24) 0(00)	/ 127(7F) 16 2
B6	TRACK 14 SOLO	CC 37(25) 0(00)	/ 127(7F) 16 2
L1	< <	CC 20(14) 0(00)	/ 127(7F) 16 2
L2	■ Stop	CC 21(15) 0(00)	/ 127(7F) 16 2
L3	Rec	CC 23(17) 0(00)	/ 127(7F) 16 2
P1	HOLD	CC 64(40) 0(00)	/ 127(7F) 1	1
P2	EXPRESSION	CC 11(0B)	0(00) - 127(7F)	1

MCR-8 MODE 4(Cubase 5/SX) - B (MEMORY: 6)

	Parameter	Message (Hex.)	Range (Hex.)	Ch. Port
R1	TRACK 1 PAN CC 72(48)	0(00) - 127(7F) 16	2
R2	TRACK 2 PAN CC 73(49)	0(00) - 127(7F) 16	2
R3	TRACK 3 PAN CC 74(4A)	0(00) - 127(7F) 16	2
R4	TRACK 4 PAN CC 75(4B)	0(00) - 127(7F) 16	2
R5	TRACK 5 PAN CC 76(4C)	0(00) - 127(7F) 16	2
R6	TRACK 6 PAN CC 77(4D)	0(00) - 127(7F) 16	2
R7	TRACK 7 PAN CC 78(4E)	0(00) - 127(7F) 16	2
R8	TRACK 8 PAN CC 79(4F)	0(00) - 127(7F) 16	2
S1	TRACK 1 FADER CC 64(40)	0(00) - 127(7F)	16 2
S2	TRACK 2 FADER CC 65(41)	0(00) - 127(7F)	16 2
S3	TRACK 3 FADER CC 66(42)	0(00) - 127(7F)	16 2
S4	TRACK 4 FADER CC 67(43)	0(00) - 127(7F)	16 2
S5	TRACK 5 FADER CC 68(44)	0(00) - 127(7F)	16 2
S6	TRACK 6 FADER CC 69(45)	0(00) - 127(7F)	16 2
S7	TRACK 7 FADER CC 70(46)	0(00) - 127(7F)	16 2
S8	TRACK 8 FADER CC 71(47)	0(00) - 127(7F)	16 2
B1	TRACK 1 MUTE	CC 40(28) 0(00)	/ 127(7F) 16 2
B2	TRACK 2 MUTE	CC 41(29) 0(00)	/ 127(7F) 16 2
B3	TRACK 3 MUTE	CC 42(2A)	0(00) / 127(7F) 16 2
B4	TRACK 4 MUTE	CC 43(2B)	0(00) / 127(7F) 16 2
B5	TRACK 5 MUTE	CC 44(2C)	0(00) / 127(7F) 16 2
B6	TRACK 6 MUTE	CC 45(2D)	0(00) / 127(7F) 16 2
L1	< <	CC 19(13) 0(00)	/ 127(7F) 16 2
L2	■ Stop	CC 21(15) 0(00)	/ 127(7F) 16 2
L3	> Play	CC 22(16) 0(00)	/ 127(7F) 16 2
P1	HOLD	CC 64(40) 0(00)	/ 127(7F) 1	1
P2	EXPRESSION	CC 11(0B)	0(00) - 127(7F)	1

MCR-8 MODE 4(Cubase 5/SX) - D (MEMORY: 8)

	Parameter	Message (Hex.)	Range (Hex.)	Ch. Port
R1	TRACK 9 PAN CC 56(38)	0(00) - 127(7F) 16	2
R2	TRACK 10 PAN	CC 57(39) 0(00)	- 127(7F) 16 2
R3	TRACK 11 PAN	CC 58(3A) 0(00)	- 127(7F) 16 2
R4	TRACK 12 PAN	CC 59(3B) 0(00)	- 127(7F) 16 2
R5	TRACK 13 PAN	CC 60(3C) 0(00)	- 127(7F) 16 2
R6	TRACK 14 PAN	CC 61(3D) 0(00)	- 127(7F) 16 2
R7	TRACK 15 PAN	CC 62(3E) 0(00)	- 127(7F) 16 2
R8	TRACK 16 PAN	CC 63(3F) 0(00)	- 127(7F) 16 2
S1	TRACK 9 FADER CC 48(30)	0(00) - 127(7F)	16 2
S2	TRACK 10 FADER	CC 49(31) 0(00)	- 127(7F) 16 2
S3	TRACK 11 FADER	CC 50(32) 0(00)	- 127(7F) 16 2
S4	TRACK 12 FADER	CC 51(33) 0(00)	- 127(7F) 16 2
S5	TRACK 13 FADER	CC 52(34) 0(00)	- 127(7F) 16 2
S6	TRACK 14 FADER	CC 53(35) 0(00)	- 127(7F) 16 2
S7	TRACK 15 FADER	CC 54(36) 0(00)	- 127(7F) 16 2
S8	TRACK 16 FADER	CC 55(37) 0(00)	- 127(7F) 16 2
B1	TRACK 9 MUTE	CC 88(58) 0(00)	/ 127(7F) 16 2
B2	TRACK 10 MUTE CC 89(59)	0(00) / 127(7F) 16 2
B3	TRACK 11 MUTE	CC 90(5A)	0(00) / 127(7F) 16 2
B4	TRACK 12 MUTE	CC 91(5B)	0(00) / 127(7F) 16 2
B5	TRACK 13 MUTE	CC 92(5C)	0(00) / 127(7F) 16 2
B6	TRACK 14 MUTE	CC 93(5D)	0(00) / 127(7F) 16 2
L1	<	CC 20(14) 0(00)	/ 127(7F) 16 2
L2	Stop	CC 21(15) 0(00)	/ 127(7F) 16 2
L3	Rec	CC 23(17) 0(00)	/ 127(7F) 16 2
P1	HOLD	CC 64(40) 0(00)	/ 127(7F) 1	1
P2	EXPRESSION	CC 11(0B)	0(00) - 127(7F)	1

■ H-COMPATIBLE (ProTools LE, Digital Performer) SET (MEMORY: 9)

When using this memory set, turn the PCR-30/50/80's OMNI (p. 149) setting OFF, and turn the H-ACTIVITY (p. 154) setting ON.

	Parameter Message (Hex.) Range (Hex.) Ch. Port
R1 ROTARY ENCODER 1 B0 40 dd DEC(01) / INC(41) - 2
R2 ROTARY ENCODER 2 B0 41 dd DEC(01) / INC(41) - 2
R3 ROTARY ENCODER 3 B0 42 dd DEC(01) / INC(41) - 2
R4 ROTARY ENCODER 4 B0 43 dd DEC(01) / INC(41) - 2
R5 ROTARY ENCODER 5 B0 44 dd DEC(01) / INC(41) - 2
R6 ROTARY ENCODER 6 B0 45 dd DEC(01) / INC(41) - 2
R7 ROTARY ENCODER 7 B0 46 dd DEC(01) / INC(41) - 2
R8 ROTARY ENCODER 8 B0 47 dd DEC(01) / INC(41) - 2
S1 FADER 1 B0 0F 00 B0 2F 40 B0 00 dd B0 20 00 B0 0F 00 B0 2F 00 0(00) - 127(7F) - 2
S2 FADER 2 B0 0F 01 B0 2F 40 B0 01 dd B0 21 00 B0 0F 01 B0 2F 00 0(00) - 127(7F) - 2
S3 FADER 3 B0 0F 02 B0 2F 40 B0 02 dd B0 22 00 B0 0F 02 B0 2F 00 0(00) - 127(7F) - 2
S4 FADER 4 B0 0F 03 B0 2F 40 B0 03 dd B0 23 00 B0 0F 03 B0 2F 00 0(00) - 127(7F) - 2
S5 FADER 5 B0 0F 04 B0 2F 40 B0 04 dd B0 24 00 B0 0F 04 B0 2F 00 0(00) - 127(7F) - 2
S6 FADER 6 B0 0F 05 B0 2F 40 B0 05 dd B0 25 00 B0 0F 05 B0 2F 00 0(00) - 127(7F) - 2
S7 FADER 7 B0 0F 06 B0 2F 40 B0 06 dd B0 26 00 B0 0F 06 B0 2F 00 0(00) - 127(7F) - 2
S8 FADER 8 B0 0F 07 B0 2F 40 B0 07 dd B0 27 00 B0 0F 07 B0 2F 00 0(00) - 127(7F) - 2
B1 MUTE 1 B0 0F 00 B0 2F dd ON(42) / OFF(02) - 2
B2 SOLO 1 B0 0F 00 B0 2F dd ON(43) / OFF(03) - 2
B3 REC 1 B0 0F 00 B0 2F dd ON(47) / OFF(07) - 2
B4 WRITE 1 B0 0F 00 B0 2F dd ON(44) / OFF(04) - 2
B5	TRACK <	B0 0F 0A B0 2F dd	ON(40) / OFF(00)	-	2
B6	TRACK >	B0 0F 0A B0 2F dd	ON(42) / OFF(02)	-	2
L1	REWIND	B0 0F 0E B0 2F dd	ON(41) / OFF(01)	-	2
L2	STOP	B0 0F 0E B0 2F dd	ON(43) / OFF(03)	-	2
L3	PLAY	B0 0F 0E B0 2F dd	ON(44) / OFF(04)	-	2
P1	HOLD	CC 64(40)	0(00) / 127(7F)	1	1
P2	EXPRESSION	CC 11(0B)	0(00) - 127(7F)	1	1

■ GS SET

When using this memory set, you will find it convenient to turn the PCR-30/50/80's OMNI (p. 149) setting ON.

GS-A (MEMORY: A)

	Parameter	Message (Hex.)	Range (Hex.)	Ch.	Port
R1	REVERB MACRO	F0 41 10 42 12 40 01 30 dd SUM F7	0(00) - 7(07)	-	1
R2	REVERB CHARACTER	F0 41 10 42 12 40 01 31 dd SUM F7	0(00) - 7(07)	-	1
R3	REVERB PRE-LPF	F0 41 10 42 12 40 01 32 dd SUM F7	0(00) - 7(07)	-	1
R4	REVERB TIME	F0 41 10 42 12 40 01 34 dd SUM F7	0(00) - 127(7F)	-	1
R5	REVERB PREDELAY TIME	F0 41 10 42 12 40 01 37 dd SUM F7	0(00) - 127(7F)	-	1
R6	REVERB DELAY FEEDBACK	F0 41 10 42 12 40 01 35 dd SUM F7	0(00) - 127(7F)	-	1
R7	REVERB LEVEL	F0 41 10 42 12 40 01 33 dd SUM F7	0(00) - 127(7F)	-	1
R8	PART PANPOT	F0 41 10 42 12 40 1x 1C dd SUM F7	1(01) - 127(7F)	BLOCK	1
S1	VIBRATO RATE	F0 41 10 42 12 40 1x 30 dd SUM F7	0(00) - 64(40) - 127(7F)	BLOCK	1
S2	VIBRATO DEPTH	F0 41 10 42 12 40 1x 31 dd SUM F7	0(00) - 64(40) - 127(7F)	BLOCK	1
S3	VIBRATO DELAY	F0 41 10 42 12 40 1x 37 dd SUM F7	0(00) - 64(40) - 127(7F)	BLOCK	1
S4	TVF&TVA ENV.ATTACK	F0 41 10 42 12 40 1x 34 dd SUM F7	0(00) - 64(40) - 127(7F)	BLOCK	1
S5	TVF&TVA ENV.DECAY	F0 41 10 42 12 40 1x 35 dd SUM F7	0(00) - 64(40) - 127(7F)	BLOCK	1
S6	TVF&TVA ENV.RELEASE	F0 41 10 42 12 40 1x 36 dd SUM F7	0(00) - 64(40) - 127(7F)	BLOCK	1
S7	REVERB SEND LEVEL	F0 41 10 42 12 40 1x 22 dd SUM F7	0(00) - 127(7F)	BLOCK	1
S8	PART LEVEL	F0 41 10 42 12 40 1x 19 dd SUM F7	0(00) - 127(7F)	BLOCK	1
B1	PROGRAM CHANGE DEC	PROGRAM CHANGE	min:1 (00)	-	-
B2	PROGRAM CHANGE INC	PROGRAM CHANGE	max:128 (7F)	-	-
B3	NRPN ON/OFF	F0 41 10 42 12 40 1x 0A dd SUM F7	OFF(00) / ON(01)	BLOCK	1
B4	RANDOM PAN	F0 41 10 42 12 40 1x 1C 00 SUM F7	-	BLOCK	1
B5	MODE POLY/MONO	F0 41 10 42 12 40 1x 13 dd SUM F7	MONO(00) / POLY(01)	BLOCK	1
B6	GS RESET	F0 41 10 42 12 40 00 7F 00 41 F7	-	-	1
L1 STOP		FC	-	-2
L2 START		FA	-	-2
L3 CONTINUE FB		-	-2
P1 HOLD		CC 64(40)	0(00) / 127(7F) 1	1
P2	EXPRESSION	CC 11(0B)	0(00) - 127(7F)	1	1

GS-B (MEMORY: B)

	Parameter Message (Hex.) Range (Hex.) Ch. Port
R1 CHORUS MACRO F0 41 10 42 12 40 01 38 dd SUM F7 0(00) - 7(07) - 1
R2 CHORUS PRE-LPF F0 41 10 42 12 40 01 39 dd SUM F7 0(00) - 7(07) - 1
R3 CHORUS DELAY F0 41 10 42 12 40 01 3C dd SUM F7 0(00) - 127(7F) - 1
R4 CHORUS RATE F0 41 10 42 12 40 01 3D dd SUM F7 0(00) - 127(7F) - 1
R5 CHORUS DEPTH F0 41 10 42 12 40 01 3E dd SUM F7 0(00) - 127(7F) - 1
R6 CHORUS FEEDBACK F0 41 10 42 12 40 01 3B dd SUM F7 0(00) - 127(7F) - 1
R7	CHORUS LEVEL	F0 41 10 42 12 40 01 3A dd SUM F7	0(00) - 127(7F)	-	1
R8	PART PANPOT	F0 41 10 42 12 40 1x 1C dd SUM F7	1(01) - 127(7F)	BLOCK	1
S1	CHORUS SEND LEVEL TO REVERB	F0 41 10 42 12 40 01 3F dd SUM F7	0(00) - 64(40) - 127(7F)	BLOCK	1
S2	CHORUS SEND LEVEL TO DELAY	F0 41 10 42 12 40 01 40 dd SUM F7	0(00) - 64(40) - 127(7F)	BLOCK	1
S3	TVF CUTOFF FREQ	F0 41 10 42 12 40 1x 32 dd SUM F7	0(00) - 64(40) - 127(7F)	BLOCK	1
S4	TVF RESONANCE	F0 41 10 42 12 40 1x 33 dd SUM F7	0(00) - 64(40) - 127(7F)	BLOCK	1
S5	MODULATION DEPTH	F0 41 10 42 12 40 2x 04 dd SUM F7	0(00) - 127(7F)	BLOCK	1
S6	BEND RANGE	F0 41 10 42 12 40 2x 10 dd SUM F7	64(40) - 88(58)	BLOCK	1
S7	CHORUS SEND LEVEL	F0 41 10 42 12 40 1x 21 dd SUM F7	0(00) - 127(7F)	BLOCK	1
S8	PART LEVEL	F0 41 10 42 12 40 1x 19 dd SUM F7	0(00) - 127(7F)	BLOCK	1
B1	PROGRAM CHANGE DEC	PROGRAM CHANGE	min:1 (00)	-	-
B2	PROGRAM CHANGE INC	PROGRAM CHANGE	max:128 (7F)	-	-
B3	NRPN ON/OFF	F0 41 10 42 12 40 1x 0A dd SUM F7	OFF(00) / ON(01)	BLOCK	1
B4	RANDOM PAN	F0 41 10 42 12 40 1x 1C 00 SUM F7	-	BLOCK	1
B5	MODE POLY/MONO	F0 41 10 42 12 40 1x 13 dd SUM F7	MONO(00) / POLY(01)	BLOCK	1
B6	GS RESET	F0 41 10 42 12 40 00 7F 00 41 F7	-	-	1
L1 S	OP	FC	-	-2
L2 S	ART	FA	-	-2
L3 CONTINUE		FB	-	-2
P1	HOLD	CC 64(40)	0(00) / 127(7F)	1	1
P2	EXPRESSION	CC 11(0B)	0(00) - 127(7F)	1	1

GS-C (MEMORY: C)

	Parameter Message (Hex.) Range (Hex.) Ch. Port
R1	DELAY MACRO	F0 41 10 42 12 40 01 50 dd SUM F7 0(00) - 9(09) - 1
R2	DELAY PRE-LPF	F0 41 10 42 12 40 01 51 dd SUM F7 0(00) - 7(07) - 1
R3	DELAY TIME RATIO LEFT	F0 41 10 42 12 40 01 53 dd SUM F7	1(01) - 120(78)	-	1
R4	DELAY TIME CENTER	F0 41 10 42 12 40 01 52 dd SUM F7	1(01) - 115(73)	-	1
R5	DELAY TIME RATIO RIGHT	F0 41 10 42 12 40 01 54 dd SUM F7	1(01) - 120(78)	-	1
R6	DELAY FEEDBACK	F0 41 10 42 12 40 01 59 dd SUM F7	0(00) - 64(40) - 127(7F)	-	1
R7	DELAY LEVEL	F0 41 10 42 12 40 01 58 dd SUM F7	0(00) - 127(7F)	-	1
R8	PART PANPOT	F0 41 10 42 12 40 1x 1C dd SUM F7	1(01) - 127(7F)	BLOCK	1
S1	DELAY SEND LEVEL TO REVERB	F0 41 10 42 12 40 01 5A dd SUM F7	0(00) - 127(7F)	-	1
S2	DELAY LEVEL LEFT	F0 41 10 42 12 40 01 56 dd SUM F7	0(00) - 127(7F)	-	1
S3	DELAY LEVEL CENTER	F0 41 10 42 12 40 01 55 dd SUM F7	0(00) - 127(7F)	-	1
S4	DELAY LEVEL RIGHT	F0 41 10 42 12 40 01 57 dd SUM F7	0(00) - 127(7F)	-	1
S5	EQ LOW GAIN	F0 41 10 42 12 40 02 01 dd SUM F7	22(34) - 64(40) - 76(4C)	-	1
S6	EQ HIGH GAIN	F0 41 10 42 12 40 02 03 dd SUM F7	22(34) - 64(40) - 76(4C)	-	1
S7	DELAY SEND LEVEL	F0 41 10 42 12 40 1x 2C dd SUM F7	0(00) - 127(7F)	BLOCK	1
S8	PART LEVEL	F0 41 10 42 12 40 1x 19 dd SUM F7	0(00) - 127(7F)	BLOCK	1
B1	EQ ON / OFF	F0 41 10 42 12 40 4x 20 dd SUM F7	OFF(00) / ON(01)	BLOCK	1
B2	EQ LOW FREQ (200Hz/400Hz)	F0 41 10 42 12 40 02 00 dd SUM F7	200Hz(00) / 400Hz(01)	-	1
B3	EQ HIGH FREQ (3kHz/6kHz)	F0 41 10 42 12 40 02 02 dd SUM F7	3kHz(00) / 6kHz(01)	-	1
B4	RANDOM PAN	F0 41 10 42 12 40 1x 1C 00 SUM F7	-	BLOCK	1
B5	MODE POLY/MONO	F0 41 10 42 12 40 1x 13 dd SUM F7	MONO(00) / POLY(01)	BLOCK	1
B6	GS RESET	F0 41 10 42 12 40 00 7F 00 41 F7	-	-	1
L1 S	TOP	FC	-	-2
L2 S	ART	FA	-	-2
L3 CONTINUE		FB	-	-2
P1	HOLD	CC 64(40)	0(00) / 127(7F)	1	1
P2	EXPRESSION	CC 11(0B)	0(00) - 127(7F)	1	1

■ XG SET

When using this memory set, you will find it convenient to turn the PCR-30/50/80's OMNI (p. 149) setting ON.

XG-A (MEMORY: D)

	Parameter Message	(Hex.) Range (Hex.) Ch. Port
R1	BEND PITCH CONTROL F0 43 10 4C	08 0ch 23 dd F7 0(00) - 64(40) - 127(7F) CURRENT CH 1
R2	BEND FILTER CONTROL F0 43 10 4C	08 0ch 24 dd F7 0(00) - 64(40) - 127(7F) CURRENT CH 1
R3	BEND AMPLITUDE CONTROL F0 43	10 4C 08 0ch 25 dd F7 0(00) - 64(40) - 127(7F) CURRENT CH 1
R4	PITCH EG INITIAL LEVEL F0 43 10 4C	08 0ch 69 dd F7 0(00) - 64(40) - 127(7F) CURRENT CH 1
R5	PITCH EG ATTACK TIME F0 43 10 4C	08 0ch 6A dd F7 0(00) - 64(40) - 127(7F) CURRENT CH 1
R6	PITCH EG RELEASE LEVEL F0 43 10 4C	08 0ch 6B dd F7 0(00) - 64(40) - 127(7F) CURRENT CH 1
R7	PITCH EG RELEASE TIME	F0 43 10 4C 08 0ch 6C dd F7	0(00) - 64(40) - 127(7F)	CURRENT CH	1
R8	PAN	F0 43 10 4C 08 0ch 0E dd F7	1(01) - 64(40) - 127(7F)	CURRENT CH	1
S1	BEND LFO PMOD DEPTH	F0 43 10 4C 08 0ch 26 dd F7	0(00) - 127(7F)	CURRENT CH	1
S2	BEND LFO FMOD DEPTH	F0 43 10 4C 08 0ch 27 dd F7	0(00) - 127(7F)	CURRENT CH	1
S3	BEND LFO AMOD DEPTH	F0 43 10 4C 08 0ch 28 dd F7	0(00) - 127(7F)	CURRENT CH	1
S4	REVERB SEND	F0 43 10 4C 08 0ch 13 dd F7	0(00) - 127(7F)	CURRENT CH	1
S5	CHORUS SEND	F0 43 10 4C 08 0ch 12 dd F7	0(00) - 127(7F)	CURRENT CH	1
S6	VARIATION SEND	F0 43 10 4C 08 0ch 14 dd F7	0(00) - 127(7F)	CURRENT CH	1
S7	DRY LEVEL	F0 43 10 4C 08 0ch 11 dd F7	0(00) - 127(7F)	CURRENT CH	1
S8	VOLUME	F0 43 10 4C 08 0ch 0B dd F7	0(00) - 127(7F)	CURRENT CH	1
B1	PROGRAM CHANGE DEC	PROGRAM CHANGE	min:1 (00)	-	-
B2	PROGRAM CHANGE INC	PROGRAM CHANGE	max:128 (7F)	-	-
B3	PART MODE NORMAL/DRUM	F0 43 10 4C 08 0ch 07 dd F7	OFF(00) / ON(01)	CURRENT CH	1
B4	RANDOM PAN	F0 43 10 4C 08 0ch 0E 00 F7	-	CURRENT CH	1
B5	MONO/POLY MODE	F0 43 10 4C 08 0ch 05 dd F7	MONO(00) / POLY(01)	CURRENT CH	1
B6	XG SYSTEM ON	F0 43 10 4C 00 00 7E 00 F7	-	-	1
L1	STOP	FC	-	-	2
L2	START	FA	-	-	2
L3 CONTINUE FB		-	-	2
P1	HOLD	CC 64(40)	0(00) / 127(7F)	1	1
P2	EXPRESSION	CC 11(0B)	0(00) - 127(7F)	1	1

XG-B (MEMORY: E)

	Parameter Message	(Hex.) Range (Hex.) Ch. Port
R1	MW PITCH CONTROL	F0 43 10 4C 08 0ch 1D dd F7	0(00) - 64(40) - 127(7F)	CURRENT CH	1
R2	MW FILTER CONTROL	F0 43 10 4C 08 0ch 1E dd F7	0(00) - 64(40) - 127(7F)	CURRENT CH	1
R3	MW AMPLITUDE CONTROL	F0 43 10 4C 08 0ch 1F dd F7	0(00) - 64(40) - 127(7F)	CURRENT CH	1
R4	REVERB PAN	F0 43 10 4C 02 01 0D dd F7	0(00) - 64(40) - 127(7F)	-	1
R5	CHORUS PAN	F0 43 10 4C 02 01 2D dd F7	0(00) - 64(40) - 127(7F)	-	1
R6	VARIATION PAN	F0 43 10 4C 02 01 57 dd F7	0(00) - 64(40) - 127(7F)	-	1
R7	SEND VARIATION TO REVERB	F0 43 10 4C 02 01 58 dd F7	0(00) - 127(7F)	-	1
R8	SEND VARIATION TO CHORUS	F0 43 10 4C 02 01 59 dd F7	0(00) - 127(7F)	-	1
S1	MW LFO PMOD DEPTH	F0 43 10 4C 08 0ch 20 dd F7	0(00) - 127(7F)	CURRENT CH	1
S2	MW LFO FMOD DEPTH	F0 43 10 4C 08 0ch 21 dd F7	0(00) - 127(7F)	CURRENT CH	1
S3	MW LFO AMOD DEPTH	F0 43 10 4C 08 0ch 22 dd F7	0(00) - 127(7F)	CURRENT CH	1
S4	REVERB RETURN	F0 43 10 4C 02 01 0C dd F7	0(00) - 127(7F)	-	1
S5	CHORUS RETURN	F0 43 10 4C 02 01 2C dd F7	0(00) - 127(7F)	-	1
S6	VARIATION RETURN	F0 43 10 4C 02 01 56 dd F7	0(00) - 127(7F)	-	1
S7	SEND CHORUS TO REVERB	F0 43 10 4C 02 01 2E dd F7	0(00) - 127(7F)	-	1
S8	VOLUME	F0 43 10 4C 08 0ch 0B dd F7	0(00) - 127(7F)	CURRENT CH	1
B1	PROGRAM CHANGE DEC	PROGRAM CHANGE	min:1 (00)	-	-
B2	PROGRAM CHANGE INC	PROGRAM CHANGE	max:128 (7F)	-	-
B3	PART MODE NORMAL/DRUM	F0 43 10 4C 08 0ch 07 dd F7	OFF(00) / ON(01)	CURRENT CH	1
B4	RANDOM PAN	F0 43 10 4C 08 0ch 0E 00 F7	-	CURRENT CH	1
B5	MONO/POLY MODE	F0 43 10 4C 08 0ch 05 dd F7	MONO(00) / POLY(01)	CURRENT CH	1
B6	XG SYSTEM ON	F0 43 10 4C 00 00 7E 00 F7	-	-	1
L1	STOP	FC	-	-	2
L2	START	FA	-	-	2
L3 CONTINUE FB		-	-	2
P1	HOLD	CC 64(40)	0(00) / 127(7F)	1	1
P2	EXPRESSION	CC 11(0B)	0(00) - 127(7F)	1	1

Troubleshooting

Problems common to Windows and Macintosh

Problems occurring only in Windows

Problems occurring only in Macintosh

Problems related to the USB driver

Cannot install the driver correctly

• Is the CD-ROM correctly inserted into your CD-ROM drive?
  Installation is not possible unless the CD-ROM included with the PCR-30/50/80 is inserted in your CD-ROM drive. Make sure that the CD-ROM is correctly inserted into your CD-ROM drive.
• Is the CD-ROM or the lens of the CD-ROM dirty?
  If the CD-ROM or the lens of the CD-ROM drive is dirty, the installer may not work correctly. Clean the disc and/or lens using a commercially-available CD cleaner or lens cleaner.

- Are you installing the software from a networked CD-ROM drive?

The software cannot be installed from a networked CD-ROM drive.

- Is there sufficient free space on your hard disk?

Delete unneeded files to increase the amount of free space. After deleting the unneeded files, empty the recycling bin.

- Is the PCR-30/50/80 connected correctly?

Make sure that the USB connector of your computer is connected to the PCR-30/50/80 by a USB cable.

- Is the power of the PCR-30/50/80 turned on?

- The power switch of the PCR-30/50/80 may have been set to the USB position.

Make sure that the power switch of the PCR-30/50/80 is set to the DC position. Do not use bus power while installing the driver. Check this, and if you are using Windows, close the Sound and Multimedia Properties dialog box (Sounds and Audio Devices Properties in Windows XP, and Multimedia Properties in Windows 98), re-open the same dialog box once again, and specify the MIDI input/output destinations.

- Using the procedure for “Deleting the driver” (p. 173), delete the USB audio device driver installed in your computer, and then re-install the PCR-30/50/80 driver as described in “Setup” (p. 13). Also check whether there is any “Other devices” in “Device Manager” or “Unknown device” in “Universal Serial Bus Controllers”. If you find any, delete them.

- Is OMS or FreeMIDI installed?

The PCR-30/50/80 driver cannot be installed unless OMS or FreeMIDI are installed. Please install OMS or FreeMIDI. (→ "Installing & Setting Up the Driver (Macintosh)" (p. 25))

PCR-30/50/80 is not detected when making OMS or FreeMIDI settings

• Is the PCR-30/50/80 detected?

Turn the power of the PCR-30/50/80 off, then on again.

Reconnect the USB cable.

If other USB devices are connected, connect only the PCR-30/50/80.

It is possible that the Macintosh did not correctly detect and initialize the PCR-30/50/80. Leave the PCR-30/50/80's USB cable connected, and restart your Macintosh. If it is still not detected, shut down your Macintosh, and then restart it.

The PCR-30/50/80 will not be detected if it is connected to the USB connector on the Macintosh keyboard.

Please connect the PCR-30/50/80 to a USB connector on the Macintosh itself.

"Find new hardware wizard" does not execute automatically

The “Insert Disk” dialog box does not appear

"Find new hardware wizard" ends before the process is completed

• It may take about 15 seconds (or more) after the USB cable is connected for the PCR-30/50/80 to be detected.
• Is the USB cable connected correctly?
  Make sure that the PCR-30/50/80 and your computer are correctly connected via a USB cable.

• Is USB enabled on your computer?

Refer to the operation manual for your computer, and make sure that USB is enabled.

- It has been found that in some cases, not all of the Windows 98 files required to support audio via USB are installed when a computer is shipped.

Please contact the manufacturer of your computer.

- Does your computer meet the USB specifications?

If you are using a computer that does not fulfill the electrical requirements of the USB specifications, operation may be unstable. In this case, you may be able to solve the problem by connecting a USB hub.

If the above actions do not solve the problem, it is possible that the PCR-30/50/80 has been incorrectly detected by the computer. Please reinstall the driver from the beginning of the procedure. (→“Setup” (p. 13))

"Found unknown device" appears even though you installed the driver

If your computer or USB hub has two or more USB connectors, and you connect the PCR-30/50/80 to a USB connector to which the PCR-30/50/80 has never been connected before, the "Unknown device" dialog box may appear even on a computer onto which you have already installed the driver. Refer to "Setup" (p. 13), and install the driver once again. This is not a malfunction.

If the "Found unknown device" dialog box appears even though the PCR-30/50/80 is connected to the same USB connector as before, it is possible that the computer has detected the PCR-30/50/80 incorrectly. Please reinstall the driver from the beginning of the procedure. (→“Setup” (p. 13))

An “Unknown driver found” dialog box appears, and you are unable to install the driver

Device Manager shows “?”, “!”, or “USB Composite Device”

Driver is not installed correctly

It is possible that the computer has detected the PCR-30/50/80 incorrectly. Please reinstall the driver from the beginning of the procedure. (→“Setup” (p. 13))

Can't install/delete/use the driver in Windows XP/2000

- Did you log on to Windows as a user with administrative privileges?

In order to install/delete/re-install the driver in Windows XP/2000, you must be logged into Windows as a user with administrative privileges, such as Administrator. For details, please contact the system administrator for your computer system.

- Did you make "Driver Signing Options"?

In order to install/re-install the driver, you must make "Driver Signing Options".

(Windows XP → p. 14, Windows 2000 → p. 18)

Windows XP/2000 displays a “Hardware Installation” or “Digital Signature Not Found” dialog box

- Did you make "Driver Signing Options"?

In order to install/re-install the driver, you must make the settings described in "Driver Signing Options".

(Windows XP → p. 14, Windows 2000 → p. 18)

Deleting the driver

If you were unable to install the driver according to the procedure given, the PCR-30/50/80 may not be recognized correctly by the computer. In this case, use the following procedure to delete the driver, and then follow the procedure in “Setup” (p. 13) to install the driver once again.

Windows users

Here's how to uninstall the dedicated driver.

1. Start up Windows with the PCR-30/50/80 disconnected. Disconnect all USB cables other than a USB keyboard or USB mouse.
   * If you are using Windows XP Professional/2000, log on as a user that has administrative privileges (e.g., Administrator).
2. Insert the CD-ROM into the CD-ROM drive of your computer.
3. From the Windows Start menu, choose "Run...". In the Run dialog box, input the following into the Open field, and click [OK].

Windows XP/2000 users: D:\DRIVER\USB_XP2K\Uninstal.EXE

Windows Me/98 users: D:\DRIVER\USB_ME98\Uninstal.EXE

* The drive name D: may be different on your system. Use the drive name for your CD-ROM drive.

1. Follow the on-screen instructions to uninstall the driver.

Macintosh users

1. Turn off the power of the PCR-30/50/80. Also disconnect the USB cable (by which the PCR-30/50/80 is connected) from your Macintosh.
2. From the system extensions folder, drag "USB PCR" into the trash to delete it.
3. Delete PCR from the OMS Folder inside the System folder, or drag PCR Driver from the FreeMIDI Folder inside the System folder to the trash.
4. Restart the Macintosh.

MIDI implementation

1. Receive data

■System exclusive messages

- Universal non-realtime system exclusive message

○Identity request message

Status Data byte Status

F0H 7EH, dev, 06H, 01H F7H

Byte Explanation

F0H Exclusive status

7EH ID number (Universal non-realtime system exclusive message)

dev Device ID (10 or 7FH (Broadcast))

06H Sub ID #1 (PCR-30/50/80)

01H Sub ID #1 (PCR-30/50/80)

F7H EOX (End of Exclusive)

•Data transmission

The PCR-30/50/80 can use Bulk Dump (p. 177) to transfer its internal memory set data (p. 164).

○Data Set 1 (DT1)

These messages transmit the actual data, and are used to transfer data settings to a device.

Status Data byte Status

F0H 41H, 10H, 00H, 62H, 12H,

aaH, ddH, ...ceH, sum F7H

Byte Explanation

F0H Exclusive status

41H ID number (Roland)

10H Device ID (For the PCR-30/50/80, fixed at 10H)

00H Model ID #1 (PCR-30/50/80)

62H Model ID #1 (PCR-30/50/80)

12H Command ID (RQ1)

aaH Address

ddH Data

:

.

.

eeH Data

sum Checksum

F7H EOX (End of Exclusive)

* The amount of data that can be transmitted at once is fixed for each type of data. Data that does not have the specified starting address and data size will not be received. Refer to the explanation in 3. Bulk Dump (p. 177).

* There must be an interval of at least 40 ms between each exclusive message that is sent.

* Also, you must leave an interval of at least 500 ms after transmitting one set of bulk dump data.

2. Transmit data

■ Channel voice messages

In addition to the channel voice messages that can be transmitted in each mode, the PCR-30/50/80 lets you assign any channel voice message to any controller and transmit it.

- Note off

Status 2nd byte 3rd byte ____

9nH kkH 00H

n = MIDI channel number:0H - FH (Ch.1 - 16)

kk = note number: 00H - 7FH (0 - 127)

* Transmitted when you release a key in Play mode.

- Note on

Status 2nd byte 3rd byte ____

9nH kkH vvH

n = MIDI channel number: 0H - FH (Ch.1 - 16)

kk = note number: 00H - 7FH (0 - 127)

vv = note on velocity: 01H - 7FH (1 - 127)

* Transmitted when you push a key in Play mode.

•Polyphonic key pressure

Status 2nd byte 3rd byte ____

AnH kkH vvH

n = MIDI channel number: 0H - FH (Ch.1 - 16)

kk = note number: 00H - 7FH (0 - 127)

vv = key pressure: 00H - 7FH (0 - 127)

- Control change

Status 2nd byte ____ 3rd byte ____

BnH ccH vvH

n = MIDI channel number: 0H - FH (Ch.1 - 16)

cc = controller number: 00H - 77H

vv = control value: 00H - 7FH

○Bank Select (Controller number 0, 32)

Status 2nd byte ____ 3rd byte ____

BnH 00H mmH

BnH 20H 11H

n = MIDI channel number: 0H - FH (Ch.1 - 16)

mm = Bank number MSB: 00H - 7FH

ll = Bank number LSB: 00H - 7FH

* Transmitted in Bank mode.

○Modulation (Controller number 1)

Status 2nd byte 3rd byte ____

BnH 01H vvH

n = MIDI channel number:0H - FH (Ch.1 - 16)

vv = Modulation depth:00H-7FH (0-127)

* Transmitted by upward/downward operation of the BENDER lever in Play mode.

- Program change

Status 2nd byte ____

CnH ppH

n = MIDI channel number: 0H - FH (Ch.1 - 16)

pp = Program number: 00H - 7FH (prog. 1 - prog. 128)

* Transmitted in Program change mode.

- Channel pressure

Status 2nd byte ____

DnH vvH

n = MIDI channel number: 0H - FH (Ch.1 - 16)

vv = Channel pressure: 00H - 7FH (0 - 127)

- Pitch bend change

Status 2nd byte 3rd byte ____

EnH 11H mmH

n = MIDI channel number: 0H - FH (Ch.1 - 16)

mm, ll = Pitch Bend value: 00 00H - 40 00H - 7FH 7FH

(-8192-0-+8191)

* Transmitted by rightward/leftward operation of the BENDER lever in Play mode.

■ Channel mode messages

In addition to the channel mode messages that can be transmitted in Panic mode, the PCR-30/50/80 lets you assign any channel voice message to any controller and transmit it.

- Channel mode messages

Status 2nd byte 3rd byte ____

BnH ccH vvH

n = MIDI channel number: 0H - FH (Ch.1 - 16)

cc = controller number: 78H - 7FH

vv = control value: 00H - 7FH

○All sounds off (Controller number 120)

Status 2nd byte 3rd byte ____

BnH 78H 00H

n = MIDI channel number: 0H - FH (Ch.1 - 16)

* Transmitted in Panic mode.

○Reset all controllers (Controller number 121)

Status 2nd byte 3rd byte ____

BnH 79H 00H

n = MIDI channel number: 0H - FH (Ch.1 - 16)

* Transmitted in Panic mode.

○All notes off (Controller number 123)

Status 2nd byte 3rd byte ____

BnH 7BH 00H

n = MIDI channel number: 0H - FH (Ch.1 - 16)

* Transmitted in Panic mode.

■ System common message

On the PCR-30/50/80 you can assign the following system common messages to any controller and transmit them.

•MTC quarter frame

Status 2nd byte ____

F1H mmH

mm = Message type/value

- Song position pointer

Status 2nd byte 3rd byte ____

F2H mmH llH

mm, ll = Song position: 00 00H - 7F 7FH (0-16383)

- Song select

Status 2nd byte ____

F3H mmH

mm = Song number: 00 00H - 7F 7FH (0-16383)

- Tune request

Status

F6H

■ System realtime message

In addition to the Active Sensing messages that are transmitted constantly, the PCR-30/50/80 allows you to assign the following system realtime messages (other than Active Sensing) to any controller and transmit them.

- Start

Status

F8H

* Transmitted if the System setting F8 CLOCK is ON.

- Start

Status

FAH

- Continue

Status

FBH

-Stop

Status

FCH

•Active sensing

Status

FEH

* Transmitted at intervals of approximately 250 ms.

* Cannot be assigned to a controller.

- System reset

Status

FFH

■ System exclusive message

The PCR-30/50/80 is able to transmit the following exclusive messages: exclusive messages assigned to the controllers, Identity Reply, V-LINK messages, and Bulk Dump.

●Universal non-realtime system exclusive

○Identity reply

This message will be transmitted when an Identity Request message is received.

Status Data byte Status

F0H 7EH,10H,06H,02H,41H,62H,01H, F7H

00H,00H,00H,01H,00H,00H

Byte Explanation

F0H Exclusive status

7EH ID number (Universal non-realtime message)

10H Device ID (For the PCR-30/50/80, fixed at 10H)

06H Sub ID #1 (General Information)

02H Sub ID #1 (Identity Reply)

41H ID number (Roland)

62H 01H Device family code

00H 00H Device family number code

00H 01H Software revision level

00H 00H

F7H EOX (End of Exclusive)

•V-LINK message

OV-LINK ON

Transmitted when entering V-LINK mode.

Status Data byte Status

F0H 41H,10H,00H,51H,12H, F7H

10H,00H,00H,01H,0FH,0FH,51H

Byte Explanation

F0H Exclusive status

41H ID number (Roland)

10H Device ID (For the PCR-30/50/80, fixed at 10H)

00H 51H Model ID (V-LINK)

12H Command ID (DT1)

10H 00H 00H Address

01H V-LINK ON

0FH Clip Control Rx. MIDI Ch. (16ch)

0FH Color Control Rx. MIDI Ch. (16ch)

51H Checksum

F7H EOX (End of Exclusive)

OV-LINK OFF

Transmitted when exiting V-LINK mode.

Status Data byte Status

F0H 41H,10H,00H,51H,12H, F7H

10H,00H,00H,00H,70H

Byte Explanation

F0H Exclusive status

41H ID number (Roland)

10H Device ID (For the PCR-30/50/80, fixed at 10H)

00H 51H Model ID (V-LINK)

12H Command ID (DT1)

10H 00H 00H Address

00H V-LINK OFF

51H Checksum

F7H EOX (End of Exclusive)

○Sender Model Name

Transmitted when entering V-LINK mode.

Status Data byte Status

F0H 41H,10H,00H,51H,12H, F7H

10H,71H,00H,45H,44H,49H,52H,4FH,4CH,

20H,50H,43H,52H,00H,3BH

Byte Explanation

FOH Exclusive status

41H ID number (Roland)

10H Device ID (For the PCR-30/50/80, fixed at 10H)

00H 51H Model ID (V-LINK)

12H Command ID (DT1)

aaH Address

10H 71H 00H Data

45H 44H 49H Model name (EDIROL PCR)

52H 4FH 4CH :

20H 50H 43H :

52H 00H

3BH Checksum

F7H EOX (End of Exclusive)

●Data Set 1 DT1 (12H)

Transmitted when you execute Bulk TX in the Bulk mode.

Status Data byte Status

FOH 41H, 10H, 00H, 62H, 12H,

aaH, ddH, ...eeH, sum F7H

Byte Explanation

FOH Exclusive status

41H ID number (Roland)

10H Device ID

00H Model ID #1 (PCR-30/50/80)

62H Model ID #1 (PCR-30/50/80)

12H Command ID (RQ1)

aaH Address

ddH Data

:

:

:

eeH Data

sum Checksum

F7H EOX (End of Exclusive)

* The amount of data that can be transmitted at once is fixed for each type of data. Data that does not have the specified starting address and data size will not be received. Refer to the explanation in 3. Bulk Dump.

* There must be an interval of at least 40 ms between each exclusive message that is sent.

* Also, you must leave an interval of at least 500 ms after transmitting one set of bulk dump data.

3. Bulk dump

Bulk dump allows a large amount of data to be transferred in a single operation. For example, this can be used to store all settings of a device into a computer or sequencer.

On the PCR-30/50/80, a bulk dump will be transmitted when you execute the Bulk mode operation BULK TX. The bulk dump is transmitted as several exclusive messages.

Address Parameter Packets

00H, 00H, 00H, 00H--00H, 00H, 1A, 7F Current memory 27

* You must leave an interval of at least 40 ms between each exclusive message.
* In the case of ALL BULK, the contents of memories 1--F will be transmitted as the current memory, consecutively from memory 1 through memory F. After transmitting one set of bulk dump data, you must leave an interval of at least 500 ms.
* Please be aware that if you modify the data dumped from the PCR-30/50/80 by changing the order in which the exclusive messages are transmitted, by inserting other messages between the system exclusive messages, or by speeding up the timing of the transmission, the data may not be set correctly when the PCR-30/50/80 receives it.

4. Supplementary material

- Decimal and Hexadecimal table

(An "H" is appended to the end of numbers in hexadecimal notation.)

In MIDI documentation, data values and addresses/sizes of Exclusive messages, etc. are expressed as hexadecimal values for each 7 bits.

The following table shows how these correspond to decimal numbers.

Dec.	Hex.	Dec.	Hex.	Dec.	Hex.
0	00H	32	20H	64	40H	96	60H
1	01H	33	21H	65	41H	97	61H
2	02H	34	22H	66	42H	98	62H
3	03H	35	23H	67	43H	99	63H
4	04H	36	24H	68	44H	100	64H
5	05H	37	25H	69	45H	101	65H
6	06H	38	26H	70	46H	102	66H
7	07H	39	27H	71	47H	103	67H
8	08H	40	28H	72	48H	104	68H
9	09H	41	29H	73	49H	105	69H
10	0AH	42	2AH	74	4AH	106	6AH
11	0BH	43	2BH	75	4BH	107	6BH
12	0CH	44	2CH	76	4CH	108	6CH
13	0DH	45	2DH	77	4DH	109	6DH
14	0EH	46	2EH	78	4EH	110	6EH
15	0FH	47	2FH	79	4FH	111	6FH
16	10H	48	30H	80	50H	112	70H
17	11H	49	31H	81	51H	113	71H
18	12H	50	32H	82	52H	114	72H
19	13H	51	33H	83	53H	115	73H
20	14H	52	34H	84	54H	116	74H
21	15H	53	35H	85	55H	117	75H
22	16H	54	36H	86	56H	118	76H
23	17H	55	37H	87	57H	119	77H
24	18H	56	38H	88	58H	120	78H
25	19H	57	39H	89	59H	121	79H
26	1AH	58	3AH	90	5AH	122	7AH
27	1BH	59	3BH	91	5BH	123	7BH
28	1CH	60	3CH	92	5CH	124	7CH
29	1DH	61	3DH	93	5DH	125	7DH
30	1EH	62	3EH	94	5EH	126	7EH
31	1FH	63	3FH	95	5FH	127	7FH

* The decimal expression of the MIDI channel, program change, etc., is one greater than the decimal value shown in the table above.
* The hexadecimal expression for each 7 bits allows a maximum of 128 steps (0--127) to be expressed by one byte of data. Multiple bytes are used if the data requires greater resolution than this. For example, a value expressed by two 7-bit bytes "aa" and "bbH" would be aa x 128 + bb.
* In the case of signed (+/-) data, 00H = -64, 40H = +/-0, and 7FH = +63; i.e., a value 64 less than the decimal value shown in the above table is used. In the case of a two-byte valuc, 00 00H = -8192, 40 00 = +/-0, and 7F 7F = +8191. For example, a value of "aa" and "bbH" would have a decimal expression of aa bbH - 40 00H = aa x 128 + bb - 64 x 128.
* In the case of data indicated as "use nibble data," hexadecimal expression in 4-bit units is used. A nibble-expressed value of the two bytes 0a and 0bH would have a value of a x 16 + b.

What is the decimal expression of 5AH?

From the preceding table, 5AH = 90.

What is the decimal expression of the 7-bit hexadecimal value 12 34H?

From the preceding table, 12H = 18, and 34H = 52.

Thus, this is 18 × 128 + 52 = 2356

What is the decimal expression of the nibble-expressed value 0A 03 09 0D?

From the preceding table, 0AH = 10,03H = 3,09H = 9 , and 0DH = 13

Thus, this is ((10 × 16 + 3) × 16 + 9) × 16 + 13 = 41885

What is the nibble-expressed value of decimal 1258?

1258 ÷ 16 = 78 (quotient) ... 10 (remainder)

78 ÷ 16 = 4 (quotient) ... 14 (remainder)

4 ÷ 16 = 0 (quotient) ... 4 (remainder)

From the preceding table, 0 = 00H, 4 = 04H, 14 = 0EH, 10 = 0HA.

Thus, the nibble-expressed value is 00 04 0E 0AH

•Example of an actual MIDI message

CE 04

CnH is the Program Change status. "n" is the MIDI channel number. EH = 14, and 04H = 04. Thus, this is a program change message on MIDI channel 15, for program number 05.

- Checksum calculation

In order to verify that the message was received correctly, Roland exclusive messages (RQ1, DT1) add a checksum following the end of the data (before the F7). The checksum value is determined by the address and data (or size) of the exclusive message that is transmitted.

○Calculating the checksum

("H" has been added following hexadecimal values)

The checksum is a value that results in a lower 7 bits of 0 when the address, size, and checksum itself are added together.

Specifically, the calculation will be as follows when the exclusive message you want to transmit has an address of aa bb ccH and data or size of dd ee ffH.

$$ \mathrm{aa} + \mathrm{bb} + \mathrm{cc} + \mathrm{dd} + \mathrm{ee} + \mathrm{ff} = \text { total } $$

$$ \text { total } \div 1 2 8 = \text { quotient } \dots \text { remainder } $$

$$ 1 2 8 - \text { remainder } = \text { checksum } $$

* However, as an exception, the checksum for a remainder of 0 is not 80H but rather 00H.

Function...		Transmitted Recognized		Remarks
Basic Channel	Default Changed	1 1-16	X X
Mode	Default Messages Altered	Mode 3 OMNI ON/OFF, MONO, POLY**********	X X X
Note Number : True Voice		0-127**********	X X
Velocity	Note On Note Off	O (9n v=1-127) O (9n v=0)	X X
After Touch	Key's Channel's	O O	X X
Pitch Bend		O	X
Control Change	0-119	O	X
Program Change : True Number		O (0-127)**********	X X
System Exclusive		O	O
System Common : Song Position : Song Select : Tune Request		O O (0-127) O	X X X
System Real Time : Commands		O O	X X
Aux Messages : All Sound Off : Reset All Controllers : Local On/Off : All Notes Off : Active Sensing : System Reset		O *1 (120) O *1 (121) O O *1 (123) O O	X X X X X
Notes		* 1 When PANIC is transmitted.

Mode 1: OMNI ON, POLY

Mode 2: OMNI ON, MONO

Mode 3 : OMNI OFF, POLY

Mode 4 : OMNI OFF, MONO

O:Yes

X: No

Main specifications

PCR-30: 32 Keys (with velocity)

PCR-50: 49 Keys (with velocity)

PCR-80: 61 Keys (with velocity)

- Controller

Memory Button

MIDI Channel Button

Program Change Button

Edit Button

V-LINK Button

Octave Shift Button (+/-)

Transpose Button

Assignable Button (B1--6, L1--3)

Bender/Modulation Lever

Assignable Rotary Volume (R1--8)

Assignable Slider (S1--8)

Assignable Pedal (P1--2)

- Display

7 segments, 3 characters (LED)

Power Indicator

- Rear Panel

Power Switch (USB BUS/OFF/DC IN)

- Connectors

Hold Pedal Jack

Expression Pedal Jack

MIDI Jacks (IN/OUT)

USB Jack

DC IN Jack

- Power Supply

DC 9 V (AC Adaptor) or USB Bus Powered

- Current Draw

300 mA (AC Adaptor)

300 mA (USB Bus Power)

- Dimensions

PCR-30:

600 (W) x 232 (D) x 86.4 (H) mm

23-5/8 (W) × 9-3/16 (D) × 3-7/16 (H) inches

PCR-50:

32-13/16 (W) x 9-3/16 (D) x 3-7/16 (H) inches

PCR-80:

1,000(W) × 232(D) × 86.4 (H) mm

39-3/8(W) × 9-3/16 (D) × 3-7/16 (H) inches

- Weight

PCR-30: 2.4 kg / 5 lbs 5 oz (excluding AC adaptor)

PCR-50: 3.3 kg / 7 lbs 5 oz (excluding AC adaptor)

PCR-80: 3.7 kg / 8 lbs 3 oz (excluding AC adaptor)

- Accessories

AC Adaptor (ACP Series)

CD-ROM

USB Cable

Owner's Manual

Template Sheets (GM2/BLANK)

- Options

Pedal Switch: DP Series

Expression Pedal: EV Series

INDEX

A

AC adaptor 9

AC adaptor jack 12

AFTERTOUCH ASSIGN 129

ALL BULK 151, 153

AppleTalk 27

ASSIGN COPY 147

B

BANK 120

Bank mode 120

Bank select 120

Bend Pitch Control 144

BENDER Lever 11

Channel Pressure 129

checksum 160

CONTROL CHANGE ASSIGN 132

Controller 11-12, 126

Controllers 10

Copy 126

Cubase 166

Current channel 10

D

DATA OUT 11

Data Set 1 ...... 174, 176

DC 12

DEC Button 10

DECIMAL 158

Decimal 158

DECIMAL Button 11

Default device 23

Deleting the driver 173

Device Manager 172

Display 11

Dispositivo predeterminado 103

Dispositivo preferido 103

Driver 13

Driver Signing Options 14, 18

E

EDIT 125

EDIT Button 10

Edit mode 125

ENTER Button 11

Error 152

EXPRESSION 12

F

F8 CLOCK DEFAULT TEMPO 154

F8 CLOCK ON/OFF 154

F8 CLOCK PORT SET 154

FACTORY RESET 154

Find new hardware wizard 171

FreeMIDI 29

G

Generic driver 156

GM2 System On 142

GS 167-168

H

H-ACTIVITY ON/OFF 154

HEX 11,158

HEX Button 10

Hexadecimal 158

HOLD 12

|

INC Button 10

Input mode 158

K

KEYBOARD PORT SET 154

L

Latch mode 158

LSB 120

M

Master Volume 143

MCR-8 165–166

MEMORY 121

MEMORY Button 10

Memory mode 121

MIDI 114

MIDI CH 118, 158

MIDI CH Button 10

MIDI Channel mode 118

MIDI IN 159

MIDI IN/OUT connectors 12

MIDI OUT 159

MIDI output 24

MIDI-Ausgabe 45

MSB 120

N

NO ASSIGN 146

NOTE ASSIGN 127

0

OCTAVE 11

OMNI 149

OMS 26

Unknown driver found 172

USB 11,115

USB cable 9

INDEX

USB connector 12

USB DRIVER MODE 154

Uscita MIDI 84

V

VELOCITY OFFSET 154

V-LINK 10

V-LINK Button 10

V-LINK mode 10

X

XG 169

For EU Countries

This product complies with the requirements of European Directive 89/336/EEC.

For the USA

FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

Unauthorized changes or modification to this system can void the users authority to operate this equipment. This equipment requires shielded interface cables in order to meet FCC class B Limit.

For Canada

NOTICE

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

AVIS

DECLARATION OF CONFORMITY Compliance Information Statement

Model Name: PCR-30/50/80
Type of Equipment: USB MIDI KEYBOARD CONTROLLER
Responsible Party: Edirol Corporation North America
Address: 425 Sequoia Drive, Suite 114, Bellingham, WA 98226
Telephone: [phone]

EDIROL

EUROPE

EDIROL (Europe) Ltd.

Studio 3.4 114 Power Road

London W4 5PY

U.K.

TEL: [phone]

FAX:[phone]

http://www.edirol.com/europe

Deutschland

TEL: [phone]

France

TEL: [phone]

Italia

TEL: [phone]

Roland

NORTH AMERICA

CANADA

Roland Canada Music Ltd.

(Head Office)

5480 Parkwood Way Richmond

B. C., V6V 2M4 CANADA

TEL: [phone]

Roland Canada Music Ltd.

(Toronto Office)

170 Admiral Boulevard

Mississauga On L5T 2N6

CANADA

TEL: [phone]

U. S. A.

Roland Corporation U.S.

5100 S. Eastern Avenue

Los Angeles, CA 90040-2938,

U.S.A.

TEL: [phone]

AFRICA

EGYPT

Al Fanny Trading Office

9, EBN Hagar A1 Askalany

Street,

ARD E1 Golf, Heliopolis,

Cairo 11341, EGYPT

TEL: [phone]

REUNIÓN

Royal Cape Park, Unit 24

Londonderry Road, Ottery 7800

Cape Town, SOUTH AFRICA

TEL: [phone]

ASIA

CHINA

Roland Shanghai Electronics

Co., Ltd.

5F. No.1500 Pingliang Road

Shanghai 200090, CHINA

TEL: [phone]

Roland Shanghai Electronics

Co,Ltd.

(BEIJING OFFICE)

10F. No.18 3 Section Anhuaxili

Chaoyang District Beijing

100011 CHINA

TEL: [phone]

Roland Shanghai Electronics

Co., Ltd.

(GUANGZHOU OFFICE)

2/F., No.30 Si You Nan Er Jie

Yi Xiang, Wu Yang Xin Cheng

Guangzhou 510600, CHIN

TEL: [phone]

HONG KONG

Parsons Music Ltd.

8th Floor, Railway Plaza, 39

Chatham Road South, T.S.T,

Kowloon, HONG KONG

TEL: [phone]

INDIA

Rivera Digitec (India) Pvt. Ltd.

409, Nirman Kendra

Mahalaxmi Flats Compound

Off. Dr. Edwin Moses Road,

Mumbai-400011, INDIA

TEL: [phone]

INDONESIA

PT Citra IntiRama

J1. Cideng Timur No. 15J-150

Jakarta Pusat

INDONESIA

TEL: [phone]

KOREA

Cosmos Corporation

1461-9, Seocho-Dong,

Scocho Ku, Seoul, KOREA

TEL: [phone]

MALAYSIA/

SINGAPORE

Roland Asia Pacific Sdn. Bhd.

45-1, Block C2, Jalan PJU 1/39,

Dataran Prima, 47301 Petaling

Jaya, Selangor, MALAYSIA

TEL: [phone]

PHILIPPINES

G.A. Yupangco & Co. Inc.

339 Gil J. Puyat Avenue

Makati, Metro Manila 1200,

PHILIPPINES

TEL: [phone]

TAIWAN

ROLAND TAIWAN

ENTERPRISE CO., LTD.

Room 5, 9fl. No. 112 Chung

Shan N.Road Sec.2, Taipei,

TAIWAN, R.O.C.

TEL: [phone]

THAILAND

Theera Music Co., Ltd.

330 Soi Verng NakornKasem,

New Road, Sumpantawongse,

Bangkok 10100, THAILAND

TEL: [phone]

VIETNAM

SAIGON MUSIC

DISTRIBUTOR

(TAN DINH MUSIC)

138 Tran Quang Khai Street

Dist. 1, Ho Chi Minh City

VIETNAM

TEL: [phone]

AUSTRALIA/ NEW ZEALAND

AUSTRALIA/

NEW ZEALAND

Roland Corporation

Australia Pty., Ltd.

38 Campbell Avenue

Dee Why West. NSW 2099

AUSTRALIA

For Australia

Tel: [phone]

For New Zealand

Tel: [phone]

CENTRAL/LATIN AMERICA

ARGENTINA

Instrumentos Musicales S.A.

Av.Santa Fe 2055

(1123) Buenos Aires

ARGENTINA

TEL: [phone]

BARBADOS

A&B Music Supplies LTD

12 Webster Industrial Park

Wildey, St.Michael, Barbados

TEL:[phone]

BRAZIL

Roland Brasil Ltda.

Rua San Jose, 780 Sala B

Parque Industrial San Jose

Cotia - Sao Paulo - SP, BRAZIL

TEL: [phone]

CHILE

Comercial Fancy II S.A.

Rut.: 96.919.420-1

Nataniel Cox #739, 4th Floor

Santiago - Centro, CHILE

TEL: [phone]

COLOMBIA

Centro Musical Ltda.

Cra 43 B No 25 A 41 Bododega 9

Medellin, Colombia

TEL: [phone]

CURACAO

Zeelandia Music Center Inc.

Orionweg 30

Curacao, Netherland Antilles

TEL:[phone]

DOMINICAN REPUBLIC

Instrumentos Fernando Giraldez

155, New National Road

Patras 26442, GREECE

TEL: [phone]

HUNGARY

Roland East Europe Ltd.

Warehouse Area 'DEPO' Pf.83

II-2046 Torokbalint,
