Product Type	Radio Receiver
Brand	Hyundai
Model	H-1623
Dimensions	127 mm x 115 mm x 175 mm
Net Weight	0.86 kg
Gross Weight	1.12 kg
Power Supply (Radio)	7.5V DC (5 x AA batteries or AC adapter)
Power Supply (Clock)	3V DC (2 x AG3 batteries)
AC Adapter Input	230 V ~ 50 Hz, 0.1 A
AC Adapter Output	7.5V DC, 600 mA
FM Frequency Range	64 - 108 MHz
AM Frequency Range	540 - 1600 KHz
Nominal Power Consumption	4 W
Display Features	Clock, calendar, thermometer (Celsius/Fahrenheit)
Alarm Function	8 alarm sounds (6 tunes + 2 beepers), radio/MP3 as alarm
Snooze Function	Yes (1-60 minutes)
Countdown Timer	Yes
AUX Input	3.5 mm stereo jack
Antenna	Telescopic (for FM reception)
Battery Types	5 x UM3/AA (1.5V) for radio; 2 x AG3 (1.5V) for clock
Accessories Included	AC/DC adapter, 2x AG3 batteries, audio cable 3.5mm, manual, warranty card
Safety Instructions	Do not disassemble, avoid moisture and direct sunlight
Maintenance	Clean with a damp cloth; disconnect power before cleaning

Frequently Asked Questions - H-1623 HYUNDAI

How do I set the clock and calendar?

In clock mode (no ALARM indication), press ADJ to select 12/24-hour format. Then press SET repeatedly to cycle through hour, minute, year, month, date. Use ADJ (+) or C/F (-) to adjust. Day of week sets automatically.

How do I set the alarm?

Press MODE until 'ALARM' appears. Press SET to cycle alarm hour, minute, snooze period, alarm sound. Use ADJ (+) or C/F (-) to adjust. Press C/F once to enable alarm (bell icon appears).

How can I use the radio as an alarm?

Set the desired radio station and volume. Slide AUTO/OFF/ON to OFF. Set alarm time, then press MODE to return to clock. Slide AUTO/OFF/ON to AUTO. At alarm time, radio will play. To stop, press SET and slide to OFF.

How do I activate and set the snooze function?

In alarm mode, press C/F until bell and Zz icons appear. Set alarm time. Then set snooze period (1-60 minutes) using SET and ADJ/C/F. When alarm sounds, press ADJ, MODE, or C/F to snooze. To disable snooze, press SET when alarm is on.

How do I use the countdown timer?

Press TIMER to enter timer mode. Press SET repeatedly to set hours, minutes, seconds. Use ADJ (+) or C/F (-) to adjust. Turn VOL to OFF (click). Press TIMER to start. When time elapses, alarm sounds. Press MODE to stop. Press TIMER to pause/resume.

How do I switch between Celsius and Fahrenheit?

In clock mode, press the C/F button to toggle between Celsius and Fahrenheit. The temperature is updated every minute.

How do I connect an external audio device via AUX?

Use a standard 3.5mm stereo cable to connect the audio output of your device (e.g., MP3 player) to the AUX input on the back. Slide AUTO/OFF/ON to ON. Adjust volume with VOL regulator.

What type of batteries are needed?

For radio operation: 5 x UM3/AA (1.5V) batteries. For clock/alarm/thermometer backup: 2 x AG3 (1.5V) batteries (included). Always observe correct polarity. Do not mix old and new batteries.

How should I clean and maintain the radio?

Disconnect the power cord. Clean the unit with a cloth slightly dampened with water only. Do not use solvents. Avoid dripping or splashing liquids on the unit. Do not place objects filled with liquids (e.g., vases) on top.

What should I do if the radio does not work?

Ensure batteries are installed correctly or AC adapter is connected. Check that AUTO/OFF/ON switch is set to ON. For AM reception, avoid interference from TVs, computers, fluorescent lamps. For FM, fully extend the telescopic antenna. If problem persists, contact qualified service personnel.

USER MANUAL H-1623 HYUNDAI

Two glossy spheres with reflections, no text or symbols present

RADIO RECEIVER

РАДИОПРИЕМНИК

Instruction manual

Dear customer!

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in future.

Description

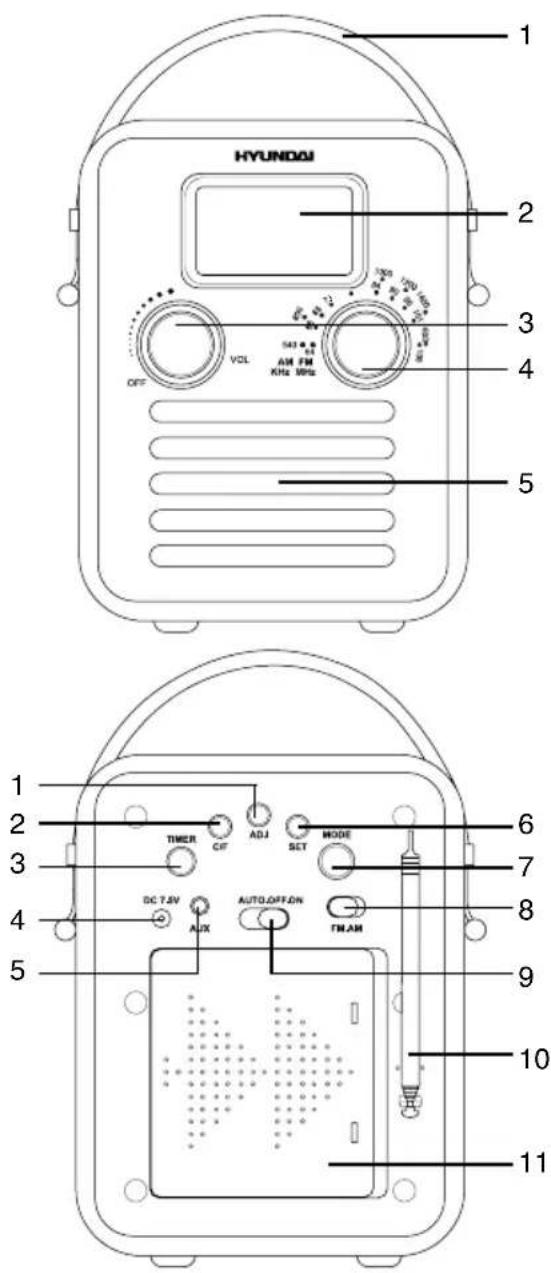

Front panel

1. Handle
2. Display
3. VOL regulator
4. Frequency regulator
5. Speaker

Back panel

1. ADJ button
2. C/F button
3. TIMER button
4. Power (DC7.5V) input
5. AUX input
6. SET button
7. MODE button
8. FM/AM switch
9. AUTO/OFF/ON switch
10. Telescopic antenna
11. Battery compartment

Important safeguards

• The instruction manual contains important operating and maintenance instructions. For your safety, it is necessary to refer the manual. Keep the manual for use in future.
• Do not hit or drop the unit.
• Do not expose the unit to vibration, direct sunlight, too high or low temperature or humidity.
• Do not use the unit near TV sets, computers, fluorescent lamps and other electric equipment; this may jam AM reception.
• Do not disassemble the unit yourself. Refer servicing to qualified service personnel.
• When the battery is exhausted, it should be removed from the set to prevent leakage.

Power supply

Battery power

• Open the battery compartment cover. Insert 5 UM3 (1.5V) batteries. Please observe correct battery polarities or the unit will not work. Close the battery compartment cover.
• When the batteries are exhausted, they should be replaced.
• Do not use new and old batteries together.
• Disconnect power cord from the socket, when the unit is on battery supply. Battery power is automatically disconnected when the power cord is connected to a power socket.

AC adaptor power

• Plug the supplied AC/DC power adaptor into the power input on the back of the unit. Connect the power cord to the AC household main outlet. Make sure the voltage is compatible.
  • Always remember to disconnect the power cord from the main supply before disconnecting it from the unit.
• Disconnect the power cord from the mains when not in use.

Additional power

There are 2 batteries AG3 (1.5 V) in the terminal inside the battery compartment. This is additional power intended for operation of clock, alarm, termometer and countdown timer. Without the additional power the unit will function only as radio receiver.

General operations

Clock and calendar

• In clock mode (no ALARM indication) press ADJ button to select 12-hour or 24-hour clock display mode.
• Press repeatedly SET button to go to setting of parameters in following sequence: hour => minute => year => month => date. The selected parameter will blink meaning readiness for adjustment.
• Press ADJ button to adjust the parameter up. Press C/F button to adjust the parameter down.
  • Day of week will be set automatically.

Termometer

The unit is equipped with a built-in termometer. The current temperature is updated every minute and is shown on the display. In clock mode press C/F button to select Celsius or Fahrenheit termometer mode.

AUX input

To connect an external audio device (eg. MP3-player), please use a standard stereo cable with 3.5 mm to 3.5 mm plugs to connect the audio line-out of the external device to the AUX input socket of this unit. Slide AUTO/OFF/ON switch to ON position.

Radio operation

• Radio reception is only available when AA/UM3 battery power or AC adaptor power is used.
• Slide AUTO/OFF/ON switch to ON. Select AM or FM band with the FM/AM switch.
• For FM reception extend the telescopic

antenna.

• Adjust the frequency by rotating the frequency regulator.
• Use VOL regulator to adjust volume level.
• To switch off the radio, slide AUTO/OFF/ON switch to OFF. The backlight will go off.

Alarm operation

Setting the alarm

• In clock mode press MODE button; the word ALARM will be displayed.
• Press repeatedly SET button to go to setting of parameters in following sequence: alarm hour => alarm minute => snooze period => alarm sound. The selected parameter will blink meaning readiness for adjustment.
• Press ADJ button to adjust the parameter up. Press C/F button to adjust the parameter down.
• Press C/F button once to enable the alarm function. The bell icon will be displayed.

Built-in alarm sound

• You can select 8 alarm sounds (including 6 tunes and 2 simple beepers). To use the built-in alarm sound, turn VOL regulator to OFF until a click.
• Set the alarm time. When the preset time comes, the alarm signal will start. To stop it press SET button, otherwise the alarm signal will be on for 1 minute, then stop automatically.

Radio/MP3 as alarm

• To use radio as alarm sound, adjust the volume of the radio, then slide AUTO/OFF/ON switch to OFF.
• Set the alarm time, then press MODE button to go to clock mode, and slide AUTO/OFF/ON switch to AUTO.
• When the alarm signal is in operation, press SET button and slide AUTO/OFF/ON switch to OFF position to stop it.
• If an MP3-player is connected to this unit and file playback is on, it will sound as alarm

signal instead of radio when the alarm time comes.

Snooze

• In alarm mode press C/F button until bell and Zz icons are displayed meaning the snooze mode is on.
• Set the alarm time, then set the snooze period (1 - 60 minutes).
• When the alarm signal is on, press ADJ, MODE or C/F button to stop it. Zz icon will blink showing that the snooze is in operation, and the alarm signal will repeat after the snooze period you had set (if you use radio as alarm signal, slide AUTO/OFF/ON to OFF, then again to AUTO).
• To disable the snooze function, press SET button when the alarm is in operation. The Zz icon will stop blinking.

Countdown timer

• Press TIMER button to enable timer mode; the clock icon will be displayed.
• Press repeatedly SET button to go to setting of parameters in following sequence: timer hour => timer minute => timer second. The selected parameter will blink meaning readiness for adjustment.
• Press ADJ button to adjust the parameter up. Press C/F button to adjust the parameter down.
• When the countdown time is set, turn VOL regulator to OFF until a click. Press TIMER button to start countdown. When the time elapses, the selected alarm signal will sound. To stop it, press MODE button.
• While the countdown is in progress, you can press TIMER button to pause it. To resume countdown, press TIMER button again.

Maintenance and care

If necessary, clean the unit with a piece of cloth dampened with water only (be sure the power cord is disconnected). The unit shall not

be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the unit. Normal ventilation of the unit shall not be impeded for intended use.

Accessories

Receiver 1 pc

AC/DC power adaptor 1 pc

AG3 (1.5 V) battery 2 pcs

Audio cable 3.5-3.5 mm 1 pc

Instruction manual 1 pc

Warranty card 1 pc

Consumer information 1 pc

Specifications

FM frequency range 64 - 108 MHz
AM frequency range 540 - 1600 KHz
Nominal voltage (radio) 7.5 V (1.5 V x 5 batteries	JM3/AA)
Nominal voltage (clock) 3 V (1.5 V x 2 batteries AG13)
Nominal power consumption (radio) 4 W
Adaptor input power 230 V ~ 50 Hz, 0.1 A
Adaptor output power 7.5 V (DC)/ 600 mA
Net/Gross weight 0.86 kg/1.12 kg
Unit dimensions 127 mm x 115 mm x 175 mm

Specifications and functions are subject to change without notice. It is connected with continual improvement of the device.
