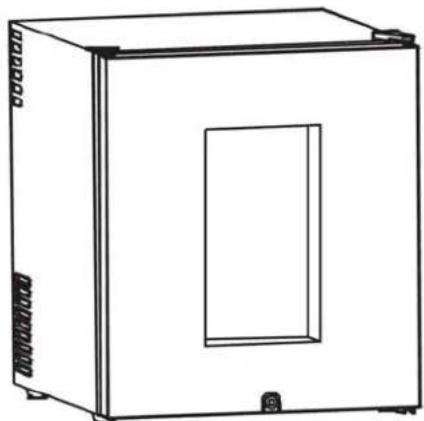

USER MANUAL SBCA017G Avanti
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.
Avanti Products, A Division of the Mackle Co., Inc.
P.O. Box 520604 - Miami, Florida 33152
www.avantiproducts.com
TABLE OF CONTENTS
Beverage Cooler Safety 4
Important Safeguides 5
Parts and Features 6
Important Safety Instructions 7
Installation Instructions 7
Before Using Your Beverage Cooler 7
Installation of Your Beverage Cooler 7
Electrical Connection 8
Operating Your Beverage Cooler 9
Temperature Control 9
Interior Light 9
Care and Maintenance 9
Defrosting Your Beverage Cooler 9
Cleaning Your Beverage Cooler 9
Power Failure 10
Vacation Time 10
Moving Your Beverage Cooler 10
Energy Saving Tips 10
Troubleshooting Guide 10
Service for Your Beverage Center 11
Your Avanti Products Warranty 12
Instrucciones en Español 13 - 14
Registration Information / Registration Card 15
BEVERAGE COOLER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual for your appliance. Always read and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the Safety Alert Symbol and either the words "DANGER", "WARNING" or "CAUTION".
DANGER
Danger means that failure to heed this safety statement may result in severe personal injury or death.
WARNING
Warning means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.
CAUTION
Caution means that failure to heed this safety statement may result in minor or moderate personal injury, property or equipment damage.
All safety messages will alert to know what potential hazard is, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.
IMPORTANT SAFEGUIDES
Before the Beverage Cooler is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the Beverage Cooler, follow basic precaution, including the following:
DANGER
- Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an extension cord.
- It is recommended that a separate circuit, serving only your Beverage Cooler be provided. Use receptacles that cannot be turned off by a switch or pull chain.
- Never clean Beverage Cooler parts with flammable fluids. These fumes can create a fire hazard or explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
- Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected.
- Do not connect or disconnect the electric plug when your hands are wet.
- Unplug the Beverage Cooler or disconnect power before cleaning or servicing. Failure to do so can result in electrical shock or death.
- Do not attempt to repair or replace any part of your Beverage Cooler unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.
WARNING
FOLLOW WARNING CALL OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL
- Use two or more people to move and install Beverage Cooler. Failure to do so can result in back or other injury.
- To ensure proper ventilation for your Beverage Cooler, the front of the unit must be completely unobstructed. Choose a well-ventilated area with temperatures above 60^ F ( 16^ C) and below 90^ F ( 32^ C). This unit must be installed in an area protected from the element, such as wind, rain, water spray or drips.
• The Beverage Cooler should not be located next to ovens, grills or other sources of high heat. - The Beverage Cooler must be installed with all electrical connections in accordance with state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances is required.
- Do not kink or pinch the power supply cord of Beverage Cooler.
- The fuse (or circuit breaker) size should be 2.5 amperes.
- It is important for the Beverage Cooler to be leveled in order to work properly. You may need to make several adjustments to level it.
- Never allow children to operate, play with or crawl inside the Beverage Cooler.
- Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may damage or discolor the interior.
- Do not use this apparatus for other than its intended purpose.

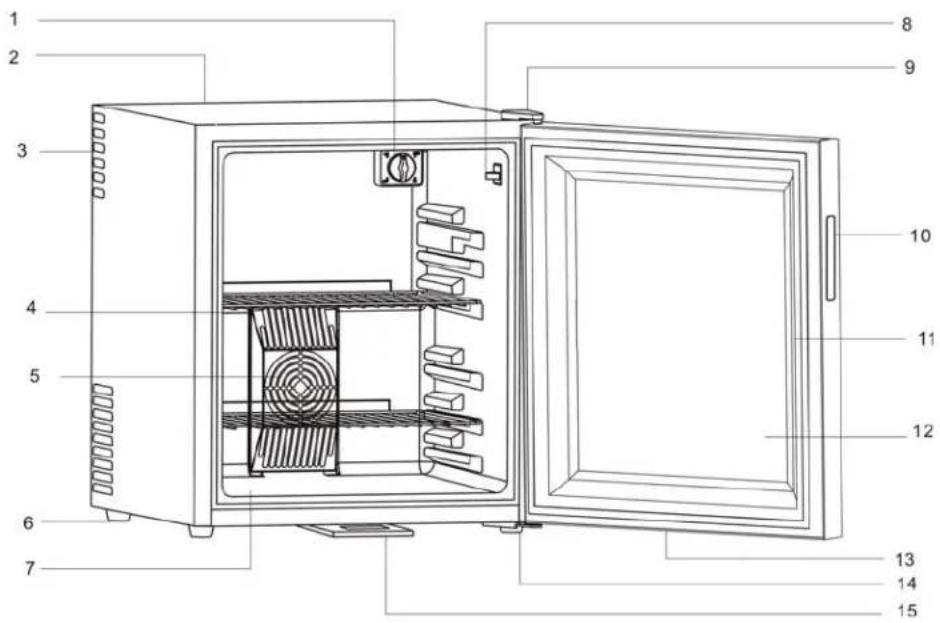

PARTS & FEATURES
| 1 | Temperature Control Knob | 8 | LED Interior Light ON / OFF Switch |
| 2 | Back Cover 9 | Upper Hinge | |
| 3 | Ventilation Holes 10 | Door Handle | |
| 4 | Shelves (2) 11 | Door Gasket | |
| 5 | Cold Sink Fan 12 | Glass Door | |
| 6 | Legs 13 | Lock (Model SBCA017GL ONLY) | |
| 7 | Cabinet Liner 14 | Bottom hinge | |
| 15 | Lock bracket(Model SBCA017GL ONLY) |
IMPORTANT SAFETY INSTRUCTIONS
| WARNING | To reduce the risk of fire, electrical shock, or injury when using your Beverage Cooler, follow these basic precautions: |
| Read all instructions before using the Beverage Cooler.DANGER or WARNING:Risk of child entrapment.Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous . . . even if they will “just sit in the garage a few days”.Before you throw away your old Beverage Cooler:Take off the door. Leave the shelf in place so that children may not easily climb inside.Never allow children to operate, play with, or crawl inside the Beverage Cooler.Never clean Beverage Cooler parts with flammable fluids. The fumes can create a fire hazard or explosion.Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other Beverage Cooler. The fumes can create a fire hazard or explosion.Do not repair or replace any part of the Beverage Cooler or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions. Replace the fuse with the same type.-Save these instructions- | |
INSTALLATION INSTRUCTIONS
Before Using Your Beverage Cooler
- Remove the exterior and interior packing.
- Check to be sure you have all of the following parts:
• 2 Shelves
• 1 Instruction manual
• Additional 2 keys(For model SBCA017GL only)
- Clean the interior surface with lukewarm water using a soft cloth.
Installing Your Beverage Cooler
- This Beverage Cooler uses superconductor heat-pipe refrigeration technology (no compressor).
- This appliance is designed to be free standing only, and should not be recessed or built-in (Fully recessed).
- Place your Beverage Cooler on a floor that is strong enough to support the Beverage Cooler when it is fully loaded.
- Allow 5 inches of space between the back and sides of the Beverage Cooler, which allows the proper air circulation to cool the heat sink.
- Locate the Beverage Cooler away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the Beverage Cooler not to perform properly.
- Avoid locating the Beverage Cooler in moist areas.
- Plug the Beverage Cooler into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized service center.
- After plugging the appliance into a wall outlet, allow the unit to cool down for 2-3 hours before placing food in the Beverage Cooler compartment.
ELECTRICAL CONNECTION
Warning
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized service center.
This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the power cord supplied. For personal safety, this appliance must be properly grounded.
This appliance requires a standard 115/120 Volt AC \~/60Hz electrical ground outlet with three-prong. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.
The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury.
The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the appliance, be careful not to damage the power cord.
EXTENSION CORD
Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an extension cord with this appliance. However, if you must use an extension cord it is absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 300 volts and at least 10 amperes.
SURGE PROTECTOR
Most electrical appliances use a series of electric control boards to operate. These boards are very susceptible to power surges and could be damaged or destroyed.
If the appliance is going to be used in an area or if your city / country is prone to power surges / outages; it is suggested that you use a power surge protector for all electrical devices / appliances you use. The surge protector that you select must have a surge block high enough to protect the appliance it is connected to. If you have any questions regarding the type and size of surge protector needed contact a licensed electrician in your area.
Damages due to power surges are not considered a manufacturer covered defect and will void your product warranty.
TO PREVENT LIQUIDS FROM FREEZING YOU MUST ADJUST THE TEMPERATURE CONTROL TO THE MEDIUM SETTING AFTER THE INITIAL 24 HOUR PERIOD OF USE.
Setting the Temperature Control
- Your Beverage Cooler has only one control for regulating the temperature. The temperature control is located on the upper right hand corner of the compartment.
- To control the internal temperature, adjust the control knob according to the ambient temperature or purpose of use.
- The first time you turn the unit on, set the temperature control to "HI".
- The range of the temperature control is from position "OFF" to "HI".
- After 24 hours, adjust the temperature control to the setting that best suites your needs. The setting of "MED" should be appropriate for home or office Beverage Cooler use.
•
NOTE:
- Turning the temperature control to "OFF" position stops the cooling cycle but does not shut off the power to the appliance.
Interior Light
This Beverage Cooler is provided with a LED light located on the top of the compartment. The light is manually activated and will not be on when the door is opened and be off when the door is closed. To turn the light ON / OFF use the switch located and the top right hand side of the unit.
CARE AND MAINTENANCE
> Defrosting Your Beverage Cooler
This model uses a superconductor heat-pipe cooling system with automatic defrosting system so there is no need to defrost it manually.
Cleaning Your Beverage Cooler
• UNPLUG the Beverage Cooler, and remove the shelf.
- Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
- Wash the shelf with a mild detergent solution.
- The outside of the Beverage Cooler should be cleaned with mild detergent and warm water.
- Wring excess water out of the sponge or cloth before cleaning the area of the controls, or any electrical parts.
- Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.
CAUTION
Failure to unplug the Beverage Cooler could result in electrical shock or personal injury.
Power Failure
Most power failures are corrected within a few hours and should not affect the temperature of your Beverage Cooler if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your food.
Vacation Time
- Short vacations: Leave the Beverage Cooler operating during vacations of less than three weeks.
- Long vacations: If the appliance will not be used for several months, remove all food and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary.
Moving Your Beverage Cooler
- Securely tape down all loose items inside your Beverage Cooler.
- Tape the door shut.
- Protect the outside of Beverage Cooler with a blanket, or similar item.
Energy Saving Tips
- The Beverage Cooler should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.
• Overloading the Beverage Cooler forces the superconductor cooling system to run longer. - Reduce door openings and extended searches, remove as many item as needed at one time, and close the door as soon as possible.
- One characteristic of superconductor heat-pipe units is the length of time it requires to recover from having the door opened and shut frequently. It may be necessary to wait longer for the temperature to return to its former level once the door has been opened for too long. This is normal for the type of unit.
PROBLEMS WITH YOUR BEVERAGE COOLER?
You can solve many common Beverage Cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.
| PROBLEM | POSSIBLE |
| Beverage Cooler does not operate. | Not plugged in.The circuit breaker tripped or a blown fuse.The appliance temperature control is set at “OFF” position. |
| Beverage Cooler is not cold enough. | The room temperature is hotter than normal.The door is opened too often.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.The Beverage Cooler does not have the correct clearances.Abnormal voltage. |
| The light does not work. | Not plugged in.The circuit breaker tripped or a blown fuse.The LED light has burned out. |
| Vibrations. | Check to assure that the Beverage Cooler is level. |
| The door will not close properly. | The Beverage Cooler is not level.The door was reversed and not properly installed.The gasket is dirty.The shelves, bins, or baskets are out of position. |
CAUSE
SERVICE FOR YOUR BEVERAGE COOLER
We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti Beverage Coolers. With the purchase of your Avanti Beverage Cooler, you can be confident that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you. Just call us toll-free.
AVANTI PRODUCTS CUSTOMER SERVICES
| Product Information800-323-5029 | Whatever your questions are about our products, help is available. |
| Part Orders800-220-5570 | You may order parts and accessories that will be delivered directly to your home, by personal check, money order, Master Card, or Visa. |
| In-Home Repair Service800-220-5570 | An Avanti Products authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your Beverage Cooler inside and out. |

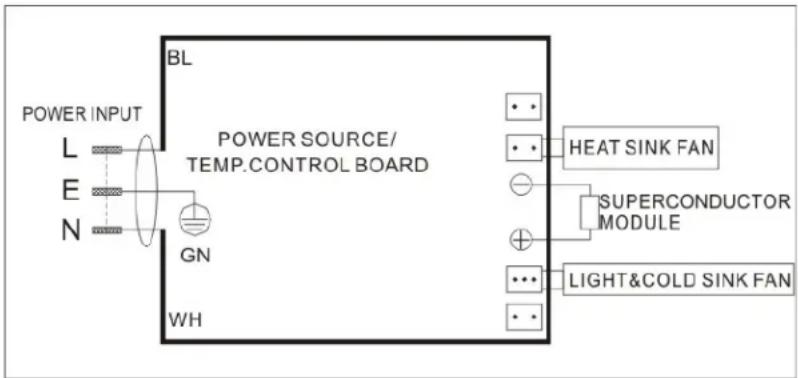

WIRING DIAGRAM
| YOUR Avanti Products WARRANTY | Staple your sales receipt here. Proof of original purchase date is needed to obtain service under warranty. |
WHAT IS COVERED LIMITED ONE-YEAR WARRANTY
For one year from the date of purchase by the original owner, Avanti Products will, at its option, repair or replace any part of the Beverage Cooler, which proves to be defective in material or workmanship under normal use. During this period Avanti Products will provide all parts and labor necessary to correct such defects free of charge, so long as the Beverage Cooler has been installed and operated in accordance with the written instructions in this manual. In rental or commercial use, the warranty period is 90 days. Avanti Products will provide you with a reasonably similar replacement product that is either new or factory refurbished All Avanti Appliances of 3.5 cubic feet capacity or less must be brought/sent to the appliance service shop for repair.
WHAT IS NOT COVERED
- Content losses of food due to spoilage.
- Incidental or consequential damages.
- Parts and labor costs for the following will not be considered as warranty:
- Evaporator doors, door springs, and/or frames.
- Inner door panels, door shelves, door rails, and/or door supports.
• Light and/or plastic housing. - Plastic cabinet liners.
- Punctured evaporator that voids the warranty on the complete sealed system.
-
Shipping and handling costs associated with the replacement of the unit.
• Repairs performed by unauthorized servicers. -
Service calls that do not involve defects in material or workmanship such as customer education, door reversal, or proper installation.
- Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the State of Alaska.
- Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or acts of God.
- Replacement of house fuses or resetting circuit breakers.
- Failure of the product if it is used for other than its intended purpose.
- This warranty does not apply outside the Continental USA.
Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following address within 100 days from the date of purchase and receive these important benefits:
Avanti Products, A Division of The Mackle Co., Inc.
P.O.Box 520604 – Miami, Florida 33152
Protect your product:
We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft.
➢ Promote better products:
We value your input. Your responses will help us develop products designed to best meet your future needs.
-(detach here)
Avanti Registration Card
| Name Model # Serial # | |
| Address Date Purchased Store / Dealer Name | |
| City State Zip E-mail Address | |
| Area Code Phone Number Occupation | |
| Did You Purchase An Additional Warranty As your Primary Residence, Do You: | |
| □ Extended □ None | □ Own □ Rent |
| Your | |
| Reason for Choosing This Avanti Product: Please indicate the most important factors That influenced your decision to purchase this product: | □ under 18 □ 18-25 □ 26-30 □ 31-35 □ 36-50 □ over 50 Marital Status: □ Married □ Single |
| □ Price □ Product Features □ Avanti Reputation □ Product Quality □ Salesperson Recommendation □ Other: ____ □ Friend / Relative Recommendation □ Warranty □ Other: ____ | Is This Product Used In The: □ Home □ Business How Did You Learn About This Product: □ Advertising □ In-Store Demo □ Personal Demo |
| Comments: | |
AV02-09072010
PRINTED IN CHINA
- TABLE OF CONTENTS
- BEVERAGE COOLER SAFETY
- DANGER
- WARNING
- CAUTION
- IMPORTANT SAFEGUIDES
- INSTALLATION INSTRUCTIONS
- Before Using Your Beverage Cooler
- Installing Your Beverage Cooler
- ELECTRICAL CONNECTION
- EXTENSION CORD
- SURGE PROTECTOR
- TO PREVENT LIQUIDS FROM FREEZING YOU MUST ADJUST THE TEMPERATURE CONTROL TO THE MEDIUM SETTING AFTER THE INITIAL 24 HOUR PERIOD OF USE.
- Setting the Temperature Control
- NOTE:
- Interior Light
- CARE AND MAINTENANCE
- > Defrosting Your Beverage Cooler
- Cleaning Your Beverage Cooler
- Power Failure
- Vacation Time
- Moving Your Beverage Cooler
- Energy Saving Tips
- PROBLEMS WITH YOUR BEVERAGE COOLER?
- SERVICE FOR YOUR BEVERAGE COOLER
- WHAT IS COVERED LIMITED ONE-YEAR WARRANTY
- WHAT IS NOT COVERED
- Protect your product:
- ➢ Promote better products:
Brand : Avanti
Model : SBCA017G
Category : Drink cooler
