Product Type	Beverage Cooler
Brand	Avanti
Model	EWC1601B
Dimensions (H x W x D)	33.5 x 19.5 x 21.5 inches
Weight	95 lbs
Power Supply	115V / 60Hz / 1.5A
Temperature Range	34°F to 50°F
Capacity	160 standard 12 oz cans
Interior Light	Yes, LED
Adjustable Thermostat	Yes
Reversible Door	Yes
Lock	Yes, with key
Number of Shelves	5 adjustable wire shelves
Defrost Type	Automatic
Energy Consumption	Approx. 0.8 kWh/day
Climate Class	N (Normal)
Refrigerant	R600a
Noise Level	~42 dB
Cleaning	Unplug before cleaning; use mild soap and water
Safety Features	Leveling legs for stability; proper ventilation required
Spare Parts	Available upon request from Avanti customer service

Frequently Asked Questions - EWC1601B Avanti

How do I set the temperature on my Avanti EWC1601B drink cooler?

Use the thermostat dial inside the cooler. Turn it clockwise for colder temperatures and counterclockwise for warmer. Allow 24 hours for the temperature to stabilize.

What is the maximum capacity of the Avanti EWC1601B?

The cooler can hold up to 160 standard 12 oz cans, or a mix of cans and bottles. Shelves are adjustable for flexibility.

Can I reverse the door swing on this cooler?

Yes, the door is reversible. Refer to the user manual for step-by-step instructions on how to change the door hinge side.

How do I clean the interior of the cooler?

Unplug the cooler first. Remove all items and shelves. Wipe the interior with a solution of mild soap and warm water. Rinse and dry thoroughly. Do not use abrasive cleaners.

Why is my cooler not cooling enough?

Check that the thermostat is set correctly, the door is sealing properly, and the condenser coils are clean. Ensure there is enough clearance around the unit for ventilation.

Does the cooler have a lock?

Yes, the EWC1601B comes with a lock and two keys. Use the lock to secure the door when needed.

How often should I defrost the cooler?

The cooler features automatic defrost, so manual defrosting is not required. However, if frost builds up, check the door seal and ensure the unit is level.

What is the ideal temperature for storing beverages?

For most beverages, a temperature between 34°F and 40°F is ideal. Adjust the thermostat to your preference within the cooler's range (34°F to 50°F).

Can I install the cooler in a garage or outdoors?

This cooler is designed for indoor use only. It should be placed in a dry, temperature-controlled environment away from direct sunlight and heat sources.

How do I level the cooler?

The cooler has adjustable leveling legs. Turn them clockwise or counterclockwise to raise or lower each corner until the unit is stable and level.

USER MANUAL EWC1601B Avanti

Technical line drawing of a multi-tiered industrial oven or rack unit with internal cooling pipes and heat sinks (no text or symbols)

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

Avanti Products has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.

Avanti Products, A Division of The Mackle Co., Inc.

P.O. Box 520604 - Miami, Florida 33152

www.avantiproducts.com

TABLE OF CONTENTS

Appliance Safety 2
Important Safeguides 3
Help Us Help You 5
Parts and Features 6
Important Safety Instructions 7
Installation Instructions 7
Before Using Your Wine Chiller 7
Installation of Your Wine Chiller 7
Electrical Connection 8
Operating Your Wine Chiller 9
Temperature Control 9
Interior Light 9
Care and Maintenance 10
Troubleshooting Guide 11
Service for Your Wine Chiller 11
Your Avanti Products Warranty 12
Instrucciones en Español 13 - 14
Registration Information and Registration Card 15

APPLIANCE SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual for your appliance. Always read and obey all safety messages.

This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the Safety Alert Symbol and either the words "DANGER", "WARNING" or "CAUTION".

DANGER

Danger means that failure to heed this safety statement may result in severe personal injury or death.

WARNING

Warning means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.

CAUTION

Caution means that failure to heed this safety statement may result in minor or moderate personal injury, property or equipment damage.

All safety messages will alert you to know what potential hazard is, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.

IMPORTANT SAFEGUIDES

Before the refrigerator is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the refrigerator, follow basic precaution, including the following:

DANGER

• Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an extension cord.
• It is recommended that a separate circuit, serving only your refrigerator be provided. Use receptacles that cannot be turned off by a switch or pull chain.
• Never clean refrigerator parts with flammable fluids. These fumes can create a fire hazard or explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
• Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected.
• Do not connect or disconnect the electric plug when your hands are wet.
• Unplug the refrigerator or disconnect power before cleaning or servicing. Failure to do so can result in electrical shock or death.
• Do not attempt to repair or replace any part of your refrigerator unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

WARNING

FOLLOW WARNING CALL OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL

• Use two or more people to move and install refrigerator. Failure to do so can result in back or other injury.
• To ensure proper ventilation for your refrigerator, the front of the unit must be completely unobstructed. Choose a well-ventilated area with temperatures above 60^ F ( 16^ C) and below 90^ F ( 32^ C). This unit must be installed in an area protected from the element, such as wind, rain, water spray or drips.
• The refrigerator should not be located next to ovens, grills or other sources of high heat.
• The refrigerator must be installed with all electrical connections in accordance with state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances is required.
• Do not kink or pinch the power supply cord of refrigerator.
• The fuse (or circuit breaker) size should be 2.5 amperes.
• It is important for the refrigerator to be leveled in order to work properly. You may need to make several adjustments to level it.
• Never allow children to operate, play with or crawl inside the refrigerator.
• Although the unit has been tested at the factory, due to long-term transit and storage, the first batch of cubes must be discarded.
• Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may damage or discolor the interior.
• Do not use this apparatus for other than its intended purpose.

HELP US HELP YOU...

Read this guide carefully.

It is intended to help you operate and maintain your new Wine Chiller properly.

Keep it handy to answer your questions. If you don't understand something or you need more assistance, please call:

Avanti Customer Service 800-220-5570

Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

CAUTION:

THIS WINE CHILLER IS NOT DESIGNED FOR THE STORAGE OF MEDICINE OR OTHER MEDICAL PRODUCTS.

Write down the model and serial numbers.

You'll find them on a plate located on the rear outside wall of the Wine Chiller.

Please write these numbers here:

Date of Purchase

Model Number

Serial Number

Use these numbers in any correspondence or service calls concerning your Wine Chiller.

If you received a damaged Wine Chiller, immediately contact the dealer (or builder) that sold you the Wine Chiller.

Save time and money. Before you call for service, check the Troubleshooting Guide. It lists causes of minor operating problems that you can correct yourself.

IF YOU NEED SERVICE

We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further assistance.

FIRST, contact the people who serviced your Wine Chiller. Explain why you are not pleased. In most cases, this will solve the problem.

NEXT, if you are still not pleased, write all the details, including your telephone number, and send it to:

Customer Service

Avanti Products

10880 NW 30 Street

Miami, FL 33172 USA

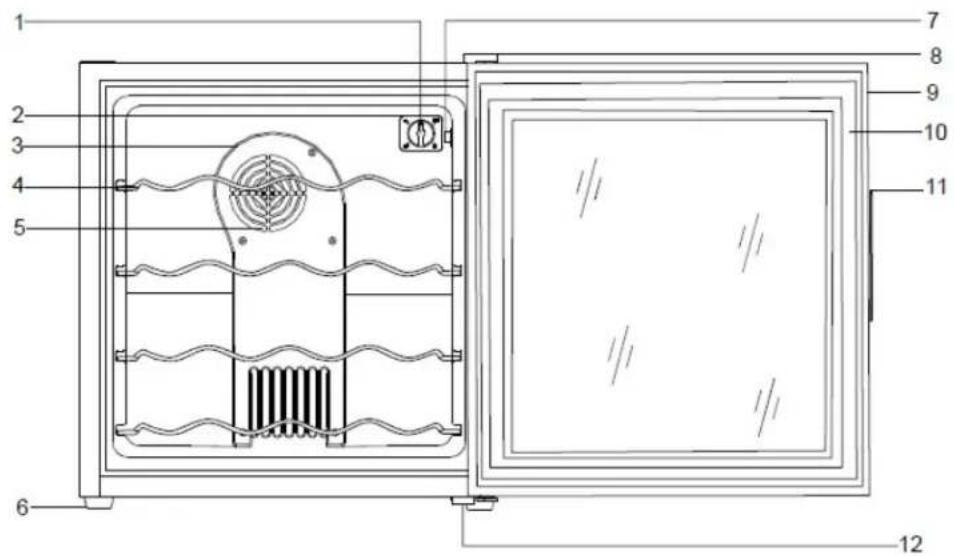

PARTS & FEATURES

1 Temperature Control Knob 7 Light ON / OFF Switch
2 Interior Light 8 Upper Hinge Cover
3 Cold Sink Fan Cover 9 Glass Door
4	Shelves (4)		10 Door
5 Cold Sink Fan 11 Door Handle
6	Legs	12	Bottom Hinge

Gasket

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

Read all instructions before using the Wine Chiller.DANGER or WARNING:Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous . . . even if they will “just sit in the garage a few days”.Before you throw away your old Wine Chiller:Take off the door. Leave the shelves in place so that children may not easily climb inside.Never allow children to operate, play with, or crawl inside the appliance.Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.Do not repair or replace any part of the refrigerator or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions. Replace the fuse with the same type.-Save these instructions-

INSTALLATION INSTRUCTIONS

Before Using Your Wine Chiller

• Remove the exterior and interior packing.
• Check to be sure you have all of the following parts:

• 4 Shelves

• 1 Instruction Manual

- Clean the interior surface with lukewarm water using a soft cloth.

➢ Installation of Your Wine Chiller

• This appliance is designed to be free standing installation only, and should NOT be recessed or built-in (Fully recessed).
• Place your Wine Chiller on a floor that is strong enough to support it when it is fully loaded.
• Allow 5 inches of space between the back and sides of the refrigerator, which allows the proper air circulation to cool the heat sink.
• Locate the Wine Chiller away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.
• This refrigerator uses thermoelectric refrigeration technology (no compressor) and is not designed for storage in hot areas like garages, warehouses or outdoors since it is designed to operate at a maximum of 30 degrees below the ambient temperature.
• Avoid locating the unit in moist areas.
• Plug the Wine Chiller into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Avanti Products service center.
• After plugging the appliance into a wall outlet, allow the unit to cool down for 2-3 hours before placing any items in the compartment.

ELECTRICAL CONNECTION

Warning

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Avanti Products service center.

This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.

Do not under any circumstances cut or remove the third ground prong from the power cord supplied. For personal safety, this appliance must be properly grounded.

This appliance requires a standard 115/120 Volt AC \~/60Hz electrical ground outlet with three-prong. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury.

The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the appliance, be careful not to damage the power cord.

EXTENSION CORD

Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an extension cord with this appliance. However, if you must use an extension cord it is absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 300 volts and at least 10 amperes.

SURGE PROTECTOR

Most electrical appliances use a series of electric control boards to operate. These boards are very susceptible to power surges and could be damaged or destroyed.

If the appliance is going to be used in an area or if your city / country is prone to power surges / outages; it is suggested that you use a power surge protector for all electrical devices / appliances you use. The surge protector that you select must have a surge block high enough to protect the appliance it is connected to. If you have any questions regarding the type and size of surge protector needed contact a licensed electrician in your area.

Damages due to power surges are not considered a manufacturer covered defect and will void your product warranty.

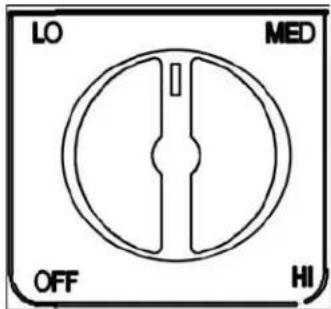

Temperature Control and Light Switch

Setting the Temperature Control

• Your Wine Chiller has only one control for regulating the temperature. The temperature control is located on the upper right hand corner of the compartment.
• To control the internal temperature, adjust the control knob according to the ambient temperature or purpose of use.
• The first time you turn the unit on, set the temperature control to "HI" position.
• After 2 hours, adjust the control setting to the appropriate position depending on the selection of wine bottles placed in the wine chiller.

NOTE:

• The range between "HI" and "LO" is from 51^ F to 62^ F, which is ideal for the storage of most wines. The medium (MED) position on this unit is set at 55^ F.
• Turning the temperature control to "OFF" position stops the cooling cycle but does not shut off the power to the appliance.

You must install your electronic Wine Chiller in a place where the ambient temperature is between 72-78 degrees Fahrenheit. If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate. The range of 51-62 degrees Fahrenheit may not be reached.

You can place four bottles (STANDARD 750 ML BOTTLES) on each shelf (total 16).

Recommended temperatures for chilling wine:

Degrees

Control Position

Red Wines: 57-62°F (14-17°C) LO

Dry/White Wines 54-57° F (12-14°C)

MED

Rose Wines 51-53° F (11-12°C) HI

> Interior Light

The light switch is located on the upper right hand corner of the compartment. The LED interior light is located on the top of the compartment. You can turn the interior light ON or OFF by pressing the light switch.

CARE AND MAINTENANCE

> Cleaning Your Wine Chiller

• UNPLUG the Wine Chiller, and remove all items including shelves.
• Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
• Wash the shelves with a mild detergent solution.
• Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.
• Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.

CAUTION

Failure to unplug the Wine Chiller could result in electrical shock or personal injury.

Power Failure

- Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.

Vacation Time

• Short vacations: Leave the Wine Chiller operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all items and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary.

Moving Your Wine Chiller

• Remove all bottles.
• Securely tape down all loose items (shelves) inside your appliance.
• Tape the door shut.
• Protect outside of appliance with a blanket, or similar item.

Energy Saving Tips

• The Wine Chiller should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.
• One characteristic of thermoelectric units is the length of time it requires to recover from having the door opened and shut frequently. It may be necessary to wait longer for the temperature to return to its former level once the door has been opened for too long. This is normal for the type of unit.
• Thermoelectric technology costs just pennies to operate. It is environmentally friendly due to the lack of CFC's.

Reversing the Door Swing of Your Appliance

This appliance has the capability of the door opening from either the left or right side. The unit is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, please call service for reversal instructions.

PROBLEMS WITH YOUR WINE CHILLER?

You can solve many common Wine Chiller problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE
Wine Chiller does not operate or chill properly	Not plugged in.The circuit breaker tripped or a blown fuse.The appliance temperature control is set at “OFF” position.
Wine Chiller is not cold enough. Check the temperature control setting.External environment may require a higher setting.The door is opened too often.The door is not closed completely.The door gasket does not seal properly.The Wine Chiller does not have the correct clearances.Abnormal voltage.
The light does not work.	Not plugged in.The circuit breaker tripped or a blown fuse.The switch is in the “OFF” position.
Vibrations.	Check to assure that the Wine Chiller is level.
The door will not close properly.	The Wine Chiller is not level.The door was reversed and not properly installed.The gasket is dirty.The shelves are out of position.

CAUSE

We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti appliances. With the purchase of your Avanti appliance, you can have the confidence that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you. Just call us toll-free.

AVANTI PRODUCTS CUSTOMER SERVICES

Product Information800-323-5029	Whatever your questions are about our products, help is available.
Part Orders800-220-5570	You may order parts and accessories that will be delivered directly to your home by personal check, money order, Master Card, or Visa.
In-Home Repair Service800-220-5570	An Avanti Products authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your appliance inside and out.

YOUR Avanti Products WARRANTY

Staple your sales receipt here. Proof of original purchase date is needed to obtain service under warranty.

WHAT IS COVERED

LIMITED ONE-YEAR

WARRANTY

For one year from the date of purchase by the original owner, Avanti Products will, at its option, repair or replace any part of the refrigerator - freezer which proves to be defective in material or workmanship under normal use.

Avanti Products will provide you with a reasonably similar product that is either new or factory refurbished.

During this period Avanti Products will provide all parts and labor necessary to correct such defects free of charge, so long as the refrigerator - freezer has been installed and operated in accordance with the written instructions in this manual. In rental or commercial use, the warranty period is 90 days. All Avanti appliances of 3.5 cubic feet capacity or less must be brought/sent to the appliance service shop for repair.

WHAT IS NOT COVERED

• Content losses of food due to spoilage.
• Incidental or consequential damages.
• Parts and labor costs for the following will not be considered as warranty:
• Evaporator doors, door springs, and/or frames.
• Inner door panels, door shelves, door rails, and/or door supports.
• Chest freezer lid liners.
• Vegetable crispers.
  • Light bulbs and/or plastic housing.
• Plastic cabinet liners.
• Punctured evaporator that voids the warranty on the complete sealed system.
• Shipping and handling costs associated with the replacement of the unit.

• Repairs performed by unauthorized servicers.
- Service calls that do not involve defects in material or workmanship such as customer education, door reversal, or proper installation.
- Surcharges including but limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.
- Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or acts of God.
- Replacement of house fuses or resetting circuit breakers.
- Failure of the product if it is used for other than its intended purpose.
- This warranty does not apply outside the Continental U.S.A.

Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following address within 100 days from the date of purchase and receive these important benefits:

Avanti Products, A Division of The Mackle Co., Inc.

P.O.Box 520604 – Miami, Florida 33152

Protect your product:

We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft.

➢ Promote better products:

We value your input. Your responses will help us develop products designed to best meet your future needs.

-(detach here)

Avanti Registration Card

Name Model # Serial #
Address Date Purchased Store / Dealer Name
City State Zip E-mail Address
Area Code Phone Number Occupation
Did You Purchase An Additional Warranty As your Primary Residence, Do You:
□ Extended □ None	□ Own □ Rent
	Your
Reason for Choosing This Avanti Product: Please indicate the most important factors That influenced your decision to purchase this product:	□ under 18 □ 18-25 □ 26-30 □ 31-35 □ 36-50 □ over 50 Marital Status: □ Married □ Single
□ Price □ Product Features □ Avanti Reputation □ Product Quality □ Salesperson Recommendation □ Other: ____ □ Friend / Relative Recommendation □ Warranty □ Other: ____	Is This Product Used In The: □ Home □ Business How Did You Learn About This Product: □ Advertising □ In-Store Demo □ Personal Demo
Comments:

PRINTED IN CHINA
