BCA184BG - Drink cooler Avanti - Free user manual and instructions

Product Type	Drink Cooler
Brand	Avanti
Model	BCA184BG
Capacity (Cans)	Approximately 120 standard 12 oz cans
Cooling System	Compressor, forced air circulation
Temperature Range	34°F to 50°F (1°C to 10°C)
Interior Lighting	LED, controlled by on/off switch
Shelves	5 adjustable wire shelves
Door Type	Reversible, double-pane glass with stainless steel frame
Lock	Yes, with key for security
Control Type	Digital thermostat with touch controls
Defrost	Automatic (no frost)
Dimensions (H x W x D)	32.5 x 23.0 x 23.0 inches (825 x 584 x 584 mm)
Weight	110 lbs (50 kg)
Power Supply	115 V / 60 Hz / 1.5 A
Energy Consumption	Approximately 0.8 kWh per day (Energy Star certified)
Refrigerant	R134a (environmentally friendly)
Noise Level	~40 dB (quiet operation)
Installation Type	Freestanding (not for built-in)
Cleaning	Wipe interior with damp cloth; clean condenser coils annually
Replacement Parts	Available from Avanti customer service or authorized dealers
Warranty	1 year limited (parts and labor)

Frequently Asked Questions - BCA184BG Avanti

What is the temperature range of the Avanti BCA184BG drink cooler?

The temperature range is adjustable from 34°F to 50°F (1°C to 10°C), ideal for chilling beverages.

How many cans can the BCA184BG hold?

It can hold approximately 120 standard 12 oz cans with adjustable shelves.

Is the door reversible?

Yes, the door is reversible, allowing you to change the hinge side to fit your space.

Does it have a lock?

Yes, it includes a lock and key for security, especially useful in commercial or shared environments.

Is the interior light adjustable?

The LED interior light can be turned on or off with a switch, but not dimmable.

How do I clean the drink cooler?

Clean the interior with a damp cloth and mild detergent. Do not use abrasive cleaners. Clean the condenser coils at least once a year.

Can the BCA184BG be installed under a counter?

No, it is designed for freestanding use only. It requires ventilation space around the unit.

What is the energy consumption?

It is Energy Star certified and consumes approximately 0.8 kWh per day under normal conditions.

How loud is the cooler during operation?

The noise level is around 40 dB, which is quiet and comparable to a modern refrigerator.

Where can I find replacement parts?

Replacement parts can be ordered through Avanti customer service or purchased from authorized dealers. Check the user manual for part numbers.

USER MANUAL BCA184BG Avanti

Line drawing of a cabinet with four internal compartments (no text or symbols)

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.

Avanti Products, A Division of the Mackle Co., Inc.

P.O. Box 520604 - Miami, Florida 33152

www.avantiproducts.com

TABLE OF CONTENTS

Refrigerator Safety 3
Important Safeguides 4
Help Us Help You 5
Parts and Features 6
Important Safety Instructions 7
Free Standing Units 7
Installation Instructions 7
Before Using Your Appliance 7
Installation of Your Appliance 7
Electrical Connection 8
Reversing the Door Swing of Your Appliance 9
Care and Maintenance 9
Cleaning Your Appliance 9
Power Failure, Vacation Time, Moving Your Unit 9
Energy Saving Tips 10
Troubleshooting Guide 10
Service for Your Appliance 11
Wiring Diagram 11
Your Avanti Products Warranty 12
Instrucciones en Español 13\~14
Registration Information and Registration Card 15

REFRIGERATOR SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual for your appliance. Always read and obey all safety messages.

This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the Safety Alert Symbol and either the words "DANGER", "WARNING" or "CAUTION".

DANGER

Danger means that failure to heed this safety statement may result in severe personal injury or death.

WARNING

Warning means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.

CAUTION

Caution means that failure to heed this safety statement may result in minor or moderate personal injury, property or equipment damage.

All safety messages will alert to know what potential hazard is, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.

IMPORTANT SAFEGUIDES

Before the refrigerator is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the refrigerator, follow basic precaution, including the following:

DANGER

• Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an extension cord.
• It is recommended that a separate circuit, serving only your refrigerator be provided. Use receptacles that cannot be turned off by a switch or pull chain.
• Never clean refrigerator parts with flammable fluids. These fumes can create a fire hazard or explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
• Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected.
• Do not connect or disconnect the electric plug when your hands are wet.
• Unplug the refrigerator or disconnect power before cleaning or servicing. Failure to do so can result in electrical shock or death.
• Do not attempt to repair or replace any part of your refrigerator unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

WARNING

FOLLOW WARNING CALL OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL

• Use two or more people to move and install refrigerator. Failure to do so can result in back or other injury.
• To ensure proper ventilation for your refrigerator, the front of the unit must be completely unobstructed. Choose a well-ventilated area with temperatures above 60^ F ( 16^ C) and below 90^ F ( 32^ C). This unit must be installed in an area protected from the element, such as wind, rain, water spray or drips.
• The refrigerator should not be located next to ovens, grills or other sources of high heat.
• The refrigerator must be installed with all electrical, water and drain connections in accordance with state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances is required.
• Do not kink or pinch the power supply cord of refrigerator.
• The fuse (or circuit breaker) size should be 15 amperes.
• It is important for the refrigerator to be leveled in order to work properly. You may need to make several adjustments to level it.
• All installation must be in accordance with local plumbing code requirements.
  • Make certain that the pipes are not pinched or kinked or damaged during installations.
• Check for leaks after connection.
• Never allow children to operate, play with or crawl inside the refrigerator.
• If you use the drainage container, you must set the drain select switch to OFF or the water can overflow from the drainage container
• Although the unit has been tested at the factory, due to long-term transit and storage, the first batch of cubes must be discarded.
• Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may damage or discolor the interior.
• Do not use this apparatus for other than its intended purpose.

HELP US HELP YOU...

Read this guide carefully.

It is intended to help you operate and maintain your new unit properly.

Keep it handy to answer your questions. If you don't understand something or you need more assistance, please call:

Avanti Customer Service 800-220-5570

Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

CAUTION:

THIS UNIT IS NOT DESIGNED FOR THE STORAGE OF MEDICINE OR OTHER MEDICAL PRODUCTS.

Write down the model and serial numbers.

You'll find them on a plate located on the rear outside wall of the unit.

Please write these numbers here:

Date of Purchase

Model Number

Serial Number

Use these numbers in any correspondence or service calls concerning your unit.

If you received a damaged unit, immediately contact the dealer (or builder) that sold you the unit.

Save time and money. Before you call for service, check the Troubleshooting Guide. It lists causes of minor operating problems that you can correct yourself.

IF YOU NEED SERVICE

We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further assistance.

FIRST, contact the people who serviced your unit. Explain why you are not pleased. In most cases, this will solve the problem.

NEXT, if you are still not pleased, write all the details, including your telephone number, and send it to:

Customer

Service

Avanti Products

10880 NW 30 Street

Miami, FL 33172 USA

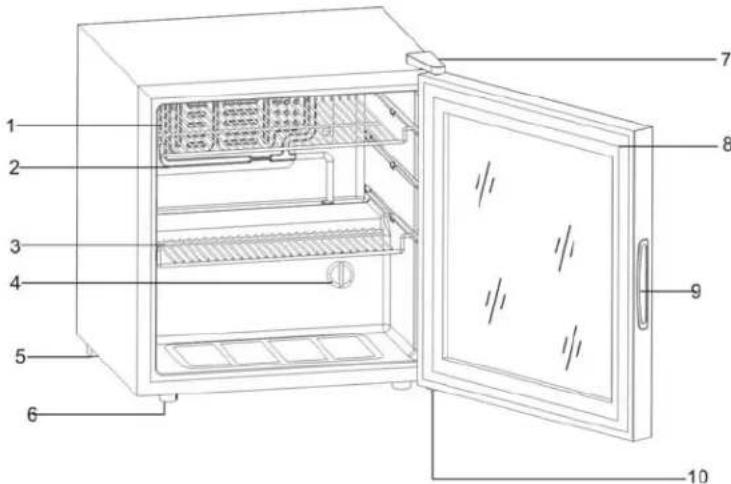

PARTS & FEATURES

1	Evaporator	6	Legs
2	Big Wire Shelf 1pc 7		Upper Door Hinge w/Cover
3	Small Wire Shelf 1pc 8		Door Gasket
4	Thermostat 9		Door Handle
5	Bottom Plate 10		Bottom Hinge

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

Read all instructions before using the refrigerator.DANGER or WARNING: Risk of child entrapment.Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous. . . even if they will “just sit in the garage a few days.”Before you throw away your old refrigerator: Take off the doors. Leave the shelves in place so that children may not easily climb inside.Never allow children to operate, play with, or crawl inside the refrigerator.Never clean refrigerator parts with flammable fluids. The fumes can create a fire hazard or explosion.Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other refrigerator. The fumes can create a fire hazard or explosion.-Save these instructions-

Free Standing Units

To ensure not only the efficient operation of your unit but also your safety. When installing your unit follow the steps as shown below:

• Place your unit on a flat level surface that is strong enough to support the unit once it is fully loaded.
• Your unit is equipped with adjustable height leveling legs to accommodate any minimal changes in the level of the surface on which it is installed.

Countertop / Table Top Units

• When installing units that can be placed on countertops, keep the following in mind:
  • Surface (countertop) is flat, level, and strong enough to support the unit once it is fully loaded.
• Surface is wide enough to accommodate the unit without any overhang.
• Surface is deep enough to accommodate the unit when the door is opened to 90^

INSTALLATION INSTRUCTIONS

Before Using Your Unit

• Remove the exterior and interior packing.
• Check to be sure you have all of the following parts:

• 2 Shelves

• 1 Instruction Manual

• Before connecting the unit to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.

Installing Your Unit

• This appliance is designed to be free standing only, and should not be recessed or built-in.
- Place your unit on a floor that is strong enough to support the unit when it is fully loaded. To level your unit, adjust the leveling legs at the bottom of the unit.
- Allow 5 inches of space between the back and sides of the unit, which allows the proper air circulation to cool the compressor and condenser.
- Locate the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.
- Avoid locating the unit in moist areas.
- Plug the unit into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Avanti Products service center.
- After plugging the appliance into a wall outlet, allow the unit to cool down for 2-3 hours before placing food in the refrigerator compartment.

Electrical Connection

Warning

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Avanti Products service center.

This unit should be properly grounded for your safety. The power cord of this unit is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.

Do not under any circumstances cut or remove the third ground prong from the power cord supplied. For personal safety, this appliance must be properly grounded.

This unit requires a standard 115/120 Volt AC \~/60Hz electrical outlet with three-prong ground. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

The cord should be secured behind the unit and not left exposed or dangling to prevent accidental injury.

The unit should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never unplug the unit by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the unit, be careful not to damage the power cord.

Extension Cord

Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an extension cord with this unit. However, if you must use an extension cord it is absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 300 volts and at least 10 amperes.

Reversing the Door Swing of Your Appliance

This appliance has the capability of the door opening from either the left or right side. The unit is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, please call customer service for reversal instructions.

OPERATING YOUR UNIT

Setting the Temperature Control

• Your unit has only one control for regulating the temperature in the compartment. The temperature control is located at the lower right hand side of the compartment.
• The first time you turn the unit on, set the temperature control to "HI".
• The range of the temperature control is from position "OFF" to "HI". After 24 to 48 hours, adjust the temperature control to the setting that best suites your needs. The setting of "MID" should be appropriate for home or office use.
• To turn the appliance off, turn the temperature control to "OFF".

NOTE:

• Turning the temperature control to "OFF" position stops the cooling cycle but does not shut off the power to the unit.
• If the unit is unplugged, has lost power, or is turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the unit will not start.

CARE AND MAINTENANCE

Cleaning your unit

• Turn the temperature control to "OFF", unplug the unit, and remove the beverages, shelf, and tray.
• Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
• Wash the shelf and tray with a mild detergent solution.
• The outside of the unit should be cleaned with mild detergent and warm water.
• Wring excess water out of the sponge or cloth before cleaning the area of the controls, or any electrical parts.
• Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.

CAUTION:

Failure to unplug the unit could result in electrical shock or personal injury.

Power Failure

Most power failures are corrected within a few hours and should not affect the temperature of your unit if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your beverages.

Vacation Time

- Short vacations: Leave the unit operating during vacations of less than three weeks.

- Long vacations: If the appliance will not be used for several months, remove all beverages and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary.

Moving Your Unit

• Remove all of the beverages.
• Securely tape down all loose items inside your unit.
• Turn the leveling legs up to the base to avoid damage.
• Tape the door shut.
• Be sure the unit stays secure in the upright position during transportation. Also protect the outside of unit with a blanket, or similar item.

Energy Saving Tips

• The unit should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the unit. Overloading the unit forces the compressor to run longer.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the unit. This cuts down on frost build-up inside the unit.
• Unit storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the unit less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

PROBLEMS WITH YOUR REFRIGERATOR?

You can solve many common unit problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE
Unit does not operate.	Not plugged in.The circuit breaker tripped or a blown fuse.The unit temperature control is set at “OFF” position.
Turns on and off frequently.	The room temperature is hotter than normal.A large amount of food has been added to the unit.The door is opened too often.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.The unit does not have the correct clearances.
Vibrations.	Check to assure that the unit is level.
The unit seems to make too much noise.	The rattling noise may come from the flow of the refrigerant, which is normal.As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your unit.Contraction and expansion of the inside walls may cause popping and crackling noises.The unit is not level.
The door will not close properly.	The unit is not level.The door was reversed and not properly installed.The gasket is dirty or bent.The shelves, bins, or baskets are out of position.

CAUSE

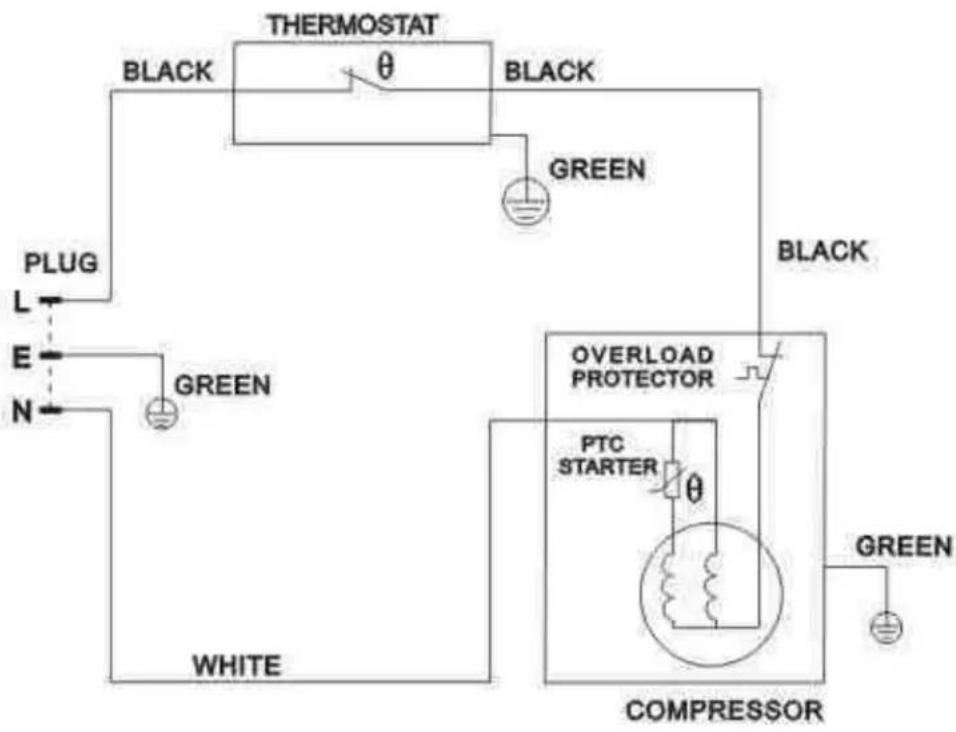

SERVICE FOR YOUR REFRIGERATOR

We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti refrigerators. With the purchase of your Avanti unit, you can be confident that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you. Just call us toll-free.

AVANTI PRODUCTS CUSTOMER SERVICES

Product Information800-323-5029	Whatever your questions are about our products, help is available.
Part Orders800-220-5570	You may order parts and accessories that will be delivered directly to your home, by personal check, money order, Master Card, or Visa.
In-Home Repair Service800-220-5570	An Avanti Products authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your refrigerator inside and out.

WIRING DIAGRAM

YOUR AVANTI PRODUCTSWARRANTY	Staple your sales receipt here. Proof of original purchase date is needed to obtain service under warranty.
WHAT IS COVERED - LIMITED ONE-YEAR WARRANTYAvanti Products warrants that the product is free from defects in materials and/or workmanship for a period of twelve (12) months from the date of purchase by the original owner. The foregoing timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended for any reason whatsoever unless described in detail in the warranty document. For one year from the date of purchase by the original owner, Avanti products will, at its option, repair or replace any part of the product which proves to be defective in material or workmanship under normal use. Avanti Products will provide you with a reasonably similar product that is either new or factory refurbished. During this period Avanti Products will provide all parts and labor necessary to correct such defects free of charge, so long as the product has been installed and operated in accordance with the written instructions in this manual. In rental or commercial use, the warranty period is 90 days. All Avanti appliances of 3.5 cubic feet capacity or less must be brought/sent to the appliance service center for repair.
LIMITED SECOND THROUGH FIFTH YEAR WARRANTYFor the second through the fifth year from the date of original purchase, Avanti Products will provide a replacement compressor free of charge due to a failure. You are responsible for the service labor and freight charges. In rental or commercial use, the limited compressor warranty is one year and nine months. Costs involved to move the product to the service center and back to the user's home, as maybe required, are the user's responsibility.
WARRANTY EXCLUSIONS / WHAT IS NOT COVERED:The warranty coverage described herein excludes all defects or damage that are not the direct fault of Avanti Products, including without limitation, one or more of the following:
A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations.Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God.
Content losses of food or other content due to spoilage.Incidental or consequential damagesParts and labor costs for the following will not be considered as warranty:Evaporator doors, door springs, and/or frames.Inner door panels, door shelves, door rails, and/or door supports.Chest freezer lid liners.Vegetable crispers.Light bulbs and/or plastic housing.Plastic cabinet liners.Punctured evaporator that voids the warranty on the complete sealed system.	Shipping and handling costs associated with the replacement of the unit.Repairs performed by unauthorized servicers.Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or any other acts of God.Failure of the product if it is used for other than it intended purpose.The warranty does not apply outside the Continental USA.Surcharges including but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas.
In no event shall Avanti Products have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures and/or objects around the product. Also excluded from this warranty are scratches, nicks, minor dents, and other cosmetic damages on external surfaces and exposed parts; Products on which the serial numbers have been altered, defaced or removed; service visits for customer education, or visits where there is nothing wrong with the product; correction of installation problems (you are solely responsible for any structure and setting for the product, including all electrical, plumbing and/or other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors, shelving etc., as well as the resetting of breakers or fuses.
OUT OF WARRANTY PRODUCTAvanti Products is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, pro-rates, or product replacement, once this warranty has expired.WARRANTY - REPRICERATION - COMPRESSOR

Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following address within 100 days from the date of purchase and receive these important benefits:

Avanti Products, A Division of The Mackle Co., Inc.

P.O.Box 520604 – Miami, Florida 33152

Protect your product:

We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft.

➢ Promote better products:

We value your input. Your responses will help us develop products designed to best meet your future needs.

-(detach here)

Avanti Registration Card

Name Model # Serial #

Address Date Purchased Store / Dealer Name

City State Zip E-mail Address

Area Code Phone Number Occupation

Did You Purchase An Additional Warranty As your Primary Residence, Do You:

□ Extended □ Own □ Rent□ None

Reason for Choosing This Avanti Product: Please indicate the most important factors That influenced your decision to purchase this product:

□ Price □ Product Features □ Avanti Reputation □ Product Quality □ Salesperson Recommendation □ Other: □ Friend / Relative Recommendation □ Warranty □ Other:

Is This Product Used In The: □ Home □ Business

How Did You Learn About This Product: □ Advertising □ In-Store Demo □ Personal Demo

Comments:

Age:

BCA184BG-VER1.0-08082011 PRINTED IN CHINA
