Product Type	Digital Decoder (HD)
Brand	TELE System
Model	TS6010HD Stealth
Dimensions (W x H x D)	280 x 45 x 180 mm
Weight	1.2 kg
Power Supply	12V DC, 1A external adapter
Input Voltage	100-240V AC, 50/60Hz
Power Consumption	<15W
Tuner Type	DVB-S2 (satellite)
Video Output	HDMI, SCART (optional)
Audio Output	Digital optical, RCA stereo
Supported Resolutions	1080p, 1080i, 720p, 576p
Decoding	MPEG-2, MPEG-4 (H.264)
Connectivity	Ethernet, USB 2.0, DiSEqC 1.0/1.2
Recording	Via USB (PVR ready)
Channel Memory	5000+ channels
Features	EPG, Teletext, Subtitle support, Parental lock
Maintenance	Clean with soft dry cloth; avoid liquids
Safety	Use original power adapter, keep ventilation clear
Spare Parts	Remote control, power supply available
Repair	Authorized service center only

Frequently Asked Questions - TS6010HD Stealth TELE System

How do I set up the TELE System TS6010HD Stealth for the first time?

Connect the decoder to your satellite dish via the LNB input, then connect to your TV using HDMI or SCART. Plug in the power adapter and turn on. The first-time installation wizard will guide you through language, country, and channel scanning.

Why is my TS6010HD not finding any channels?

Ensure your satellite dish is correctly aligned and the LNB is connected. Check that you have selected the correct satellite (e.g., Astra 19.2°E) in the installation menu. Also verify DiSEqC settings if using a multi-satellite setup.

How can I record a program on this decoder?

Insert a USB flash drive or external hard drive formatted as FAT32 or NTFS into the USB port. Press the Record button on the remote or use the EPG to schedule recordings. The decoder supports timeshift and manual recording.

My remote control stopped working. What should I do?

First, check the batteries and replace if necessary. Ensure there are no obstacles between the remote and the decoder. Try resetting the remote by removing batteries and pressing any button for 10 seconds. If still not working, consider replacing the remote.

How do I connect the decoder to the internet?

Use an Ethernet cable to connect the decoder's LAN port to your router. The network settings can be configured in the menu under Network Setup. Internet connection is required for IPTV services and software updates.

How to update the firmware on the TS6010HD?

Download the latest firmware from the TELE System website to a USB stick. Insert the USB into the decoder, go to Menu > Settings > Software Update, and select the USB source. Follow on-screen instructions to complete the update. Do not power off during update.

What should I do if the decoder gets too hot?

Ensure the decoder is placed in a well-ventilated area with at least 10 cm clearance around it. Do not stack other devices on top. If overheating persists, check that the internal fan is working. Contact support if the issue continues.

Can I use the decoder with a non-HD TV?

Yes, you can use the SCART output (if available) for older TVs. The decoder will output standard definition (576i) through SCART. Adjust the video output resolution in the settings to match your TV's capabilities.

How do I reset the decoder to factory settings?

Go to Menu > Settings > System Reset. Enter the default password (usually 0000 or 1234) and confirm. The decoder will reboot and restore factory defaults, erasing all saved channels and settings.

What does the 'Stealth' model mean?

The 'Stealth' design typically refers to a compact, black casing with a minimalist look. The TS6010HD Stealth offers the same features as the standard TS6010HD but with a sleeker, darker appearance.

USER MANUAL TS6010HD Stealth TELE System

Black TELESystem device with ventilation grille and ports, no visible text or symbols on body

Index

1 Safety regulations....2
2 Product description and connections....3

2.1 Remote control unit....4

2.1.1 Batteries 4
2.1.2 Programming of remote control unit 4
2.1.3 Remote control unit functions during receiver mode 5

2.2 TV programming mode 7

2.2.1 To enter into TV programming mode....7
2.2.2 To program the TV code when it is known on TV brand basis....7
2.2.3 TV code manual search 7
2.2.4 Code identification of the TV code programmed....8
2.2.5 Clearing the current TV code and learned keys....8

2.3 TV learning mode 9

3 First time installation....10
4 Channel Search....10

4.1 Manual and automatic channel searches.... 10
4.2 Antenna power.... 11

5 Channel management 11

5.1 Move function 11
5.2 Cancel function.... 11
5.3 Skip function.... 11
5.4 Block function 11
5.5 Rename function.... 11
5.6 Favourite function....11

6 Receiver settings.... 12

6.1 Factory Reset 12
6.2 Energy saving (Auto power down) 12
6.3 Password....12
6.4 Parental control.... 12
6.5 Advanced menu protection (Hotel function).... 12
6.6 Time options....12
6.7 Sleep timer 12
6.8 Picture setting....12
6.9 Automatic Format Descriptor AFD (optional) 13

7 Software update 13

7.1 Update of receiver by USB 13

8 USB....13

8.1 Reading 13
8.2 Recording 14
8.3 Timeshift....14

9 The Menus 15

10 Problem solver.... 16
11 Technical specifications.... 17

1 Safety regulations

We advise you to read the following advice concerning the safety regulations carefully in order to ensure safe use of the appliance.

ELECTRICAL SUPPLY

• The appliance should only be supplied exclusively to an external power socket by its AC/DC adapter.
- Do not remove the cover of receiver and AC/DC adapter. The inside of the appliance could contain higher voltages than that of the supply voltage which could endanger the user. High voltage is also present when the appliance is on standby. The AC/DC adapter should be disconnected from the electrical supply before performing any intervention. Non-authorised removal will mean that the warranty is no longer valid!

POWER CABLE

• Before installing the appliance make sure that the cable of AC/DC adapter is intact, paying particular attention where the AC/DC adapter is connected to the power socket and the point where it exits from receiver. If the cable is damaged do not attempt to connect the AC/DC adapter and refer the problem to an authorised center for assistance.
• When installing the cable make sure that it can not be flattened in any way by items placed above or next to the appliance. Avoid placing the cable in an area where it could accidentally be stepped on, removed from the wall or damaged in any way.
• If the cable is damaged in any way carefully disconnect switching off the main power network in advance and refer to specialised technicians or the center for assistance to get a replacement.

LIQUIDS

• Keep the receiver and AC/DC adapter far from any liquids. Do not place any objects containing liquids near the appliance, such as vases, humidifiers etc. The appliance must not be installed in areas where it could come into contact with sprays or drops of water or in an environment with a high level of humidity where condensation could occur.
• If the receiver and AC/DC adapter should accidentally come into contact with liquids, disconnect immediately from the wall only after having switched off the main power network. DO NOT TOUCH the device until it has been disconnected.

SMALL OBJECTS

• Keep the receiver away from coins or other small objects.
• Objects which fall into the appliance via the ventilation gaps could cause serious damage.

CLEANING

• Before cleaning, disconnect the AC/DC adapter from the power supply.
• To clean the outside of the receiver use a soft and dry or slightly damp cloth. Avoid using products which contain chemicals or solvents. Take care liquids do not enter inside the aerial slot on top side.

VENTILATION

• Make sure that the area where the appliance is to be installed has good air circulation so that the heat can be dissipate well in order to avoid overheating. In order to allow enough ventilation it is necessary to have a distance of at least 10 cm on either side of the appliance and 15cm above the appliance.
• The vents must be kept clear from any obstructions such as newspapers, table cloths, furniture material, curtains, carpets etc.
• Avoid installing the receiver close to any heat sources (i.e. radiators, stoves etc) or near any other appliances which generate heat (video players, DVD etc).

WARNING!!!

• Keep the appliance out of reach of children.
  • The plastic bags used for packaging can be dangerous. To avoid suffocating keep the bags out of reach of children.
• Do not expose the receiver, remote control and AC/DC adapter to direct sunlight.
• Connect the device by AC/DC adapter only after installation is complete.
• Remove the batteries from the remote control if they will not be used for a long period of time. The remote control could be damaged by any eventual battery leakages.
• Dispose of the product correctly so as to avoid damage to the environment and human health as well as to facilitate recycling of the components/materials used in the appliance. If the product is not disposed of properly this could be punishable according to the involved law.

• The manufacturers recommend that the parts are recycled separately and are taken to sites which conform to current regulations.
• Take the product when no longer usable to a collection point which is authorised to handle waste from electrical or electronic appliances that should be kept separate from regular household waste.

2 Product description and connections

The connections of the receiver are described here.

CAUTION

• It is good practice to connect the receiver with other appliances (e.g. TV, HI-FI, etc.) and the antenna before plugging in the mains lead of television and receiver.
• Please consult carefully the assembly instruction included into the giftbox to guarantee the corrected connection of cables to the decoder and its integrity.

• When the receiver is powered electrical voltage differences may be created when plugging in the connectors, which may generate currents that could damage the appliances.

• DC IN 5V-1.5A To connect the power supply of the receiver.

• IR To connect the extensible IR sensor cable for remote unit. The LED into the sensor unit signals that the receiver is into operative (green led) or stand by status (red led).
• ANT OUT Antenna loop through to connect the receiver to the TV equipment.
• ANT IN Input antenna to be connected to the terrestrial antenna system.
• HDMI Input for HDMI cable to be connected to one of the HDMI inputs of TV equipment.
• S/PDIF IN Input for coaxial SPDIF extension cable to be connected to the external Hi-fi home theatre.
• USB Input for USB mass storage external.

CAUTION

• The only admitted USB mass storage file system is FAT32.
• It is not guarantee the compatibility with all USB mass storage devices of the market because the large numbers of vendors and devices on the market.
• We suggest to use USB hard disk drives with own external power supply, the current output from USB is limite

CAUTION

The maximum angle of reception for the remote unit is 60^ till the maximum distance of 5 meters.

The solar light decreases the remote unit sensitivity.

2.1 Remote control unit

Get well acquainted with your remote control and you will find it much easier to navigate through the various menu options.

2.1.1 Batteries

Informations and warnings

Battery type: 2 x AAA, 1.5V. Insert/replace the batteries at the first installation or when the remote control doesn't work well. It's recommended to remove batteries from the remote control if it is not used for long time, in order to avoid any possible damage. Do not use different types of battery or flat and new batteries at the same time.

Insertion and removing

Open the battery cover on the bottom of remote control and insert the two batteries (AAA format) respecting the right polarity direction as indicated on their place. Then, close the cover.

Remove the flat batteries, that must be disposed separately from common garbage and they must be taken to the shop or waste collection point, repeating similar operations done during the insertion.

2.1.2 Programming of remote control unit

The receiver remote unit can be programmed to control also your TV equipment. This procedure is called TV programming mode and it is described into following paragraphs.

There are four different modes:

Receiver mode

A brief pression less than three seconds on STB key activates this mode.

It is the most common usage of remote control unit. In this mode the remote control unit is controlling the receiver.

TV mode

When you press less than three seconds the TV key you activate the TV mode.

The remote control unit is controlling your TV equipment. To work properly the remote control needs to be programmed for TV equipment as described into next paragraphs.

CAUTION

If the receiver is not answering to the commands of remote unit it could be into TV mode. Try to press STB to activate the receiver mode.

TV Programming mode

When you press for more than three seconds the TV key you enter inside TV programming mode.

The list of preloaded TV equipment codes is into appendix of this user manual. Try to look for your TV code.

It is possible to make a direct numeric selection of TV code, a manual TV code search.

After having programmed correctly your remote control for your TV equipment your remote control will, in respect of the most common main functions, work like your original TV remote control.

TV autolearning mode

If the code of your TV equipment is not available it is possible to try with an auto learning procedure.

LED key instead is an useful indicator.

It will flash every key pression to signal IR activity during TV mode and Receiver mode.

During TV programming mode or TV auto learning mode it is used to control status of programming.

Please refer to the following paragraphs for a complete description of different programming modes.

CAUTION

- TV, LED, STB, SOURCE keys are no programmable during TV autolearning mode.

- Because the large number of TV equipments into market it is not possible to guarantee the compatibility with all devices.

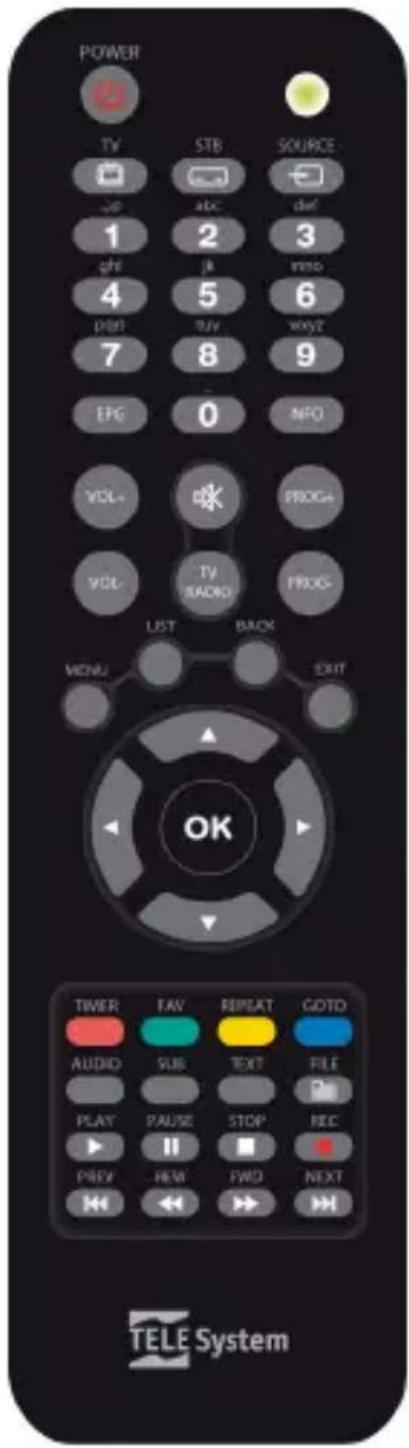

2.1.3 Remote control unit functions during receiver mode

1. POWER - It switches from stand-by to operative mode the receiver.

2. LED

3. During TV mode or Receiver mode it blinks to signal IR activity.

4. During TV programming mode and TV learning mode it indicates the status of programming.

5. TV

6. A brief pression less than three seconds activates the TV mode allowing to control the functionalities of TV equipment.

7. A pression more than three seconds allows to enter into TV programming mode.

8. STB

9. A pression activates the Receiver mode allowing the control of receiver equipment.

10. It allows to identify a programmed TV code into TV programming mode by three seconds pression.

11. SOURCE - Into TV programming mode the pression more than three seconds allows to enter into TV learning mode.

12. Alphanumeric Keys 0-9

13. During the vision of terrestrial channels to select directly the desired TV/Radio channel.

14. During menu navigation it allows to input alphanumeric characters.

15. TV/RADIO - it swaps between TV and Radio channel lists.

16. ☒ - Mute function. It disables the audio output into receiver.
17. VOL+ and VOL- It allows to control the volume of receiver.
18. PROG+ and PROG-

- During the vision of terrestrial channels it allows to change channels.

- During TV programming mode it is used for TV code search.

1. EPG - It displays the electronic guide of programs.
2. MENU - To access to the system configuration menu.
3. INFO - It displays the channel information about current TV/Radio channels.
4. LIST - Quick access to the All TV channel list and Radio channel lists, and the Discarded TV/Radio lists.
5. BACK - During the vision of terrestrial channels it allows to go to the previous selected channel. During the menu navigation it allows to go back to the previous item into menu.
6. EXIT During the vision of terrestrial channels it allows to go out the displayed menu. During menu navigation it allows to exit from main menu saving changes.
7. OK - To confirm option/changes into menu navigation mode, to save changes into TV auto learning mode and TV programming mode.
8. ARROW ▲ / ▼ / ◀ / ▶ - To navigate and modify menu values.
9. AUDIO - It allows to choose the preferred audio languages if transmitted.
10. SUB - It allows to select the language of subtitles if transmitted.
11. TEXT - It displays the teletext function if transmitted.
12. PLAY

TELE System

• During the vision of terrestrial channels to start the playing of timeshift mode.
• During PVR mode to restart the playing of a file stopped temporarily.

23. PAUSE

• During the vision of terrestrial channels it starts the timeshift mode beginning the recording into USB memory support.
• During PVR mode pauses the current audio or video content currently played.

24. STOP

• During timeshift mode it stops the playing and come back to the DVB-T vision.

• During PVR mode to stop the playing.

• REW - Fast backward function during timeshift mode or PVR mode.

• FWD - Fast forward function during timeshift mode or PVR mode.
• PREV – During PVR mode to select previous file, chapter, title (video) track(music) image.
• NEXT - During PVR mode to select next file, chapter, title (video) track(music) image.
• REC – During the vision of terrestrial channels starts the instantaneous recording of current tuned channel into USB memory support.
• FILE – It allows to access to the USB support memory to play or edit any recorded PVR files.

31. RED / TIMER

• During the menu navigation it is used for menu selection.
• During teletext mode it is used for special functions.
  • During the vision of terrestrial channels it display the event timer.

32. GREEN / FAV

• During the menu navigation it is used for menu selection.
• During teletext mode it is used for special functions.
  • During the vision of terrestrial channels it display the favourite lists.

33. YELLOW / REPEAT

• During the menu navigation it is used for menu selection.
• During teletext mode it is used for special functions.
  • During the vision of terrestrial channels it changes the resolution.
• During the PVR mode it allows to repeat a track (music), file, chapter (video).

34. BLUE / GOTO

• During the menu navigation it is used for menu selection.
• During teletext mode it is used for special functions.
• During the vision of terrestrial channels it allow the hotel protection activation.
• During the PVR mode it allows to go to a specific point into current selected track (music), file, chapter (video).

2.2 TV programming mode

2.2.1 To enter into TV programming mode

To program the TV code is very simple. To enter inside TV programming mode.

1. Keep the TV key on remote control unit pressed for approximately three seconds until the LED key blinks and remains on continuously.
2. Release the TV key only after LED is on continuously. You are inside TV programming mode.

CAUTION

• During TV programming mode all keys functions will be deactivated except STB, SOURCE, PROG+, PROG-, POWER, numeric key 0-9, LED that are available to program the TV code.
• Because the large number of TV equipments into market it is not possible to guarantee the compatibility with all devices.

See next paragraphs for different programming description.

2.2.2 To program the TV code when it is known on TV brand basis

The list of TV codes can be found into appendix of these operating instructions.

First find the brand of the TV you wish to control. For example, if you have a Philips TV look for Philips in the code list.

1. Switch on manually the TV equipment you wish to control.
2. Enter into TV programming mode. The LED is on continuously.
3. Enter the four numeric code corresponding to the brand of your TV by pressing the 0-9 keys;
4. Every time you press a key the LED key blinks from off to on once.
5. If you entered the code correctly, the LED key turns off after the last digit has been entered.
6. If an invalid code is entered, the LED key will flash for three seconds before going out from TV programming mode.
7. The code entry is finished. You exit from TV programming mode going to TV mode with the code selected.

Should the TV not respond as you expect it to do, you can try to repeat the programming using another code. Please try all the codes indicated for your brand.

Select the code that makes your TV responds correctly to any command available on your remote control. If you failed this way, then try with the search methods described below.

2.2.3 TV code manual search

1. Switch on manually the equipment you wish to control.
2. Enter into TV programming mode. The LED is on continuously.
3. Press POWER or PROG+ key briefly less than three seconds to start the TV code manual search.
4. After you can press the POWER or PROG+ key until the TV to be controlled has been switched off or change channel.
5. Each time you press POWER or PROG+ a code is sent and the LED key will blink off to on once to signal the code is sent.
6. As soon as the device does respond to the remote control, press the OK key. The LED key turns off continuously.
7. Should you fail to press the OK key in time, you can step by step return to the code to which the TV has responded using the PROG–key.
8. The code entry is finished. You exit from programming TV mode going to TV mode selected.

2.2.4 Code identification of the TV code programmed

The code identification allows you to identify the code that you have already entered and that is stored inside the remote control if any.

1. Enter into TV programming mode. The LED is on continuously.
2. Press the STB key for approximately three seconds and release it.
3. To find the first digit, press each number key from 0 to 9 until the selected LED key will flash once. The number you pressed is the first digit of the code.
4. To determine the second, the third and the fourth number, repeat the procedure.
5. The selected LED key will turn off continuously as soon as the key for the fourth number has been pressed exiting from TV programming mode.
6. The code identification has now been completed.
   The code 0000 identify that there is not a programmed TV code into remote unit.

2.2.5 Clearing the current TV code and learned keys

Clearing learned codes returns all keys under TV programming mode selection to their original commands.

1. Enter into TV programming mode. The LED is on continuously.
2. Press the SOURCE key for approximately three seconds.
3. The LED key will flash continuously.
4. Release the SOURCE key only after the LED is flashing.
5. Press the SOURCE key again once.
6. The clearing of current code is now complete and you exit automatically from TV programming mode going to STB mode.

When the code is cancelled it is reset to 0000.

The cancellation of code cancels also all learned keys of TV auto learning procedure.

CAUTION

• After the cancellation of code the TV key is activated only for a pression more than three seconds to allow a new programming of TV codes.
• After cancellation of code all learned keys are not available.
• The cancellation of a code has no effect on preloaded list of TV codes that are always available for a new selection.

2.3 TV learning mode

The TV auto learning mode allows you to learn and store the commands from your original remote unit.

CAUTION

• Use only fresh batteries for both remote units.
• Place the remote controls with the infrared diodes on a table so that they point each other at a distance between 15 and 35 mm.
• Each programming of a key can take approximately from 2 to 3 seconds.
• Do not use the auto learning function near interfering sources, as beneath an energy saving lamp.
• Always check that the key you wish to teach a code is free or does not correspond to an important function.
• The LED, TV, STB, SOURCE are not programmable into TV auto learning mode.
• Because the large number of TV equipments into market it is not possible to guarantee the compatibility with all devices.

Before to make the TV auto learning procedure is advisable to make a TV programming cancellation procedure.

1. Position your original remote unit pointing towards the IR LED of the receiver remote control at a distance apart of about 25mm. Check the IR transmitters/sensors are correctly aligned between the two remotes (vertically and horizontally).
2. Enter into TV programming mode. The LED is on continuously.
3. To enter into TV auto learning mode press the SOURCE key more than three seconds approximately. The LED key will flash quickly.
4. Release the SOURCE key only when the LED is flashing. You are into TV auto learning mode.
5. Press and release the receiver remote unit key to be taught with original remote code once, till the LED become on stable.
   6 Press and hold original remote key until LED key will flash again to confirm, then release the key (this process can take up to 2 or 3 seconds to complete).
   The learned key is saved.
6. If there was a problem with learning for the key selected the LED key will flash from on to off for three seconds quickly but still remain in the TV auto learning mode.
7. Repeat steps 6 and 7 for other keys to be stored.
8. To exit from TV auto learning mode press the TV key to go the TV mode or press the STB key to go to the STB mode. If you press SOURCE you reset the code to 0000 and cancel the learned keys.
9. LED key will go off definitively to confirm the procedure is ok.
10. Code learning is now complete.

If the procedure fail try learning the original remote keys again from beginning.

If the procedure failed again cancel previous TV code programmed (see procedure into previous paragraphs) and try again the TV auto learning mode.

If problems reoccur check the original remote key being learned – does it transmit? Does it operate the target device?

CAUTION

• After you have make an auto learning procedure the keys learned will be saved can be recalled into TV mode.
• If you change in a future TV programming of code the current TV code the learned keys will not be overwritten and the TV code will be applied only to the not learned keys.
• To cancel all previous learned keys you need to cancel them by performing before a TV programming cancellation procedure. In this case you come back to the factory default status with code 0000 and you have to repeat all programming of TV code from beginning.

3 First time installation

When all the connections of the receiver are ready, the AC/DC adapter is plugged in the receiver should start up automatically. If this does not happen, press STB and the POWER button on the remote control.

A two steps welcome menu will be displayed where you can set the preferred settings of receiver.

Language

Use the arrows keys ◀/▶ to select the preferred language. The menu and audio language will be chosen. Press the arrows key ▼/▲ to go to the next item.

Country

Use the arrows keys ◀/▶ to select the country region. This choice set also the time setting, the corrected frequencies and some parameters to solve LCN conflicts. Press the arrows key ▼/▲ to go to the next item.

CAUTION

A wronged country setting involves that during automatic channel scan may not be detected all the channels availables.

Resolution

Use the arrows keys ◀/▶ to set the video resolution. Press the arrows key ▼/▲ to go to the next item.

Aspect ratio

It sets the video aspect ratio between 4:3 Full Screen, 4:3 Letterbox, 16:9 Fullscreen, 16:9 Pillarbox. Press the arrows key ▼/▲ to go to the next item.

LCN

When the logical numbering channel (LCN) is activated, after the automatic channel search the channels will be stored into All TV/Radio Channel List following the order requested by broadcaster. When LCN is deactivated the order will be by frequency order. Press the arrows key ▼/▲ to go to the next item.

CAUTION

When you use the logical channel numbering (LCN) the channels will be positioned in the list with broadcaster order. If the user wants to deactivate LCN please enter the system configuration menu and change the LCN item to Off. After LCN deactivation will be necessary to memorize again the channels.

Press OK to go to the following menu.

Password

It allows to enter the system receiver password that can be changed into receiver menu later. After have entered the password select OK to start the automatic search, RED to save without search, BACK to come back last, EXIT to edit again the password.

LCN Conflict Resolution

If you selected the logical channel numbering option at first step it is likely you will get the request to assign the TV/Radio positions to the channels that are asking for the same position.

Choose the preferred TV/Radio service by moving the arrows key ▼/▲.

Press the OK button to pass to the next conflict or to end the process for last conflict. Press BACK to go back to the previous LCN conflict. Select MENU if you want to confirm the automatic receiver choices.

If the user does not confirm anything into two minutes the receiver saves the automatic receiver choices.

4 Channel Search

4.1 Manual and automatic channel searches

The first time installation procedure performs an automatic channels search and save any channels available at that moment. However further channel searches may become necessary if, for instance, a new channel becomes available or when an existing channel changes frequency.

To access these functions press MENU on the remote control and select the Channel Search submenu.

The following options change the initial setting of searches : Channel Search – Country selects the country,

Program – LCN selects if LCN is active or not.

CAUTION

- The reception and the vision of the digital terrestrial TV/Radio services depends on the level and the quality of antenna signal available. The signal changes by geographical area, the corrected pointing of antenna system and the quality of transmitted signal by terrestrial signal repeaters.

- An uncorrected setting into Channel Search - Country or Program – LCN parameters could cause not detection of some frequencies or an undesired order of channels into Channel TV/Radio List.

There are three kind of searches available:

The Manual full search performs a search into every frequency available into area.

There are two submenus:

- Reinstall – it reset the lists of TV/Radio services and the channel edit property reinstalling every channel as the first installation works.

CAUTION

The manual full search reads the Channel-Country and Program-LCN menu to perform channels reinstallation. An uncorrected setting of these two items can cause undesired TV/Radio channel lists.

- Update – it keeps the current lists of TV/Radio channels existing and the channel edit property set by user removing the old channels and installing only the new channels.

Manual Single Search (only for expert users)

The manual single search performs the same operations of Manual Full Search Update for a single frequency that the user can select into menu.

Automatic full search stand-by mode

The automatic full search performs a full update of existing TV/Radio lists keeping all edit properties set by the user. This automatic channel update is performed during the stand-by mode at the time programmed.

4.2 Antenna power

The antenna power option can be used for a terrestrial antenna that need 5V voltage. This option can be set by Channel Search – Antenna power menu.

CAUTION

The antenna power option must be activated only if requested. The presence of 5V voltage at RF antenna input can cause an electrical overhead that could damage the antenna system and the receiver.

5 Channel management

The channel management properties are accessible from menu Program – Program Edit.

5.1 Move function

The user can change the position into channel TV/Radio lists by pressing the RED button and the number desired by numeric keys.

CAUTION

If LCN is deactivated it is only possible to exchange two TV/Radio services.

5.2 Cancel function

The user can delete TV/Radio lists by pressing the BLUE button.

5.3 Skip function

The user can set the skip property for a single channel by pressing the MENU key. During vision of terrestrial TV/Radio channels the selected channel will be skipped from PROG+ and PROG- buttons on remote unit.

5.4 Block function

The user can block a TV/Radio channel by pressing the YELLOW key. When you select from the lists of TV/Radio channel the selected channel will be blocked by a password request to the user.

5.5 Rename function

By LIST key it is possible to display the rename window. The selection of alphanumeric key and the arrows keys allow to change the name to the TV/Radio channel.

5.6 Favourite function

By GREEN key selection the TV/Radio channel will be displayed into Favourite TV/Radio list for type.

6 Receiver settings

After the first time installation procedure will allow the receiver to be used with its basic functions.

However the receiver offers many more advanced features and options that are illustrated in the following sections.

6.1 Factory Reset

The default settings of the receiver can be restored by a general reset. To do so into menu select System - Factory Default. This option requires the password code.

CAUTION

A reset will lose all personal options and features settings saved in the receiver.

6.2 Energy saving (Auto power down)

The receiver is implemented with an energy saving function: after three hours in active mode without any action of the user, it will be switched automatically into stand-by mode. Also, a few minutes before the switching, a notification message will appear on screen. The automatic power down function is set to On (active) by default, but the user may disable it from the Program – Auto switch off menu.

6.3 Password

To access to channel blocked by parental control function or by block edit property a password code must be entered. The password is chosen during first installation but it could be changed by pressing MENU and selecting the submenu System - Set password.

CAUTION

Take note and keep the new password in a safe place. If you forget your personal password use the universal code "6502" to access to the menu Set password and set a new password.

6.4 Parental control

The parental control protects children by the viewing of sensitive contents. When an event is broadcasted with a parental rating equal or higher than parental lock level defined on receiver menu, a system message will notify that the channel is locked. To see that channel, you have to enter the password.

The factory set level is Age=18 and it can be changed by the user on System - Parental Control.

6.5 Advanced menu protection (Hotel function)

The hotel function is an hidden utility which consists in an advanced protection of the receiver. It allows to enter the main menu only after typing the password.

In order to enable/disable that function, on viewing mode press BLUE button and input the system password by using the alphanumeric buttons of the remote control unit.

6.6 Time options

To access this function into viewing mode press the MENU key on the remote control and open the submenu Time. There are two setting available into submenu:

- Time Offset - Manual: this the manual setting of time by user. To set the Time Offset on manual. After to use Time Zone submenu to set the corrected time deflection from global time reference of Greenwich Mean Time GMT. The deflection of Italy, Rome, for example is +1 during winter time.

- Time Offset - Auto: indicate the Greenwich Mean Time (GMT) time zone. E.g.: Italy has a time zone of +1 hour (GMT+01:00) during the winter time.

CAUTION

Some digital terrestrial services transmit information like EPG and time are strictly linked to the precise time setting of the receiver. If the information is not displayed correctly, the problem is not caused by the receiver.

6.7 Sleep timer

Into menu Time – Sleep the user can set the sleep timer that automatically will switch off the receiver after a preselected period of time set.

6.8 Picture setting

The user into the menu Picture can set different parameters about video.

Resolution - it set the current resolution of video.

TV format – it set the TV set format PAL or NTSC.

Aspect Ratio

The user can selected the corrected aspect ratio of video :

- 4:3 Full Screen – in this mode the 16:9 original broadcasted signal is stretched into a 4:3 TV set to fill in all the screen.

• 4:3 Letter Box - in this mode the 16:9 original broadcasted signal it is displayed into a 4:3 TV set by adding a black row into bottom and top of the video.
• 16:9 Full Screen – in this mode the 4:3 original broadcasted signal is showed into a 16:9 TV set by enlarging the video to all screen.
• 16:9 Pillar Box – in this mode the 4:3 original broadcasted signal is showed into a 16:9 TV set by adding black columns at right and left.

6.9 Automatic Format Descriptor AFD (optional)

The automatic format descriptor describes the portion of coded video frame that it is of interest by allowing an automatic setting of aspect ratio. This option can be activated by menu Picture - AFD.

CAUTION

• The AFD information is sent by different broadcaster.
• This function will work only if the broadcasted signal has AFD information.

7 Software update

Since your receiver is made to last, the time may come when its software needs to be modified or improved by updates. These update will optimise the receiver's functions or correct minor flaws.

The user can read the current software and hardware version of receiver into the menu System - Information.

7.1 Update of receiver by USB

When a software image file is available, upload it on the root directory of an USB pendrive. Connect that one to the USB port of the receiver and launch the upgrading by entering System – Software Update – USB Upgrade, select the software image file, then press OK.

CAUTION

During the upgrade, do not interact with the receiver and never turn off the main leads : risk of permanent damage !!

8 USB

The USB port of the receiver allows the reading of the multimedia files and the recording of free digital terrestrial programs. After the connection of a USB mass storage device, the mounting will be notified displaying on screen a special message. At first installation of the disk, the receiver will automatically create a new folder dedicated to contents recorded by the receiver itself.

CAUTION

• The receiver is compliance with USB mass storage devices with FAT32 File System.
• For a proper working some HDD needs to have an external power supply.
• It is not assured the compatibility with every USB mass storage device on market because the large numbers of vendors.
• If the USB mass storage device was not read by receiver please try to format it by using the function available into menu USB – PVR Configure - Format.
• The USB – PVR Configure – Record Device – Disk shows the current mass storage format.

8.1 Reading

The readable format are : JPG, BMP pictures, MP3 music and MPEG2/MPEG4 video.

To read a video / music / image multimedia file enter inside USB – Multimedia. It is possible to select between Music, Photo, Film, PVR by clicking on related icon.

CAUTION

• During file reading do not disconnect the USB device from receiver front panel, it could be damaged seriously.
• Because the large numbers of audio/video codec available on the market it is not guarantee the compatibility with all files.

Pictures

The slide show mode allows to see step by step the pictures into USB mass storage.

It is possible to configure the slide time show mode into the menu USB – Photo configure.

Press PLAY to start the slide show. Press STOP to exit from slide show mode. Press PAUSE to stop the slide show. During reading of pictures to use the PREV and NEXT keys to go to the next/previous picture.

Press the RED key to zoom the image. Press YELLOW keys to turn around the current image. Press GREEN to repeat the slide show. Press BLU for mosaic function.

Video

It is possible to configure the video subtitles mode into the menu USB – Movie Configure.

Use the arrows keys and the BACK key to navigate into the folders. Press OK button to select a file video into folder. The file will appear into right upper part of screen.

Press RED button to change between full screen mode or preview mode.

Press PAUSE to freeze the reading without exiting. Press PLAY to restart the video. Press STOP to stop the reading. During reading of video to use the PREV and NEXT keys to go to the next/previous file into folder.

Press the REV for fast backwarding and FWD for fast forward.

During video reading to use the GOTO key to pass to a next/previous chapter, title. Press REPEAT to repeat the current file played or the file into current folder or make a random reading. Press GREEN keys twice to repeat a scene in a specific interval.

Music

Use the arrows keys and the BACK key to navigate into the folders.

Press OK button to select a file video into folder. The file will appear into right upper part of screen. Press RED button to change between full screen mode or preview mode. Press PLAY to start the video and PAUSE to freezes the video Press STOP to stop the reading. Press PAUSE to freeze the reading without exiting. During reading of video to use the PREV and NEXT keys to go to the next/previous file into folder.

Press the REV for fast backwarding and FWD for fast forward. During video reading to use the GOTO key to pass to a next/previous chapter, title.

Press REPEAT to repeat the current file played or the file into current folder or make a random reading.

Press GREEN keys twice to repeat a scene in a specific interval.

PVR

The PVR recorded files are accessible by this menu other than FILE key on the remote unit.

Use the arrows keys and the BACK key to navigate into the folders. Press RED button to change between full screen mode or preview mode. Press the YELLOW key to cancel the files. Press GREEN key to rename the file.

8.2 Recording

Before to start to record, please to connect the external USB memory and wait to initialize the device.

The dimension of recorded files depends on resolution of broadcasted digital terrestrial transmission.

CAUTION

• Do not remove the USB mass storage device when the receiver is recording, , it can damage the device !!
• The recording file format is MPEG transport stream, a special format file that includes video and audio tracks, and all auxiliary data as teletext, subtitles, ect. Different players are able to read this file.
• The USB memory must have enough speed rate to perform this function. We advise do not use old memory support that could be slows.
• To check if the memory USB is full before to make a recording. When the memory is full the recording is blocked and the file is not saved into memory.
• During instant recording it is possible to tune only channels on the same frequency.

Instant Recording

To perform a manual recording, tune the interest free TV/Radio service and press the REC key into remote unit. To stop the recording press STOP.

To access the content files press FILE key on remote unit.

Scheduled recording

During the vision of a terrestrial channel to press the RED key to program a timer. It will displayed the event timer window. It is possible to program a recording timer or TV/Radio service change.

Press ADD key to program a timer event. Press EDIT key to edit a previous event or BLUE to cancel an event.

It is possible to perform the same action into EPG window.

To press the EPG key. To select the TV/Radio service and the event desired. Press the OK button to display the event timer window.

CAUTION

• Before to reserve a recording, check the disk space, perhaps, the status of automatic stand by function and software update OAD.
• The recording commanded from EPG or timer works also in stand by status. The receiver will start when the event expires to make the recording and after will come back into stand-by status. Leave the USB mass storage device connected to the receiver after programming of scheduled recording.

8.3 Timeshift

It is possible to record temporarily inside the external USB mass storage the current tuned digital terrestrial content by pressing the PAUSE key. The video become freezed and the content is transferred into USB support. A time slide will be displayed on lower part of screen if you press INFO.

It is possible to go forward by using FWD. It is possible to go backward by using REV.

Press STOP to come back to normal vision.

CAUTION

• The timeshift function is possible only if there is enough space into USB memory. Check the USB memory if full before to start the timeshift mode. If the memory is full to format the memory with the menu of receiver.
• Timeshift can be started only after some seconds of tuning of a channel.
• During the timeshift is not possible to change the channel. To change the channel press STOP coming back to the vision of current channel.

- The USB memory must have enough speed rate to perform this function. We advise do not use old memory support that could be slows.

9 The Menus

The main menu has 7 submenus:

• Program: useful during installation. It allows to change the perform the management of channel list, to deactivate the LCN function, to access to the electronic guide of program EPG.
  • Picture: it allows to change the video resolution, to change the aspect ratio, the TV format.
• Channel Search: it allows to select the search mode. You can choose between a full channel scan or a single channel scan, or let the receiver communicate when some new channels are detected. It sets the voltage on antenna output.
• Time: it change the time displayed by receiver. You can choose between two operative mode: manual and automatic.
• Option: the option menu allows to select the audio languages and to set the operation mode of digital audio output.
• System: inside this menu there are system parameters of receiver.
• USB: inside this menu you can play audio/video file or seeing the recording of digital terrestrial free channels

The menus are simple and easy to navigate. Use the arrows, OK and number buttons and always follow the instructions given in the bottom toolbar.

Main menu

Program	Picture	Channel Search	Time	Option	System	USB
Program Edit	Aspect Ratio	Manual full search	Time offset	Menu language	Parental control	Multimedia
EPG	Resolution	Manual single search	Country region	Subtitle language	Set password	Photo configure
LCN	TV	Form Automatic full Search	Time Zone	Audio language	Factory default	Movie configure

Auto switch off Country Sleep Digital Audio Information PVR configure

AFD (*)

Antenna power

Software update

*optional

10 Problem solver

PROBLEM POSSIBLE CAUSE REMEDY
1. The receiver does not start (the LED is not lights up on the front panel)	- The AC/DC adapter is not plugged in.- The AC/DC adapter is plugged in but the receiver still does not work.	-Make sure the AC/DC adapter is properly plugged in.- Unplug the AC/DC adapter and after check if it is damaged (only after unplug the cable, risk of electric shock).- Try to press STB and the POWER button.
2. No Video or Audio signal	-No signal or a poor signal of antenna.-Your area is not covered by a digital terrestrial signal.-Your antenna is not compatible with the digital terrestrial signal.-The audio/video connections are disconnected or damaged-The TV is not set to the receiver signal input-The antenna signal is scrambled.- The receiver is into stand-by status.- The receiver mode is no selected into remote unit.	-Check the connections, the antenna installation and the signal quality.-Make sure the TV and receiver volumes are not set to zero or muted.- Make sure the corrected signal source is selected on the TV, in case of doubt please consult the TV user manual.-The receiver cannot receive scrambled channels.- Try to press STB and the POWER key.- Try to press the STB key.
3. The channel scan gives no results	-No antenna signal.-The channels use non standard frequencies.-You have an active antenna.	-Check for a signal using the receiver menu.-Perform a single frequency scan for channels.- Check the Country parameter.-Check the Antenna Power parameter
4. The settings are not saved.	- Setting changes are not confirmed before quitting.	-Before quitting a menu press the OK button to save the changes.
5. The remote control does not work.	- The receiver is into stand-by.-The remote control is not being directed towards the receiver.- The remote unit is not into receiver mode or TV mode.-The remote control batteries are flat.-The batteries have been inserted in the wrong direction.-The remote control has been dropped and its internal components have been damaged.	-Press STB and the POWER button on the remote unit to check the receiver is working properly.-Make sure nothing is obstructing the front panel.- Press STB key for receiver briefly. Press TV for TV set briefly.-Change batteries.-Check the battery polarities.-Contact the local dealer and buy a new remote control.
6. You have forgotten the Password.	-The default password is set during first	firstinstallation. If you have changed password consult this manual at section "Password".
7. The program information and/or EPG or Teletext cannot be viewed	-The specific program does not transmit information or transmits it badly.-The receiver time has not been set correctly	- Set the time from the menu (see section "Time").
8. The receiver does not interact with the remote control buttons.	-The receiver is temporarily blocked.-There is a problem with the remote control.-The TV mode is selected and no programmed	-Unplug the mains lead of the receiver for at least one minute and then plug it back in.- Check the paragraphs about TV programming mode and TV learning.
9. The receiver become switched off by itself	-Auto power down activated. -Because low consumption european directive	this function is activated by default into menu.
10. The multimedia file is not correctly played	-The file is defected-The codec audio/video is not supported	-Try to play the file on a third external device-The audio/video codec is not supported by receiver
11. The USB mass storage device is not recognized or doesn't work properly.	-Incompatible USB device or not formatted properly.-USB memory speed is not enough for the recording- The USB memory needs for an external power unit.	-Please consult the USB paragraph.-Try to format the USB memory by using the format function of receiver.-Try to check if USB memory is read from your personal PC.

11 Technical specifications

Product type FTA DVB-T (ETSI EN 300 744 + AGCOM 216/00/CONS) HD receiver
Input frequency range 174 ÷ 230 MHz (VHF) / 470 ÷ 862 MHz (UHF)
Bandwidth 7 (VHF) / 8 (UHF) MHz
Channel memory dept 400
Front panel Display	-
Menu language	Ita, Spa, Eng, Cze, Gre, Fra, Pol, Slo, Ger, Swe
OSD menu ●
Teletext (ETSI EN 300 472) ●
Subtitle ( ETSI EN 300 706) ●
PSI/SI management (ETSI EN 300 468)	●
RF Modulator -
Embedded Modem -
Video format rate 16:9 Full Screen / 16:9 Pillar Box / 4:3 Full Screen / 4:3 Letter Box
Coaxial Digital Audio Output (SPDIF) ●
Optical Digital Audio Output (SPDIF) -
Resolution 576p, 576i, 720p, 1080i, 1080p50
SCART TV socket	-
SCART VCR socket	-
Stereo Audio Output RCA	-
Video Output RCA	-
RS232 serial data port	-
USB	USB 2.0 - USB max current 500mA
Software update via USB	●
Factory reset function	●
Favourite channel list ●
Event timer	8
Multimedial format file playing BMP, JPG, PNG, MPEG2, MPEG4, MP3
Power Antenna Output	5V DC, 50mA max
Power supply AC/DC adapter - AC 230V 50Hz to DC 5V 1,5A
Power consumption	6W (operative mode without USB), 8W (operative mode with USB), 0,5W (stand-by mode)
Dimensions	75x153x23 mm
Operating temperature/humidity +10~+40 °C / 10~85% RH
Storage temperature/humidity	-20~+60 °C / 5~90% RH

Informative about the disposing of batteries and/or accumulators

The included batteries into the packaging comply with the European directive 2006/66/EC concerning batteries and accumulators and waste batteries and accumulators. This directive repeals the 91/157/EEC one. The symbol printed on batteries and accumulators reminds that the empty batteries must be disposed of separately from domestic garbage and they must be taken to the shops or waste collection points for the free picking up. The illegal disposal of batteries and accumulators entails the enforcing national administrative sanctions.

CAUTION

TELE System Electronic Srl communicates that it could change software and/or hardware to get quality improvement of product, so it could happen incongruity between the manual content and the product in your ownership.

Indice

Personal Video Recorded PVR

Informative about the disposing of batteries and/or accumulators

Declaration of conformity CE

Tele System Electronic states that this product meets the basic European requirements of 2004/108/EC (EMC - Electromagnetic Compatibility), 2006/95/EC (LVD - Low Voltage Directive) and 2009/125/EC reg.107/2009 (EUP - Energy-Using Product), following the technical standards listed below.

Izjava o skladnosti CE

Tele System Electronic izjavlja, da ta izdelek ustreza zahtevam EU o elektromagnetni skladnosti EMC (2004/108/EC), nizkonapetostni direktivi LVD (2006/95/EC) in direktivi o EUP (2009/125/EC reg. 107/2009), sledeč spodaj navedenim tehničnim standardom.

TELE System Electronic Srl,

Customer Care: 199 214 444 (only Italy)

System
