Brand	EC Line
Model	EC-5890X
Product Type	Printer
Print Technology	Inkjet
Maximum Print Resolution	4800 x 1200 dpi
Print Speed (Black)	Up to 10 ppm
Print Speed (Color)	Up to 6 ppm
Paper Sizes Supported	A4, A5, Letter, Legal, Envelopes
Connectivity	USB 2.0, Wi-Fi 802.11b/g/n
Power Supply	100-240V AC, 50/60Hz
Power Consumption (Active)	15W
Dimensions (W x D x H)	430 x 300 x 145 mm
Weight	3.5 kg
Ink Cartridge Type	Black and Color (separate)
Supported Operating Systems	Windows, macOS, Linux
Monthly Duty Cycle	Up to 3,000 pages
Warranty	1 year

Frequently Asked Questions - EC-5890X EC Line

How do I set up my EC-5890X printer for the first time?

To set up your EC-5890X printer, unpack it and remove all protective tapes. Install the ink cartridges and load paper. Connect the power cable, turn on the printer, and follow the on-screen setup wizard. For wireless setup, use the Wi-Fi Protected Setup (WPS) button on your router and printer.

How do I connect the printer to my Wi-Fi network?

Press and hold the Wi-Fi button on the printer until the light flashes. Within 2 minutes, press the WPS button on your router. The printer will automatically connect. Alternatively, use the printer's control panel to manually enter your network name (SSID) and password.

What should I do if the printer is not printing?

First, check that the printer is powered on and has paper loaded. Ensure the ink cartridges are installed correctly and have enough ink. Restart both your printer and computer. If using a USB connection, try a different cable or port. For wireless, ensure the printer is connected to the same network as your device.

How do I replace the ink cartridges?

Open the front cover of the printer; the cartridge holder will slide to the replacement position. Gently push down on the old cartridge to release it, then pull it out. Unpack the new cartridge, remove the protective tape, and insert it into the correct slot until it clicks. Close the cover and wait for the printer to recognize the new cartridges.

Why are my prints coming out faded or streaky?

Faded or streaky prints usually indicate low ink. Check ink levels and replace empty cartridges. You can also run the printer's built-in cleaning cycle from the printer menu or driver software. Ensure the paper type selected matches the loaded paper. For best results, use original EC Line ink.

How do I clean the printer?

Turn off the printer and unplug it. Wipe the exterior with a soft, dry cloth. To clean the ink nozzle, use the printer's cleaning function from the menu or driver. Avoid touching the internal components or print head. Do not use liquid cleaners inside the printer.

Can I print from my smartphone or tablet?

Yes, the EC-5890X supports mobile printing. Download the EC Line Print app from your app store. Ensure your mobile device and printer are on the same Wi-Fi network. The app allows you to print photos, documents, and web pages directly.

What types of paper can I use with this printer?

The printer supports plain paper, photo paper, envelopes, and cardstock. Use standard sizes like A4, Letter, Legal, and 10x15 cm. For best quality, use paper specifically designed for inkjet printers. Avoid paper that is too thin or too thick.

How do I fix a paper jam?

Carefully open the rear access door or front cover. Gently pull the jammed paper out in the direction of the paper path. Do not tug forcefully. Ensure no torn pieces remain inside. Close all covers and restart the printer. If jams persist, check that the paper guides are adjusted correctly.

Where can I find the user manual for the EC-5890X?

The user manual for the EC-5890X is available for free download in PDF format on notice-facile.com. You can also request a translated version by selecting your language and providing your email on the manual page.

USER MANUAL EC-5890X EC Line

Black rectangular electronic device with a paper label, no visible text or symbols on the body.

www.eclineproducts.com

Safety Notice:

* Don't touch the Head of printer with anything.
* Don't touch the cutter blade.
* Don't bend the power cord excessively or place any heavy objects onto it.
* Don't use the printer when it is out of order. This can cause a fire or and electrocution.
* Only use the power cord excessively or place any heavy objects onto it.
* When connecting or disconnecting the plug, always hold the plug-not the cord.
* Keep the desiccant out of children's reach.
* Use only approved accessories and do not try to disassemble, repair or remodel it for yourself.
* Install the printer on the stable surface. Choose firm, level surface where avoid vibration.
* Don't let water or other foreign objects in the printer.
* Don't connect a telephone line into the peripheral drive connector.
* We recommend that you unplug the printer from the power outlet if no use it for long periods.

Available fields:

* Print POS system Receipts
* Print EFT POS system Receipts
* Print Gym, Post, hospital, civil aviation system Receipts
* Print Inquiry. Service system Receipts
* Print Instrument test Receipts
* Print Tax. Tab Receipts

Main Features:

* Command protocol is based on ESC/POS standard
* Low-noise thermal printing.
* Various Layouts are possible by using page mode.
* Repeated operation and copy printing are possible.
* Character font size optional.
* Easy paper-roll installation.
* Easy paper jam clearance.
* Easy maintenance for tasks such as head cleaning.
* Built-in interface provides control capability for cash drawer.

Technique Spec.

Print method Thermal line printing
Print speed 50/70/90mm/sec.
Paper width 57.50:5mm
Print columns 384dots/line
Character	ANK Character: Font A: 12*24dotsSimplify/Traditional: 24*24 dots
Print command Compatible with	ESC/POS
Interface Parallel/Serial/Wireless/Ethernet
Barcode mode	UPC-A/UC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128
Reliability print 100Km
Paper thickness 0.06~0.08mm
Adaptor power input AC 110V/2	20V, 50~60Hz
Adaptor power output	DC8.5V/3A (for GP-5850/5870series)DC12V/3A (for GP-5890series)
Printer power input	DC8.5V/3A (for GP-5850/5870series)DC12V/3A (for GP-5890series)
Cash Drawer DC 12-24V/1A
Work Temperature 0~45°C, Dampness: 10~80%
Storage temperature -10~50°C,	Dampness: 10~90%

Connection

a. Connect the adapter cable to power connector of the printer.
b. Connect the interface cable to the connector on the rear panel of the printer.
c. Connect the cash drawer's RJ-11 phone jack to the connector on the rear panel.

Paper Roll Installation

a. Open the top cover, install the paper roll as the picture showing direction.
b. Set the paper roll into the hollow, and pull on the leading edge of the paper towards you as shown.

c. Press the center of printer cover firmly to prevent paper miss loading.

d. Tear off the paper outside the cover as shown.

Print character:

ANK Character, custom/times of character print. adjust row space.

Font A: 12*24 dots, 1.25*3.00mm(W*H)

Simplify/Traditional: 24*24 dots, 3.00*3.00mm(W*H)

International code:

PC437/Katakana/PC850/PC860/PC863/PC/865/West /Europe/ Greek/Hebrew/East

Europe/Iran/WPC1252/PC866/PC852/PC858

Barcode mode:

UPC-A/UPC-E/JAN13 (EAN13)/JAN8 (EAN8)/ CODE39/ CODEBAR/ITF/CODE93/

CODE128 (Available for GP-5850 series);

JAN13 (EAN13)/JAN8 (EAN8)/ CODE39 (Available for GP-5870/ GP-5890 series)

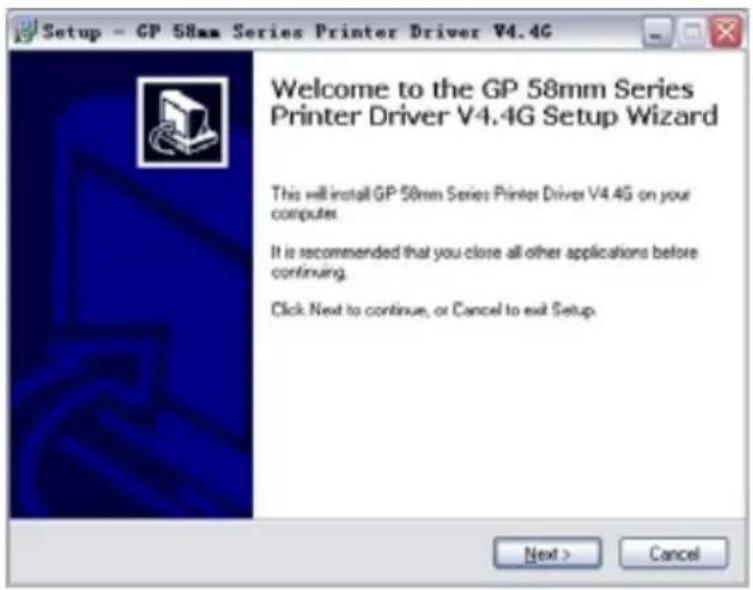

Driver Installation

. Insert the bundled CD disk into the CD-ROM drive, in the CD-Rom menu, click DRV58EN V4.4G file to begin driver installation

b

. Please read and accept the principle first, and then go on with installation.

c. Please choose the OS that matches with your computer system and press next.

d. Please select GP-5890II
