Product Type	CD Boombox with AM/FM Radio
Brand	GPX
Model	BC111B
Disc Compatibility	CD, CD-R, CD-RW
Programmable Tracks	Up to 20 tracks
Radio Bands	AM and FM
Antenna	Telescopic FM antenna; built-in AM antenna
Auxiliary Input	3.5mm audio input
Display	2-digit red LED
Built-in Speakers	Yes
Power Source	AC 120V ~60Hz (cable included) or DC 9V (6 x C batteries, not included)
Power Cord	Included, polarized plug
Battery Requirement	6 x C size batteries (not included)
Controls	Play/Pause, Stop, Skip/Search, Program, Volume, Tuning, Function selector
Safety Features	Double insulation, Class 1 laser with safety interlocks
Cleaning	Clean with a dry cloth only
Included Accessories	AC power cable, user's guide, warranty card
Dimensions (Approx.)	12.5 x 8.0 x 6.0 inches
Weight (Approx.)	3.2 lbs

Frequently Asked Questions - BC111B GPX

How do I play a CD on the GPX BC111B?

Open the CD door, place a CD label side up, and close the door. Switch the function selector to CD and press PLAY/PAUSE to start playback.

How do I program tracks to play in a specific order?

While a CD is loaded and stopped, press PROG – '01' will blink. Use SKIP/SEARCH to choose a track, then press PROG to save. Repeat for up to 20 tracks. Press PLAY/PAUSE to start programmed playback.

How do I listen to the radio?

Switch the function selector to LINE IN/RADIO. Set the AM/FM switch to your desired band. Turn the TUNING dial to find a station. Extend the telescopic antenna for better FM reception.

How can I connect an external audio device?

Use a 3.5mm audio cable (not included) to connect your MP3 player or phone to the 3.5MM AUDIO INPUT. Set the function selector to LINE IN/RADIO and control playback from your device.

What batteries does the BC111B use?

It requires 6 C size batteries (not included). Insert them into the battery compartment observing polarity. Do not mix old and new batteries or different types.

How do I clean the boombox?

Unplug the unit and clean the exterior with a soft, dry cloth. Do not use liquids or abrasive cleaners. Avoid getting moisture into any openings.

Why is there no sound from the speakers?

Check that the function selector is set to the correct source (CD, LINE IN/RADIO). Ensure volume is turned up. For CD, verify a disc is loaded and playing. For radio, ensure antenna is extended and station is tuned.

Can I use rechargeable batteries?

Yes, you can use NiMH rechargeable batteries (size C). Do not attempt to charge standard alkaline batteries in the unit as it may cause an explosion.

How do I improve radio reception?

For FM, fully extend the telescopic antenna and adjust its position. For AM, rotate the entire boombox as the antenna is built-in. Keep away from electronic devices that may cause interference.

What should I do if the CD skips or won't play?

Ensure the disc is clean and free from scratches. Try a different CD. Check that the disc is placed label side up. If the laser lens is dirty, use a CD lens cleaner disc. Avoid exposing the unit to extreme temperatures.

USER MANUAL BC111B GPX

Black and white photo of a black handheld electronic device with digital display and mesh grille (no visible text or symbols)

BC111

CD Boombox

Warnings and Precautions

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
• AVERTISSEMENT: Pour réduire le risque d'incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l'humidité.
• CAUTION: Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure.
• WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
• WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the surface. Use a protective barrier between the unit and surface to protect the surface.
• WARNING: Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause.
• CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
• PRÉCAUTION: Danger d'explosion si les piles sont remplacées de façon incorrect. Remplacer les piles seulement par le même type de pile ou l'équivalent.
• WARNING: There is a danger of explosion if you attempt to charge standard Alkaline batteries in the unit. Only use rechargeable NiMH batteries.

• WARNING: The remote control's button cell battery contains mercury. Do not put in the trash, instead recycle or dispose of as hazardous waste

• WARNING: Lithium batteries, like all rechargeable batteries are recyclable and should be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area. They should never be incinerated since they might explode.
  • WARNING: Shock hazard - Do Not Open.
  • AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.

Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

This product utilizes a Class 1 laser to read Compact Discs. This laser Compact Disc Player is equipped with safety switches to avoid exposure when the CD door is open and the safety interlocks are defeated. Invisible laser radiation is present when the CD Player's lid is open and the system's interlock has failed or been defeated. It is very important that you avoid direct exposure to the laser beam at all times. Please do not attempt to defeat or bypass the safety switches.

Important Safety Instructions

1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12.

Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

FCC Warnings

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Additional Warnings

- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.

- Main plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.

- Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

- Caution marking is located at the rear or back of the apparatus.

- The marking information is located at the rear or back of apparatus.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

CD Boombox

Features

• CD player: CD, CD-R/RW
• Programmable tracks (20)
- AM/FM radio
• 3.5mm audio input
• 2-digit red LED display
- Built-in speakers
- Telescopic FM radio antenna
• AC power: requires an AC power cable (included)
- DC battery power: requires 6, C size, batteries (not included)

Included

• AC power cable
• User's guide
• Warranty

TAble of ConTenTs

Warnings and Precautions . . . . . 2

Important Safety Instructions . . . . 3

• FCC Warnings
  • Additional Warnings

CD Boombox 4

• Features
• Included

Introduction . . . . . . . . . 6

Setup . . . . . . . . . . . 8

• Power
• Battery Power

CD . . . . . . . . . . . . . 9

• Loading a CD
• Playing a CD
• Programming a CD

Radio . . . . . . . . . . . . 10

• Playing the Radio
• Radio Reception

3.5mm Audio Input. . . . . . . . 11

• Using the Audio Input

Company Information . . . . . . . 12

• Green Initiative
  • International Support
• Contact Information

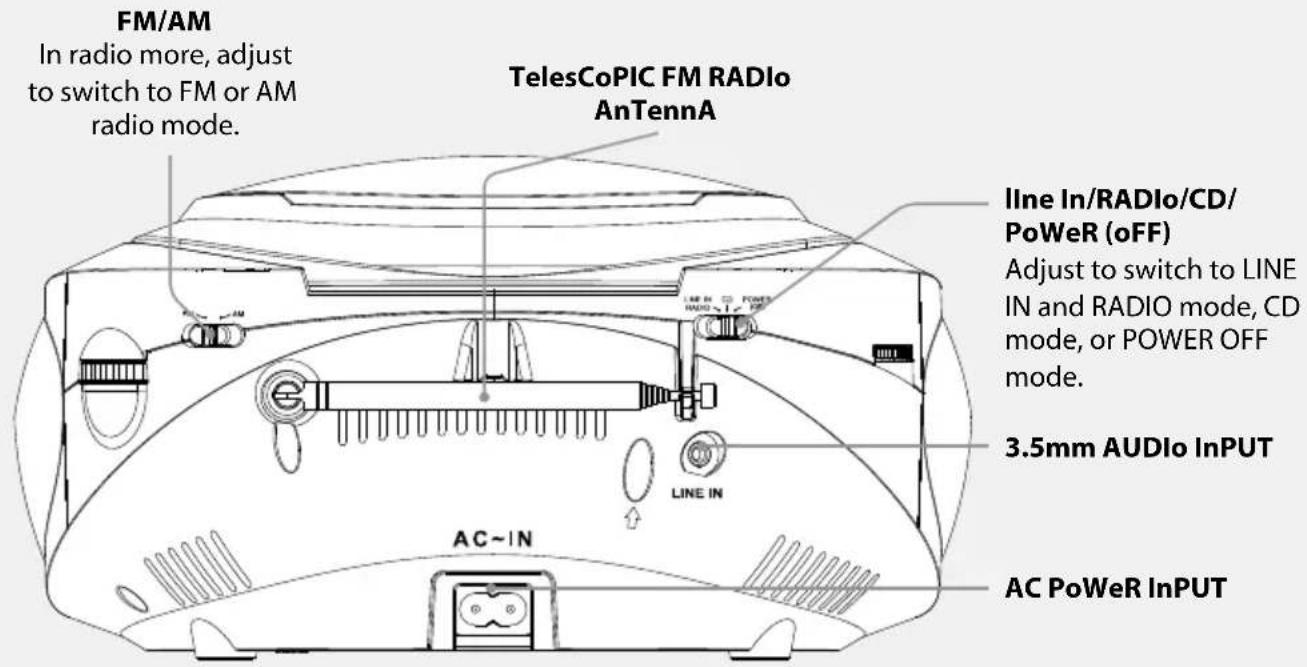

Introduction

Setup

Power

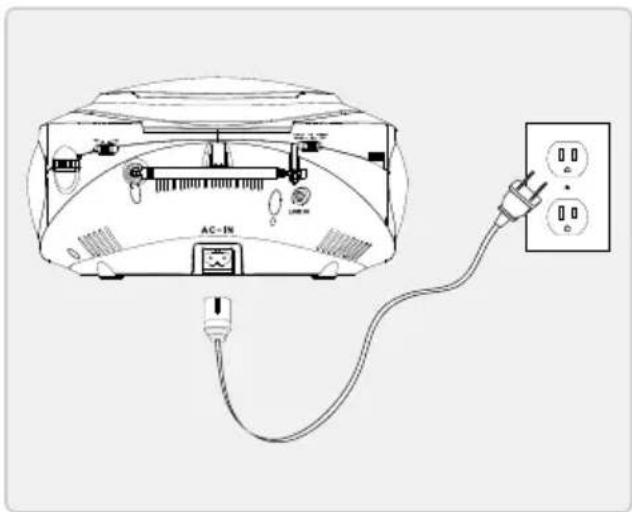

Plug the included AC power cord into a standard AC power outlet and the AC POWER INPUT to power the boombox.

Diagram of an electronic device with AC-1N label and connected power outlet (no text or symbols on main body)

Battery Power

Requires 6, C size, batteries (not included)

Loading a CD Programming a CD

1. Open the CD DOOR.
2. Place a CD into the boombox, label side facing up.
3. Close the CD DOOR.

Playing a CD

1. Follow the instructions for Loading a CD.
2. Adjust the LINE IN/RADIO/CD/POWER (OFF) switch to CD.

3. Press the PLAY/PAUSE button to begin playing the loaded CD.

4. Follow the instructions for Loading a CD and Playing a CD.

5. Press the STOP button to stop the CD during play.
6. Press the PROG button.
   "01" will begin to blink on the display.
7. Press the SKIP/SEARCH buttons to select a track.
8. Press the PROG button to save the selected track to the program.
9. Repeat steps 4 and 5 to program up to 20 tracks.

Radio

Playing the Radio

1. Adjust the LINE IN/RADIO/CD/POWER (OFF) switch to LINE IN/RADIO.
2. Adjust the AM/FM switch to AM or FM radio.
3. Adjust the TUNING dial to tune the AM or FM radio.

Radio Reception

Adjust the position of the TELESCOPIC FM ANTENNA to improve FM radio reception.

An AM antenna is built into the boombox. To improve AM radio reception, adjust the position of the boombox.

Using the Audio Input

Requires a 3.5mm audio cable (not included)

1. Connect a 3.5mm audio cable to the 3.5MM AUDIO INPUT and the audio output on an MP3 player or other audio device.
2. Adjust the LINE IN/RADIO/CD/POWER (OFF) switch to LINE IN/RADIO.
3. Use the native controls on the connected MP3 player or other audio source to play your audio through the boombox.

Company Information

Green Initiative International Support

protect for today • sustain for tomorrow

Environmental Commitment to 'Protect for Today and Sustain for Tomorrow'

2009 marked the official launch of DPI, Inc.'s corporate campaign for a greener and cleaner world. DPI is building upon environmental initiatives introduced at all of their facilities to help formulate and sustain significant and important conservation efforts within its manufacturing and marketing communities. In addition to targeting and selecting energy efficient product features, and structuring 'green office' procedures, other initial program efforts include:

• Reduction of all packaging sizes
  • Recyclable plastics for clamshell packages, with a plan to eventually replace plastic with recyclable paper
  • Recycled fiber board in place of the polyfoam in packing boxes
  • Recycled plastics in place of the virgin material in product construction

To download this User's Guide in English, Spanish, or French, visit the support section at www.gpx.com.
