Product Type	Desktop PC Motherboard
Brand	GIGABYTE
Model	G1.SNIPER M5
Form Factor	ATX
Dimensions	30.5 cm x 24.4 cm
Weight	Approximately 0.9 kg
CPU Socket	LGA1150
Chipset	Intel Z87
Supported Memory Type	DDR3
Number of Memory Slots	4
Required Power Supply	ATX 24-pin + CPU 8-pin
SATA Connectors	6 x SATA 6 Gb/s
Expansion Slots	2 x PCIe x16, 2 x PCIe x1, 2 x PCI
Main Features	CrossFire/SLI support, Creative Sound Core3D audio, Killer E2200 networking
USB Connectors	4 x USB 3.0, 8 x USB 2.0
Video Outputs	HDMI, DVI-D, VGA
Maintenance and Cleaning	Regular dusting with compressed air, avoid liquids
Safety	Anti-static protection during handling, turn off and unplug before intervention
Spare Parts and Repairability	I/O shield, 2 SATA cables, manual, driver DVD
General Information	Manual available as PDF download at notice-facile.com

Frequently Asked Questions - G1.SNIPER M5 GIGABYTE

How to install the processor on the G1.SNIPER M5 motherboard?

To install an Intel processor, lift the socket lever, align the CPU triangle with the socket triangle, gently insert the CPU, then lower the lever. For AMD, raise the lever, align the pins, insert and lock. Refer to the manual for more details.

What is the recommended power supply wattage for this motherboard?

A good quality power supply of at least 500W is recommended. Make sure it has the 24-pin ATX and 8-pin CPU connectors.

Does the G1.SNIPER M5 motherboard support CrossFire or SLI?

Yes, it supports CrossFire from AMD and SLI from NVIDIA thanks to its two PCIe x16 slots.

How to install RAM memory?

Open the clips of the memory slots, align the notch of the module with the slot, then push firmly until the clips close. Preferably use slots of the same color for dual-channel.

What to do if the computer does not start after assembly?

Check that all power cables are connected, that the processor and RAM are properly installed, and that the power button is connected to the correct place on the front panel. Try booting with a single RAM stick.

How to update the BIOS of the G1.SNIPER M5?

Download the latest BIOS version from GIGABYTE's website, place it on a USB drive formatted in FAT32, then use the Q-Flash tool built into the BIOS to perform the update.

What components are included in the box?

The box contains the motherboard, I/O shield, two SATA cables, user manual, driver DVD, and possibly a G1.SNIPER sticker.

How to connect the front panel cables?

Consult the manual for the exact pinout. Generally, connect POWER SW, RESET SW, HDD LED, POWER LED to the F_PANEL header. Observe polarity for the LEDs.

Is the motherboard compatible with Windows 10?

Yes, GIGABYTE provides drivers for Windows 10. You can also use Windows 8.1 drivers if dedicated drivers are not available.

How to clean the motherboard safely?

Use compressed air to remove dust. Avoid any liquid. If necessary, use a slightly damp anti-static cloth (distilled water) and let it dry completely before powering on.

USER MANUAL G1.SNIPER M5 GIGABYTE

The sequence of installation may differ depending on the type of case and devices used. The installation instructions below apply to GIGABYTE's desktop systems and are for reference only.
Refer to the user's manual included for detailed motherboard specifications.
- Before installing the devices, make sure they are compliant with the connectors on your computer.
- Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices and the system components.
- Place the computer system on a stable surface to prevent improper installation resulted from shaking.

Installing a CPU and CPU Cooler

A. Installing an Intel CPU (skip this step if the motherboard has a built-in CPU)

A-1 Refer to the following instructions based on your CPU specifications:

• Type A:

Lift the CPU socket lever and the metal load plate will be lifted as well.

a. If the protective socket cover is fastened on the CPU socket, remove it first.
b. If the protective socket cover is fastened on the metal load plate, do not remove it at this stage. The socket cover may pop off from the load plate automatically during the process of re-engaging the lever after you insert the CPU.

• Type B:

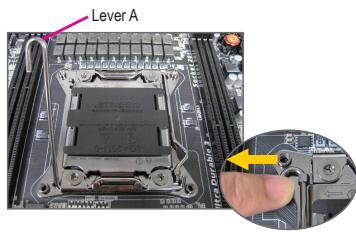

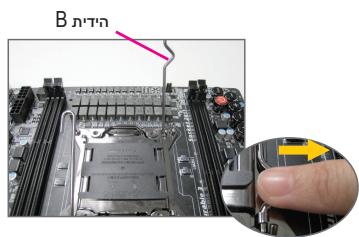

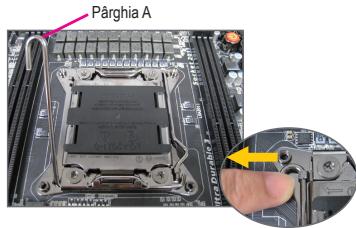

Push lever A (closest to the "□" marking) down and away from the socket to release it. Then push lever B (closest to the "□" marking) down and away from the socket and lift it. Gently press lever A to allow the load plate to rise. Open the load plate.

A-2 Hold the CPU with your thumb and index fingers. Align the CPU pin one marking (triangle) with the pin one corner of the CPU socket (or you may align the CPU notches with the socket alignment keys) and gently insert the CPU into position.
A-3 Once the CPU is properly inserted, replace the load plate and push the CPU socket lever back into its locked position. Once the type B is properly inserted, carefully replace the load plate. Then secure lever B under its retention tab. The socket cover may pop off from the load plate during the process of engaging the lever. Finally, secure lever A under its retention tab to complete the installation of the CPU.

For detailed instructions on installing the CPU, please refer to the user's manual.

B. Installing an AMD CPU (skip this step if the motherboard has a built-in CPU)

B-1 Completely raise the CPU socket lever. Align the CPU pin one (small triangle marking) with the triangle marking on the CPU socket and gently insert the CPU into the socket. Make sure that the CPU pins fit perfectly into their holes.
B-2 Once the CPU is positioned into its socket, place one finger down on the middle of the CPU, lowering the socket lever and latching it into the fully locked position.

• Do not force the CPU into the CPU socket. The CPU cannot fit in if oriented incorrectly. Adjust the CPU orientation if this occurs.
• DO NOT touch socket contacts. To protect the CPU socket, always replace the protective socket cover when the CPU is not installed.

C. Installing the CPU cooler

C-1 Before installing the CPU cooler, please first add a thin layer of heat sink paste on the surface of the CPU. Then install the cooler (refer to the installation manual for your CPU cooler).
C-2 Connect the CPU cooler cable to the CPU_FAN connector located on the motherboard so that the cooler can properly function to prevent the CPU from overheating.

Installing Memory

Note the orientation of the memory module. Spread the retaining clips at both ends of the memory socket. Place the memory module on the socket. As indicated in the picture on the left, place your fingers on the top edge of the memory, push down on the memory and insert it vertically into the memory socket. The clips at both ends of the socket will snap into place when the memory module is securely inserted.

Preparing the Case and Installing a Power Supply

Using the GIGABYTE desktop system as the demonstration example, please first remove both sides and the lid of the case in order to install the power supply. Place the power supply in the correct place in the case and secure it with screws. Installation and placement of the power supply may differ depending on the type of case used.

To ensure sufficient power can be supplied to your system, it is recommended that a power supply of good quality be used. If a power supply is used that does not provide the required power, the result can lead to an unstable or unbootable system.

Step

4

Installing the Motherboard

Remove the original I/O shield from the back of the case and replace it with the motherboard I/O shield. Place the motherboard within the case by positioning it into its I/O shield. Align the mounting screw holes on the motherboard with their corresponding mounting holes on the case. Secure the motherboard in place with screws.

I/O Shield

Step

5

Installing an Expansion Card

PCI Express Graphics Card

Locate an expansion slot that supports your card and remove the slot cover from the case back panel. Then insert the expansion card into the slot. Secure the expansion card's bracket to the case back panel with a screw.

• Before purchasing an expansion card, check the length of the card, making sure it can fit into your case.
• Make sure that the expansion card is fully seated in its slot.

Step

6

Installing IDE and SATA Devices

Installing an Optical Drive

6-1 Install your optical drives, such as DVD-ROM and CD-ROM drives.

Remove the 5.25" drive bay cover from the front of the case. Mount the optical drive in the 5.25" drive bay and secure it with screws.

Installing a Hard Drive

6-2 Install your IDE and SATA hard drives.

Install the hard drive into a drive bay within the case and secure it with screws.

• One motherboard IDE connector can connect up to two IDE devices. Prior to installation, check the jumper settings (master and slave) on your IDE devices.
• If more than one hard drive is installed, enter system BIOS Setup to set the hard drive boot sequence.

Connecting Cables to Internal Connectors

7-1 Connect cables to internal connectors and headers on the motherboard, including IDE/SATA connectors, and front panel audio, USB, IEEE 1394 headers, etc.
7-2 Attach the front panel module (differs depending on the case design, consisting of power indicator, hard drive activity indicator, speakers, reset switch, power switch, etc.) from the case to the front panel header (F PANEL) on the motherboard.

Front Panel Header

Pin Assignments A:

Pin Assignments B:
MSG: Message/Power/Sleep LED

PWR: Power LED

PW: Power Switch

SPEAK:Speaker

HD: Hard Drive Activity LED

RES: Reset Switch

Cl: Chassis Intrusion Header

(Note) The pin assignments for the front panel header may differ by model. Refer to the motherboard user's manual for the actual pin assignments.

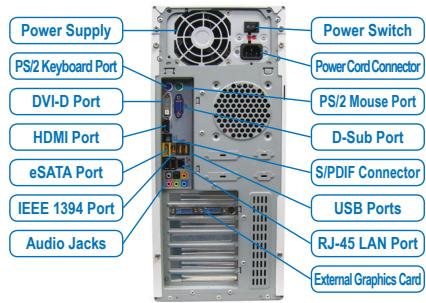

Connecting Peripherals

Back Panel of the Case

Once the steps above have been completed, connect the peripheral devices to the computer, such as the keyboard, mouse, monitor, etc. Then connect the power, turn on the system, and install all required software.
