KH 60-8.3 sw - Range hood Exquisit - Free user manual and instructions

Product Type	Range Hood
Brand	Exquisit
Model	KH 60-8.3 sw
Color	Black
Dimensions (H x W x D)	198 x 595 x 480 mm
Flue Height	652 mm
Voltage	220-240 V
Lamp Type	LED, max 1.5 W, E14 fitting
Fan Speeds	3 speeds (Low, Medium, High)
Minimum Clearance (Electric Hob)	650 mm
Minimum Clearance (Gas Hob)	700 mm
Maximum Clearance	750 mm
Mode	Air extraction / Recirculating
Grease Filter	Metal cassette, washable
Activated Charcoal Filter	Optional, replace every 6-12 months
Warranty	24 months
Scope of Delivery	Hood, exhaust hose, air outlet cover, flue panels, wall bracket, accessories, manual
Safety Features	Child safety, electrical safety, overheat protection
Weight	Approx. 12 kg

Frequently Asked Questions - KH 60-8.3 sw Exquisit

How do I install the Exquisit KH 60-8.3 sw range hood?

Installation must be done by a qualified electrician. First, unpack and inspect. Choose between air extraction or recirculating mode. For wall mounting, use the provided wall bracket and screws, respecting minimum clearances (650 mm for electric, 700 mm for gas hobs). Connect to mains via a grounded socket.

What are the minimum clearance requirements?

For electric hobs, minimum clearance is 650 mm; for gas hobs, 700 mm. Maximum clearance is 750 mm. Always follow the larger clearance if the hob manual specifies a different value.

How do I operate the range hood?

Plug in and use the ON/OFF button to start. Select fan speed (low, medium, high) using the control buttons. The light can be switched separately. After cooking, let the hood run a few minutes longer, then switch off.

How often should I clean the grease filter?

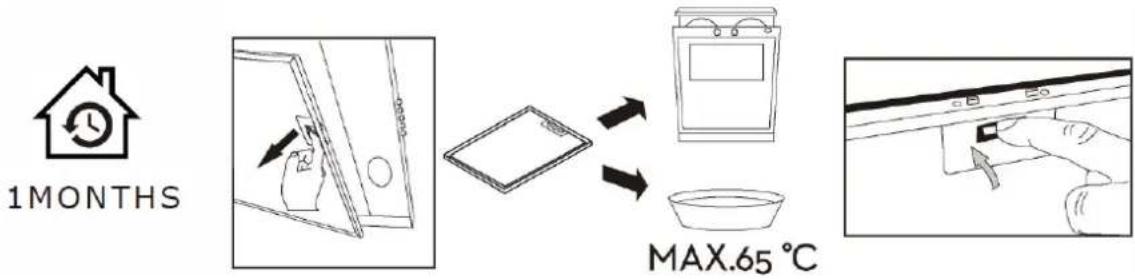

Clean the metal grease filter at least once a month. Remove the filter cassette, soak in warm detergent solution, rinse thoroughly, and dry before reinserting. Regular cleaning prevents fire hazards.

How do I replace the activated charcoal filter?

For recirculating mode, replace the activated charcoal filter every 6 to 12 months. Remove the grease filter, unscrew the old charcoal filter, fit a new one by turning clockwise until it clicks into place, then reinstall the grease filter.

How do I replace the lamp?

Switch off and unplug the hood. Remove the filter cassette. Unscrew the defective lamp (E14, max 1.5 W) anticlockwise. Insert a new lamp using a cloth to avoid direct contact, and tighten clockwise. Reinstall the filter.

What should I do if the hood is not extracting odors properly?

Check if the grease filter or charcoal filter is clogged. Clean or replace them as needed. Ensure the exhaust hose is not blocked or bent excessively. For air extraction, verify the duct is clear.

Can I use the hood without a charcoal filter?

Yes, if operating in air extraction mode, no charcoal filter is needed. For recirculating mode, the charcoal filter is mandatory to absorb odors.

What is the warranty period?

The warranty is 24 months from purchase date for private use. For commercial use, it is 12 months. The first 6 months cover defects free of charge; after that, proof of pre-existing defect is required.

How do I dispose of the old hood?

Do not dispose with household waste. Take it to a municipal collection point for electrical and electronic equipment. Alternatively, return it to the retailer when buying a new appliance. Remove batteries and lamps before disposal.

USER MANUAL KH 60-8.3 sw Exquisit

Black industrial smokestack with conical chimney and ventilation slots (no text or symbols visible)

9.1 Intended use 26
9.2 Safety and responsibility 27
9.3 Safety and warnings....27

10 Installation....27

10.1 Unpacking the appliance 27
10.2 Preparing the extractor hood for installation 28
10.3 Installation for Air Extraction Mode.... 30
10.4 Installation for recirculating air mode 30
10.5 Wall Mounting 31

11 Putting into operation 33

11.1 Reducing the Environmental Impact 34

12 Service and Maintenance 34

12.1 Cleaning the Appliance 34
12.2 Cleaning the grease filter 35
12.3 Replacing the activated charcoal filter 35
12.4 Replacing the lamp 36

13 fault noises / troubleshooting 37
14 After Sales Service....37
15 Warranty Terms....38

DE

16 Disposal....39

VORSICHT

VERLETZUNGSGEFAHR!

Diagram of a roof structure with two hanging bulbs and a brick wall (no text or symbols)

DE

Line drawing of a trash bin mounted on a brick wall, no text or symbols present

Line drawing of a two-tiered cabinet or enclosure with ventilation grilles and mounting feet (no text or symbols)

Simple line drawing of a mechanical component inside a circle, labeled 'Fig. 1' (no text or symbols on the diagram itself)

Fig. 2 3*10 mm Schraube

3 Inbetriebnahme

Close-up of a finger pressing a small component on a textured surface (no text or symbols visible)

广力云智慧零售收银系统

Technical diagram showing a mechanical assembly with no visible text or symbols

Diagram of a mechanical device inside a circular frame, showing internal components and directional arrows (no text or labels)

广力云智慧零售收银系统

Hand pressing a small object on a textured surface, no text or symbols visible

Read these operating instructions carefully before putting the appliance into operation. They contain important safety information for the installation, operation and maintenance of the appliance. Proper operation makes a major contribution to efficient energy use and minimises the energy consumption of the appliance.

Improper use of the appliance can be dangerous, particularly for children.

Keep this instruction manual in a safe place for future reference. Pass them on to the new owner if the appliance is sold or given away. Should you have any questions that are not dealt with sufficiently for you in this instruction manual, or if you need a new copy of the instruction manual, please contact After Sales Service Germany ^2 .

The manufacturer is working constantly on the further development of all types and models. We would therefore ask you to appreciate that modifications in form, configuration and technology are reserved.

CE Conformity

At the time of its placement on the market, this appliance conforms to the requirements laid down in the Council directives on the approximation of the laws of the Member States relating to electromagnetic compatibility, Directive 2014/30/EU, and relating to the making available on the market of electrical operating equipment designed for use within certain voltage limits, Directive 2014/35/EU.

This appliance bears the CE mark and has a declaration of conformity that can be examined by the responsible market supervisory authorities.

Getting to know your appliance

Scope of delivery

1x Appliance
1x Exhaust air hose
1x Air outlet cover
2x Flue panels with wall bracket and flue panel brackets
1x Accessory material
1x Instruction manual

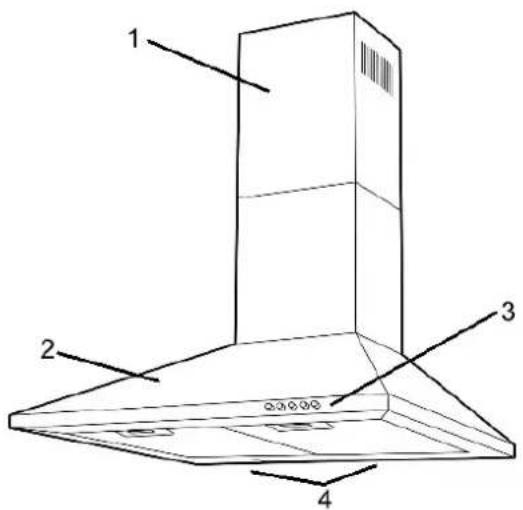

Designation

*) Throughout the text, the Word appliance is used for the cooker hood.

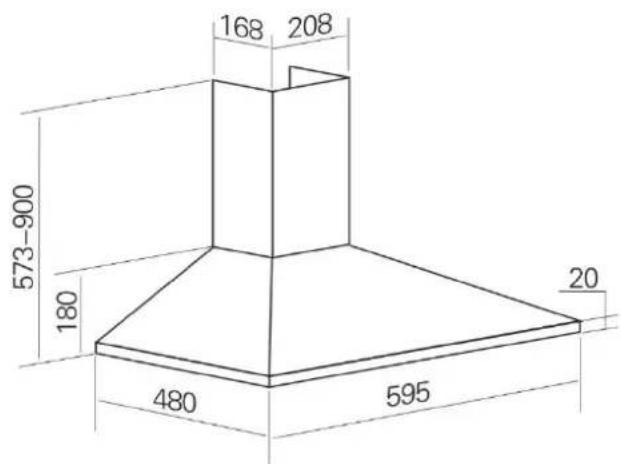

Dimensions

	Appliance dimensions
Height	198 mm
Width	595 mm
Depth	480 mm
Flue height	652 mm

0♣	Switch off the extractor hood.
	Switch on the extractor hood.The fan motor runs at slow speed.
♣	Switch on the extractor hood.The fan motor runs at medium speed.
※	Switch on the extractor hood.The fan motor runs at high speed.
♣	Switch the lighting on and off

Figure	Quantity	Designation
	1x	exhaust air fitting
	1x	Exhaust air hose
	1x	Exhaust air hose
	1x	Air outlet cover
	1x	Wall bracket
	2x	Flue panel brackets
	2x	Flue panels
	1x	installation materials

If the air outlet cover is not included in the scope of supply, check whether it is already fitted in the exhaust air fitting.

Not included in the scope of supply:

• Activated charcoal filter for recirculating air mode (can be ordered from After Sales Service)
  • Exhaust air hose for air extraction mode

9 For your Safety

For safe and proper use of the appliance, read the instruction manual and other documentation accompanying the product and keep in a safe place for future reference. All safety instructions in this instruction manual are marked with a warning symbol. They draw your attention to potential hazards. Be sure to read and observe this information.

Explanation of the Safety Instructions

DANGER

Indicates a hazardous situation which, if not avoided, will lead to very serious injuries or even death!

WARNING

Indicates a hazardous situation which, if not avoided, can lead to very serious injuries or even death!

CAUTION

Indicates a hazardous situation which, if not avoided, can lead to minor or moderate injuries!

ATTENTION

Indicates a situation which, if not avoided, will lead to material damage.

ELECTRIC SHOCK HAZARD!

RISK OF SCALDING!

FIRE HAZARD!

Information and instructions to be observed.
- Indicates a list
√ Indicates inspection steps in sequence
7. Indicates work steps in sequence
→ Describes the response of the appliance to the work step

9.1 Intended use

The appliance is intended for private/household use. It is suitable for removing/separating fumes and odors that are present in cooking or Flushing processes occur in kitchens.

• Do not use the appliance for purposes other than toasting bread steam and odours. The manufacturer accepts no liability for any damage.
• For safety reasons, modifications or alterations to the appliance are not permitted.

Any use outside these areas of application is not in accordance with the intended use and is therefore considered improper use.

9.2 Safety and responsibility

Safety of children and persons with limited capabilities

DANGER

RISK OF SUFFOCATION!

Packaging materials (e.g. plastic film, polystyrene) can be dangerous for children. Keep packaging materials out of the reach of children.

DANGER

This appliance is not to be used by persons (including children) with limited physical, sensory or mental aptitude or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety, or have received instructions from that person as to how the appliance is to be used. Supervise children to ensure that they do not play with the appliance.

9.3 Safety and warnings

DANGER

ELECTRIC SHOCK HAZARD!

Never hold the plug of the mains cable with damp or wet hands when plugging in or unplugging the appliance.

• Install and connect the appliance only in accordance with the description in the instruction manual.
• In an emergency, pull the plug out of the plug socket immediately.
• Do not pull the plug out of the plug socket with the cable.
• Remove the plug from the plug socket before starting cleaning or service work.
• A damaged power supply cable must be replaced by the supplier, dealer or after-sales service without delay.
• If cable or plug are damaged, do not use the appliance any longer.
• Do not carry out any work on the appliance other than the cleaning and service work described in this instruction manual.

10 Installation

10.1

Unpacking the appliance

The packaging must be undamaged. Inspect the appliance for transport damage. On no account should a damaged appliance be connected to the mains power supply. In case of damage contact the supplier.

Removing transport protection

CAUTION

RISK OF INJURY!

Do not cut adhesive strip with a sharp object, e.g. carpet knife. Injuries can occur. The appliance is secured for transport. Remove all packaging parts, plastic film and adhesive tapes. Remove residues of adhesive with white spirits. Remove all adhesive tape and packaging parts from the interior of the appliance too.

CAUTION

Transport the appliance only in the original packaging materials to avoid any personal injury and/or material damage.

Keep the original carton and packaging mouldings in a safe place. Transport the appliance only in its original packaging materials.

10.2

Preparing the extractor hood for installation

The extractor hood can be operated in both air extraction mode and in recirculating air mode.

WARNING

ELECTRIC SHOCK HAZARD!

The installation work and electrical may only be carried out by a qualified electrician in accordance with all the relevant regulations and standards applicable in your country, including the fire protection measures.

• Incorrect connection can result in destruction of the power electronics.
• The connection data on the type plate must correspond to those of the mains power supply grid.
• Connect the appliance only to a properly earthed plug socket with earthing contact.

The connection data can be seen on the type plate.

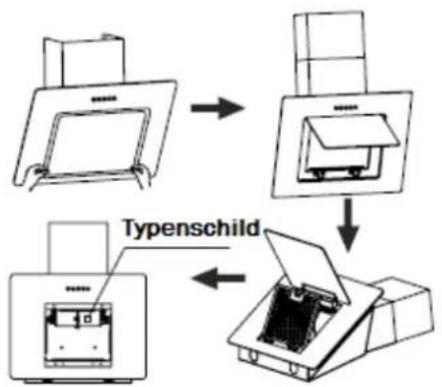

- Open the extractor hood and remove the filter cassette.
The rating label can be found interior of the appliance hood.

CAUTION

RISK OF INJURY!

• Two persons are required to mount the extractor hood.
• Before drilling holes in walls or ceilings, check that there are no concealed power cables or pipes in that area.
• Use only installation materials that are suitable for the condition of the walls and ceilings.

Before installing the extractor hood, fit the exhaust air fitting on the housing. Use the screws supplied to fix the exhaust air fitting to the housing. Longer screws could damage the internal wiring. Failure to follow these instructions does not entitle you to any warranty claim.

Set up the appliance

• so that the mains plug is accessible at all times Do not pinch or damage the mains power cable.
• Do not connect to mains power supply via multiple sockets or extension leads.
  • and do not operate outdoors.
  • in accordance with the prescribed minimum clearances.

Minimum clearances

The following minimum clearances from the upper edge of the hob to the lower edge of the extractor hood must be observed when installing the extractor hood:

	CLEARANCE
Electric stoves	650 mm
Gas stoves	700 mm
max.	750 mm

If the extractor hood is installed above a gas cooker and the installation instructions for the gas hob prescribes a larger clearance, this larger clearance must be observed.

10.3

Installation for Air Extraction Mode

During air extraction mode, the intake air is cleaned in the grease filter and then discharged into the atmosphere via an exhaust air duct. An adequate supply of fresh air must therefore be ensured at all times.

DANGER

DANGER TO LIFE!

Do not discharge the exhaust air into a chimney. The discharge of exhaust air into a stack used for the ventilation of rooms in which there are fireplaces is not permitted. Combustion gases drawn back into the room could result in poisoning.

• Do not connect the extractor hood to other exhaust air ducts on which other appliances are already installed that are operated with power sources other than electricity (e.g. boilers, gas stoves, etc.).
• The regulations of the local authorities must always be observed for the extraction of the exhaust air.
• Due to regional and national building regulations, the operation of extractor hoods and chimney-vented fireplaces such as coal or oil ovens and gas water-heaters together in the same room is subject to certain restrictions.

The exhaust air is guided into an air shaft or to the outside.

• If connected to an air shaft, the exhaust air hose must not extend too far into the shaft.
• If the exhaust air is discharged outside the building, fitting a ventilation flap (not included in the scope of supply) on the outside is recommended.

10.4 Installation for recirculating air mode

The installation of activated charcoal filters is necessary for recirculating air mode. The air extraction performance is reduced when the activated charcoal filter is installed.

The intake air is first passed through the grease filter and then through an additional activated charcoal filter and returned to the kitchen area as clean air. The air outlet openings on the flue must be open so that the cleaned air can flow freely into the room.

The inner flue shaft of this extractor hood must protrude far enough beyond the outer flue shaft that the cleaned air can flow out unhindered through the air outlet openings. In recirculating air mode, the non-return flap must be removed, otherwise the extractor hood will not work.

Installing the activated charcoal filter

1. Remove the grease filter by pressing back the clips; clean it again if necessary.
2. Insert the activated charcoal filter(s) in both sides and turn until they click into place (Fig. 9).
3. Check whether the activated charcoal filter(s) are securely fitted.

The activated charcoal filters are optional and can be ordered from After Sales Service.

10.5 Wall Mounting

Tools required	Designation
	Drill
	Flat screwdriver
	Cross-head screwdriver
	Socket wrench with 3/8" socket
	Tape measure
	Insulating tape
	Hand saw or jigsaw
	Tin snips
	Saddle clip

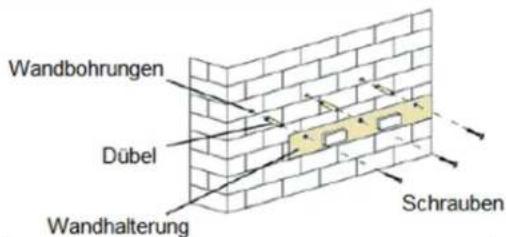

1. Hold the wall bracket against the wall and mark the 3 drill holes.

2. Drill three holes in the wall (3x8 mm).

3. Fix the dowels.

4. Mount the wall bracket with 3 screws (ST4x30 mm).

5. Hang the extractor hood on the wall bracket, hold it firmly and mark the 4 drill holes

6. Drill four holes in the wall.

7. Fix the dowels.

8. Hang the extractor hood.

9. Mount with 4 screws.

Diagram of a roof structure with brick walls and two circular objects labeled '30' and '30', no text or symbols present.

EN

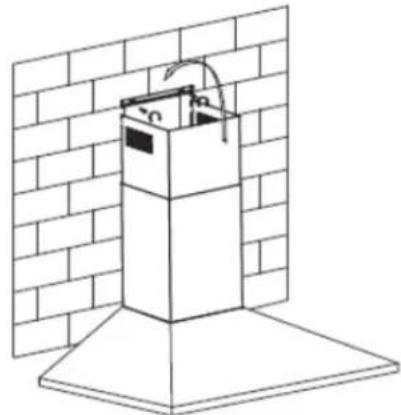

10. Fasten the air outlet cover in the exhaust air fitting of the extractor hood (if not already pre-assembled).11. Fit the exhaust air hose to the exhaust air fitting. The exhaust air hose is included in the scope of supply.

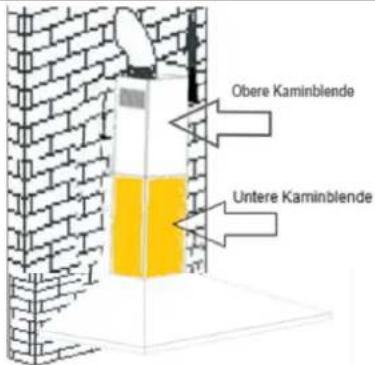

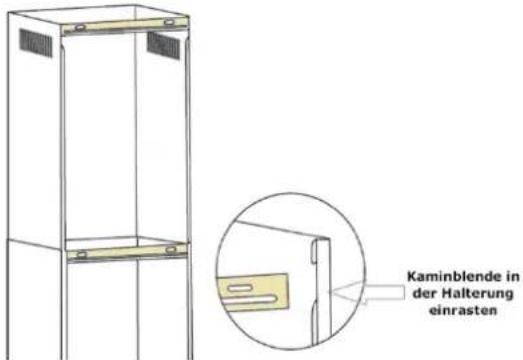

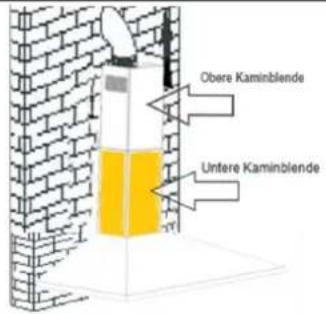

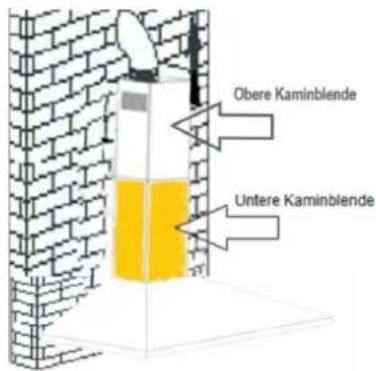

12. Insert the upper flue into the lower flue.13. Pull out the upper flue until the desired height is
14. To install the upper and middle flue bracket, draw a vertical line upwards.15. Mark the holes for the brackets, drill 8 mm holes and insert the dowels.16. Screw on the bracket.17. Place the lower flue panel on the hood.18. Connect the lower flue panel to the middle flue bracket, which is already mounted on the wall.

1. Connect the upper flue panel to the upper flue bracket, which is already mounted on the wall.

Isometric line drawing of a brick chimney with a curved arrow indicating rotation, mounted on a base (no text or symbols)

There are two options for mounting the inner flue panel

1. Hook the outer and inner flue panels into the brackets (Fig. 1). or

2. Screw the inner flue panel to the side of the bracket with 2 screws (Fig. 2). Hang the outer flue panel in the bracket (Fig. 1).

Line drawing of a two-tiered storage cabinet with ventilation grilles (no text or symbols)

Simple line drawing of a mechanical component inside a circle, labeled 'Fig. 1' (no text or symbols on the diagram itself)

Fig. 2 3*10 mm screw

11 Putting into operation

Always switch on the extractor hood at the start of cooking and allow it to run for a few minutes longer after the end of cooking. This removes cooking fumes most effectively.

DANGER

RISK OF SUFFOCATION!

FIRE HAZARD!

Always ensure adequate ventilation in the room when the extractor hood is in operation at the same time as gas cookers or other fluid-fired appliances.

• Operation is not permitted above a coal or wood-fired fireplace.
• Do not flambé food under the extractor hood.
- Do not open the gas supply to gas hobs as long as there is no cookware on the hob.
- Always operate the extractor hood with a grease filter. Fats or oils can easily catch fire if they are overheated. Therefore always supervise the food while cooking.
- Clean or replace the filter at regular intervals.

Switch on the Appliance.

1. Plug the mains plug into the plug socket.
2. Switch on the light.
3. Switch on the extractor hood with the ON/OFF button.
4. Select the desired fan speed.
5. After finishing cooking, switch off the extractor hood again with the ON/OFF button.
6. Switch off the lighting.

Decommissioning the Appliance

To switch off the appliance, remove the mains plug and switch off or unscrew the fuse.

11.1 Reducing the Environmental Impact

• Adjust the fan speed to the intensity of the cooking vapours.
• Pay attention to an adequate supply of fresh air during operation of the extractor hood.
• Observe the distance between the upper edge of the hob and the lower edge of the extractor hood as indicated in the installation instructions in order to achieve the optimum effect.
• Clean or replace the filters (grease filter/odour filter) at regular intervals.
• Switch off the extractor hood after the end of cooking.
• On extractor hoods with run-on time, activate this function.
• Switch off the light after the end of cooking.

12 Service and Maintenance

Regular service and maintenance increase the service life of the appliance.

WARNING

ELECTRIC SHOCK HAZARD!

The appliance must not be connected to the mains power supply during cleaning and service work. Before starting cleaning and service work, switch off the appliance, remove the mains plug and switch off or unscrew the fuse.

Never clean the appliance with a steam cleaner or high-pressure cleaner. Moisture could get into electrical components.

• Hot steam can result in damage to plastic parts.
- The appliance must be dry before use.
- Do not use abrasive or aggressive cleaning agents.
- Do not push pointed objects into the protective grille of the motor or into other electrical parts.
- Never try to check the condition of the filter while the extractor hood is in operation.
- Operate the extractor hood only with the lamp fitted to avoid the risk of an electric shock.

CAUTION

RISK OF SCALDING

When cleaning, select the water temperature so that there no risk of cause

12.1 Cleaning the Appliance

For hygiene reasons, clean the extractor hood at regular intervals. The frequency of cleaning depends on the operating hours and the application of the extractor hood.

1. Push down the lock of the metal filter cassette.
2. Carefully remove the metal filter cassette.
3. Clean the inside and outside of the housing including the control panel with a soft, damp cloth and a warm detergent solution. Use only mild detergents. Do not use aggressive cleaning agents, brushes or scouring powder.
4. Dry with a soft cloth.
5. Replace the metal filter cassette.
6. After cleaning, connect the appliance to the mains power supply again.

12.2

Cleaning the grease filter

Clean the metal grease filter regularly every month. The frequency of cleaning depends on the operating hours and the application of the extractor hood.

WARNING

FIRE HAZARD!

Observe the filter changing and cleaning intervals. Failure to observe this may result in fires due to accumulations of grease.

1. Push down the lock of the metal filter cassette.
2. Carefully remove the metal filter cassette.
3. Soak the filter in warm detergent solution and clean. Do not use aggressive cleaning agents, brushes or scouring powder.
4. Rinse thoroughly with warm water and leave to dry.
5. Replace the metal filter cassette.
6. Connect the appliance to the power supply again.

After several cleaning procedures, the colour of the filter may change. This is normal and cannot lead to replacement of the filter under guarantee. It does not affect the functionality of the hood in any way.

12.3

Replacing the activated charcoal filter

Depending on the usage of the extractor hood in recirculating air mode, activated charcoal filters must be replaced every six months, but at least every year. Do not wash or re-use this filter.

In order to guarantee proper absorption of the odours, the volume of activated charcoal must match the extraction capacity of the hood. The high quality of the activated charcoal guarantees efficient absorption of the kitchen odours with normal operation.

Therefore use only original filters and replace at regular intervals.

1. Push down the lock of the metal filter cassette (I).
2. Carefully remove the metal filter cassette (II).
3. Unscrew the activated charcoal filter. Remove it and dispose of with household waste.
4. Fit new activated charcoal filters on both sides of the motor.
5. Press the filters onto the plastic lugs and turn them clockwise, until they click into place (III).
6. Reinsert the metal filter correctly (IV).
7. Connect the appliance to the power supply again.

12.4 Replacing the lamp

Replace the lamps in the appliance with the same type of lamp.

WARNING

ELECTRIC SHOCK HAZARD!

Before replacing the lamp, switch off the appliance, remove the mains plug and switch off or unscrew the fuse.

PREVIEW

RISK OF BURNS

Do not touch the lamp until the appliance has been switched off and the lamp has cooled down completely.

Do not cover the lamp with heat insulation or other material.

RISK OF INJURY!

The light from LEDs is very bright and can damage the eyes. Do not look directly into the switched-on LEDs for longer than 60 seconds.

Lamp data: 220-240 V, max. 1.5 W

Fitting: E 14

1. To replace the lamp, first remove the filter unit.
2. Unscrew the defective lamp in anticlockwise direction and remove it.
3. Do not touch the new lamp directly with your fingers; use a clean cloth to screw in the lamp.
4. Carefully insert the new lamp into the lamp bracket and screw tight in clockwise direction.
5. Carefully fit the filter unit into the extractor hood again.
6. Connect the appliance to the power supply again.

The LED modules can be ordered from After Sales Service.

13 fault noises / troubleshooting

WARNING

ELECTRIC SHOCK HAZARD!

Have repairs to electrical appliances carried out only by a qualified electrician. An incorrectly performed repair can pose dangers for the user and lead to a voiding of warranty claims.

FAULT	POSSIBLE CAUSES	MEASURES
Light is not working.	Lamp is defective.	Replace lamp (see chapter 4.4).
Appliance is not working.	Plug is not plugged in to the plug socket.	Connect the appliance to the mains power supply.Check whether the mains plug is correctly plugged in to the plug socket.
	Power failure	Check whether the power supply is still functioning and that the fuses are intact.
The extractor hood is running, but the kitchen odours are not extracted.	Filter is clogged.	Clean or replace the filter (see chapter 4.1).
	In air extraction mode:	Check the exhaust air hose.Every bend decreases the extraction performance.

14 After Sales Service

If the fault cannot be remedied following the instructions given above, please call our After Sales Service. On no account should you carry out any further work, particularly not on the electrical parts of the appliance.

A visit by an After Sales Service technician is not free of charge even during the warranty period in the event of incorrect operation or one of the faults described above.

Responsible After Sales Service:

EGS GmbH

Dieselstraße 1

33397 Rietberg / GERMANY

Service telephone

for Germany 02944 9716-791

for Austria 0820 200 170

E-mail: [e-mail]

Internet: www.egs-gmbh.de

Repair orders can be made online.

The following information is required in order to be able to process your repair order: Model Version Batch EAN

together with your full address, telephone number and a description of the fault.

The appliance-specific data can be found on the type plate located inside the appliance behind the filter unit of the extractor hood.

15 Warranty Terms

As the buyer of an Exquisit appliance, you are entitled to the statutory warranty under the purchase contract with your dealer. In addition, we grant you a warranty on the following terms:

Warranty Period

The warranty period is 24 months from the date of purchase (proof of purchase must be presented). During the first 6 months, After Sales Service will fix defects in the appliance free of charge, on condition that the appliance is accessible for repairs without any great effort. During the following 18 months, the buyer is obliged to prove that the defect already existed at the time of delivery.

In the case of commercial use (e.g. in hotels, canteens) or joint use by several households, the warranty period is 12 months from the date of purchase (proof of purchase must be presented). During the first 6 months, After Sales Service will fix defects in the appliance free of charge, on condition that the appliance is accessible for repairs without any great effort. During the following 6 months, the buyer is obliged to prove that the defect already existed at the time of delivery.

The claim under warranty does not prolong the warranty period for either the appliance or for newly installed parts.

Scope of the defect remedy

Within the periods indicated, we will remedy all defects in the appliance that are demonstrably attributable to poor workmanship or material flaws. Replaced parts become our property.

The warranty does not cover:

Normal wear and tear, intentional or negligent damage, damage caused by non-compliance with the operating instructions, improper set-up or installation or by connection to incorrect mains voltage, damage due to chemical or electrothermal effects or due to other abnormal environmental conditions, glass, paint or enamel damage and possible colour differences as well as defective bulbs.

Defects in the appliance resulting from transport damage are also not covered. We are also not obliged to perform defect remedies, if – without our express written authorisation – work is carried out on the Exquisit appliance by unauthorised persons or third-party parts have been used. This limitation shall not apply to faultless work carried out by a qualified person using our original parts to adapt the appliance to the technical safety regulations of another EU member state.

Scope

Our warranty applies to appliances purchased and in operation in the Federal Republic of Germany or Austria.

In the case of complaints about defective appliances, the sender's and recipient's addresses must be in the Federal Republic of Germany or Austria.

For appliances purchased and operated in other European countries, the warranty conditions of the seller apply.

For repairs outside the warranty period:

If an appliance is repaired, the repair invoices are payable immediately without deduction.

• If an appliance is inspected or a started repair is not completed, flat-rate travelling expenses and labour costs will be invoiced.
• Advice from our After Sales Service centre is free of charge (see chapter "After Sales Service").

Disposal of packaging materials

Sort packaging materials before disposal. Paper and cardboard with the waste paper and plastic film in the recycled materials bin.

Disposing of Old Appliances (EN)

Old appliances must not be disposed of with household waste

The symbol of the crossed-out wheeled bin on the product or its packaging means that the appliance must not be disposed of with household waste but requires separate disposal. You can return the old appliance free of charge to a suitable municipal collection point for old electrical and electronic equipment, e.g. a recycling centre. You can obtain the addresses from your city administration or local government.

Alternatively, you can return old electrical appliances with an edge length of up to 25 cm free of charge to retailers with a sales area for electrical and electronic equipment of at least 400 m ^2 or food retailers with a total sales area of at least 800 m ^2 who offer electrical and electronic equipment at least several times a year.

Larger old appliances can be returned free of charge to an appropriate retailer when purchasing a new appliance of the same type that performs essentially the same functions as the new appliance. Please contact your dealer regarding the modalities of returning an old appliance when delivering the new appliance.

Please remove - if possible - all (rechargeable) batteries as well as all lamps that can be removed without destroying them before disposing of the product.

Please note that you are responsible for deleting personal data from the appliance to be disposed of.

Children can often not recognise the hazards associated with household appliances. Ensure the necessary supervision and do not let children play with the appliance.

Disposing of old appliances

The symbol of the crossed-out wheeled bin on the product or its packaging means that the appliance must not be disposed of with household waste but requires separate disposal. You can return the old appliance free of charge to a suitable municipal collection point for old electrical and electronic equipment, e.g. a recycling centre. You can obtain the addresses from your city administration or local government.

Alternatively, you can return old electrical appliances free of charge when you buy a new appliance of the same type and with the same function from an offline retailer. Please contact your dealer regarding the modalities of returning an old appliance when delivering the new appliance.

Please remove - if possible - all (rechargeable) batteries as well as all lamps that can be removed without destroying them before disposing of the product.

Please note that you are responsible for deleting personal data from the appliance to be disposed of.

The appliance may contain substances that can endanger the environment and human health if disposed of incorrectly. Material recycling helps to reduce waste and conserve resources. By collecting old appliances separately and recycling them, you help prevent negative impacts on the environment and human health.

exquisit

GGV HANDELSGES. MBH & CO. KG

AUGUST-THYSSEN-STR. 8

D-41564 KAARST

GERMANY

KH60-8-3_BDA_DE_E1-0-2022-12.DOCX
