19759 - Uncategorized K&M - Free user manual and instructions

Product Type	Microphone Stand
Height Range	95 - 160 cm (37.4 - 63 inches)
Weight	Approx. 2.5 kg (5.5 lbs)
Material	Steel, zinc die-cast base
Base Diameter	250 mm (9.8 inches)
Boom Arm Length	800 mm (31.5 inches)
Clutch Type	Locking clutch for height adjustment
Base Type	Round folding base
Finish	Black powder-coated
Compatibility	Standard microphone clips (5/8")
Accessories	Incl. microphone clip and boom arm
Maintenance	Wipe with dry cloth; avoid water on joints
Safety Notes	Ensure base is fully open; do not exceed max load
Spare Parts	Base, clutch, boom arm available separately
Warranty	5 years (manufacturer warranty)
Country of Origin	Germany

Frequently Asked Questions - 19759 K&M

How do I adjust the height of the K&M 19759 stand?

Loosen the locking clutch by turning it counterclockwise, adjust the inner tube to the desired height, then tighten the clutch by turning clockwise until secure.

What is the maximum height of the stand?

The stand extends to a maximum height of 160 cm (63 inches).

Can I use this stand for heavy microphones?

Yes, the stand is designed for standard microphones and lightweight accessories. The recommended maximum load is 2 kg (4.4 lbs) on the boom arm.

How do I attach a microphone clip?

Screw the microphone clip onto the 5/8" thread at the end of the boom arm. Most standard clips fit without adapter.

Is the base stable on uneven floors?

The base is designed for flat surfaces. On uneven floors, use a rubber mat or adjust the legs to ensure stability.

How do I clean the stand?

Wipe with a dry or slightly damp cloth. Avoid using water on locking mechanisms to prevent rust.

Can I replace the boom arm?

Yes, the boom arm is detachable and can be replaced. Contact K&M customer service for spare parts.

What is the warranty period?

The product comes with a 5-year manufacturer warranty against defects in materials and workmanship.

Does it come with a carrying bag?

No, a carrying bag is not included. However, the stand folds compactly for transport.

How do I fold the base?

Press the base release tabs and fold the legs inward. The stand can then be stored or carried easily.

USER MANUAL 19759 K&M

Technical line drawing of a tripod-mounted surveying instrument with attached support bracket (no text or symbols)

Smartphone-Halter

The smartphone stand with the 3-piece rod combination and the mounted holder is extremely flexible in its use. The base ensures a secure stand and the tube combination allows heights of 600-1400 mm to be achieved. The smartphone holder is suitable for holding a smartphone with a width of 55-85 mm and a height of 130-180 mm. Similar devices can also be clamped. Rubberized retaining tabs surrounding the smartphone ensure a firm, secure hold. Individual adjustment is possible thanks to the flexible holding arm and swivel joint.

Foreseeable misapplication

Do not open the clamping and adjusting screws while the smartphone is inserted. Do not use the smartphone holder overhead.

General

The stand should be placed on a level and stable flooring. The diameter of the base should be set as far as possible.
▶ Set up and adjustment:

• Attach the holder to the stand without the smartphone and set the desired position.
• When the smartphone is claimed it is only allowed to loosen the adjustment screw to carry out small corrections regarding the position. Increased caution is required during correction, to prevent the device from falling unexpectedly.

▶ The smartphone must be enclosed by the rubberized retaining tabs.
The mounted device should be placed as centrically as possible on the tripod to avoid increased risk of tipping.
The smartphone holder must be protected from falling, dirt, moisture and jerky movements.
▶ Do not handle with excessive force.
▶ Injuries und damages can be caused to individuals or property if the smartphone stand should tip or fall.
▶ Due to the adjustability of the components, there is finger trap risk between the components.
▶ The user should be physically fit and technically competent.
The usage information is an integral part of the product and should be kept for its service life or passed on to any subsequent owner or user.

Warranty

No warranty is given for damage caused by:

▶ Non-observance of the usage information and the "General safety and assembly instructions".
▶ Unsuitable or improper use.
▶ Incorrect installation or commissioning by the buyer or third parties.
▶ Natural wear and tear.
▶ Careless handling.
▶ Improper modifications or repair work by the buyer and third parties.
▶ Impact on components of foreign origin.
▶ Use of non-original spare parts.

Modifications, additions and conversions that may impair safety are prohibited without the manufacturer's approval.

Technical data

Material	Smartphone holder:Smartphone holder, ball adapter, union nut, holding arm: PlasticSupport arm inside: Aluminum rodStand:Base tube, extension tube, end tube, legs: steel, powder coated blackThreaded bolt, rivet, pan head screw, clamping screw, square nut:Steel, galvanisedKnurled washer: Aluminum black anodisedClamping screw, clamp, pull-out protection, floor protector, foot brace,clamping piece: Plastic, black
Load capacity Smartphones and similar devices
Dimensions and adjustment range	Smartphone holder: Width: 55-85 mm, height: 130-180 mm,thickness max. 15 mmVertical and horizontal: 180° and 360°Foot circle: diameter 700 mmHeight: 600 up to 1400 mm
Packing 550 x 100	x 72 mm
Weight 1.1 kg

Assembly

1.) Unpack and check item for damage and completeness

!Due to the mobility of the components, there is a risk of crushing between them!

Technical line drawing of a tripod-mounted surveying instrument with attached support bracket (no text or symbols)

Smartphone holder

Holding arm with ball adapter

Stand

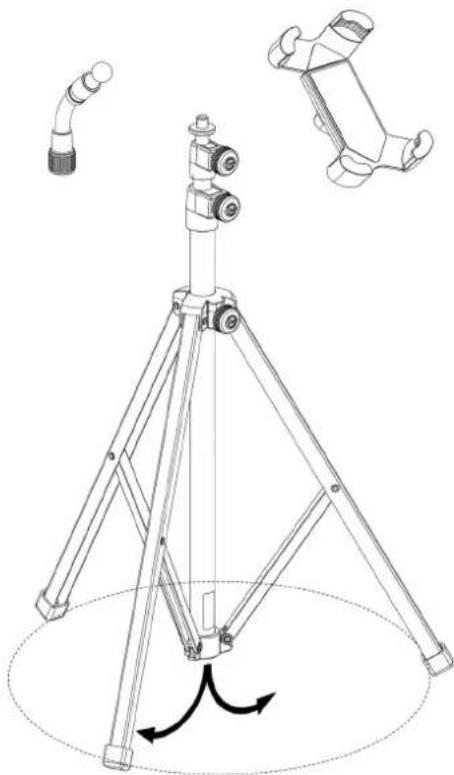

2.) Setting up the stand

Loosen the clamping screw on the clamp and pull the feet outwards, tighten the clamping screw hand-tight again.

Note: The best stability is achieved with the largest possible foot circle diameter. If the foot struts are aligned parallel to the ground, the largest possible foot circle diameter is set.

The height of the stand can be adjusted using the two clamping screws on the extension tube. To do this, loosen one of the two clamping screws, adjust the height and tighten the clamping screw again hand-tight.

Repeat the process with the second clamping screw.

Dismantling is carried out in reverse order.

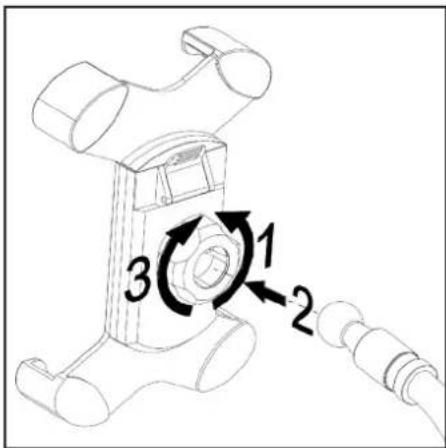

3.) Connect smartphone holder with swivel joint

1 Open the clamping nut on the smartphone holder in the UNLOCK direction until the swivel joint 2 snaps into the smartphone holder with slight pressure. 3 Hand-tighten the clamping nut in the LOCK direction.

To adjust the position, loosen the clamping nut, set the desired position, and hand-tighten the clamping nut.

4.) Mounting on stand

√ The stand is properly set up. √ The stand is set up on a level and load-bearing surface.

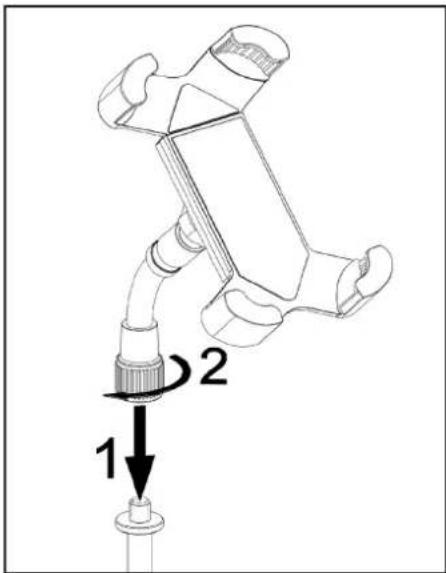

Place the holding arm on the stand 1 and screw into place 2. Dismantling follows the same steps in reverse.

√ The smartphone holder must be properly attached to the stand.

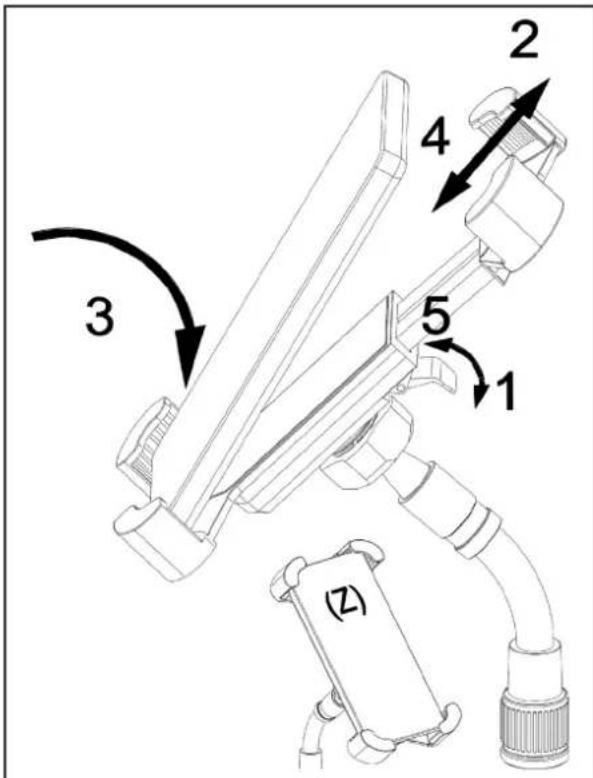

Open the clamping lever 1 on the smartphone holder, and slide the smartphone holder apart 2. Lower the smartphone from above onto the lower retaining tabs 3, and place the smartphone in the smartphone holder. Push the smartphone holder together 4. Use the clamping lever to lock the closed smartphone holder 5. Clamping lever audibly engages.

Note: The back of the smartphone must lie flat against the smartphone holder, and the retaining tabs must enclose the smartphone Z. This is the only way to ensure a firm and secure hold.

Maintenance, cleaning and repair

▶ Maintenance: Regularly check that the screw connection is tight.

▶ Cleaning: Use a slightly damp cloth to clean the smartphone stand. Do not use chlorinated or abrasive cleaning agents. These will cause damage to the surface and varnish.

▶ Repair: Repair any damage immediately and stop using the smartphone stand. Repair work may only be carried out if you have the necessary knowledge. If any parts are missing, contact the manufacturer at www.k-m.de. Here you can find a corresponding spare parts list by entering the article number on the type label. Use this page to reorder missing or damaged components.

Fault and troubleshooting

Fault/cause Check/Remedy
Stand wobbles • Check the stability and screw connections of the stand.
Smartphone holder wobbles	• Check the screw connections on the smartphone holder and the Stand and tighten if necessary.
Smartphone wobbles in the holder	• Check whether the clamping lever on the smartphone holder is engaged.• Smartphone must lie flat against the back and in the retaining tabs.

Storage, disposal

Store the smartphone stand in a dry place. Recycle disassembled components:

▶ Scrape all components made of metal.

▶ Recycle or reuse all plastic, paper, and cardboard components.

▶ Sort all other components according to material composition and dispose of them according to local regulations.
