Product Type	Studio LED Light (Bi-color)
Model	BR-S36B
Power Consumption	36 W
Number of LEDs	360
Luminous Flux	3,600 lm
Color Temperature Range	3,200 K to 5,600 K (stepless)
Brightness Adjustment	10% to 100% (stepless)
Operating Voltage (Mains)	DC 13 to 19 V via included power adapter
Battery Compatibility	2 x NP-F750/970 (not included)
DMX Control	Yes, via RJ11 modular socket (console not included)
Hot Shoe Mount	Yes, for camera use
Tripod Mount	Spigot connection with U-mount
Lighting Angle Adjustment	Via locking knobs on U-mount
LED Replaceability	Not replaceable (built-in)
Operating Conditions	Dry, 0 °C to +40 °C
Storage Conditions	Dry and dust-free, 0 °C to +40 °C
Safety Features	Overheat protection, ventilation slots, glare and burn warnings
Included Accessories	LED light, U-mount with tripod connection, power adapter, power cable
Certifications	EC Declaration of Conformity available online

Frequently Asked Questions - BR-S36B BRESSER

What power sources can be used with the BR-S36B?

The BR-S36B can be powered via the included mains adapter (DC 13-19 V) or optionally via two NP-F750/970 lithium batteries (not included). Only one power source should be used at a time.

How do I adjust the brightness and color temperature?

Turn the brightness adjustment knob (6) for stepless dimming from 10% to 100%. For bi-color models, turn the color temperature adjustment knob (14) to adjust from 3,200 K to 5,600 K.

Can I control the light via DMX?

Yes, connect a RJ11 compatible lighting console (not included) to the modular socket (12) and press the control selection button (5) to enable DMX mode. The DMX function lamp will light up.

Is the light suitable for camera use?

Yes, it features a hot shoe connection (1) for mounting directly on a camera.

How do I change the lighting angle?

Carefully loosen the locking knobs on both sides of the U-mount, tilt the light to the desired angle, then hand-tighten the knobs. Always hold the light when knobs are loose.

What safety precautions should I take?

Avoid staring into the light to prevent glare. Allow the housing to cool for about 45 minutes after use before touching. Keep flammable materials away. Never use the device with damaged components or covered ventilation slots.

Can the LEDs be replaced?

No, the LEDs are built-in and not replaceable. They have a very long lifespan.

How do I clean and maintain the light?

Disconnect from power before cleaning. Use a dry cloth to wipe the exterior. Do not use liquids or abrasive cleaners. Ensure ventilation slots remain unobstructed.

What is included in the box?

The box contains: LED light (A), U-mount with tripod connection (B), power adapter (C), and power cable (D). Batteries are not included.

Where can I find the EC Declaration of Conformity?

The full text is available at: http://archive.bresser.de/download/BRS/CE/CE_BRS-Series.pdf.

USER MANUAL BR-S36B BRESSER

Black circular light bulb mounted on a stand, no text or symbols visible

Studio Light · Studiolamp · Studiolicht ·

BR-S36B / BR-S60B

Instruction manual

Visit our website via the following QR Code or web link to find further information on this product or the available translations of these instructions.

2 About this Instruction Manual.... 5
3 Intended use 5
4 General safety instructions 5
5 Parts overview and scope of delivery BR-S36B 7
6 Parts overview and scope of delivery BR-S60B 8
7 Establishing the power supply (mains operation) 9
8 Power supply via battery (optional)....9
9 Lighting settings.... 9
10 Changing the lighting angle 10
11 Connection with an lighting console (DMX-RJ11) (optional) 10
12 Technical data.... 10
13 Disposal.... 11
14 EC Declaration of Conformity 11

1 Validity information

This documentation is valid for the products with the article numbers listed below:

F004240 F004241

Manual version: v0319

Manual description:

Manual_F004240-F004241_BRS36B-BRS60B_en-nl-de_BRESSER_v032019a

With any service inquiries, please state these information.

2 About this Instruction Manual

NOTICE

These operating instructions are to be considered a component of the device.

Please read the safety instructions and the operating instructions carefully before use.

Keep these instructions for renewed use at a later date. When the device is sold or given to someone else, the instruction manual must be provided to the new owner/user of the product.

3 Intended use

• This device is not intended to be used by persons (including children) with limited physical, sensory or mental capabilities or those who lack the relevant experience and/or knowledge, unless they are supervised by a person responsible for their safety or have received instructions from this person as to how the device is used.
  • This device is for private use only.
• The device is for indoor use only.

4 General safety instructions

! DANGER

Risk of electric shock

This device has electronic parts operated via a power source (power supply and/or batteries). Improper use of this product can cause an electric shock. An electric shock can cause serious or potentially fatal injuries. The following safety information must be observed at all times.

• Disconnect the device from the power supply by pulling the power plug when it is not used or in case of longer interruption of operation and before starting any work on maintenance and cleaning.
• Position your device so that it can be disconnected from the power supply at any time. The power socket should be installed near the device and should be easily accessible as the mains cable plug is used to disconnect the device from the power supply.
• To disconnect the device from the power supply, always pull on the plug. Never pull on the cable.
• Before starting up the device, check the device, the cables and the connections for signs of damage.
• Never use a damaged device or a device with damaged live parts. Damaged parts must be immediately replaced by an authorised service company.
• Discharge the device before maintenance work and cleaning.
• Only use the device in complete dry environment and do not touch it with wet or moist parts of your body.

- Never use the device with defective or damaged components (e.g. housing, cable, lamp, etc.).

! DANGER

Risk of suffocation

Improper use of this product can result in suffocation. This is particularly dangerous for children. The following safety information must be observed at all times.

- Keep packaging materials (plastic bags, rubber bands etc.) away from children. They can cause suffocation.

WARNING

Danger of glare!

Make sure people and animals do not stare into the light. Due to the high power of illumination, your eyes can be glared or after-images may achieve. This visual impairment can cause accidents.

CAUTION

Risk of burns!

Never touch parts of the device during operation or until it has sufficiently cooled down (about 45 min. after switching off)!

CAUTION

Danger of injury!

This device contains components and/or accessories that can cause minor to severe injuries in case of any improper use. Therefore please read the safety instructions below to avoid any bodily injury.

• Always handle flash tubes and lamps with special care. Pieces of glass may cause serious or fatal injury to eyes and skin!
- Tools with sharp edges and points are often used when working with this device. Because there is a risk of injury from such tools, store this device and all tools and accessories in a location that is out of the reach of children.

! DANGER

Risk of explosion

Improper use of this product can cause an explosion. The following safety information must be observed at all times to prevent an explosion.

- Do not expose the device to high temperatures. Use only the power supply provided. Never short-circuit the device or throw it into a fire. Excessive heat and improper handling of this product can result in short-circuits, fires or even explosions.

CAUTION

Fire hazard!

In case of any improper use of this device, there is a risk of fire. Therefore please read the safety instructions below to avoid the initiation of burning.

• Due to extreme heat development of some components of up to 250^ there is an acute FIRE HAZARD! Always set up the device securely, so that it may not turn over. Ensure for a safe storage.
• Keep children and animals away from the device! They could overturn the device.
  • Make sure that no one can trip over the connection cables of the device. The device could be overturned.
• Never turn on the device with its protection cap fitted.
• Never cover the ventilation slots or cooling fins of the device while using it or as long as it has not sufficiently cooled down!
• Keep flammable materials away from the device!
• Operate this device only installed with open softboxes to prevent fire hazard due to heat build!

NOTICE

Risk of damage to property

Improper handling can result in damage to the device and/or to the accessories. Always observe the following safety information when using the device.

• Never disassemble the device. In the event of a fault, please contact your specialist retailer. The specialist retailer will contact the service centre and send the device for repair if necessary.
• Perform all cleaning and maintenance work at the device only as described in the instruction manual.
• Do not expose this device to higher temperatures and protect it from water and high humidity.
• Protect the device from severe shocks!
• For this device only use accessories and spare parts that comply with the technical information.
• Never touch flash tubes or lamps with bare hands! Use clean cotton gloves or a clean cloth when inserting or suspending them.

5 Parts overview and scope of delivery BR-S36B

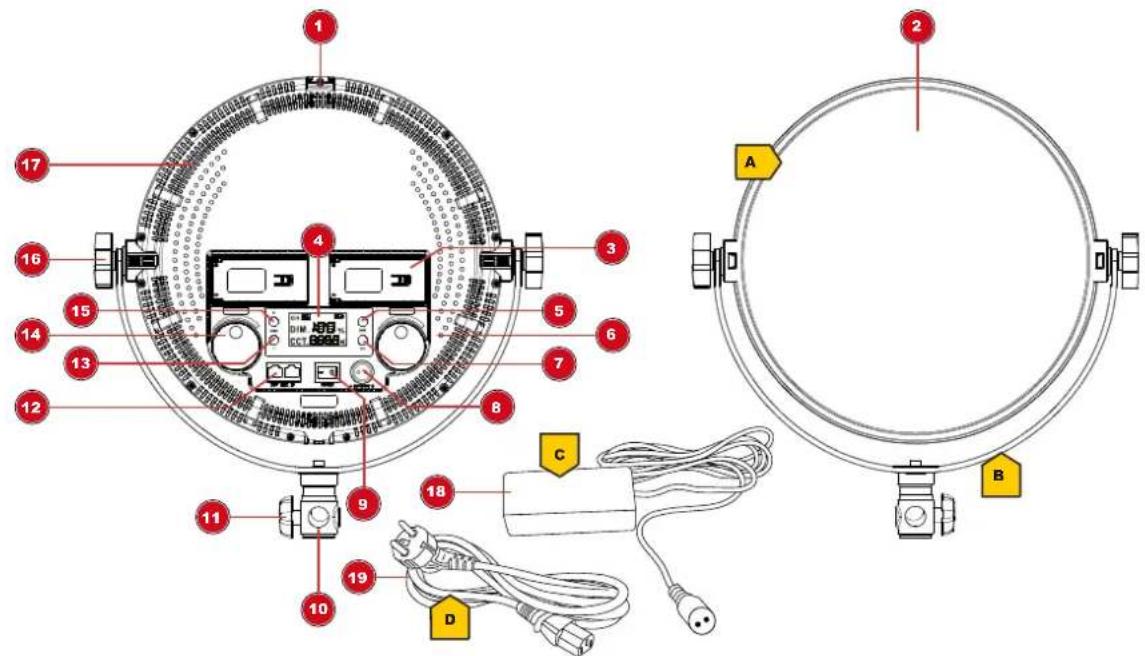

Illustration 1: All parts of the LED light, model BR-S36B

1 Hot shoe connection (for the use as a camera light)	2 LED panel
3 Battery socket (adding suitable batteries ^1 for mobile use) (optional)	4 LED display
5 Control selection button (turning on/off DMX control)	6 Brightness adjustment knob (stepless brightness adjustment)
7 Channel selection rotary knob (DMX channel selection)	8 Power supply socket
9 ON/OFF toggle switch (switch on/off the device)	10 Spigot tripod connection
11 Locking knob (Spigot tripod connection) 12 Modular socket for DMX connection
13 DOWN button (descrease value) 14 Colour temperature adjustment knob (stepless colour temperature adjustment)
15 UP button (increase value) 16 Locking knob (U-mount)
17 Vents 18 DC power adapter with 2-pole plug
19 C13 power cable with Euro-plug

^1 NP-F750/970 not included

Scope of delivery:

LED light (A), U-mount with tripod connection (B), power adapter (C), power cable (D)

6 Parts overview and scope of delivery BR-S60B

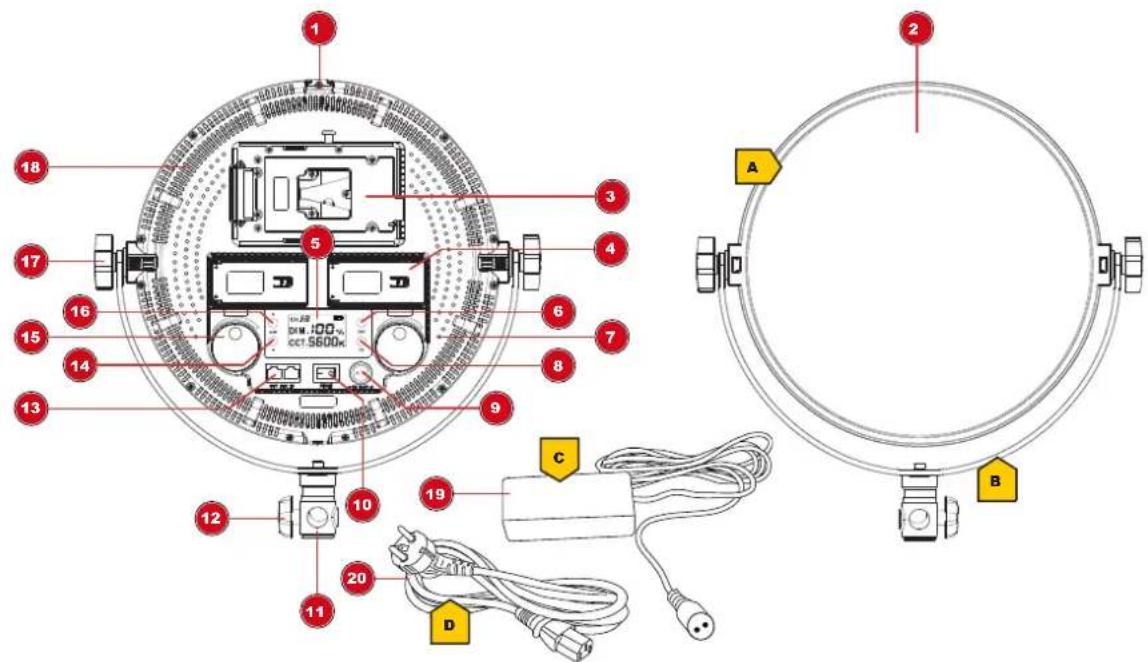

Illustration 2: All parts of the LED light, model BR-S60B

1 Hot shoe connection (for the use as a camera light)	2 LED panel
3 V-lock battery socket (adding suitable bat-tery ^1 for mobile use) (optional)	4 Battery socket (adding suitable batteries ^2 for mobile use) (optional)
5 LED display 6 Control selection button (turning on/off DMX control)
7 Brightness rotary knob (stepless bright-ness adjustment)	8 Channel selection rotary knob (DMX chan-nel selection)
9 Power supply socket 10 ON/OFF toggle switch (switch on/off the device)

11 Spigot tripod connection 12 Locking knob (Spigot tripod connection)
13 Modular socket for DMX connection 14 DOWN button (descrease value)
15 Colour temperature rotary knob (stepless colour temperature adjustment) 16 UP button (increase value)
17 Locking knob (U-mount) 18 Vents
19 DC power adapter with 2-pole plug 20 C13 power cable with Euro-plug

^1 V-lock battery not included

^2 NP-F750/970 battery not included

Scope of delivery:

LED light (A), U-mount with tripod connection (B), power adapter (C), power cable (D)

7 Establishing the power supply (mains operation)

WARNING! The device can not be operated at the same time by mains power adapter and by battery! To avoid voltage damage, always operate with only one of the two possible voltage sources!

1. Put the C13 coupling of the power cable into the C13 socket..
2. Put the DC connector into the connection socket of the device.
3. Put the Euro-plug of the power cable into the wall socket (230V maximum voltage).

CAUTION! When switching on the device, make sure that the ON/OFF toggle switch is moved to the correct position for the desired voltage source (mains adapter or battery)!

1. Move ON/OFF toggle switch to position 'II' to operate the device by mains power and to turn on the device.
2. Move ON/OFF toggle switch to position '0' to turn off the device.

NOTICE! If the device is not used for a long time, disconnect the device from the power supply (pull out mains plug or remove battery).

8 Power supply via battery (optional)

WARNING! The device can not be operated at the same time by mains power adapter and by battery! To avoid voltage damage, always operate with only one of the two possible voltage sources!

As an alternative to the power supply through mains voltage, the device can also be powered by a battery*.

NOTICE! Only use the type of battery described in this manual. Use of an unsuitable or unauthorized battery will damage the device and void the warranty.

1. Charge the rechargeable battery* completely.
2. Insert the battery into the battery socket at the backside of the housing.

CAUTION! Before switching on the device, make sure that only one voltage source is used (power adapter or battery)!

1. Move ON/OFF toggle switch to position 'I' to operate the device by battery and to turn on the device.
2. Move ON/OFF toggle switch to position '0' to turn off the device.

*not included

9 Lighting settings

1. Turn the brightness adjustment knob to set the desired brightness.

Only for bicolor models:

1. Turn colour vtemperature adjustment knob to set the desired colour temperature (3,200 to 5,600 K, stepless).

10 Changing the lighting angle

1. Carefully loosen the locking knobs on both sides of the U-mount.
2. Move the light to the desired angle.
3. Hand-tighten the locking knobs again.

DANGER! Allow the housing surface to cool down before touching it! Touching hot components can cause serious burns.

WARNING! Hold the light when the locking knobs have been loosened to avoid damage to the panel!

11 Connection with an lighting console (DMX-RJ11) (optional)

One or more LED lights can be controlled centrally when connecting them with a RJ11 compatible lighting console* through suitable connection cables*.

1. Insert the RJ11 modular plug of the connection cable* into the corresponding socket on the lighting console* and into the socket of the LED light.
2. Press the control selection knob to enable control via DMX lighting console. The DMX function lamp lights up.

NOTICE! In DMX control mode, the LED light can be controlled only through the console.

1. For the manual control or remote control*, press the control selection knob again. The 2.4G function light will light up.

*not included

12 Technical data

Model BR-S-36B(bicolor)		BR-S-60B(bicolor)
Power consumption 36W 60W
Number of LEDs 360 600
Luminous flux 3,600 LM 6,000 LM
Lamps LED, not replaceable LED, not replaceable
Colour temperature 3,200K to 5,600K 3,200K to 5,600K
Dimmer 10% to 100% 10% to 100%
Operating voltage DC 13 to 19V power adapteror optionalvia 2 x NP-F750/970 lithium battery		DC 13 to 19V power adapteror optionalvia 2 x NP-F750 lithium batteryor Sony V-lock lithium battery
Operating conditions dry, 0°C to +40°C	dry, 0°C to +40°C
Storage conditions	dry and dust-free, 0°C to +40°C	dry and dust-free, 0°C to +40°C

Table 1: BR-S Pro Series

NOTICE! The LEDs used in this device have a very long lifespan and do not need to be changed. The LEDs can not be changed due to technical reasons!

13 Disposal

Dispose of the packaging materials properly, according to their type, such as paper or cardboard. Contact your local waste-disposal service or environmental authority for information on the proper disposal.

Do not dispose of electronic devices in the household garbage!

As per Directive 2012/19/EC of the European Parliament on waste electrical and electronic equipment and its adaptation into German law, used electronic devices must be collected separately and recycled in an environmentally friendly manner.

14 EC Declaration of Conformity

Bresser GmbH has issued a "Declaration of Conformity" in accordance with applicable guidelines and corresponding standards. The full text of the EU declaration of conformity is available at the following internet address: http://archive.bresser.de/download/BRS/CE/CE_BRS-Series.pdf

Inhoud

Tab. 1: -S Pro Series

Please contact the service centre first for any questions regarding the product or claims, preferably by e-mail.

e-mail: [e-mail]

Telephone*: [phone]

BRESSER UK Ltd

Unit 1 starborough Farm,

Starborough Road, Nr Marsh Green,

Edenbridge, Kent TN8 5RB

Great Britain

* Number charged at local rates in the UK (the amount you will be charged per phone call will depend on the tariff of your phone provider); calls from abroad will involve higher costs.

FR BE
