USER MANUAL BR-60S BRESSER

Black BR-60S BRESSER-branded light bulb with yellow center and blue handle (no text or symbols on body)

GB INSTRUCTION MANUAL

GENERAL WARNINGS

⚠️ DANGER OF BODILY INJURY!

Do not use in the presence of children or animals. Store out of reach of children and animals.

RISK OF MATERIAL DAMAGE!

Make sure that no one can trip over connection cables of the device. The device could be knocked over.

Only use the recommended power cable or the recommended battery for the power supply!

The manufacturer accepts no liability for voltage damage caused by the use of an unsuitable power supply!

⚠️ DANGER OF AN ELECTRIC SHOCK!

This device contains electronic parts that are powered by a power source (power adapter). Only use the device as described in the manual. Otherwise, you run the DANGER of an ELECTRIC SHOCK.

Never bend, squeeze or pull power cables, connecting cables, extensions or connectors. Protect cables from sharp edges and heat.

Check this device, cables and connections for damage before use.

Never attempt to operate a damaged device, or a device with damaged electrical parts! Damaged parts must be replaced immediately by an authorized service agent.

Operate the device only in a completely dry environment and do not touch the device with wet or damp body parts.

RISK OF GLARE!

Make sure that people and animals do not look into the light. The high luminosity can cause glare to the eyes and afterimages. This impairment of vision can lead to accidents.

! FIRE/EXPLOSION HAZARD!

Always place the device in such a way that it cannot tip over and ensure that it is stored in a reasonably safe place.

• Keep children and animals away from the device! They could knock the device over.
• Make sure that no one can trip over connection cables. The device could be knocked over.
• Do not expose the device to high temperatures. Do not short-circuit the device or dispose of in fire! Excessive heat and improper handling can cause short circuits, fires and even explosions!
• Only use the recommended power supply*!

! IMPORTANT NOTE!

Do not disassemble the device! In the event of a defect, please contact your dealer. They will contact the Service Center and can arrange the return of this device for repair if necessary. Disconnect the power supply by pulling the mains plug when the appliance is not in use, in case of a longer interruption of operation and before any maintenance and cleaning work.

Place your device so that it can be disconnected from the power supply at any time. The power outlet should always be near your appliance and should be easily accessible, as the plug of the power cord serves as a disconnect device from the mains supply.

To disconnect the unit from the mains, always pull the mains plug and never pull the cable!

Do not subject the device to excessive vibrations.

CE DECLARATION OF CONFORMITY

CE Bresser GmbH has issued a „Declaration of Conformity“ in accordance with applicable guidelines and corresponding standards. The full text of the CE declaration of conformity is available at the following internet address:

UKCA DECLARATION OF CONFORMITY

UK Bresser UK Ltd. has issued a „Declaration of Conformity“ in accordance with applicable guidelines and corresponding standards. The full text of the UKCA declaration of conformity is available at the following internet address:

Bresser UK Ltd. • Suite 3G, Eden House, Enterprise Way, Edenbridge, Kent TN8 6HF, Great Britain

WARRANTY & SERVICE

The regular guarantee period is 2 years and begins on the day of purchase. You can consult the full guarantee terms and details of our services at www.bresser.de/warranty_terms. Would you like detailed instructions for this product in a particular language? Then visit our website via the link below (QR code) for available versions.

www.bresser.de/warranty_terms

DELIVERY CONTENT (Fig. 1)

LED Light (A), remote control (B), power cable (C)

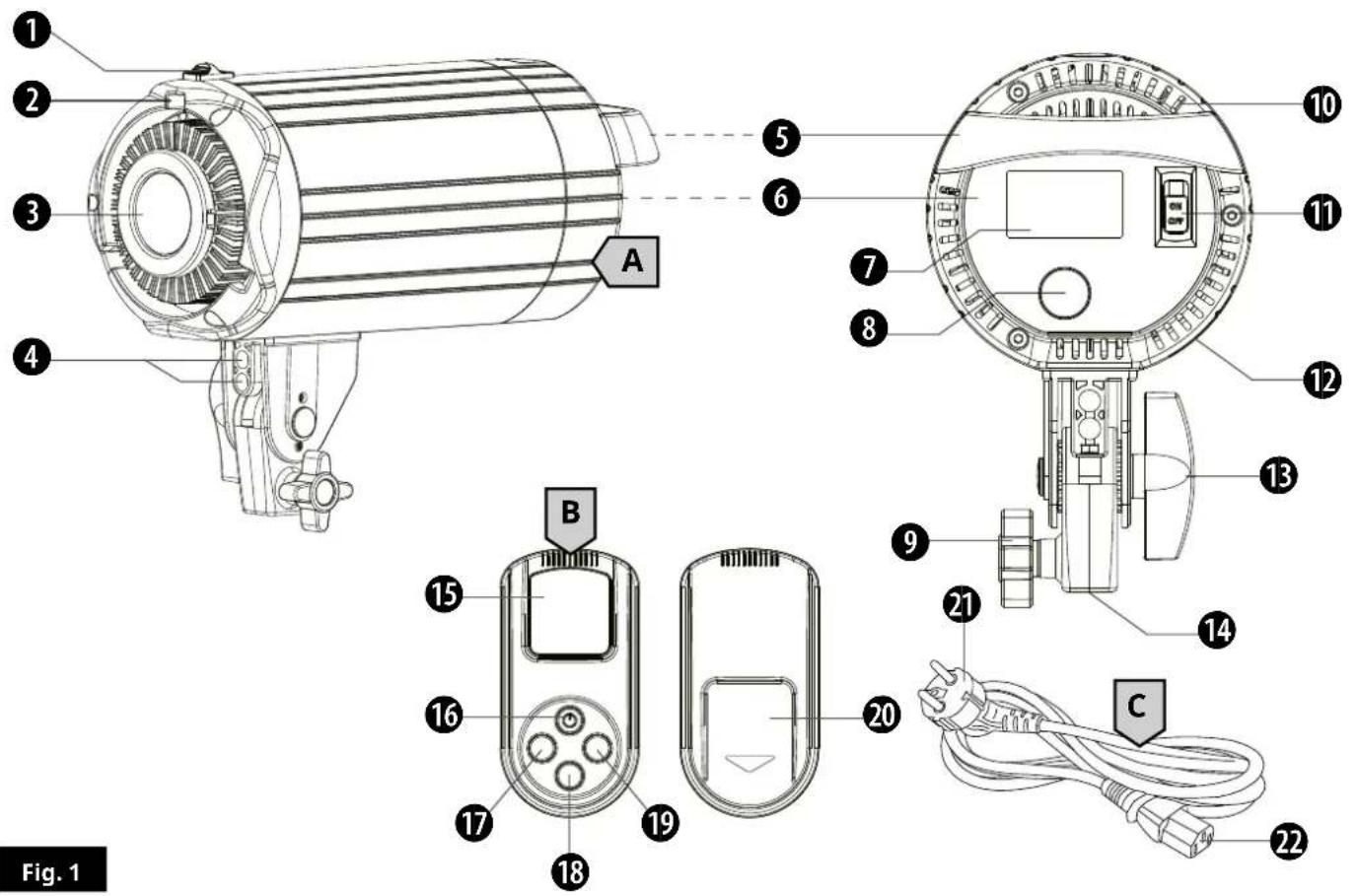

PARTS OVERVIEW (Fig. 1)

LED LIGHT (A)

① Slide for S-bayonet release When turned on, the brightness range is 10-100%
② Notches for accessories with S-bayonet connector
③ LED Light source
④ Holes for accessory rod (e.g. for umbrella)
⑤ Handle
⑥ Control panel
⑦ LCD
⑧Adjustment knob

- Press to set desired channel (1-99)

• Turn to set desired brightness (10-100%)

⑨ Fixing screw (tripod connection)
⑩ Vents
⑩ Power slider
⑫ Power connection socket
⑬ Locking screw (tilt joint)
⑭ Tripod connection

REMOTE CONTROL (B)

15 LCD
16 Power knob
⑰ - knob
18 Menu knob
⑲ + knob
⑳ Battery compartment

POWER CABLE (C)

② Euro plug
② C13 plug

ESTABLISHING THE POWER SUPPLY

1. Insert the C13 plug (22) of the power cable (C) into the power connection socket (12) on the LED light.
2. Insert the Euro plug (21) of the power cable (C) into the wall socket.

SWITCHING ON/OFF THE LED LIGHT

1. Establish the power supply for the device.
2. Slide the power slider (11) to the 'ON' position to switch on the device. The lighting is switched on with the settings of the last use.
3. Slide the power slider (11) to the 'OFF' position to switch off the device. The last settings made are retained until the device is switched on again.

Important: Disconnect the device from the power supply if it is not going to be used for a long period of time!

1. Turn the adjustment knob (8) clockwise to increase the brightness.
2. Turn the adjustment knob (8) counterclockwise to decrease the brightness.

SETTING UP THE CHANNEL

1. Press the adjustment knob (8) several times until the desired channel is shown in the display.

Note: Make sure to set the same channel on the device as well as on the remote control. To control different devices at the same time, use the same channel for all devices. If you want to control more devices at different times, use a different channel for each device.

ADJUSTING THE TILT ANGLE

1. Hold the LED light and slowly loosen the locking screw for the tilt joint (13).
2. Move the light head to the desired position and tighten the locking screw (13) again hand-tight.

MOUNTING ON A TRIPOD\* (optional)

1. Loosen the fixing screw (9) for the tripod connection (14) so that the opening of the tripod connection is exposed.
2. Place the LED light with the opening on the spigot adapter* of a tripod* and tighten the fixing screw (9) firmly.

ATTACHING ACCESSORIES (optional)

• This LED light is equipped with two holes in the tilt head which can be used to attach optional accessories with a suitable rod (e.g. umbrella).
• This LED light is also has a S-bayonet connection which can be used to attach optional accessories with suitable S-bayonet.

DISPOSAL

Dispose of the packaging materials properly, according to their type, such as paper or cardboard. Contact your local waste-disposal service or environmental authority for information on the proper disposal.

Do not dispose of electronic devices in the household garbage! As per the Directive 2002/96/EC of the European Parliament on waste electrical and electronic equipment and its adaptation into German law, used electronic devices must be collected separately and recycled in an environmentally friendly manner.

In accordance with the regulations concerning batteries and rechargeable batteries, disposing of them in the normal household waste is explicitly forbidden. Please make sure to dispose of your used batteries as required by law at a local collection point or in the retail market. Disposal in domestic waste violates the Battery Directive. Batteries that contain toxins are marked with a sign and a chemical symbol.

^1 Battery contains cadmium ^2 Battery contains mercury ^3 Battery contains lead

TECHNICAL DATA

Model BR-60S BR-150S BR-200S
Output Power 60W 150W 200W
Luminous Flux 5400LM 13500LM	18000LM
Color Rendering Index	95
LED Quantity	1 pc.
Color Temperature	5600K
Illuminant	High-Power LED Module (COB)
Adjusting Range	10%-100%
Remote Control	99 channels, 2.4G wireless remote control
Remote Control distance	approx. 30M
Voltage	AC100-240V 50/60Hz
