Product Type	Open (non-pressurized) electric water boiler for domestic hot water and boiling
Model	EBK 5 K automatic
Brand	Stiebel Eltron
Intended Use	Heating and boiling domestic hot water in kitchens, offices, hotels, etc.
Capacity	5 liters (nominal)
Dimensions (H x W x D)	295 mm (from center of water connection) x 325 mm x 197 mm
Weight (empty)	2.7 kg
Weight (full)	7.7 kg
Electrical Connection	230 V, 50 Hz, 1/N/PE, 2 kW connected load
Power Cable	Length 650 mm, replaceable with original spare part only by qualified contractor
Temperature Range	35 °C to 100 °C (boiling)
Max Flow Rate	10 l/min (with fully open tap)
Max Permissible Pressure	0 MPa (open vented)
Material (Container)	Plastic
Material (Tap Body)	Brass
IP Rating	IP24
Control	Temperature selector with one-touch button and ON/OFF indicator
Safety Features	Temperature limiter, safety temperature controller, earth conductor, overheat protection
Maintenance	Descaling with formic acid-based agents; clean with damp cloth
Installation	Vertical oversink installation in frost-proof room; wall mounting bracket included
Warranty	Varies by country; refer to local subsidiary terms

Frequently Asked Questions - EBK 5 K automatic STIEBEL ELTRON

How do I descale the EBK 5 K automatic?

Use an environmentally compatible formic acid-based descaling agent. Fill the appliance with water and descaling agent, set the temperature selector to the descaling setting, and heat. Rinse thoroughly with cold water afterwards.

What does the ON/OFF indicator mean?

The ON/OFF indicator illuminates while the water is heating. It goes out when the selected temperature is reached and the appliance switches off automatically.

Can children use this appliance?

Yes, children aged 8 and up can use it under supervision or if instructed on safe use. They must not play with or clean the appliance.

What happens if I overfill the appliance?

Boiling water may spurt out through the overflow/steam pipe. Always fill between the cup symbol and maximum 5 liters.

How do I adjust the flow rate?

Use the throttle screw on the tap. Turn clockwise to reduce flow, counterclockwise to increase. Maximum flow rate is 10 l/min.

Can I install the appliance under the sink?

No, always install vertically oversink (above the sink) in a frost-proof room. The overflow/steam pipe must not be enclosed.

What should I do if the appliance does not heat?

Check power supply, fuse/MCB, and ensure the appliance is filled with water. If still not heating, contact a qualified contractor to check the heating element or temperature selector.

How do I replace the power cable?

Only a qualified contractor authorized by the manufacturer should replace it with the original spare part (part no. 020671). Permanent installation is not permitted.

What is the maximum temperature setting?

The temperature selector can be turned to the boiling end stop, which heats water to boiling (100 °C). The appliance switches off automatically when the temperature is reached.

Is the appliance suitable for commercial use?

Yes, it can be used in non-domestic environments such as shops, offices, and hotels, provided it is used for heating and boiling domestic hot water only.

USER MANUAL EBK 5 K automatic STIEBEL ELTRON

OBSŁUGA I INSTALACJA

Line drawing of a water level control device with pump and valve (no text or symbols)

Line drawing of a water heater with pipe and valve (no text or symbols)

BESONDERE HINWEISE

BEDIENUNG

1.1 Safety instructions 16

1.2 Other symbols in this documentation 16

1.3 Units of measurement 16

1. Safety 16

2.1 Intended use 16

2.2 Safety instructions 17

2.3 Test symbols 17

1. Appliance description 17

2. Settings 17

3. Cleaning, care and maintenance 18

5.1 Descaling 18

5.2 Cleaning 18

1. Troubleshooting 19

INSTALLATION

1. Safety 20

7.1 General safety instructions 20

7.2 Instructions, standards and regulations 20

1. Appliance description 20

8.1 Standard delivery 20

8.2 Accessories 20

1. Preparations 20

9.1 Installation site 20

1. Installation 20

10.1 Appliance installation 20

10.2 Alternative installation methods 22

10.3 Power supply 23

1. Initial start-up 24

11.1 Appliance handover 24

1. Troubleshooting 24

2. Maintenance 24

13.1 Servicing the taps 24

13.2 Checking the earth conductor 24

13.3 Replacing the power cable 24

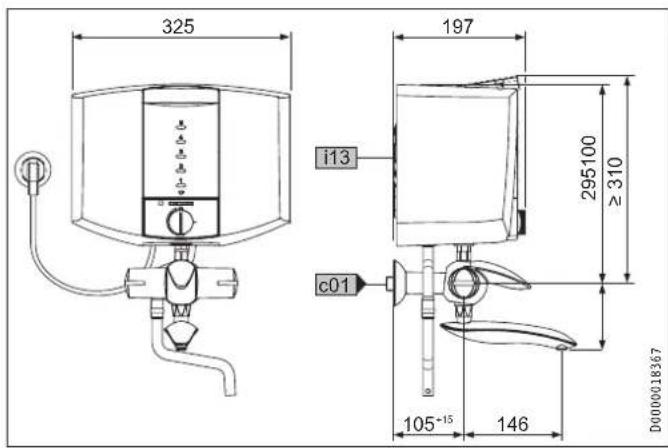

1. Specification 25

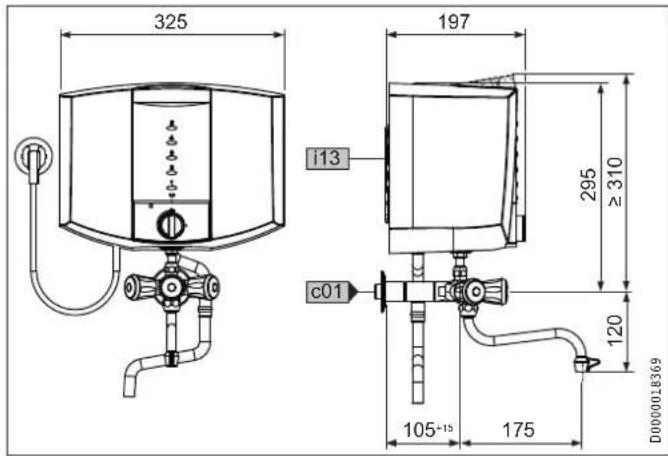

14.1 Dimensions and connections 25

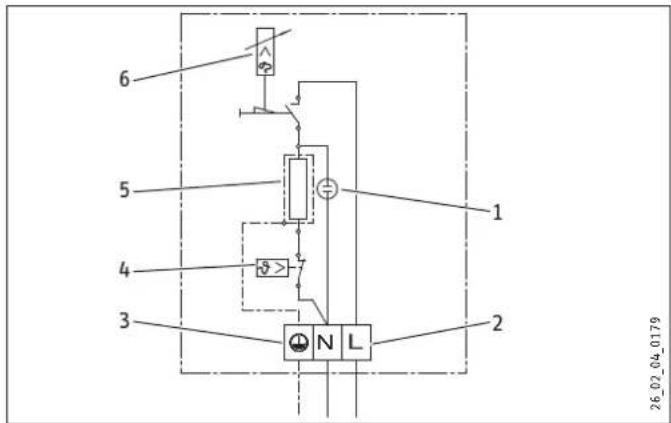

14.2 Wiring diagram 25

14.3 Heat-up table 25

14.4 Data table 26

GUARANTEE

ENVIRONMENT AND RECYCLING

SPECIAL INFORMATION

• The appliance may be used by children aged 8 and up and persons with reduced physical, sensory or mental capabilities or a lack of experience and know-how, provided that they are supervised or they have been instructed on how to use the appliance safely and have understood the resulting risks. Children must never play with the appliance. Children must never clean the appliance or perform user maintenance unless they are supervised.
• Installation with a permanent power cable is not permitted.
• When permanently connected to the power supply using an appliance wall socket, the appliance must be able to be separated from the mains power supply by an isolator that disconnects all poles with at least 3 mm contact separation.
• The power cable must only be replaced (for example if damaged) with the original spare part by a qualified contractor authorised by the manufacturer.
• Secure the appliance as described in chapter "Installation / Installation".

OPERATION

1. General information

The chapters "Special Information" and "Operation" are intended for both the user and qualified contractors.

The chapter "Installation" is intended for qualified contractors.

Note

Read these instructions carefully before using the appliance and retain them for future reference. Pass on the instructions to a new user if required.

1.1 Safety instructions

1.1.1 Structure of safety instructions

KEYWORD Type of risk Here, possible consequences are listed that may result from failure to observe the safety instructions.

▶ Steps to prevent the risk are listed.

1.1.2 Symbols, type of risk

Symbol Type of risk

Injury

Electrocution

Burns (burns, scalding)

1.1.3 Keywords

KEYWORD Meaning

DANGER Failure to observe this information will result in serious injury or death.

WARNING Failure to observe this information may result in serious injury or death.

CAUTION Failure to observe this information may result in non-serious or minor injury.

1.2 Other symbols in this documentation

Note

General information is identified by the symbol shown on the left.

▶ Read these texts carefully.

Symbol Meaning

Material losses

(appliance damage, consequential losses and environmental pollution)

Appliance disposal

This symbol indicates that you have to do something. The action you need to take is described step by step.

1.3 Units of measurement

Note

All measurements are given in mm unless stated otherwise.

2. Safety

2.1 Intended use

This is an open (non-pressurised) appliance for heating hot and boiling domestic hot water. The appliance is intended for domestic or similar usage conditions, such as in kitchens for employees in shops, offices and other commercial settings, in agricultural premises, or for customers in hotels, motels, B&Bs and other types of accommodation.

This appliance is intended for domestic use. It can be used safely by untrained persons. The appliance can also be used in a non-domestic environment, e.g. in a small business, as long as it is used in the same way.

Any other use beyond that described shall be deemed inappropriate. Observation of these instructions is also part of the correct use of this appliance. Any changes or modifications to this appliance void all warranty rights.

2.2 Safety instructions

WARNING Burns

Steam escapes from the overflow/steam pipe during the boiling process. The pipe must not be enclosed or extended.

WARNING Burns

If the appliance is overfilled, boiling water may spurt out.

WARNING Burns

Never open the cover during the heating process.

WARNING Burns

KBA 5 KA: The taps can reach temperatures above 60 °C.

WARNING Injury

The appliance may be used by children aged 8 and up and persons with reduced physical, sensory or mental capabilities or a lack of experience and know-how, provided that they are supervised or they have been instructed on how to use the appliance safely and have understood the resulting risks. Children must never play with the appliance. Children must never clean the appliance or perform user maintenance unless they are supervised.

Material losses

Never operate this appliance if it is not filled with water. If you want to draw off hot water during the heating process, leave approximately 0.5 l (see cup symbol) in the appliance until it switches off, or set the temperature selector to OFF.

2.3 Test symbols

See type plate on the appliance.

3. Appliance description

The appliance electrically heats up domestic hot water and is filled via the relevant tap. The appliance switches off automatically when it reaches the temperature selected with the temperature selector. You can draw off the hot water via the tap.

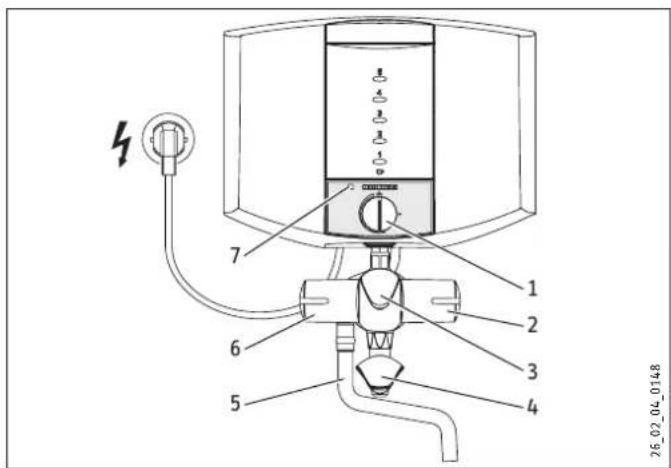

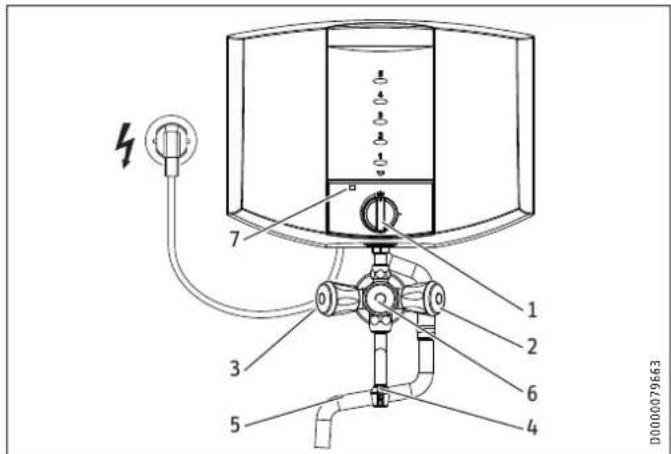

4. Settings

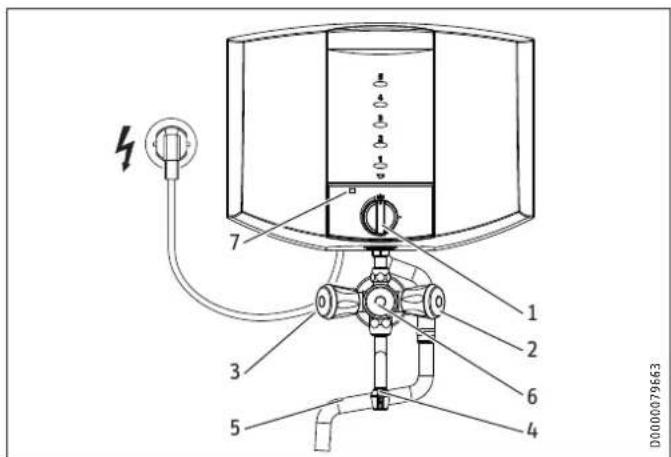

EBK 5 K

KBA 5 KA

1 Temperature selector with one-touch button for switching the appliance on
2 Drawing off cold water
3 Filling the appliance
4 Tap outlet pipe
5 Overflow/steam pipe
6 Drawing hot water
7 ON/OFF indicator

▶ Using the relevant tap, fill the appliance at least as far as the cup symbol but with no more than 5 l of water.

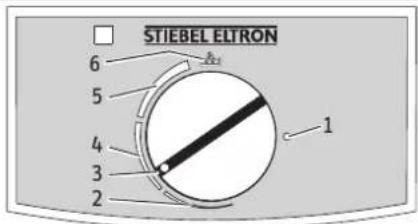

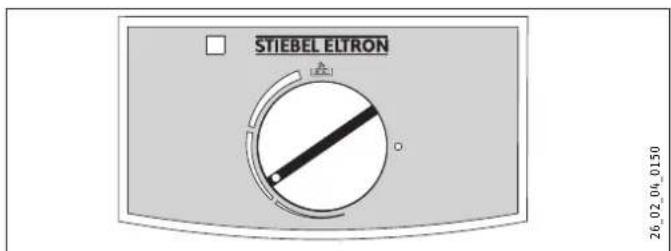

26_02_04_0150

Temperature setting OFF

2 Temperature setting warm
3 Descaling setting
4 Temperature setting warm to hot (steaming)
5 Temperature setting hot (steaming) to boiling
6 Boiling end stop

▶ Turn the temperature selector straight to the boiling end stop.
▶ Switch the appliance on by pressing the temperature selector.

The ON/OFF indicator illuminates while the water is heated.

Once the selected temperature has been reached, the appliance switches itself off automatically following a system-dependent delay. The ON/OFF indicator goes out.

The temperature at which the appliance turns off can vary depending on the fill level, the degree of scaling and the residual heat.

▶ If necessary, you can bring the water straight back to boiling point by keeping the temperature selector pressed.
▶ You can stop the heating process at any time by turning the temperature selector to OFF.
▶ Draw the water off via the tap.

5. Cleaning, care and maintenance

5.1 Descaling

Almost every type of water will deposit lime at high temperatures. Therefore, it is necessary to descale the appliance every so often.

WARNING Burns

Descalers that generate a lot of foam can result in the appliance overflowing, which would put users at risk.

▶ Use environmentally compatible formic acid-based descaling agents.
▶ Do not the boil water during descaling.

Technical line drawing showing two mechanical components with arrows indicating motion (no text or symbols)

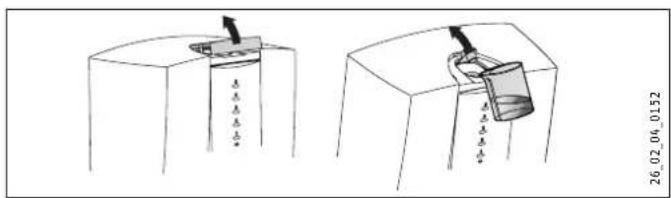

▶ When the appliance has cooled down, open the cover.
▶ Open the locking tab, if required with the help of the cover or a spoon.

Material losses

The descaling agent may cause corrosion on the casing. To avoid this, take care when pouring in the water and descaling agent. Use a funnel if required and avoid any overflow.

▶ Fill the appliance with the recommended amount of water and descaling agent.
▶ Push in the locking tab and close the cover.

▶ Turn the temperature selector to the descale setting (see diagram).
▶ Switch the appliance on by pressing the temperature selector.
Leave the descaling agent to take effect and repeat the heating process if necessary.
▶ Draw off all the water and rinse the appliance out several times with cold water.
▶ Boil the maximum possible volume of water and draw this water off once again.

5.2 Cleaning

▶ Never use abrasive or corrosive cleaning agents. A damp cloth is sufficient for cleaning the appliance.

6. Troubleshooting

Problem Cause Remedy
The appliance does not heat up.	The appliance is not plugged into the mains.	Insert the plug into the mains socket.
	The appliance is not switched on.	Switch the appliance on.
	The fuse/MCB has blown/ responded.	Check the fuse/MCB in your fuse box/distribution panel.
There is no water in the appliance.		Fill the appliance with water.
The appliance switches off before it reaches boiling point.	The appliance is scaled up.	Descale the appliance.
The hot water flow is significantly reduced, despite the draw-off valve being fully open.	The appliance is scaled or dirty.	Clean and descale the appliance.

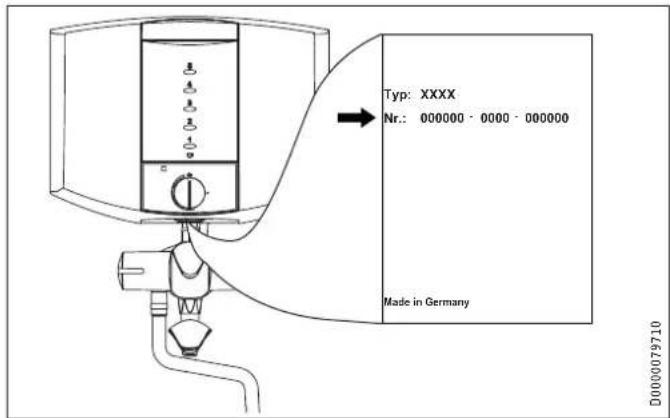

If you cannot remedy the fault, notify your qualified contractor. To facilitate and speed up your request, provide the number from the type plate (000000-0000-000000).

Only a qualified contractor should carry out installation, commissioning, maintenance and repair of the appliance.

7.1 General safety instructions

We guarantee trouble-free function and operational reliability only if original accessories and spare parts intended for the appliance are used.

7.2 Instructions, standards and regulations

Note

Observe all applicable national and regional regulations and instructions.

8. Appliance description

The appliance heats DHW electrically. Once the selected temperature has been reached, the temperature limiter switches the appliance off.

8.1 Standard delivery

The following are delivered with the appliance:

• Fill/drain tap
• Wall mounting bracket
• Two screws, two rawl plugs, two washers
• Installation template

8.2 Accessories

Replacement drain taps, replacement pivoting spouts and drain outlets with stench traps are available as accessories.

9. Preparations

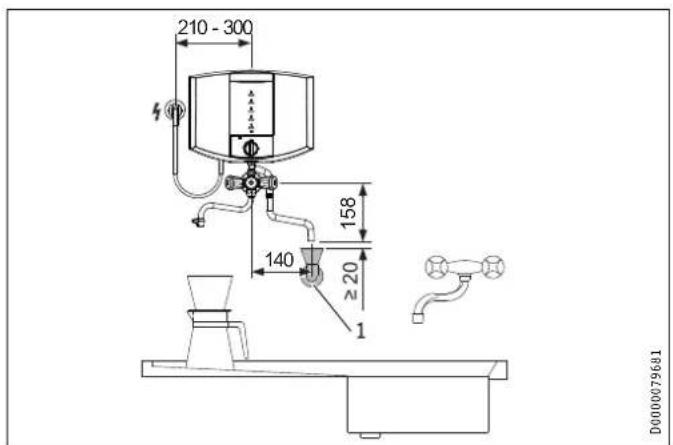

9.1 Installation site

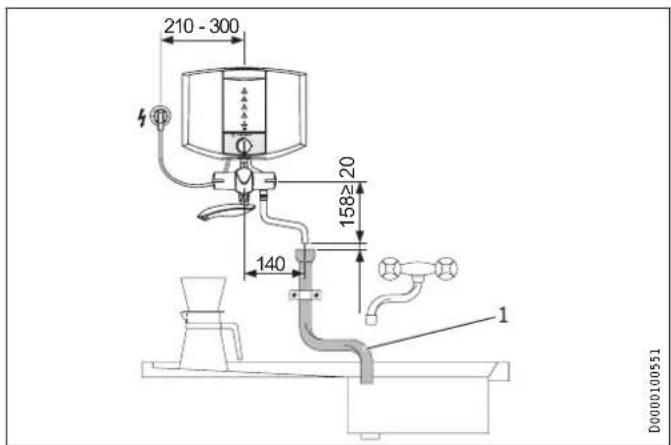

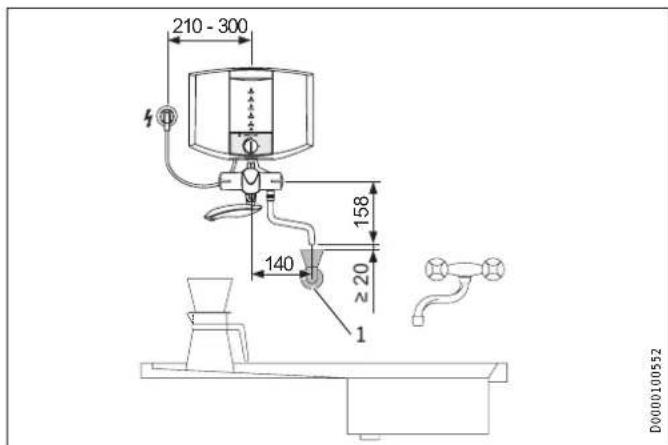

Always install the appliance vertically (oversink) in a frost-proof room.

10. Installation

10.1 Appliance installation

See also chapter "Alternative installation methods".

26_02_04_0144

▶ Using the installation template, transfer the dimensions of the wall mounting to the wall. To do so, loosely screw the installation template with tap connection to the wall.
▶ Drill the holes.

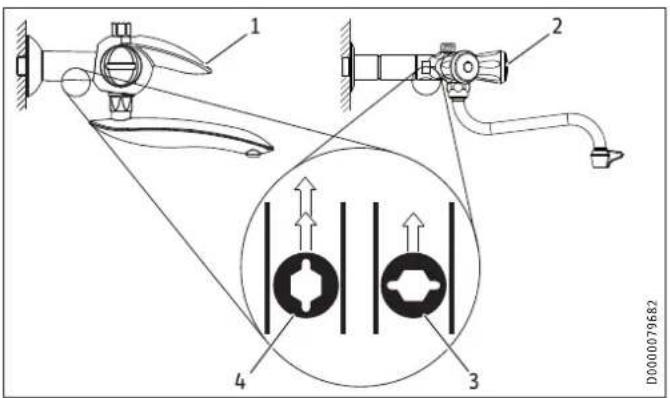

EBK 5 K

1 Twin connector with throttle screw
2 Plastic sleeve
3 White-coated two-handled lever tap
▶ Screw in the twin connector.
▶ Slide the plastic sleeve onto the twin connector.

1 Screw depth specification
2 White-coated two-handled lever tap with throttle screw
▶ Screw in the tap, taking care to observe the screw depth specification.
▶ Attach the tap outlet.

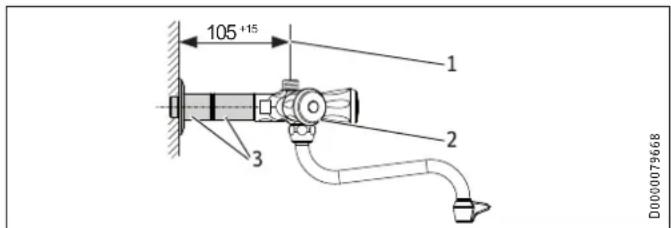

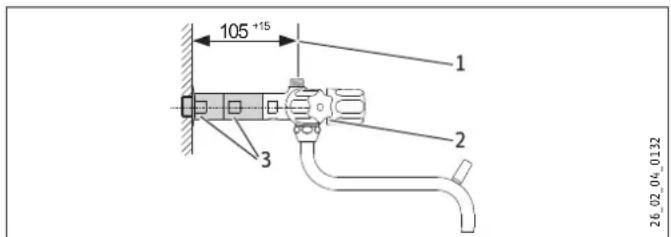

KBA 5 KA

1 Screw depth specification
2 Chrome-coated three-handled tap with throttle screw
3 Extensions
▶ Screw in the tap with the extensions, taking care to observe the screw depth specification.
▶ Attach the tap outlet.

EBK 5 K

KBA 5 KA

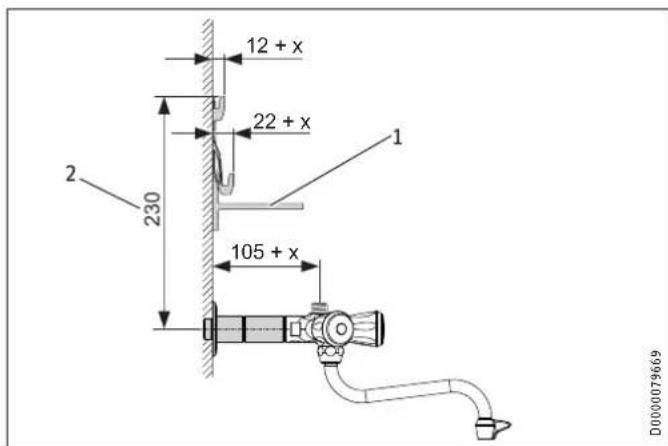

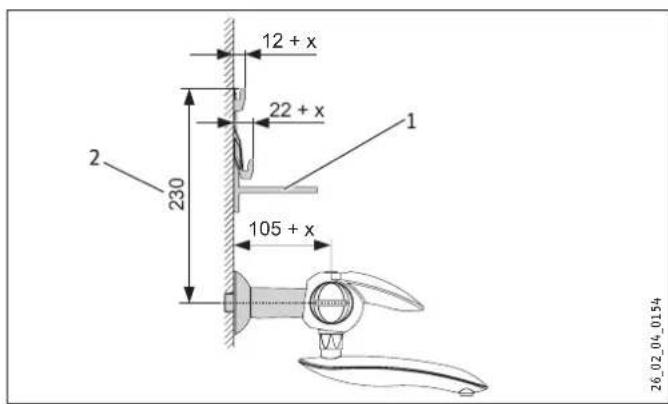

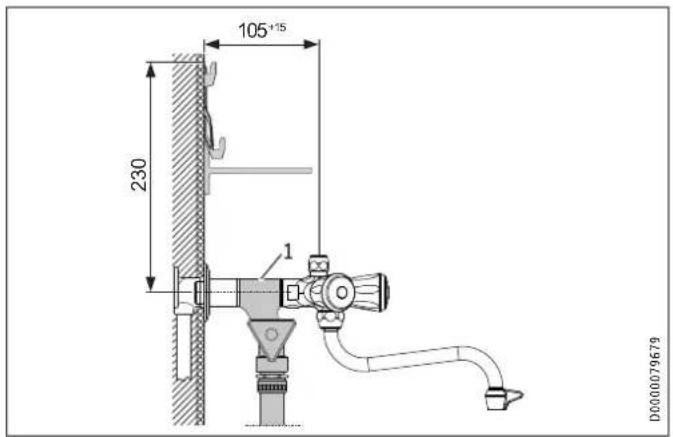

1 Wall mounting bracket
2 Height specification
x Increase of tap insertion depth / distance of tabs from the wall mounting bracket: maximum 15 mm.

Note

If the tap insertion depth is greater than 105 mm, adapt the bend in the tabs of the wall mounting bracket (see illustration).

▶ Fit the wall mounting bracket using the rawl plugs, washers and screws supplied.
▶ Align the wall mounting bracket using a spirit level. Take care to observe the height specification. If the wall is uneven, the wall mounting bracket can be secured using additional screws at the bottom.

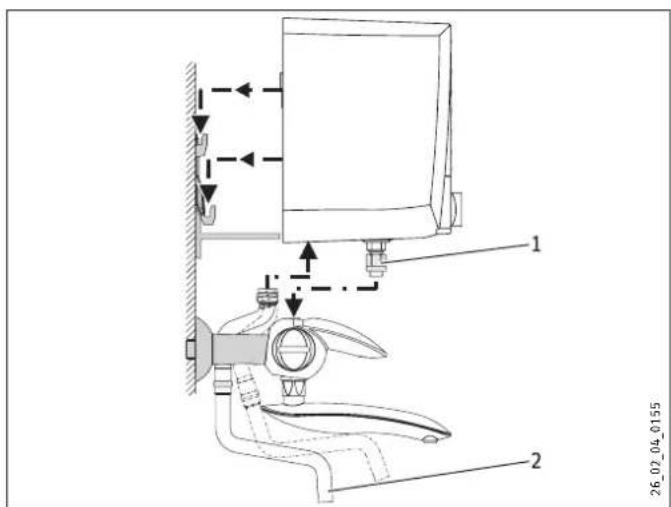

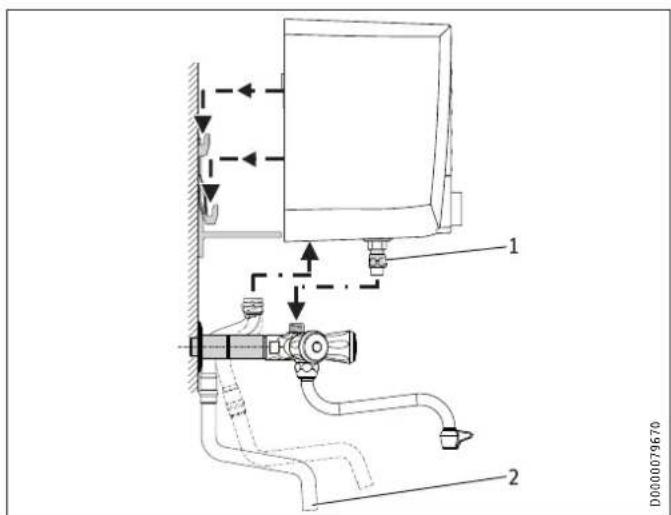

EBK 5 K

1 Compression fitting, spanner size 19
2 Overflow/steam pipe

KBA 5 KA

1 Compression fitting, spanner size 19
2 Overflow/steam pipe

▶ Slide the appliance from above down onto the wall mounting bracket and the tap fitting so it is properly aligned.
▶ When fastening the compression fitting, apply slight downward pressure on the appliance.
▶ Attach the overflow/steam pipe.

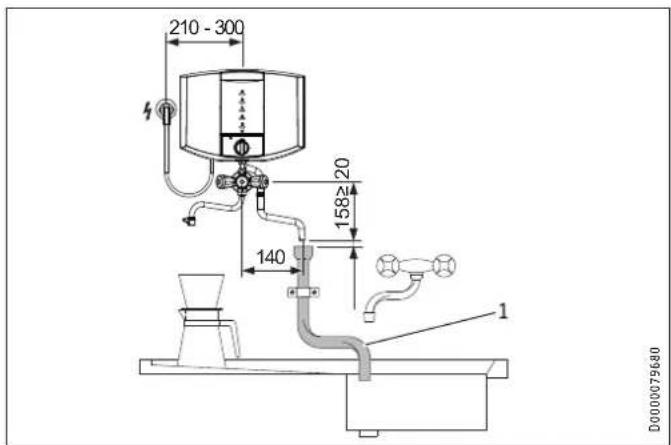

10.2 Alternative installation methods

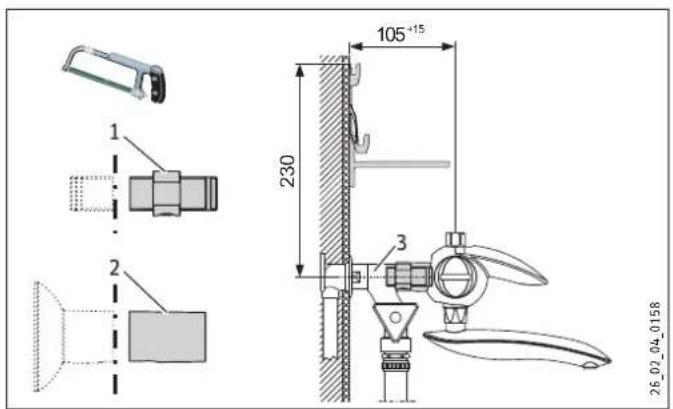

10.2.1 Water connection on finished walls with washing machine and dishwasher connection (WAS valve)

EBK 5 K

1 Twin connector
2 Plastic sleeve
3 WAS valve

- Trim the twin connector and the plastic sleeve to the right lengths.

KBA 5 KA

1 WAS valve

10.2.2 Attaching the overflow/steam pipe to finished walls

Note
With these connections, the overflow/steam pipe must be fixed to the wall.

EBK 5 K

1 Outlet pipe to the sink

KBA 5 KA

1 Outlet pipe to the sink

10.2.3 Attaching the overflow/steam pipe to unfinished walls

Note

With these connections, the overflow/steam pipe must be fixed to the wall.

EBK 5 K

1 Drain outlet with stench trap

KBA 5 KA

1 Drain outlet with stench trap

10.3 Power supply

WARNING Electrocution

Carry out all electrical connection and installation work in accordance with relevant regulations.

WARNING Electrocution

Installation with a permanent power cable is not per- mitted.

When permanently connected to the power supply using an appliance wall socket, the appliance must be able to be separated from the mains power supply by an isolator that disconnects all poles with at least 3 mm contact separation.

Material losses

Observe the type plate. The specified voltage must match the mains voltage.

Note

Ensure that the appliance is earthed.

When connecting the appliance via a standard socket, ensure that this is easily accessible once the appliance has been installed.

11. Initial start-up

1 White-coated two-handled lever tap with throttle screw
2 Chrome-coated three-handled tap with throttle screw
3 Throttle screw for flow rate: maximum throttle
4 Throttle screw for flow rate: no throttle

▶ Adjust the flow rate. For this, observe the maximum permissible flow rate with a fully opened tap (see chapter "Specification / Data table"). If necessary, reduce the flow rate using the throttle screw.
▶ Fill the appliance via the tap fitting. Observe the maximum nominal capacity (see chapter "Specification / Data table").
▶ Turn the temperature selector to the required temperature.
▶ Press the temperature selector.
▶ Check the function of the appliance.
▶ Draw off hot water via the tap.
▶ Remove the protective foil from the user interface.

11.1 Appliance handover

Explain the appliance function to users and familiarise them with its operation.
▶ Make users aware of potential dangers, especially the risk of scalding.
▶ Hand over these instructions.

12. Troubleshooting

Fault Cause Remedy
The appliance does not heat up.	The heating element/temperature selector is faulty.	Check the heating element/temperature selector and replace the relevant component if necessary.
The ON/OFF indicator does not illuminate although the appliance is switched on.	The ON/OFF indicator is faulty.	Replace the ON/OFF indicator.
The flow rate is reduced when filling the appliance or drawing cold water.	The throttle screw is contaminated.	Clean the throttle screw.
The tap leaks.	A sealing element is faulty.	Check the sealing systems and replace the relevant sealing element if necessary.

13. Maintenance

WARNING Electrocution Before any work on the appliance, disconnect all poles of the appliance from the power supply.

13.1 Servicing the taps

When carrying out maintenance work on the taps, reduce the water supply by using the throttle screw. Be aware that the throttle screw is not permanently watertight (see chapter "Commissioning").

13.2 Checking the earth conductor

In accordance with DGUV V3, check the earth conductor on the heating element and the earth conductor contact on the power cable.

13.3 Replacing the power cable

The power cable must be replaced by an authorised contractor with the original spare part (part no. 020671).

14. Specification

14.1 Dimensions and connections

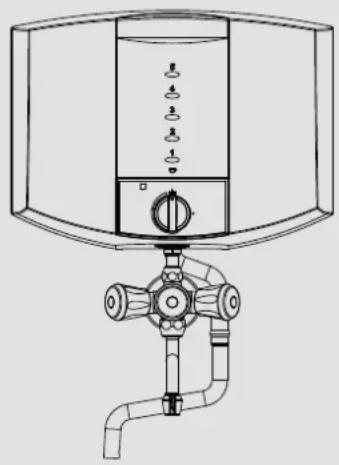

EBK 5 K

EBK 5 K
c01 Cold water inlet Male thread G 1/2 A
i13 Wall mounting bracket

KBA 5 KA

KBA 5 KA

c01	Cold water inlet	Male thread	G 1/2 A
i13	Wall mounting bracket

14.2 Wiring diagram

1/N/PE \~ 230 V

1 ON/OFF indicator
2 Mains terminal
3 Earth conductor
4 Safety temperature controller
5 Heating element
6 Temperature limiter

14.3 Heat-up table

The heat-up period depends on the amount of water, degree of scaling and residual temperature. For the heat-up time for a cold water supply of 10 °C and a maximum temperature setting, see the following table.

Content	1	1	2	3	4	5
Approx. heat-up time	min	3	6	9	12	15

14.4 Data table

EBK 5 K KBA 5 KA
074288 074289
Hydraulic data
Nominal capacity	l	5	5
Electrical data
Connected load ~ 230 V	kW	2	2
Rated voltage	V	230	230
Phases	1/N/PE	1/N/PE
Frequency	Hz	50	50
Application limits
Temperature setting range	°C	35 - 100	35 - 100
Max. permissible pressure	MPa	0	0
Max. flow rate	l/min	10	10
Versions
IP rating		IP24	IP24
Open vented type		X	X
Container material		Plastic	Plastic
Material, tap body		Brass	Brass
Colour, outer tap body		White	Chrome-plated
Dimensions
Height from the centre of the water connection	cm		295
Width	mm	325	325
Depth	mm	197	197
Length of connecting cable	mm	650	650
Weights
Weight, empty	kg	2.7	2.7
Weight, full	kg	7.7	7.7

Guarantee

The guarantee conditions of our German companies do not apply to appliances acquired outside of Germany. In countries where our subsidiaries sell our products a guarantee can only be issued by those subsidiaries. Such guarantee is only granted if the subsidiary has issued its own terms of guarantee. No other guarantee will be granted.

We shall not provide any guarantee for appliances acquired in countries where we have no subsidiary to sell our products. This will not affect warranties issued by any importers.

Environment and recycling

We would ask you to help protect the environment. After use, dispose of the various materials in accordance with national regulations.

BIJZONDERE INFO

BEDIENING

WAARSCHUWING verbranding

WAARSCHUWING verbranding

WAARSCHUWING verbranding

WAARSCHUWING verbranding

KBA 5 KA

Technical line drawing showing two mechanical components with arrows indicating motion, no text or symbols present

KBA 5 KA

www.stiebel-eltron.com.au

Austria

STIEBEL ELTRON Ges.m.b.H.

Plant C3, XEDA International Industry City

Xiqing Economic Development Area

300385 Tianjin

Tel. [phone] | Fax [phone]

[e-mail]

www.stiebeleltron.cn

Czech Republic

STIEBEL ELTRON spol. s r.o.

61 Barrys Point Road | Auckland 0622

Tel. [phone]

[e-mail]

www.stiebel-eltron.co.nz

Poland

STIEBEL ELTRON Polska Sp. z 0.0.

Urzhumskaya street 4,

building 2 | 129343 Moscow

Tel. [phone]

[e-mail]

www.stiebel-eltron.ru

Slovakia

STIEBEL ELTRON Slovakia, s.r.o.

Hlavná 1 | 058 01 Poprad

Tel. [phone] | Fax [phone]

[e-mail]

www.stiebel-eltron.sk

South Africa

STIEBEL ELTRON Southern Africa (PTY) Ltd

30 Archimedes Road

Wendywood

Johannesburg, 2090

Tel. [phone]

[e-mail]

www.stiebel-eltron.co.za

Switzerland

STIEBEL ELTRON AG

Industrie West

Gass 8 | 5242 Lupfig

Tel. [phone] | Fax [phone]

[e-mail]

www.stiebel-eltron.ch

Thailand

STIEBEL ELTRON Asia Ltd.

469 Moo 2 Tambol Klong-Jik

Amphur Bangpa-In | 13160 Ayutthaya

Tel. [phone] | Fax [phone]

[e-mail]

www.stiebeleltronasia.com

United Kingdom and Ireland

STIEBEL ELTRON UK Ltd

Unit 12 Stadium Court

Stadium Road | CH62 3RP Bromborough

Tel. [phone] | Fax [phone]

[e-mail]

www.stiebel-eltron.co.uk

United States of America

STIEBEL ELTRON, Inc.

17 West Street | 01088 West Hatfield MA

Tel. [phone] | Fax [phone]

[e-mail]

www.stiebel-eltron-usa.com

Irrtum und technische Änderungen vorbehalten! | Subject to errors and technical changes! | Sous réserve d'erreurs et de modifications techniques! | Onder voorbehoud van vergissingen en technische wijzigingen! | Salvo error o modificación técnica! | Excepto erro ou alteração técnica | Zastrzeżone zmiany techniczne i ewentualne błędy | Omyly a technické zmény jsou vyhrazeny! | A muszaki változtalások és tévedések jogát fenntartjuk! | Otcutствие ошибok ne гарантируется. Возможны технические изменения. | Chyby a technické zmény sű vyhradené! Stand 9734

STIEBEL ELTRON
