Product Type	Digital Video Recorder (DVR)
Brand	IDIS
Model	TR-2504
Video Channels	4 (estimated from model number)
Video Compression	H.265 (default), H.264 selectable
Video Input Resolution	Up to 5MP (depending on camera)
Audio Inputs	Up to 4 (RCA)

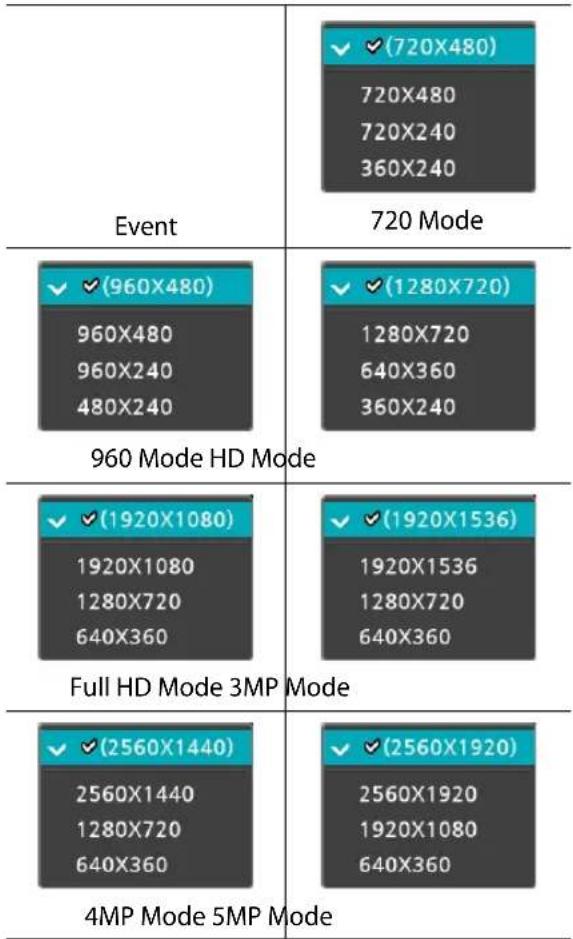

Recording Resolution	Very High (e.g., 1920x1080), High, Standard, Basic per mode
Recording Frame Rate	Up to 30 ips (depending on resolution and mode)
Storage	Supports SATA2 HDD (internal), USB external for backup
PTZ Control	Yes, via RS232/RS485, supports Pelco-C/H-C protocols
Network Connectivity	Ethernet (LAN), FEN, RTSP, IDIS Web
Remote Access	IDIS Web (Internet Explorer), IDIS Center, mobile via RTSP
Event Detection	Motion, Video Loss, Alarm-In, Text-In
Recording Modes	Time Lapse, Event, Time & Event, Panic
Alarm Outputs	2 (built-in buzzer and alarm-out ports)
Text-In Support	Yes (RS232, RS485, USB-Serial, LAN ports)
Power Supply	AC 100-240V, 50/60Hz (internal SMPS)
Operating Temperature	0°C to 40°C (estimated from typical DVR specs)
Dimensions	Not specified in manual (rack-mountable 1U typical)
Weight	Not specified (approx. 3-5 kg with HDD)
Compliance	FCC Class A, ICES-003, CE (implied)
Warranty	Refer to IDIS Co., Ltd. terms
Software Features	Clip Copy, Bookmark, Search, OSD Configuration, Privacy Masking

Frequently Asked Questions - TR-2504 IDIS

How do I log in to the DVR for the first time?

From the Live menu, select the login icon or press the button on the remote. Select a user (e.g., admin, no default password) and enter a password. It is recommended to set a password immediately for security.

What recording modes are available?

The DVR supports Time Lapse (continuous), Event (triggered by motion, alarm, etc.), Time & Event (both), and Panic Recording (manual override). Modes are configured in Record Setup > Schedule.

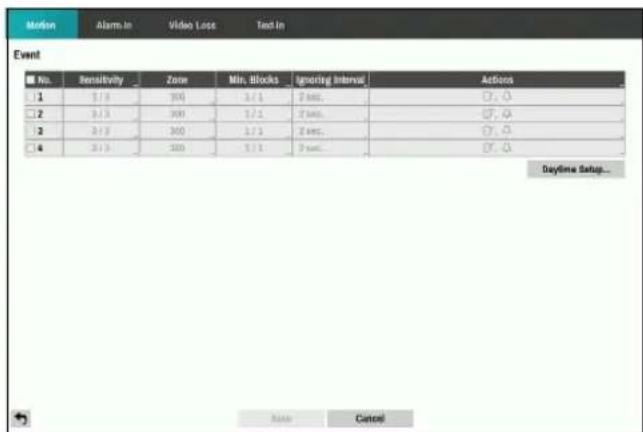

How can I set up motion detection?

Go to Event Setup > Motion, select cameras, adjust sensitivity (1-5) for day/night, define detection zones using blocks, and specify actions like recording, alarm-out, or notification.

Can I control PTZ cameras?

Yes, after connecting PTZ cameras to RS232/RS485 ports. In Live mode, select PTZ from the camera menu or press the PTZ button on the remote. Use arrow keys or mouse to pan/tilt/zoom. Presets can be set and recalled.

How do I perform a Clip Copy of recorded video?

In Search mode, set point A and point B (or use A-B Clip Copy). Select Clip Copy from the menu, choose channel, file name, storage (USB or NetFS), and optionally password-protect. Press Start to begin.

What is the maximum recording resolution?

The DVR supports resolutions up to 5MP depending on camera input. Available resolutions per channel: 720p, 960p, HD, Full HD (1080p), 3MP, 4MP, 5MP.

How can I receive email notifications for events?

Configure Notification Setup > Mail: add SMTP server, sender, and recipients. Under Event Setup for each event type (motion, alarm-in, etc.), enable mail notification. Also set a notification schedule.

Can I access the DVR remotely without a static IP?

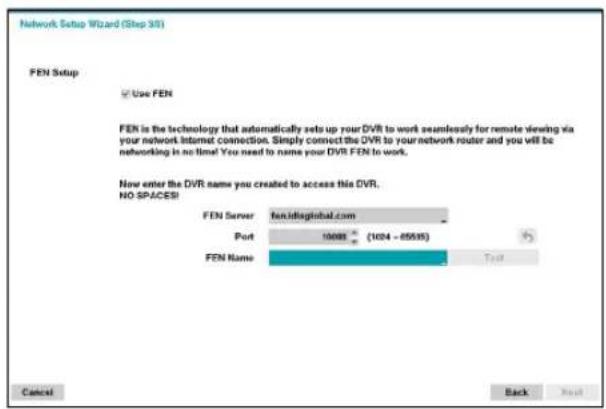

Yes, using FEN (IDIS Dynamic DNS) service. Enable FEN in Network Setup, register a unique DVR name, and use it to connect via IDIS Web or IDIS Center. Ensure router supports UPnP for automatic port forwarding.

How do I search for recorded video by event?

In Search mode, select Event Log Search. Choose event type (motion, alarm, video loss, text-in), set time range, and filter cameras. Select an event to jump to the recording playback.

What maintenance does the DVR require?

Keep the DVR clean and ventilated. Avoid liquid and objects in openings. Periodically check HDD health via System Setup > System Event > Storage. Replace failed disks promptly. Do not open the case; service by qualified personnel.

USER MANUAL TR-2504 IDIS

Digital Video Recorder

Operation Manual

TR-2504

This operation manual contains basic instructions on installing and using Digital Video Recorder, an IDIS product. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product. Safety warnings and precautions contained in this operation manual are intended to promote proper use of the product and thereby prevent accidents and property damage and must be followed at all times. Once you have read this operation manual, keep it at an easily accessible location for future reference.

• The manufacturer will not be held responsible for any product damage resulting from the use of unauthorized parts and accessories or from the user's failure to comply with the instructions contained in this operation manual.
• It is recommended that first-time users of Digital Video Recorder and individuals who are not familiar with its use seek technical assistance from their retailer regarding product installation and use.
• If you need to disassemble the product for functionality expansion or repair purposes, you must contact your retailer and seek professional assistance.
• Both retailers and users should be aware that this product has been certified as being electromagnetically compatible for commercial use. If you have sold or purchased this product unintentionally, please replace with a consumer version.

RISK OF ELECTRIC SHOCK DO NOT OPEN

: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Important Safeguards

All the safety and operating instructions should be read before the appliance is operated.

The safety and operating instructions should be retained for future reference.

Unplug this equipment from the wall outlet before cleaning it. Do not use liquid aerosol cleaners. Use a damp soft cloth for cleaning.

Never add any attachments and/or equipment without the approval of the manufacturer as such additions may result in the risk of fire, electric shock or other personal injury.

Do not use this equipment near water or in contact with water.

Place this equipment only in an upright position. This equipment has an open-frame Switching Mode Power Supply (SMPS), which can cause a fire or electric shock if anything is inserted through the ventilation holes on the side of the equipment.

Do not place this equipment on an unstable cart, stand or table. The equipment may fall, causing serious injury to a child or adult, and serious damage to the equipment. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturer.

This equipment and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the equipment and cart combination to overturn.

This equipment should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power, please consult your equipment dealer or local power company.

You may want to install a UPS (Uninterruptible Power Supply) system for safe operation in order to prevent damage caused by an unexpected power stoppage. Any questions concerning UPS, consult your UPS retailer.

Operator or installer must remove power and TNT connections before handling the equipment.

For added protection for this equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the equipment due to lightning and power-line surges.

Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock.

Never push objects of any kind through openings of this equipment as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the equipment.

Do not attempt to service this equipment yourself. Refer all servicing to qualified service personnel.

Unplug this equipment from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. When the power-supply cord or the plug has been damaged.
B. If liquid is spilled, or objects have fallen into the equipment.
C. If the equipment has been exposed to rain or water.

D. If the equipment does not operate normally by following the operating instructions, adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the equipment to its normal operation.

E. If the equipment has been dropped, or the cabinet damaged.

F. When the equipment exhibits a distinct change in performance ☒ this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

Upon completion of any service or repairs to this equipment, ask the service technician to perform safety checks to determine that the equipment is in proper operating condition.

This installation should be made by a qualified service person and should conform to all local codes.

Warning: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

A manufacturer's maximum recommended ambient temperature (Tmra) for the equipment must be specified so that the customer and installer may determine a suitable maximum operating environment for the equipment.

If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer's maximum rated ambient temperature (Tmra).

Installation of the equipment in the rack should be such that the amount of airflow required for safe operation of the equipment is not compromised.

Mounting of the equipment in the rack should be such that a hazardous condition is not caused by uneven mechanical loading.

Consideration should be given to connection of the equipment to supply circuit and the effect that overloading of circuits might have on over current protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

Reliable grounding of rack mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g., use of power strips).

		Important information concerning a specific function.
		Useful information concerning a specific function.

Caution: Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE, IN WHICH CASE USERS WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT THEIR OWN EXPENSE. : CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

THIS CLASS OF DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE CAUSING EQUIPMENT REGULATIONS.

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

© 2021 IDIS Co., Ltd.

IDIS Co., Ltd. reserves all rights concerning this operation manual.

Use or duplication of this operation manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited.

Contents of this operation manual are subject to change without prior notice.

IDIS is a registered trademark of IDIS Co., Ltd.

Other company and product names are registered trademarks of their respective owners.

The information in this manual is believed to be accurate as of the date of publication even though explanations of some functions may not be included. We are not responsible for any problems resulting from the use thereof. The information contained herein is subject to change without notice. Revisions or new editions to this publication may be issued to incorporate such changes.

The software included in this product contains some Open Sources. You may obtain the corresponding source code which we have to distribute according to the license policy. Go to System Setup - About page for more information. This product includes software developed by the University of California, Berkeley and its contributors, and software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/). Also, this product includes cryptographic software written by Eric Young ([e-mail]), and software written by Tim Hudson ([e-mail]).

Covered by one or more claims of the patents listed at patentlist.accessadvance.com.

Login 9

Live Mode....10

Live Menu 10

Video Display Area 11

Edit Group....13

Zoom....13

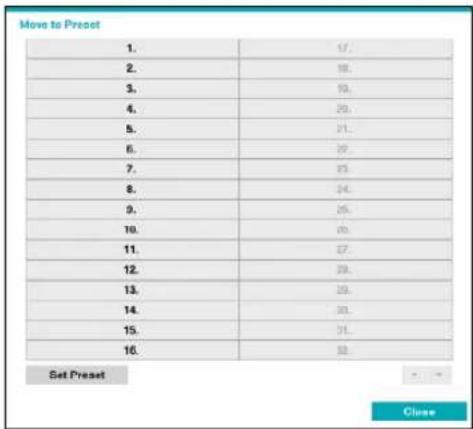

PTZ Control 14

Event Monitoring ....16

Covert Camera 16

Status....16

Context Menu Access ....18

Video Recording....18

Panic Recording....18

Audio Recording ....19

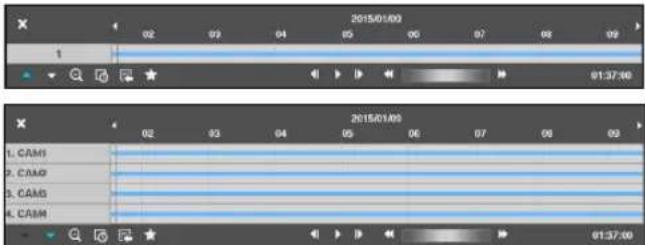

Video Recording Playback ....19

All Channel Playback....19

Remote Control Buttons during Playback 19

Context Menu....19

Menu Use....20

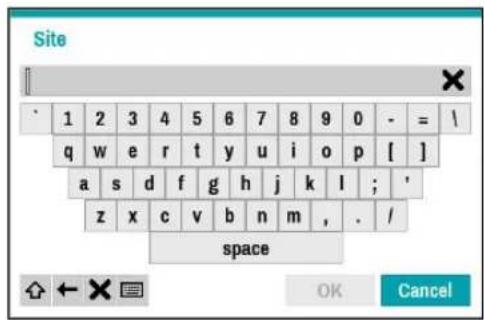

Text Input via Virtual Keyboard 20

Batch Assignment....21

Mouse 21

System Setup 21

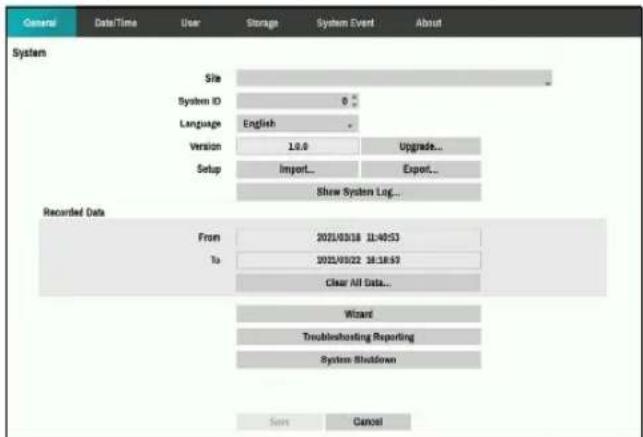

General 21

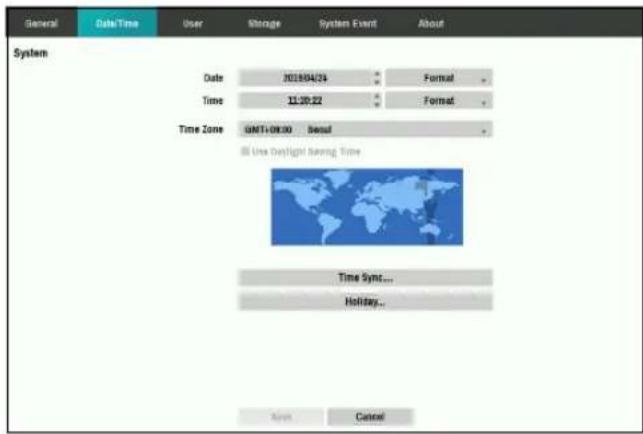

Date/Time 27

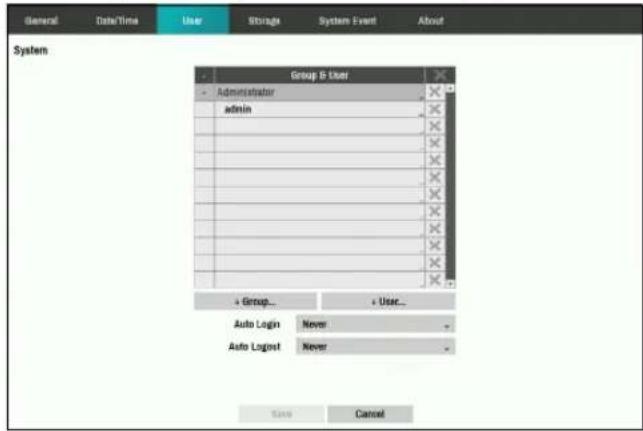

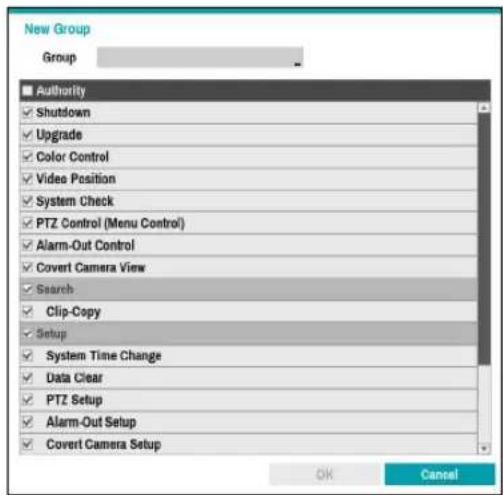

User 28

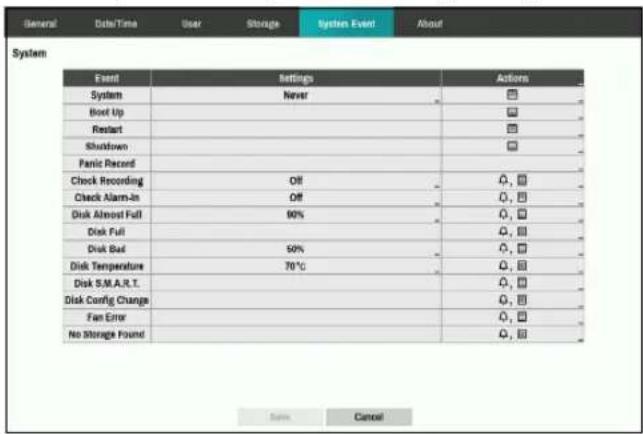

System Event 30

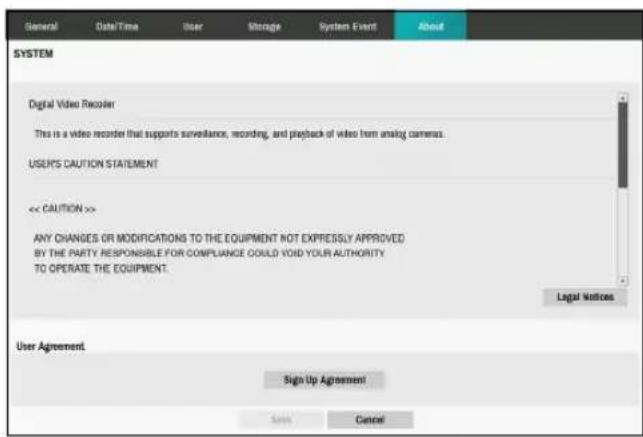

About....32

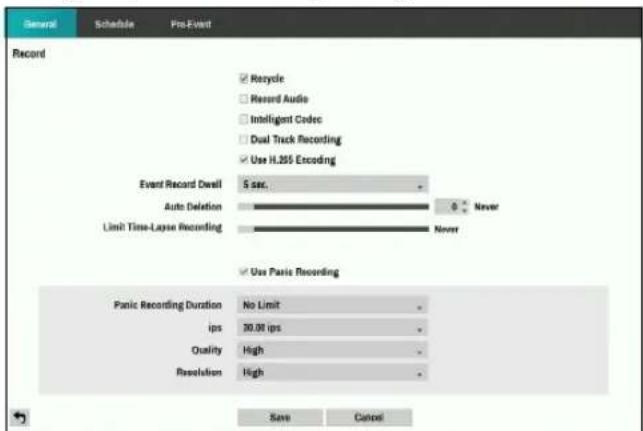

Record Setup....32

General 32

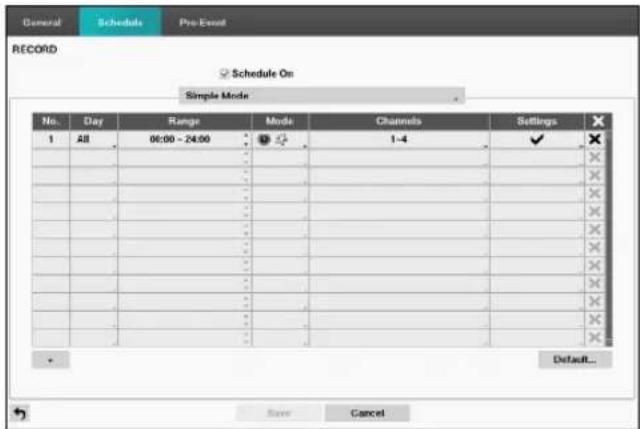

Schedule....33

Pre-Event 35

Event Setup....36

Motion....36

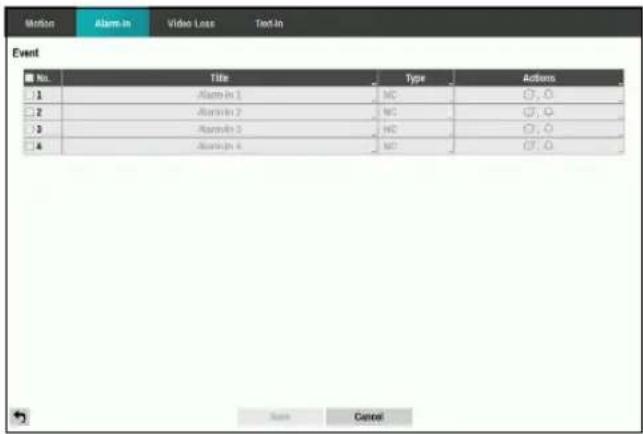

Alarm-In 37

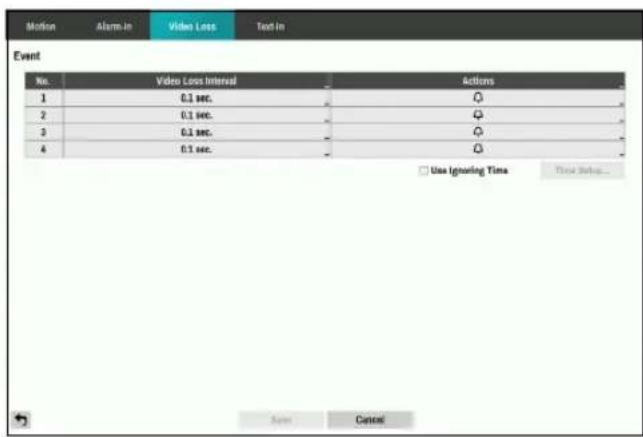

Video Loss 38

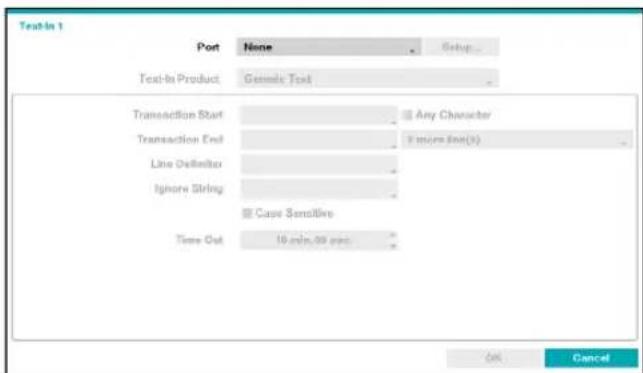

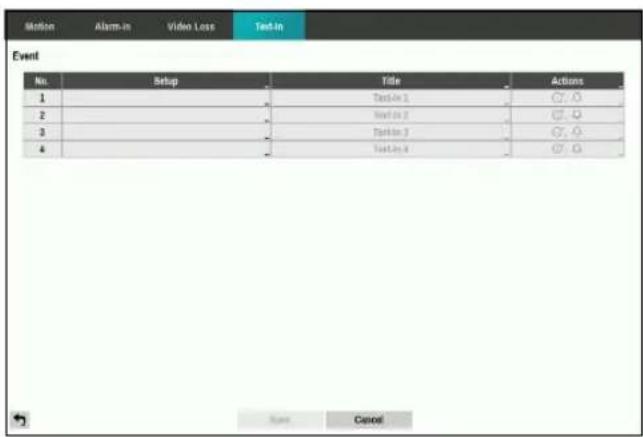

Text-In 38

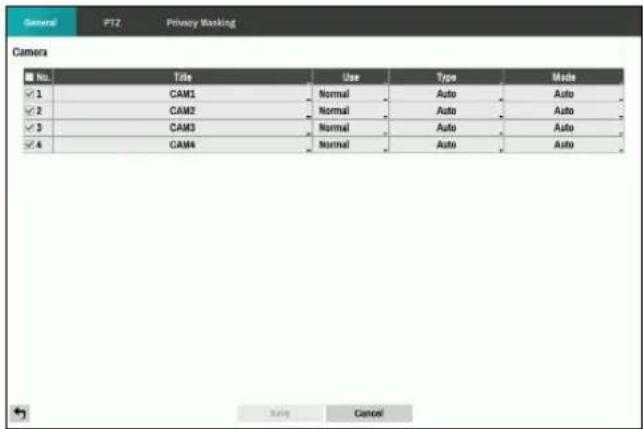

Camera Setup....39

General 39

PTZ....40

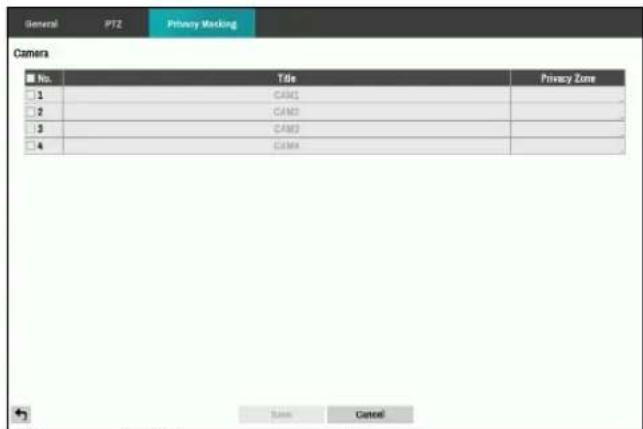

Privacy Masking....41

Device Setup....41

Audio....41

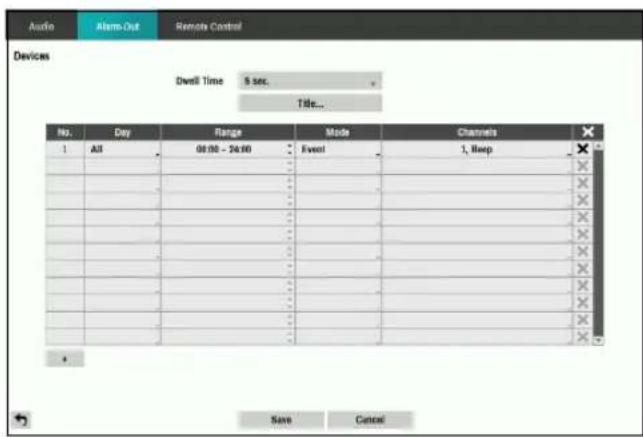

Alarm-Out 42

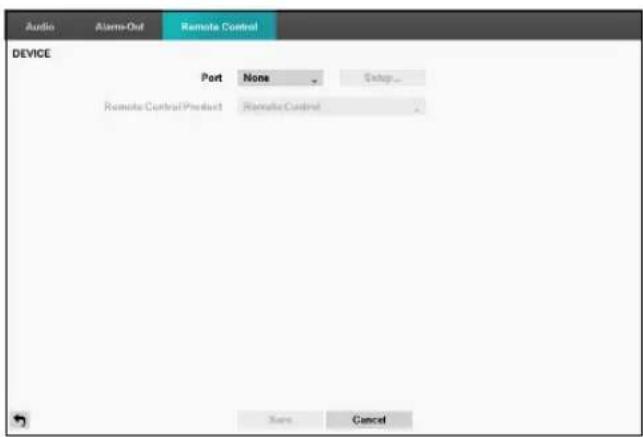

Remote Control 42

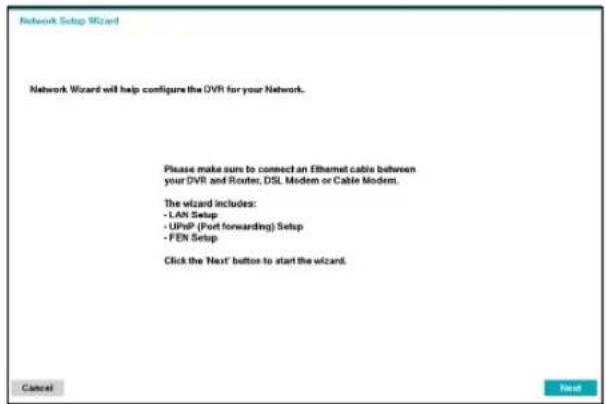

Network Setup 43

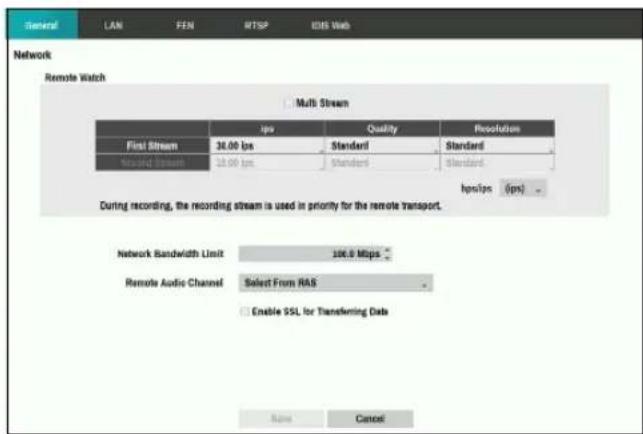

General 43

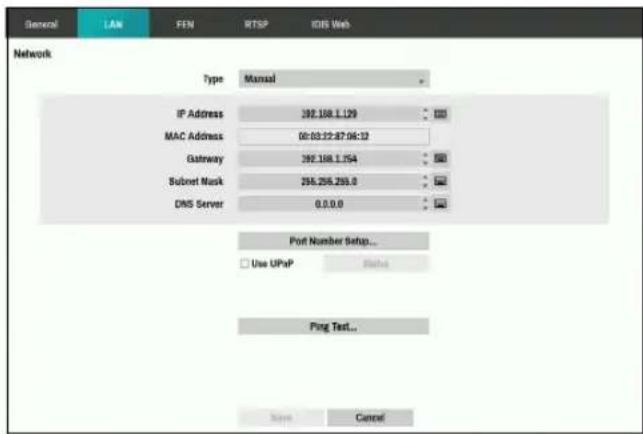

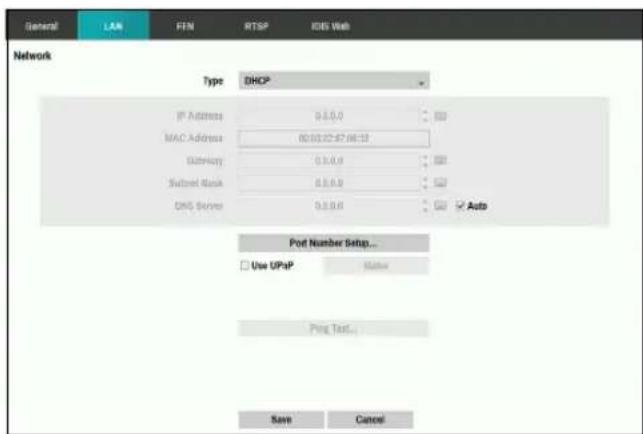

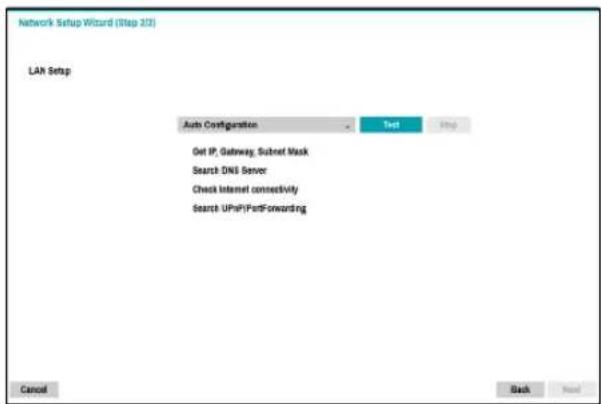

LAN....44

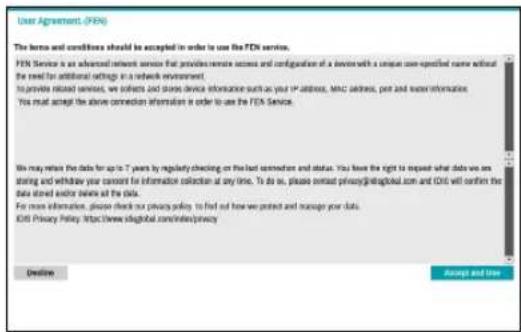

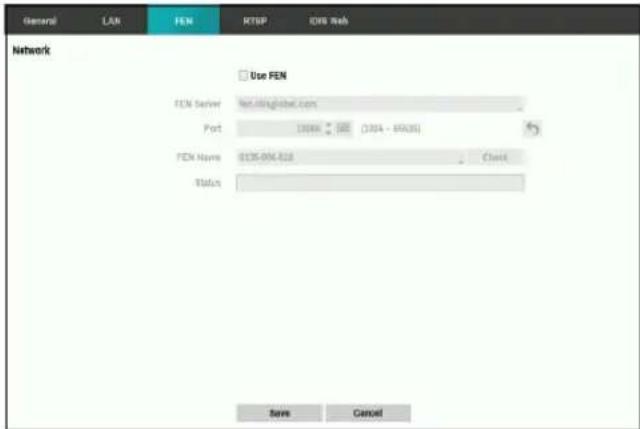

FEN....45

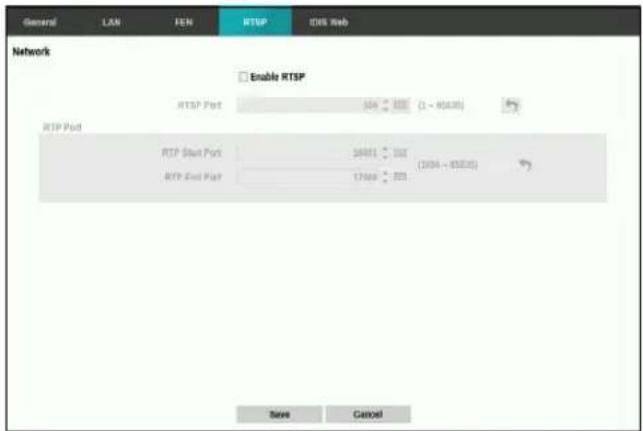

RTSP....46

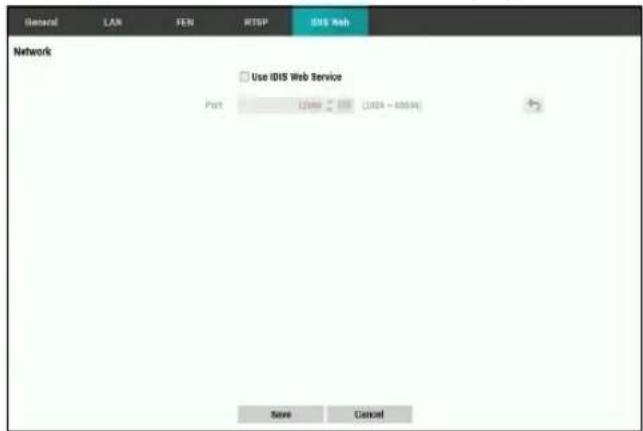

IDIS Web 47

Notification Setup....47

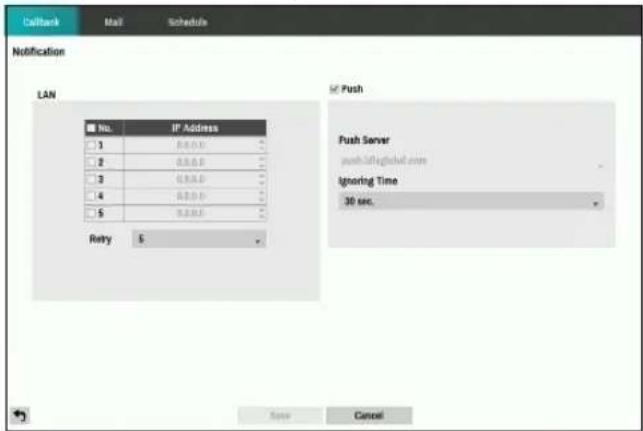

Callback 47

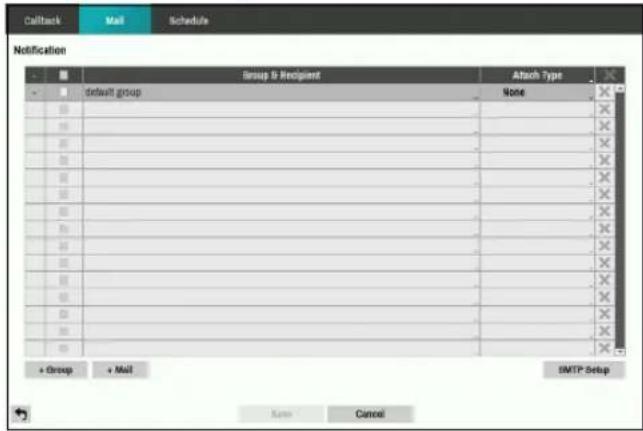

Mail....48

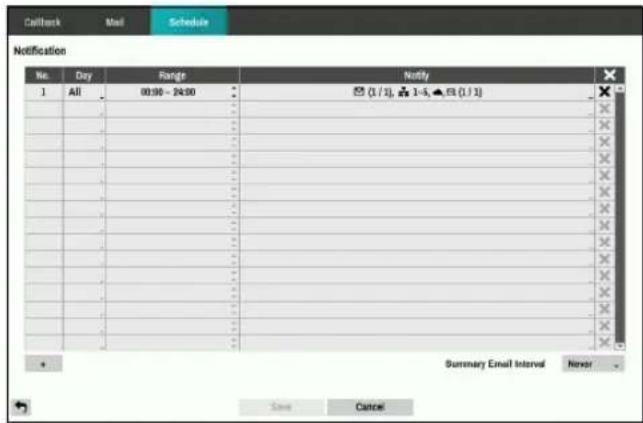

Schedule....49

Display Setup 49

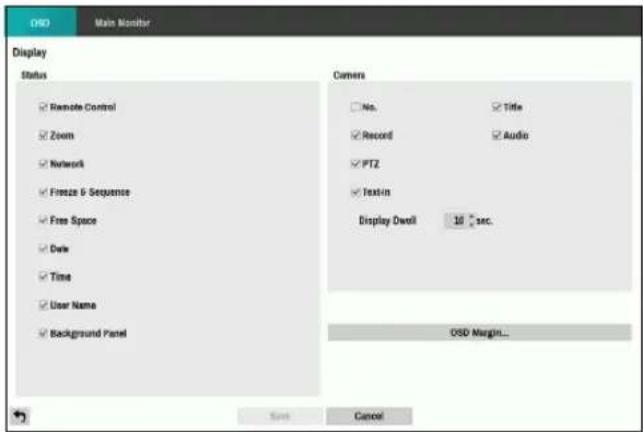

OSD 49

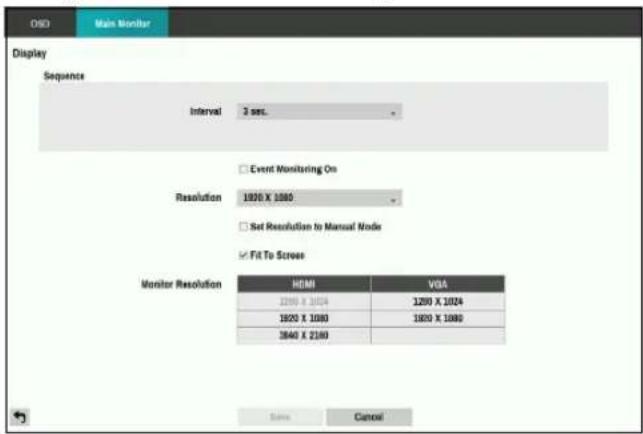

Main Monitor ....50

Searching Video ....51

Search Menu....51

Context Menu....52

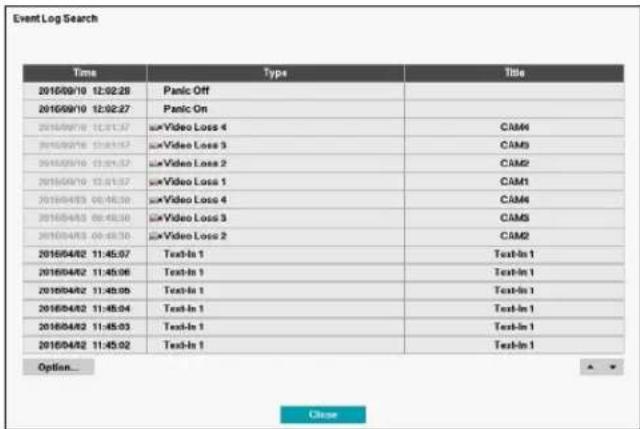

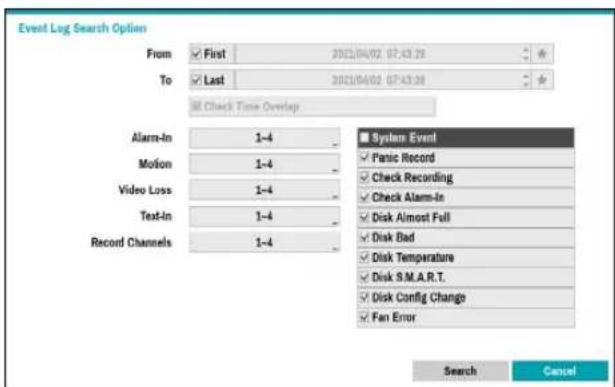

Event Log Search....52

Record Table Search....54

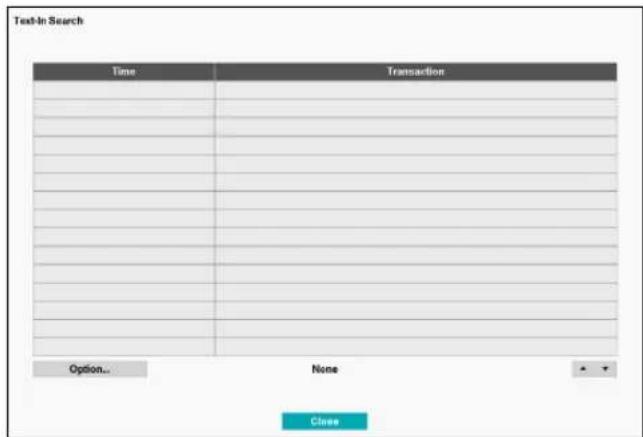

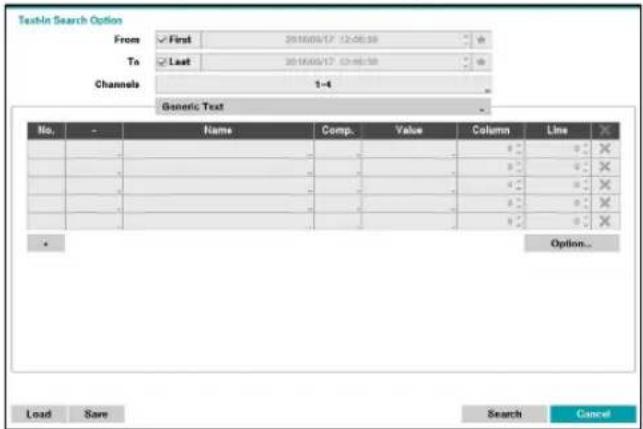

Text-In Search....55

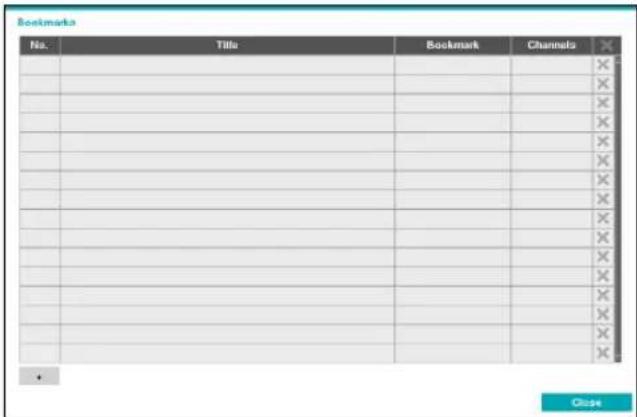

Bookmarks....56

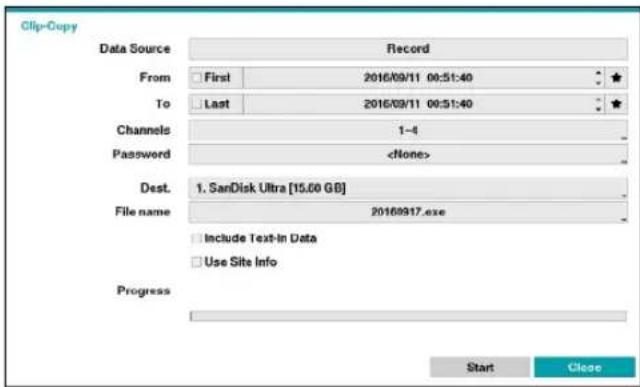

Clip Copy 56

Overlapped Recording Search ....58

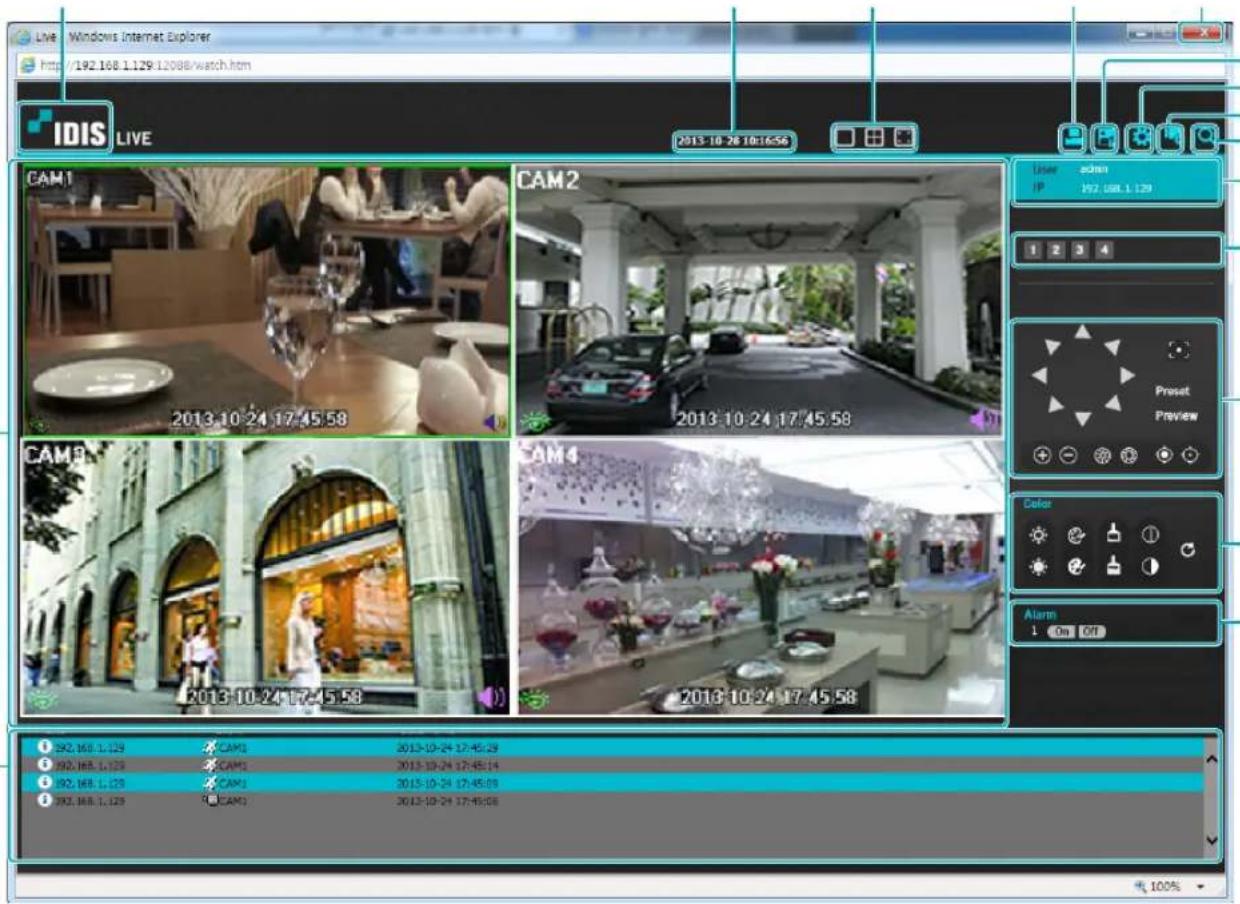

Web Live Mode....61

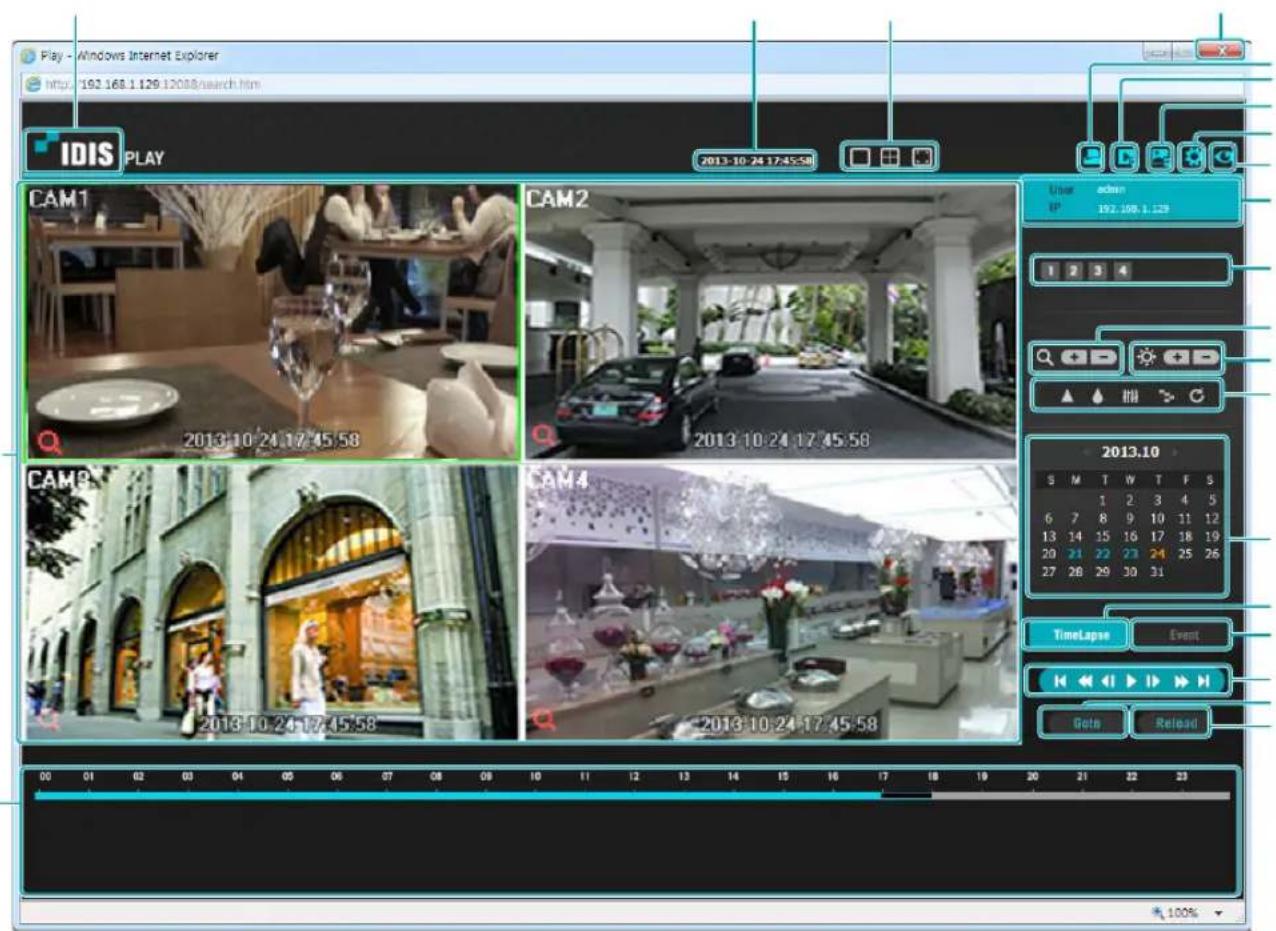

Web Search Mode....63

Configuring the DVR's settings and accessing its searching and other functions require an authorized user login.

Bring up the Live menu and either press the button on the remote control or click on Ⓤ (Login) using the mouse.

Select a user, enter the password, and then select

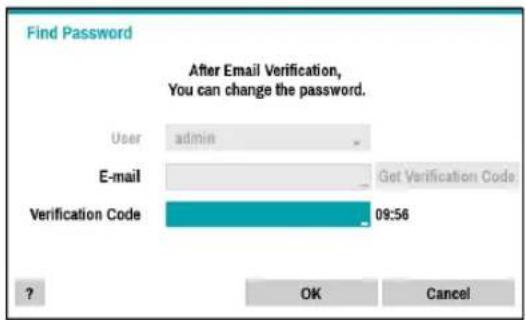

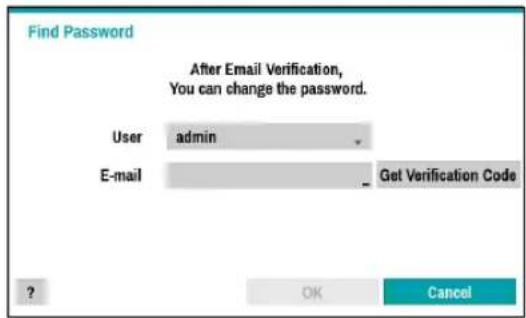

Select from the login screen if you do not remember the password. Select a user and enter the E-mail address, and click.

Enter the verification code you receive by e-mail and click.

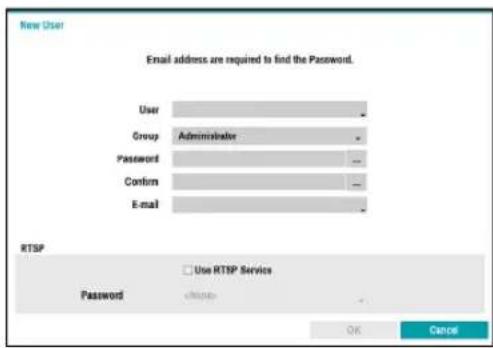

There is no default password for the admin account. Select and then without entering a password to log in.

Leaving the admin account unassigned with a password poses a security risk. Please assign a password at your earliest convenience. A warning message will continue to be displayed until a password is assigned.

Click on the ...button next to the password field using the mouse. This will bring up a virtual keyboard you can use to assign a password. For more information on using the virtual keyboard, refer to the ____

SMTP setup is necessary for verification. For more information on SMTP setup, refer to the

To log out, bring up the Live menu and click on Ⓤ (Log out) using the mouse.

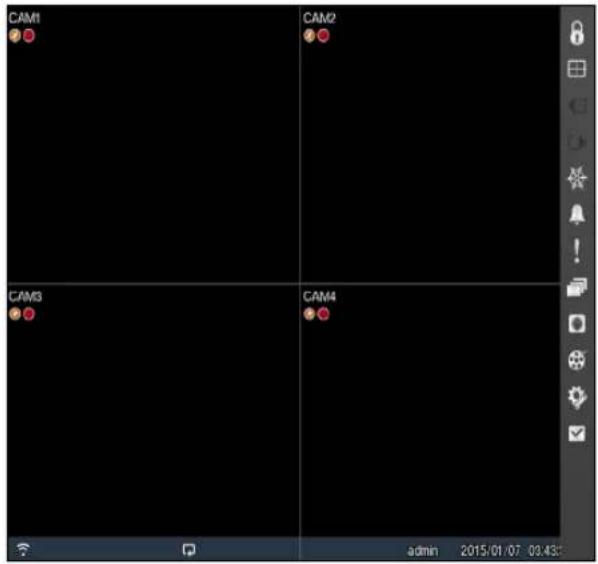

Press the button while in Live mode to bring up the Live menu on the right edge of the screen. Press once more to hide the menu. Use the Arrow buttons on the front panel of the DVR or the remote control to select the menu options.

	Login/Logout
	Display
	Previous Group
	Next Group
	Freeze
	Alarm
	Panic Recording
	Sequence
	Camera Menu
	Search
	Setup
	Status

Placing the mouse pointer near the right edge of the screen also displays the Live menu.

Log into and out from accounts. If in the logged in state, the account ID is shown. If in the logged out state, the login icon is shown.

Used to change the screen layout to single screen, PIP, and 2x2.

- Camera OSD or Status OSD On and Off.

Loads the previous/next screen group.

Freezes the screen. Select again to unfreeze.

Pressing this button while the alarm has been activated resets all DVR outputs, including the built-in buzzer.

Activates/deactivates Panic Recording.

Initiates in the same manner as pressing the button while in Live mode. To exit, select once more or press the button on the remote control. The icon is displayed at the bottom of the screen while Sequence is in progress.

Full Sequence

Displays all channels in sequence while in Live mode (single and PIP split screen settings).

While in the Sequence mode, the sequence icon displays in bottom-left corner if Sequence is selected in the Display setup screen.

Pages are skipped under the following circumstances:

• If all cameras included in the page are deactivated.
• If there are no video signals.
• If the page contains "covert" cameras.

• If the user does not have permission to view feeds from the cameras.

• Allows you to control the selected camera as long as it has Pan, Tilt and Zoom capabilities. It is the same as pressing the PTZ button.

• Zooms the current image of the selected camera on the screen. It is the same as pressing the ZOOM button. Selecting Zoom again in the Camera Menu again exits the Zoom mode. Right-click on the mouse and drag to change the orientation, and use the wheel with the left-click on the mouse to zoom in/out more precisely.
• Enable/disable audio.
• Allows you to control brightness, contrast, hue and saturation for each camera for the selected camera if a user who has Color Control authority logs into the system.
• : Adjusts the video position in left/right directions.
• Adjusts the camera's self-settings.

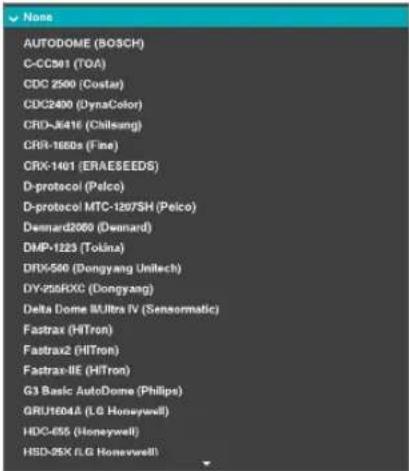

is supported only for the cameras that use Pelco-C /H-CProtocol and support UTC (Up The Coax) function.

is not supported if the port is set to RS232 or RS485 in the PTZ setting.

- Enter to the Edit Group mode in the split screen layout.

– Displays currently connected camera information and recording status.

– Exits the live monitoring mode and enters the search mode.

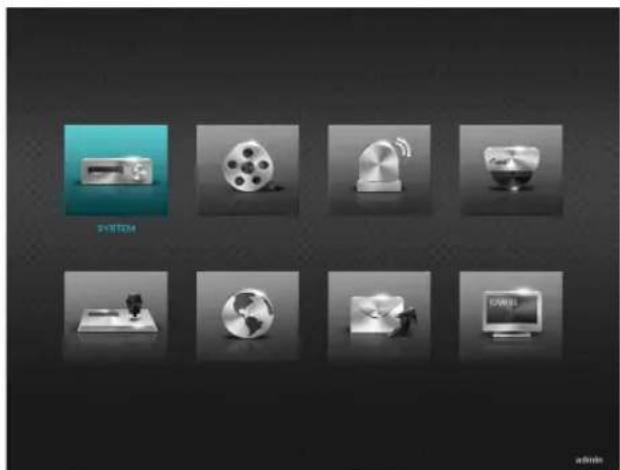

Used to access the Setup menu.

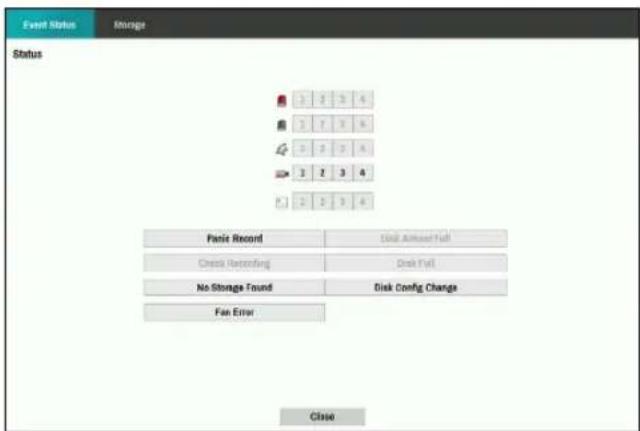

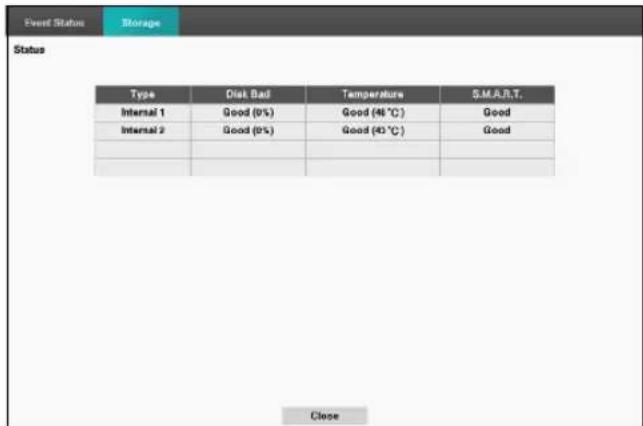

Allows you to check the status of the DVR's system, event and storage.

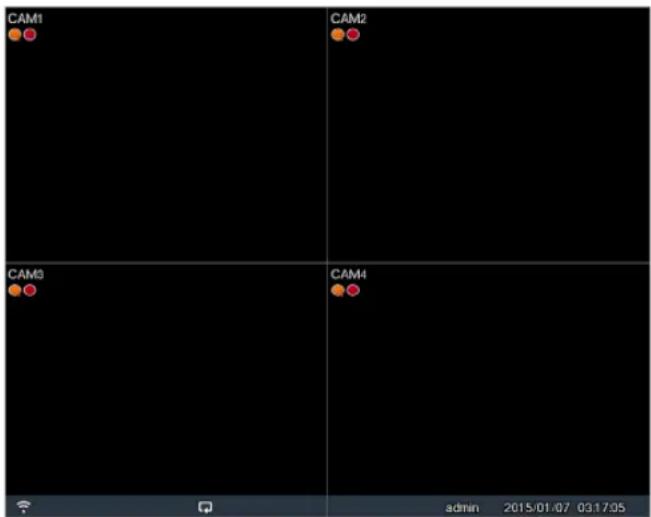

Left-click on the video display area to toggle between split screen and single screen modes.

Drag the camera screens around to rearrange them.

Camera Screen

Indicates the camera's title.

Displays system status icons.

	Indicates remote control receptivity.
	Indicates connection to the DVR from a remote program.
	Indicates two-way audio connection.
	Indicates a zoomed in state.
	Indicates Freeze is in use.
	Indicates Sequence is in use.
	Indicates an event monitoring.
	Indicates HDD use. The icon to the left is shown if using the overwrite setting. Otherwise, remaining HDD space is shown as a percentage value.

Camera Menu

Right-click on the video display area to bring up the camera menu.

• Allows you to control the selected camera as long as it has Pan, Tilt and Zoom capabilities. It is the same as pressing the PTZ button.
• Zooms the current image of the selected camera on the screen. It is the same as pressing the ZOOM button. Selecting Zoom again in the Camera Menu again exits the Zoom mode.
• : Adjusts the camera's color settings.
• : Adjusts the video position in left/right directions.

Adjusts the camera's self-settings.

is supported only for the cameras that use Pelco-C /H-CProtocol and support UTC (Up The Coax) function.

is not supported if the port is set to RS232 or RS485 in the PTZ setting.

- Enter to the Edit Group mode in the split screen layout.

Displays currently connected camera information and recording status.

Edit Group lets you customize split screen pages in both Live and Search modes.

While displaying a split screen page, select the option from the context menu. A yellow border is drawn around the page. Use the arrow buttons on the front panel or the mouse to select a different page.

Press a button or select a camera after pressing the button. Selected camera is then loaded on to the selected page. Repeat to assign other channels to the page.

Press the remote control's button to exit Edit Group. Alternatively, press the button and then select to exit.

Edit Group will terminate automatically after 15 seconds of inactivity.

Press the button on the remote control and select a channel you wish to zoom in on. A zoom frame will appear on the selected channel. Use the arrow buttons to position the frame. Press the button to cycle through various zoom factors. When Zoom is activated, 🔒 icon is on the status bar located on the bottom of the system.

In Full Screen mode, activating Zoom automatically selects the current channel.

To restore the channel to normal size, press the Zoom button again.

The available enlargement ratio is different from camera mode.

FHD resolution is supported up to 12-7 times higher, and UHD resolution is supported up to 7-5 times higher in maximum.

While in Live mode, right-click and select PTZ from the context menu or press the button on the DVR's front panel or remote control to display the PTZ camera selection window.

Select the camera you wish to control. The iron will begin to flash on the selected camera's OSD window. Use the buttons to pan and tilt the camera up, down, left, and right.

Use the • and • buttons to zoom in/out.

Use the ⚙️ and ⚡ buttons to shift focus from nearby to far and vice versa. You can also change the direction by dragging on the mouse.

Also, it's possible to use the mouse wheel to zoom in/out.

Logging in with an account that has is necessary in order to control PTZ cameras.

A message will prompt if there is no PTZ camera displayed on the Live screen.

Zoom in/out and shift focus using the Control (,) buttons on the remote control.

To exit PTZ mode, press the button again.

Setting Up a PTZ Preset

While in PTZ mode, select the button on the remote control to display the window and assign the current position as a preset.

While in PTZ mode, select the button on the remote control to display the window. Select a preset to move the current PTZ camera to the selected preset's position.

In PTZ mode, select a camera. Clicking button and selecting loads the Advanced PTZ screen as shown below. You can load the Advanced PTZ screen also by pressing the button and then button on the front panel. This menu lists, and other advanced PTZ camera control options available for the camera. Options that are not available for the selected PTZ camera remain inactive.

While in PTZ mode, place the mouse pointer close to the bottom edge of the screen to display the PTZ Tools window.

	PTZ Camera Pan and Tilt
	Zoom In/Out
	Focus Near / Far
	IRIS Open / Close
	Set / Move to Preset
	Device Menu supported by the camera

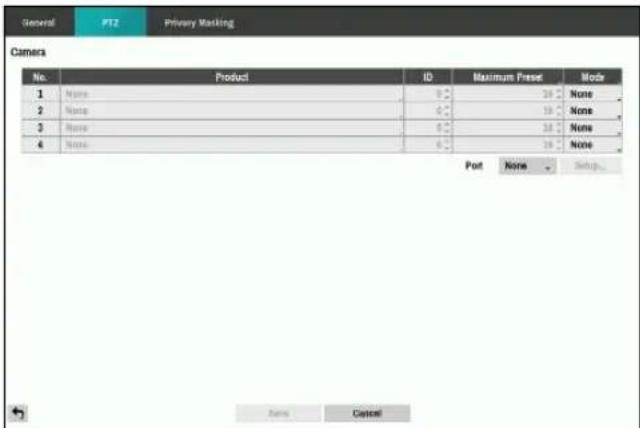

The exact PTZ protocol supported by the camera must be specified in order to use the DVR's PTZ controls.

Drag and drop to reposition the PTZ Tools window. Select the ✗ icon to hide the PTZ Tools window.

You can use the mouse to control PTZ cameras. Left-click on the mouse and drag to move the camera in the desired direction and use the mouse wheel to zoom in/out.

When an event occurs, the DVR automatically displays the channel linked to the event and shows the 🔒 icon on the system status area on the bottom of the screen. To use the Event Monitoring feature, navigate to and enable.

Event Monitoring remains in effect throughout the entire . After that, the DVR will return to the previous screen if a new event does not take place. Pressing the or a button before the end of the reverts the system to Live mode.

Use this feature to assign permissions.

Navigate to and designate cameras as or.

- : Hides images from the camera in Live mode but does indicate the camera's title and status via icons.

- : The camera is indicated as being inactive. Images from the camera are not shown. Camera title and status icons are not shown.

Users that have a cover are able to view both images from and status icons for all and cameras.

Refer to the for basic information on using the Setup menus.

Event Status

This screen displays an overview of all events. When an event occurs, the corresponding channel flashes for 5 seconds.

	Alarm-In
	Check Alarm-In
	Motion
	Video Loss
	Text-In

- : Displays event status based on current Panic Record status.

• : Displays event status based on settings. For more information, refer to the .

• : Event is indicated when the cooling fan cannot reach a certain RPM or fails for longer than 50 seconds.
• It will be highlighted when no recordable storage device has been found.
• /: If the storage device is not in status, event status is displayed when the amount of disk space specified under is reached and when the disk becomes 100% full. For more information, refer to the _.
• : It will be highlighted when the DVR reboots after the hard disk drive has been replaced.

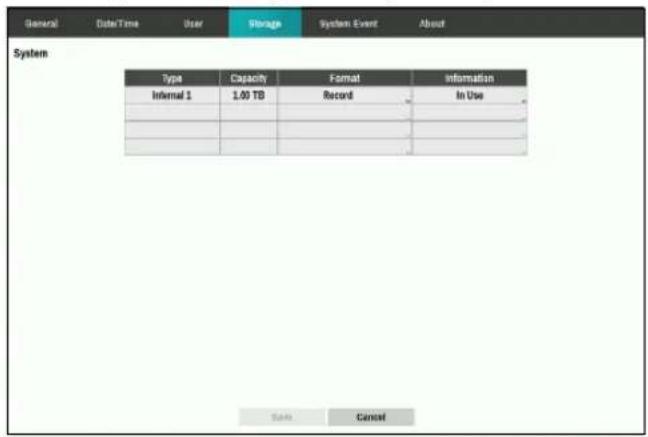

Storage

Indicates each disk's status.

Configure Disk Bad and Disk Temperature settings under > >.

	Not Formatted	A disk that has never been used before.
	Good	Disk performing normally.If the HDD is partially damaged, indicates the bad sector percentage.
	Error	If the HDD's bad sector ratio is higher than as designated by the user.Generates a system event.
	N/A	Unable to detect the disk's temperature.
	Good	Operating within normal temperature range.
	Bad	Disk temperature higher than as designated by the user.Generates a system event.
	N/A	A disk that does not support S.M.A.R.T.
	Good	A disk with normal S.M.A.R.T. status.
	Bad	A disk with abnormal S.M.A.R.T. status.Possibility of damage within 24 hours.

You can display the ContextMenu window by pressing the button and then button on the front panel. Alternatively, right-click on the mouse to access the Context menu.

• : Access PTZ controls.
- :Zoom in.
- : Select a channel to display its Color Control window. Adjust the selected camera's brightness, contrast, saturation, and hue settings.

- : Adjusts the video position in left/right directions.

Adjusts the camera's self-settings.

- : Enter to the Edit Group mode in the split screen layout.

Displays currently connected camera information and recording status.

Video recording will only take place if all the connections are made correctly as per information contained in Part 2 of this operation manual.

For more information on video recording settings, refer to the.

Select or menu's Panic Recording icon or press the button on the front panel or the remote control to commence panic recording on all registered cameras.

To stop Panic Recording, select the Panic Recording! icon or press the button again. If the option under

has been configured, Panic Recording will automatically terminate after the specified duration of time has elapsed. For more information, refer to the

Panic Recording takes place irrespective of any recording schedule set up by the user.

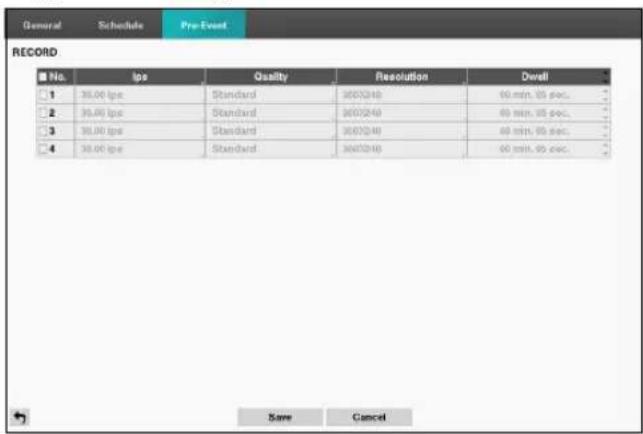

Panic Recording ips, Quality, Resolution from applies to all Panic Recording videos.

Panic Recording will not take place if recording mode is not set to and the HDD has reached 100% of its capacity.

If the Record Audio option under > has been enabled the camera will record audio along with video. For more information, refer to the

Check your local laws and regulations on making audio recordings.

You can play back video recordings by using mouse or remote control.

Login with an account that has search permission is needed to playback video recordings.

The initial video playback point in Search mode is the recording's last playback point or the end of the recording data.

Audio playback of the selected recording is available in full screen mode only.

Covert protection on cameras also applies to video recording playback.

: Displays the selected recording in full screen.

: Allows you to zoom in on a specific area of the recording.

: Cycle between 2x2 and single screen modes.

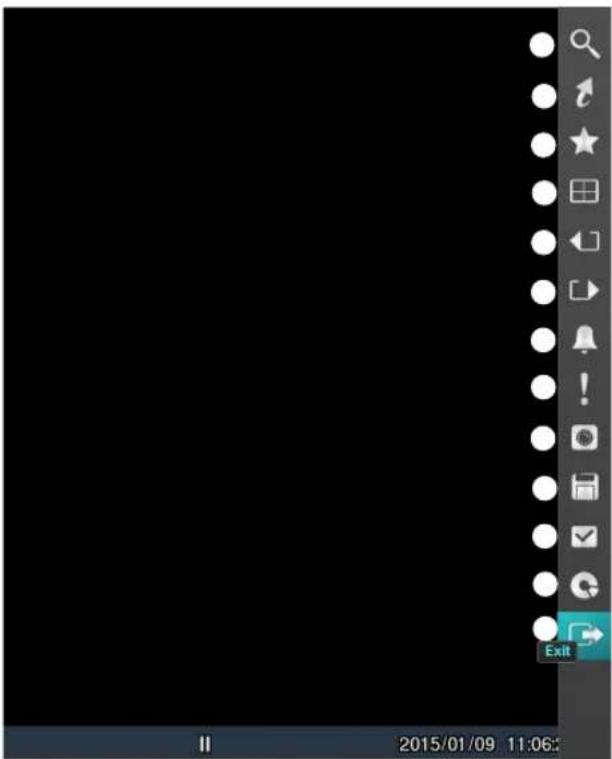

While in Search mode, right-click on the mouse to access the Context Menu.

• : Zoom in.

- : Enter to the Edit Group mode in the split screen layout.

Press the button while in Live mode.

Select the Search Mode icon and then select

The selected search mode will be initiated.

For more information on data search, refer to the ____

Information contained in this section (Menu Use) applies to all other instructions found throughout Part 3 - Configuration.

Login with an ID that has permission to access the setup menu is needed to access and make changes to the Setup menu.

While in Live mode, press the remote control's button or select Live menu > Setup using the mouse.

Grid of eight grayscale icons representing different devices or applications, including a monitor, film reel, speaker, and computer monitor (no text or symbols on icons)

	System Setup
	Record Setup
	Event Setup
	Camera Setup
	Device Setup
	Network Setup
	Notification Setup
	Display Setup

Use the remote control's arrow buttons to select an option and then press the remote control's button or left-click on the option using the mouse.

Change the setting and then select to save the change.

To apply default settings, select the Default button located on the left bottom corner of the setup window.

Use the remote control's arrow buttons to select a virtual keyboard key and then press the remote control's button or click on the key using the mouse.

	Toggle case.
	Deletes the character to the left of the cursor.
	Deletes the character to the right of the cursor.
	Converts keyboard.

Certain table-format menus such as the shown in the allow you to change

the title value. In this case, changing the title value simultaneously changes all other entry values on the same row.

Using a mouse makes it easier to configure the settings. A mouse lets you make selections faster and use its wheel to scroll through long menus. You can also use the mouse wheel to increase/decrease numerical values.

Refer to the for basic information on using the Setup menus.

This Setup menu contains general system options.

- : Used to enter a description about the system's installation site (no description by default). You can edit the information using the virtual keyboard.

• : Used to identify the DVR apart from other DVRs. System ID is also used to control the DVR with the remote control and identify the unit when it is connected with other DVRs through the RS485 port.

The default System ID is 0 and can be changed to a value between 0 and 99. The System ID can also be entered using the virtual keyboard.

• : Choose a language.

• : Indicates the software version.

Part 2 - Configuration

- : Upgrade the system. Selecting the USB port displays the USB search window. You will then be able to select an upgrade package and upgrade the system. Once the upgrade is complete, the DVR will reboot automatically.

The ".rui" indicates that the file is for software upgrades.

If an upgrade attempt fails, an upgrade failure message will be displayed. Refer to ____ for more details.

• : Exports current DVR settings or imports existing settings.

- : Decide whether to import network settings as well. If you do not wish to change the current network settings, do not select

Selecting does not change the settings below.

Time-related settings (Date/Time, Time Zone, and Use Daylight Saving Time)

- : Exports the current system settings to a storage device connected to the system's USB port. You can designate a for the export file.

For USB flash memory devices, the DVR supports the FAT16 and FAT32 files format.

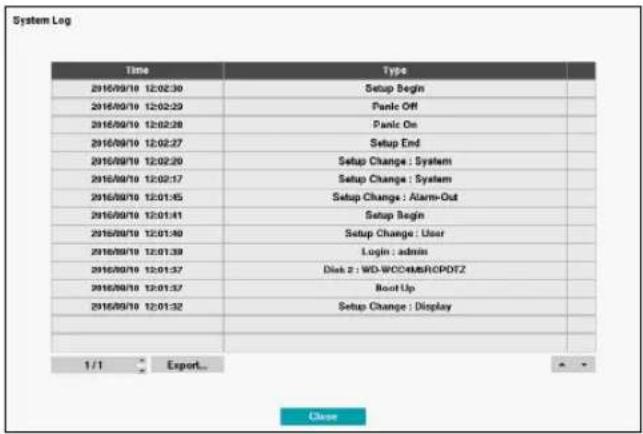

• : Displays a searchable list of 5,000 most recent system log entries. For more information on types of system log entries, refer to the ____. The ____ icon appears next to log entries originating from a remote source. To export the system log, select the at the bottom of the screen and then designate a file name.

- To export the system log information, connect the USB device to the DVR. Click . Select . A virtual keyboard allows you to enter the file name. Selecting will save the log information in .txt file format on the USB device.

In order to display the system_log.txt file, you must use the correct character encoding settings and use a fixed-width font.

- : Erases all recording data. Selecting displays a confirmation window. Select to proceed.

Before you perform, make sure you are not accidentally deleting important data. Erased data cannot be recovered.

does not affect the system log. Instead, the event will be added to the log.

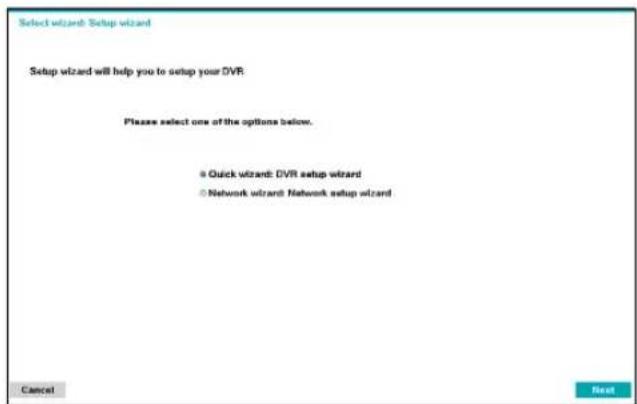

- Lets you configure basic settings required for operating the system.

Select the desired Setup Wizard option and click

Select from any of the Wizard screen to cancel the setup process and return to the main setup menu.

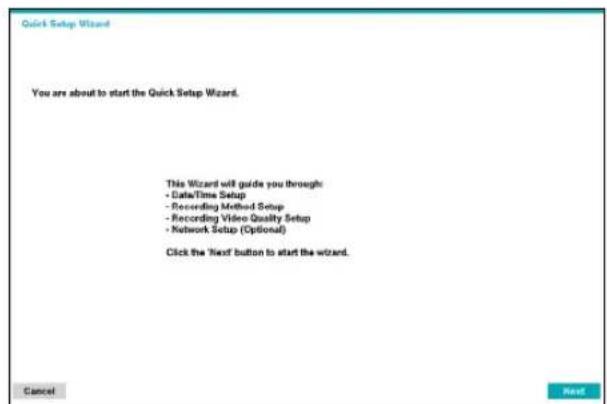

Quick Wizard

Select Quick Wizard.

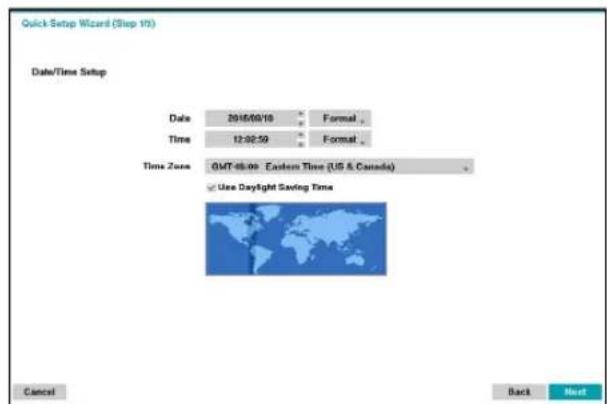

Specify the current date and time and then click

The new date and time settings will only be applied after clicking.

For more information on date and time settings, refer to the section under

Part 2 - Configuration

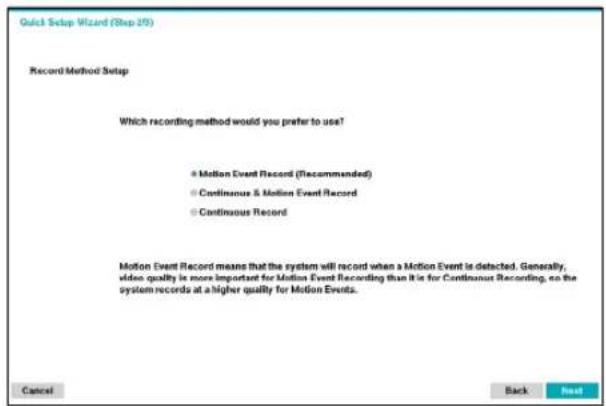

Choose the desired and click

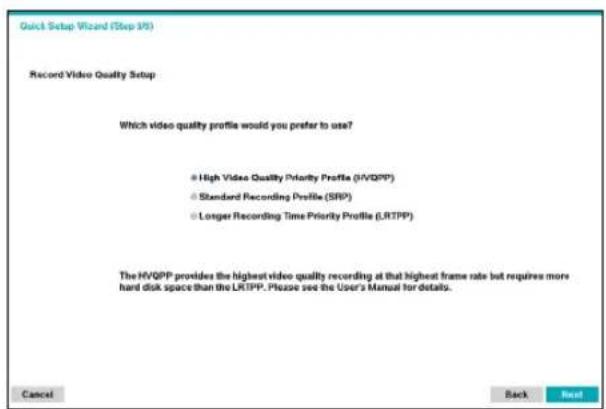

Choose the desired and click

Higher recording quality uses up more disk space.

- Recording ips, quality, resolutions used under each recording method and record video quality setting are as follows:

	Very high, Very high, 30 ips	High, Very High, 15 ips	Standard, High, 5 ips
	Very high, Very high, 30 ips (Time/Event)	Time: High, Very High, 15 ips Event: Very High, Very High, 30 ips	Time: Standard, High, 5 ips Event: High, Very High, 15 ips
	Very high, Very high, 30 ips	High, Very High, 15 ips	Standard, High, 5 ips

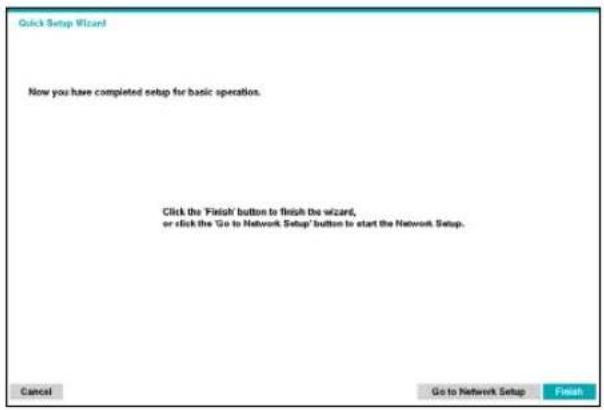

Click to exit Quick Wizard.

Network Wizard

After exiting from Quick Wizard, you can click and set up the network with Network Wizard.

Select Network Wizard.

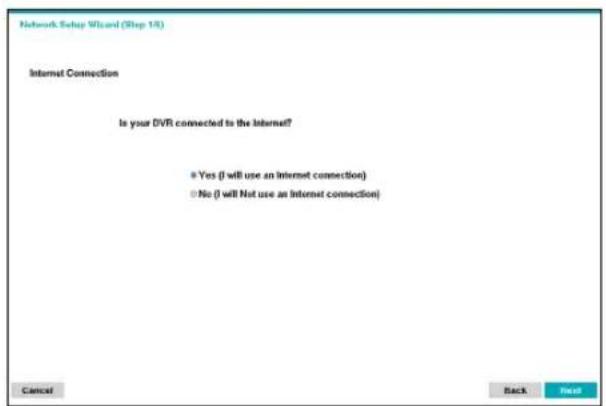

Specify whether the system is connected to the Internet and click.

If you have chosen, wait for the test to finish and then click to exit Network Wizard.

Select Network Configuration and then click

. Select either Auto Configuration or Manual Configuration and then click to test the system's current network configuration.

This test must be performed before proceeding to the next step.

If the DVR is on a network connected to a network that has a DHCP server, selecting retrieves LAN settings such as IP and DNS addresses automatically. Selecting , on the other hand, lets you specify the settings manually.

If this error message is displayed, check to see if the IP router (or NAT) supports UPnP and if UPnP has been enabled. For more information about the router's UPnP function, refer to the router's operation manual.

Part 2 - Configuration

Enter in the field the DVR name to be registered on the FEN server and then click to check its availability.

The FEN name you register on the FEN server will be a unique name used to identify the DVR. Once registered, the name can be used to access the DVR directly from clients such as the IDIS Center. Check the name's availability to complete the registration process. The Finish button will then become activated.

You will be prompted with an error message if you do not enter a name for the DVR or enter a name already registered on the FEN server.

Depending on the network environment, FEN services may not be active and therefore prevent the DVR from connecting to the network. In this case, you will need to manually configure the ports. For more information on port configuration, refer to ____

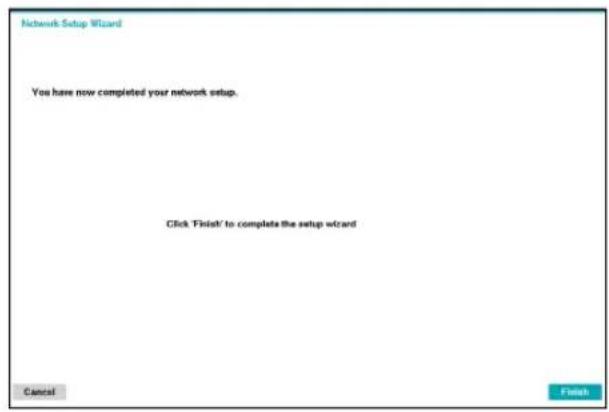

Click to exit Network Wizard.

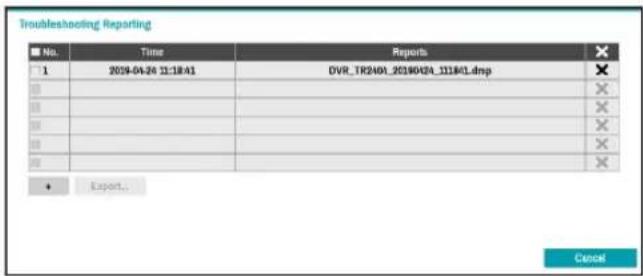

- : Generates a report to troubleshoot any issues, and exports the report.

- : Shuts down the system. When prompted, select.

• : Used to change the system's date setting.
  • : Used to change the system's time setting.
• /: Used to change the system's date and time formats.
• : Used to designate the system's time zone.

Refer to the map displayed on the screen and change the time zone using the mouse or the arrow buttons.

• : Enables DST correction.
• : Select a time server for the system to synchronize with.

Select.

Enter the 's IP address or domain name or select □ and then choose a server from the list of registered time servers.

Specify the server synchronization.

Select to apply and exit.

If you have configured the DNS Server setting under, you can enter the time server's domain name instead of its IP address.

Selecting sets the current DVR as a time server for other DVRs within the system.

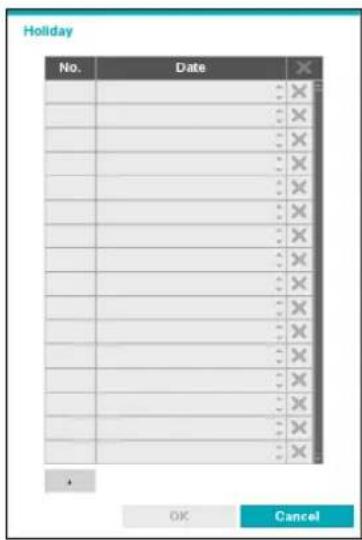

- : Designate holidays. On specified holidays, recording takes place according to the holiday recording schedule specified under Record Schedule.

Select the button at the bottom of the window.

Select a date.

Select to apply and exit.

Select the icon to delete the existing holiday date.

Use this option to register users and assign permissions.

Select and enter a group name. A group name can be up to 15 characters in length.

Specify the group's permission settings. For more information on permission settings, refer to the

Select and then enter a user name.

Select a group for the user and then enter a password. The password can be 8\~16 characters in length and may include numbers.

Select.

Configure and settings.

Select to exit.

Group names, user names, and passwords can be entered using the virtual keyboard. For more information on using the virtual keyboard, refer to the

To delete a registered user or group, select the icon on the right of the corresponding user/group. and User admin cannot be deleted.

Select the ✗ icon next to Group & User on the top of the screen to delete all groups and users except and simultaneously.

A password entry is required to edit existing groups and users.

's permissions cannot be changed.

With the account, only the password can be changed.

When the system starts up, it will automatically log into the account designated under.

The system will automatically log out of the account if the duration of inactivity specified under

Group Permissions

		May shutdown the system from the system menu.
		May upgrade the system from the system menu (System Setup).
		May adjust each camera's brightness, contrast, saturation, and hue settings.
		May adjust each video's position in left/right directions.
		May view System Check results.
		May control PTZ cameras.
		May reset in the event of an alarm-out.Alarm-outs can be reset by pressing the button on the device or selecting the button on the remote program.
		May access covert cameras in Live and Search modes.
		The user who has permission for Clip Copy can perform Clip Copy. If the user does not have permission, Clip Copy is not allowed but only search is allowed.

		May change the system's date and time settings.
		May clear data stored in the system.
		May configure PTZ settings.
		May configure alarm-out settings.
		May configure convert camera settings.
		May configure privacy masking settings.
		May configure recording settings.
		May import previously saved DVR settings.
		May export current DVR settings.

Use this option to configure storage settings.

• : Indicates the type of the installed disk.
- : Indicates the disk's capacity.
- : If the disk has been formatted, indicates either or. If you have connected an unformatted storage device, the Use As value will be indicated as.
- : Indicates if the disk is being used for recording purposes. Disks that were used in different systems will show up as . Select to check the saved data's time information or select to erase the data.

Select to prepare the disk as a storage for data recording.

Disks formatted with Use As set to will not be used for data recording.

This DVR supports SATA2 HDDs.

Use this option to configure Monitoring settings.

• : Configure when and what the system should monitor for.
• : Configure alarm-out (DVR alarm-out channel, DVR beep) and notification (email, LAN1 through 5, push, alert window) settings.

Monitoring Options

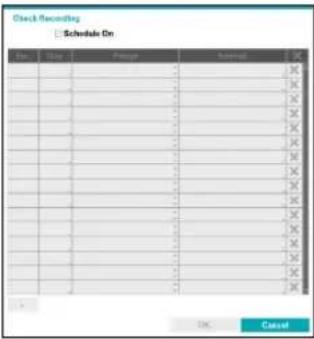

	Define monitoring times. If self-diagnosis is not performed on a regular basis, the system will assume an error.
	Define bootup, restart and shutdown actions.
	Define panic recording actions.
	The system will assume an error if the system has been scheduled to record normally but recording does not take place during scheduled intervals.Select and then configure the days of the week, times, and monitoring interval.Select the button on the bottom left of the screen to add a schedule. Select icon to delete the schedule.
	The system will assume an error if the alarm-in status does not change during the specified monitoring interval while alarm-in is active.
	Generates an event if the disk reaches the specified capacity (80% to 99%).
	Generates an event when all disks reach their maximum capacity.
	Generates an event when the specified percentage of the disk becomes damaged. Set to between 10% and 90% in 10% intervals.

	Specify the threshold temperature. Once any disk reaches this threshold, the system will issue an alert.
	Monitors disks that support S.M.A.R.T. and notifies the user if a disk error is detected.
	It will be highlighted when the DVR reboots after the hard disk drive has been replaced.
	Notifies the user when the fan inside the system malfunctions.
	It will be highlighted when no hard disk drive has been connected.

For system events, only an e-mail notification of actions can be selected.

In order to use the Notify(Callback) feature, the DVR must be registered to the remote program on the receiving PC's end.

Part 2 - Configuration

- : Click to agree to retaining the device data, and use the service.

The above screen pops up when booting up.

Refer to the for basic information on using the Setup menus.

Configure general recording settings.

- : When the recording disks become full, the system overwrites existing data with new data, starting with the oldest first. If is disabled, recording will simply stop when the recording disks reach their maximum capacity.

• : The camera will record audio along with video.
• : Automatically lowers bitrate when any motion is not detected.

The bitrate does not decrease when using intelligent codec for pre-event recording.

- : Schedule with a lower quality and lower resolution is additionally recorded. Additional recorded video can be played back in real-time as a split screen. During dual recording, the recording icon is displayed as .

If the recording quality setting is Very High during dual recording, the recording operates under High quality.

Dual recording does not operate for SD input.

• : Check to use H.265 codec, and uncheck to use H.264 codec.
• : If linked recording is designated as an event-triggered action, recording takes place for the duration specified under this setting.

- : Configure this option to delete recording data automatically after the specified number of days has elapsed. Select between 1 day and 999 days.

To disable Auto Deletion, select . If enabled, recording data will be stored on the DVR for the specified number of days and then deleted automatically. Expired recording data are deleted automatically at midnight and will be deleted even if the system reboots or the setting has been changed.

- : You can store event recording data for longer. If you do not wish to use, select . This function is activated when data has been stored for longer than as configured because the recording disk has sufficient capacity and saves new data by overwriting data that are older than as specified under Recycle mode.

If the recording stored on the disk is shorter than the duration specified under , the older of or data is deleted first.

The system's recording time may change depending on recording quality, resolution, motion, and other configurations made by the user. The duration specified under may not be guaranteed in certain situations.

• : Enable/disable Panic Recording.
• : Disable Panic Recording automatically. Select between 5 mins and 1 hr. If you do not wish to disable the feature automatically, select.
• Allow you to set the images per second for Panic recording.
• Allow you to set the recorded image quality for Panic recording. You can select from: Very High, High, Standard and Basic.
• Allow you to set the recorded image resolution for Panic recording. You can select from: Very High, High, and Standard.

Disabling suspends schedule recording regardless of the schedule and displays the icon on the upper left corner of each camera screen. Pressing the button displays the icon and commences panic recording.

Set Record Schedule mode as or . allows you to configure a unique recording schedule for each event. Select the ✗ icon to delete a schedule.

Changing the recording schedule mode suspends all active event-linked actions.

Select the + button on the bottom left of the screen to add a schedule. Select to specify the setting or select . Select to specify the time frame.

Simple Mode Options

• :Select,,,or

	Unless the button ispressed, no recording will take placeduring the scheduled time frames on the scheduled days.
	Theicon appears on the upper left corner of the screen. Theiconappears at scheduled times to indicaterecording is in progress.
	Theicon appears on the upper left corner of the screen. Theiconappears when the specified event occurs to indicate recording is in progress.If Pre-Event is enabled, theandicons appear when recording is not in progress, or theandicons appear when an event occurs and recording is in progress.
	Theicon appears on the upper left corner of the screen and recordingcommences as per the ips, Quality, Resolution selected for time under. When an event occurs, the icon changes intoicon and recordingcommences as per the ips, Quality, Resolution selected for events under.

• : Select which cameras to apply the schedule to.
• : Select to configure default values for Time Lapse and Event Recording modes.

Advanced Mode Options

Select to configure event types.

- : Event-specific and time recording icons are as follows:

	Time Lapse(Time)		Video Loss
[T4KD]	Alarm-In Text-In	[4728]
[48KA]	Motion Detection

• Allow you to set the images per second for Time and Event recording.
• Allow you to set the recorded image quality for Time and Event recording. You can select from: Very High, High, Standard and Basic.
• Allow you to set the recorded image resolution for Time and Event recording. You can select from: Very High, High, and Standard.
• : Specify how long to record for after a corresponding event occurs.

Upper-tier schedule's settings apply to unconfigured channels.

If multiple events take place on a specific channel and different and settings apply, highest settings apply to all event-linked recordings.

The resolution can be set up at a time for each event or separately for each channel of an event. When setting up at a time for each event, the following options are available: and. Selecting, the highest resolution will be applied. Selecting, the lowest resolution, and selecting, the other resolution will be applied. When setting up separately for each channel of an event, you can select any resolution supported by the camera mode (720, 960, HD, Full HD, 3MP, 4MP or 5MP).

When an event occurs, enabling this option includes the specified duration prior to the event in the event-triggered recording.

• : Select which cameras to apply Pre-Event to.
- The image quality can be selectable from Very High, High, Standard and Basic, and image resolution can be selectable from Very High, High, and Standard.
- : Specify the duration of pre-event recording data.

If no event mode schedule exists in the schedule, a warning message prompting you to add an event mode schedule will be displayed.

The warning message will appear even in mode.

Part 2 - Configuration

Refer to the for basic information on using the Setup menus.

• : Select which cameras to apply Motion Detection to.
• : Set daytime and nighttime sensitivity settings between 1 (Low) and 5 (High).

Empty white rectangle with black border (no text or symbols)

• : Define the motion detection block.

Use the remote control's arrow buttons to move the block selection window up, down, left, and right. The selection window consists of 4 blocks per row. Select/deselect individual blocks using the buttons. You can use the mouse to drag the zone and then select, clear, or reverse the selection.

From the zone selection screen, press the button on the remote control or right-click on the mouse to open up the Zone Setup menu.

• : Confirm the block selection in the selection window.
• : Clear the block selection in the selection window.
• : Clear the blocks selected within the selection window and select all unselected blocks within the selection window.
• : Select all blocks.
• : Clear all block selections.
• : Clear all selected blocks within the screen and select all unselected blocks within the screen.
• : Save the changes and exit the menu.
• : Exit the menu without saving the changes.

- : Motion needs to be detected in more than the specified number of blocks in order to trigger a Motion Detection event. You may select a value between 1 and the number of blocks selected under for daytime and nighttime, each.

Empty white rectangle with a thin black border (no text or symbols)

- : The system does not produce event log entries or issues remote notifications regarding motion detected during the specified time following the initial motion detection. Set a value between 1 sec and 10 secs or choose Never.

Motion Ignoring Time does not affect motion detection recording.

- : Specify which actions to take when motion is detected.

- : Specify which cameras to begin linked recording on when an event occurs. If the schedule is set to Event or Time & Event mode, the selected cameras will begin linked recording when an event occurs.

- : Designate event-triggered alarm-out channels and beeps.

- : Configure to be notified of events by Mail, LAN1 through 5, Push, and/or Alert Window.

- : Moves the PTZ camera to a specific preset position when an event occurs.

In order to use the Callback feature, the DVR must be registered on the remote program.

- : Specify when daytime starts and ends. Adjust the time frame in 15-minute increments. Times outside the specified range will be assumed as nighttime by the system.

- : Enable / disable alarm-ins.

• : Use the virtual keyboard to enter titles.

• : Change the alarm-in type.

- : Specify which actions to take when Alarm-In is detected.

- : Specify which cameras to begin linked recording on when an event occurs. If the schedule is set to Event or Time & Event mode, the selected cameras will begin linked recording when an event occurs.

- : Designate event-triggered alarm-out channels and beeps.

- : Configure to be notified of events by Mail, LAN1 through 5, Push, and/or Alert Window.

- : Moves the PTZ camera to a specific preset position when an event occurs.

In order to use the Callback feature, the DVR must be registered on the remote program.

• The system does not produce event log entries or issues remote notifications regarding video loss detected during the specified time following the initial video loss detection. Set a value between 0.1 sec and 15 secs or choose Never.
• : Specify which actions to take when a Video Loss event occurs.

- : Specify which cameras to begin linked recording on when an event occurs. If the schedule is set to or mode, the selected cameras will begin linked recording when an event occurs.

• : Designate event-triggered alarm-out channels and beeps.
• : Configure to be notified of events by Mail, LAN1 through 5, Push, and/or Alert Window.
• : Moves the PTZ camera to a specific preset position when an event occurs.

In order to use the Callback feature, the DVR must be registered on the remote program.

- : Select to specify the video loss detection ignore time. Video loss detection will be disabled during the specified time frame.

- : Configure text-in devices.

It's possible to batch configure all text-in devices with the exception for port settings.

An influx of large amounts of text-in data from multiple channels can hinder system performance.

• : The setup window is updated so that the portion below the port setting matches the corresponding text-in device. Displayed screenshot illustrates Generic Text settings.
• : Once has been designated, the system will recognize the specified string as the beginning of a transaction. You can choose the Any Character setting. Under this setting, any character will trigger the system into recognizing the start of a new transaction.

• : Once has been designated, the system will recognize the specified string as the end of a transaction. Select next to Transaction End and specify a value between 1 and 10. The system will recognize the specified Transaction End string plus the number of lines as being the end of a transaction.

• : Designate a string to mark the end of a line. You can enter control strings by selecting and then entering , followed by a letter. For example, Carriage Return is M and Line Feed (new line) is J.

• : Specify a string to ignore from transaction records.
• : Ignores case in strings designated under , , and .

does not apply to control strings.

- : Once has been enabled, the system will assume the end of a transaction if no new string is entered within the specified duration of time. Select between 5 secs and 15 mins.

Selecting RS-232, RS-485, USB-Serial 1 through 8, or LAN 1 through 4 as the port activates the Port Setup button. Select and configure the , , , and settings.

If any one of LAN1 through 4 has been selected as the port, select the Port Setup button and configure the network port setting.

If using a USB-serial port, the Text-In feature may malfunction if the USB cable is removed while the system is in operation.

• : Designate a name for the text-in device.
- : Specify which actions to take when text-in is detected.

• : Specify which cameras to begin linked recording on when an event occurs. If the schedule is set to Event or Time & Event mode, the selected cameras will begin linked recording when an event occurs.
• : Designate event-triggered alarm-out channels and beeps.
• : Configure to be notified of events by Mail, LAN1 through 5, Push, and/or Alert Window.
• : Moves the PTZ camera to a specific preset position when an event occurs.

In order to use the Callback feature, the DVR must be registered on the remote program.

Refer to the for basic information on using the Setup menus.

Enable/disable the covert view and rename cameras.

• Turn the camera number On or Off.
  • : Edit the camera's name.
• : Set the camera as , , or .

Live images and video recordings from cameras that have been set as or will not be available to users who do not have covert camera access. Setting a camera as hides its images but does display OSD information about the camera. Setting a camera as hides its images as well as OSD information about the camera as if it has been deactivated completely.

• Select the type supported by the camera among Auto, SD, HD-TVI and AHD. Selecting allows the DVR to automatically detect the type supported by the camera.
• Select the width resolution supported by the camera among Auto, 720, 960, HD, Full HD, 3MP, 4MP Half, 4MP and 5MP. Selecting allows the DVR to automatically detect the width resolution supported by the camera.

When selecting, the 720, HD and Full HD mode are supported. The input resolution is applied without rebooting the system. If the camera's width resolution is 960 and is set to, mode will be applied.

You will only be able to set up PTZ devices if the PTZ port is set to RS232 or RS485.

• You can select the PTZ camera you wish to configure.
• You can assign IDs to each camera by highlighting the box under the ID heading. Change the number by highlighting it and using the Up and Down arrow buttons to increase and decrease the number. The PTZ ID number can be set from 0 to 256.

- Select or. UTC is only used for HD and Full HD cameras.

- You will need to connect the camera to the RS232 or RS485 connector on the back of the DVR following the camera manufacturer's instructions.

Empty white rectangle with a thin black border (no text or symbols)

Configure the port's setting based on the PTZ camera manufacturer's instructions.

Configure privacy masking zone for Live and Recording screen.

• Turn on/off the camera number.

• Display the full screen live mode of the channel, and you can configure the privacy zone area by dragging on the area with the mouse (The privacy masking zone can be configured up to 4 areas).

• Delete the selected privacy masking area.

• Delete the all privacy masking area.
• Save the changes and exit the privacy masking area options screen.
• Exit the privacy masking area options without saving the changes.

SD images can have restrictions when configuring the masking area.

Refer to the for basic information on using the Setup menus.

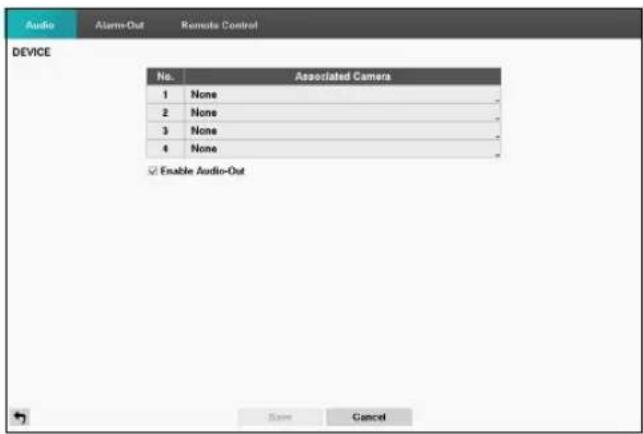

The DVR can record up to four audio inputs. A list of cameras appears, and you can select which camera you want associated with that audio input.

Select the + icon at the bottom left corner of the screen to add a schedule.

You can apply different schedules for different s of the week.

Select ✗ icon to delete the schedule.

• : Select a value between 5 secs and 15 mins as the alarm-out duration.
• : Designate a name for the alarm-out.

- : Reverse the alarm-out type connected to the DVR rear panel (NONC).

• : Change the schedule time frame.
• :Select , , or .

	Generates an alarm-out when an event occurs.
	Alarm-out is always on.
	Alarm-out is always off.

- : Configure alarm-out port and beep settings.

- : Select, or and thenclick the Setup button and then select the correct ,, and for the device you are connecting to the DVR. You can select the device from the list. If the port and port are in use for PTZ control, networking or text input, the remote keyboard cannot be configured. In this case, the warning message window will appear when other devices use the same port such as PTZ control, networking or text input. The message says that you cannot use other device because the ports are overlapped.

Refer to the for basic information on using the Setup menus.

• Supports more than one stream. Configure to use different streams in layout mode or channels in IDIS Center Client.

During playing, the transfer speed can be low.

- Select the Transfer Speed from 1Mbps to 100Mbps and the unit of measure for the transfer speed between: bps and ips. The available value differs depending on the quality and resolution settings.

- Select the Quality from: Very High, High, Standard and Basic.

- Select the Resolution from: Very High, High and Standard. During recording, the recording stream is applied to the remote transfer in priority.

The higher Quality and Resolution settings require higher Transfer Speed settings. The transfer speed you set is the maximum speed. Depending on the network environment, this speed may not be achieved.

- : Configure the bandwidth to limit.

If you configured the, the live video may not be displayed smoothly in a remote program.

- : Transmits the selected channel's audio to the remote program. Select to stream audio of the channel selected on the remote program.

Audio skipping and sync issues can occur under poor network conditions.

• : Applies SSL (Secure Sockets Layer) protection on remote viewing and recording data transmissions.

If using the SSL feature, it will not be possible to connect to the DVR from a remote program or a network keyboard that does not support SSL.

Changing the SSL setting temporarily severs all remote connections to the DVR in order to apply the change.

This product contains content developed by OpenSSL Project for use in Open SSL Toolkit (http://www.openssl.org/).

Part 2 - Configuration

Designate the IP address type as or.

Manual

- Set to Manual.

lets you configure related settings manually.

Configure, , and

settings manually using the remote control's arrow buttons or the mouse wheel.

• : Enter the DNS server's IP address. The IP address can also be entered using the mouse wheel.
• Change the numbers by highlighting them and using the Up and Down arrow buttons to increase or decrease the number. The factory default Port settings are: 8200(Remote Admin), 8201(Remote Callback), 8016(Remote Watch), and 10019(Remote Search).

You will need to get the appropriate Port Numbers for each IDIS Center and IDIS Web related program (Admin, Callback, Watch and Search) from your network administrator.

To use the (Universal Plug and Play) feature, select . If using an IP router (or NAT), UPnP service allows the device to automatically forward the port to the DVR.

This port is used to access a port that has a private IP address.

In order to use the UPnP service, the IP router (or NAT) must support UPnP port forwarding and have the relevant options enabled.

Port number cannot be changed with selected.

• : Indicates the number of the port forwarded by the IP router (or NAT) to the DVR via UPnP service.

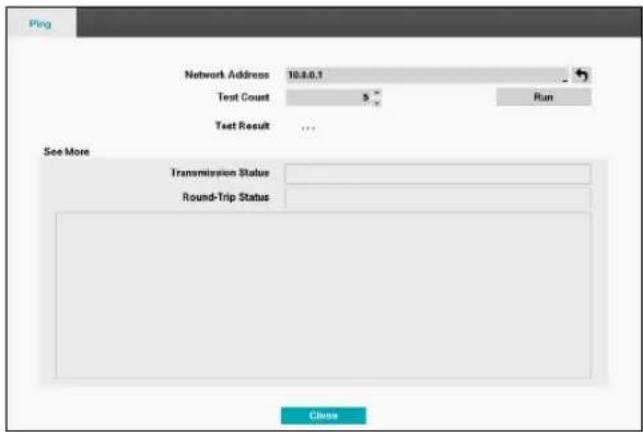

  • : Select to test the current LAN settings you made.

Enter the address of the DVR to test.

Adjust the frequency of the ping test.

Select to do the test. The test result is displayed.

Select to exit.

If using a firewall, select Change Port to change the port number to one that is permitted by the firewall. Changing the port temporarily severs the DVR's remote connection.

Remote point IP and port settings on the remote program must also be changed in order for it to connect to the DVR.

DHCP

Select and then to retrieve IP address and other network settings automatically from the DHCP server. Once the network settings have been retrieved, the DVR's current IP address is displayed in the IP Address field.

It may not be possible to retrieve the IP address if there is no DHCP server. If this is the case, contact your network administrator.

With DHCP, the DVR's IP address might change with each startup.

There is a limit to the number of users allowed to connect remotely at the same time. Contact the service center for more information.

If using a dynamic IP address, FEN service makes it easy to connect to the DVR from a remote program without having to configure dynamic IP or router settings.

• : Check if you wish to use FEN service.
- : Enter the FEN server's IP address or domain name.

If you have configured the DNS Server setting under, you can enter the FEN server's domain name instead of its IP address in the field.

• : Specify the FEN server's port number.

If using an IP router (or NAT), port configuration and other network functions will depend on the usage method of the IP router (or NAT).

Part 2 - Configuration

• : After entering the DVR name you wish to register on the FEN server, check and register the entered name. This is a unique DVR name that will be registered on the FEN server.

You will not be able to save FEN settings unless you click on the Check button next to the DVR Name field and check the entered name's availability.

You will be prompted with an error message if you do not enter DVR name or enter a name already registered to the FEN Server.

If the FEN name contains the #, \ and/or % symbol, it might not be able to connect to the DVR from the IDIS Web program.

- : Used to check the status of the device being registered to the FEN server.

Select after making changes to register the DVR's name to the FEN server.

If FEN has been configured correctly, the FEN server's help desk information will be displayed in the field the next time you access the FEN Setup screen.

RTSP service allows you to monitor real-time using the Real-Time Streaming Protocol.

- Set the port number of the RTSP server obtained from your system administrator.

- Set the start/end port number of the RTP server obtained from your system administrator.

- Access a remote DVR using a Blackberry or other mobile devices.

Selecting Use Mobile sets the IDIS Web service to be enabled automatically regardless of your IDIS Web settings.

When using NAT (Network Address Translation) or firewall services, opening all UDP ports allows you to access a DVR using Blackberry and Android devices.

You can access a remote DVR and monitor live video images using media players, such as VLC Player, supporting RTSP service. Start the media player on your local PC and enter "rtsp://ID:Password@IP address:RTSP port number/trackID=channel number", or start Internet Explorer on your Blackberry or other mobile devices and enter "http://IP address:IDIS Web port number/".

Some media players might not play video properly depending on network conditions.

RTSP service might not be supported, depending on the type of media player.

IDIS Web service allows you to monitor and search video remotely without setting specific on-line programs.

• Enable/disable IDIS Web.
• Set the port number used when accessing IDIS Web by using the Up and Down arrow buttons to increase or decrease the numbers.

Configure Callback settings.

• Enter the IP address of the receiving server and set to between 1 and 10 in case of connection failure.
• Send out event-related messages to mobile phone.

Enable to receive the event occurred in DVR on the mobile phone(Android, iOS). The DVR must be registered and set in mobile phone.

Configure Mail settings.

- Add a recipient group and select the image file format attached to an email.

A virtual keyboard appears allowing you to enter the Group name. You can select between CBF and MP4. When selecting CBF, the DVR will attach an event detected video clip to an email. When selecting MP4, the DVR will attach the event detected video clip (MP4 format) to an email.

- Add a mail recipient.

Assign the Recipient to a Group and enter the Recipient's Display Name. Enter the recipient's e-mail address and mail server provider. Select the □ icon to select the mail server provider from a list of registered SMTP mail server providers.

The recipient's mail address must be in the correct email format and contain the @ symbol.

Select the icon to attach event recordings to outgoing mails.

Select the ✗ icon to remove the account.

SMTP Setup

Select at the bottom right corner of the screen to configure an SMTP server.

Enter the 's IP address or domain name and then configure the and settings.

Default SMTP server port number is . Select to send out a test mail using the current settings. Select SSL/TLS or STARTTLS depending on the security connection which the server supports.

If you have configured the DNS Server setting under, you can enter the

STMP server's domain name instead of its IP address in the field.

Select the □ icon to select the mail server provider from a list of registered SMTP mail server providers.

Address entered under must be in the correct email format and include the @ symbol.

If user authentication is required by the SMTP server, select and then enter the and information.

Select to apply and exit.

This product contains content developed by OpenSSL Project for use in Open SSL Toolkit (http://www.openssl.org/).

Select the + icon at the lower left corner of the screen to add a notification schedule.

• : Add different schedules for different days of the week.
• : Change the event notification time frame.
• : Select which notifications to generate when an event occurs. Select, and/or.

In order to use the (Callback) feature, the DVR must be registered on the remote program. Select the ✗ icon to delete the existing schedule.

• : Transmit event summary emails to a remote destination at specified intervals.

Refer to the for basic information on using the Setup menus.

Show OSD (On Screen Display) information on the bottom of the screen.

Status

• The icon displays when the DVR can be controlled by the infrared remote control.
• The icon displays on the enlarged video.
• The icon displays when the unit is connected to a network via Ethernet. The icon displays on each camera when audio communication is available between the DVR and a PC running IDIS Center via Ethernet.
- The icon displays while in the Freeze mode, and the displays while in the Sequence mode.
- The icon displays when the DVR is in the Recycle mode, and the percentage of available storage space displays when the DVR is not in the Recycle mode.
• and : Displays the date and time.
- Displays the name of the current user logged in.
• Displays the background panel at the bottom of the screen in translucent black.

Part 2 - Configuration

Camera

• : Displays the camera number on the upper left corner of the camera screen.

• : Displays the camera name on the upper left corner of the camera screen.

• : Displays recording and schedule icons.

• : Displays the audio.

icon on channels generating

• : Displays the

icon on PTZ cameras.

- : Displays strings received from text-in devices. Select and specify how long to display the text-in string. Text-in strings are shown on the single screen only.

- Displays how OSD text will be displayed on the monitor. You can adjust the horizontal and vertical margins so that text and icons will not be hidden beyond the edges of the monitor.

Configure monitor-related settings.

• : Select between 1 secs and 1 mins. For more information on Sequence, refer to the ____
- : With Event Monitoring enabled, video feed from the camera configured to start recording when an event occurs is shown on the screen. For more information on Event Monitoring, refer to the .
- : Select 3840 x 2160, 1920 x 1080, 1280 x 1024.
- : Set the resolution manually regardless of the resolution supported by the monitor.

• Supported resolutions may be restricted depending on the monitor.
• We recommend that you use 1920 x 1080 resolution.

• : Displays the resolution information of monitors currently connected to the DVR.

While in the search mode, pressing the button displays the following Search menu on the right edge of the screen. Pressing the button again hides the menu. You can navigate through menus and items by pressing the arrow buttons.

Search by changing Event Log Search, Record Table Search and Text-In Search.

• Displays the first recorded image.
• Displays the last recorded image.
• Displays the Go to the Date/Time screen.

Add the current playback point to the bookmark list.

The maximum number of bookmarks that can be saved is 64.

Used to change the screen layout to single screen and 2x2.

- : Enables/disables the OSD feature.

Loads the previous/next screen group.

Pressing this button while the alarm has been activated resets all DVR alarm outputs, including the built-in buzzer.

Use the Panic Record feature.

• : Zoom and choosing the camera number zooms the current playback image of the selected camera on the screen. Right-click on the mouse and drag to change the orientation, and use the wheel with the left-click on the mouse to zoom in/out more precisely.
  • : Audio toggles audio playback On and Off. Recorded audio will be played when the DVR displays a camera with recorded audio in full screen mode.
• : Hide the text-in data on the screen if the video was recorded with text-in data.
• : Enter to the Edit Group mode in the split screen layout.

The Camera Menu also can be displayed by clicking the right mouse button on the screen while in the search mode.

• : Designate a start point and an end point and copy the data in between.
• : Open up the Clip Copy Setup window for designating points A and B.
• Allow you to check the status of the DVR's system, event status and storage.

Selecting Status will only be enabled for a user who has System Check authority.

• : Search recording data contained in the main recording device.
• : Search data recorded while disks used in other systems were connected.

Exit the search mode and enter the live monitoring mode.

Right-click on the Camera screen to access the context menu.

• :Zoom in.
- : Enter to the Edit Group mode in the split screen layout.

Exit the search mode and enter the live monitoring mode.

Select from the Search menu to bring up the Event Log Search Setup window.

Select an event to display the recording made on the selected time and date (paused state). Select the Play button in the middle of the screen to start playing back the recording. Use the screen form to load recordings from other cameras.

You can also narrow your event search by selecting the button and setting up the new search condition.

You can uncheck the and options at the top of the Event Log Search window and specify the search time frame manually.

Select First for From and Last for To to select the entire recording from start to end.

If designating or settings manually, you will be able to enable/disable the option.

If the system's clock has been changed and the designated or point exists at more than one location, you will have to choose one. Only the events that took place between the selected and points will be searched. If has not been selected, events from the entire and range will be searched.

Camera Filter

• : Select which channels to search alarm-in events in.
  • : Select which channels to search motion detection events in.
  • : Select which channels to search video loss events in.
• : Select which channels to search text-in events in.
  • : Select which record channels to search events in.

Selected record channels are searched for events with at least one linked recording. If no camera is selected, only the events with no linked recording camera are searched.

• Use event filters to include/exclude specific system events such as,
  1 1 1
  1 1 1
  and from the search.

Select from the Search menu to bring up the Record Table Search Setup window.

Display the current channel's recording information.

Recording date and time are shown on the top of the search window. The indicator line on Record Table indicates the current playback position. Use the arrow buttons on the remote control to move the current playback position in units of individual sectors. Alternatively, use the mouse to jump to the desired playback position.

Farther back the data is on the record table, the more recent it is.

If the system's clock is changed to a previous date and time, it is possible for multiple recordings with the identical time stamp to exist. Overlapped segments are highlighted in yellow.

Selecting or on the left-bottom of the search window changes the size of search window and displays Expanded view(the recording information of each camera channel), Standard view(combined recording information of all camera channels), and Compact view(only the toolbar).

Recording Data Bar Colors

Blue Time Lapse Recording

Purple Event Recording

Yellow Pre-Event Recording

Red Panic Recording

Select ⭕ (zoom-in) to compose recording data in 1-minute segments and select ⏻ (zoom-out) to compose recording data in 3-minute segments. Selecting zoom-out displays more time in one screen than zoom-in screen.

If recording from points in time prior or after the time frame displayed on the screen is available, scrolls appear on both ends of the date and time information line. Scroll using the arrow buttons on the remote control or by dragging with the mouse to check recording data.

Use the calendar to search for video recordings by specific dates.

Dates containing video recordings are highlighted in black. Selecting a date containing video recording data loads the earliest recording from that date (paused state). Selected date is highlighted in light blue.

- Search video recordings based on date and time. Specify the date and time and then select Go to jump to the corresponding video recording.

- Clip a video segment and saves it.

- Zoom the current playback image.

- Search the playback screen at low speeds. Select the desired playback speed (x1/2, x1/3, x1/4, x1/6, x1/8) and then select Play.

Add the current playback point to the bookmark list.

The maximum number of bookmarks that can be saved is 64.

Play and scan through video recordings. Playback controls have the same functions as their remote control counterparts.

	Skips to the previous screen (while in paused state).
	Plays the video in normal speed and displays ▶ on the screen. Pressing the button during playback pauses the video and displays || on the screen.
	Skips to the next screen (while in paused state).
	Scans backward through the video at a fast rate: X16, X32, X64, X128, X256. (Press to cycle through ◀, ◀ and the speed)
	Scans forward through the video at a fast rate: X16, X32, X64, X128, X256. (Press to cycle through ▶, ▶ and the speed)

Select from the Search menu to bring up the Text-In Search window.

Select a to display the video recording that corresponds to the selected time and date (paused state).

Text-in information is superimposed on the screen at normal playback speed. The information is not shown under any other playback speed.

Select to configure Text-In Search options.

- Select under and under to search the recording from start to finish. Alternatively, you can uncheck the and options and specify the search time frame manually.

Selecting button, the bookmark list displays and the bookmark point you selected will be the starting date and time.

• : Select a channel.
- Select to select a device type.
- : Add a search variable.
- Select whether or not the search will find only text strings in which the case matches, find only exact words that match with the word you entered during text-in setup, or delete transactions duplicated within text input strings.
• : Retrieve stored search option settings.
• : Save the current search option settings.

Once all the options have been configured, select to begin the search and return to the setup window.

Select from the Search menu to bring up the Bookmarks Setup window.

Select the icon to add a bookmark to the current playback position. Use the virtual keyboard to enter the bookmark name and use the arrow buttons to highlight the bookmark point for which you would like to see video. The ✗ icon can be used to delete a Bookmark.

The maximum number of bookmarks that can be saved is 64.

Clip Copy

Select – from the Search menu or press the remote control's button for more 3 seconds while in Live or Playback mode to open up the setup window. Specify the and settings.

A-B Clip Copy

Designate a start point and an end point and copy the data in between. Select – from the Search menu to set point A. The ▶ icon will appear on the status indicator area on the upper right corner of the screen. Select – once again to set point B. The Clip Copy Setup window will appear. Select A and B points are automatically applied as and values.

- : Specify which channel to save the recording to.

• : Enable password protection for the saved video clip and assign a password.
• : Select which storage media to use. If NetFS feature is in use, you can upload video clip to the registered FTP site.

In case of clip-copy to the NetFS site, the capacity of NetFS site and Disk cannot be found.

The DVR displays the volume as 30GB regardless of the actual disk volume and the maximum size limit on Clip Copy files is 30GB.

If the video clip is uploaded after being clip-copying, video clips will be deleted.

If there are same files, the video clips cannot be copied.

- : Designate a name for the file. The name may be up to 63 characters in length.

Special characters such as \, /, :, :, *, ?, !, ", <, >, and | are not permitted.

- : Enabling this option will save the video clip along with any available text-in data.

- : Add info to the Clip Copy file's name.

Special characters contained in the location info (such as \, /, :, :, *, ?, !, ", <, >, and |) will be replaced with _ when the information is added to the file name.

Selecting displays a calculation on the size of the data to be copied. Check the calculation and then select to proceed. While Clip Copy is in progress, you can select to cancel the process or select to allow the window to run in the background. Selecting does not cancel Clip Copy. Once the process is complete, you will be prompted with a confirmation window.

Press the remote control's button for more 3 seconds while in Live or Playback mode to open up the setup window with One-Touch mode.

configures the storage range automatically based on the storage drive's capacity. If there is insufficient space available on the selected storage device, you will only be able to Clip Copy an amount of data equaling the remaining space available on the storage device.

Clip Copying a segment that is more than 2GB in size produces multiple files that are up to 2GB in size, each.

Clip Copy files can be played back on Windows systems. For more information, refer to the IDIS Center operation manual.

For USB flash memory devices, the DVR supports the FAT32 file format only.

Do not disconnect the USB cable or power off the USB device while USB Clip Copy is in progress. Doing so can cause the DVR to malfunction or critically damage the external USB device's file system. You may be prompted with an error message when trying to back up on the device. If so, you will need to restart the DVR. If the USB hard disk's file system has been damaged, restarting the DVR will not solve the problem and the aforementioned error message will continue to be displayed each time you attempt a backup. If this is the case, you will need to format the HDD or use a recovery program to repair the damage to the drive's file system.

If the system's clock is changed to a point in the past, overlapping recordings may be produced. Overlapped recordings have to be searched in segments.

For example, making a recording from 1 o'clock to 5 o'clock, changing the system's clock at 5 o'clock to 3 o'clock, and then continuing to record until 6 o'clock produces two recordings that overlap between 3 o'clock and 5 o'clock. This results in two segments for the period between 3 and 5.

Pure geometric lines forming a right triangle and a horizontal line with tick marks (no text or symbols)

When searching overlapped video recordings, you can choose a specific point in time or a time frame. If you use the option and select a point within the overlapped time period (, for example), you must specify in which of the two existing segments.

Empty white rectangle with a thin black border (no text or symbols)

If you use the or

option and select a time frame within the overlapped time period (, for example), you

must choose between the two redundant sets of From and To values. Selectable search ranges are as follows:

• 4 o'clock in segment 1 to 5 o'clock in segment 1
• 4 o'clock in segment 1 to 5 o'clock in segment 2
• 4 o'clock in segment 2 to 5 o'clock in segment 2

Empty white rectangle with a thin black border (no text or symbols)

IDIS Web is a program that allows you to view and search video from remote locations over the Internet and can be accessed on a regular web browser such as Internet Explorer.

System requirements for running IDIS Web are as follows:

• OS:Microsoft ^ Windows ^ 7 (Home Premium, Professional, Ultimate), Microsoft ^ Windows ^ 8 (Pro, Enterprise), Microsoft ^ Windows ^ 10 (Home, Pro)
  • CPU: Intel Pentium IV 2.4GHz or above (Core 2 Duo E4600 recommended)
• RAM: 1GB or more
  • VGA: 128MB or more (1280x1024, 24bpp or above)
• Internet Explorer: Ver. 7.0 or above (32-Bit)

IDIS Web only works with Microsoft Internet Explorer and will NOT work with other browsers.

IDIS Web does not work in Microsoft® Windows® 8 metro UI.

Launch Internet Explorer and then enter the following information in the address bar.

• http://IP Address:Port Number (DVR system's IP address and IDIS Web port number configured under Network > General (Default Value: 12088))
• http://fen.idisglobal.com/FEN Name (FEN Name: DVR name configured on the FEN server)
  – http://web.idisglobal.com (will be prompted to enter DVR's IP address or FEN name registered to the FEN server upon login)

Contact your network administrator for the IP address of the DVR you wish to connect to and the IDIS Web port number.

When prompted with the IDIS Web login window, select or as the desired mode. Enter the ID and password and click to sign in using the selected mode.

Empty white rectangle with black border (no text or symbols)

If connecting by entering http://web.idisglobal.com, enter the DVR's IP address in the Device Address field. Selecting the Use FEN Service option on the login window allows you to enter the DVR name registered to the FEN server instead of its IP address. You will be prompted to enter the FEN server's address and port number under Setup.

Do not close the login window while IDIS Web is running. Switching over to Web Live or Web Search mode can cause a script error, requiring you to restart the IDIS Web program.

If running IDIS Web, the bottom section of the screen may get cut off if the address bar or the status bar is shown. In this case, change Internet Options so that the address bar or the status bar is hidden. ( )

To use IDIS Web on Microsoft Windows Vista or above, launch Internet Explorer by right-clicking on the icon and selecting the option. Otherwise, certain IDIS Web functions might not be available.

Launching a new version of IDIS Web for the first time can cause Internet Explorer to load information from the previous version. In this case, navigate to , delete temporary Internet files, and then restart IDIS Web.

On Microsoft Windows Vista or above, lowered image transmission rate can prevent the screen from being displayed or updated. In this case, we recommend that you disable the computer's auto tuning function. Open the command prompt as an administrator. (and then select

) Type in "" and then press Enter. Restart the

computer to apply the change. To enable auto tuning again, launch the command prompt as an administrator and then type in ""'. Restart the computer to apply the change.

A remote web monitoring program that allows you to monitor images from remote locales in real-time.

	Press to terminate WebGuard.
	Place the mouse pointer on the IDIS logo to check WebGuard's version.
	Displays the current time.
	Select the desired mode. Changing the mode places the selected camera in the first cell of the layout that will be changed.
	Click to print the current video screen using a printer connected to the computer.
	Click to save the current video screen as an image file.
	Click to configure rendering mode and OSD settings. Select rendering mode to adjust the video output rate or select which OSD elements to display on the screen from the OSD list.
	Click to switch over to setup menu.
	Click to switch over to Web Search mode.
	Shows login information.
	Select the camera you wish to monitor. Use the arrow buttons to navigate to the previous/next camera group.
	Used to control a PTZ camera at a remote location.
	Used to adjust live video quality.
	Controls remote alarm out devices.
	Event status window at the bottom of the screen displays a list of events detected at remote locales.
	Select a camera from the screen and right-click to bring up the pop-up menu.·: Used to change the camera's name. Renaming the camera in Web Live mode does not affect the camera's name on the remote system. If no name is entered for the camera, the name used at the remote locale is shown on the screen. ·: Enables audio transmission with remote locales. Select to display buttons.
	S	Enables transmission of audio to the remote locale via microphone.
		Enables playback of audio from the remote locale on speakers.
	/	Enables two-way audio communication with the remote locale.
	×	Disables audio transmission.
	If the remote locale connected to supports audio transmission, icon appears on the corresponding camera screen.·: Changes the aspect ratio of the video displayed on the screen.-: Fit the video to the size of the camera screen.-: Resizes camera screen to original aspect ratio of the video.-: Displays the camera videos in the selected size based on the original size of the video. For example, original size (x1) displays the video in its original size. Half size (x0.5) through 4 times larger (x4) options are only available if there is enough space on the camera screen to accommodate the selected size.·Select a stream.·: Removes stair step effect (blocks) that is caused when zooming a video to improve overall quality of video output.

A remote web search program that allows you to search for recordings from remote locales in real-time.

While in Web Search mode, connection to remote locales will terminate automatically after 30 minutes of inactivity.

	Press to terminate IDIS Web.
	Place the mouse pointer on the IDIS logo to check IDIS Web's version.
	Displays time information of the video recording from the remote DVR.
	Select the desired mode.
	Click to print the current video screen using a printer connected to the computer.
	Click to save the video recording as an executable file.
	Click to save the current video screen as an image file.
	Click to configure rendering mode and OSD settings. Select rendering mode to adjust the video output rate or select which OSD elements to display on the screen from the OSD list.
	Click to switch over to Web Live mode.
	Shows login information.
	Select the camera you wish to search. Use the arrow buttons to navigate to the previous/next camera group.
	Zoom in or out on the video.
	Adjust image brightness.
	Apply image filters (Sharpen, Blur, Equalizer, Interpolation, and Revert) to the images.√ Image calibration is applied only during the paused state.
	Use the calendar to search for video recordings by specific dates.Dates containing video recordings are highlighted in light blue. Selecting a date containing video recording data loads the earliest recording from that date(paused state). Selected date is highlighted in orange.
	Select to enable time lapse search mode and search/play back video recordings in chronological order. In Time Lapse Search mode, search is conducted by selecting days on the calendar. The time table at the bottom displays recording data information for the selected date. Select a point in time to display video from that moment. If multiple recordings are available for the selected point in time, you can select the desired segment.
	Select to enable event search mode and search for events matching user-designated parameters.
	Use the playback controls to play back video.
		Go to First		Play by Frame (forwards)
	Rewind			Fast Forward
		Play by Frame (backwards)		Go to Last
		Play/Pause
	Click to designate recent recordings you wish to search and then jump to a specific point in the recording.
	Click to reload recent video recordings from remote locales.
	Indicates the selected camera's recording data on a time bar. If the camera's system clock has been changed to a point in the past and more than one recording exists at the same point in time as a result, you will be able to choose which segment to search from the segment menu on the upper right portion of the time table.
