DS-LEDTK-20VX6S - Wall mount for screen Peerless-AV - Free user manual and instructions

Product Type	Trim Kit for LED Video Walls
Brand	Peerless-AV
Model	DS-LEDTK-20VX6S
Compatible Displays	Unilumin UpanelS series
Mounting Surface	Plywood walls (min. 1/2" thick, Grade BC)
Included Hardware	Wood screws, socket screws, hex nuts, cutting jigs, corner covers, VHB tape
Wall Bracket Style	Solid and perforated (two options)
Cover Types	Solid and perforated covers
Cutting Fixture Included	Yes, outer and inner cutting jigs
Maximum Load Capacity	Not specified; refer to display mount capacity
Indoor/Outdoor	Indoor use only
Color	Black (typical)
Material	Steel/aluminum (assumed)
Dimensions	Custom fit to video wall; covers cut to size
Weight	Approximately 5 lbs (estimated)
Included Tools	4mm Allen wrench
Additional Parts	Vinyl sticker, shim, spacers
Warranty	Refer to www.peerless-av.com/warranty
Customer Support	1-800-865-2112 (US), [phone] (EU)
Installation Requirement	Assistant or mechanical lifting equipment recommended

Frequently Asked Questions - DS-LEDTK-20VX6S Peerless-AV

What is the Peerless-AV DS-LEDTK-20VX6S used for?

It is a trim kit designed to provide a clean, finished look around LED video walls, specifically for Unilumin UpanelS series displays, covering gaps and edges.

Does the kit include all necessary hardware?

Yes, it includes wood screws, socket screws, hex nuts, cutting jigs, corner covers, and VHB tape. An 4mm Allen wrench is also provided.

Can this trim kit be installed on any wall type?

No. The kit is designed for plywood walls with a minimum thickness of 1/2" (13mm) Grade BC. It is for indoor use only.

What is the difference between solid and perforated covers?

Solid covers provide a sleek, uninterrupted look, while perforated covers allow some airflow. Both are included in the kit to suit different aesthetic or ventilation needs.

Do I need to cut the covers to size?

Yes. The covers and wall brackets must be cut to fit your specific video wall dimensions. Cutting jigs are included to assist with precise cuts.

Is this trim kit compatible with video walls other than Unilumin UpanelS?

The manual provides steps specifically for Unilumin UpanelS with bump-outs. It may be adaptable to other video walls by modifying the cutting process, but compatibility is not guaranteed.

How do I attach the corner covers?

Corner covers are attached using VHB tape. Clean surfaces before applying and file sharp edges after cutting for a safe fit.

What tools are needed for assembly?

A saw or cutting tool for trimming covers, a drill for mounting holes, a screwdriver, and the included Allen wrench. A measuring tape and pencil are also recommended.

Can I install the trim kit alone?

It is recommended to use an assistant or mechanical lifting equipment to safely lift and position the covers and brackets due to size and weight.

Where can I find the warranty information?

Warranty details are available at www.peerless-av.com/warranty. Contact customer care at 1-800-865-2112 for support.

USER MANUAL DS-LEDTK-20VX6S Peerless-AV

Isometric view of a rectangular panel with a diagonal edge and side connectors (no text or symbols)

WARNING

ENG - This product is designed to be installed on plywood walls. Hardware is included for plywood installation. This product is designed to be installed on flat, unobstructed, vertical walls. Do not install on curved or angled walls. Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail. Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to safely lift and position equipment. This product is intended for indoor use only. Use of this product outdoors could lead to product failure or personal injury. Be careful not to pinch fingers when operating the mount. For support please call customer care at 1-800-865-2112.

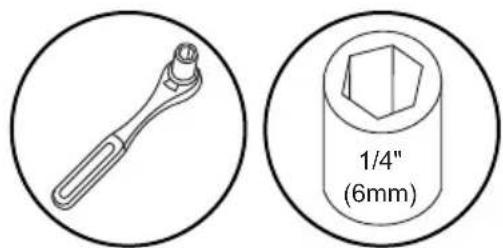

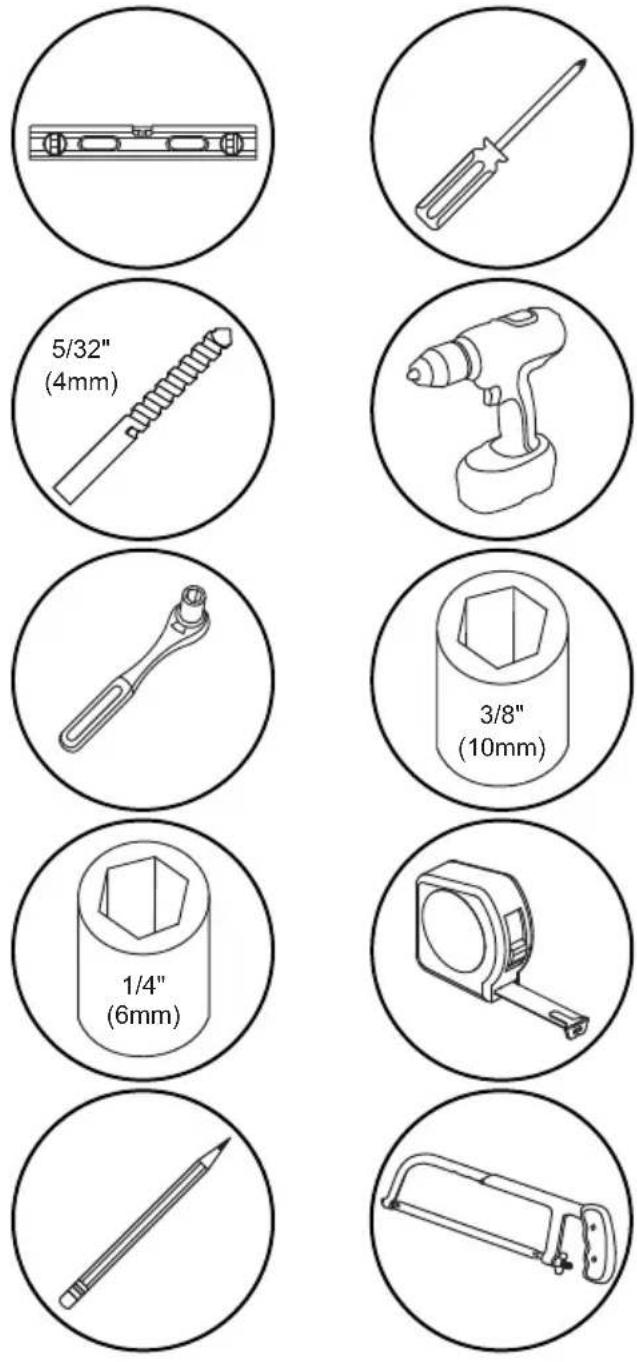

ENG Tools Needed for Assembly.

ENG Parts (Before beginning, make sure you have all parts shown below).

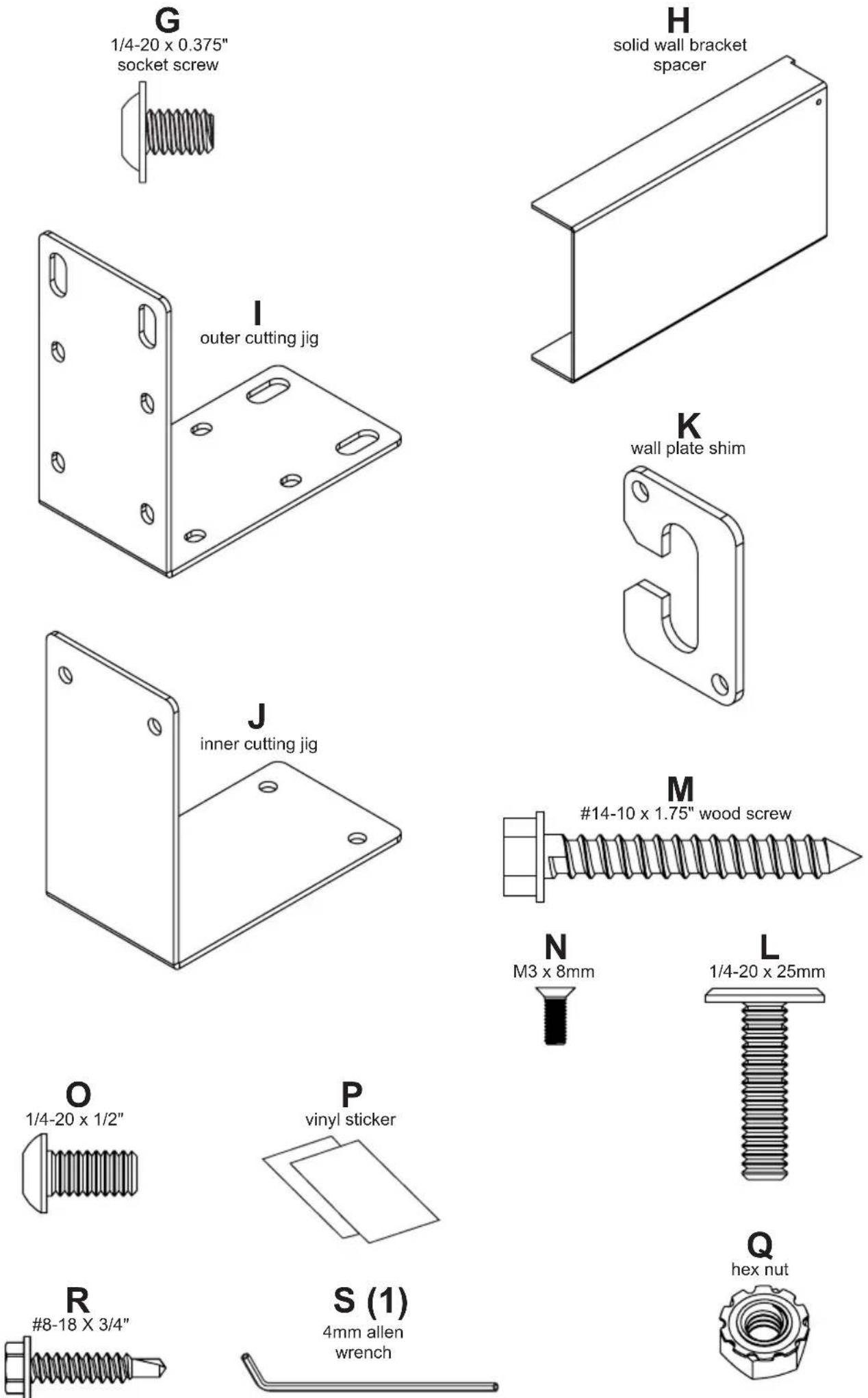

Parts List
Description Part #

A solid cover -
B perforated cover -
C right solid wall bracket -
D perforated wall bracket -
E corner cover assembly 147-1876
F nut bar 147-T1881
G 1/4-20 x 0.375" socket screw 10007616
H solid wall bracket spacer 147-T1880
I outer cutting jig 147-T1882
J inner cutting jig 147-T1883
K wall plate shim 147-1891
L 1/4-20 x 25mm screw	521-0710
M #14-10 x 1.75" wood screw	521-1688
N M3 x 8mm phillips	521-0711
O 1/4-20 x 1/2" socket screw	520-1169
P vinyl sticker	580-0535
Q 1/4-20 hex nut	10010403
R #8-18 X 3/4" self drilling screw	521-0714
S 4mm allen wrench	560-9646
T left solid wall bracket	-

1

Blank gray rectangle with black border and corner markers (no text or symbols)

ENG Standard steps for solid or perforated trim kits.

Simple line drawing of a rectangular frame with corner markers (no text or symbols)

ENG Steps for Unilumin UpanelS sides with bump-outs.

Simple line drawing of a folded paper or document with an arrow indicating upward motion (no text or symbols)

1a-1

ENG Measure video wall dimensions.

Line drawing of a measuring tape inside a circle (no text or symbols)

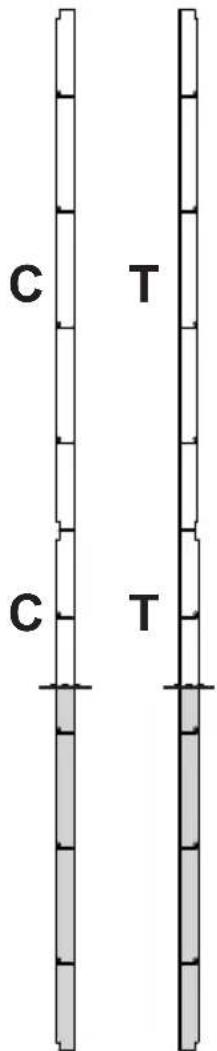

1a-2

ENG Mark cutting line on covers and wall brackets.

Simple line drawing of a pencil inside a circle (no text or symbols)

1a-3

ENG Do not join covers until installing covers to the wall. Leave top and right cover edges uncut for proper alignment.

2a-1

ENG

Optional: Clamp or fasten cutting fixture to side of wall bracket or cover being discarded.

R (4)

2a-2

Simple line drawing of a mechanical tool or bracket inside a circle (no text or symbols)

WARNING

ENG - When installing Peerless wall mounts on a wood stud wall covered with plywood, verify that the wood studs are a minimum of 2" x 4" nominal size and plywood is a minimum Grade BC, 1/2" (13mm) thick. Plywood may be covered by gypsum board (drywall) up to 5/8" thick.

3a-1

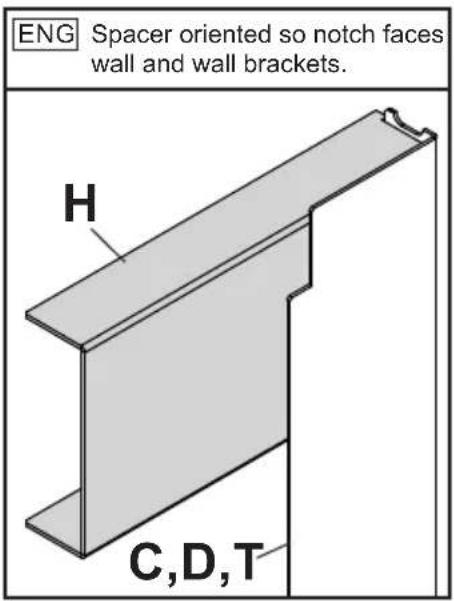

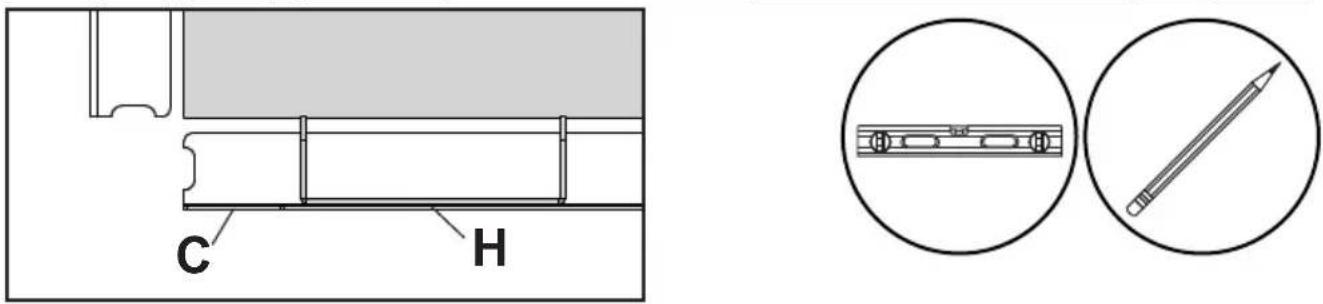

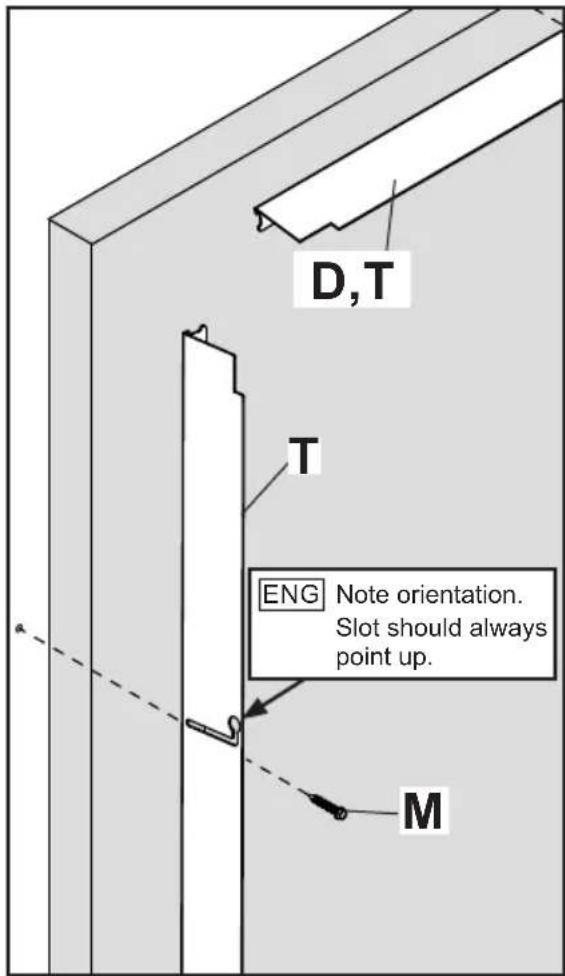

ENG Align wall bracket with edge of video wall. Use spacer to set final position. Mark mounting holes.

3a-2

Line drawing of a handheld electric tool inside a circle (no text or symbols)

ENG Drill mounting holes into supporting surface (1.75" (44mm) minimum depth required).

3a-3

ENG Install using wood screws provided. Use spacer to set final position of wall bracket.

4

Follow steps for solid or perforated trim kits.

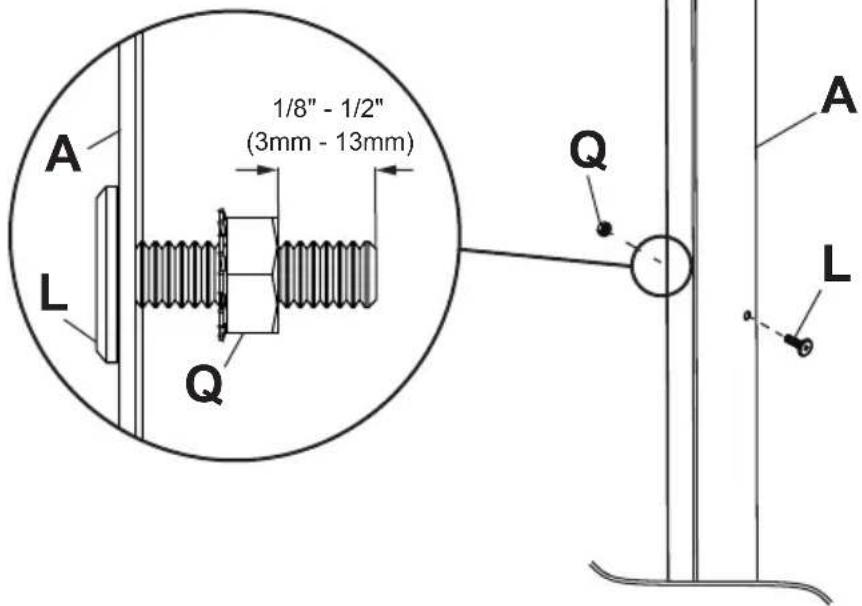

4a-1

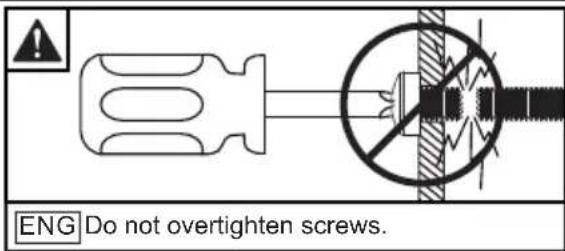

ENG Do not tighten hardware to solid cover.

4a-2

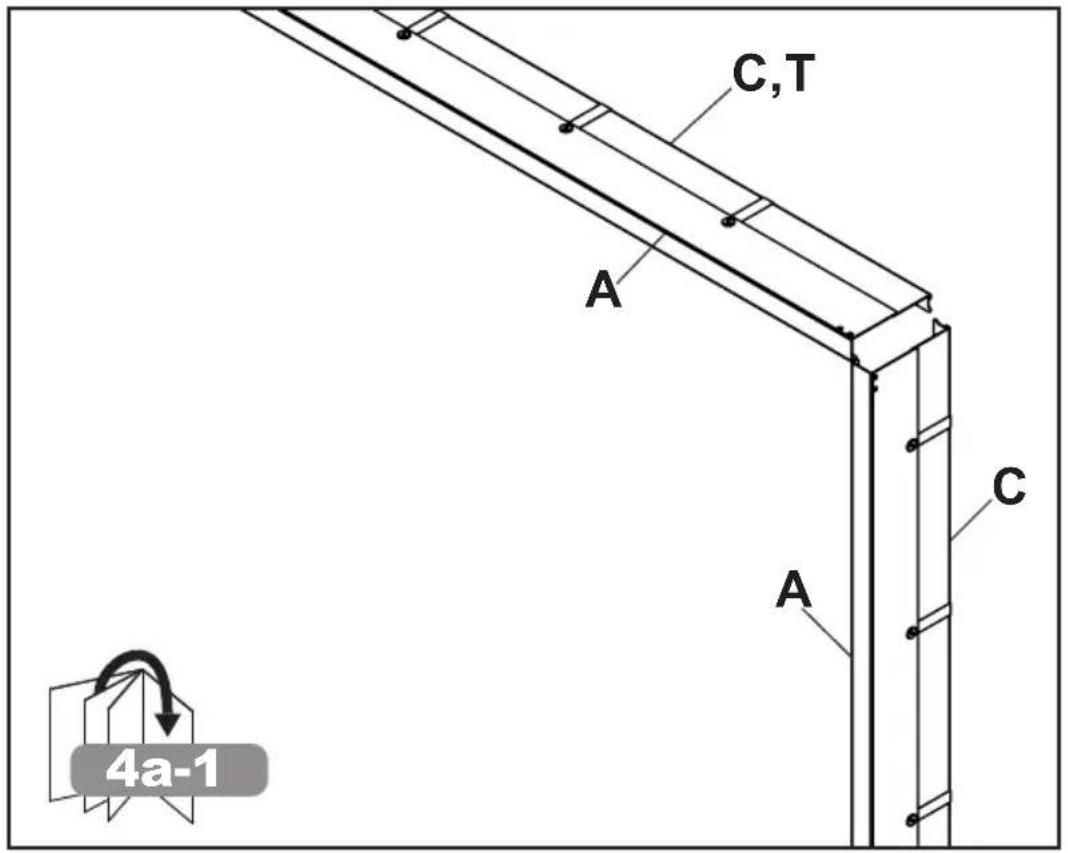

ENG Place wall plate cover over wall bracket. Slide back until flush with front of video wall.

4a-3

ENG

Attach covers with nut bar inside cover. Displays not shown for clarity.

4a-4

ENG

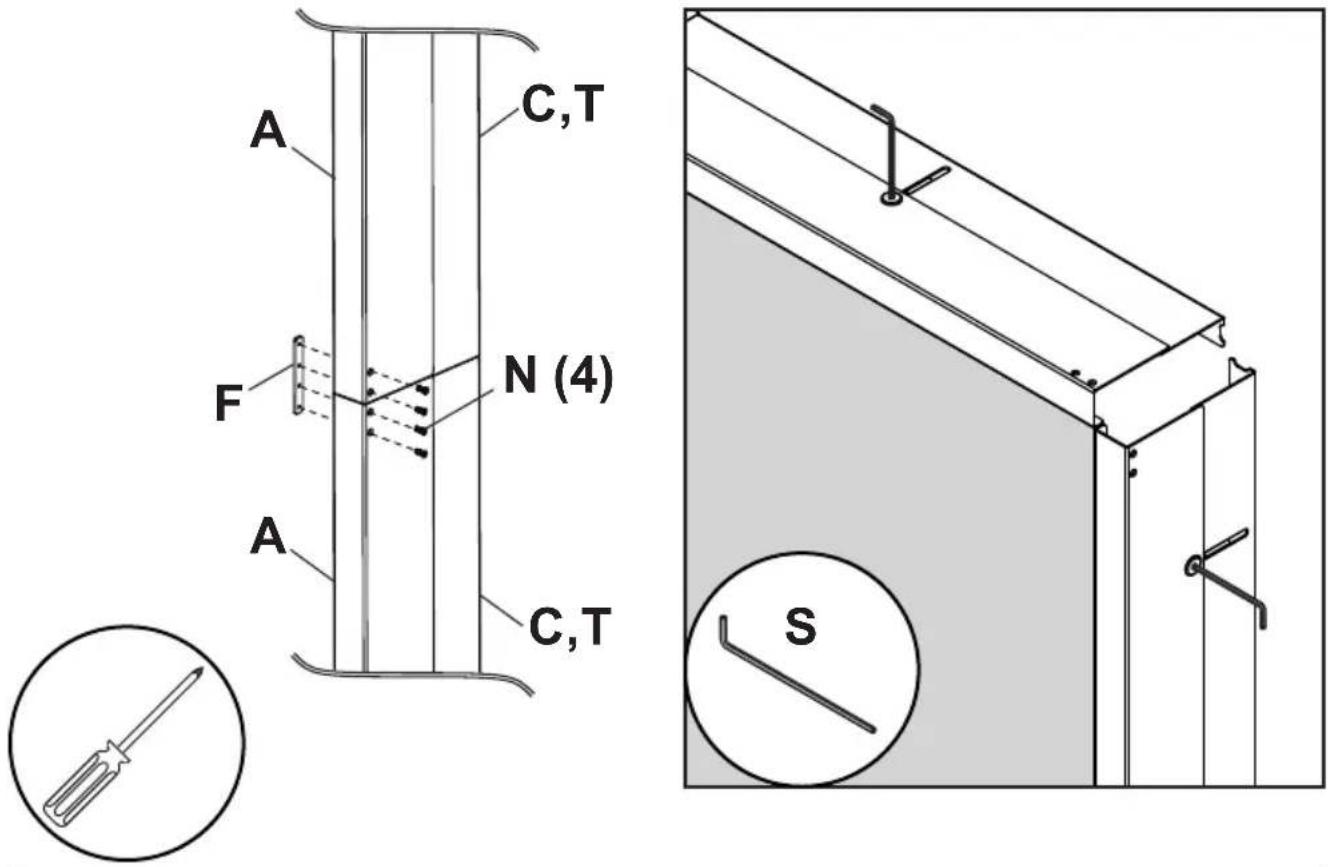

Slide cover back flush with video wall. Tighten screws.

4a-5

Technical line drawing of a structural frame with labeled component 'P' and connection points (no text or symbols beyond label)

4b-1

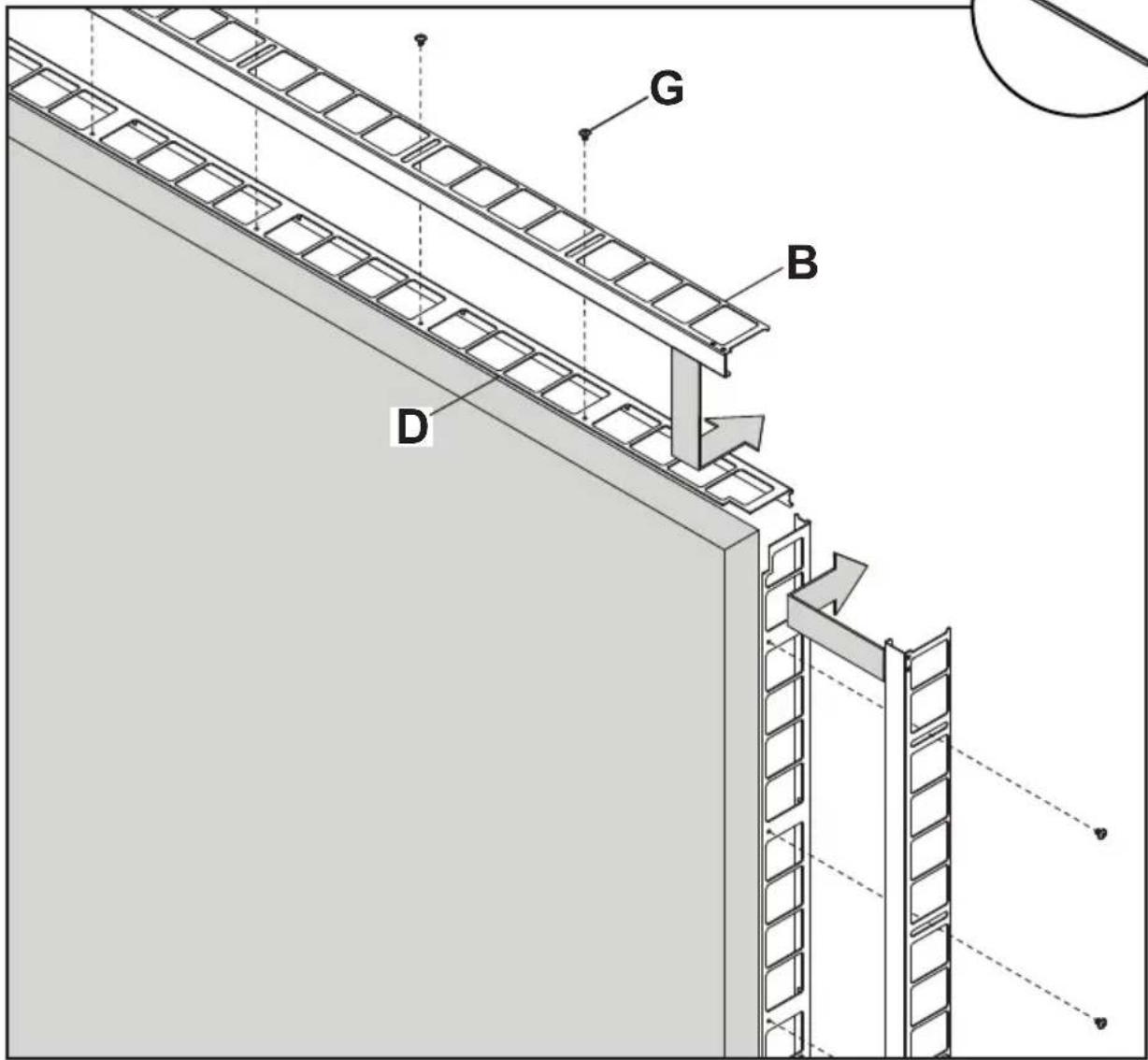

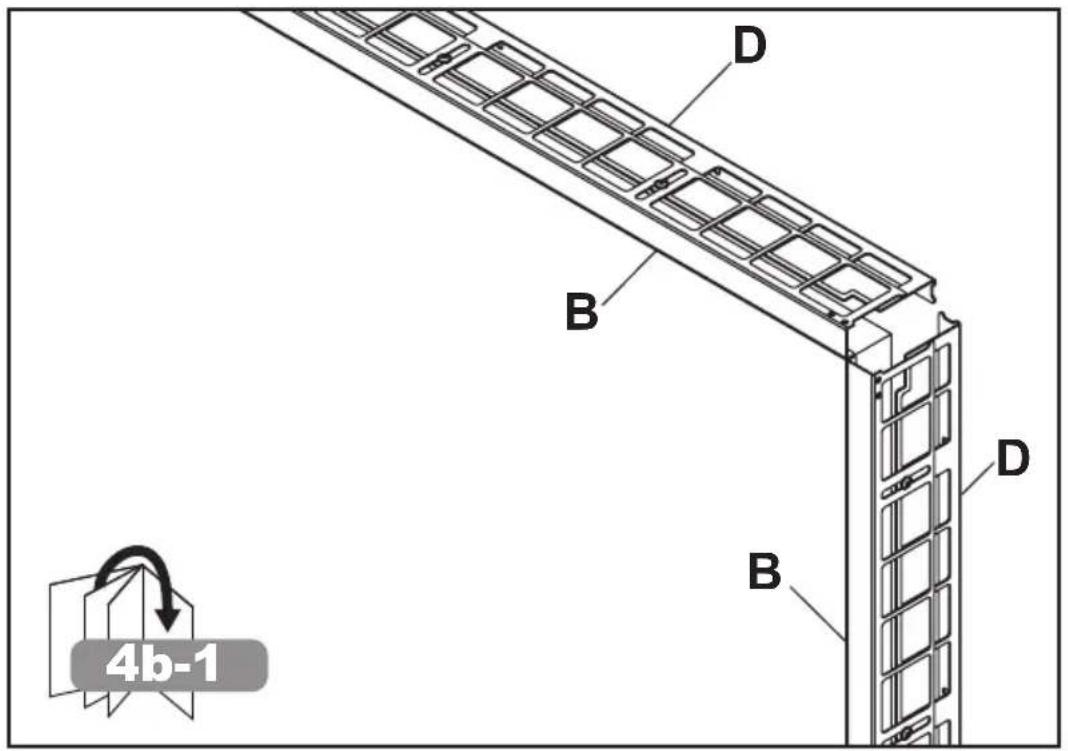

ENG Place cover over wall bracket. Slide back until flush with front of video wall.

4b-2

Attach covers with nut bar inside cover. Displays not shown for clarity.

Line drawing of a screwdriver inside a circle (no text or symbols)

4b-3

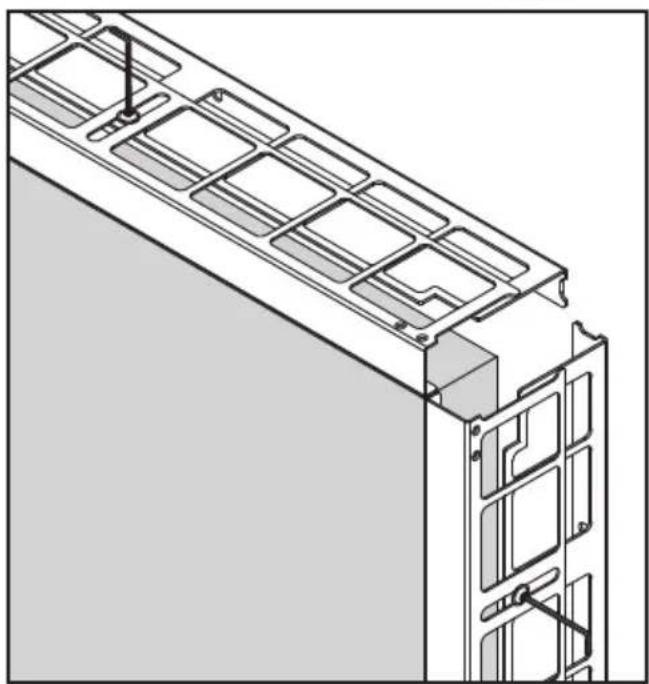

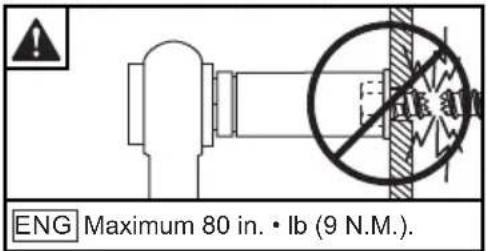

Tighten screws.

Technical line drawing of a structural panel with grid-like cutouts and mounting brackets (no text or symbols)

4b-4

ENG

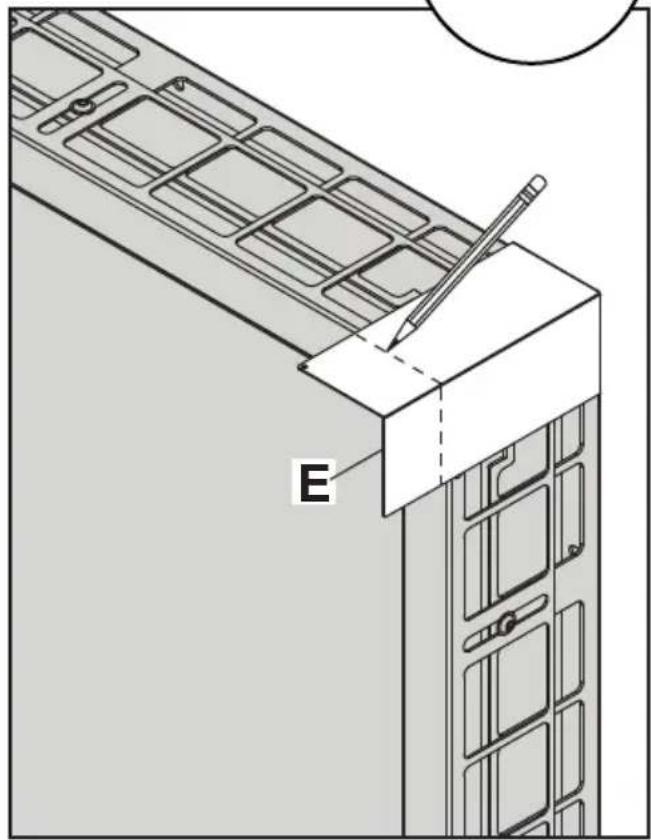

Place corner cover against wall and mark cutting line.

Simple line drawing of a circular frame with a horizontal bar and two small circular elements inside (no text or symbols)

Architectural diagram showing a window frame structure with a pencil inserted, labeled 'E' (no text or symbols beyond label)

4b-5

ENG

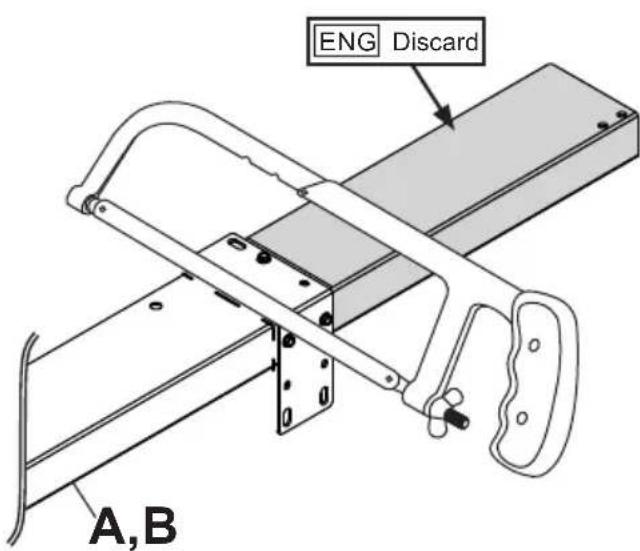

Slide corner cutting fixture into place and clamp onto side of cover being discarded.

4b-6

ENG

Cut excess corner cover off.

Simple line drawing of a mechanical tool or bracket inside a circle (no text or symbols)

Technical line drawing of two mechanical components with no visible text or symbols

Do not clamp fixture on wrong side of cutting line.

4b-7

File sharp edges of corner cover. Remove adhesive backing.

x4

4b-84

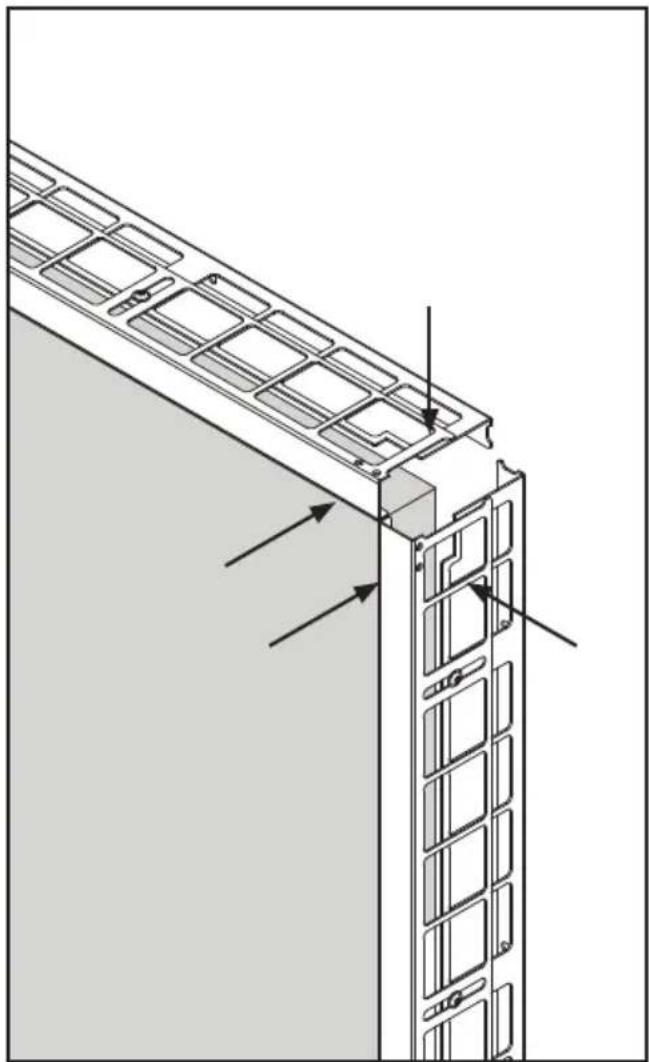

Clean surfaces before applying VHB.

Architectural diagram of a building facade with window grilles and structural elements, showing directional arrows (no text or symbols)

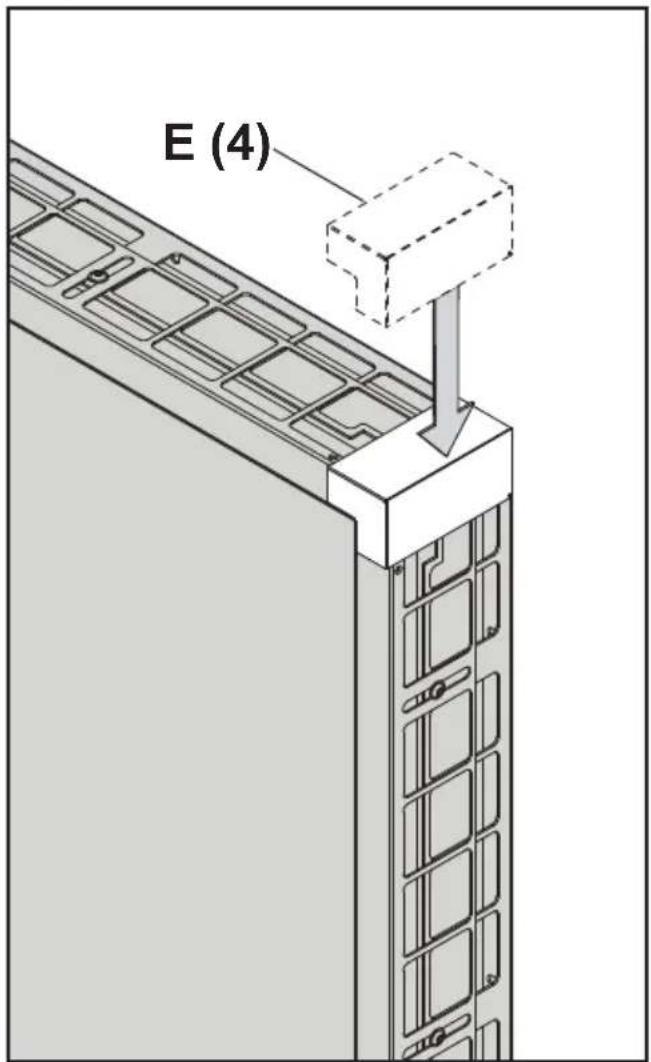

Attach four corner covers with VHB.

ENG This page intentionally left blank.

ENG This page intentionally left blank.

Alternate steps for Unilumin UpanelS sides with bump-outs

1d-1

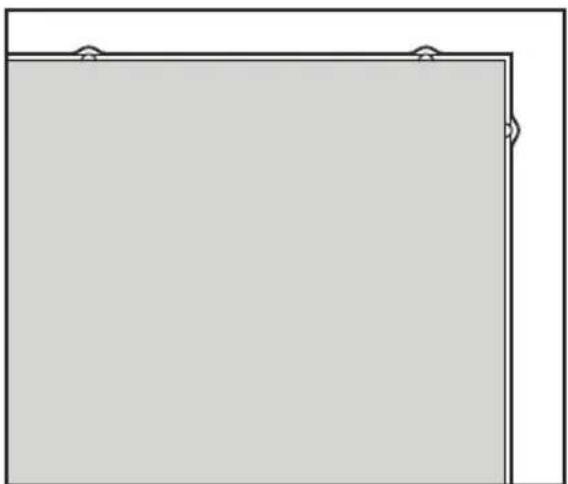

ENG To begin installing solid trim on Unilumin UpanelS edges with bump-outs, create guiding line for the top and right side of the unit using spacer provided.

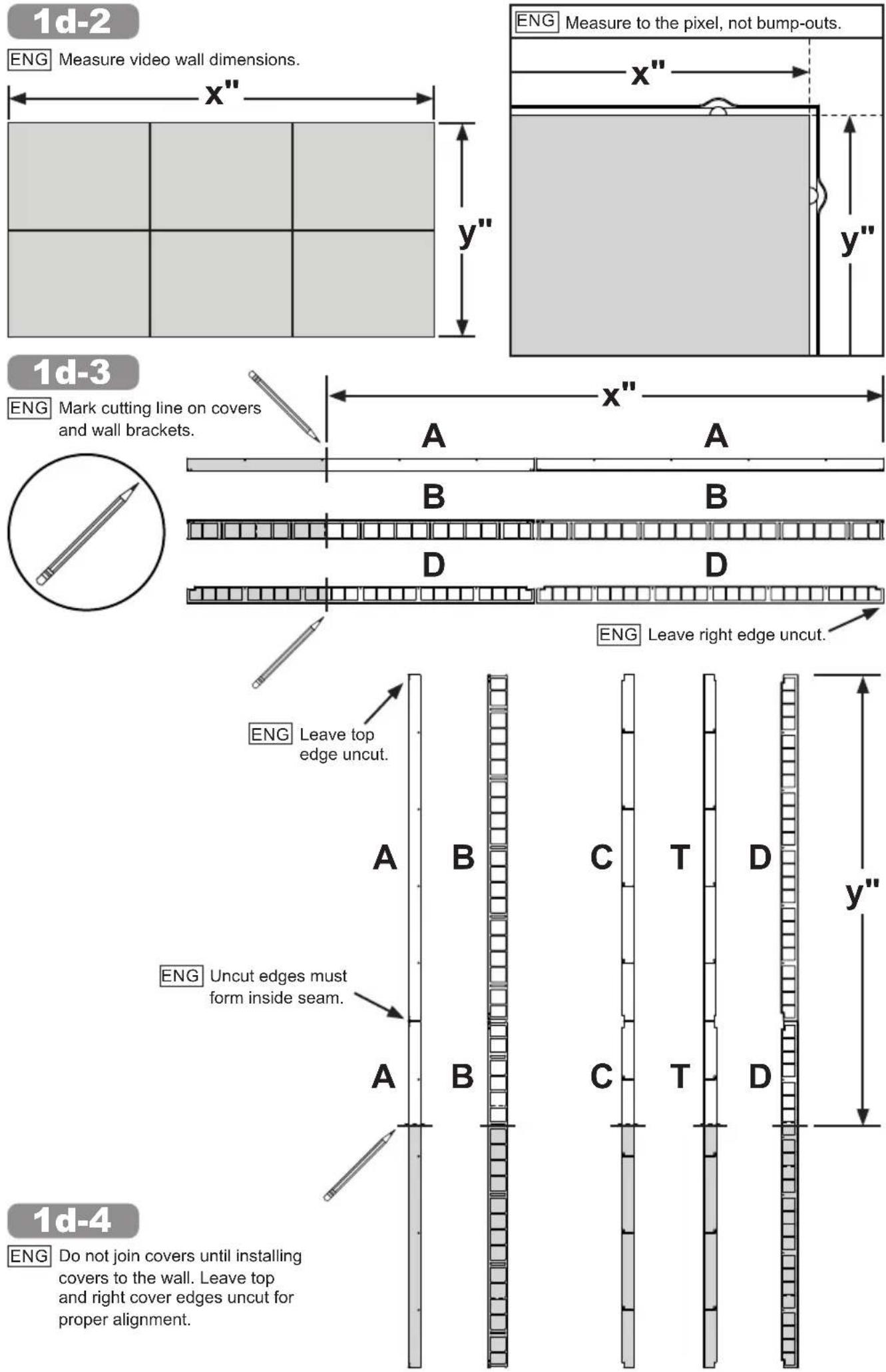

Simple line drawing of a pencil inside a circle (no text or symbols)

2d-1

ENG

Optional: Clamp or fasten cutting fixture to side of wall bracket or cover being discarded.

2d-2

Line drawing of a saw blade inside a circle (no text or symbols)

3d

WARNING

ENG - When installing Peerless wall mounts on a wood stud wall covered with plywood, verify that the wood studs are a minimum of 2" x 4" nominal size and plywood is a minimum Grade BC, 1/2" (13mm) thick. Plywood may be covered by gypsum board (drywall) up to 5/8" thick.

3d-1

ENG Align top and right wall brackets with display guiding lines. Mark mounting holes. For left and bottom wall brackets, align wall bracket with edge of video wall. Use spacer to set final position. Mark mounting holes.

3d-2

Line drawing of a handheld electric tool inside a circular frame (no text or symbols)

ENG Drill mounting holes into supporting surface (1.75" (44mm) minimum depth required).

3d-3

ENG Install using wood screws provided. Do not fully tighten.

ENG Slide wall brackets in slot until they sit 1.25" from display guiding lines. Level and tighten wood screws. Repeat for left side.

4

Follow steps for solid or perforated trim kits.

4a-1

ENG Do not tighten hardware to solid cover.

4a-2

ENG Place wall plate cover over wall bracket. Slide back until flush with front of video wall.

4a-3

ENG

Attach covers with nut bar inside cover. Displays not shown for clarity.

4a-4

ENG
Slide cover back flush with video wall. Tighten screws.

Technical line drawing of a structural panel with mounting brackets and a circular inset showing a labeled 'S' (no text or symbols beyond the label)

4a-5

Technical line drawing of a structural frame with labeled component 'P' and mounting bracket (no text or symbols beyond label)

4b-1

ENG Place cover over wall bracket. Slide back until flush with front of video wall.

4b-2

Attach covers with nut bar inside cover. Displays not shown for clarity.

Line drawing of a screwdriver inside a circle (no text or symbols)

4b-3

Tighten screws.

Technical line drawing of a structural panel with grid-like cutouts and mounting brackets (no text or symbols)

4b-4

ENG

Place corner cover against wall and mark cutting line.

Simple line drawing of a circular frame with a horizontal bar and two small circular elements inside (no text or symbols)

Architectural diagram showing a window frame structure with a pencil inserted, labeled 'E' (no text or symbols beyond label)

4b-5

ENG

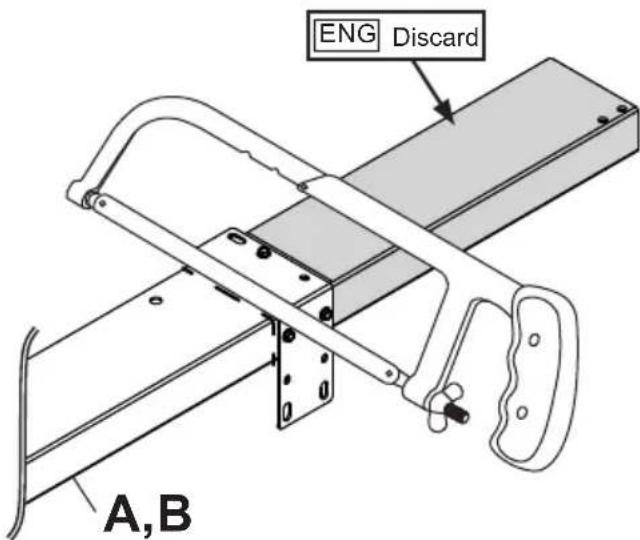

Slide corner cutting fixture into place and clamp onto side of cover being discarded.

4b-6

ENG

Cut excess corner cover off.

Simple line drawing of a mechanical tool or bracket inside a circle (no text or symbols)

Technical line drawing of two mechanical components with no visible text or symbols

Do not clamp fixture on wrong side of cutting line.

4b-7

File sharp edges of corner cover. Remove adhesive backing.

x4

4b-84

Clean surfaces before applying VHB.

Architectural diagram of a building facade with window grilles and structural elements, showing directional arrows (no text or symbols)

Attach four corner covers with VHB.
