USER MANUAL DS-MBY947L-2X1 Peerless-AV

Technical line drawing of a mechanical structure with beams and supports (no text or symbols)

ENG This page intentionally left blank

WARNING

ENG - This product is designed to be installed on wood joist/beam or solid concrete ceilings. Hardware is included for wood joist/beam and solid concrete installation. Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail. Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to safely lift and position equipment. This product is intended for indoor use only. Use of this product outdoors could lead to product failure or personal injury. Be careful not to pinch fingers when operating the mount. For support please call customer care at 1-800-865-2112.

ENG Symbols ENG WARNING

ENG Skip to step.

ENG Screws must get at least three full turns and fit snug.

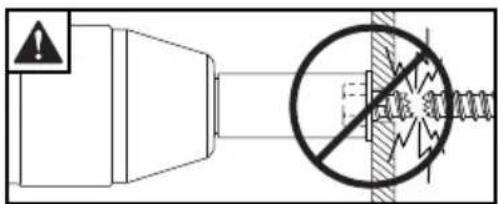

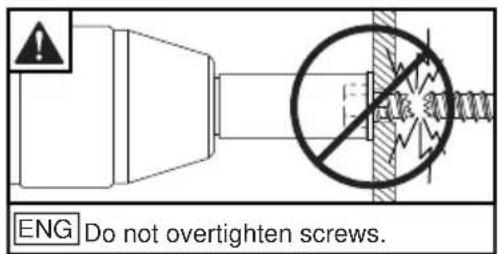

ENG Do not overtighten screws.

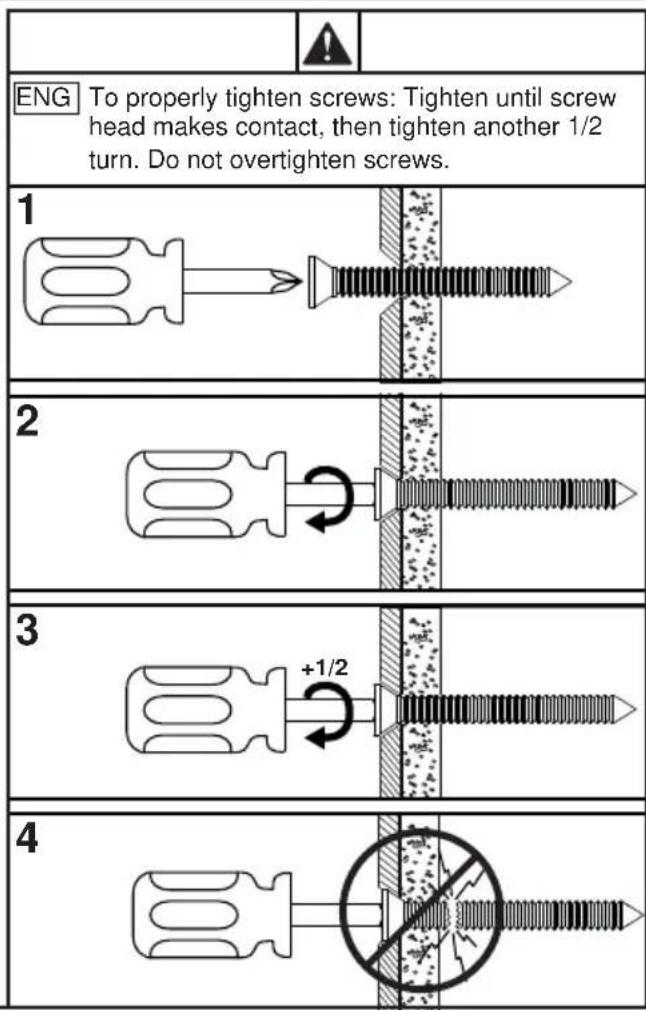

ENG To properly tighten screws: Tighten until screw head makes contact, then tighten another 1/2 turn. Do not overtighten screws. 1 2 3 4

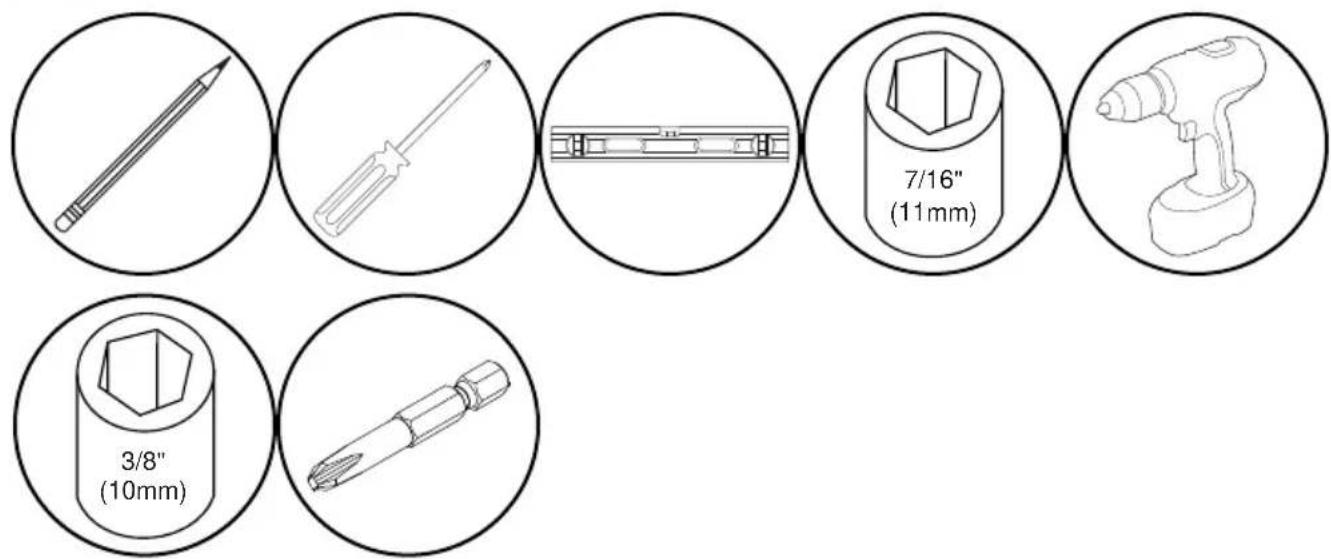

ENG Tools Needed for Assembly.

7/16" (11mm) 3/8" (10mm)

ENG Parts (Before beginning, make sure you have all parts shown below).

Parts List	DS-MBY942L-2X1 Part #	DS-MBY947L-2X1 Part #Description Qty
A wall plate 2 145-1988 145-1991
B left adapter bracket 2 146-1021 146-1021
C right adapter bracket 2 146-1020 146-1020
D retaining collar 1 1800-375 1800-375
E large washer 1 540-9432 540-9432
F M5 x 16mm phillips screw 4 520-1189 520-1189
G 1/4-20 x 1/2" phillips screw 4 510-9108 510-9108
H M6 x 12mm phillips screw 8 520-1128 520-1128
I M8 x 16mm phillips screw 8 520-9257 520-9257
J 4mm allen wrench	1 560-9646 560-9646
K cable tie	6 560-9711 560-9711
L main frame	1 146-1048 146-1048
M main post	1 146-1052 146-1052
N carriage bolt	4 520-1175 520-1175
O small washer	4 540-9440 540-9440
P nylock nut	4 530-9413 530-9413
Q hex head screw	12 520-1321	520-1321
R #10 x 1/2" phillips screw	2 520-1320 520-1320
S M5 x 10mm socket pin screw	1 520-1164 520-1164
T multiwasher	8 580-1398 580-1398

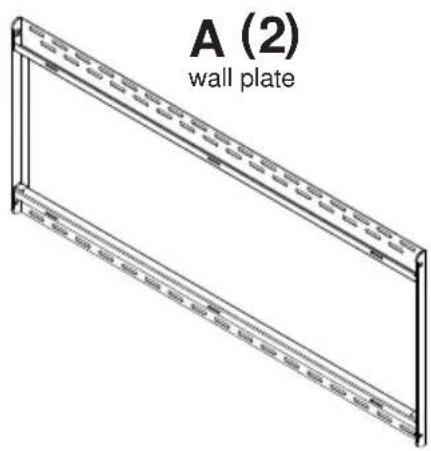

A (2) wall plate

D (1) retaining collar

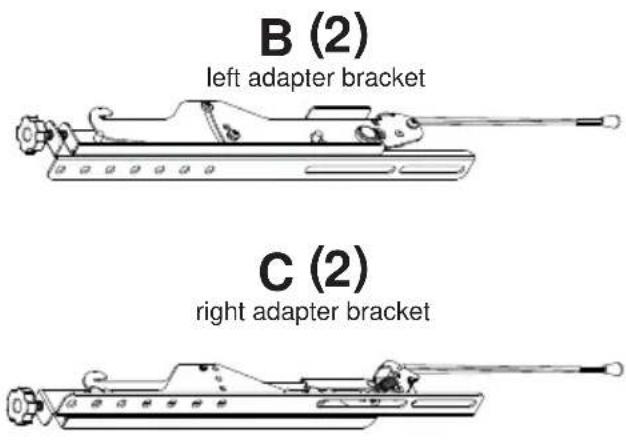

B (2) left adapter bracket C (2) right adapter bracket

E (1) large washer

F (4) M5 x 16mm

G (4) 1/4-20 x 1/2"

I (8) M8 x 16mm

J (1)

K (6) cable tie4mm allen wrench

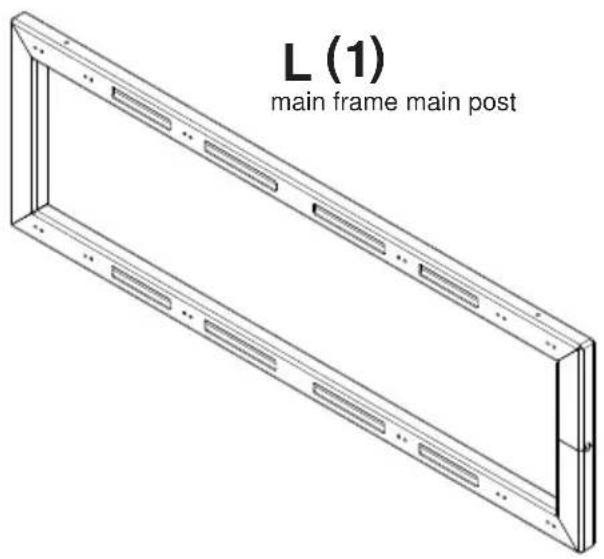

L (1) main frame main post

M (1)

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

N (4)
carriage bolt

O (4)
small washer

P (4)
nylock nut

Q (12)
hex head screw

Technical line drawing of a bolt with threaded head and nut (no text or symbols)

R (2)

10 x 1/2" phillips screw

S (1)
M5 x 10mm socket pin screw

T (8)
multiwasher

Isometric line drawing of a rectangular panel with three circular holes (no text or symbols)

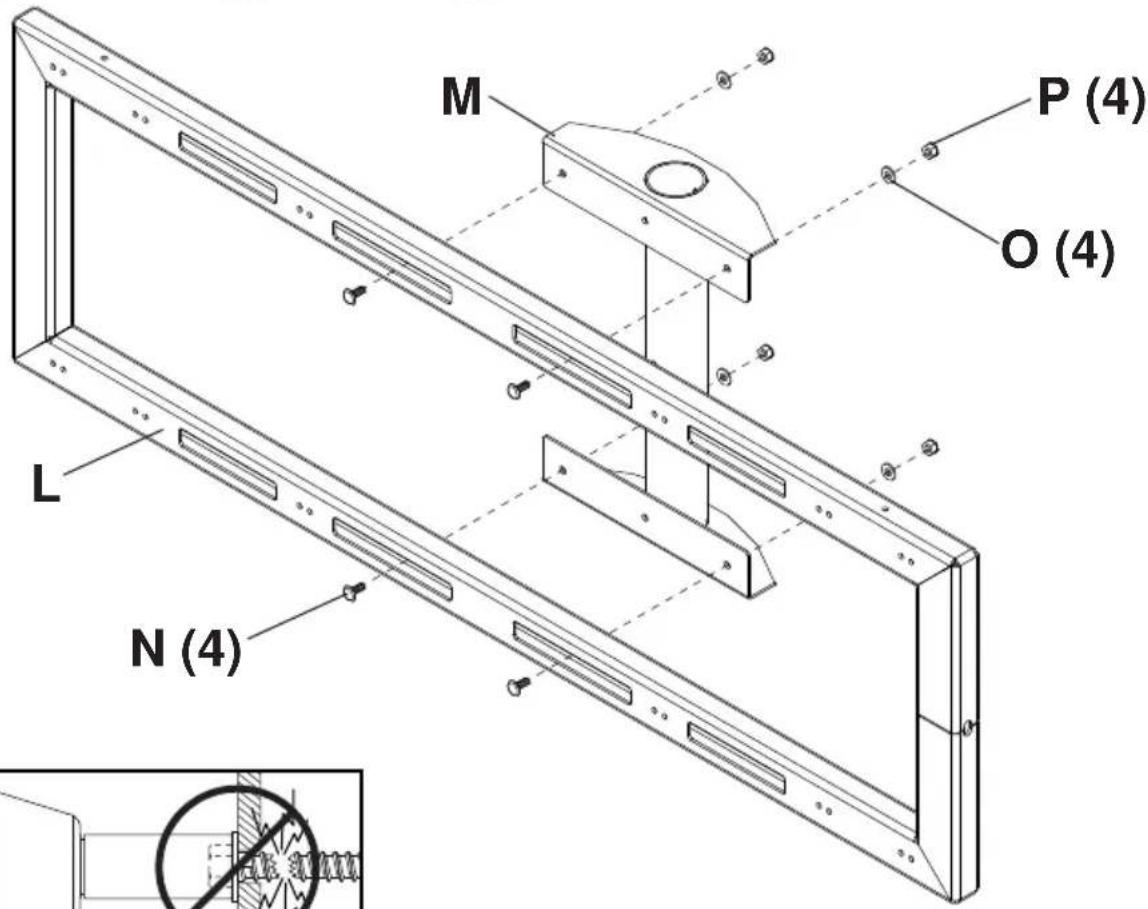

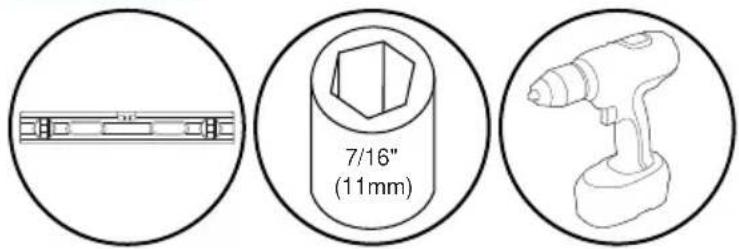

1

7/16" (11mm)

M P (4) O (4) L N (4)

Safety warning diagram showing hazard symbol and no crossing requirement for electrical hazard

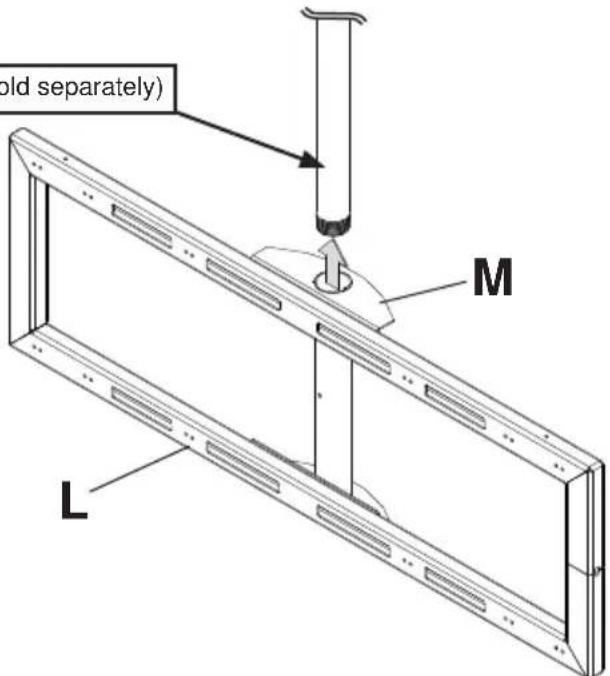

2-1

ENG Extension column (sold separately)

(old separately) M L

2-2

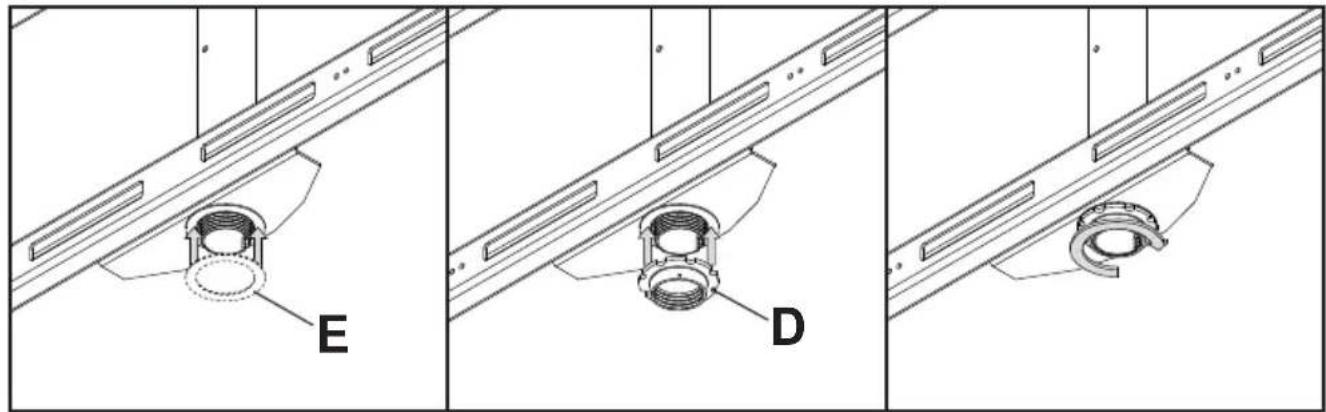

E D

2-3

J

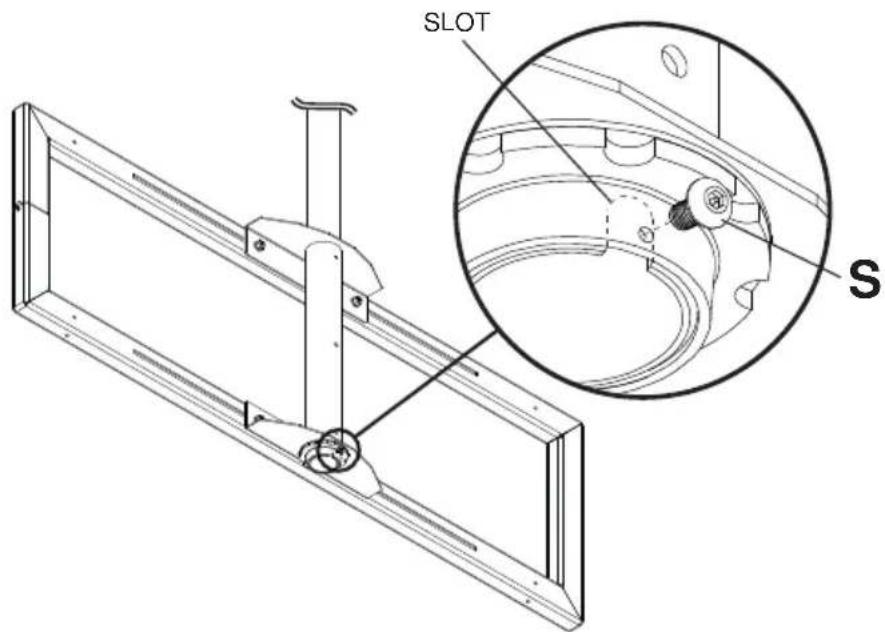

Align slot of extension column

SLOT S

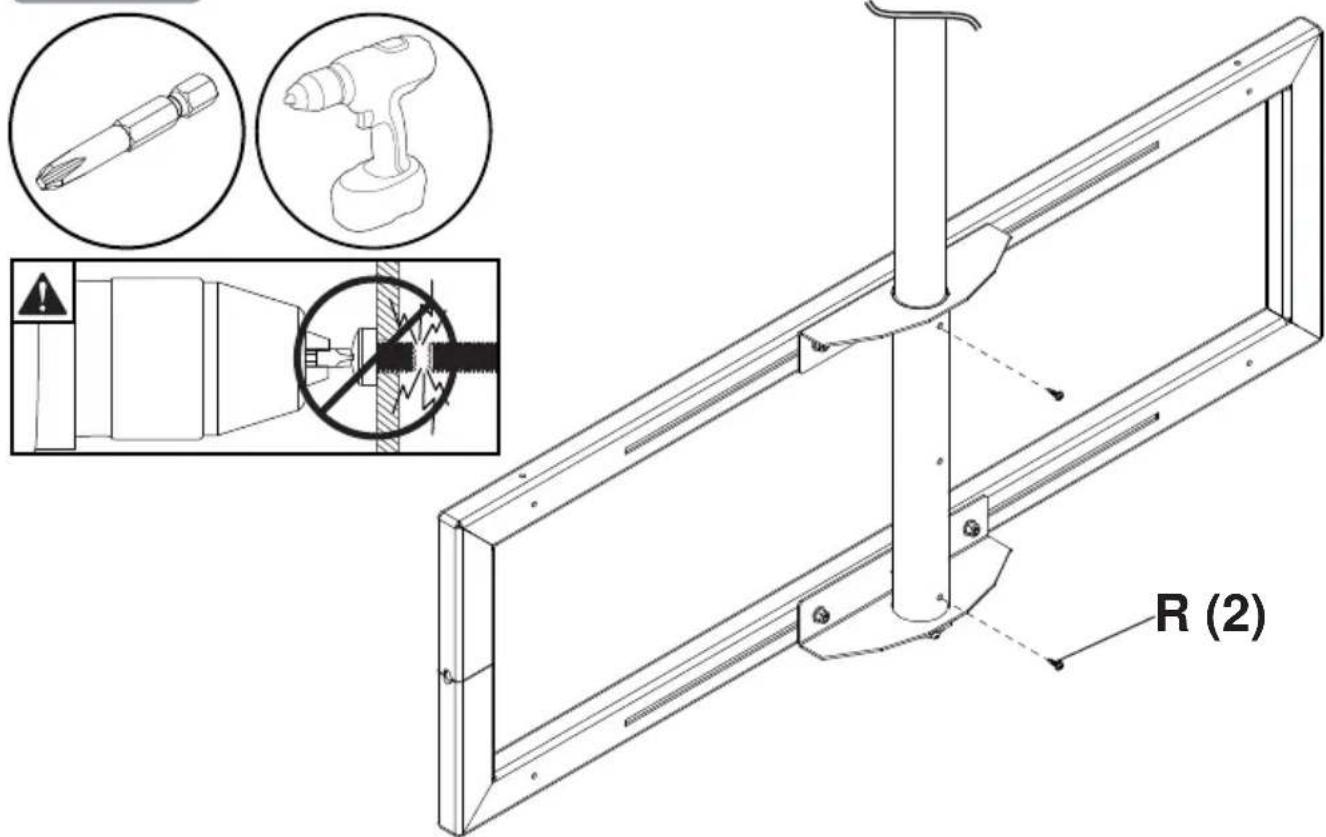

2-4

R (2)

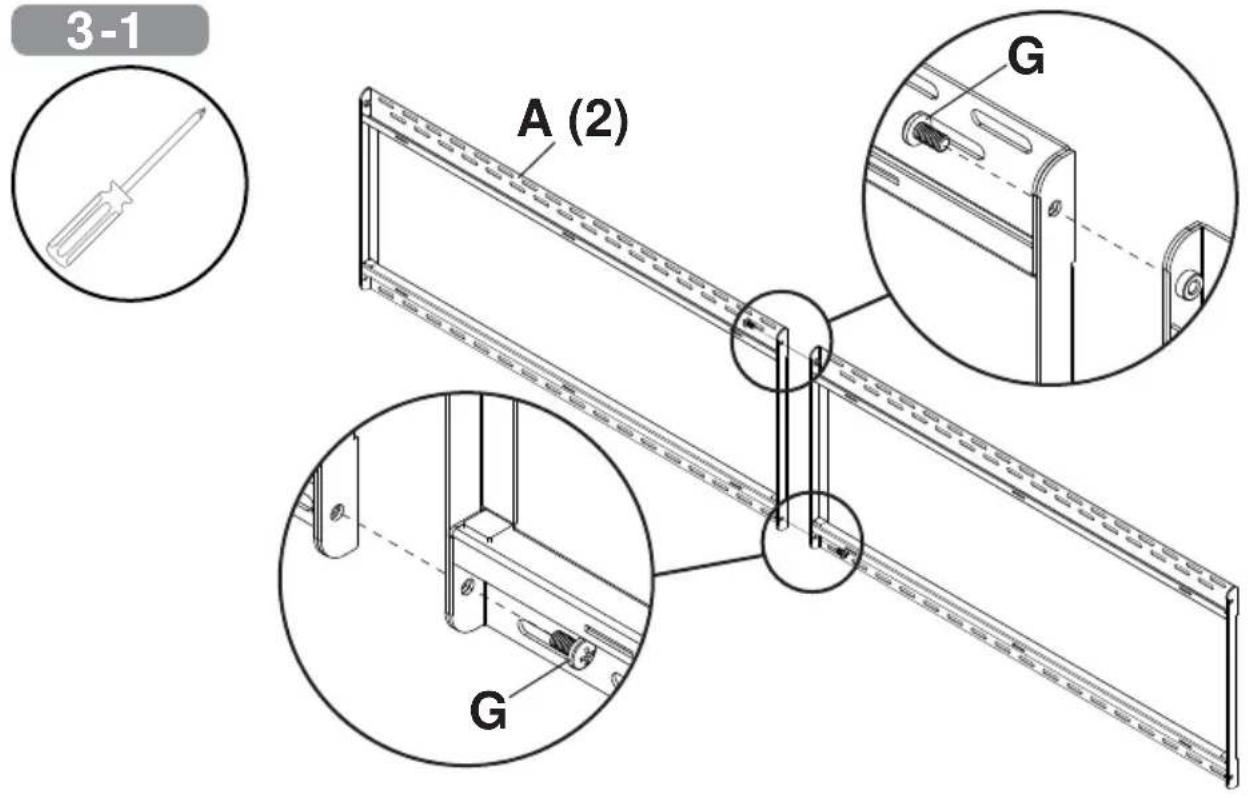

3-1 A (2) G G

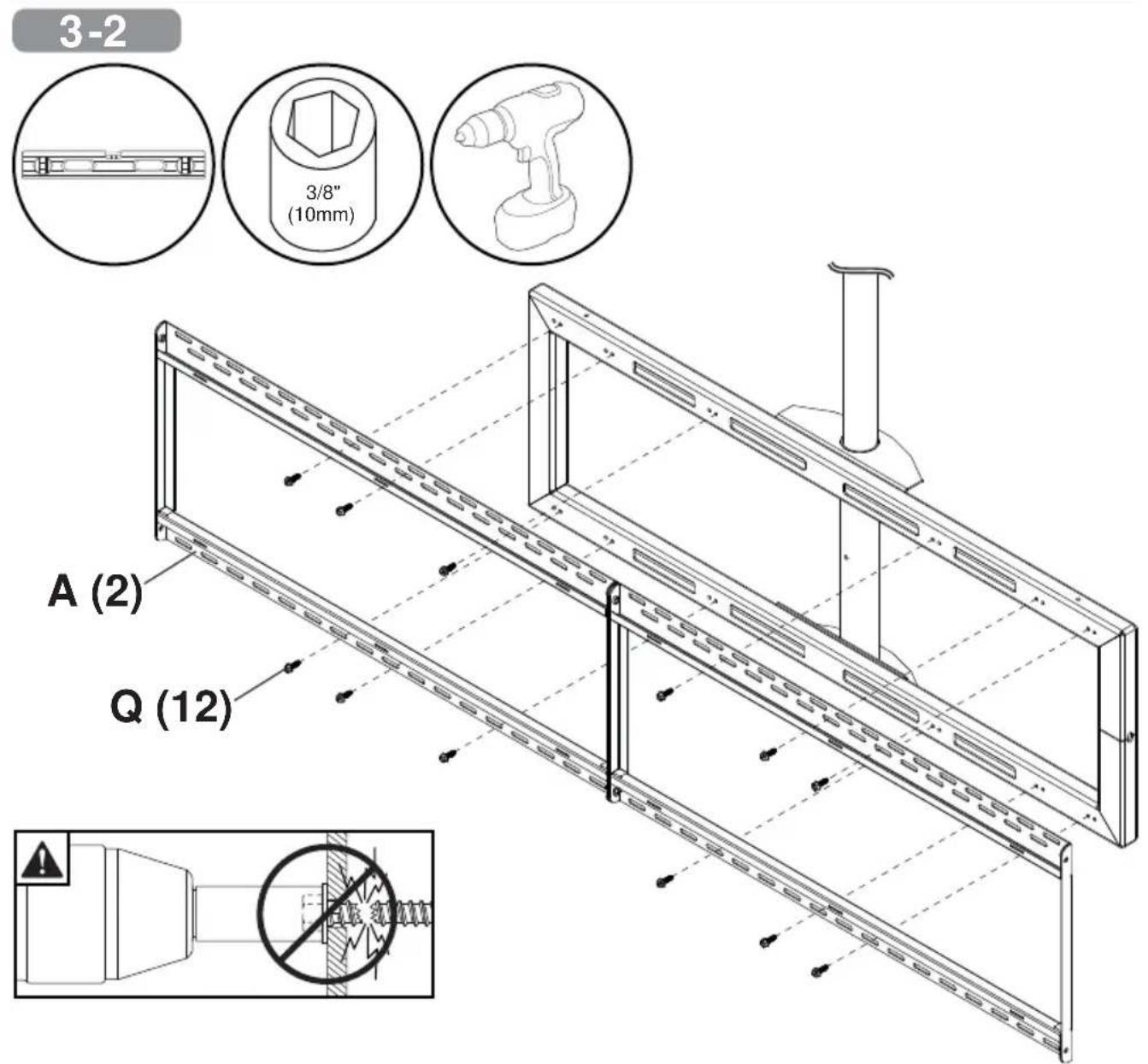

3-2 3/8" (10mm) A (2) Q (12)

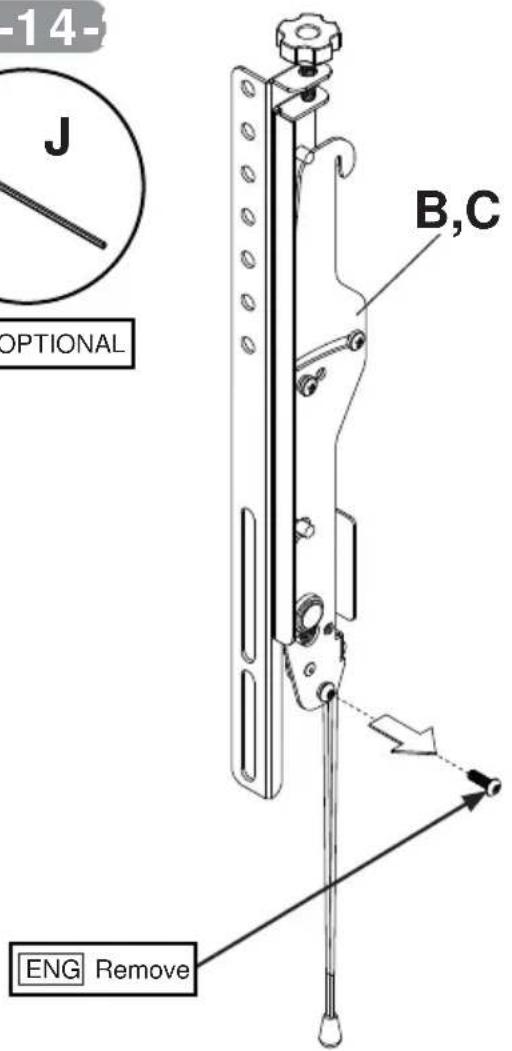

4-14- J ENG OPTIONAL

-14- J OPTIONAL B,C ENG Remove

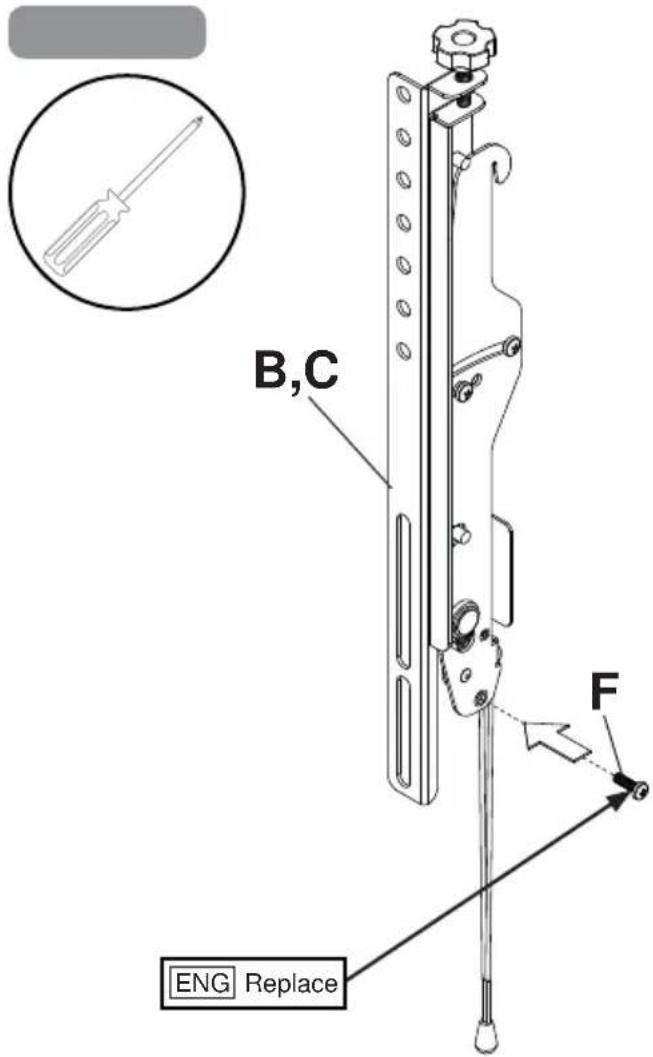

B,C F ENG Replace

5

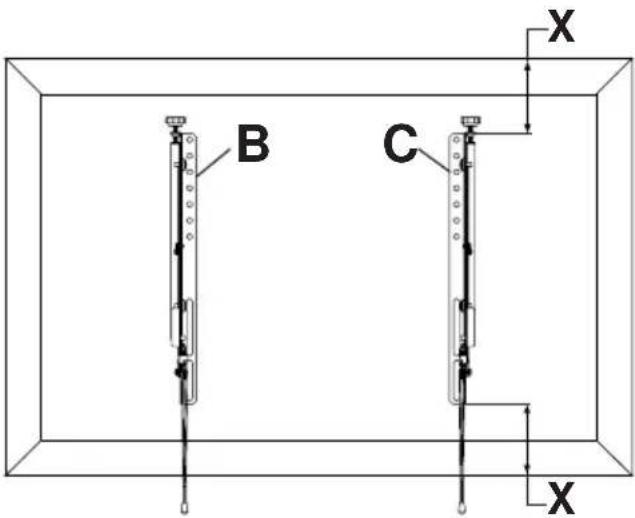

ENG Center adapter brackets vertically on back of screen.

B C X X

6

x3

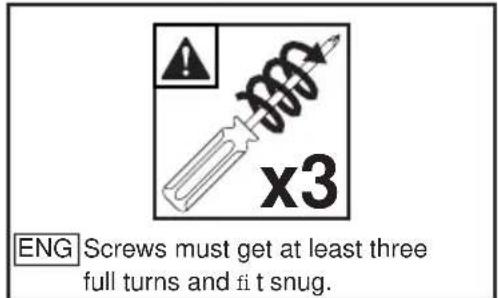

ENG Screws must get at least three full turns and fit snug.

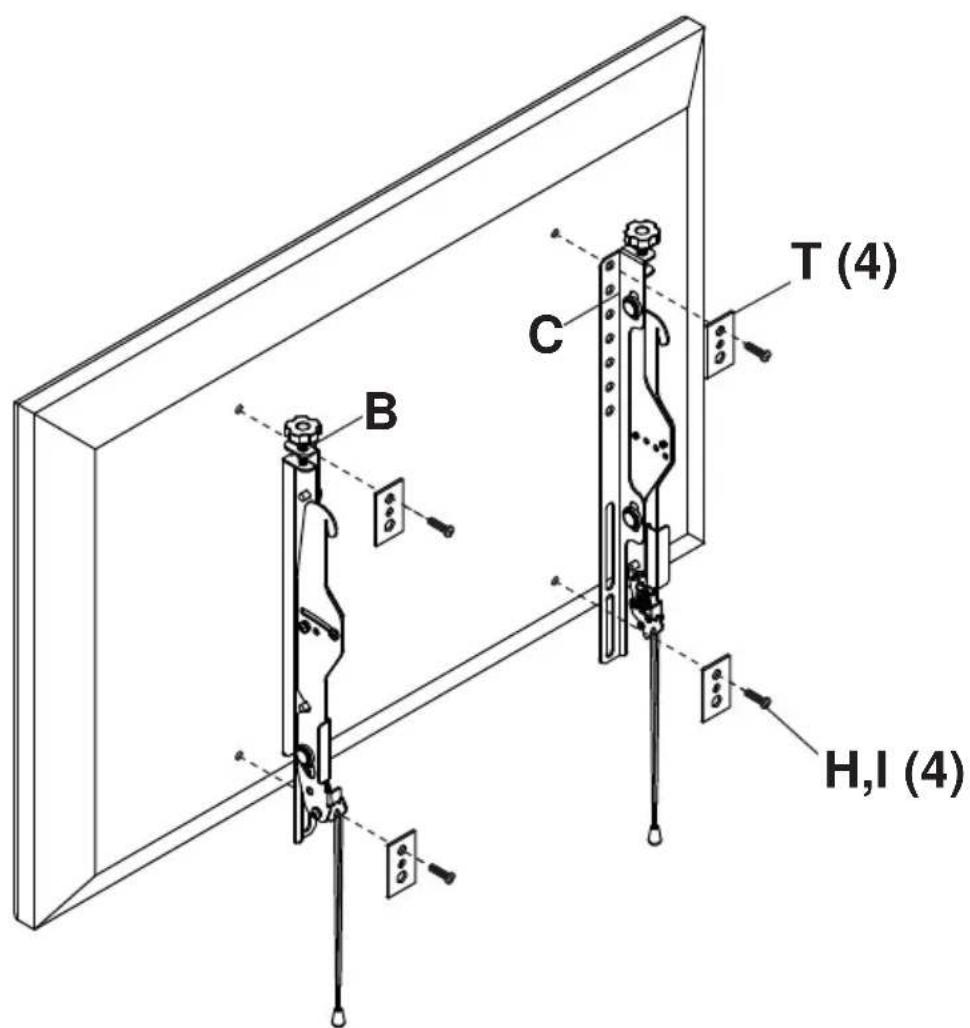

B C T (4) H,I (4)

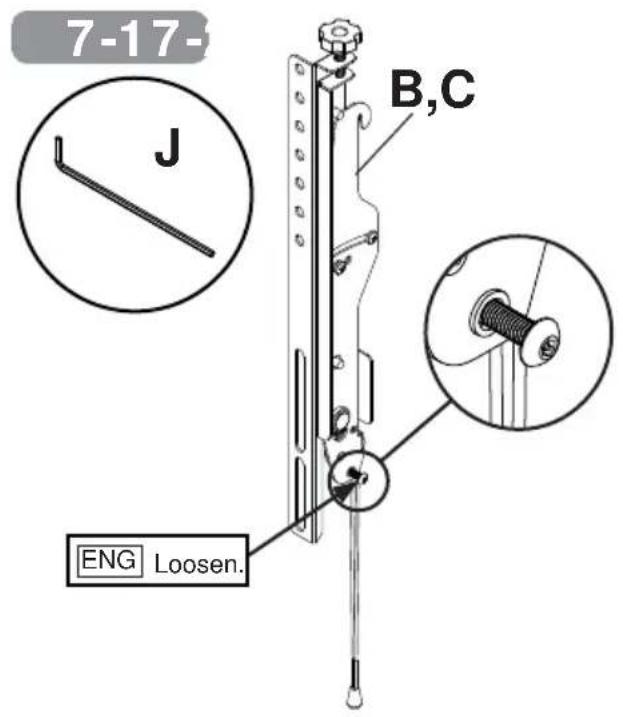

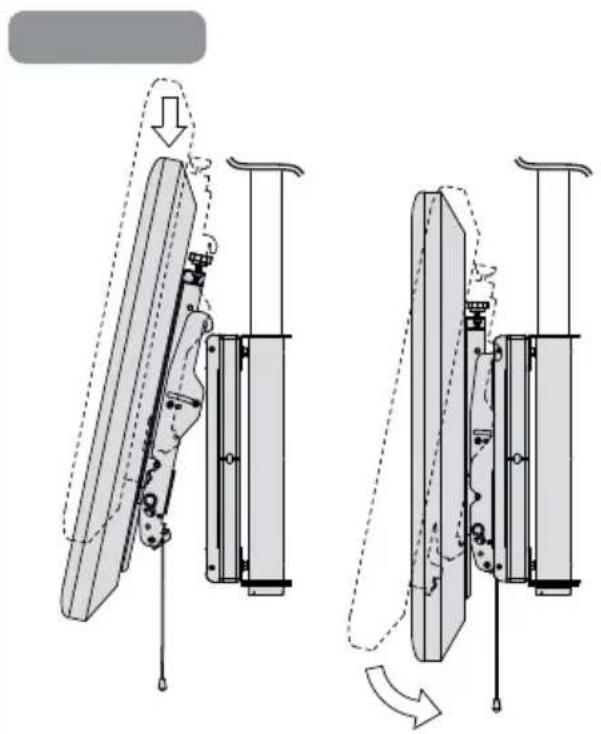

7-17- J B,C ENG Loosen.

Diagram showing two mechanical assembly states with arrows indicating motion, no text or symbols present

7-3 J

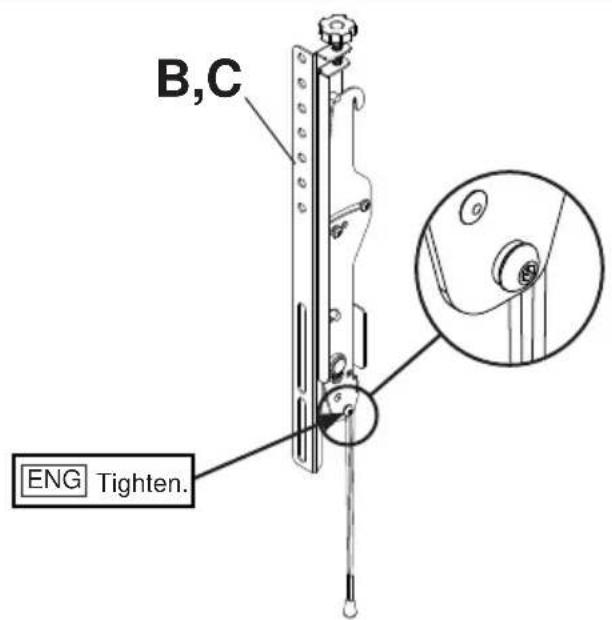

B,C ENG Tighten.

Technical diagram of a mechanical assembly with vertical supports and a central frame, enclosed in a dashed rectangular frame (no text or symbols)

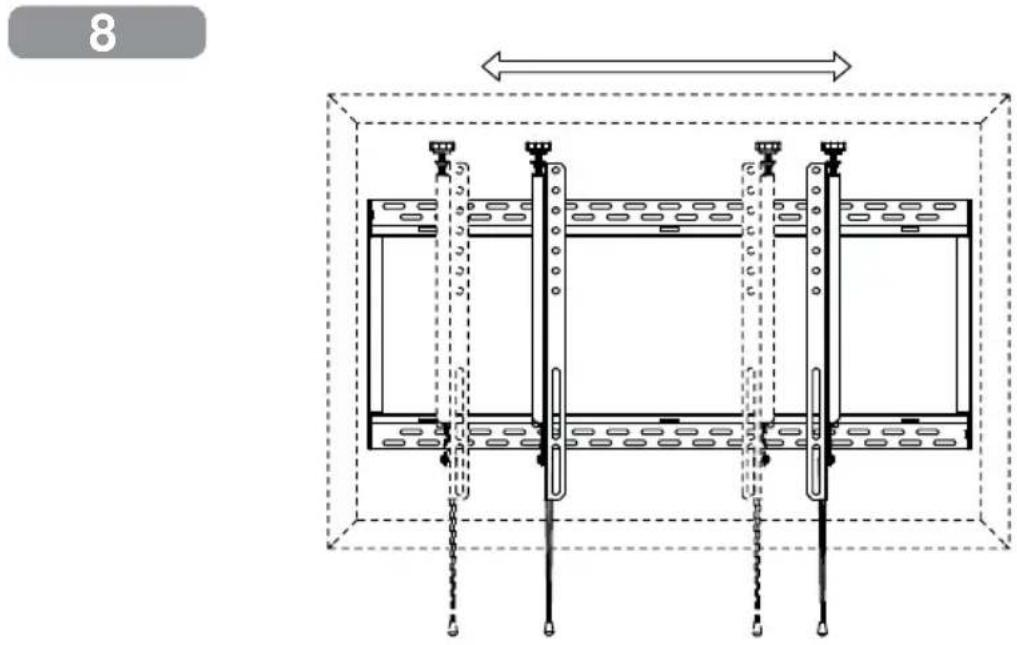

9

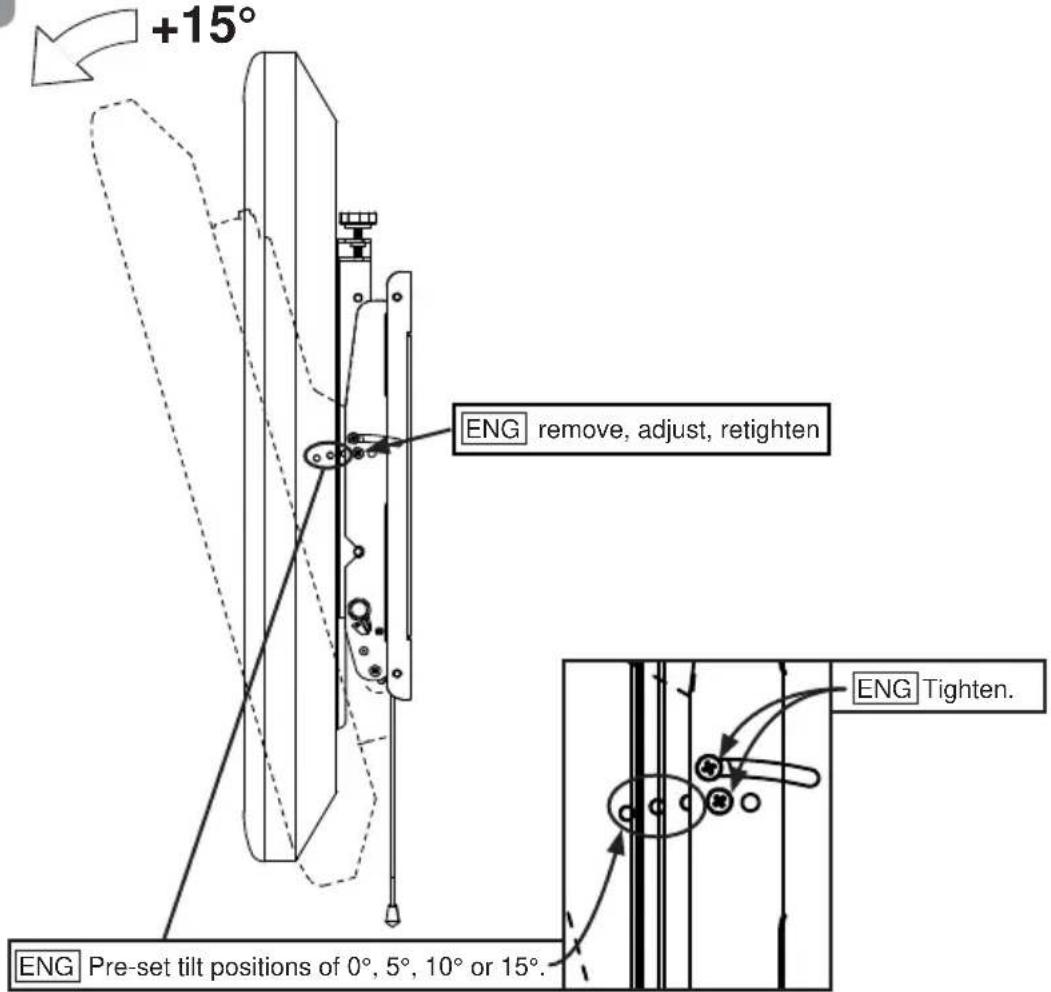

+15° ENG remove, adjust, retighten ENG Tighten. ENG Pre-set tilt positions of 0°, 5°, 10° or 15°.

10

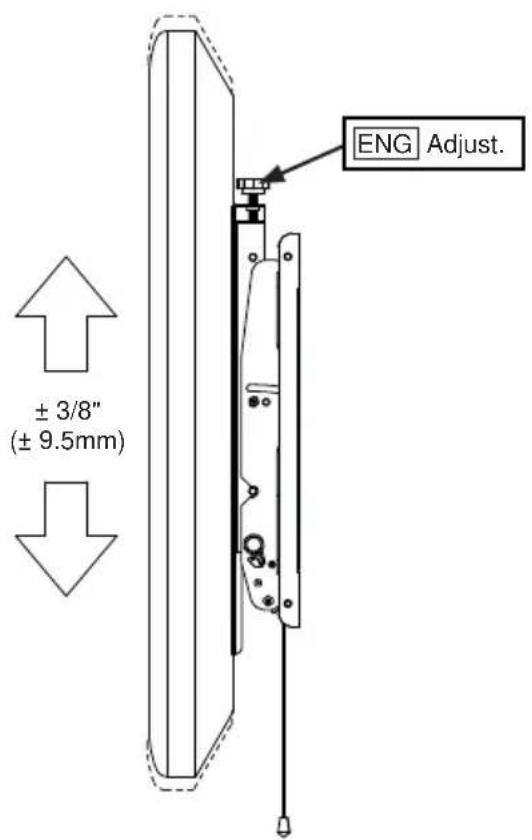

± 3/8" (± 9.5mm) ENG Adjust.

11

ENG

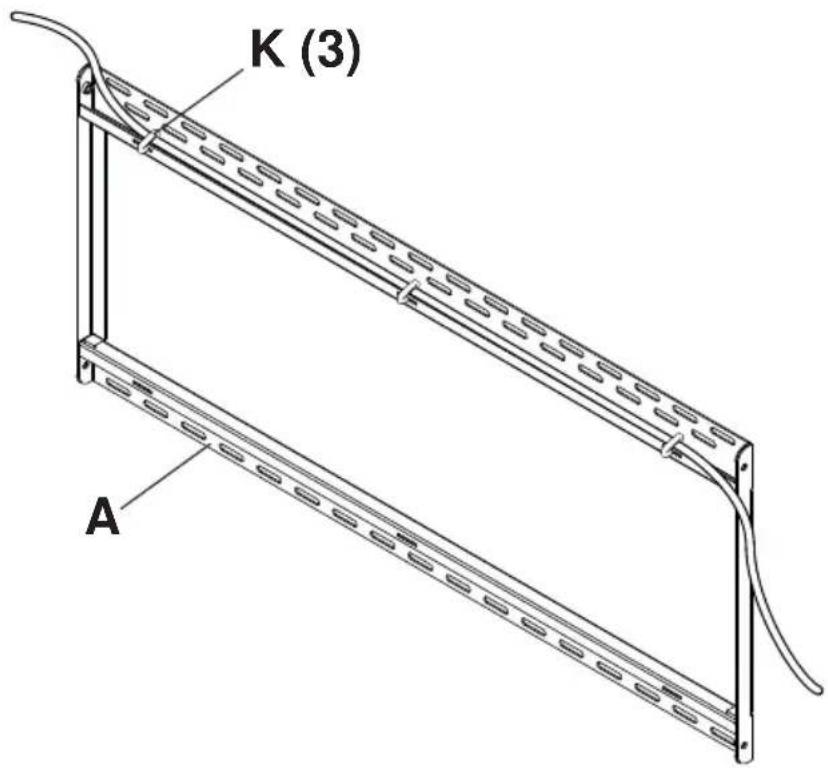

OPTIONAL: cable management

K (3) A

12-11

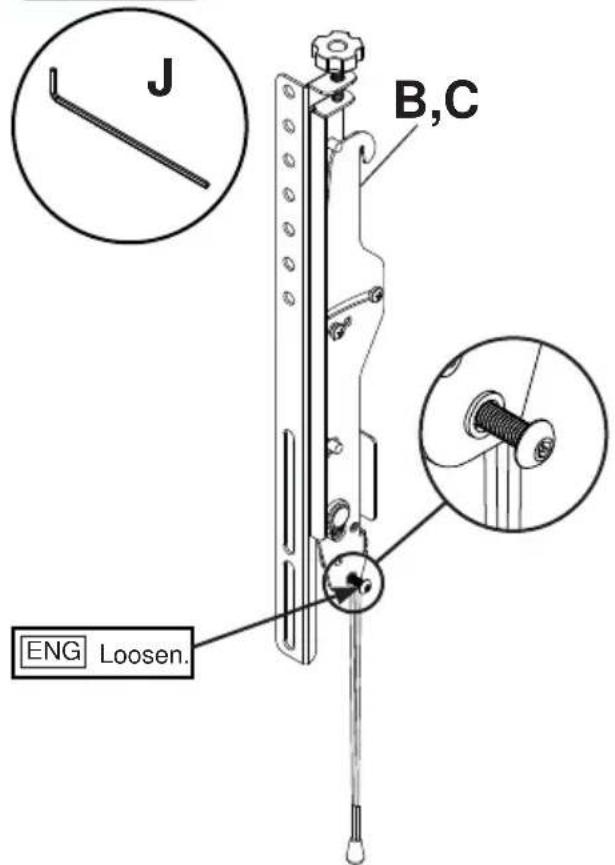

J B,C ENG Loosen.

Technical diagram showing two mechanical assembly configurations with arrows indicating motion or transformation (no text or symbols present)

13-1

J

ENG OPTIONAL

WARNING

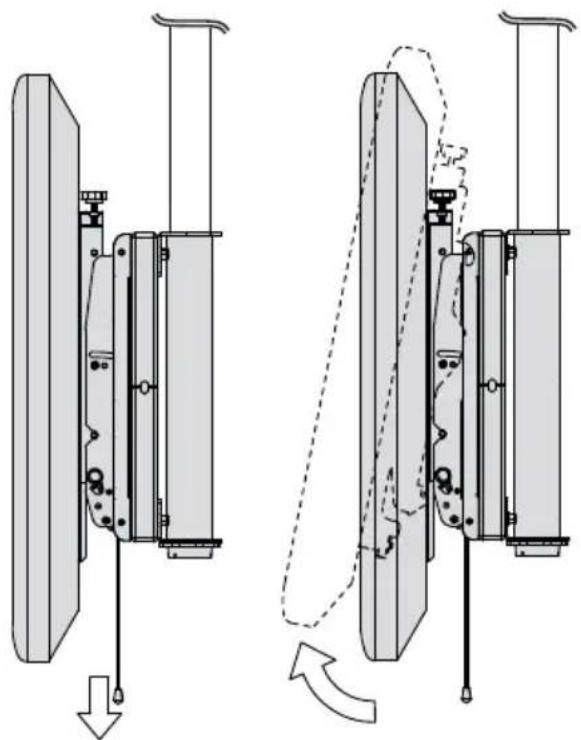

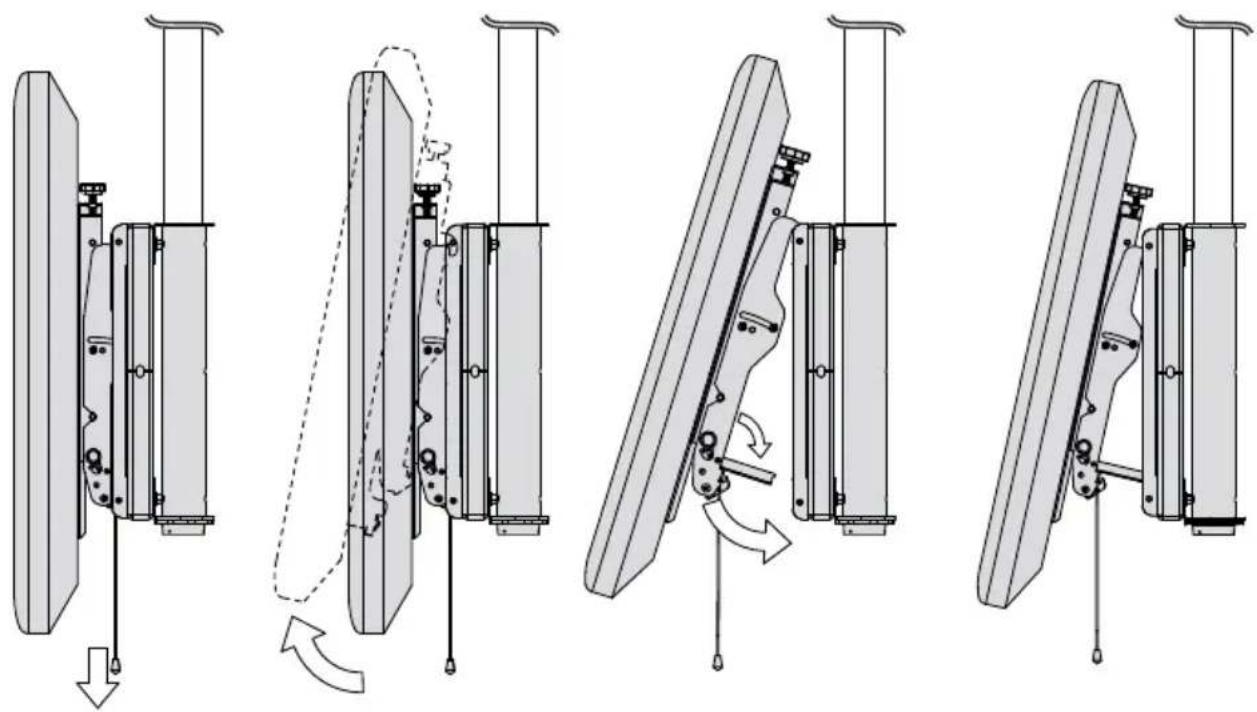

ENG Kickstand is for maintenance only

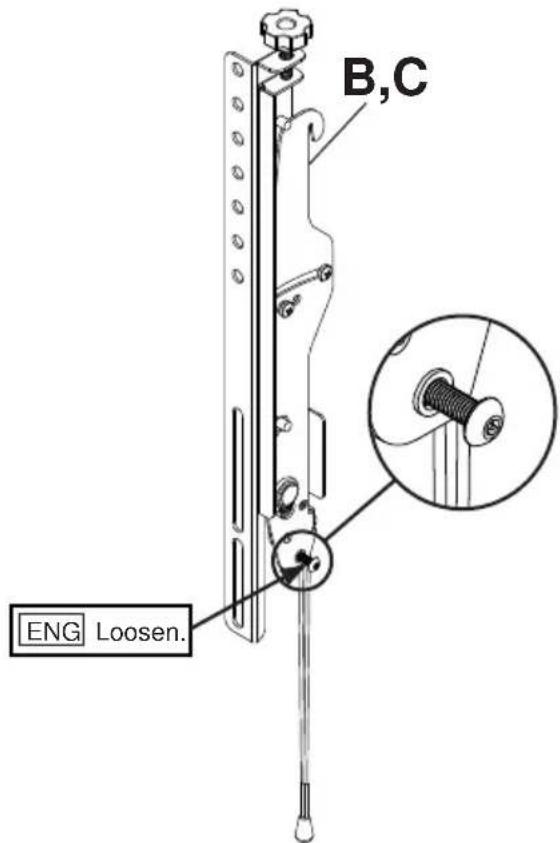

B,C ENG Loosen.

13-2

Four-panel technical illustration of a mechanical device with vertical supports and mounting brackets, showing structural changes without any text or symbols.

LIMITED FIVE-YEAR WARRANTY

Peerless Industries, Inc. ("Peerless") warrants to original end-users of Peerless® products will be free from defects in material and workmanship, under normal use, for a period of five years from the date of purchase by the original end-user (but in no case longer than six years after the date of the product's manufacture). At its option, Peerless will repair or replace, or refund the purchase price of, any product which fails to conform with this warranty.

In no event shall the duration of any implied warranty of merchantability or fitness for a particular purpose be longer than the period of the applicable express warranty set forth above. Some states do not allow limitations on how long a implied warranty lasts, so the above limitation may not apply to you.

This warranty does not cover damage caused by (a) service or repairs by the customer or a person who is not authorized for such service or repairs by Peerless, (b) the failure to utilize proper packing when returning the product, (c) incorrect installation or the failure to follow Peerless' instructions or warnings when installing, using or storing the product, or (d) misuse or accident, in transit or otherwise, including in cases of third party actions and force majeure.

In no event shall Peerless be liable for incidental or consequential damages or damages arising from the theft of any product, whether or not secured by a security device which may be included with the Peerless® product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty is in lieu of all other warranties, expressed or implied, and is the sole remedy with respect to product defects. No dealer, distributor, installer or other person is authorized to modify or extend this Limited Warranty or impose any obligation on Peerless in connection with the sale of any Peerless ^® product.

This warranty gives specific legal rights, and you may also have other rights which vary from state to state.
