Product Type	Wall mount for screen (multiple screens)
Brand	Peerless-AV
Model	DS-MBY947L-3X1
Number of Screens	3
Mounting Surface	Wood joist/beam or solid concrete ceilings
Included Hardware	Wall plates, adapter brackets, screws, washers, nuts, cable ties, allen wrench
Screw Types Included	M5 x 16mm, 1/4-20 x 1/2", M6 x 12mm, M8 x 16mm, #10 x 1/2", M5 x 10mm socket pin
Tools Required	4mm Allen wrench (included)
Cable Management	Optional (cable ties supplied)
Kickstand	Yes (for maintenance only)
Indoor Use Only	Yes
Warranty	Limited Five-Year Warranty
Support Contact (US)	1-800-865-2112
Support Contact (Europe)	44 (0) 1923 200 100
Manufacturer	Peerless-AV, Aurora, IL, USA
Adapter Brackets	Left and right for each screen (3 sets)
Main Frame	2 pieces
Main Post	2 pieces
Support Bracket	2 pieces
Retaining Collar	2 pieces
Large Washer	2 pieces

Frequently Asked Questions - DS-MBY947L-3X1 Peerless-AV

Can this mount hold three 65-inch TVs?

The DS-MBY947L-3X1 is designed for three screens, but the maximum load capacity is not specified in the manual. For heavy screens, we recommend contacting Peerless-AV support at 1-800-865-2112 to verify compatibility.

Is the mount compatible with VESA patterns like 200x200 or 400x400?

The included adapter brackets allow mounting to most VESA patterns. Use the provided screws (M5, M6, M8) to match your screen's threaded inserts. Ensure screws get at least three full turns and fit snugly.

Can I install this mount on drywall alone?

No. This mount must be installed on a wood joist/beam or solid concrete ceiling. Drywall alone cannot support the combined load. Always verify the supporting surface can handle the weight.

What tools are needed for installation?

A 4mm Allen wrench is included. You may also need a drill, screwdriver, and level. The manual recommends using an assistant or mechanical lifting equipment for safety.

Does the mount allow tilt or swivel adjustment?

The manual does not mention tilt or swivel features. This mount appears to be a fixed mount primarily designed for structural support. Check with Peerless-AV for specific adjustment capabilities.

Is cable management included?

Yes, the package includes 9 cable ties (part K) for optional cable management. The manual shows a step for cable management (step 12).

Can I use this mount outdoors?

No. The manual states: This product is intended for indoor use only. Outdoor use could lead to product failure or personal injury.

What is the warranty period?

Peerless-AV offers a Limited Five-Year Warranty to the original end-user. It covers defects in material and workmanship under normal use. See manual for full terms.

How do I contact Peerless-AV for support?

In the US, call 1-800-865-2112 or email [e-mail]. In Europe, call [phone]. Visit www.peerless-av.com for more information.

What is the kickstand used for?

The manual warns: Kickstand is for maintenance only. It is not designed for permanent display use. Use it only when servicing or adjusting the screens.

USER MANUAL DS-MBY947L-3X1 Peerless-AV

WARNING

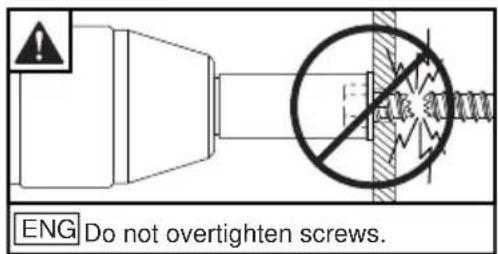

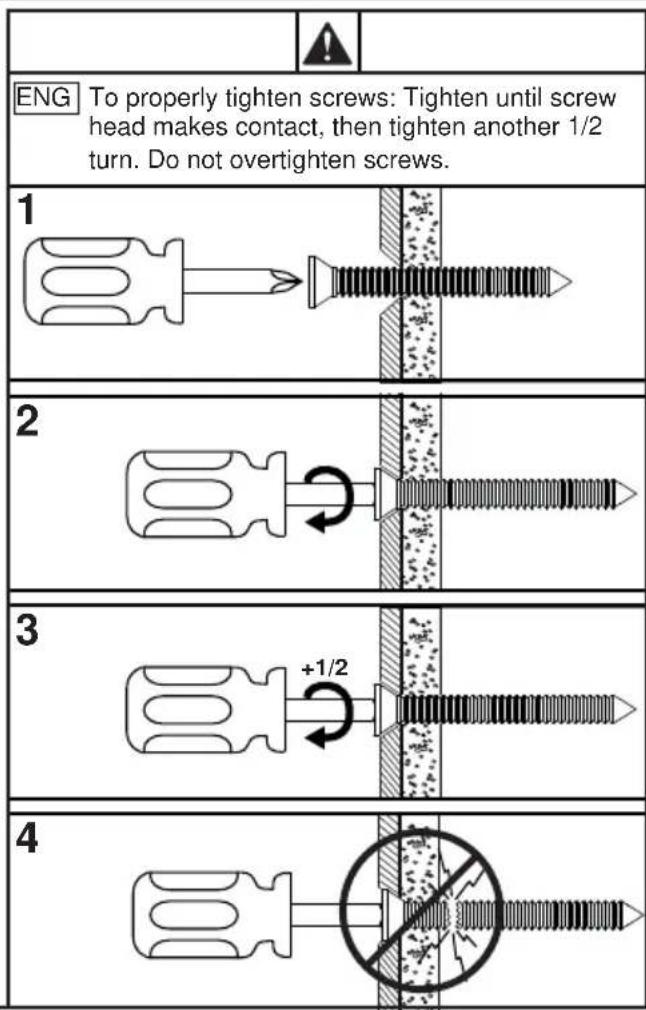

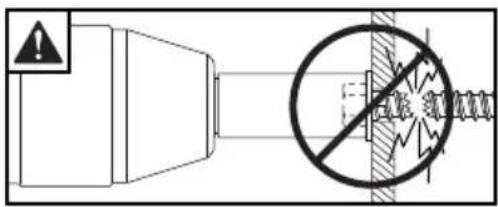

ENG - This product is designed to be installed on wood joist/beam or solid concrete ceilings. Hardware is included for wood joist/beam and solid concrete installation. Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail. Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to safely lift and position equipment. This product is intended for indoor use only. Use of this product outdoors could lead to product failure or personal injury. Be careful not to pinch fingers when operating the mount. For support please call customer care at 1-800-865-2112.

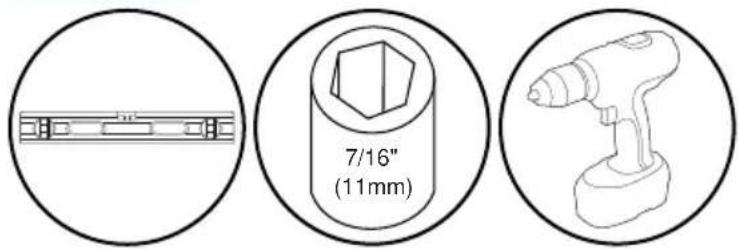

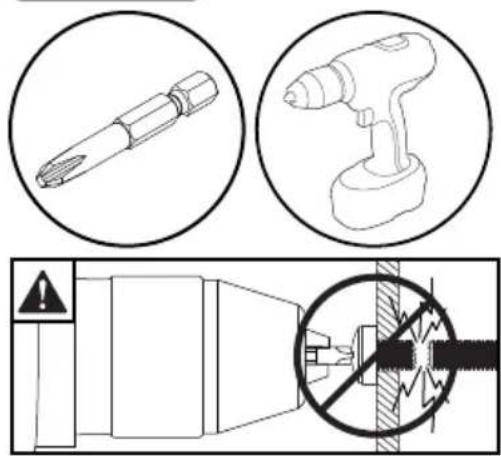

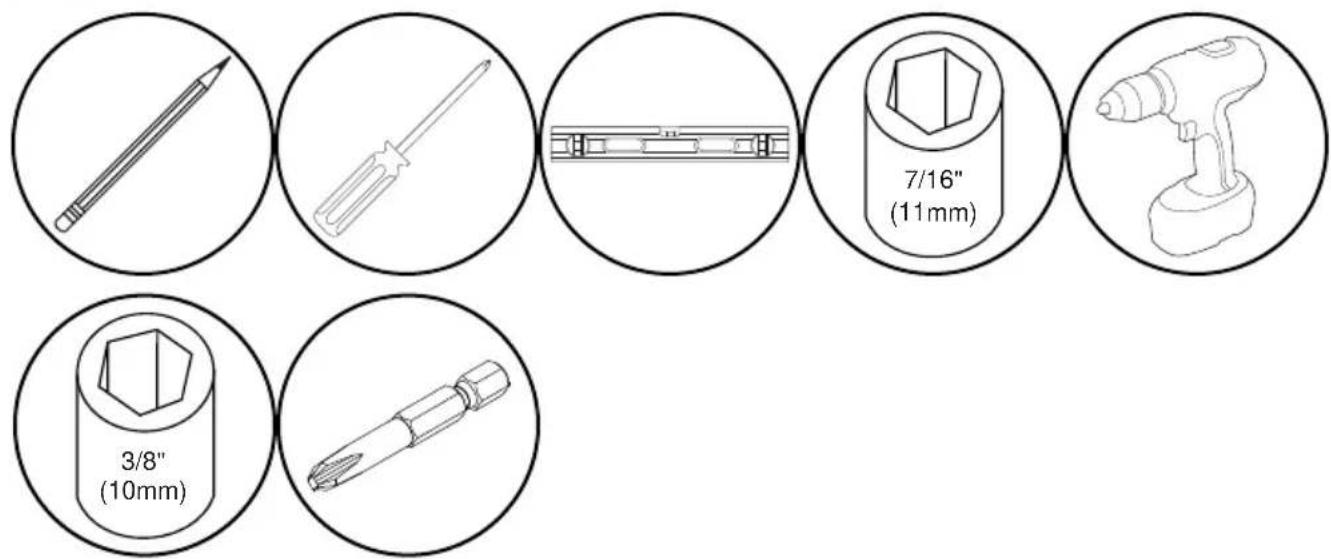

ENG Tools Needed for Assembly.

ENG Parts (Before beginning, make sure you have all parts shown below).

Parts List		DS-MBY942L-3X1 Part #	DS-MBY947L-3X1 Part #Description Qty

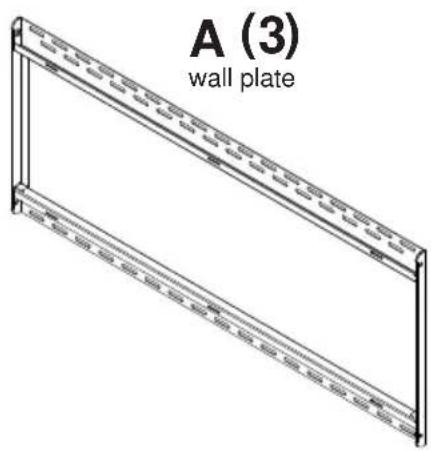

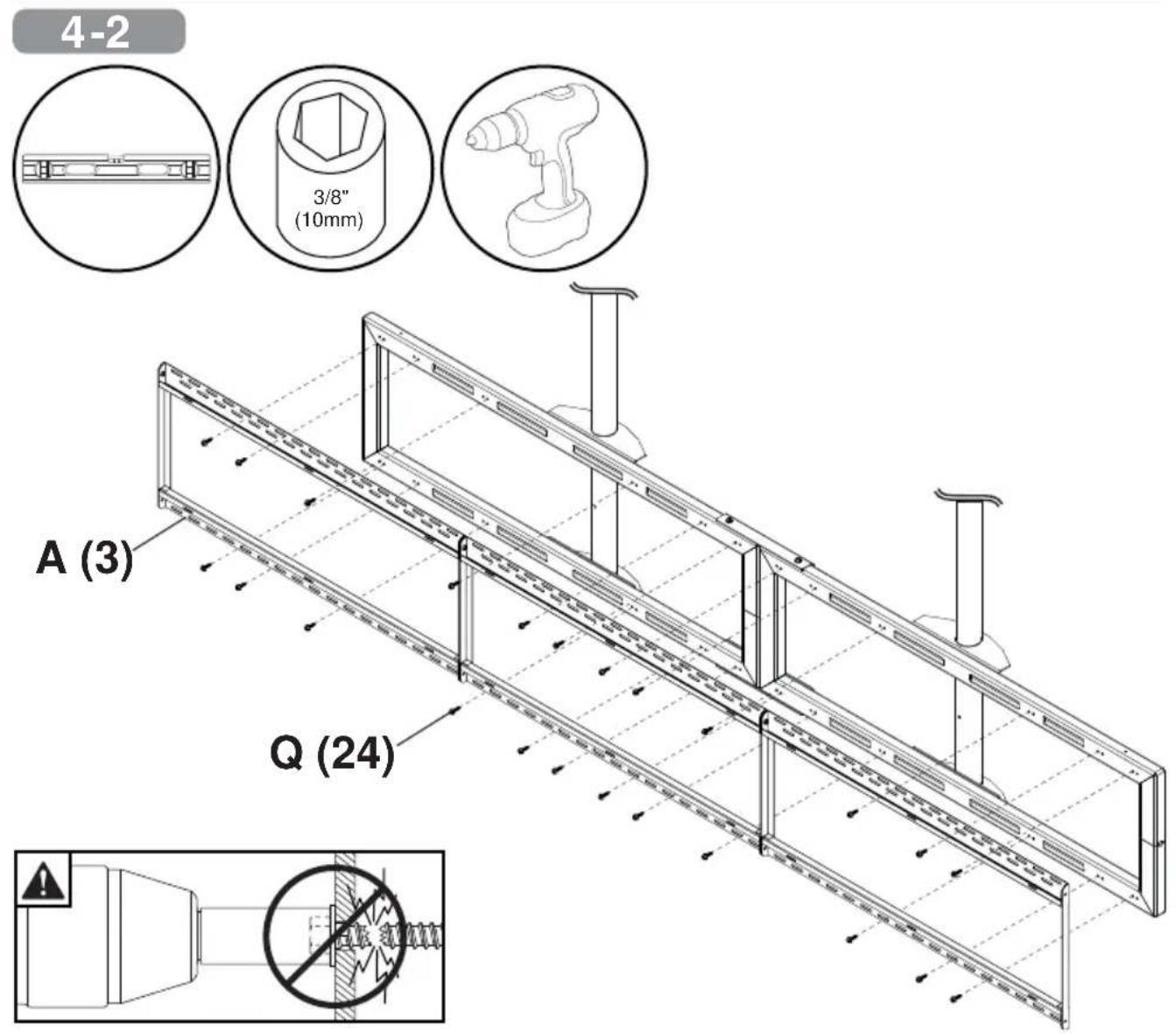

A wall plate 3 145-1988 145-1991

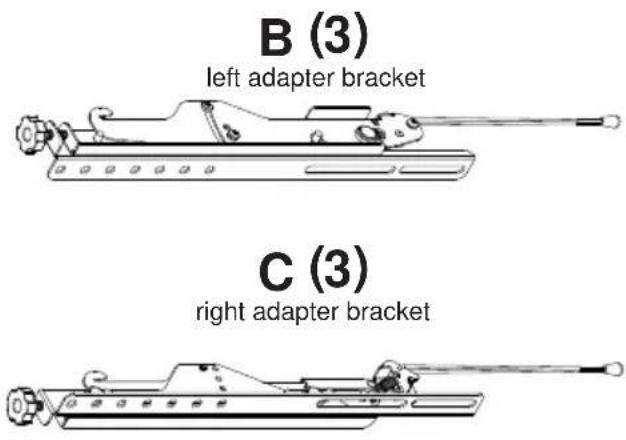

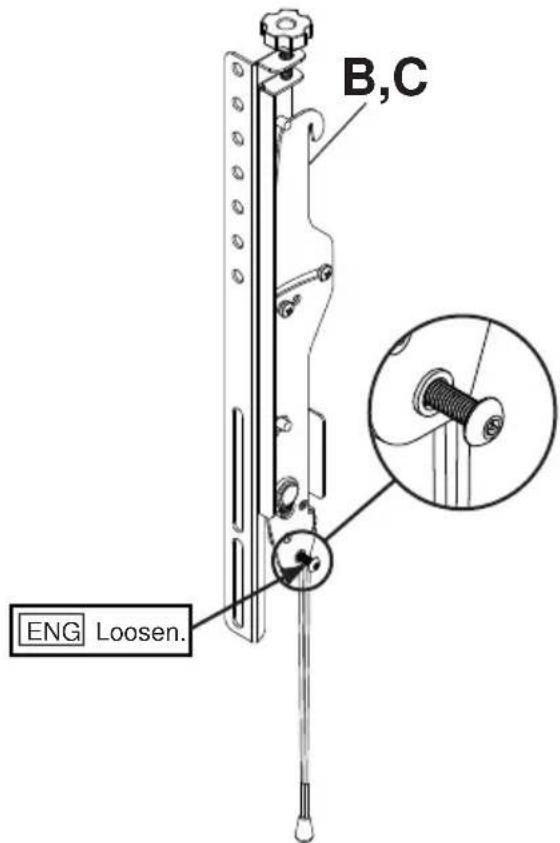

B left adapter bracket 3 146-1021 146-1021
C right adapter bracket 3 146-1020 146-1020

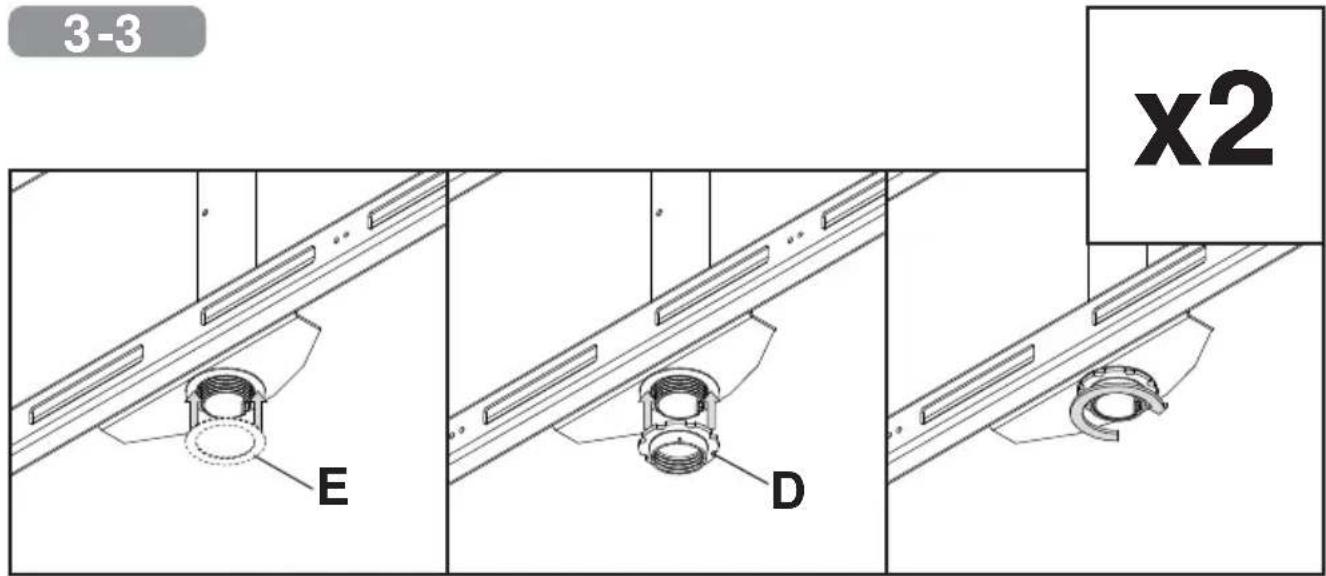

D retaining collar 2 1800-375 1800-375
E large washer 2 540-9432 540-9432

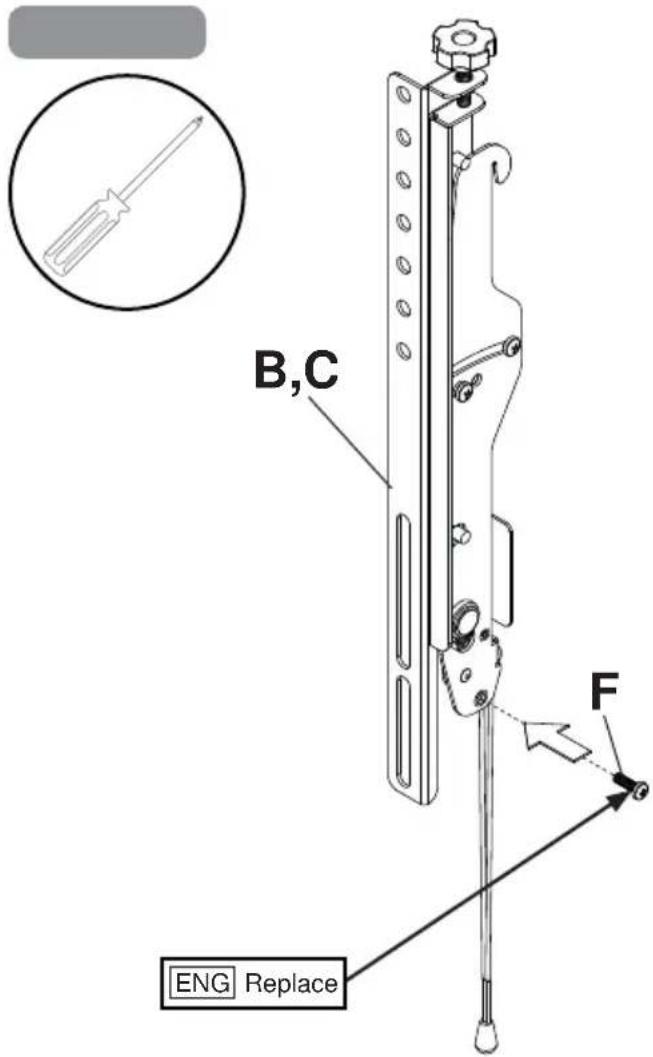

F M5 x 16mm phillips screw 6 520-1189 520-1189

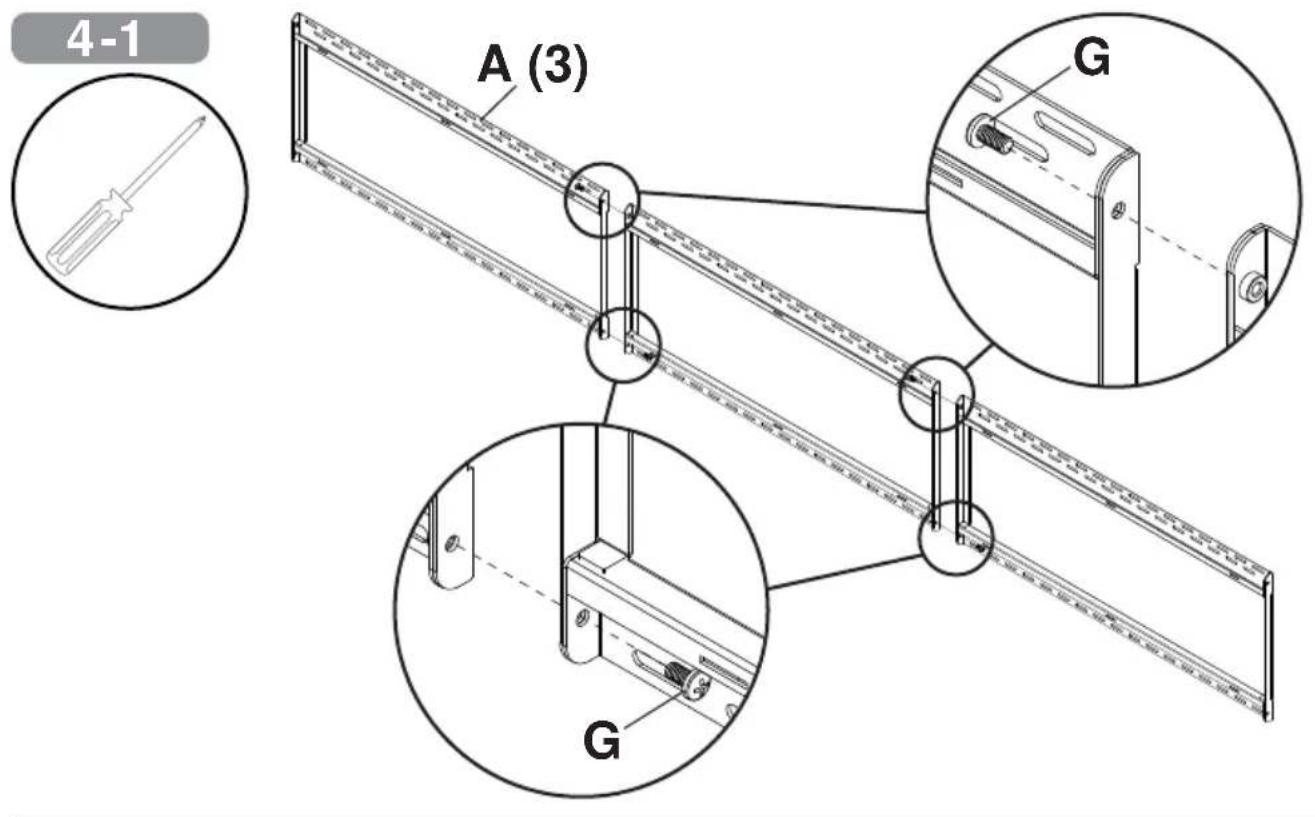

G 1/4-20 x 1/2" phillips screw 6 510-9108 510-9108
H M6 x 12mm phillips screw	12	520-1128	520-1128
I M8 x 16mm phillips screw	12	520-9257	520-9257

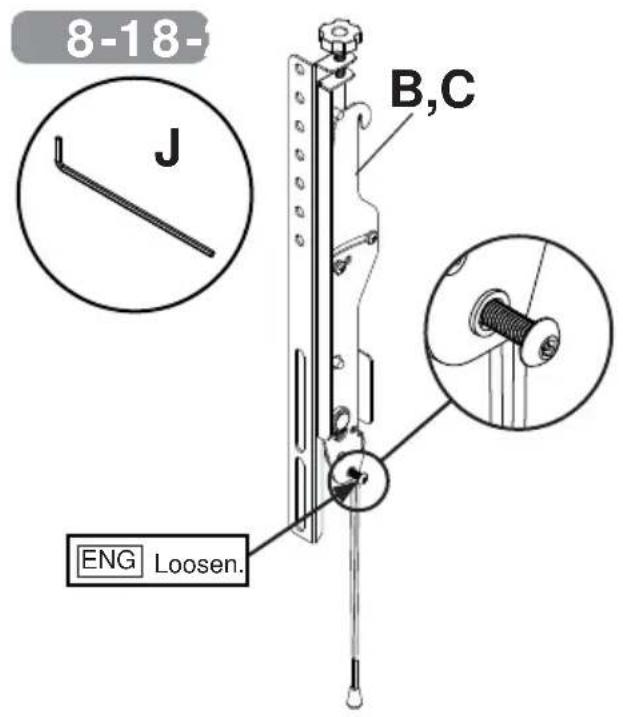

J 4mm allen wrench	1 560-9646 560-9646
K cable tie	9 560-9711 560-9711

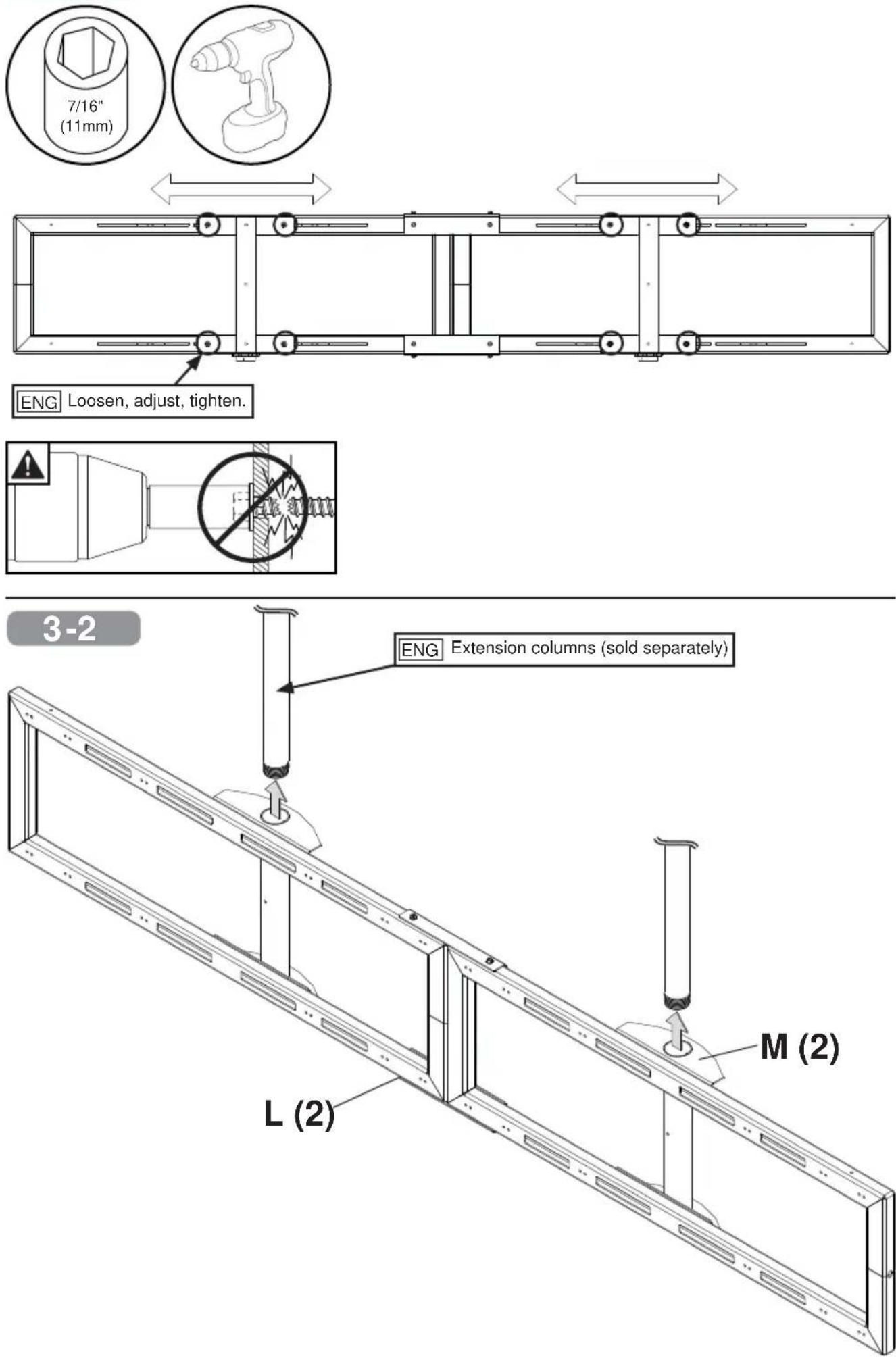

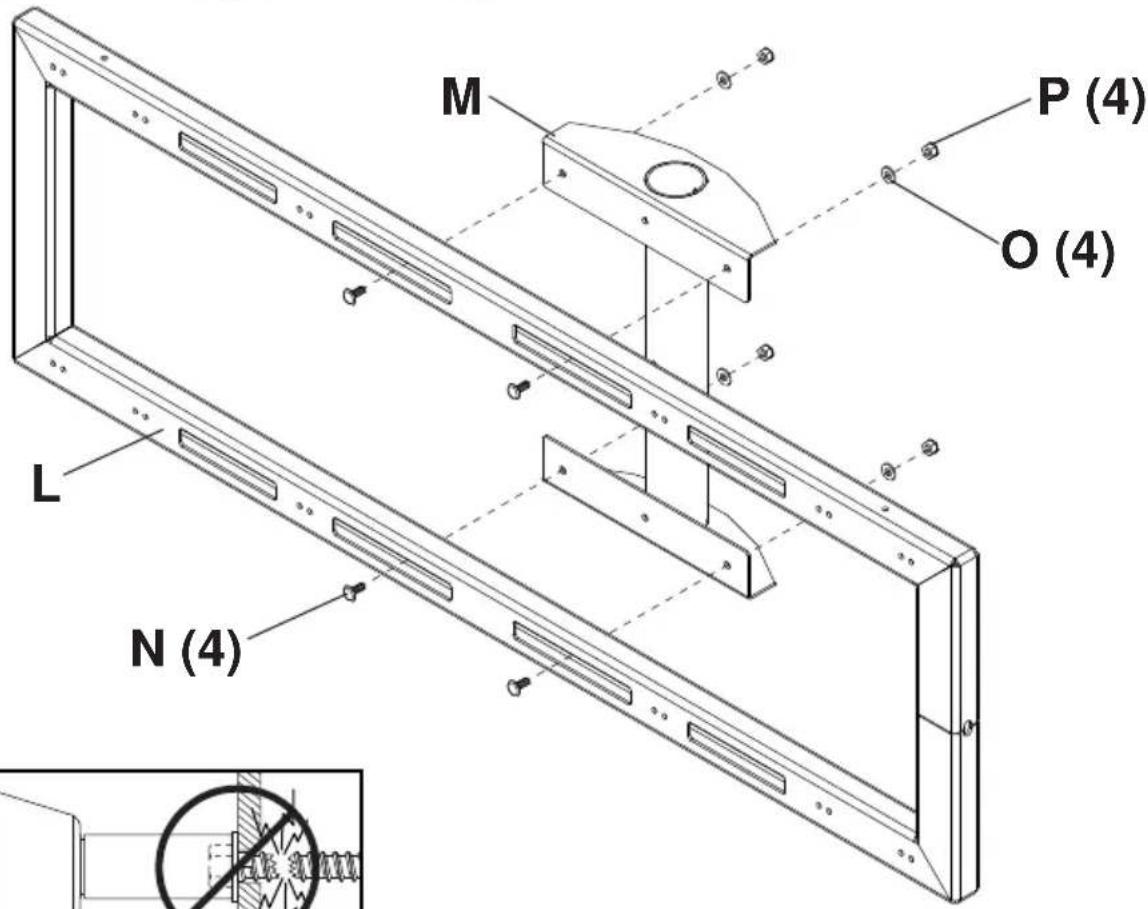

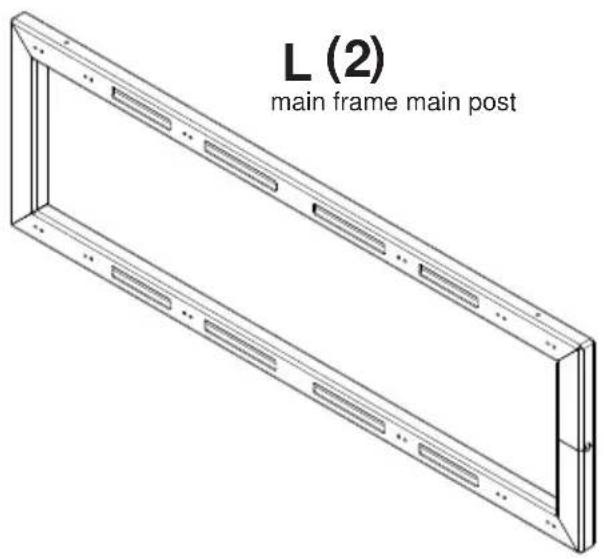

L main frame	2 146-1048 146-1048
M main post	2 146-1052 146-1052
N carriage bolt	8 520-1175 520-1175
O small washer	8 540-9440 540-9440
P nylock nut	8 530-9413 530-9413
Q hex head screw	32	520-1321	520-1321
R #10 x 1/2" phillips screw	4 520-1320 520-1320
S M5 x 10mm socket pin screw	2 520-1164 520-1164

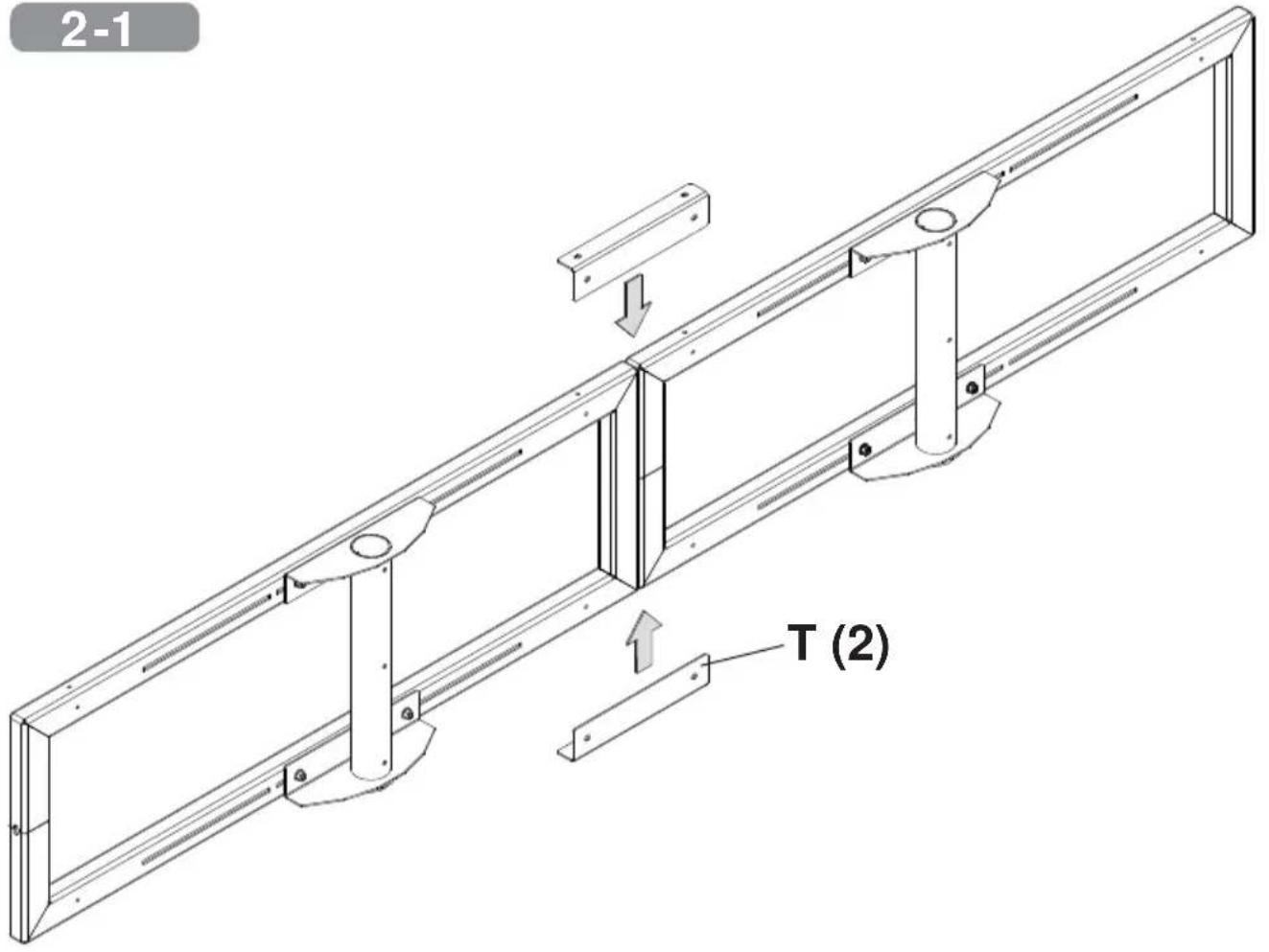

T support bracket	2 146-1053 146-1053
U multiwasher	12	580-1398 580-1398

N (8)
carriage bolt

O (8)
small washer

P (8)
nylock nut

Q (32)
hex head screw

R (4)

10 x 1/2" phillips screw

S (2)
M5 x 10mm socket pin screw

T (2)
support bracket

U (12)

1

x2

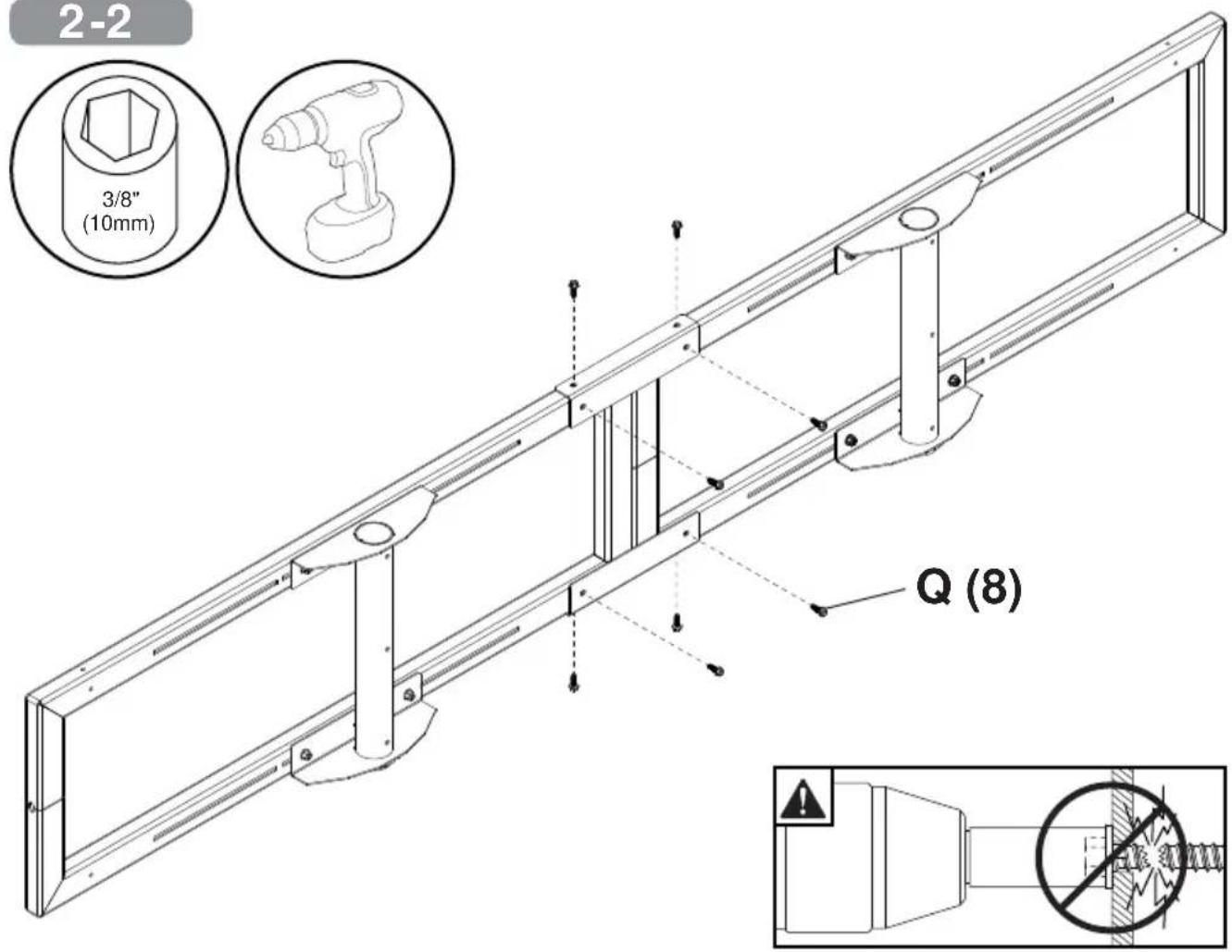

2-2

3-1

3-4

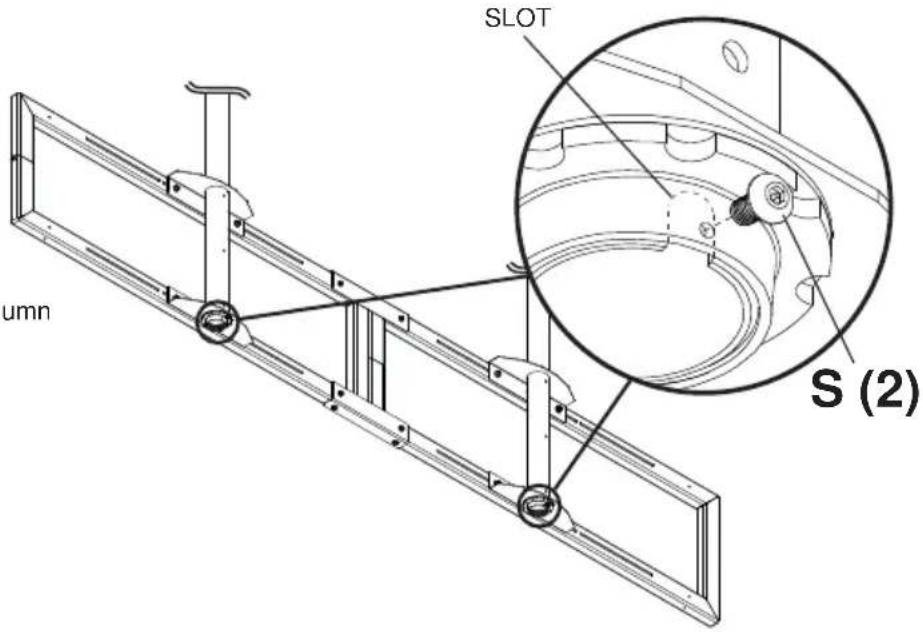

ENG Align slot of extension column

3-5

6

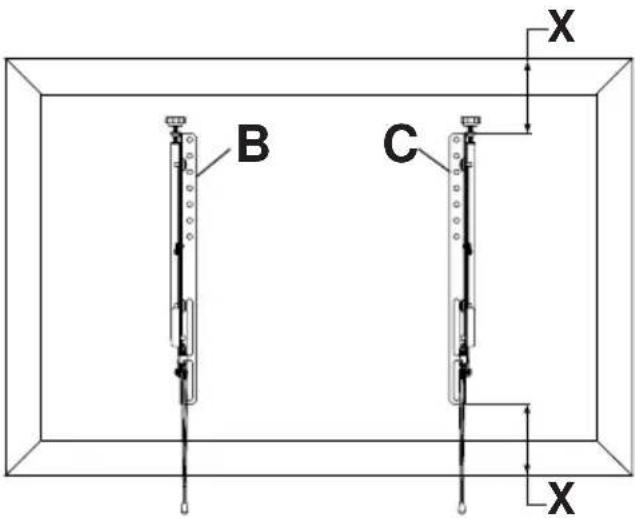

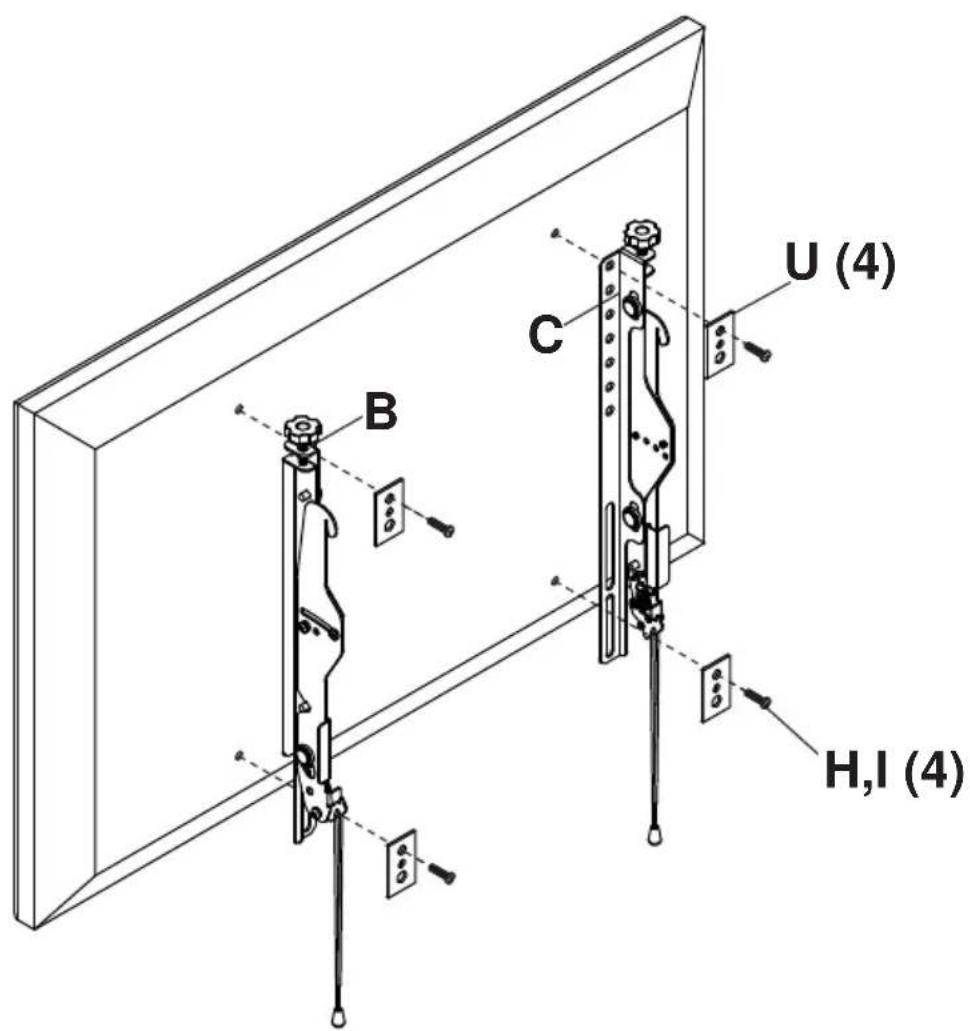

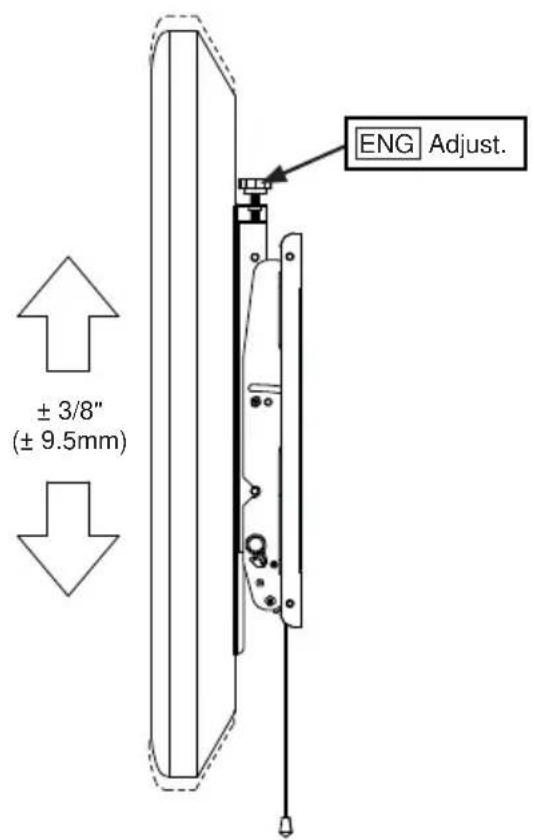

ENG Center adapter brackets vertically on back of screen.

7

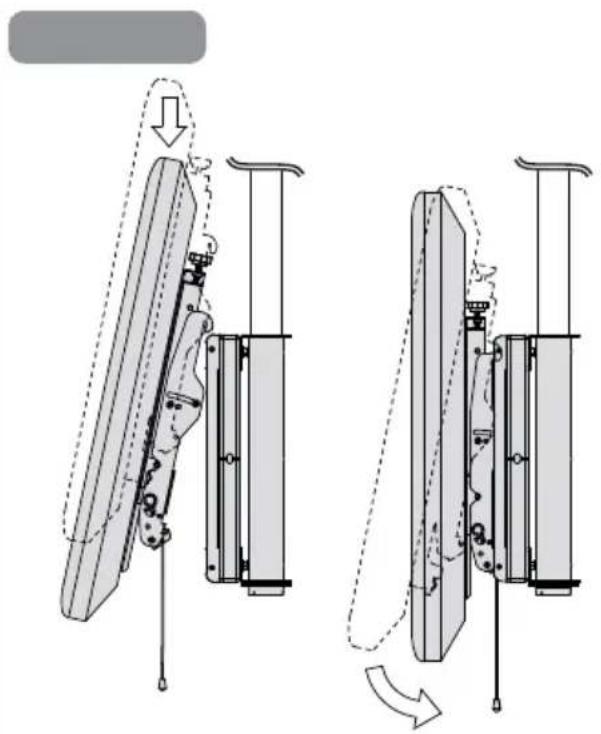

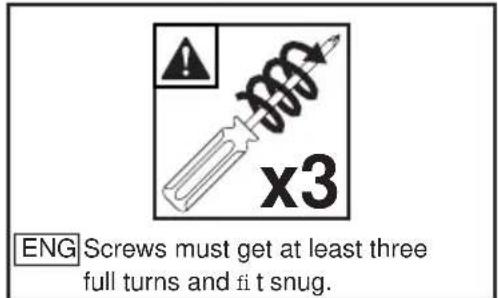

ENG Screws must get at least three full turns and fit snug.

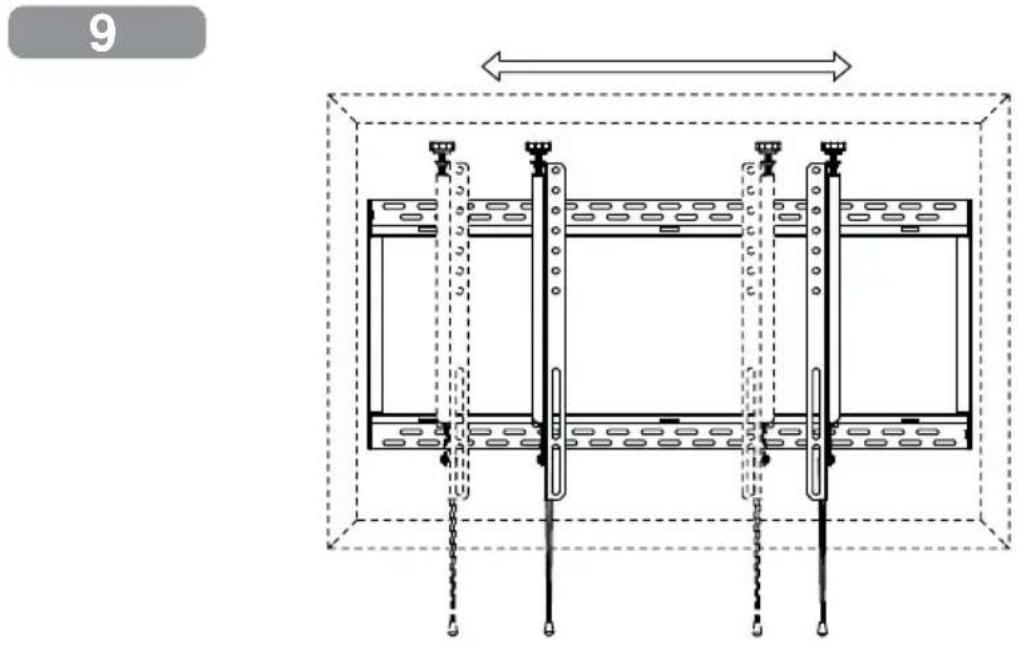

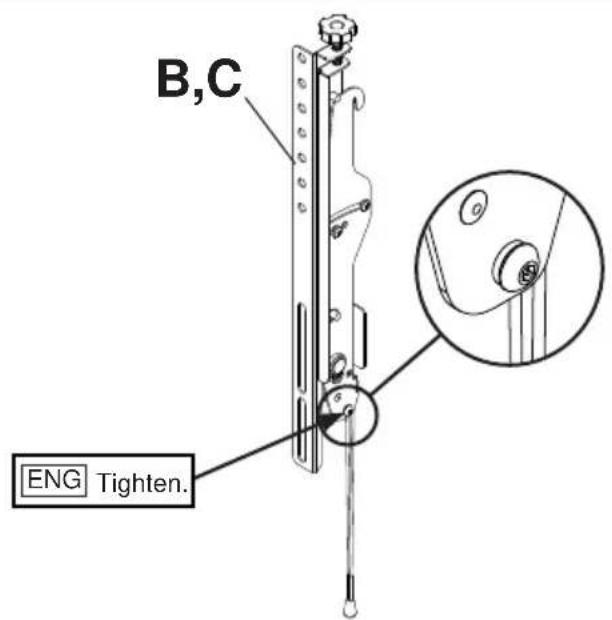

10

11

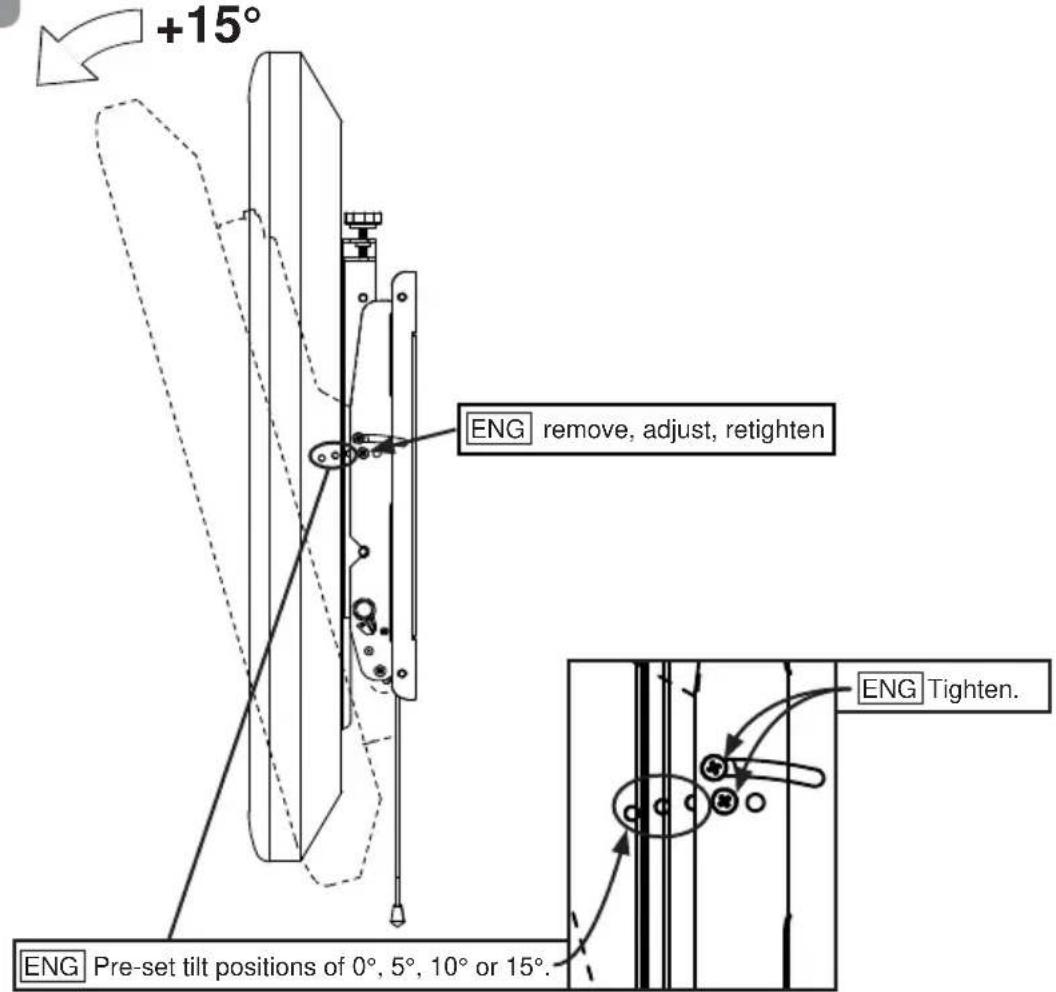

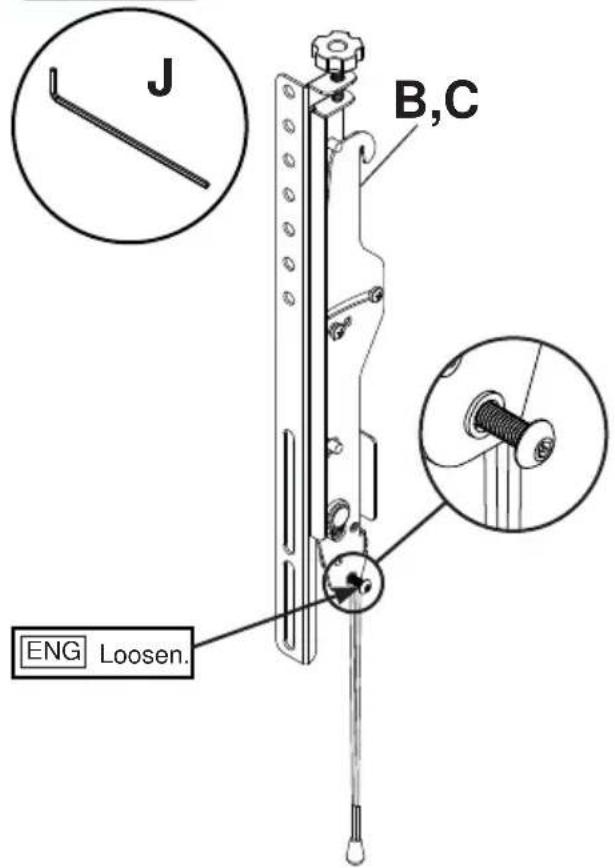

12

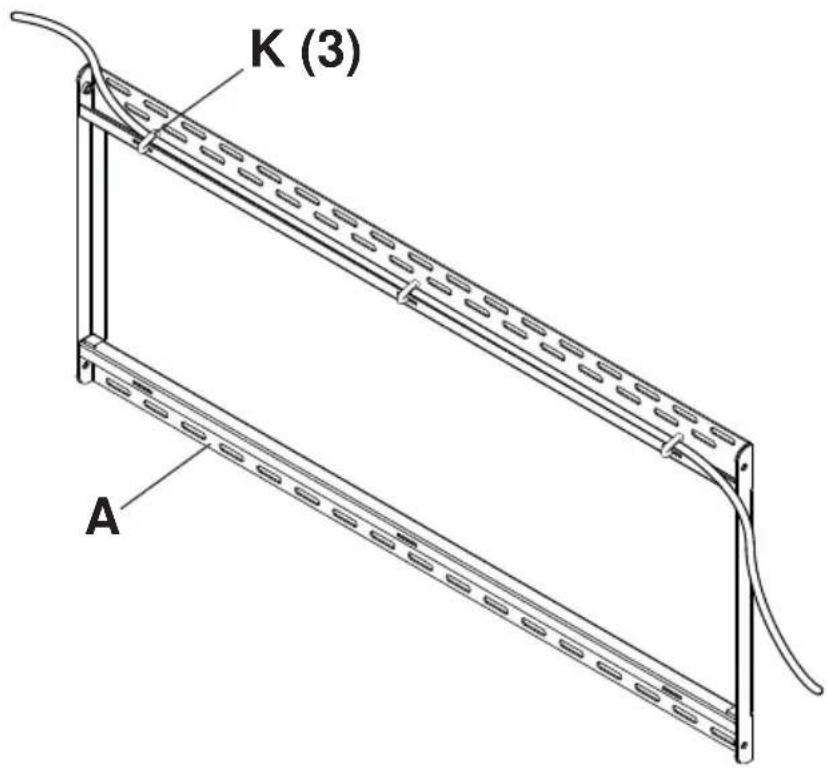

OPTIONAL: cable management

13-11

14-1

ENG OPTIONAL

WARNING

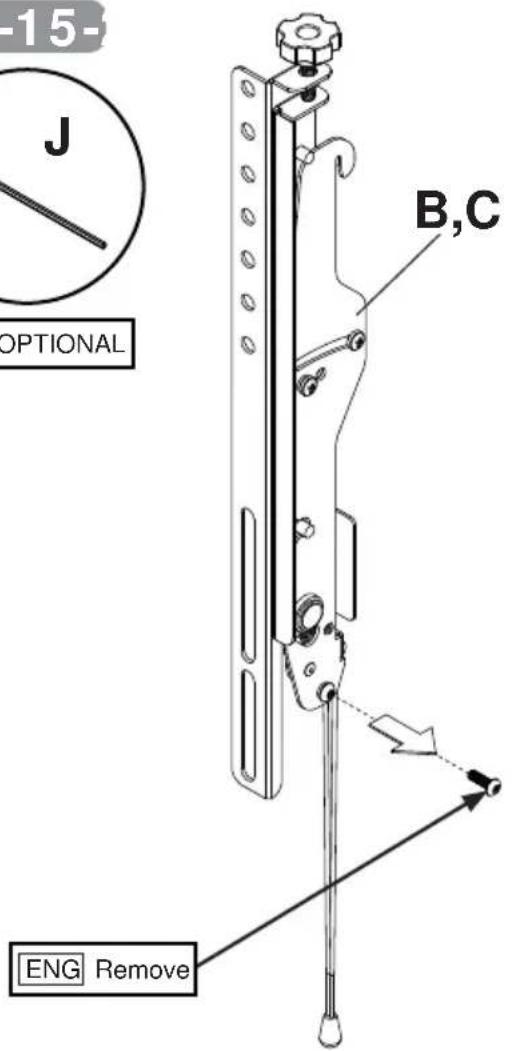

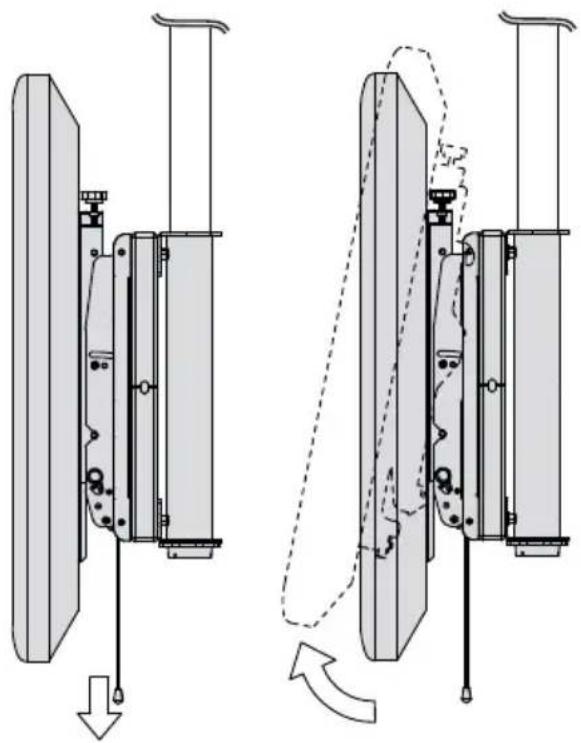

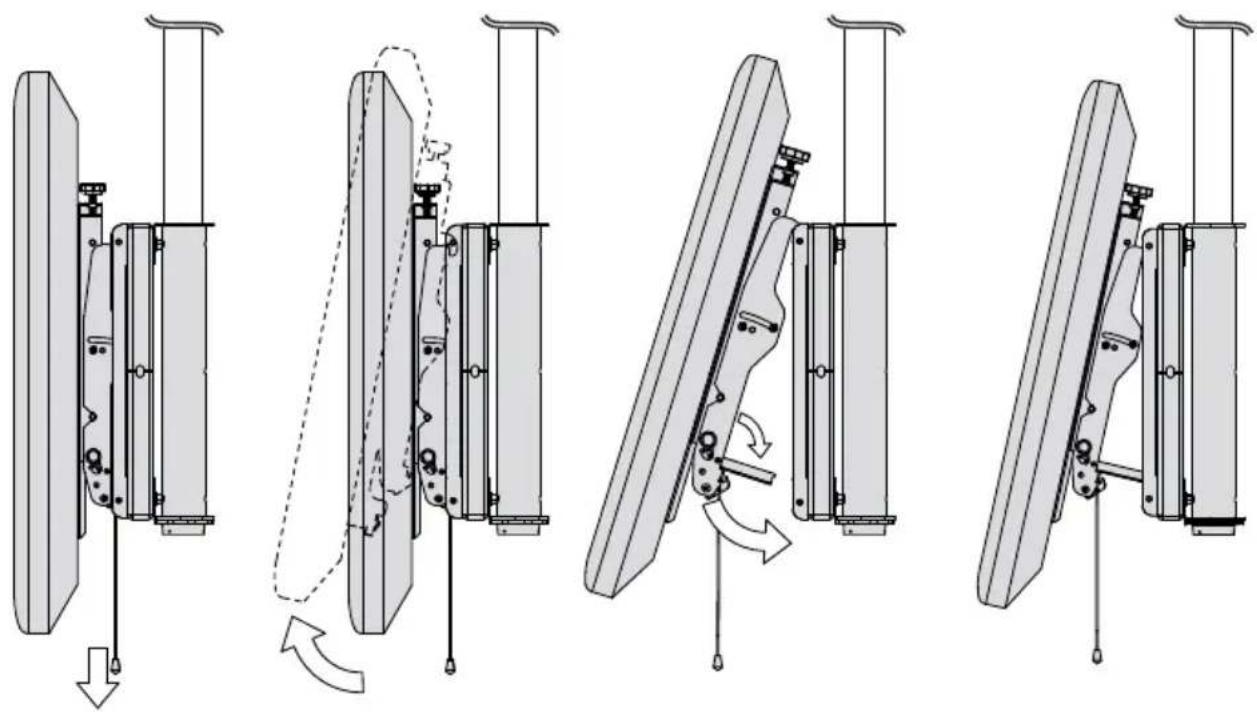

ENG Kickstand is for maintenance only

14-2

LIMITED FIVE-YEAR WARRANTY

Peerless Industries, Inc. ("Peerless") warrants to original end-users of Peerless ^® products will be free from defects in material and workmanship, under normal use, for a period of five years from the date of purchase by the original end-user (but in no case longer than six years after the date of the product's manufacture). At its option, Peerless will repair or replace, or refund the purchase price of, any product which fails to conform with this warranty.

In no event shall the duration of any implied warranty of merchantability or fitness for a particular purpose be longer than the period of the applicable express warranty set forth above. Some states do not allow limitations on how long a implied warranty lasts, so the above limitation may not apply to you.

This warranty does not cover damage caused by (a) service or repairs by the customer or a person who is not authorized for such service or repairs by Peerless, (b) the failure to utilize proper packing when returning the product, (c) incorrect installation or the failure to follow Peerless' instructions or warnings when installing, using or storing the product, or (d) misuse or accident, in transit or otherwise, including in cases of third party actions and force majeure.

In no event shall Peerless be liable for incidental or consequential damages or damages arising from the theft of any product, whether or not secured by a security device which may be included with the Peerless® product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty is in lieu of all other warranties, expressed or implied, and is the sole remedy with respect to product defects. No dealer, distributor, installer or other person is authorized to modify or extend this Limited Warranty or impose any obligation on Peerless in connection with the sale of any Peerless® product.

This warranty gives specific legal rights, and you may also have other rights which vary from state to state.
