HFD-KD600SS - Dehumidifier Heinner - Free user manual and instructions

Product Type	Food Dehydrator
Model	HFD-KD600SS
Rated Voltage	220-240 V ~ 50/60 Hz
Rated Power	550-600 W
Temperature Range	35°C – 75°C
Number of Trays	6 stainless steel trays
UV Sterilization Function	Yes
See-Through Window	Yes
Control Panel	Digital display with push buttons
Timer Range	30 minutes to 24 hours (in 30 min increments)
Sterilize Function	Yes, fixed temperature 75°C, timer 0:30–2:00 h
Fruit Roll Tray Included	Yes
Maximum Continuous Operation	48 hours, then 2-hour cool down
Safety Features	Overheat protection, auto shut-off, child safety (8+ years)
Cleaning	Hand wash trays; do not immerse base in water
Storage	Cool, dry place; avoid metal containers
Warranty	Included, refer to warranty card

Frequently Asked Questions - HFD-KD600SS Heinner

How do I set the temperature and time on the HFD-KD600SS?

Press TEMP/TIME button once to adjust temperature (35°C to 75°C in 5°C increments) and twice to adjust time (30 min to 24 hours in 30 min increments). Use + and - buttons to change values.

Can I use the dehydrator continuously for more than 48 hours?

No, the appliance is designed for a maximum of 48 hours of continuous use. After that, unplug it and let it cool down for at least 2 hours before operating again.

What is the purpose of the UV function?

The UV function provides sterilization by using ultraviolet light to kill bacteria and germs. It operates at a fixed temperature of 75°C and can be set for 30 minutes to 2 hours.

How should I clean the dehydrator?

After unplugging and cooling, clean the stainless steel trays with a soft brush and moistened cloth. Do not immerse the base in water. Wipe the exterior with a damp cloth and dry thoroughly. Do not use abrasive cleaners.

What should I do if the display shows error code E1 or E2?

Error E1 indicates an open circuit thermistor, and E2 indicates a short circuit. These require professional repair. Contact an authorized service center or the seller.

Can children use this dehydrator?

This appliance can be used by children aged 8 years and above under supervision. Children should not play with it, and cleaning by children must be supervised. Keep the appliance and cord out of reach of children under 8.

What is the maximum capacity of the dehydrator?

The dehydrator has 6 stainless steel trays. Do not overload or overlap food pieces. Ensure air can circulate freely between trays for even drying.

How do I dry fruit to get the best results?

Slice fruit evenly (about 1/4 inch thick) and pre-treat if desired to prevent browning. Place pieces in a single layer without overlapping. Check every hour and note drying times for future reference. Store dried fruit in a cool, dark place.

Can I dry meat or fish in this dehydrator?

Yes, but ensure meat and fish are properly prepared and cooked before drying. Dried meat, poultry, and fish should be stored in the refrigerator for no more than 3 months or freezer for up to 1 year.

What should I do if the dehydrator overheats and shows E3?

Error E3 indicates the interior temperature is too high. Unplug the appliance, let it cool down, then restart with a lower temperature setting. If the error persists, contact an authorized service center.

USER MANUAL HFD-KD600SS Heinner

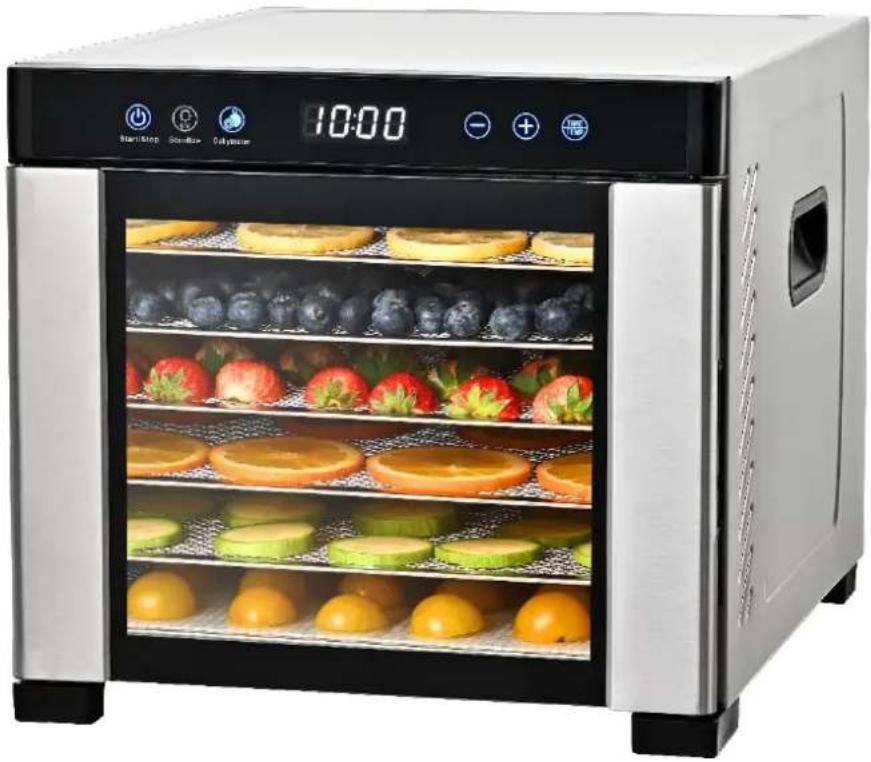

Modern kitchen appliance with digital display showing 10:00 time, featuring fruit slices and a glass tray (no visible text or symbols on the device itself)

- UV function

• See through window

- 6 stainless steel trays

1. INTRODUCTION

Please read this instruction manual carefully before using it and keep it for later information.

This manual is conceived for offering you all of the necessary informations regarding installation, usage and maintenance of the machine. For a correctly and safely use of the machine, please read this manual before installation and using.

2. PACKAGE CONTENTS

Food dehydrator
Instruction manual
Warranty card
▶ Declaration of conformity

3. SAFETY WARNINGS AND PRECAUTIONS

The following basic precautions should always be followed when using the electrical appliance:

1. This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of this appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 years. Keep the appliance and its cord out of reach of children less than 8 years old.
2. This food dehydrator is designed for domestic use only and is not suitable for commercial use. Do not use it for outdoors activities.
3. When using the food dehydrator, make sure that it is on a flat, level and sturdy surface, make sure that there is no risk of it to fall over and that it can support the weight of the unit during use.
4. Failure to follow all the instructions listed may result in electric shock, fire or serious personal injury. The warnings, cautions and instructions listed in this manual cannot cover all possible conditions and situations that may occur while the product is in use.
5. Do not leave this product unattended during use.
6. Before plugging the food dehydrator into the main electrical supply, check that the voltage and the power supply comply with the specifications on the food dehydrator's rating label.
7. Make sure that the food dehydrator is switched off and remove the plug from the main electrical supply when it is not in use, before it is cleaned and whilst it is being repaired.
8. Ensure that the food dehydrator and the power cord are not hung over sharp edges and keep them away from hot objects and open flames; otherwise, the plastic will melt and may cause a fire.
9. Under no circumstances should the food dehydrator or plug be immersed in water or any other liquid. Do not use the appliance with wet hands.
10. Check the food dehydrator and power cord regularly for damage.
11. Do not use the food dehydrator if the plug or cord are damaged or after it has been dropped or damaged in any way.
12. If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service or similarly qualified persons.
13. Repairs to the food dehydrator should only be performed by a qualified electrician. Improper repairs may place the user at risk.

14. None of the product's parts are dishwasher safe, unless explicitly specified otherwise.

15. Always turn the power off at the power outlet before you insert or remove a plug. Remove by grasping the plug; do not pull on the cord.

16. Do not use your appliance with an extension cord unless this cord has been checked and tested by a qualified technician or service agent.
17. Never use an unauthorized attachment.
18. Avoid contact with moving parts. Keep hands, hair, clothing, spatulas and other utensils away during operation to reduce the risk of injury to persons and/or damage to the machine.
19. Please don't turn the air stream of the engine towards others.
20. Please don't keep it beside anything heating.
21. If you pass this appliance on to a third party, these operating instructions must also be handed over.
22. The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Caution:

• Keep the device away from the places with high temperature.
• In the event where the appliance is dropped into the water, turn off the power at the power outlet and remove the plug immediately. DO NOT REACH INTO THE WATER TO RETRIEVE IT.
• ATTENTION! Do not run the appliance for more than 48 hours in one single use. After 48 hours, unplug it and let it cool down for at least 2 hours before operating again.
• Do not operate this appliance near gas spray cans.
• The temperature of accessible surface may be high when the appliance is operating.

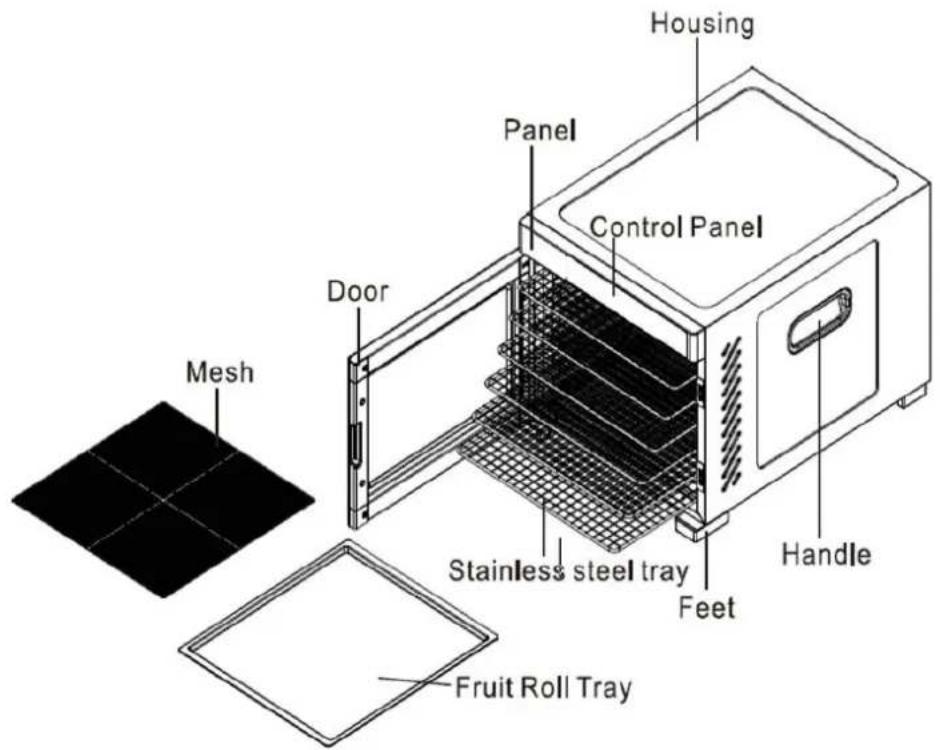

4. PRODUCT DESCRIPTION

5. PRODUCT INSTALLATION AND OPERATION METHOD

Before first use

1. Remove all packaging from your dehydrator and its accessories.
2. Clean the trays with a moistened cloth.
3. Place the dehydrator base on a solid and level surface. Plug it in. Stack the drying trays in the dehydrator.
4. Run the dehydrator for 30 minutes at any temperature, without adding any food. Make sure that the room has sufficient ventilation in case the dehydrator produces any smoke or smells. This is normal during the first usage of the product.
5. Rinse the trays in water. After that, dry all parts with a paper towel.

NOTE: You only need to do this the first time you use the dehydrator.

How to use the appliance

Control functions

Start/Stop

Sterilize

Dehydrator

a) Press "START/STOP" to start or stop the dehydrator.
b) Press "Sterilize" or "Dehydrator" to choose the function.
c) Press "TEMP/TIME" once and use the + and - buttons to change the temperature.
d) Press "TEMP/TIME" a second time and use the + and - buttons to change the time.

Automatic power-off function

a) Put the clean food in the trays – do not overload the trays and never overlap the food.

Close the door.

b) Plug it in. The dehydrator will make a sound 1 time, and the display will show "8888".

c) The dehydrator will switch to standby mode after 5 seconds.

Standby mode: the display will show "0000". The dehydrator will switch to standby mode after 5 seconds.

Standby mode will be activated when the display will show "0000", and the "⏻" button will light up.

Food dehydrator function

a) Press

“ ” butt

Use + or - to change the time (time range 0:30–24:00).

Note: Time changes in 30 minute increments. Press and hold "+" or "-" to change the time rapidly.

b) After you have finished setting the time, press

The temperature will show on the display (temperature ranges from: 35°C-40°C-45°C-50°C-55°C-60°C-65°C-70°C-75°C).

Note: Temperature changes in 5°C increments. Press and hold “+” or “-” to change the temperature rapidly.

After finishing setting up the timer and temperature, the dehydrator will start to work in 5 seconds.

Note: On dehydrator mode: you can change the time and temperature at any time by pressing "TEMP/TIME".

Sterilize function

a) Make sure the dehydrator is in standby mode.

b) Press "", the time will show on the display, and "buttons will light up.

c) Use "+" or "-" to change the time (time ranges from 0:30-2:00).

d) The temperature is fixed to 75^ C, meaning the fact that the fan is working.

e) After finishing setting up the timer, the dehydrator will start to work in 5 seconds.

Please note:

1. If you press START/STOP while the dehydrator is working, it will stop automatically.

2. If the user opens the door during sterilizing, the UV light will be turned off automatically.

3. The time cannot be set up during work.

When the time finishes, the display will show "End" and the heat will be turned off. The dehydrator will make a sound 5 times in a row, and the fan will continue to work for 10 seconds before stopping.

Unplug the unit after you have finished drying our food.

Records of humidity and weight of produce before and after drying times will be helpful to improve your drying techniques for the future.

Note: Fruit and vegetables dried in your food dehydrator will be different in appearance from those sold in health food stores and supermarkets. This is due to your food dehydrator not using preservatives, no artificial coloring and only natural additives.

Tips & recommendations

Drying time for pre-treatment fruit will vary according to the following factors:

1. Thickness of pieces or slices.
2. Number of trays with food being dried.
3. Volume of food being dried.
4. Moisture or humidity in your environment.

It is recommended to:

1. Check your food every hour.
2. Label food with contents of date and weight before drying. It will also be helpful to note the drying time for future reference.
3. Pretreated food will give the best effect in drying.
4. Correct food storage after drying will also help to keep food in good quality and save the nutrients.

6. CARE AND MAINTENANCE

• After usage, unplug the dehydrator from the power supply and let it cool down before cleaning.
- Use a soft brush to remove food sticking on the trays.
- Dry all parts with a dry cloth before storing the dehydrator.
- Clean the surface of the body with a cloth.
- Use paper towels to remove any stains remaining.

- Do not clean the appliance with aggressive chemicals or abrasives in order not to damage the surface.

Storage

• Store the processed food only after it has been cooled down.
• Food can be kept longer if stored in a cool, dry and dark place.
• Never store food directly in a metal container.
• Check the contents of your dried food for moisture during the weeks following dehydration. If there is moisture inside, you should dehydrate the contents for a longer time to avoid spoiling.
• For the best quality, dried fruit, vegetables, herbs, nuts and bread should not be kept for more than 1 year, if kept in the refrigerator or freezer.
• Dried meats, poultry and fish should be stored for no more than 3 months if kept in the refrigerator, or 1 year if kept in the freezer.

7. TROUBLESHOOTING

Fault codes and symptoms	Cause analysis	processing method
E1	Open circuit damaged by a thermistor.	Send it to an authorised service or to the seller.
E2	Short circuit damage by a thermistor.	Send it to an authorised service or to the seller.
E3	The temperature of dehydrator is too high.	After cooling the dehydrator, restart it and lower the temperature. If E3 is still displayed, please send it to the authorised service or to the seller.

8. TECHNICAL PARAMETERS

Model	HFD-KD600SS
Rated voltage	220-240V~50/60Hz
Rated power	550W-600W
Temperature range	35°C~75°C

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model and Serial Number.

The information can be found on the rating plate. Subject to change without notice.

Thank you for purchasing this product. If you need support with your product, visit our website using the links below.

Get User manuals: https://www.heinner.ro

Get Service information: https://www.heinner.ro

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

This product is in conformity with norms and standards of European Community.

Importer: Network One Distribution

Marcel Iancu Street, 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro
