Product Type	Tablet
Brand	TechBite
Model	SmartBoard 10 II WiFi
Screen Size	10.1 inches
Display Resolution	1280 x 800 pixels
Processor	Quad-core 1.5 GHz
RAM	2 GB
Internal Storage	32 GB
Expandable Storage	microSD up to 128 GB
Operating System	Android 10
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.2
Cameras	Rear 5 MP, Front 2 MP
Battery Capacity	6000 mAh
Battery Life	Up to 8 hours of mixed use
Dimensions (W x D x H)	240 x 170 x 8.5 mm
Weight	480 g
Charging Port	Micro USB
Audio	Built-in speaker, 3.5 mm headphone jack
Sensors	Accelerometer, proximity sensor
Maintenance & Cleaning	Wipe with a soft dry cloth. Do not use liquids or abrasives.
Safety Instructions	Do not expose to water or extreme temperatures. Use only provided charger.
Spare Parts & Repairability	Battery and screen replaceable by qualified technician. Contact support for parts.
General Information	Designed for everyday use: browsing, streaming, e-reading, and light productivity.

Frequently Asked Questions - SmartBoard 10 II WiFi TechBite

How do I turn on the SmartBoard 10 II WiFi for the first time?

Press and hold the power button located on the side of the tablet for about 3 seconds until the screen lights up. Follow the on-screen setup wizard to choose language, connect to Wi-Fi, and sign in to your Google account.

Can I expand the storage on this tablet?

Yes, the SmartBoard 10 II WiFi supports microSD cards up to 128 GB. Insert the card into the slot on the side of the tablet (you may need to open a small flap). Go to Settings > Storage to manage the card.

How do I take a screenshot?

Press and hold the Power and Volume Down buttons simultaneously for about 2 seconds. The screen will flash and a notification will appear. You can also use a three-finger swipe gesture if enabled in Settings.

What should I do if the tablet freezes or becomes unresponsive?

Try a forced restart by pressing and holding the Power button for about 10 seconds until the device reboots. If the issue persists, go to Settings > System > Reset options and choose 'Erase all data (factory reset)' after backing up your data.

How do I connect to Wi-Fi?

Swipe down from the top of the screen to open the notification panel. Tap the Wi-Fi icon to turn it on, then select your network from the list and enter the password. Alternatively, go to Settings > Network & Internet > Wi-Fi.

Can I use a keyboard or mouse with this tablet?

Yes, the tablet supports Bluetooth keyboards and mice. Go to Settings > Connected devices > Bluetooth, pair the device, and it will work with on-screen cursor support. Some USB OTG adapters may also work for wired peripherals.

How do I clean and maintain the tablet?

Turn off the tablet and disconnect any cables. Use a soft, lint-free cloth slightly dampened with water to gently wipe the screen and body. Avoid using paper towels, alcohol, or abrasive cleaners. Do not spray liquids directly on the device.

Is it safe to use the tablet while charging?

Yes, it is generally safe. However, charging may be slower if you are using power-intensive apps. The tablet may also warm up; if it becomes uncomfortably hot, stop charging and let it cool down. Avoid covering the device while charging.

Where can I find the user manual in PDF?

The user manual can be downloaded for free from the notice-facile.com website. Search for 'TechBite SmartBoard 10 II WiFi' and click the 'Download' button. The manual is available in multiple languages.

How long does the battery last and how do I extend it?

The battery lasts up to 8 hours under normal use. To extend battery life, reduce screen brightness, turn off Wi-Fi/Bluetooth when not in use, and close background apps. Go to Settings > Battery to see detailed usage.

USER MANUAL SmartBoard 10 II WiFi TechBite

-WODA I INNE PŁ YNY-

Thank you for choosing techBite device. This product has been designed especially for you. We are doing everything to make its use pleasurable and comfortable. We made sure that elegance, functionality and convenience of use were combined with an affordable price. For your own safety, please read this manual carefully.

Manufacturer

mPTech Ltd.

Equipment delivery location:

mPTech Ltd.

Krakowska street 119

50-428 Wrocław

Poland

Webiste: www.myphone-mobile.com

Manufactured in China

User manual

The actual product, accompanying accessories and some of its features may differ from the presented in this manual images and descriptions.

The latest manual is available on the product website:

https://techbite.eu/gr/tablet-smartboard-10-II-wifi

To open this page simply scan this QR Code

1. Table of contents

1. Table of contents......21
2. Safety.... 22
3. The use of the manual....23
4. Important information.... 23
5. Technical Specification....24
6. Package content 24
7. Appearance of the tablet....26
8. Keyboard 26
9. Before the first start....27

9.1 Mounting of the memory card 27

9.2 Charging the battery 27

1. Buttons 28
2. Using the touch screen 29

11.1. Touch....29
11.2 Swipe....29
11.3 Triple click....29
11.4 Hold and swipe 29
11.5 Slide in and out....29

1. Computer connection....30
2. Bluetooth 30
3. Internet....30
4. Location 31
5. Maintenance of the device.... 31
6. The use of the manual....31

17.1 Consents....31
17.2 Appearance....31
17.3 Trademarks....32

1. Correct disposal of used equipment 32
2. Correct disposal of used battery 32
3. Declaration of conformity with European Union Directives ...... 33

Attention	Statement
The manufacturer is not responsible for any consequences caused by improper usage of the device and not obeying the above instructions.	The software version can be upgraded without earlier notice.

2. Safety

Read these guidelines carefully. Not following them may be dangerous or illegal.

-DO NOT RISK-

All wireless devices may cause interferences, which could affect the performance of other devices. Do not switch on the device when the use of mobile phones is prohibited or if it might cause interference or danger.

-ROAD SAFETY-

Do not use this device while driving any kind of vehicle.

—RESTRICTED AREAS—

Switch OFF the device in an airplane since it may disturb the operation of other equipment located therein. The device may interfere with operation of the medical equipment in hospitals and health protection entities. Abide by any kinds of prohibitions, regulations and warnings conveyed by the medical staff.

-PETROL STATIONS-

Always turn off the device while refuelling your car on petrol station. Do not use your device close to chemicals.

-WI-FI (WLAN)-

In the European Union Member States, a WLAN network may be used indoors without any restrictions. In France, a WLAN network may not be used outdoors.

-QUALIFIED SERVICE-

Only qualified personnel or an authorized service center may install or repair this product. Repairing the device by an unqualified or unauthorized service technician may result in damage to the device and void the warranty.

-CHILDREN AND PHYSICALLY OR MENTALLY DISABLED PEOPLE—

This device should not be operated by people (including children) with limited physical or mental abilities, as well as by people with no earlier experience in operation of electronic equipment. They may use the device only under supervision of people responsible for their safety. This device is not a toy. Memory cards are small enough to be swallowed by a child and cause choking. Keep the device and its accessories out of reach of children.

—WATER AND OTHER LIQUIDS—

Protect the device from water and other liquids. It can influence work and the life span of electronic components. Avoid using the device in environments with high

humidity like kitchens, bathrooms or during rainy weather. Particles of water can cause the liquefaction of moisture in the device, and this may have a negative impact on the work of electronic components.

-BATTERY AND ACCESSORIES-

Avoid exposing the battery to very high/low temperatures (below 0°C/32°F and over 40°C/104°F). Extreme temperatures may influence capacity and battery life. Avoid contact with liquids and metal objects as it may cause partial or complete battery damage. The battery should be used according to its purpose. Do not destroy, impair or throw the battery into flames - it might be dangerous and may cause fire. Worn-out or impaired battery should be placed in a dedicated container. Excessive charging the battery can cause damage. Therefore a single battery charge should not last longer than 3 days. Installing an incorrect battery type can cause an explosion. Never open the battery. Please dispose of battery according to the instructions. Disconnect an unused charger from power grid. In case of the charger wire damage, it should not be repaired but replaced with a new one. Use the original manufacturer's accessories only.

-HEARING-

To avoid hearing damage, do not use the device at high volume levels for a long period of time, do not put operating device directly to an

ear.

-EYESIGHT-

To avoid eyesight damage do not look closely onto the flash light during its work. A strong bean of light may cause permanent eye

damage!

3. The use of the manual

The device and screen shots contained in this manual may differ from the actual product. Accessories attached to the set may differ from the illustrations included in manual. Options described in the manual are found in Android ^™ system. Those descriptions may differ, depending on the version of the operating system and applications installed on the device.

4. Important information

The majority of applications which can be installed on the device are mobile apps. Modus operandi of such applications may be different from their counterparts installed on a personal computer. Apps installed on the device may vary depending on country, region, and hardware specifications. The manufacturer is not liable for problems caused by third party software. The manufacturer is not responsible for anomalies that may occur when editing the registry settings and

modifying the operating system software. Attempts to modify the operating system can cause malfunctions and problems with applications. It may cause a loss of warranty.

Android ^TM System

Android 12 includes a few new solutions that are key to a better interaction between the tablet and the user. The system comes with screen recording features and many privacy and security improvements.

Google Play

Google Play is your unlimited entertainment. It combines all your favourite entertainment and helps you discover it in new ways, always and everywhere. We brought the magic of Google to music, films, television, books, magazines, applications and games, so you can get more out of your content every day.

1. Technical Specification

Model	SmartBoard 10 II WiFi
Operating system	Android 12
Display	10.1" 1200x1920 px FHD IPS
Processor	MTK8183
Rear camera (main) / Front camera (selfie)	5 Mpx with LED lamp / 2 Mpx
RAM memory	4 GB
Internal memory	128 GB
The card reader	microSD up to 128 GB
Connectors	1 x USB-C; 3.5 mm minijack; docking station connector
Connectivity	802.11a/b/g/n/ac ,BT 4.2
Battery	3.8V / 6000 mAh
Charger input parameters:	100-240 V~ 0.35 A, 50/60 Hz
Charger output parameters:	5.0V =2.0A, 10W
Dimensions	238.6 x 157.4 x 7.5 mm
Weight	415 g

6. Package content

• SmartBoard 10 II WiFi

• Charger (adapter + USB cable)

• External keyboard

• User manual
  • Tempered glass screen protector

If any of the above items is missing or damaged, please contact your dealer.

We advise to keep the container in case of any complaints. Keep the container out of reach of children.

⚠️ Dispose of container in accordance with local regulations when it is no longer needed.

7. Appearance of the tablet

Number	Funcitons
1	2 Mpx digital camera lens (selfie)
2	Headphone port minijack 3.5 mm
3	Slot for opening the microSD card cover flap
4	Blockade on/off button
5	Volume control buttons
6	Microphone
7	Multifunctional USB-C port
8	External speaker
9	Touchscreen 10"
10	Connector for external keyboard
11	5 Mpx digital camera lens
12	Illumination LED / Flash light

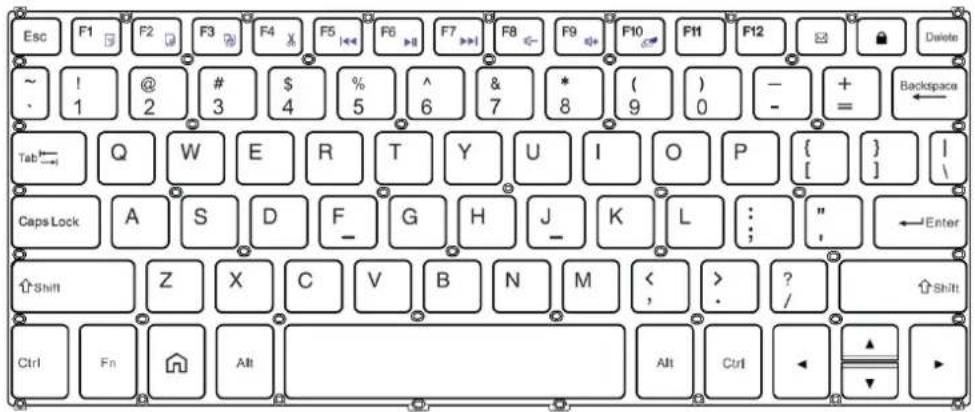

8. Keyboard

The keyboard has a standard QWERTY layout. In addition, there are directional buttons in the lower right corner. Text is entered using the keyboard.

With some key combinations with the Fn key it is possible to use the functions assigned to F1-F10 keys and deactivate/activate the touch panel (Fn + F10).

⚠️ With the keyboard connected to the tablet, the USB-C connector is only used to charge the device. To plug external devices one should disconnect the keyboard first.

The external keyboard consumes power. It is recommended to unplug it when you are not using the device.

9. Before the first start

9.1 Mounting of the memory card

To insert the memory card correctly, turn off the tablet. Slide out the SD card tray and put it in the designated place, then gently insert the card tray into the socket.

Use only memory cards recommended by the manufacturer. Pay attention to the selection of the proper format-the microSD card, capacity and type/class. Incompatible memory cards may damage the device and cause the stored data to be destroyed as well. Incompatibility of memory card can be caused, among others, by an incorrect card format (required format microSD) or an unsupported card capacity - above the value recommended by the manufacturer.

9.2 Charging the battery

Charge the battery before the first use. The battery should be charged by the attached charger or another charger, intended for this type of equipment. If in doubt contact the seller or manufacturer service. Use only chargers and wires recommended by the manufacturer. Using incompatible chargers or cables can cause explosion of the battery or damage to your device. When the battery is near a complete discharge, the notification is displayed on a low battery charge. To continue use of the device charge the battery. If the battery is completely discharged the device can not be switched on even when the loading process is ongoing. Before the device can be turned on again, the battery has to be charged for at least a few minutes. If there is a problem with the battery or if it needs to be replaced, the device should be delivered to the manufacturer's service centre. To charge the battery, connect the USB-C plug to the socket in the device and the USB plug to the charger.

Incorrect charger connection (USB cable) can cause damage to the AC chapter or the device. The damages resulting from improper handling are not ered by the warranty.

Plug the charger into the wall socket. Once you start charging, an icon of the battery situated in the upper right corner will change to an animated symbol of lightning. If the device is turned off an animation depicting the level of battery charge should appear.

The device can heat up during charging. It is a regular occurrence and should affect the stability or performance of the device.

When the charge reaches 100% it means that the battery is fully charged, finish the charging. Unplug the charger from the wall socket and from the device.

If the device does not charge properly deliver it with the charger to a service

center of the manufacturer.

10. Buttons

Menu (virtual)

Pressing it will cause the list of open apps to appear, where you can switch in-between or turn them off.

Home (virtual)

One quick press takes you to phone desktop. A longer press launches Google Assistant.

Back (virtual)

Press to exit the application / return to the previous screen.

Blockade on/off button

• One quick press locks/unlocks the screen.
• Pressing the button for about 2 sec. will cause:
  o If the device is off - the device will switch on,
• if the device is switched on - calling up a menu that allows you to switch off the device, restart the system, take a screenshot.

- You can also cause a hard reset by pressing and holding the button until the device resets.

Volume increase and decrease buttons

• Pressing during a voice call will cause an increase or decrease of the audio connection volume.
• Pressing the button when no calls are active will decrease or increase the volume of the ringtone, change sound profile on "vibration only" or "alarms only".
• Pressing the button while camera app is open might start the shutter and take a picture. (Works only if the software provides the function).
• Pressing the button in any other app will control volume level of music, spoken instructions, or other sounds.

Turning on/off, reboot.

To switch the device on, press and hold (for about 3 seconds) on/off button. To switch the device off press and hold (for about 2 seconds) on/off button and choose [Power off].

To restart the device, press and hold (for about 2 seconds) on/off button and choose [Reboot].

11. Using the touch screen

A touch screen of the device lets you easily select items or perform operations. The touchscreen can be controlled by the following actions:

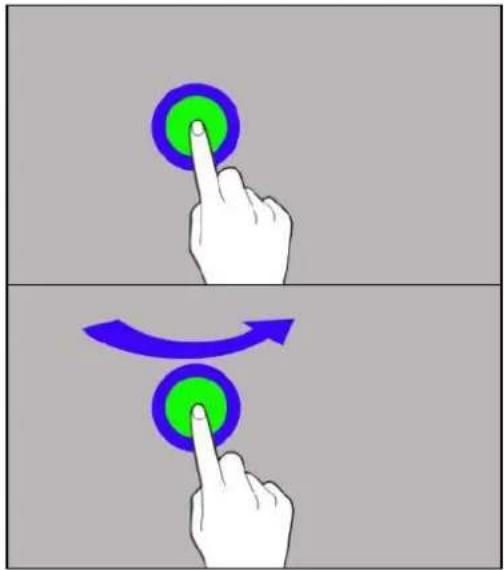

11.1. Touch

Touch one to start options, app, menu.

Two-step diagram showing a hand pressing a green circular button with a finger, and a curved arrow indicating rotation (no text or symbols)

11.2 Swipe

Quickly swipe up, down, to the left or to the right, to scroll the list or the screen.

11.3 Triple click

Quickly tap the screen three times to start zooming - if this option is enabled in your device settings.

Hand pressing a green circular button with a blue ring (no text or symbols)

11.4 Hold and swipe

Touch an element (an icon perhaps) and hold it for about 1 seconds. Then you can delete/uninstall that element.

11.5 Slide in and out

Touch the screen with two fingers and slide them together or apart to zoom in or out a

photo or a map.

The touch screen will be turned off after some time of inactivity. To turn off the screen press the blockade button.

In most tablets, you can set how long your device waits before turning off the screen. From the list of applications, it is usually sufficient to select [Settings] > [Display] > [Screen Blanking].

12. Computer connection

To connect to PC computer with Microsoft Windows XP/Vista/7/8/10 using USB you should plug the included USB cable to a USB-C socket in the device. Plug the other end of the cable into the socket in your computer. When the device is plugged in, a screen will appear on your computer with the name of the device and operations possible to perform. If that does not happen swipe from the top edge of the bottom of the device and click "USB charging mode". Select "Send files". From the window that will appear on the TV screen choose: "Open device to view files". Now you can exchange files between your device and the computer.

! Connection with a computer is possible only when using a tablet.

If the OS does not see device memory check if the installed the driver operating the device is correct. Search the driver list manually and choose "MTP USB device".

13. Bluetooth

A built-in Bluetooth module is a wireless, short-range communication technology used to exchange data up to 10 meters distance. The most commonly used Bluetooth devices are headphones or wireless speakers used to make voice calls and listening to music. Also car kits and other wireless mobile devices such as laptops, tablets, and mobile phones are often used.

14. Internet

Select [Application menu] > [Settings] > [Network and Internet] > [Wi-Fi] and slide the slider to the right (turn it on). If you wish to add or give a new Wi-Fi network press the button and choose [Wi-Fi]. In this field you can see a list of available Wi-Fi networks, connection status between the device and given network, an icon depicting network signal strength, security (a padlock visible).

If a Wi-Fi network is secured then on an attempt to connect an enquiry for

password will appear, which is to be entered by a virtual alphanumeric keyboard.

15. Location

There is a possibility to permit applications to use data and GPS satellites to determine the approximate location of the device. Also the possibility to allow Google to use location data in order to improve i.e. search results. Before using location services, such as map and navigation applications, or internet services, ensure that there is an active wireless connection to the Internet and the function of the GPS satellites in the [Application Menu] > [Settings] > [Location].

16. Maintenance of the device

To prolong the life span of the device act according to these instructions.

• Keep the device and its accessories out of reach of children.
• Avoid contact with liquids; it can cause damage to electronic components of the device.
• Avoid very high temperatures for it can shorten the life of device electronic components, melt the plastic parts and destroy the battery.
• Do not try to disassemble the device. Tampering with the device in an unprofessional manner may cause serious damage to the device or destroy it completely.
• For cleaning use only a dry cloth. Never use any agent with a high concentration of acids or alkalis.
• Use only the original accessories. Violation of this rule may result in an invalidation of the warranty.

The packaging of the device can be recycled in accordance with local regulations.

17. The use of the manual

17.1 Consents

Without prior written consent of the manufacturer, no part of this manual may be photocopied, reproduced, translated or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording or storing in any systems of storing and sharing information.

17.2 Appearance

The device and screen shots contained in this manual may differ from the

actual product. Accessories attached to the set may differ from the illustrations included in manual.

17.3 Trademarks

• Google, Android, Google Play, Chrome and other marks are trademarks of Google LLC.
• Oracle and Java are a registered trademarks of Oracle and / or its affiliates.
• Wi-Fi® Wi-Fi logo are a registered trademarks Wi-Fi Alliance association.
• All other trademarks and copyrights belong to their respective owners.

The Android robot has been reconstructed or modified on the basis of a project created and made available by Google. Its use is subject to the terms and conditions described in the Creative Commons 3.0 Authorization License

18. Correct disposal of used equipment

The device is marked with a crossed-out garbage bin, in accordance with the European Directive 2012/19/EU on used electrical and electronic Equipment (Waste Electrical and Electronic equipment - WEEE). Products marked with this symbol should not be disposed of or dumped with other household waste after a period of use. The user is obliged to get rid of used electrical and electronic equipment by delivering it to designated recycling point in which dangerous waste are being recycled. Collecting this type of waste in designated locations, and the actual process of their recovery contribute to the protection of natural resources. Proper disposal of used electrical and electronic equipment is beneficial to human health and environment. To obtain information on where and how to dispose of used electrical and electronic equipment in an environmentally friendly manner, user should contact their local government office, the waste collection point, or point of sale, where the equipment was purchased.

19. Correct disposal of used battery

According to the EU directive 2006/66/EC with changes contained in EU directive 2013/56/UE on the disposal of batteries, this product is marked with crossed-out garbage bin symbol. The symbol indicates that the batteries used in this product should not be disposed with regular household waste, but treated according to the legal directives and local regulations.

It is not allowed to dispose of accumulators with unsorted municipal waste. Users

of batteries and accumulators must use the available collection points of these items, which allows them to return, recycle and disposal. Within the EU, the collection and recycling of batteries and accumulators is a subject to separate procedures. To learn more about existing procedures of recycling of batteries and accumulators please contact your local office or an institution for waste disposal or landfill.

20. Declaration of conformity with European Union Directives

mPTech Ltd. hereby declares that techbile SmartBoard 10 II WiFi tablet is compliant with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following Internet

address:

https://techbite.eu/qr/tablet-smartboard-10-II-wifi

www.myphone-mobile.com

Vyrobeno v Číně

Uživatelsk příručka

Do not use this device while driving any kind of vehicle.

-WI-FI (WLAN)-

11.3 Trojklik

1. Obsah

Hand pressing a green circular button with a blue ring (no text or symbols)

11.1. Dotyk

Hand pressing a button with a green circular icon and blue curved arrow above it (no text or symbols)

11.3 Trojklik

Hand pressing a green circular button with a blue ring (no text or symbols)

11.4 Pridržanie a posun

Illustration of a hand making an 'OK' gesture with two blue arrows indicating motion (no text or symbols)

Dotyková obrazovka zariadenia sa po určitej dobe nečinnosti vypne. Ak chcete obrazovku zapnút, stlačte tlačidlo uzamknutia.

Without prior written consent of the manufacturer, no part of this manual may be photocopied, reproduced, translated or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording or storing in any systems of storing and sharing information.

17.2 Vzhl'ad

1. Tartalomjegyzék

Illustration of a hand making an 'OK' gesture with two blue arrows indicating motion (no text or symbols)
