| Product Type | Range Hood |
| Brand | Freggia |
| Model | CHPA9GTW |
| Width | 90 cm (approx. 35.4 inches) |
| Height (with chimney) | Adjustable, up to 120 cm |
| Depth | 50 cm (approx. 19.7 inches) |
| Weight | Approx. 15 kg |
| Power Supply | 220-240 V, 50 Hz |
| Motor Power | 120 W |
| Number of Speeds | 3 |
| Max Airflow | 500 m³/h |
| Noise Level | ~65 dB at maximum speed |
| Lighting | 2 x 40W halogen or LED equivalent |
| Filter Type | Aluminum grease filter (washable) |
| Charcoal Filter | Optional, for recirculation mode |
| Installation Type | Wall-mounted, ducted or recirculating |
| Duct Size | 150 mm diameter |
| Control Type | Push buttons |
| Maintenance | Clean grease filter monthly; replace charcoal filter every 3-6 months |
| Safety Features | Overload protection |
| Spare Parts Availability | Filters, bulbs, and motor available from Freggia |
| Reparability | Modular design; user-replaceable filters and bulbs |
| Certifications | CE marked |
Frequently Asked Questions - CHPA9GTW Freggia
User questions about CHPA9GTW Freggia
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Range hood in PDF format for free! Find your manual CHPA9GTW - Freggia and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CHPA9GTW by Freggia.
USER MANUAL CHPA9GTW Freggia
Thank you for purchasing Freggia household appliance.
Please carefully read the user manual, as it contains the instructions for the safe installation, operation and maintenance of the household appliance.
Save it for future use.
RU
USO E MANUTENZIONE....7
DISEGNI E SCHEMI....32
ATTANTION!
Important safety information.
ВНИМАНИЕ!
Edditional recommendations regarding usage.
Care and maintenance.
COBET:
SAFETY PRECAUTION....9
INSTALLATION INSTRUCTIONS....10
USE AND MAINTENANCE....11
DRAWINGS AND SCHEMES....32
Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations.
The appliance has been designed for use in the ducting version (air exhaust to the outside – Fig.1B) or filtering version (air circulation on the inside – Fig.1A).
SAFETY PRECAUTION
Take care when the cooker hood is operating simultaneously with an open fireplace or burner that depend on the air in the environment and are supplied by other than electrical energy, as the cooker hood removes the air from the environment which a burner or fi replace need for combustion.
The negative pressure in the environment must not exceed 4Pa (4x10-5 bar). Provide adequate ventilation in the environment for a safe operation of the cooker hood. Follow the local laws applicable for external air evacuation.
Before connecting the model to the electricity network:
- control the data plate (positioned inside the appliance) to ascertain that the voltage and power correspond to the network and the socket is suitable. If in doubt ask a qualified electrician.
- If the power supply cable is damaged, it must be replaced with another cable or a special assembly, which may be obtained direct from the manufacturer or from the Technical Assistance Centre.
- This device must be connected to the supply network through either a plug fused 3A or hardwired to a 2 fase spur protected by 3A fuse.
- WARNING !
In certain circumstances electrical appliances may be a danger hazard.
A) Do not check the status of the fi Iters while the cooker hood is operating.
B) Do not touch bulbs or adjacent areas, during or straight after prolonged use of the lighting installation.
C) Flambè cooking is prohibited underneath the cooker hood.
D) Avoid free flame, as it is damaging for the fl iters and a fire hazard.
E) Constantly check food frying to avoid that the overheated oil may become a fire hazard.
F) Disconnect the electrical plug prior to any maintenance.
G) This appliance is not intended for use by young children or infi rm persons without supervision.
H) Young children should be supervised to ensure they do not play with the appliance.
I) There shall be adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels.
L) There is a risk of fi re if cleaning is not carried out in accordance with the instructions.
This appliance conforms to the European Directive EC/2002/96, Waste Electrical and Electronic Equipment (WEEE). By making sure that this appliance is disposed of in a suitable manner, the user is helping to prevent potential damage to the environment or to public health.
The symbol on the product or on the accompanying paperwork indicates that the appliance should not be treated as domestic waste, but should be delivered to a suitable electric and electronic appliance recycling collection point.
Follow local guidelines when disposing of waste. For more information on the treatment, re-use and recycling of this product, please contact your local authority, domestic waste collection service or the shop where the appliance was purchased.
INSTALLATION INSTRUCTIONS
Attention!
Assembly and electrical connections must be carried out by specialised personnel.
Attention!
Wear protective gloves before proceeding with the installation.
ELECTRIC CONNECTION
The appliance has been manufactured as a class II, therefore no earth cable is necessary.
The connection to the mains is carried out as follows:
BROWN = L line
BLUE = N neutral
If not provided, connect a plug for the electrical load indicated on the description label. Where a plug is provided, the cooker hood must be installed in order that the plug is easily accessible.
An omnipolar switch with a minimum opening of 3mm between contacts, in line with the electrical load and local standards, must be placed between the appliance and the network in the case of direct connection to the electrical network.
The distance between the supporting surface of the cooking appliance on which the cooking recipients are placed and the lower part of the kitchen hood must be a minimum of 45 cm, whether it is an electric hob, a gas hob or an induction hob). If a connection tube composed of two parts is used, the upper part must be placed outside the lower part. Do not connect the cooker hood exhaust to the same conductor used to circulate hot air or for evacuating fumes from other appliances generated by other than an electrical source.
- In the case of assembly of the appliance in the suction version prepare the hole for evacuation of the air.
We recommend the use of an air exhaust tube which has the same diameter as the air exhaust outlet hole. If a pipe with a smaller diameter is used, the efficiency of the product may be reduced and its operation may become noisier.
Before proceeding with the installation, to be able to move the hood more easily, complete the following operations:
- Remove the anti-grease filter by pulling the handle, as shown in figure 2 - phase 1.
- If the product is equipped with activated charcoal filters (B-C), remove them as shown in figure 2 - phase 2B or 2C.
- Unhook the small cupola M as shown in figure 2 - phase 4.
FIXING TO THE WALL (FIG.3):
Mark the position of the lower side of the hood on the wall figure 3 - phase 1 (taking into account the minimum distance required from the hob).
Position the fixing template on the wall, making sure that the line coincides with the line previously made on the wall, as described in the preceding section.
Mark and drill fixing holes figure 3 - phase 2.
Fasten the 4 anchors and the 2 screws A-B without fully tightening them figure 3 - phase 2.
Position the appliance on the wall and permanently secure it by pulling the 2 screws B figure 3 - phase 3-4 and the 2 locking screws B figure 3 - phase 5.
When carrying out the fixing operations, use only screws and screw anchors suited to the type of wall (e.g. reinforced concrete, plasterboard etc.).
If the screws and screw anchors are supplied with the appliance, make sure that they are suited to the type of wall to which the hood must be fixed.
INSTALLATION OF MODELS WITH DECORATIVE DUCTS - EXTRACTOR HOOD
Before installing decorative flues it is necessary to remove the small cupola and loosen the 4 screws B that lock the fastening pins G as shown in Fig.7.
Make sure the electrical power supply is within the measurements of the decorative connector.
Connect flange F to the air exhaust hole using flexible hose L (Fig.7).
Adjust the width of the support bracket of the top connector (Fig. 8). Then fix it to the ceiling so that it is on the same axis as the hood using screws A and observing the distance from the ceiling shown in (Fig. 8). Slide the top connector inside the lower duct and place this on the body (Fig. 9).
Pull out the top duct as far as the bracket and secure it using screws B (Fig. 8).
To transform the hood from a ducting version into a filtering version, ask your dealer for the charcoal filters and follow the installation instructions.
FILTERING VERSION
Unhook the small cupola M and remove the grille E (Fig. 5).
Pass the power supply cable through the slots of the small cupola M as shown in Fig. 6.
Take the fairlead H and position it between the power supply cable and the slot.
Fasten the small cupola M and the grille E making sure that is it perfectly hooked on to the fastening pins G. (Fig. 6).
The fil ters must be applied to the suction unit positioned inside the hood. They must be centred by turning them 90 degrees until the stop catch is tripped (Fig.10B).
In order to transform the hood from EXTRACTOR HOOD into FILTER HOOD the active carbon filters must be ordered at your distributor as accessory.
We have 3 different types of Kit, one with non-regenerable active carbon filters (Fig.10B) and the other one with regenerable active charcoal filters (washable) (Fig.10C - Fig.10D).
Depending on the model one owns, the CIRCULAR active carbon filters must be applied to the suction unit located inside the hood, centring them and rotating them by 90 degrees until they snap into place (Fig.10B), to replace them perform the operation in reverse order.
For WASHABLE regenerable activated carbon filters (Fig.10C), follow the assembly instructions contained in the KIT.
For the WASHABLE CIRCULAR regenerable active carbon filters (Fig.10D), remove the pad and follow the instructions in the USE AND MAINTENANCE paragraph, «regenerable active carbon filters».
USE AND MAINTENANCE
We recommend that the cooker hood is switched on before any food is cooked. We also recommend that the appliance is left running for 15 minutes after the food is cooked, in order to thoroughly eliminate all contaminated air. The effective performance of the cooker hood depends on constant maintenance; the anti-grease filter and the active carbon filter both require special attention.
The anti-grease filter is responsible retaining the grease particles suspended in the air, therefore it is subject to clogging with variable frequency according to the use of the appliance.
To prevent the danger of possible fires, at least every 2 months one must wash the anti-grease filters by hand using non-abrasive neutral liquid detergents or in the dishwasher at low temperatures and on short cycles.
After a few washes, colour alterations may occur. This does not give the right to claim their replacement.
USE AND MAINTENANCE
The active carbon filters are used to purify the air that is sent back into the room and its function is to mitigate the unpleasant odours produced by cooking.
The non-regenerable active carbon filters must be replaced at least every 4 months. The saturation of the active charcoal depends on the more or less prolonged use of the appliance, on the type of kitchen and on the frequency with which anti-grease filter is cleaned.
REPLACING LED LAMPS (FIG. 10)
This cookerhood is equipped by energy saving LED lamps. Please ask the specialized technician to replace them.

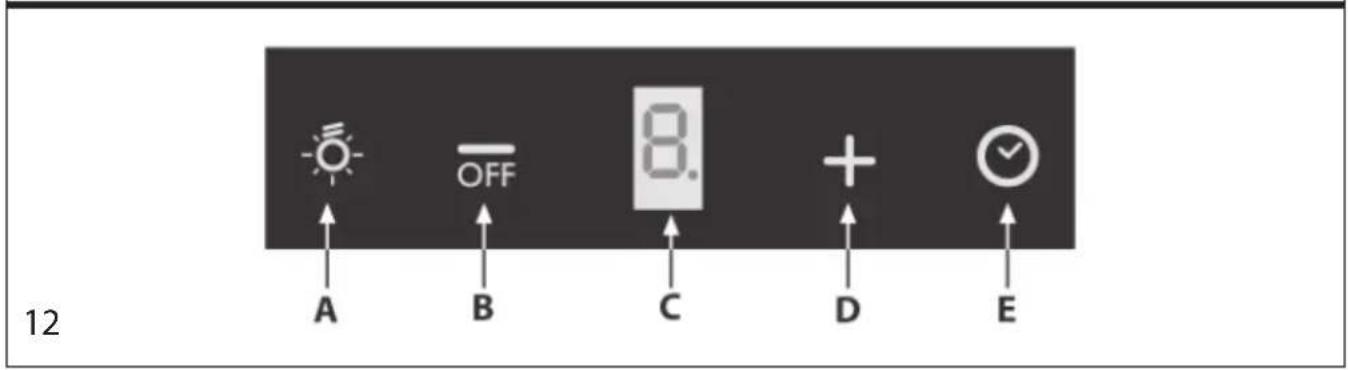

COMMANDS
Push-button A = On/off lights switch.
Push-button B = On/off cooker hood switch. The appliance switches on at speed level 1, If the cooker hood is on depress the push-button for 2 sec. to switch off the cooker hood. If the cooker hood is at speed level 1 it will not be necessary to depress the push-button to switch the cooker hood off. Decreases the motor speed.
Display C = Indicates the motor speed level selected and activates the timer.
Push-button D = Switches on the cooker hood. Increases the motor speed. Touching the key at 3rd speed, the intensive function runs for 6', then the appliance go back to work at the original speed. During this function the display blinks.
Key E = The Timer times the functions on activation for 15 minutes, after which they are switched off. The Timer is deactivated by re-pressing key E.
When the Timer is activated the decimal point must flash on the display. The Timer cannot be activated if the intensive speed is functioning.
The "CLEAN AIR" function is activated by pressing key E for 2 seconds when the appliance is switched off. This switches the motor on for 10 minutes every hour at the first speed.
During functioning a rotary movement of the peripheral segments must be visualised on the display. When this time has passed the motor switches off and the fixed letter "C" must be visualised on the display until the motor re-starts after 50 minutes for another 10 minutes and so on.
Press any key apart from the light keys to return to normal functioning. Press key E to deactivate the function.
ANTI-GREASE/ACTIVE CHARCOAL FILTERS SATURATION
When display item C flashes, at a speed where it alternates with the letter F (e.g. 1 and F), the anti-grease filters must be washed.
When display item C flashes, at a speed where it alternates with the letter A (e.g. 1 and A), the active carbon filters must be replaced or washed depending on the type of filter.
After the clean filter has been positioned correctly, the electronic memory must be reset by pressing button A for approximately 5 seconds, until the indication F or A shown on the display C stops flashing.
If the display C does not stop flashing, repeat the operation with the motor on.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR EVENTUAL DAMAGES CAUSED BY BREACHING THE ABOVE WARNINGS.
