Product Type	Component Car Speaker System
Brand	Helix
Model	F 42C
RMS Power Handling	40 Watts
Max Power Handling	80 Watts
Frequency Response	100 Hz - 22,000 Hz
Impedance	3 Ω
Sensitivity (1W/1m)	89 dB
Tweeter Cone Material	Silk Dome
Woofer Cone Material	Injected Polypropylene with Embedded Carbon Fibers
Crossover Type	Separate Flex-Crossover with 6/12 dB Slope and Tweeter Protection
Tweeter Outer Diameter	52.6 mm / 2.07"
Woofer Outer Diameter	102.4 mm / 4.03"
Tweeter Installation Diameter	45 mm / 1.77"
Woofer Installation Diameter	93 mm / 3.66"
Tweeter Installation Depth	17.3 mm / 0.68"
Woofer Installation Depth	45 mm / 1.77"
Tweeter Mounting Options	Flush Mount
Woofer Mounting Options	Standard (surface or recessed)
Installation Precautions	Ensure correct phase (+ to +, - to -); avoid water exposure; use flat, obstruction-free surface
Warranty	Limited warranty according to legal regulations; not covering overload or improper use
Recommended Use	Car audio front or rear component system
Compatibility	Designed for 3-4 ohm capable head units or amplifiers

Frequently Asked Questions - F 42C Helix

What is the power handling of the Helix F 42C?

The Helix F 42C handles 40 Watts RMS and 80 Watts max power.

What is the impedance of the F 42C speaker?

The impedance is 3 Ω, which is lower than standard 4 Ω speakers. Ensure your amplifier is stable at 3 Ω.

How do I connect the Flex-Crossover?

The crossover can be connected in two ways: Option A (tweeter and woofer close together) or Option B (separate mounting positions). Refer to the manual for detailed wiring diagrams. Ensure correct phase: positive to positive, negative to negative.

What are the mounting dimensions for the tweeter?

The tweeter has an installation diameter of 45 mm and installation depth of 17.3 mm. It is designed for flush mounting.

What are the mounting dimensions for the woofer?

The woofer has an outer diameter of 102.4 mm, installation diameter of 93 mm, and installation depth of 45 mm.

Can I use the crossovers from other Helix models?

The F 42C uses a specific crossover with 6/12 dB slope and tweeter protection. It is recommended to use only the included crossover for optimal performance.

What type of tweeter does the F 42C use?

The tweeter is a silk dome type, known for smooth and natural high-frequency reproduction.

How do I clean the speakers?

Use a soft, dry cloth to clean the exterior. Avoid water or cleaning agents as they may damage the cone and coating.

What is the warranty on the Helix F 42C?

The warranty is a limited warranty covering manufacturing defects according to legal regulations. Overload or improper use is not covered.

Can I install the F 42C in a coaxial configuration?

The F 42C is a component system with separate tweeter and woofer. For a coaxial speaker, consider the Helix F 4X model.

USER MANUAL F 42C Helix

Component and coaxial speaker systems

Blank gray image with no visible content, text, or symbols

Exploded view diagram of a mechanical assembly showing top, front, and side views (no text or labels)

Congratulations on your purchase of this high-quality HELIX speaker system.

This system highlights best quality, excellent manufacturing and state-of-the-art sound quality. Thanks to more than 30 years of experience in research and development of audio products this speaker system generation sets new standards.

We wish you many hours of enjoyment with your new HELIX speakers.

Yours

AUDIOTEC FISCHER Team

General instructions

General instructions for installing a HELIX speaker system

To prevent damage to the speakers and possible injury, read this manual carefully and follow all installation instructions. This product has been checked for proper function prior to shipping and is guaranteed against manufacturing defects.

For a proper performance and to ensure full warranty coverage, we strongly recommend to get this product installed by an authorized HELIX dealer. If you choose to perform your own installation read the following information and precautions carefully. Failure to follow the stated precautions may result in personal injury and / or damage to the audio system or vehicle.

1. Always make sure that the speaker will fit into the intended mounting location and that there is adequate depth for the magnet system.
2. Check for adequate space between speaker and window, window crank, power window mechanism, seat, rear deck torsion bars, and other items which may interfere with the speaker's mounting. This is very important if any hole cutting is required. Detailed size information is indicated in the dimension section of this manual. Take care that the mounting surface is flat and free from all obstructions.
3. Ensure that the loudspeakers are correctly connected (phase), i.e. plus to plus and minus to minus. Exchanging plus and minus may result in significant loss of sound quality.

4. Make sure that the crossovers are mounted properly.

5. Do not mount the speakers and crossovers where water may splash on them.

6. The quality of the installation has a significant effect on the overall performance of the speaker system. Treat each installation step with a high degree of attention.
7. Avoid low frequency cancellation caused by air leakage between the speaker basket and the mounting surface (e.g. mounted on a bended or uneven surface or mounted in an oversized hole).
8. Mounting panel reinforcement may be necessary in some cases in order to ensure a stable, torsion-free and even surface. This can be achieved by mounting the speaker on a metal or wooden sub-baffle behind the body or door panel. Consult an installation specialist for further advices.
9. In most cases you can use the original speaker mounting locations in the doors, body panels or the rear deck. If these are not available you have to prepare your own secure installation place. Due to their structural integrity and accessibility the precut mounting holes should be used whenever possible. Information on a proper mounting can be found in the section "Installation" of this manual.

IMPORTANT: Never cut any metal that is an integral part of an automobile's safety or structural car body.

General instructions for connecting HELIX speaker systems

We strongly recommend that you operate the complete audio system at low volume before final installation. So you can check whether each speaker is working before securing the loudspeakers into their mounting locations.

Make sure that all speaker wiring is fully protected from cutting or wear at sharp edges, which can lead to short circuits that may damage your head unit, amplifier and/or speaker system.

Make sure that all speaker wires are long enough in order to avoid any mechanical stress on the wires or the connectors.

Attention: Ensure that the loudspeakers are correctly connected (phase), i.e. plus to plus and minus to minus. Exchanging plus and minus will result in a significant loss of sound quality.

The positive leads of the loudspeaker system are marked with a red stripe.

General instructions for connecting the HELIX "Flex-Crossovers"

The crossovers of the F 62C / F 52C / F 42C component system offer two configuration options.

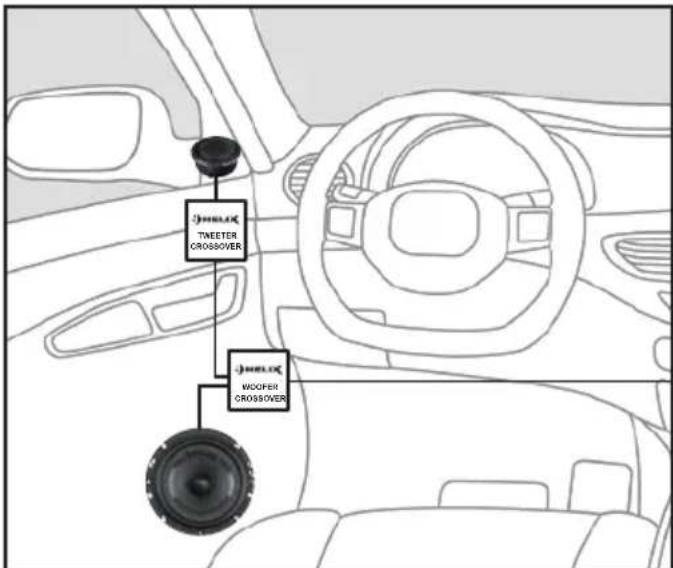

Option a: Connecting the crossovers in vehicles with mounting positions of tweeter and woofer close to each other, e.g. in the car door.

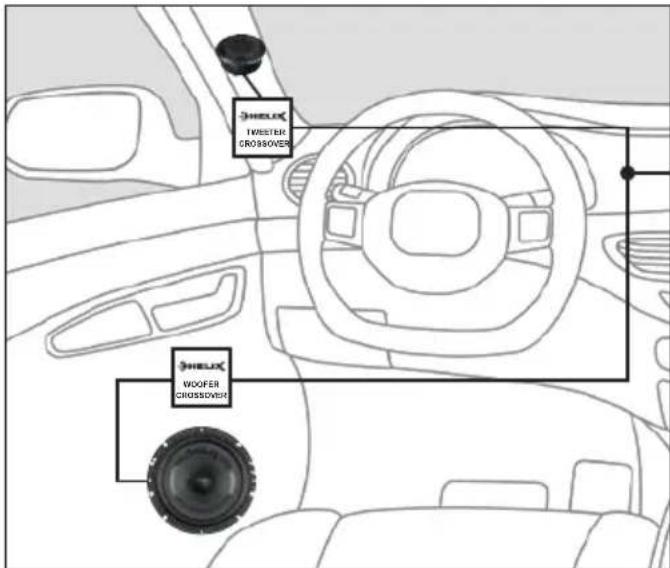

Option b: Connecting the crossovers in vehicles with separate mounting positions of tweeter and woofer, e.g. tweeter in the A-pillar and woofer in the car door.

For further information regarding the connection of the crossovers see section "Connecting the Flex-Crossover" in this manual.

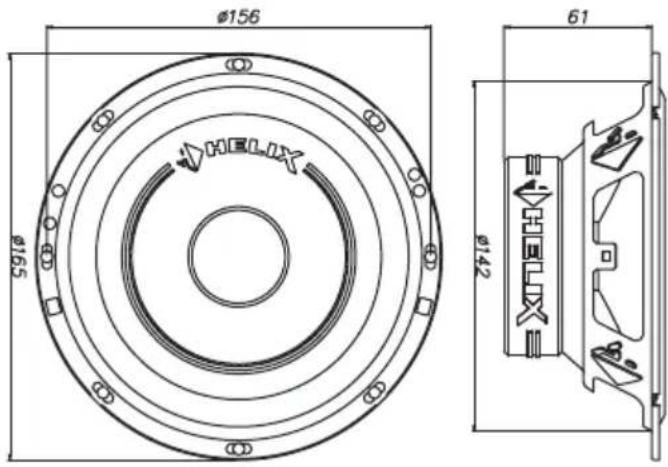

F 62C / F 6B

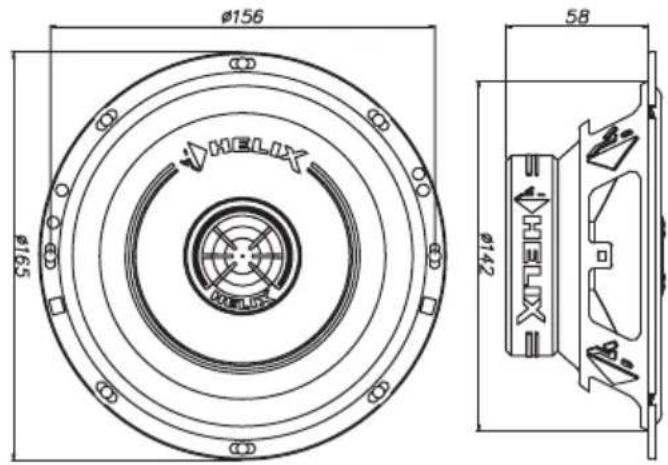

F 6X

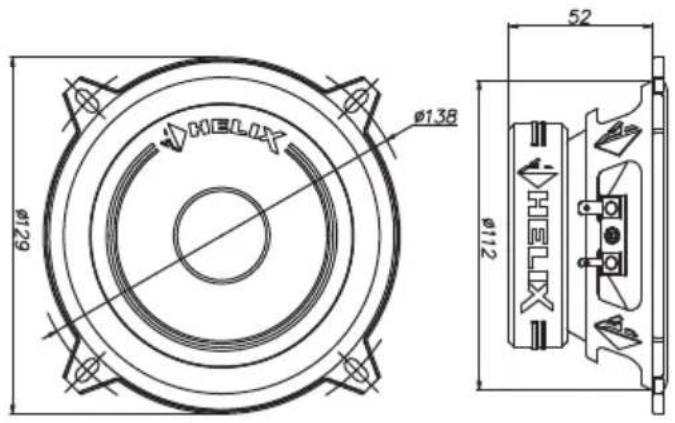

F 52C / F 5B F 5X

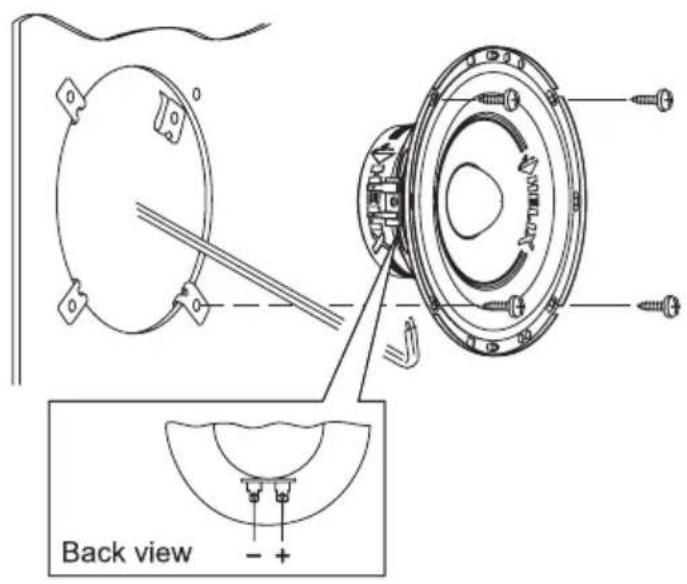

Woofer mounting

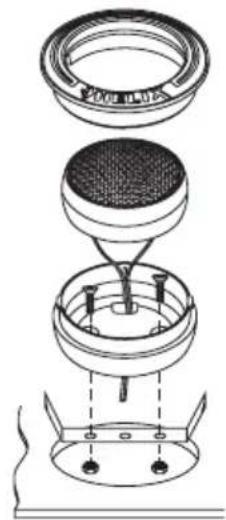

Tweeter mounting
Flush mount

Exploded view diagram of a mechanical assembly showing top, front, and side views (no text or labels)

Connecting the Flex-Crossover

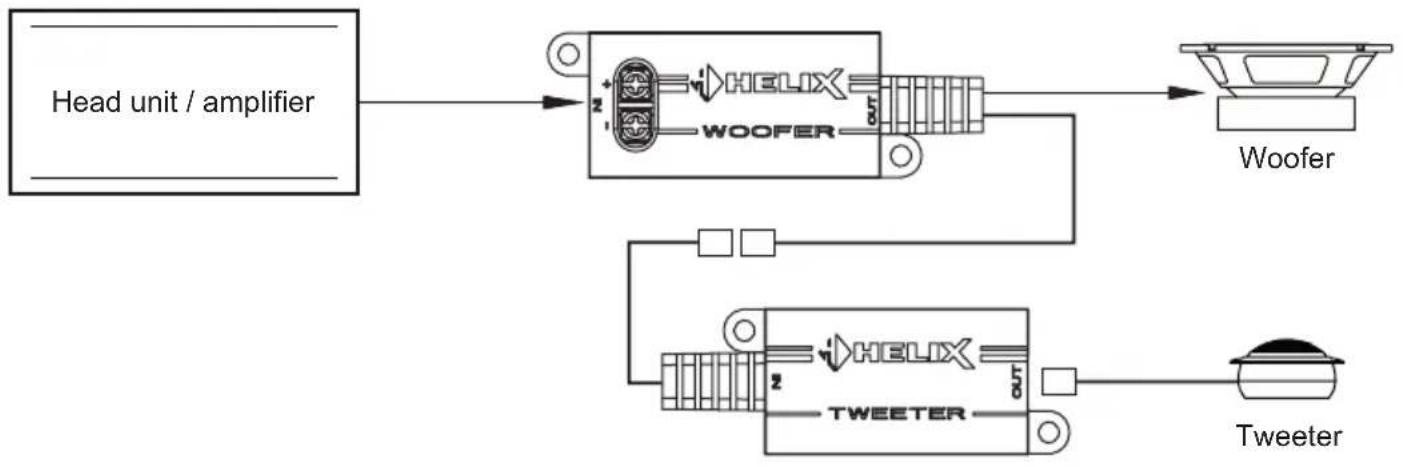

Option a: Connecting the crossovers in vehicles with mounting positions of tweeter and woofer close to each other, e.g. in the car door


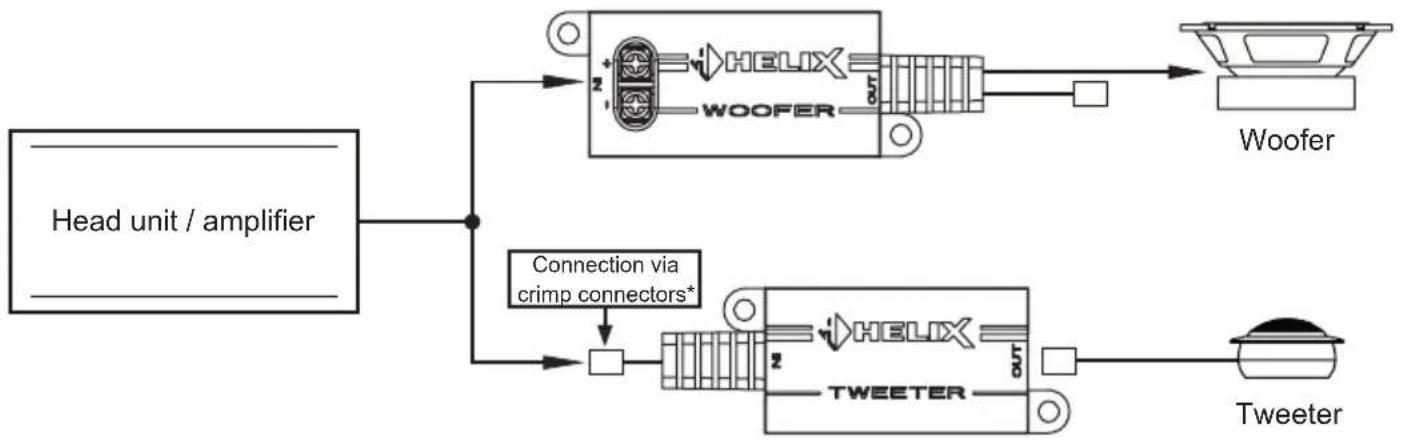

Option b: Connecting the crossovers in vehicles with separate mounting positions of tweeter and woofer, e.g. tweeter in the A-pillar and woofer in the car door

Ensure that all components are correctly connected (phase), i.e. plus to plus and minus to minus. The positive leads of the loudspeaker system are marked with a red stripe.

Component systems:

	F 62C F 52C F 42C
Power RMS / max. 60 / 120	Watts 50 / 100 Watts 40 / 80 Watts
Frequency response 55 Hz	- 22,000 Hz 65 Hz - 22,000 Hz	100 Hz - 22,000 Hz
Impedance 3 Ω 3 Ω 3 Ω
Efficiency 1 W / 1 m 91 dB	90 dB 89 dB
Cone material TW: Silk dome	W: Injectedpolypropylene with embedded carbon fibers	TW: Silk domeW: Injectedpolypropylene with embedded carbon fibers	TW: Silk domeW: Injectedpolypropylene with embedded carbon fibers
Crossover	Separate, 12/12 dB slope and tweeter protection	Separate, 12/12 dB slope and tweeter protection	Separate, 6/12 dB slope and tweeter protection
Dimensions crossover	TW: 51.5 x 27.5 x 20.5 mm / 2.03 x 1.08 x 0.81"W: 57 x 27.5 x 23.5 mm / 2.24 x 1.08 x 0.93"	TW: 51.5 x 27.5 x 20.5 mm / 2.03 x 1.08 x 0.81"W: 57 x 27.5 x 23.5 mm / 2.24 x 1.08 x 0.93"	TW: 51.5 x 27.5 x 20.5 mm / 1.08 x 0.81"W: 57 x 27.5 x 23.5 mm / 2.24 x 1.08 x 0.93"
Outer diameter	TW: 52.6 mm / 2.07"W: 165 mm / 6.50"	TW: 52.6 mm / 2.07"W: 129 mm / 5.08"	TW: 52.6 mm / 2.07"W: 102.4 mm / 4.03"
Installation diameter	TW: 45 mm / 1.77"W: 142 mm / 5.59"	TW: 45 mm / 1.77"W: 112 mm / 4.41"	TW: 45 mm / 1.77"W: 93 mm / 3.66"
Installation depth	TW: 17.3 mm / 0.68"W: 61 mm / 2.40"	TW: 17.3 mm / 0.68"W: 52 mm / 2.05"	TW: 17.3 mm / 0.68"W: 45 mm / 1.77"

Coaxial systems:

	F 6X	F 5X	F 4X
Power RMS / max. 60 / 120	Watts 50 / 100 Watts 40 / 80 Watts
Frequency response	60 Hz - 22,000 Hz	70 Hz - 22,000 Hz	100 Hz - 22,000 Hz
Impedance 3 Ω 3 Ω 3 Ω
Efficiency 1 W / 1 m 91 dB 90 dB 89 dB
Cone material TW: Mylar	W: Injectedpolypropylene with embedded carbon fibers	TW: MylarW: Injectedpolypropylene with embedded carbon fibers	TW: MylarW: Injectedpolypropylene with embedded carbon fibers
Crossover	Integrated, 6 dB slope	Integrated, 6 dB slope	Integrated, 6 dB slope
Outer diameter	165 mm / 6.50"	129 mm / 5.08"	102.4 mm / 4.03"
Installation diameter	142 mm / 5.59"	112 mm / 4.41"	93 mm / 3.66"
Installation depth	58 mm / 2.30"	50 mm / 1.97"	43 mm / 1.70"

Warranty Disclaimer

The limited warranty comply with legal regulations. Failures or damages caused by overload or improper use are not covered by the warranty.

Please return the defective product only with a valid proof of purchase and a detailed malfunction description. Technical specifications are subject to change! Errors are reserved!

For damages on the vehicle and the device, caused by handling errors of the device, we can't assume liability.

All HELIX speakers are tagged with a CE-Certification mark. Thereby these devices are certified for the use in vehicles within the European Community (EC).
