USER MANUAL Compose CB K100.2-S3 Helix

USER MANUAL USER MANUAL

Dear Customer,

Congratulations on your purchase of this high-quality product.

HELIX COMPOSE highlights best quality, excellent manufacturing and state-of-the-art sound quality.

Thanks to more than 30 years of experience in research and development of audio products HELIX COMPOSE sets new standards in the car audio speaker market.

We wish you many hours of enjoyment with your new HELIX COMPOSE components.

Yours

AUDIOTEC FISCHER Team

General instructions

General instructions for installing HELIX loudspeakers

To prevent damage to the speakers and possible injury, read this manual carefully and follow all installation instructions. This product has been checked for proper function prior to shipping and is guaranteed against manufacturing defects.

For a proper performance and to ensure full warranty coverage, we strongly recommend to get this product installed by an authorized HELIX dealer.

If you choose to perform your own installation read the following information and precautions carefully.

Failure to follow the stated precautions may result in personal injury and / or damage to the audio system or vehicle.

1. Always make sure that the speaker will fit into the intended mounting location and that there is adequate depth for the magnet system.

2. Check for adequate space between speaker and window, window crank, power window mechanism, seat, rear deck torsion bars, and other items which may interfere with the speaker's mounting. This is very important if any hole cutting is required. Detailed size information is indicated in the dimension section of this manual. Take care that the mounting surface is flat and free from all obstructions.

3. Ensure that the loudspeakers are correctly connected in polarity. Exchanging plus and minus may result in significant loss of sound quality. The positive leads of the loudspeakers are marked red.

4. Make sure that all speaker wiring is fully protected from cutting or wear at sharp edges, which can lead to short circuits that may damage your head unit, amplifier and / or speaker system.

5. Verify that all connection wires are long enough in order to avoid any mechanical stress on the wires or the connectors.

6. Make sure that all components are mounted properly.
7. Do not mount the components where water may splash on them.
8. The quality of the installation has a significant effect on the overall performance of the speaker system. Treat each installation step with a high degree of attention.
9. Avoid low frequency cancellation caused by air leakage between the speaker basket and the mounting surface (e.g. mounted on a bended or uneven surface or mounted in an oversized hole).
10. Mounting panel reinforcement may be necessary in some cases in order to ensure a stable, torsion-free and even surface. This can be achieved by mounting the speaker on a metal, plastic or wooden sub-baffle behind the body or door panel. Consult an installation specialist for further advices.
11. In most cases you can use the original speaker mounting locations in the doors, A-pillars, body panels or the rear deck. If these are not available you have to prepare your own secure installation place. Due to their structural integrity and accessibility the precut mounting holes should be used whenever possible. Information on a proper mounting can be found in the section "Installation" of this manual.

IMPORTANT: Never cut any metal that is an integral part of an automobile's safety or structural car body.

We strongly recommend that you operate the complete audio system at low volume before final installation. So you can check whether each speaker is working before securing the loudspeakers into their mounting locations.

Mounting tweeter CB T20FM-S

Option a:

Flush mount

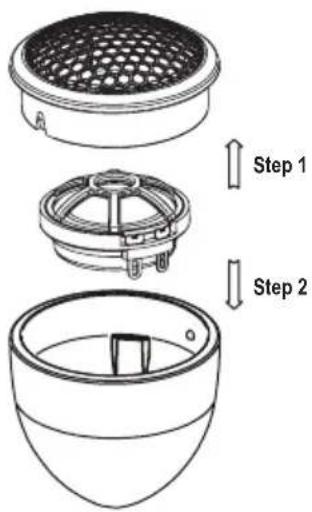

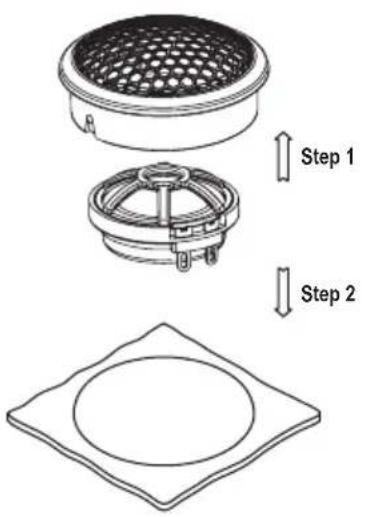

Option b:

Angle mount

Step 1 Step 2

Step 1 Step 2

Option c:

Professional integration with optionally available FlexMount 20 car-specific adaptor*

Technical line drawing of a mechanical component with two views: top shows internal structure, bottom shows top view with internal components (no text or symbols)

*Contact your retailer or visit www.audiotec-fischer.com/compose for an up-to-date overview of available carxspool 20 adaptors.

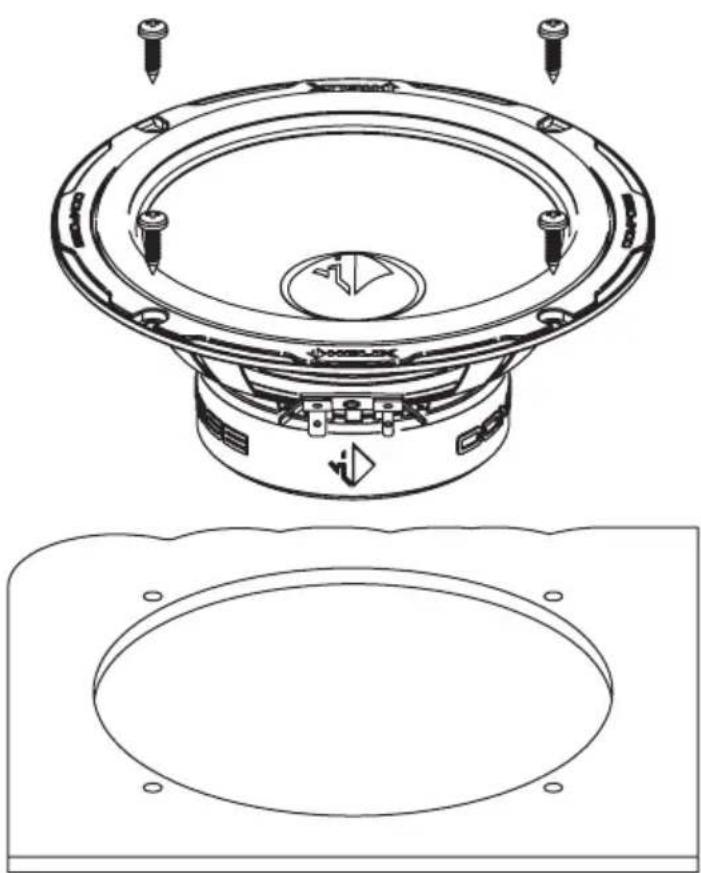

Mounting midrange & woofer & coaxial systems

Technical line drawing of a speaker component with mounting holes and a circular base (no text or symbols)

! max. 8 mm

Attention: To avoid damage to the speakers, do not use countersunk screws and do not overtighten the screws!

Wiring 2-way speaker kit

Connection to signal source or factory cable harness e.g. via COMPOSE WireKits

Ensure that all components are correctly connected (phase), i.e. plus to plus and minus to minus.

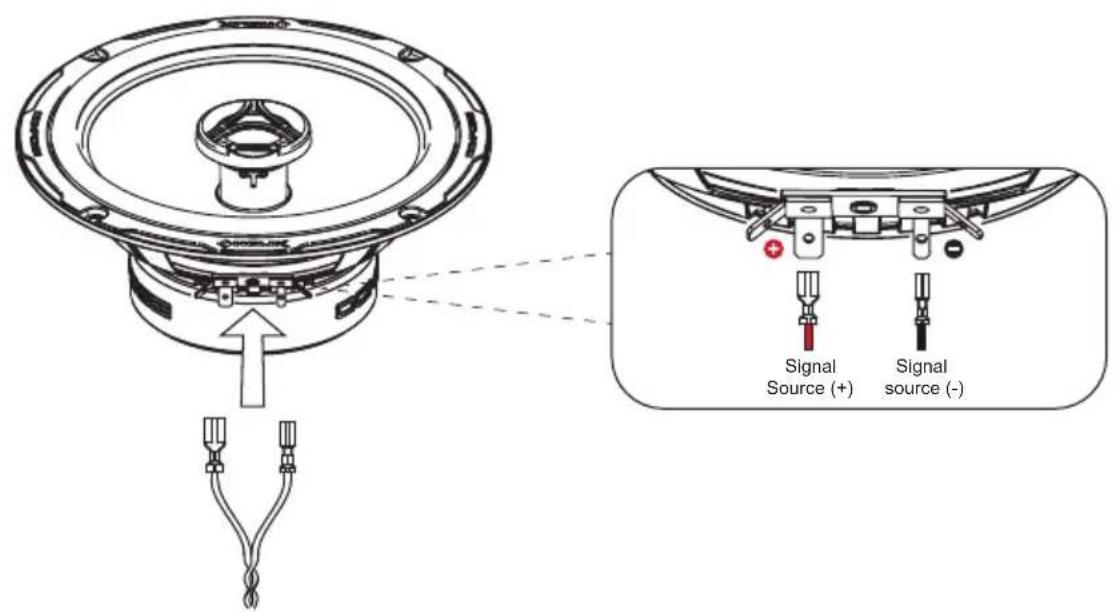

Wiring 2-way coaxial system

Signal Source (+) Signal source (-)

Connection to signal source or factory cable harness e.g. via COMPOSE WireKits

Tweeter level adjustment

TWEETER LEVEL 0 dB +2 dB -4 dB HELIX MKT 2.2pF

The crossover allows to optimize the level of the connected tweeter internally by repositioning the tweeter level jumper. Therefore open the crossover housing, pull the jumper straight upwards and reinsert it to the desired position.

The correct tweeter level setting strongly depends on the location of the speakers. Then confirm the level by listening to the speakers and modify the jumper setting if needed.

+2 dB: The level of the tweeter is increased by 2 dB.

-2 dB: The level of the tweeter is reduced by 2 dB.

0 dB: The tweeter has the optimum level for most applications.

-4 dB: The level of the tweeter is reduced by 4 dB.

We recommend to use the settings in the table below as starting point:

Speaker kit Level	Jumper position
CB K100.2-S3 -2 dB
CB K130.2-S3 0 dB
CB K165.2-S3 0 dB

CB W100-S3

CB W130-S3

CB W165-S3

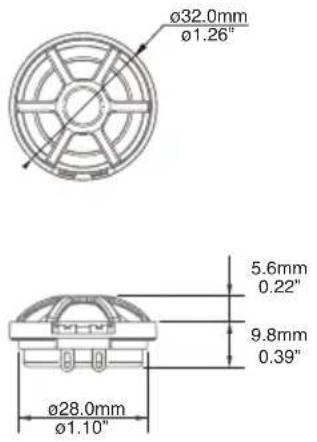

CB T20FM-S

Without housing

ø32.0mm ø1.26" 5.6mm 0.22" 9.8mm 0.39" ø28.0mm ø1.10"

With housing for flush mount

ø45.0mm ø1.77" 9.3mm 0.37" 9.5mm 0.37" 40.0mm 1.58"

With housing for angle mount

ø45.0mm ø1.77" 9.3mm 0.37" 40.1mm 1.58" 40°

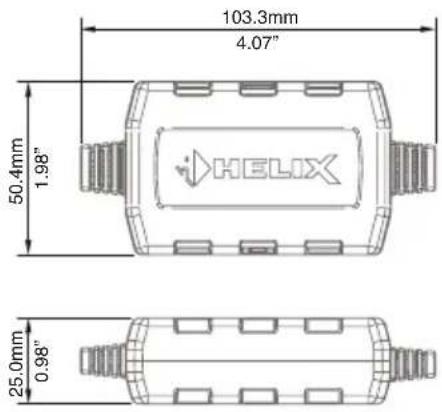

CB FX.2

103.3mm 4.07" 50.4mm 1.98" HELIX 25.0mm 0.98"

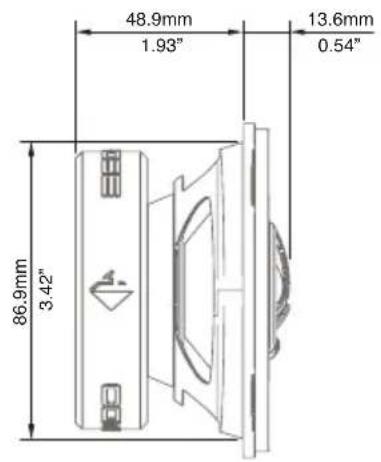

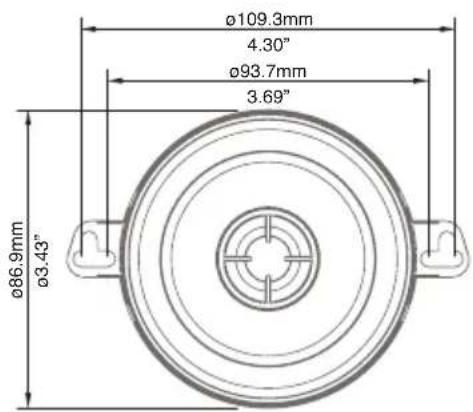

CB C87.2-S3

ø109.3mm 4.30" ø93.7mm 3.69" ø86.9mm ø3.43"

42.0mm 1.65" 7.4mm 0.29" Ø79.0mm Ø3.11"

CB C100.2-S3

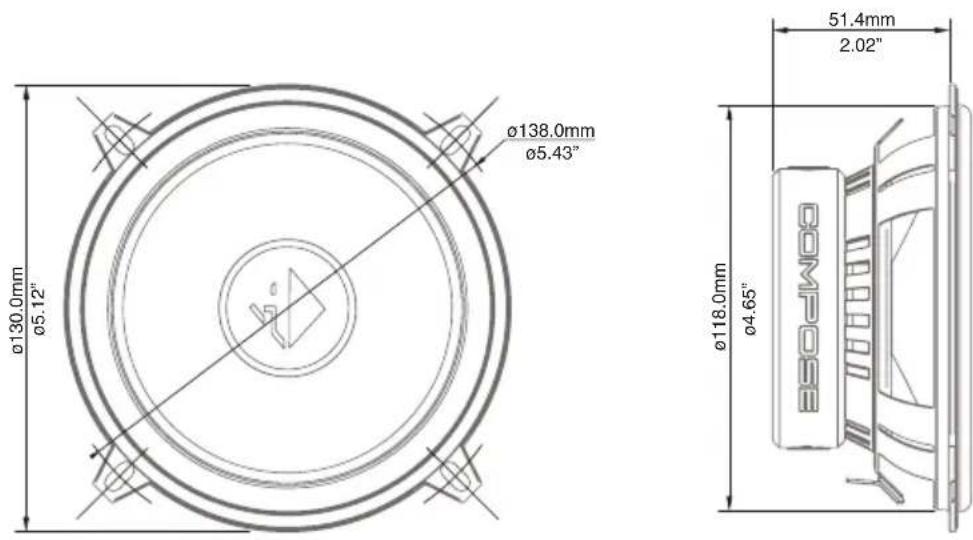

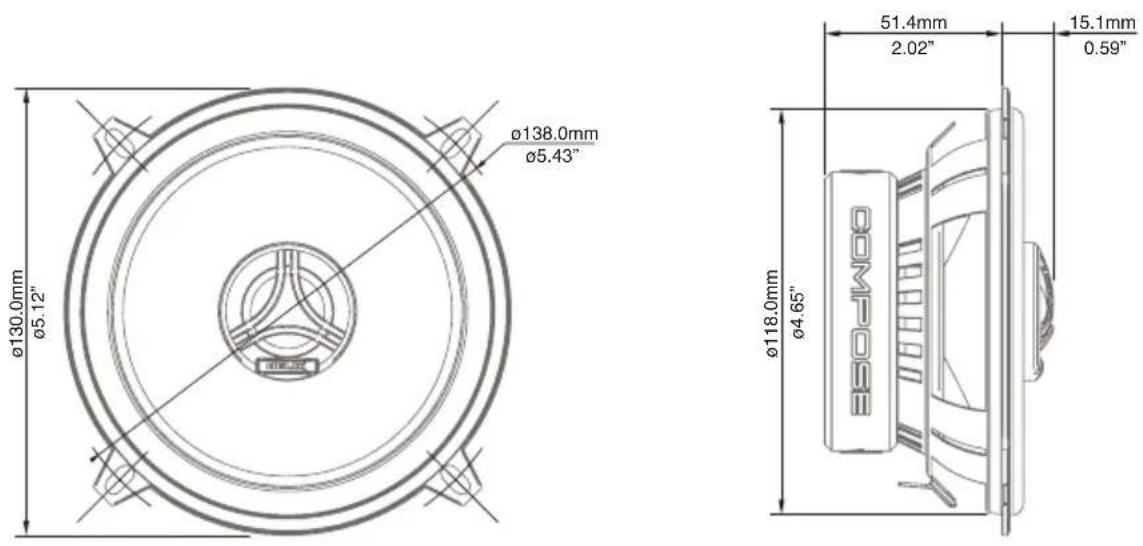

CB C130.2-S3

CB C165.2-S3

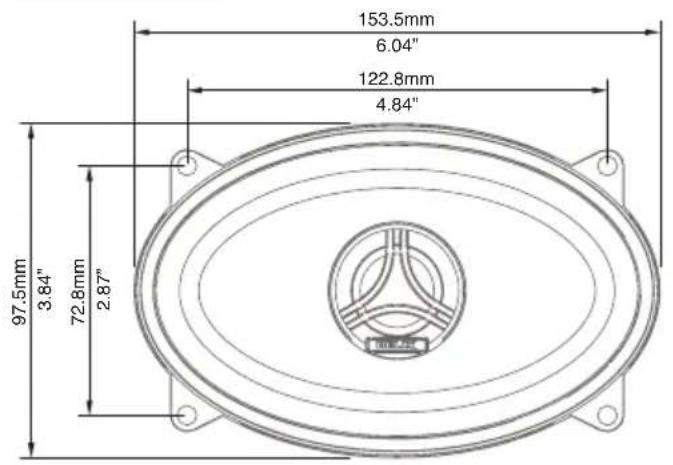

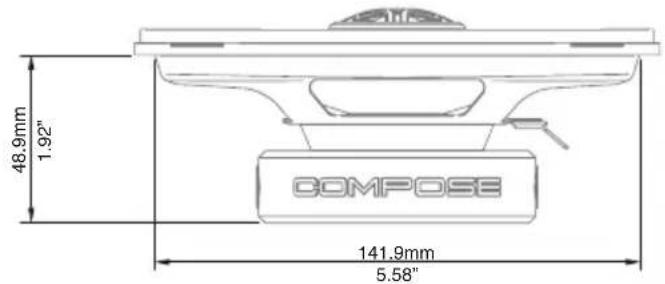

CB C460.2-S3

153.5mm 6.04" 122.8mm 4.84" 97.5mm 3.84" 72.8mm 2.87"

48.9mm 1.93" 13.6mm 0.54" 86.9mm 3.42"

48.9mm 1.92" COMPOSE 141.9mm 5.58"

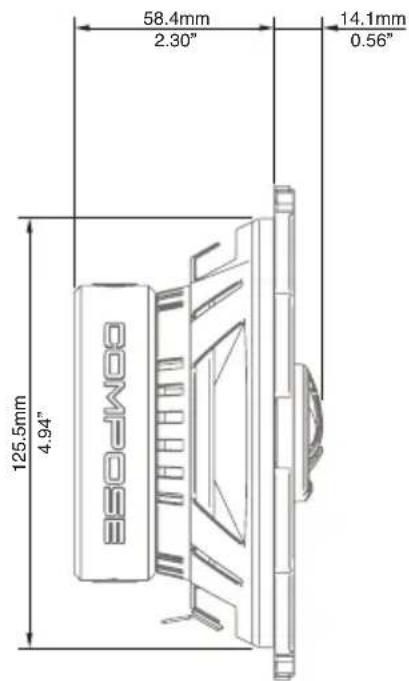

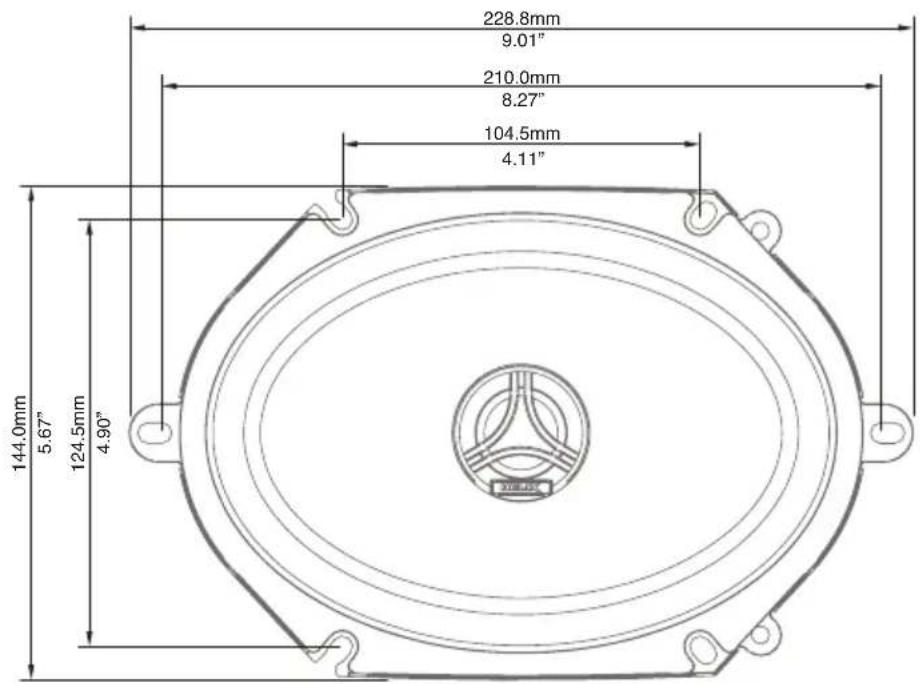

CB C570.2-S3

228.8mm 9.01" 210.0mm 8.27" 104.5mm 4.11" 144.0mm 5.67" 124.5mm 4.90"

58.4mm 2.30" 14.1mm 0.56" 125.5mm 4.94"

58.4mm 3.36" 181.5mm 7.15"

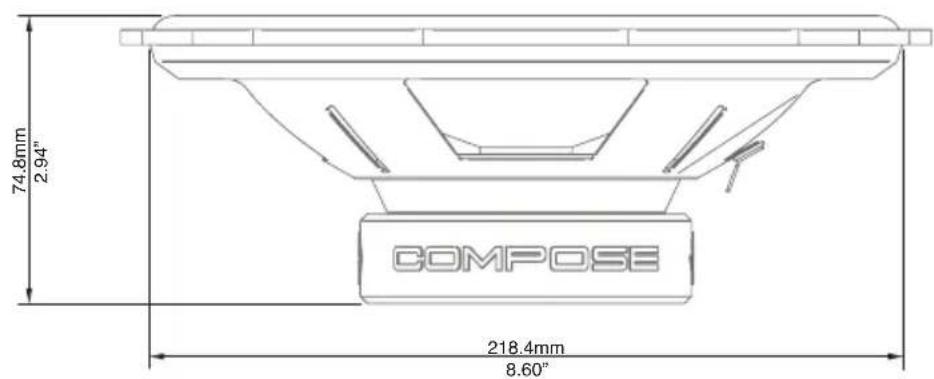

CB C690.2-S3

235.0mm 9.25" 166.2mm 6.54" 164.0mm 6.46" 116.8mm 4.60"

74.8mm 2.95" 150.6mm 5.93"

74.8mm 2.94" COMPOSE 218.4mm 8.60"

Speaker kits CB K100.2-S3		CB K130.2-S3 CB K165.2-S3
Power RMS / Max. P 60	/90 Watts 70 / 105 Watts 80 / 120 Watts
Frequency response 100 Hz - 22,000 Hz 80 Hz - 22,000 Hz			60 Hz - 22,000 Hz
Impedance Z 3 Ω 3 Ω 3 Ω
Sensitivity SPL			88 dB @ 2.83V / 1m84 dB @ 1W / 1m	90 dB @ 2.83V / 1m86 dB @ 1W / 1m	92 dB @ 2.83V / 1m88 dB @ 1W / 1m
Outer diameter (more data page 6 et sqq.)		∅	Tweeter: 32.0 mm / 1.26"Woofer: 99.2 mm / 3.91"	Tweeter: 32.0 mm / 1.26"Woofer: 130.0 mm / 5.12"	Tweeter: 32.0 mm / 1.26"Woofer: 166.0 mm / 6.54"
Installation diameter (more data page 6 et sqq.)		∅	Tweeter: 32.0 mm / 1.26"Woofer: 89.5 mm / 3.52"	Tweeter: 32.0 mm / 1.26"Woofer: 118.0 mm / 4.65"	Tweeter: 32.0 mm / 1.26"Woofer: 143.0 mm / 5.63"
Installation depth (more data page 6 et sqq.)			Tweeter: 9.8 mm / 0.39"Woofer: 48.9 mm / 1.93"	Tweeter: 9.8 mm / 0.39"Woofer: 51.4 mm / 2.02"	Tweeter: 9.8 mm / 0.39"Woofer: 61.4 mm / 2.42"
Dimensions crossover			103.3 x 50.4 x 25.0 mm / 4.07 x 1.98 x 0.98"	103.3 x 50.4 x 25.0 mm / 4.07 x 1.98 x 0.98"	103.3 x 50.4 x 25.0 mm / 4.07 x 1.98 x 0.98"
Woofer
Impedance		Z	3 Ω	3 Ω	3 Ω
DC resistance		Re	3.1 Ω	3.0 Ω	3.0 Ω
Resonance frequency		Fs	116 Hz	88 Hz	62 Hz
Mechanical Q factor		Qms	5.05	4.10	4.50
Electrical Q factor		Qes	0.97	1.12	0.90
Total Q factor		Qts	0.81	0.88	0.75
Compliance Cms			250 μm/N	320 μm/N	520 μm/N
Equivalent air volume		Vas	0.9 L 4.2 L	14.5 L
Force factor B*1			4.2 Tm	3.9 Tm	4.1 Tm
Cone area		Sd	50 cm2	97 cm2	141 cm2
Moving mass		Mms	7.5 g	10.1 g	13.2 g
Mechanical resistance		Rms	1.09 kg/s	1.30 kg/s	1.10 kg/s
Voice coil diameter		∅	25 mm	25 mm	25 mm
Voice coil winding height			8.9 mm	8.9 mm	8.9 mm
Max. linear excursion		Xmax	+/- 2.5 mm	+/- 2.5 mm	+/- 2.5 mm
Tweeter
Impedance		Z	4 Ω	4 Ω	4 Ω
Resonance frequency		Fs	2000 Hz	2000 Hz	2000 Hz
Voice coil diameter		∅	20 mm	20 mm	20 mm
Features
Tweeter			Ultra compact, silk dome, neodymium magnet and FlexMount 20	Ultra compact, silk dome, neodymium magnet and FlexMount 20	Ultra compact, silk dome, neodymium magnet and FlexMount 20
Woofer			Injected polypropylene cone	Injected polypropylene cone	Injected polypropylene cone
Crossover			Tweeter: 12 dB highpass, protection and level adjustment	Tweeter: 12 dB highpass, protection and level adjustment	Tweeter: 12 dB highpass, protection and level adjustment
Coaxial systems		CB C87.2-S3 CB C10	0.2-S3 CB C130.2-S3	CB C165.2-S3
Power RMS / Max.	P	40 / 60 Watts	60 / 90 Watts	70 / 105 Watts	80 / 120 Watts
Frequency response		110 Hz - 22,000 Hz	100 Hz - 22,000 Hz	Hz - 22,000 Hz	22,000 Hz
Impedance Z 3 Ω 3 Ω	3 Ω 3 Ω
Sensitivity SPL 88 dB	@ 2.83	V / 1m	86 dB @ 2.83V / 1m	90 dB @ 2.83V / 1m	92 dB @ 2.83V / 1m
		84 dB @ 1W / 1m	82 dB @ 1W / 1m	86 dB @ 1W / 1m	88 dB @ 1W / 1m
Outer diameter (more data page 7 et sqq.)	∅	86.9 mm / 3.43"	99.2 mm / 3.91"	130.0 mm / 5.12"	166.0 mm / 6.54"
Installation diameter (more data page 7 et sqq.)	∅	79.0 mm / 3.11"	89.5 mm / 3.52"	118.0 mm / 4.65"	143.0 mm / 5.63"
Installation depth (more data page 7 et sqq.)		42.0 mm / 1.65" 48.9	mm / 1.93" 51.4 mm /	2.02" 61.4 mm / 2.42"
Woofer
Impedance	Z	3 Ω	3 Ω	3 Ω	3 Ω
DC resistance	Re	3.0 Ω	3.0 Ω	3.0 Ω	3.0 Ω
Resonance frequency	Fs	92 Hz	113 Hz	92 Hz	65 Hz
Mechanical Q factor	Qms	3.80	4.97	4.28	4.78
Electrical Q factor	Qes	0.74	1.05	1.18	0.93
Total Q factor	Qts	0.62	0.87	0.92	0.78
Compliance	Cms	820 μm/N	272 μm/N	303 μm/N	480 μm/N
Equivalent air volume	Vas	1.5 L	0.8 L	4.0 L	12.9 L
Force factor	B*1	2.9 Tm	3.9 Tm	3.8 Tm	4.1 Tm
Cone area	Sd	36 cm2	45 cm2	97 cm2	139 cm2
Moving mass	Mms	3.6 g	7.2 g	9.7 g	12.5 g
Mechanical resistance	Rms	0.52 kg/s	1.04 kg/s	1.33 kg/s	1.09 kg/s
Voice coil diameter	∅	25 mm	25 mm	25 mm	25 mm
Voice coil winding height		8.3 mm	8.9 mm	8.9 mm	8.9 mm
Max. linear excursion	Xmax	+/- 2.2 mm	+/- 2.5 mm	+/- 2.5 mm	+/- 2.5 mm
Tweeter
Voice coil diameter	∅	13 mm	20 mm	20 mm	20 mm
Features
Tweeter		PEI dome and neodymium magnet	Silk dome and neodymium magnet	Silk dome and neodymium magnet	Silk dome and neodymium magnet
Woofer		Injected polypropylene cone	Injected polypropylene cone	Injected polypropylene cone	Injected polypropylene cone
Crossover		Integrated, 6 dB highpass	Integrated, 6 dB highpass	Integrated, 6 dB highpass	Integrated, 6 dB highpass

Coaxial systems CB C460		.2-S3 CB C570.2-S3 CB C690.2-S3
Power RMS / Max.	P	50 / 75 Watts 70 / 105 Watts	100 / 150 Watts
Frequency response 90 Hz - 22,000 Hz 60 Hz - 22,000 Hz			50 Hz - 22,000 Hz
Impedance	Z	3 Ω 3 Ω 3 Ω
Sensitivity	SPL	90 dB @ 2.83V / 1m86 dB @ 1W / 1m	92 dB @ 2.83V / 1m88 dB @ 1W / 1m	94 dB @ 2.83V / 1m90 dB @ 1W / 1m
Outer diameter (more data page 9 et sqq.)	∅	153.5 x 97.5 mm /6.04 x 3.84"	228.8 x 144.0 mm /9.01 x 5.67"	235.0 x 164.0 mm /9.25 x 6.46"
Installation diameter (more data page 9 et sqq.)	∅	141.9 x 86.9 mm /5.58 x 3.42"	181.5 x 125.5 mm /7.15 x 4.94"	218.4 x 150.6 mm /8.60 x 5.93"
Installation depth (more data page 9 et sqq.)		48.9 mm / 1.93" 58.4 mm /	2.30" 74.8 mm / 2.95"
Woofer
Impedance	Z	3 Ω 3 Ω 3 Ω
DC resistance	Re	3.1 Ω 3.0 Ω 3.1 Ω
Resonance frequency	Fs	120 Hz 67 Hz 56 Hz
Mechanical Q factor	Qms	6.18	3.64	3.73
Electrical Q factor	Qes	1.14	1.04	0.63
Total Q factor	Qts	0.96	0.81	0.54
Compliance	Cms	204 μm/N	399 μm/N	420 μm/N
Equivalent air volume	Vas	1.7 L 12.4 L	24.7 L
Force factor	B*I	4.2 Tm 4.2 Tm	5.7 Tm
Cone area	Sd	77 cm2	149 cm2	205 cm2
Moving mass	Mms	8.7 g	14.3 g	19.1 g
Mechanical resistance	Rms	1.06 kg/s	1.64 kg/s	1.81 kg/s
Voice coil diameter	∅	25 mm 25 mm 25 mm
Voice coil winding height		8.9 mm	8.9 mm	9.0 mm
Max. linear excursion	Xmax	+/- 2.5 mm	+/- 2.5 mm	+/- 2.0 mm
Tweeter
Voice coil diameter	∅	20 mm 20 mm 25 mm
Features
Tweeter		Silk dome and neodymium magnet	Silk dome and neodymium magnet	Silk dome and neodymium magnet
Woofer		Injected polypropylene cone	Injected polypropylene cone	Injected polypropylene cone
Crossover		Integrated, 6 dB highpass	Integrated, 6 dB highpass	Integrated, 6 dB highpass

The optionally available FlexMount 20 car-specific adaptor rings allow a tailored and acoustically optimized adaption of the HELIX COMPOSE tweeters to the vehicles original mounting location. Contact your retailer or visit www.audiotec-fischer.com/compose for an up-to-date overview of available adaptors.

FlexMount 20

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

Technical line drawing of a mechanical bearing or ring component (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal cavities and mounting feet (no text or symbols)

Contact your retailer or visit www.audiotec-fischer.com/compose for an up-to-date overview of available FlcanMquadific adaptors

(Applicable in the European Union and other countries with separate collection systems)

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. Contact your local government office for details in locating a recycle facility close to you. Proper recycling and waste disposal will help conserve resources and prevent detrimental effects on our health and the environment.

Warranty disclaimer

The warranty service is based on the statutory regulations. Defects and damage caused by overload or improper handling are excluded from the warranty service. Any return can only take place following prior consultation, in the original packaging together with a detailed description of the error and a valid proof of purchase. Technical modifications, misprints and errors excepted! For damages on the vehicle and the device, caused by handling errors of the device, we can't assume liability. All HELIX speakers are tagged with a CE-Certification mark. Thereby these devices are certified for the use in vehicles within the European Community (EC).
