USER MANUAL Compose Ci3 K130.2-S3 Helix

Congratulations on your purchase of this high-quality product.

HELIX COMPOSE highlights best quality, excellent manufacturing and state-of-the-art sound quality.

Thanks to more than 30 years of experience in research and development of audio products HELIX COMPOSE sets new standards in the car audio speaker market.

We wish you many hours of enjoyment with your new HELIX COMPOSE components.

Yours

AUDIOTEC FISCHER Team

General instructions

General instructions for installing HELIX loudspeakers

To prevent damage to the speakers and possible injury, read this manual carefully and follow all installation instructions. This product has been checked for proper function prior to shipping and is guaranteed against manufacturing defects.

For a proper performance and to ensure full warranty coverage, we strongly recommend to get this product installed by an authorized HELIX dealer.

If you choose to perform your own installation read the following information and precautions carefully.

Failure to follow the stated precautions may result in personal injury and / or damage to the audio system or vehicle.

1. Always make sure that the speaker will fit into the intended mounting location and that there is adequate depth for the magnet system.

2. Check for adequate space between speaker and window, window crank, power window mechanism, seat, rear deck torsion bars, and other items which may interfere with the speaker's mounting. This is very important if any hole cutting is required. Detailed size information is indicated in the dimension section of this manual. Take care that the mounting surface is flat and free from all obstructions.

3. Ensure that the loudspeakers are correctly connected in polarity. Exchanging plus and minus may result in significant loss of sound quality. The positive leads of the loudspeakers are marked red.

4. Make sure that all speaker wiring is fully protected from cutting or wear at sharp edges, which can lead to short circuits that may damage your head unit, amplifier and / or speaker system.

5. Verify that all connection wires are long enough in order to avoid any mechanical stress on the wires or the connectors.

6. Make sure that all components are mounted properly.

7. Do not mount the components where water may splash on them.

8. The quality of the installation has a significant effect on the overall performance of the speaker system. Treat each installation step with a high degree of attention.

9. Avoid low frequency cancellation caused by air leakage between the speaker basket and the mounting surface (e.g. mounted on a bended or uneven surface or mounted in an oversized hole).

10. Mounting panel reinforcement may be necessary in some cases in order to ensure a stable, torsion-free and even surface. This can be achieved by mounting the speaker on a metal, plastic or wooden sub-baffle behind the body or door panel. Consult an installation specialist for further advices.

11. In most cases you can use the original speaker mounting locations in the doors, A-pillars, body panels or the rear deck. If these are not available you have to prepare your own secure installation place. Due to their structural integrity and accessibility the precut mounting holes should be used whenever possible. Information on a proper mounting can be found in the section "Installation" of this manual.

IMPORTANT: Never cut any metal that is an integral part of an automobile's safety or structural car body.

We strongly recommend that you operate the complete audio system at low volume before final installation. So you can check whether each speaker is working before securing the loudspeakers into their mounting locations.

Mounting Ci3 T20FM-TI

Option a:
Flush mount

Step 1 Step 2

Option b:
Angle mount

Step 1 Step 2

Option c:
Professional integration with optionally available FlexMount 20 car-specific adaptor*

Technical line drawing of a mechanical component with two views: top shows internal structure, bottom shows top view with mounting base (no text or symbols)

*Contact your retailer or visit www.audiotec-fischer.com/compose for an up-to-date overview of available FlexM-specific adaptors.

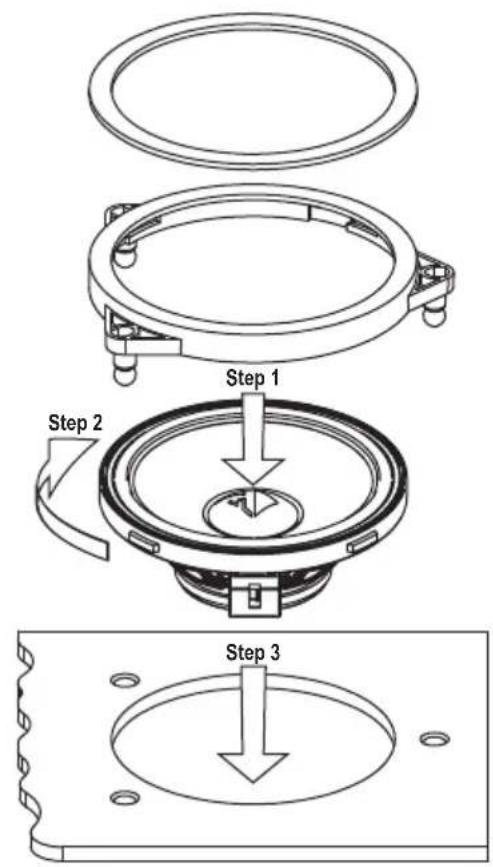

Mounting Ci3 M100FM

Note: the FlexMount 100 adaptor rings can be mounted in two directions. Make sure to use the appropriate mounting option for your vehicle.

Option a:
Mounting with the enclosed universal adaptor rings

Step 2 Step 1 max. 8 mm Step 3

Option b:
Professional integration with optionally available F-ax-specific adaptor*

Step 1 Step 2 Step 3

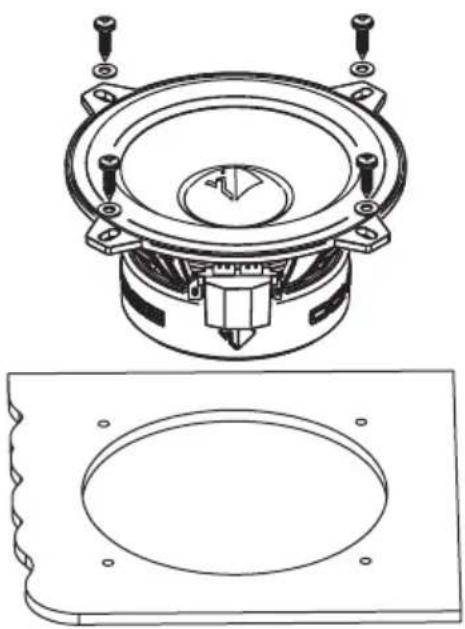

Mounting Ci3 W130

Technical line drawing of a speaker assembly with mounting hardware (no text or symbols)

! max. 8 mm

Attention: To avoid damage to the speakers, do not use countersunk screws and do not overtighten the screws!

Mounting Ci3 W165FM

Option a:
Universal mounting

Technical line drawing of a speaker assembly with mounting holes and a circular base (no text or symbols)

Option b:
Professional integration with optionally available FlexMount 165 car-specific adaptor*

FlexMount 165

Option c:

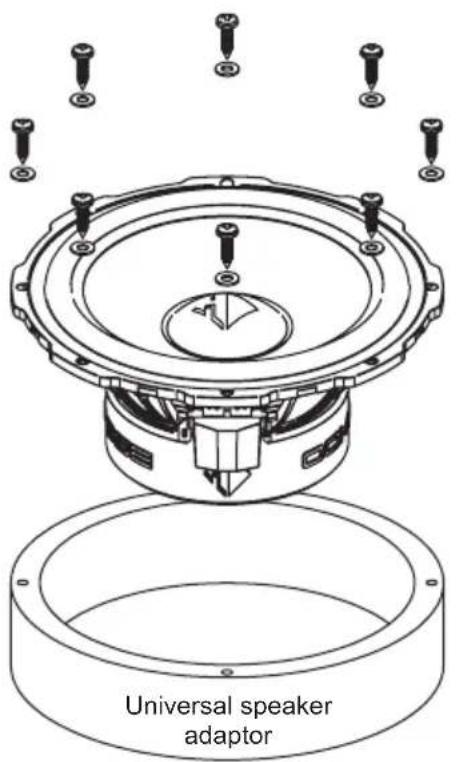

Mounting with universal mounting adaptor

Universal speaker adaptor

! max. 8 mm

Attention: To avoid damage to the speakers, do not use countersunk screws and do not overtighten the screws!

Mounting Ci3 W200FM

Option a:

Universal mounting without grille

Technical line drawing of a speaker assembly with mounting base and multiple screw holes (no text or labels)

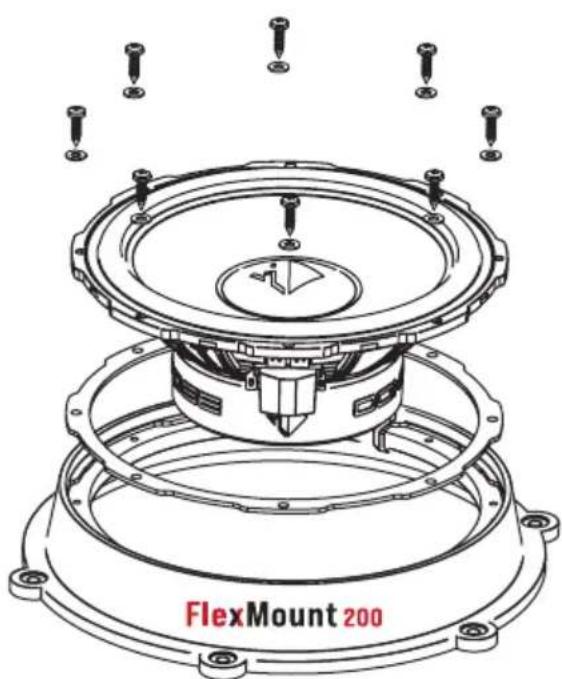

Option c:

Professional integration with optionally available

FlexMount 200 car-specific adaptor*

Technical line drawing of a speaker assembly with mounting holes and a central speaker tower (no text or symbols on the diagram itself)

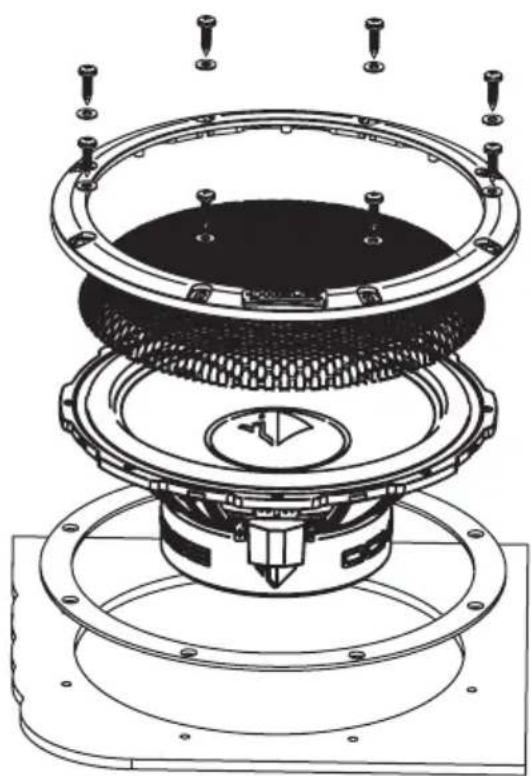

Option b:

Universal mounting with grille

Technical line drawing of a mechanical assembly with multiple gears and mounting base (no text or symbols)

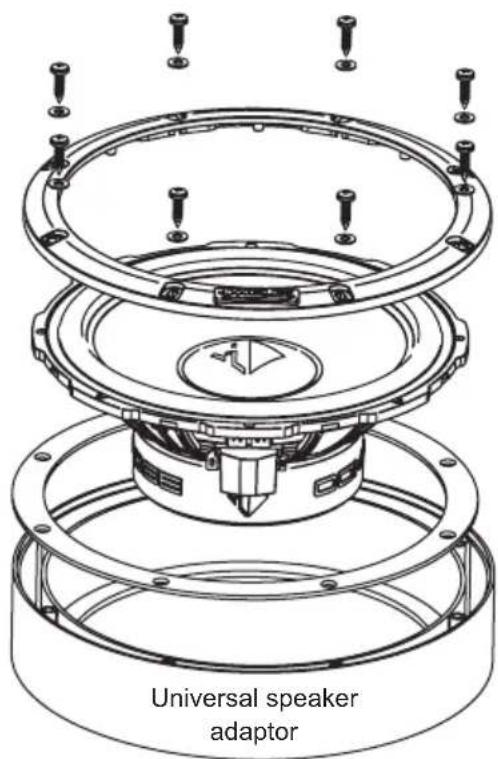

Option d:

Mounting with universal mounting adaptor

Universal speaker adaptor

Wiring 2-way component system Ci3 K100.2FM

Connection cable (included) HELIX Connection to signal source via the enclosed connectors or optional COMPOSE WireKits

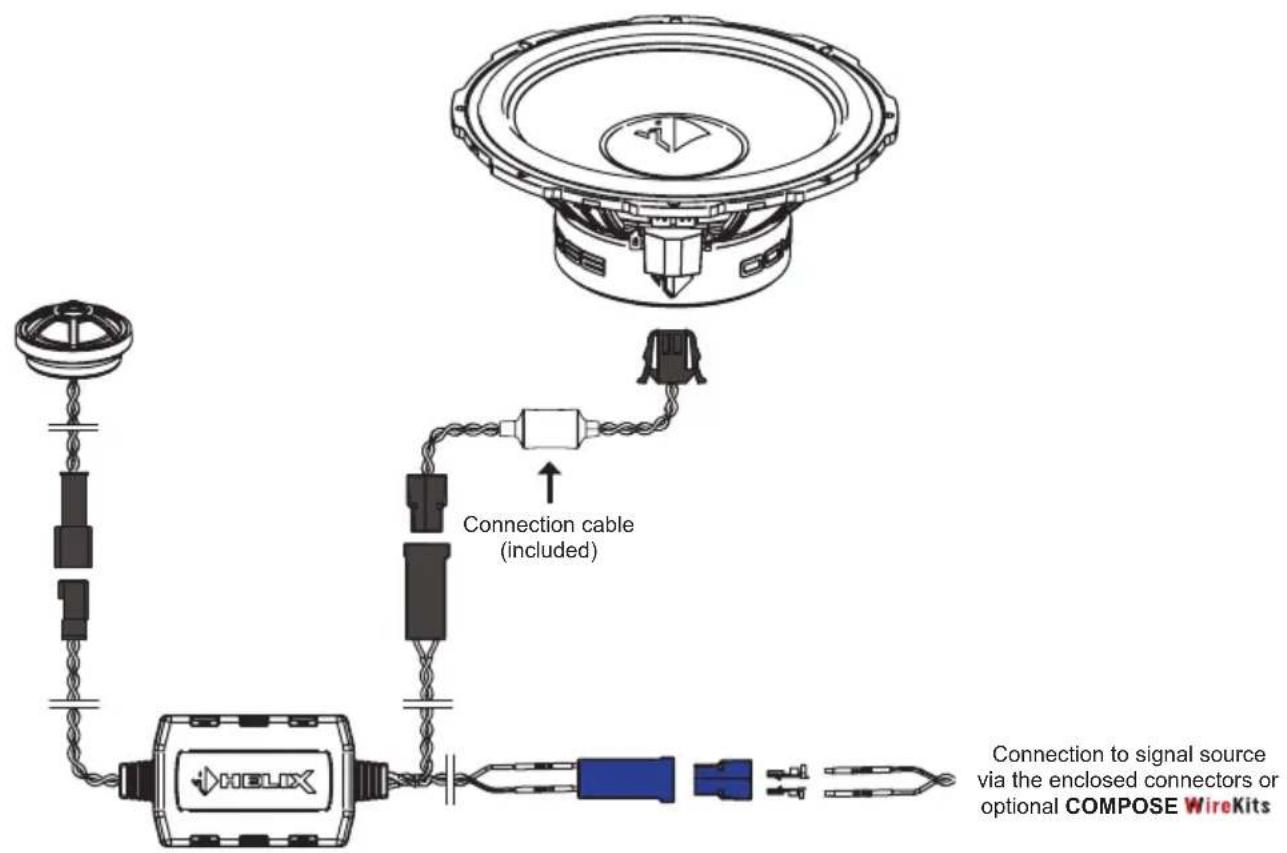

Wiring 2-way component system Ci3 K130.2 / Ci3 K165.2FM / Ci3 K200.2FM

Connection cable (included) HELIX Connection to signal source via the enclosed connectors or optional COMPOSE WireKits

Ensure that all components are correctly connected (phase), i.e. plus to plus and minus to minus.

Wiring 2-way coaxial system Ci3 C100.2FM

Option a: Universal connection

Cut off the plug of the enclosed connection cable and connect it to the signal source

Connection cable (included)

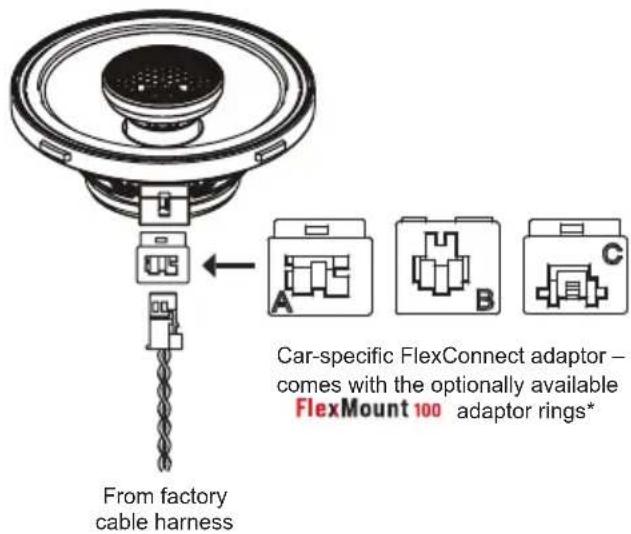

Option b: Direct connection to OEM connector with optionally available FcaMount 100 specific adaptor

From factory cable harness Car-specific FlexConnect adaptor – comes with the optionally available FlexMount 100 adaptor rings*

* Contact your retailer or visit www.audiotec-fischer.com/compose for an up-to-date overview of available FlexaMount 100 specific adaptors.

Wiring 2-way coaxial system Ci3 C130.2 / Ci3 C165.2FM

Option a: Universal connection with enclosed connection cable

Cut off the plug of the enclosed connection cable and connect it to the signal source.

Connection cable (included)

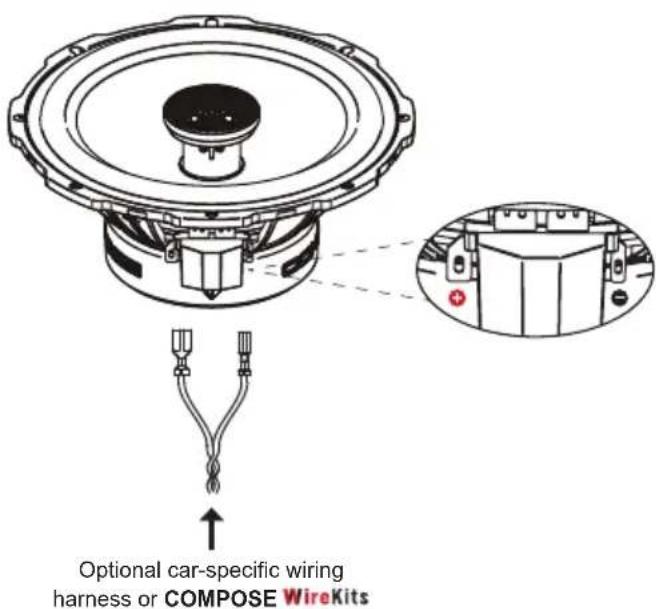

Option b: Universal connection to the blade terminals via optional car-specific harness or COMPOSE WireKits
+ (positive): large flat terminal - (negative): small flat terminal

Optional car-specific wiring harness or COMPOSE WireKits

Ensure that all components are correctly connected (phase), i.e. plus to plus and minus to minus.

Tweeter level adjustment

TWEETER LEVEL HELIX MKT 4.7μF

The crossover allows to optimize the level of the connected tweeter internally by repositioning the tweeter level jumper. Therefore open the crossover housing, pull the jumper straight upwards and reinsert it to the desired position.

The correct tweeter level setting strongly depends on the location of the speakers. Then confirm the level by listening to the speakers and modify the jumper setting if needed.

+2 dB: The level of the tweeter is increased by 2 dB.

0 dB: The tweeter has the optimum level for most applications.

-2 dB: The level of the tweeter is reduced by 2 dB.

-3 dB: The level of the tweeter is reduced by 3 dB.

-4 dB: The level of the tweeter is reduced by 4 dB.

-5 dB: The level of the tweeter is reduced by 5 dB.

We recommend to use the settings in the table below as starting point:

Speaker kit Level	Jumper position
Ci3 K100.2FM-S3 0 dB
Ci3 K130.2-S3 -2 dB
Ci3 K165.2FM-S3 0 dB
Ci3 K165.2FM-S2 +2 dB
Ci3 K200.2FM-S3 0 dB
Ci3 K200.2FM-S2 +2 dB

Ci3 T20FM-TI

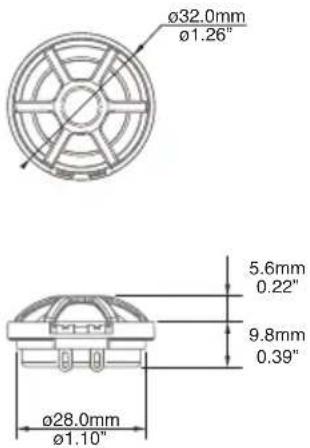

Without housing

ø32.0mm ø1.26" 5.6mm 0.22" 9.8mm 0.39" ø28.0mm ø1.10"

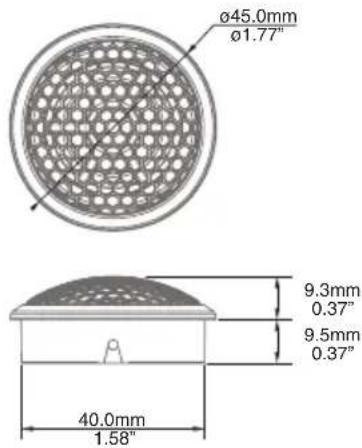

With housing for flush mount

ø45.0mm ø1.77" 9.3mm 0.37" 9.5mm 0.37" 40.0mm 1.58"

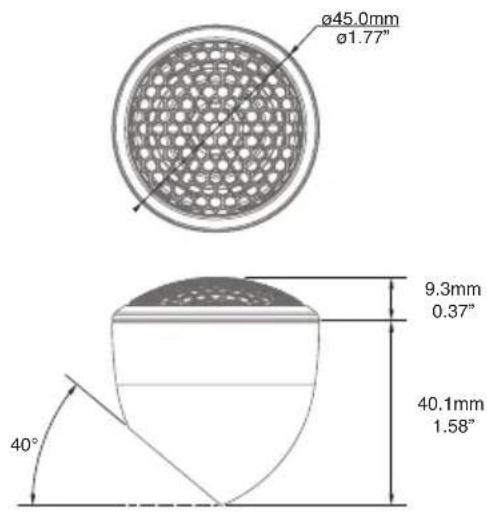

With housing for angle mount

ø45.0mm ø1.77" 9.3mm 0.37" 40.1mm 1.58" 40°

Ci3 FX-UNI.2

50.4mm 1.98" HELIX 103.3mm 4.07"

25.0mm 0.98°

Ci3 M100FM

Speaker without FlexMount 100

Ø98.0mm Ø3.86° Ø89.0mm Ø3.50° 30.0mm 1.18°

Speaker with assembled universal FlexMount 100

ø116.6mm ø4.59" 29.5mm 1.16" 104.5mm 4.11" ø89.0mm ø3.50"

Ci3 W130

Ø130.0mm Ø5.12" Ø139.0mm Ø5.47"

55.4mm 2.18" Ø16.5mm Ø4.59° ØS0JN00

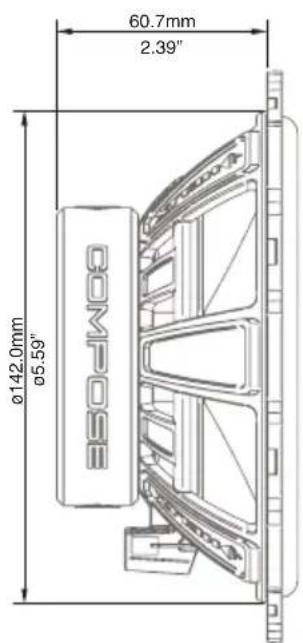

Ci3 W165FM

ø156.0mm ø6.14" ø165.0mm ø6.50"

60.7mm 2.39" Ø142.0mm Ø5.59"

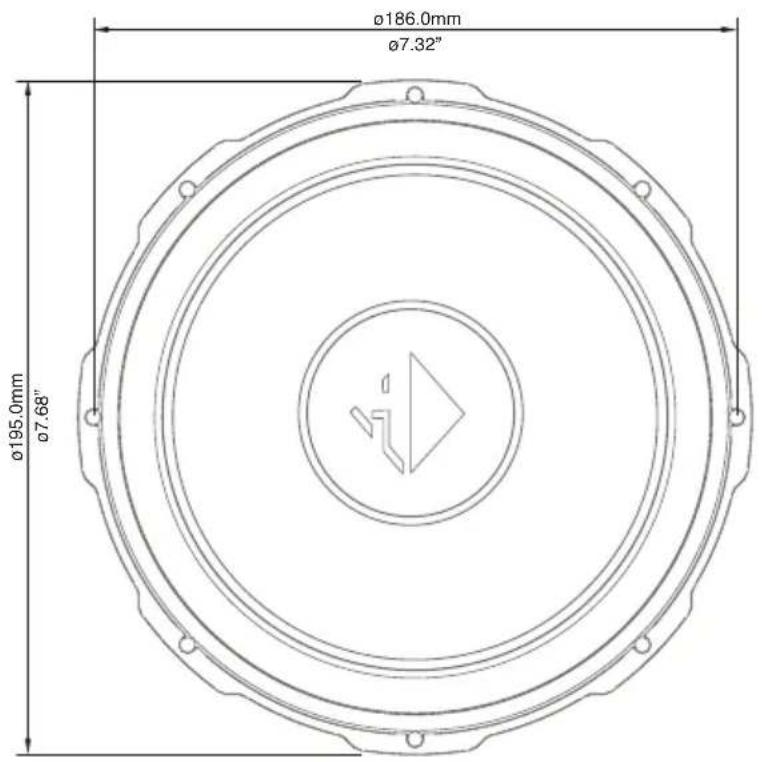

Ci3 W200FM

Speaker without adaptor ring

ø186.0mm ø7.32" ø195.0mm ø7.68"

63.7mm 2.51" ø173.5mm ø6.83"

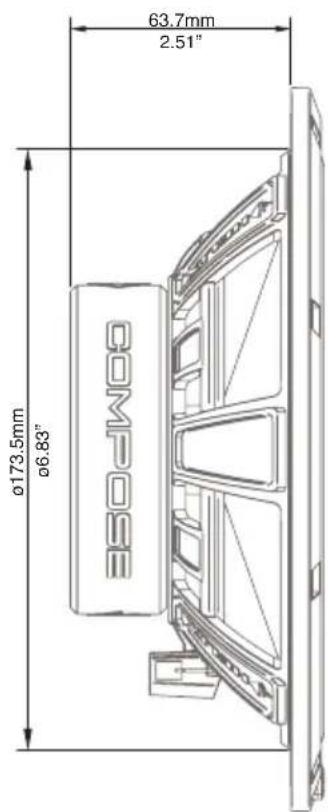

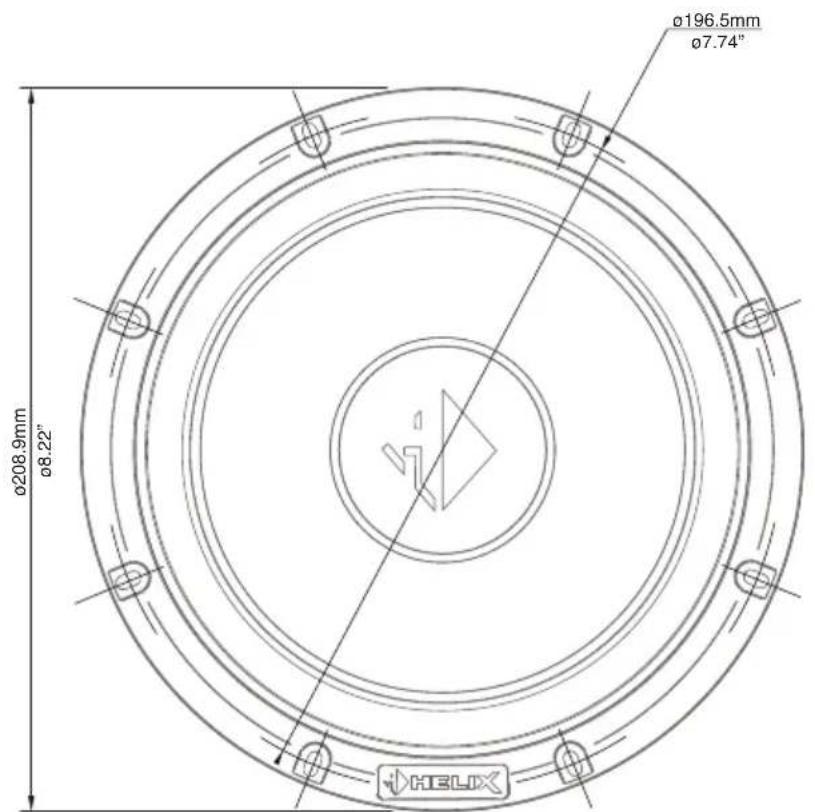

Woofer with assembled universal mounting ring

ø196.5mm ø7.74" ø208.9mm ø8.22" HELIX

63.7mm 2.51" ø173.5mm ø6.83"

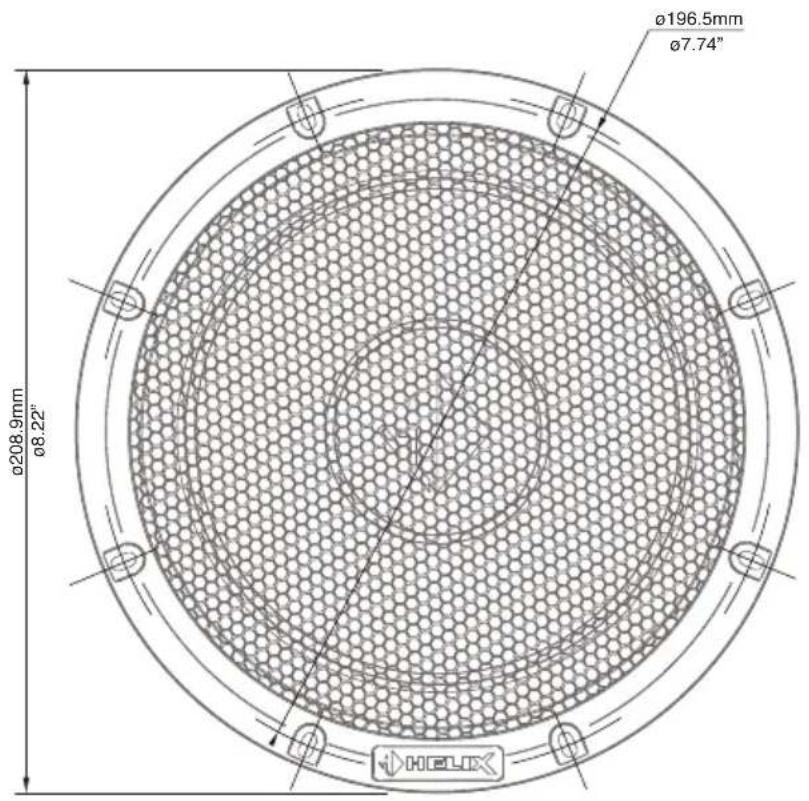

Ci3 W200FM

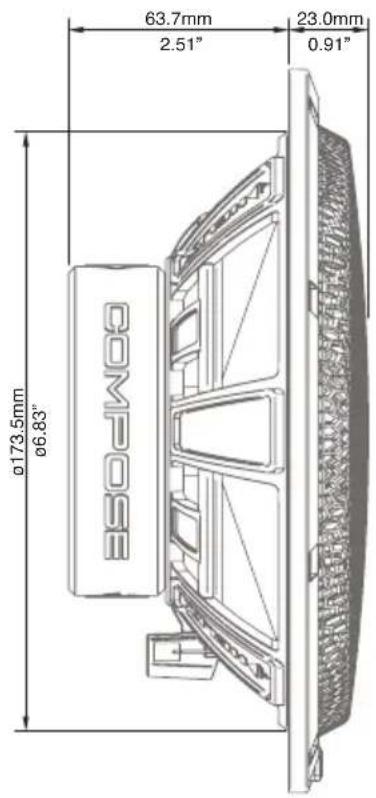

Woofer with assembled universal mounting ring and grille

ø196.5mm ø7.74" ø208.9mm ø8.22" HOLIX

63.7mm 2.51" 23.0mm 0.91" ø173.5mm ø6.83"

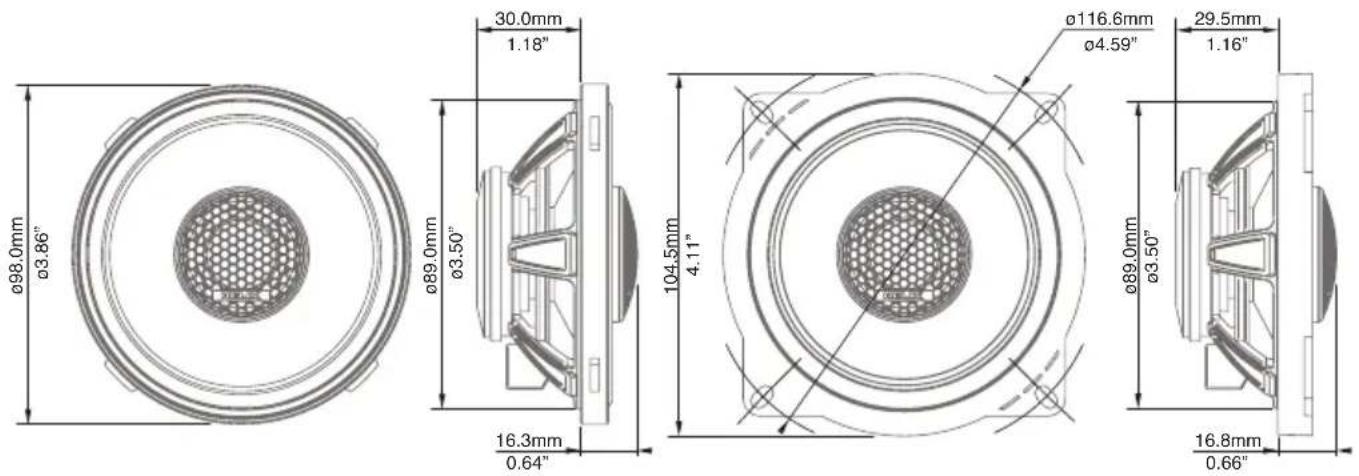

Ci3 C100.2FM

Speaker without FlexMount 100

Speaker with assembled universal FlexMount 100

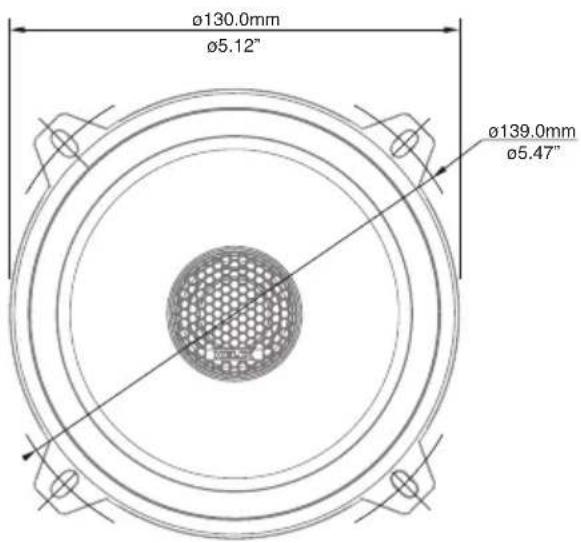

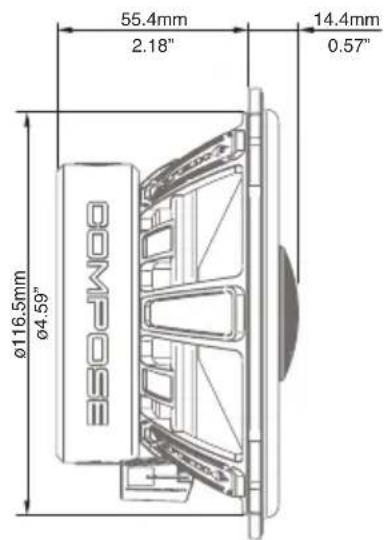

Ci3 C130.2

ø130.0mm ø5.12" ø139.0mm ø5.47"

55.4mm 2.18" 14.4mm 0.57" Ø116.5mm Ø4.59"

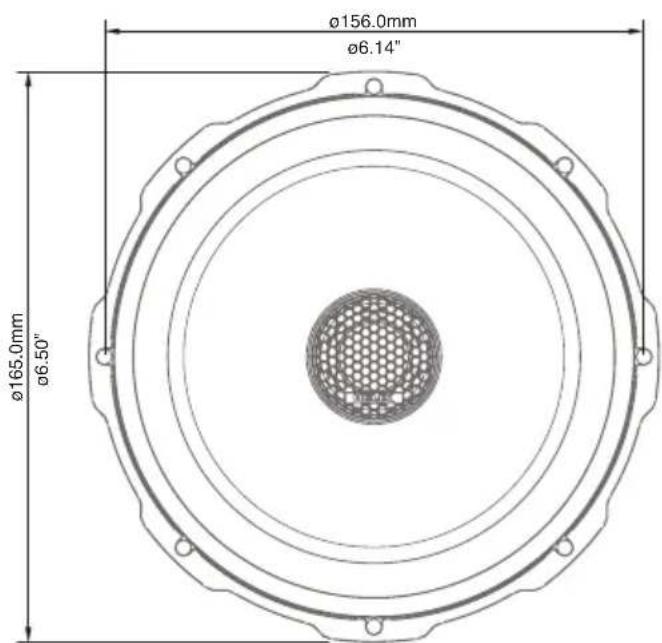

Ci3 C165.2FM

ø156.0mm ø6.14" ø165.0mm ø6.50"

60.7mm 2.39" 13.1mm 0.52" Ø142.0mm Ø5.59"

Speaker kits Ci3 K100.2FM		S3 Ci3 K130.2-S3 Ci3 K16	5.2FM-S3
Power RMS / Max. P 80	/ 120 W	Watts 90 / 135 Watts 100 / 15	Watts
Frequency response 120 Hz - 25,000 Hz			60 Hz - 25,000 Hz
Impedance Z 3 Ω 3 Ω 3 Ω
Sensitivity SPL		91 dB @ 2.83V / 1m87 dB @ 1W / 1m	91 dB @ 2.83V / 1m87 dB @ 1W / 1m	92 dB @ 2.83V / 1m88 dB @ 1W / 1m
Outer diameter (more data page 11 et sqq.)	∅ Tweeter: 32.0 mm / 1.26"Woofer: 98.0 mm / 3.86"		Tweeter: 32.0 mm / 1.26"Woofer: 130.0 mm / 5.12"	Tweeter: 32.0 mm / 1.26"Woofer: 165.0 mm / 6.50"
Installation diameter (more data page 11 et sqq.)	∅ Tweeter: 32.0 mm / 1.26"Woofer: 89.0 mm / 3.50"		Tweeter: 32.0 mm / 1.26"Woofer: 116.5 mm / 4.59"	Tweeter: 32.0 mm / 1.26"Woofer: 142.0 mm / 5.59"
Installation depth (more data page 11 et sqq.)		Tweeter: 9.8 mm / 0.39"Woofer: 30.0 mm / 1.18"	Tweeter: 9.8 mm / 0.39"Woofer: 55.4 mm / 2.18"	Tweeter: 9.8 mm / 0.39"Woofer: 60.7 mm / 2.39"
Dimensions cross-over		103.3 x 50.4 x 25.0 mm / 4.07 x 1.98 x 0.98"	103.3 x 50.4 x 25.0 mm / 4.07 x 1.98 x 0.98"	103.3 x 50.4 x 25.0 mm / 4.07 x 1.98 x 0.98"
Woofer
Impedance	Z	3 Ω	3 Ω	3 Ω
DC resistance	Re	3.0 Ω	3.1 Ω	3.0 Ω
Resonance frequency	Fs	146 Hz	89 Hz	70 Hz
Mechanical Q factor	Qms	4.49	3.11	4.17
Electrical Q factor	Qes	1.02	0.97	1.05
Total Q factor	Qts	0.83	0.74	0.84
Compliance Cms		280 μm/N	350 μm/N	454 μm/N
Equivalent air volume	Vas	1.1 L 4.6 L	11.2 L
Force factor	B*1	3.4 Tm	4.0 Tm	4.0 Tm
Cone area	Sd	53 cm2	98 cm2	133 cm2
Moving mass	Mms	4.3 g	9.1 g	11.3 g
Mechanical resistance	Rms	0.87 kg/s	1.65 kg/s	1.18 kg/s
Voice coil diameter ∅		25 mm	25 mm	25 mm
Voice coil winding height		4.8 mm	10.5 mm	10.5 mm
Max. linear excursion	Xmax	+/- 2.0 mm	+/- 3.2 mm	+/- 3.2 mm
Tweeter
Impedance	Z	4 Ω	4 Ω	4 Ω
Resonance frequency	Fs	1800 Hz	1800 Hz	1800 Hz
Voice coil diameter ∅		20 mm	20 mm	20 mm
Features
Tweeter		Ultra compact, titanium dome, neodymium magnet and FlexMount 20	Ultra compact, titanium dome, neodymium magnet and FlexMount 20	Ultra compact, titanium dome, neodymium magnet and FlexMount 20
Woofer		Paper with Cenosphere coating, FlexConnect terminal, neodymium magnet and FlexMount 100	Paper with Cenosphere coating and ProConnect terminal	Paper with Cenosphere coating, ProConnect terminal and FlexMount 165
Crossover		Tweeter: 12 dB highpass, protection and level adjustment	Tweeter: 12 dB highpass, protection and level adjustment Woofer: 6 dB lowpass	Tweeter: 12 dB highpass, protection and level adjustment Woofer: 6 dB lowpass
Speaker kits Ci3 K165.2FM		S2 Ci3 K200.2FM-S3 Ci3 K200FM.2-S2
Power RMS / Max. P 100 / 150 Watts 100 / 150 Watts
Frequency response 60 Hz - 25,000 Hz 50 Hz - 25,000 Hz
Impedance Z 2 Ω 3 Ω 2 Ω
Sensitivity SPL		94 dB @ 2.83V / 1m88 dB @ 1W / 1m	94 dB @ 2.83V / 1m90 dB @ 1W / 1m	96 dB @ 2.83V / 1m90 dB @ 1W / 1m
Outer diameter (more data page 11 et sqq.)	∅ Tweeter: 32.0 mm / 1.26"Woofer: 165.0 mm / 6.50"		Tweeter: 32.0 mm / 1.26"Woofer: 195.0 mm / 7.68"	Tweeter: 32.0 mm / 1.26"Woofer: 195.0 mm / 7.68"
Installation diameter (more data page 11 et sqq.)	∅ Tweeter: 32.0 mm / 1.26"Woofer: 142.0 mm / 5.59"		Tweeter: 32.0 mm / 1.26"Woofer: 173.5 mm / 6.83"	Tweeter: 32.0 mm / 1.26"Woofer: 173.5 mm / 6.83"
Installation depth (more data page 11 et sqq.)		Tweeter: 9.8 mm / 0.39"Woofer: 60.7 mm / 2.39"	Tweeter: 9.8 mm / 0.39"Woofer: 63.7 mm / 2.51"	Tweeter: 9.8 mm / 0.39"Woofer: 63.7 mm / 2.51"
Dimensions cross-over		103.3 x 50.4 x 25.0 mm / 4.07 x 1.98 x 0.98"	103.3 x 50.4 x 25.0 mm / 4.07 x 1.98 x 0.98"	103.3 x 50.4 x 25.0 mm / 4.07 x 1.98 x 0.98"
Woofer
Impedance	Z	2 Ω	3 Ω	2 Ω
DC resistance	Re	1.8 Ω	3.0 Ω	1.8 Ω
Resonance frequency	Fs	74 Hz	67 Hz	72 Hz
Mechanical Q factor	Qms	3.92	4.25	4.56
Electrical Q factor	Qes	0.92	0.93	1.09
Total Q factor	Qts	0.74	0.76	0.88
Compliance	Cms	370 μm/N	300 μm/N	230 μm/N
Equivalent air volume	Vas	8.8 L 19.0 L	14.5 L
Force factor	B*1	3.4 Tm	5.1 Tm	4.0 Tm
Cone area	Sd	133 cm2	214 cm2	214 cm2
Moving mass	Mms	12.5 g	18.8 g	20.8 g
Mechanical resistance	Rms	1.48 kg/s	1.87 kg/s	2.07 kg/s
Voice coil diameter ∅		25 mm	25 mm	25 mm
Voice coil winding height		11.3 mm	11.6 mm	11.9 mm
Max. linear excursion	Xmax	+/- 3.7 mm	+/- 3.8 mm	+/- 4.0 mm
Tweeter
Impedance	Z	4 Ω	4 Ω	4 Ω
Resonance frequency	Fs	1800 Hz	1800 Hz	1800 Hz
Voice coil diameter	∅	20 mm	20 mm	20 mm
Features
Tweeter		Ultra compact, titanium dome, neodymium magnet and FlexMount 20	Ultra compact, titanium dome, neodymium magnet and FlexMount 20	Ultra compact, titanium dome, neodymium magnet and FlexMount 20
Woofer		Paper with Cenosphere coating, ProConnect terminal and FlexMount 165	Paper with Cenosphere coating, ProConnect terminal, FlexMount 200 and grille	Paper with Cenosphere coating, ProConnect terminal, FlexMount 200 and grille
Crossover		Tweeter: 12 dB highpass, protection and level adjustmentWoofer: 6 dB lowpass	Tweeter: 12 dB highpass, protection and level adjustment	Tweeter: 12 dB highpass, protection and level adjustment
Coaxial systems Ci3 C100.2FM-S3 Ci3 C130.2-S3 Ci3 C165.2FM-S3
Power RMS / Max. P 80 / 120 Watts 90 / 135 Watts 100 / 150 Watts
Frequency response 100 Hz - 25,000 Hz 80 Hz - 25,000 Hz
Impedance Z 3 Ω 3 Ω 3 Ω
Sensitivity SPL		91 dB @ 2.83V / 1m87 dB @ 1W / 1m	92 dB @ 2.83V / 1m88 dB @ 1W / 1m	92 dB @ 2.83V / 1m88 dB @ 1W / 1m
Outer diameter (more data page 15 et sqq.)	∅ 98.0 mm / 3.86" 130.0 mm / 5.12" 165.0 mm / 6.50"
Installation diameter (more data page 15 et sqq.)	∅	89.0 mm / 3.50"	116.5 mm / 4.59"	142.0 mm / 5.59"
Installation depth (more data page 15 et sqq.)		30.0 mm / 1.18" 55.4 mm /	2.18" 60.7 mm / 2.39"
Woofer
Impedance	Z	3 Ω	3 Ω	3 Ω
DC resistance	Re	3.0 Ω	3.0 Ω	3.1 Ω
Resonance frequency	Fs	137 Hz	92 Hz	72 Hz
Mechanical Q factor	Qms	4.37	2.76	4.02
Electrical Q factor	Qes	0.78	0.90	1.04
Total Q factor	Qts	0.66	0.68	0.82
Compliance	Cms	456 μm/N	374 μm/N	466 μm/N
Equivalent air volume	Vas	2.1 L 4.9 L 11.5 L
Force factor	B*1	3.2 Tm	3.8 Tm	3.8 Tm
Cone area	Sd	57 cm2	97 cm2	133 cm2
Moving mass	Mms	3.0 g	7.6 g	10.4 g
Mechanical resistance	Rms	0.58 kg/s	1.60 kg/s	1.17 kg/s
Voice coil diameter	∅	25 mm	25 mm	25 mm
Voice coil winding height		4.8 mm	10.5 mm	10.5 mm
Max. linear excursion	Xmax	+/- 2.0 mm	+/- 3.2 mm	+/- 3.2 mm
Tweeter
Voice coil diameter	∅	20 mm	20 mm	20 mm
Features
Tweeter		Titanium dome and neodymium magnet	Titanium dome and neodymium magnet	Titanium dome and neodymium magnet
Woofer		Paper with Cenosphere coating, FlexConnect terminal, neodymium magnet and FlexMount 100	Paper with Cenosphere coating and ProConnect terminal	Paper with Cenosphere coating, ProConnect terminal and FlexMount 165
Crossover		Integrated, 6 dB highpass	Integrated, 6 dB highpass	Integrated, 6 dB highpass

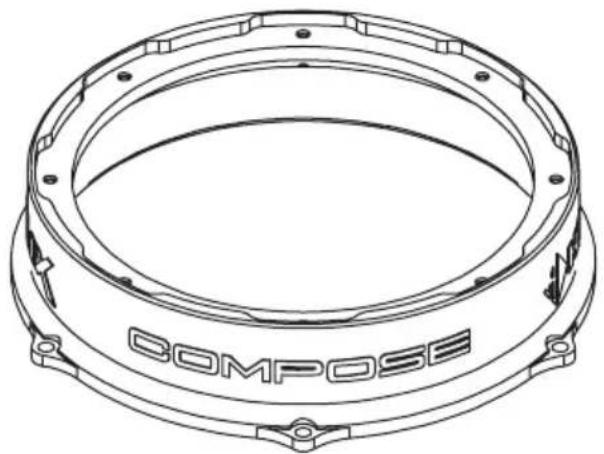

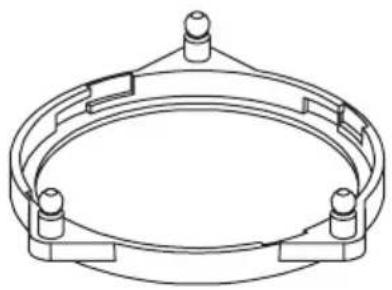

The optionally available FlexMount car-specific adaptor rings allow a tailored and acoustically optimized adaption of the HELIX COMPOSE speakers Ci3 T20FM-TI, Ci3 M100FM, Ci3 W165FM, Ci3 W200FM, Ci3 C100.2FM-S3 and Ci3 C165.2FM-S3 to the vehicles original mounting location. Contact your retailer or visit www.audiotec-fischer.com/compose for an up-to-date overview of available adaptors.

FlexMount 20

FlexMount 100

FlexMount 165

FlexMount 200

Technical line drawing of a circular mechanical component with mounting holes (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Contact your retailer or visit www.audiotec-fischer.com/compose for an up-to-date overview of available FcarMspecific adaptors

Correct disposal of this product

(Applicable in the European Union and other countries with separate collection systems)

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. Contact your local government office for details in locating a recycle facility close to you. Proper recycling and waste disposal will help conserve resources and prevent detrimental effects on our health and the environment.

Warranty Disclaimer

The warranty service is based on the statutory regulations. Defects and damage caused by overload or improper handling are excluded from the warranty service. Any return can only take place following prior consultation, in the original packaging together with a detailed description of the error and a valid proof of purchase. Technical modifications, misprints and errors excepted! For damages on the vehicle and the device, caused by handling errors of the device, we can't assume liability. All HELIX speakers are tagged with a CE-Certification mark. Thereby these devices are certified for the use in vehicles within the European Community (EC).
