Product Type	Food Dehydrator
Model	Elin SG500
Brand	Eldom
Power Supply	220-240 V, ~50 Hz
Power Consumption	245 W
Temperature Range	40°C - 70°C
Number of Trays	5
Maximum Continuous Operation	48 hours
Required Break Before Reuse	2 hours
Controls	Rotary temperature control (4) and push-button timer/switch (6)
Display	Digital display showing alternating remaining time and set temperature
Tray Material	Plastic (screens)
Lid Material	Transparent plastic (likely)
Base Material	Plastic with motor
Safety Features	Auto shut-off after set time; do not immerse base in water
Cleaning Instructions	Wash screens and lid in warm water; wipe base with damp cloth; do not use dishwasher
Intended Use	Drying fruits, vegetables, herbs, meat, fish, mushrooms, pasta, etc.
Recommended Food Preparation	Wash, cut into even slices, remove pits/stones; blanch if needed
Storage of Dried Products	In glass containers with metal lids, in a dark, dry place; or in paper bags for herbs
Warranty	For household use only; warranty void if misused

Frequently Asked Questions - Elin SG500 Eldom

How do I set the operating time on the SG500?

Press the power switch/timer button (6) once. While the digits on the display are flashing, press the button repeatedly to set the desired time (1-48 hours). Once the digits stop flashing, the appliance starts. The time can only be set when the digits are flashing.

Can I change the temperature during operation?

Yes, you can adjust the temperature at any time by turning the temperature control knob (4). The temperature range is 40°C to 70°C.

What are the recommended drying temperatures for different foods?

Herbs: 40°C; Bread: 40-50°C; Vegetables: 50-55°C; Fruits: 55-60°C; Meat and Fish: 65-70°C.

How should I prepare fruits before drying?

Wash fruits, remove any overripe parts, pits, or stones. Cut into even slices (e.g., 3 mm for bananas and strawberries). Some fruits like apples can be dipped in a pretreatment solution for 2 minutes to prevent browning. Drain and place on the trays.

How do I clean the dehydrator?

Unplug and let it cool. Wash the screens (trays) and lid in lukewarm water. Wipe the base with a slightly damp cloth. Do not immerse the base in water or use aggressive cleaning agents. Do not wash parts in a dishwasher.

Why won't my dehydrator start?

Ensure it is plugged into a working outlet. Press the power switch (6) once – the display will flash. If you do not set a time, the appliance will start automatically after the flashing stops. If it still doesn't start, check the power cord and circuit breaker.

How long does it take to dry apples?

Drying time for apples is typically 4 to 15 hours at recommended temperature (55-60°C). The exact time depends on slice thickness and moisture content.

Can I dry meat and fish in the SG500?

Yes, meat and fish can be dried at 65-70°C. Ensure they are fresh and cut into thin strips. Drying time varies; check for toughness and no moistness.

How should I store dried products?

Allow dried products to cool completely. Store in clean, dry glass containers with metal lids in a dark, dry place. Herbs can be stored in paper bags. Ensure containers are airtight.

What is the warranty coverage?

The appliance is intended for personal household use only. Any misuse or professional use voids the warranty. For repairs, contact an authorized service center.

USER MANUAL Elin SG500 Eldom

Modern kitchen appliance with transparent lid and digital temperature display (no visible text or symbols)

/PL/

The disposal of used electrical and electronic equipment (applies to European Union countries and other European countries with separate waste-collection systems). This symbol on the product or its packaging indicates that it should not be classified as household waste. It should be handed over to an appropriate company dealing with the collection and recycling of electrical and electronic equipment. The correct disposal of the product will prevent potential negative consequences for the environment and human health resulting from hazardous substances present in the product. Electrical devices must be handed over to restrict their re-use and further treatment. If the device contains batteries, remove them, and hand them over to a storage point separately. DO NOT THROW EQUIPMENT INTO THE MUNICIPAL WASTE BIN. Material recycling helps to preserve natural resources. For detailed information on how to recycle this product, please contact your local authority, the recycling company, or the shop where you bought it.

/DE/

Two circular frames showing a mechanical component with bidirectional arrows, labeled 'fot. 2fot. 1' at bottom (no other text or symbols)

OPIS OGÓLNY (fot. 1)

Read the operating instructions carefully before use.

1. Connect the connecting cable to the socket according to the specifications given in the instructions.

2. Using an extension cord with this appliance is not recommended. However, if it is necessary to use an extension cord, make sure that its ratings are compatible with those of the device to avoid overheating. Do not use the extension cord to supply any other device at the same time. Do not use the extension cord where it can be pulled by children or animals, or cause a risk of tripping

3. Do not use for more than 48 hours at a time. When the appliance has operated continuously for 48 hours, turn it off (the switch should be in the "OFF" position), unplug it from mains and allow it to cool down.

4. Do not use the device outdoors.

5. Do not hold the device with wet hands.

6. Do not leave the device in use unattended.

7. This equipment may be used by children at least eight years of age and by persons with reduced physical and mental capabilities and persons lacking experience and knowledge of equipment, if supervision or instruction is provided regarding the safe use of the equipment so that threats related thereto were understandable. Children should not play with equipment. Unattended children should not perform cleaning and maintenance of the equipment.

8. Take special care when children are near the device. Children should be supervised to ensure that they do not play with the device.

9. Place the device on a flat, stable and heat-resistant surface.

10. Always disconnect the device from the power supply by pulling on the plug and not on the power cord.

11. Do not hang the cord on sharp edges and do not let it touch hot surfaces.

12. Disconnect the device from the power supply if it is not in use and before cleaning it.

13. Turn off the device first before removing the plug from the wall socket.

14. Do not immerse the base with the motor, cord and plug in water or other liquids.
15. Do not use a damaged device even if the power cord or plug is damaged. In this case, have your device repaired by an authorized service centre.
16. This appliance is intended for home use only. Do not use the device for any purpose other than intended use.
17. Do not move or displace the device during use.
18. Do not place anything on the device cover.
19. Do not cover the device during operation.
20. Do not use the device near flammable materials such as furniture, bedding, paper, clothes, curtains, etc.
21. Do not place the device near other electrical appliances, burners, stoves, ovens, etc.
22. Refer servicing to an authorized service centre. Modifying the appliance or using spare parts or elements other than the original ones is forbidden and can expose the user to hazard.
23. Eldom Sp. z o. o. shall waive any liability for any damages resulting from user's operating the device improperly.

EN

INSTRUCTION MANUAL

FOOD DEHYDRATOR SG500

Two circular frames showing a mechanical component with bidirectional arrows, labeled 'photo 2photo 1' below (no text or symbols on the components themselves)

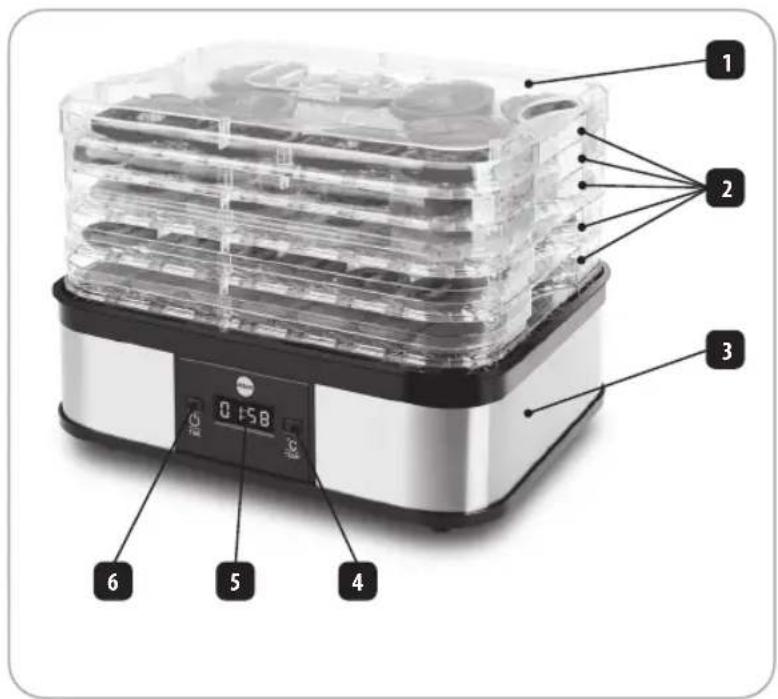

GENERAL DESCRIPTION (photo 1)

1. Lid
2. Screens (5 pcs)
3. Base
4. Temperature control
5. Display
6. Power switch / timer

TECHNICAL DATA

• power output: 245W
• power supply voltage: 220-240 V, \~ 50 Hz
• temperature control: 40-70°C
• acceptable continuous use: 48 hours
• break before resuming to use: 2 hours

INTENDED USE

Drying is an effective way to preserve food. Warm air at a constant and adjustable temperature circulates freely inside the appliance between the top and bottom covers, the height-adjustable screens and the power base. Therefore, the products in the appliance sections are dried evenly and with minimal loss of health-promoting vitamins. This way you will enjoy fruits, vegetables and mushrooms that are prepared without unhealthy substances all year round.

You can use the SG500 dryer to dry most food products including:

• mushrooms,
• fruits,
• meat (beef, poultry),
• pasta,
• vegetables - e.g. to prepare healthy instant meals (without preservatives),
• plants (flowers, leaves),
• herbs, spices,
• candied fruits for later processing into instant juice.

USE

After unpacking the appliance, make sure that it has not been damaged during transport. In case of any doubts, do not use the appliance until the service station has been contacted. Connect the power cord to the mains with specifications matching those on the rating plate.

Wash the screens (2) and lid (1) before the first use.

OPERATION

• Make sure that the appliance is disconnected from the mains.
• Place the base (3) on a flat, stable and heat-resistant surface.
• Put the screens (2) with the products onto the base (3).
• The products should be washed and then wiped before drying.

CAUTION

Do not place wet products on the screens.

- Cut the food into pieces to fit feely between the stacked screens.

• In order to increase the space between the screens (2) place the tabs of the upper screen on the supports of the lower one (photo 2). For thinner product slices, the height of the screens can be reduced.
• When the appliance is powered on warm air circulates inside the dryer between the lid, screens and the base. Therefore, products should be placed on the screens so as allow the air to flow freely.

CAUTION

It is recommended to put all 5 screens on the base while drying, regardless of how many of them are empty.

• Place the lid (1) on the uppermost screen (2).
• Connect the appliance plug to the mains and then press the button (6) once – the digits on the display (5) will start flashing.
• While the digits on the display are flashing, set the operating time by pressing the button (6). The possible range is 1 to 48 hours.
• Once the desired time has been set, the digits will stop flashing and the appliance will begin operating.

CAUTION.

The appliance will start unless the operating time is set.

The operating time can only be set when the digits in the display (5) are flashing.

When they stop flashing, the appliance has to be turned off to set the operating time.

• Use the button (4) to set the operating temperature from 40 to 70°C
• Recommended temperatures for some products:
• herbs: 40°C
• bread: 40-50°C

• vegetables: 50-55°C

• fruits: 55-60°C

• meat, fish: 65-70°C

- When the appliance is switched on, the display (5) will show the remaining time alternating with the set temperature.

CAUTION

When the appliance is turned on, the operating time cannot be changed.

To change the operating time, turn it off and set the parameters again.

You can change the temperature while the appliance is operating.

• The appliance will switch off automatically after the time set.
• To switch it off earlier, press and hold the switch (6).
• After use, disconnect the appliance from the mains.

- HELPFUL HINTS

• the table below presents approximate drying times for some products. Draying time depends on the kind of product, thickness of the slices and water content,
• the drying time depends also on the temperature and humidity of the room,
• the products should be washed before drying,
• any overripe parts or pits and stones should be removed,
• in the case of herbs, only the young leaves should be dried,
• the dried products should be stored in glass containers with metal lids in a dark and dry place; dried herbs can be stored in paper bags,
• only cooled down products should be stored,
• the storage containers should be clean and dry,

PRODUCTS PREPARATION DESIRED DRYING EFFECT			DRYING TIME
APPLES Wash, peel	and slice. Can be left in a pretreatment solution for two minutes. Drain and place on the trays.	pliable 4-15 hours.
PRUNES Wash, dry	whole or cut into halves, remove stones.	no moist 5-25 hours
BANANAS Peel and	cut into 3 mm slices. no moist	5-25 hours
STRAWBERRIES Wash and cut into 3 mm slices.		no moist 5-25 hours
PINEAPPLE (FRESH)	Peel and slice or dice.	tough	6-36 hours
PINEAPPLE (TINNED)	Drain and dry before placing on the trays.	pliable 6-36 hours
CHERRIES	Remove the pits before drying	tough	6-36 hours
ORANGE PEEL	Cut the peel into stripes.	brittle	6-15 hours

PEARS Peel and remove the core.Cut into slices, halves or quarters.	tough and pliable 5-24 hours
RHUBARB Dry only the soft stems brittle 4-16 hours
MUSHROOMS Pick ones with ball-shaped caps. Clean from sand or peel. Dry sliced or whole.	tough and brittle 3-10 hours
PARSLEY Place the leaves on the trays. flaky 2-10 hours
CARROTS Pick tender and crunchy roots. Steam till tender. Slice or dice and then drain.	tough 4-12 hours

CLEANING AND MAINTENANCE

• before cleaning, unplug the appliance and wait until it cools down,
• do not immerse the base (3) in water,
• do not use aggressive cleaning agents,
• the base (3) can be cleaned with a slightly damp cloth and wiped dry,
• wash the sieves (4) and the cover in lukewarm water,
• do not wash the appliance in a dish-washer machine.

ENVIRONMENTAL PROTECTION

- the appliance is made of materials which can be recovered or recycled

- the appliance should be handed over to the appropriate centre of collection and recycling of electrical and electronic equipment

WARRANTY

• the appliance is intended for personal use at a household,
• it is not intended for professional purposes,
• in case of misuse, the warranty is rendered null and void.
