LIO CW100 - Juicer Eldom - Free user manual and instructions

Product Type	Citrus Juicer
Brand	Eldom
Model	LIO CW100
Nominal Power	125 W
Maximum Power	160 W
Power Supply	220-240 V ~ 50 Hz
Maximum Continuous Operation	15 seconds
Required Break Before Restart	15 seconds
Maximum Work Cycles	10 cycles
Number of Squeezing Heads	2 (large head for oranges, small head for lemons)
Filter Tray	Adjustable hole size with lever
Juice Collector	Removable, with valved spout
Automatic Start	Yes, when pressing fruit on head
Dishwasher Safe Parts	Cover, rotating head, juice collector
Base Cleaning	Wipe with damp cloth, do not immerse
Intended Use	Household use only, not for commercial
Fruits Compatible	Citrus fruits only
Warranty	Valid for domestic use, void if misused

Frequently Asked Questions - LIO CW100 Eldom

How do I assemble the juicer?

Place the juice collector, filter tray, small head, and large head successively in the base. Then attach the cover to the lever as shown in photo 1 and photo 2 of the manual.

Can I wash the parts in the dishwasher?

Yes, the cover, rotating head, and juice collector are dishwasher safe. The base should only be cleaned with a damp cloth and never immersed.

What is the maximum continuous operating time?

The juicer can operate continuously for a maximum of 15 seconds. After that, it must rest for at least 15 seconds before restarting, and you should not exceed 10 cycles in total.

Which fruits can I juice with this appliance?

This juicer is designed specifically for citrus fruits such as oranges, lemons, limes, and grapefruits.

How do I adjust the pulp level?

The filter tray has adjustable holes controlled by a lever (see photo 3). Moving the lever allows you to choose between finer or coarser pulp.

What should I do if the juicer stops working?

Ensure the appliance is unplugged. Check that all parts are correctly assembled and that the fruit is being pressed vertically. If it still doesn't work, contact an authorized service center.

Can children use this appliance?

Children aged 8 and above can use it under supervision. Children under 8 should be kept away from the appliance and cord.

How do I clean the base?

Unplug the appliance. Wipe the base with a damp cloth. Do not immerse the base in water or any liquid.

What is the warranty coverage?

The warranty covers defects under normal household use. It becomes void if the appliance is used commercially, misused, or modified.

Can I use the juicer for non-citrus fruits?

No, the appliance is intended only for citrus fruits. Using it for other fruits may damage the motor or cause injury.

USER MANUAL LIO CW100 Eldom

Modern silver juice brush with handle and spout, no visible text or symbols

Close-up of a propeller blade with a double-headed arrow indicating rotation, shown from two different angles (fot. 2 and fot. 3), no text or symbols present.

PRZEZNACZENIE

1. The power cable must be plugged in the socket with parameters the same as those given in that instruction manual.
2. Do not immerse the cable or the appliance in water.
3. Only intended for household use.
4. Do not use the appliance outdoors.
5. Before switching the appliance on, make sure that all of its elements are appropriately assembled.
6. Do not leave your device without supervision.
7. Always unplug the appliance after operation.
8. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
9. Do not touch the appliance with wet hands.
10. Always pull the plug of the socket before cleaning.
11. Do not exceed the maximum time of continuous operation of the appliance.

12. Do not move during use.

13. Do not operate the juicer for more than 40 seconds at a time when juicing heavy loads and let it cool down sufficiently afterwards.

14. Never use the appliance if the supply cord is damaged. If found dama ged in any way, consult the producer's authorized service centre. The list of service centres is to be found in the appendix and on www.eldom.eu.
15. The appliance can be used only with the originally included accessories.
16. Refer servicing to an authorized service centre. Modifying the appliance or using spare parts or elements other than the original ones is forbidden and can expose the user to hazard.

GENERAL DESCRIPTION

1. Cover
2. Large head
3. Small head
4. Filter tray
5. Juice collector
6. Valved spout
7. Base
8. Arm

TECHNICAL DATA

• nominal power: 125 W, max. 160 W
• power supply voltage: 220-240V\~50Hz
• permissible duration of uninterrupted operation: 15s
• interruption before restarting operation: 15 s

(not more than 10 cycles).

Close-up of a propeller blade with internal blades, shown from two angles (photo 2 and photo 3), no text or symbols present.

INTENDED USE

The CW100 fruit juicer is designed to squeeze the juice out of citrus fruits.

USE

Before using the juicer for the first time:

• Carefully read the contents of this manual.
• Make sure that none of the components are damaged.
• Wash components that come into contact with food.
• Assemble the appliance.

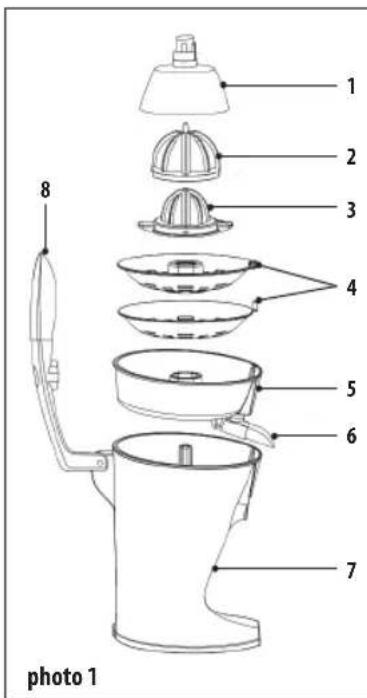

ASSEMBLY (PHOTO 1).

• Place the juice collector (5), the filter tray (4), the small head (3) and the large head (2) successively in the base (7).

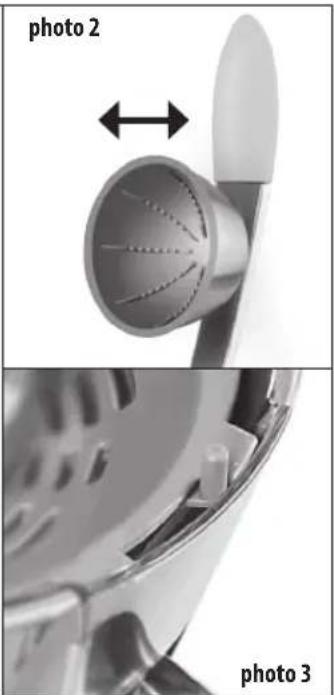

• Attach the cover (1) in the lever (8) – Photo 2.

HANDLING

• Place the assembled device on a stable and flat surface.
• Connect to a power supply system according to the specifications on the nameplate.

• Wash the fruit and cut them into halves.

• Match the head size to the size of the fruit. The smaller head (3) is placed directly on the tray (4). The larger head (2) is placed directly on the smaller head (3).
  The large head (2) is designed for larger fruits (e.g. oranges), which can be squeezed by using the lever with the cover mounted. The small head (3) is designed for smaller fruits (e.g. lemons), which should be pressed by hand.

• Make sure that a container is placed under the spout (6) and that it is lowered.
• The juicer will start automatically after pressing the fruit on the head.
• The fruit should be pressed vertically and with some sensitivity. For a better effect, it is recommended to alternate between pressing and releasing the pressure.
• The juice will flow into the container and the pulp and seeds will remain on the filter tray (4). The size of the holes in the filter tray can be adjusted by means of a lever - photo 3.
• If too much pulp is collected, stop working, disconnect the device from the supply system and clean the collector (5).

CAUTION

Observe the continuous working time of the appliance. Excessive working time and insufficient breaks can lead to irreversible engine damage.

CLEANING AND MAINTENANCE

• Possibility to wash items in the dishwasher: cover (1), rotating head (2), juice collector (3).
• It is recommended to clean the appliance immediately after use.
• Disconnect the appliance from the mains before cleaning.
• Do not immerse the base (6) of the appliance in water. It can be cleaned with a damp cloth.
• The remaining components can be washed in warm water with a small amount of washing liquid.
• Do not clean with sharp, abrasive cloths or sponges.

ENVIRONMENTAL PROTECTION

• The appliance is made of materials which can be recovered or recycled.
• The appliance should be handed over to the appropriate centre of collection and recycling of electrical and electronic equipment.

WARRANTY

• The appliance is intended for personal use at a household.
• It is not intended for professional purposes.
• In case of misuse, the warranty is rendered null and void.
• Only intended for household use.
• It cannot be used for commercial purposes.
• he warranty loses validity in case of inappropriate use.
