PARILL GK160 - Contact grill Eldom - Free user manual and instructions

Product Type	Contact Grill (also convertible to horizontal grill)
Brand	Eldom
Model	PARILL GK160
Power	2200W
Voltage	220-240V~50/60Hz
Heating Plates	Two non-stick plates (top and bottom)
Temperature Control	Adjustable thermostat
Indicator Lights	Red (power on), Green (heating/ready)
Top Cover	Hinged with handle, automatically adjusts to food thickness
Handle	For safe opening of the cover
Plate Lock	Secures plates when closed
180° Lock	Allows opening cover to horizontal position
Fat Container	Removable tray for collecting grease
Spout	For draining fat into container
Spatula	Included (recommended plastic or wooden)
Usage Modes	Contact grill (simultaneous two-sided) or horizontal grill (open 180°)
Intended Use	Indoor household use only
Cleaning	Wipe with damp cloth; do not immerse; tray washable with warm water and detergent
Safety Features	Automatic temperature regulation, lock mechanisms, warning against hot surfaces
Warranty	For domestic use only; improper use nullifies guarantee

Frequently Asked Questions - PARILL GK160 Eldom

How do I use the grill as a contact grill?

Set the thermostat to desired temperature, close the cover, and place food between the plates. The cover will automatically adjust to food thickness. Use the handle to open and close. Do not push down on the cover.

How do I convert the grill to a horizontal grill?

Ensure the device is cold. Press the 180° lock button and open the top cover fully until it lies flat. Then connect and preheat. Use as a traditional grill, turning food occasionally.

What should I do if the grill smokes excessively during first use?

A slight smell and smoke are normal during first use due to manufacturing residues. Ensure proper ventilation (e.g., open a window). Operate the grill without food for a few minutes until the smoke stops.

Can I immerse the grill in water for cleaning?

No. Never immerse any part of the appliance, cord, or plug in water or other liquids. Clean only with a damp cloth and wipe the plates with paper towels to remove grease.

What utensils are safe to use on the heating plates?

Use only plastic, wooden, or heat-resistant silicone utensils. Metal utensils can damage the non-stick coating. The included spatula is suitable.

How do I clean the fat container?

Remove the fat container (tray) from the base. Wash it in warm water with a mild washing liquid. Dry thoroughly before reinserting. Clean regularly to prevent buildup.

Is it safe to leave the grill unattended while in use?

No. Never leave the appliance unattended when plugged in or in use. Always supervise children and pets nearby.

What should I do if the power cord is damaged?

Discontinue use immediately. The cord must be replaced by an authorized service shop to avoid hazards. Do not attempt to repair yourself.

Can I use the grill to cook frozen food?

Yes, but ensure food is properly thawed or adjust cooking time accordingly. The grill will automatically adjust to the thickness of the food.

What do the indicator lights mean?

The red lamp lights when the grill is connected to power. The green lamp lights when the plates are heating and turns off when the set temperature is reached. It cycles on and off to maintain temperature.

USER MANUAL PARILL GK160 Eldom

Exterior view of a black and silver flat-screen grater with a stainless steel plate (no text or symbols visible)

/PL/

The disposal of used electrical and electronic equipment (applies to European Union countries and other European countries with separate waste-collection systems). This symbol on the product or its packaging indicates that it should not be classified as household waste. It should be handed over to an appropriate company dealing with the collection and recycling of electrical and electronic equipment. The correct disposal of the product will prevent potential negative consequences for the environment and human health resulting from hazardous substances present in the product. Electrical devices must be handed over to restrict their re-use and further treatment. If the device contains batteries, remove them, and hand them over to a storage point separately. DO NOT THROW EQUIPMENT INTO THE MUNICIPAL WASTE BIN. Material recycling helps to preserve natural resources. For detailed information on how to recycle this product, please contact your local authority, the recycling company, or the shop where you bought it.

/DE/

PRZEZNACZENIE

Close-up of a device with a hand cursor pointing to a button, labeled 'zdj.1' (no other text or symbols)

GRILL KONTAKTOWY

Read the whole content of this user manual before using the appliance for the first time.

1. Connect the connection cord to a socket which complies with the specification provided in the manual.

2. Always disconnect the appliance from the mains by pulling the plug, not the power cord.

3. Disconnect the appliance from the mains whenever it is not used or before cleaning it.

4. Do not immerse the cord or the appliance in water.

5. Do not hang the cord on sharp edges and do not let it touch hot surfaces.

6. Do not use in open air.

7. Do not use nearby inflammable materials such as furniture, bedding, paper, clothes, lace curtains, linings etc.

8. Do not leave children without care nearby the appliance parts of the appliance become hot when the appliance is being used.

9. You should hold the appliance only by the handgrip.

10. Be careful when taking out the sandwiches. Ready made sandwiches are hot and can burn.

11. Do not leave the appliance unattended when it is being used.

12. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

13. Pay attention to make sure that the appliance is not played with by children.

14. Do not carry or move the appliance when it is being used.

15. Do not cover the appliance when it is being used,

16. Do not put any products in metal foils into the appliance.

17. Do not grasp the appliance with wet hands.
18. The appliance is intended for household use only.
19. A very hot stream of steam may come out of the appliance when the cover is being opened do not use the appliance.
20. If the power cord has been damages or when the appliance has fallen down or was damaged in another way.
21. The Appliance should be repaired by an authorized service shop; see the annexe or visit the site www.eldom.eu for the list of authorized service shops.
22. The appliance may be repaired only by an authorized service outlet.
23. Modernizing the appliance or using other spare parts or components for the appliance with the genuine ones is forbidden and threatens the safety of use.
24. Eldom Sp. z o. o. is not responsible for any potential damages caused by improper use of the appliance.

WARNING

• Opening the top cover is only allowed when the device is cold. Otherwise, there is a risk of burns.
• When opening the device route the power cord in such a way that it does not come into contact with the top cover.

This symbol is a warning against the high temperature of the appliance surface.

INSTRUCTION MANUAL

CONTACT GRILL GK160

EN

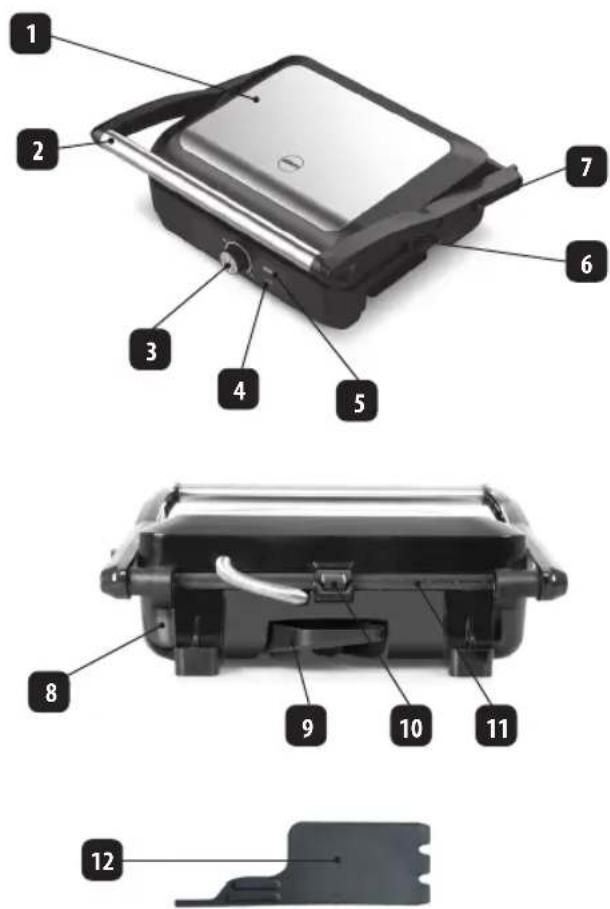

GENERAL DESCRIPTION

1. Top cover
2. Handle
3. Thermostat
4. Control lamp - work
5. Control lamp - connection
6. Plate lock
7. "180 degrees" lock

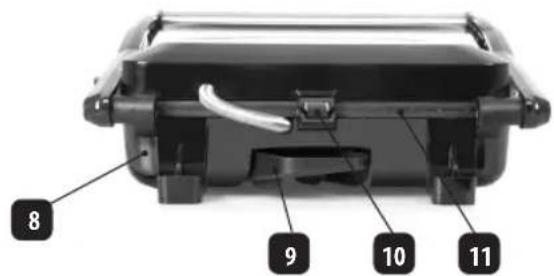

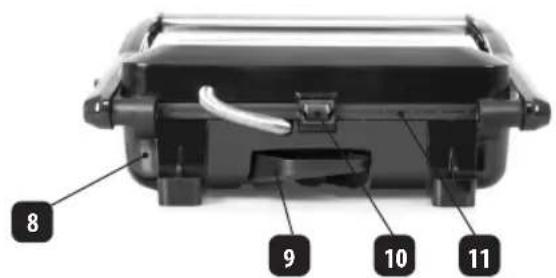

8. Base
9. Fat container
10. Spout
11. Heating plates
12. Spatula

SPECIFICATION

• Power: 2200W
• Voltage: 220-240 V\~ 50/60 Hz

DESIGNATION

GK160 electric grill is designed for grilling, frying, heating, etc. of different types of food. Thanks to the moveable top cover, the device can be used as a contact grill (simultaneous, two-sided roasting of different thickness products) or as a traditional, horizontal grill (after opening to 180 degrees).

- SETTING UP THE APPLIANCE

• Before using the appliance, make sure that the appliance, the plug and the power cable are in good technical order and whether all parts of the package were removed.
• Before the first use, all parts of the appliance that are in contact with food must be thoroughly washed (see: Cleaning and maintenance).

Specific smell may be sensed during the first use, which results from the production process. It is a normal process and it will go away after a time. Ensure the proper ventilation in the room, e.g. opening the window. The first use of the appliance should be without products.

USE

Before using the device and plugging it in to the power supply mains with the parameters compliant with the ones indicated on the device, set the thermostat (3) in the "0" position.

Close-up of a device with an arrow indicating movement, labeled 'fig.1' (no text or symbols on the device itself)

CONTACT GRILL

• Set the device on a flat, stable and heat-resistant surface.
• Close the cover (1).

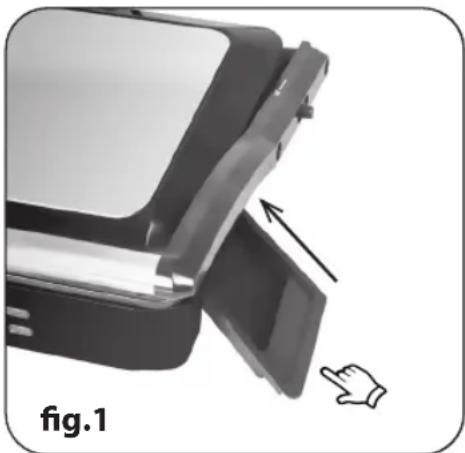

• Install the grease collector (9) in the base (8) - fig. 1.

• Connect the device to a power supply. A red control lamp (5) will come on.

• Set the temperature using the thermostat (3). A green control lamp (4) is lit when the device is heating up, and it turns off, when the device reaches the desired temperature.

• Open the cover (1) holding it by the holder (2). Place the products and gently close the cover (1). Do not push the cover (1) down, as you may crush the products, and do not block it during operation (6). The cover (1) will automatically adjust to the thickness of the products.

- The green control lamp turns on and off during frying. The thermostat maintains a proper temperature.

- Remove the products when they are done frying. In order not to damage the heating plates, use spatula (12), wooden or plastic, heat-resistant utensils.

- During the preparation of new portions of products, close the cover (1) in order to maintain the temperature.

- Empty the container (9) regularly.

- After the full completion of roasting, disconnect the device from the power supply.

HORIZONTAL GRILL

• Set the device on a flat, stable and heat-resistant surface.
• Push the lock button (7) and open the top cover holding it by the holder (2).

WARNING

Opening the top cover is only allowed when the device is cold. Otherwise, there is a risk of burns. Route the power cord in such a way that it does not come into contact with the top cover.

• Connect the device to a power supply. A red control lamp (5) will come on.
• Set the temperature using the thermostat (3). A green control lamp (4) is lit when the device is heating up, and it turns off, when the device reaches the desired temperature.
• Place the products on the plates and grill turning them once in a while.
• The green control lamp turns on and off during frying. The thermostat maintains a proper temperature.
• Remove the products when they are done frying. In order not to damage the heating plates, use spatula (12), wooden or plastic, heat-resistant utensils.
• Empty the container (9) regularly.
• After the full completion of roasting, disconnect the device from the power supply.

• CLEANING AND MAINTENANCE

• disconnect the appliance from the mains and let it cool down before cleaning it,
• do not immerse any part of the appliance in water or other liquids
• first, rub the cooking plates with paper towels in order to remove grease,
• then, clean the appliance and the cord gently with a wet cloth
• do not use cleaning agents and dissolvents,
• in case of residue which is difficult to be removed, do not use sharp tools as they can destroy coatings on the plates of the appliance. The best way to remove dirt is to cover them with a wet cloth to dissolve the residue,
• clean and empty the tray (9) regularly. The tray can be taken out and washed in warm water with some washing liquid.

ENVIRONMENTAL PROTECTION

• the device is made of materials which can be reused or recycled,
• the device should be handled to a special point which deals with collecting and recycling of electric and electronic equipment

WARRANTY

• this appliance is designed for domestic use only,
• it cannot be used for professional purposes or for other than the intended use,
• improper use will nullify the guarantee.

BESTIMMUNG

Close-up of a mechanical component with an arrow indicating a movement, labeled 'Bild 1' (no other text or symbols)

KONTAKTGRILL

НАЗНАЧЕНИЕ

Close-up of a device with a hand cursor pointing to a button, labeled 'фото 1' (no other text or symbols)

КОНТАКТНЫЙ ГРИЛЬ

Close-up of a device with a hand cursor pointing to a button, labeled 'foto 1' (no other text or symbols)

PARRILLA DE CONTACTO
