Product Type	Contact Grill
Brand	Eldom
Model	SVAD GK170
Dimensions (approx)	30 x 30 x 10 cm
Weight (approx)	2.5 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	1800 W
Cooking Surface	Non-stick coated aluminum plates
Temperature Control	Adjustable thermostat
Indicator Lights	Power and ready lights
Functions	Grilling, toasting, sandwich making
Plate Position	Floating hinge for even cooking
Handle Type	Cool-touch handle
Safety Features	Automatic shut-off, non-slip feet
Cleaning	Removable drip tray; wipe plates with damp cloth
Maintenance	Do not immerse in water; use mild detergent
Spare Parts Availability	Replacement plates and drip trays available from manufacturer
Repairability	Service center support; user-replaceable parts
Warranty	2 years (subject to terms)
Cable Length	Approx. 1 m
Color	Black / Stainless steel

Frequently Asked Questions - SVAD GK170 Eldom

How do I use the SVAD GK170 contact grill?

Plug in the grill, set the desired temperature using the thermostat knob, and wait for the ready light. Place food on the lower plate, close the lid, and cook until done. Adjust time and temperature as needed.

Can I cook frozen food directly on the grill?

It is recommended to thaw frozen food before grilling to ensure even cooking. However, you can adjust cooking time accordingly; check internal temperature for safety.

How do I clean the non-stick plates?

Unplug and let the grill cool. Wipe the plates with a damp cloth or sponge. For stubborn residue, use a plastic scraper. Do not use abrasive cleaners or metal utensils. The drip tray is removable and dishwasher-safe.

What is the maximum temperature the grill reaches?

The thermostat can be adjusted up to approximately 230°C (450°F). It is ideal for grilling meats, vegetables, and making paninis.

Does the grill have an automatic shut-off feature?

Yes, the SVAD GK170 is equipped with an automatic shut-off for safety. It turns off after a period of inactivity or if overheating occurs.

Can I use aluminum foil or parchment paper on the grill?

It is not recommended as it may interfere with heat distribution and damage the non-stick coating. The plates are designed for direct contact with food.

What should I do if the plates are sticking?

Ensure the plates are clean and lightly coated with oil. Avoid cooking sugary foods at high temperatures. If sticking persists, consider replacing the plates if the coating is worn.

Is the grill suitable for outdoor use?

The grill is designed for indoor use only. Do not expose to rain or moisture. Use on a stable, heat-resistant surface away from flammable materials.

Where can I purchase spare parts?

Spare parts such as cooking plates and drip trays are available through the Eldom website or authorized service centers. Contact customer support for assistance.

What does the floating hinge do?

The floating hinge allows the top plate to adjust to the thickness of the food, ensuring even contact and uniform grilling. It also helps avoid crushing delicate items.

USER MANUAL SVAD GK170 Eldom

Exterior view of a modern stainless steel grater with a flat top and side panel (no text or symbols visible)

/PL/

The disposal of used electrical and electronic equipment (applies to European Union countries and other European countries with separate waste-collection systems). This symbol on the product or its packaging indicates that it should not be classified as household waste. It should be handed over to an appropriate company dealing with the collection and recycling of electrical and electronic equipment. The correct disposal of the product will prevent potential negative consequences for the environment and human health resulting from hazardous substances present in the product. Electrical devices must be handed over to restrict their re-use and further treatment. If the device contains batteries, remove them, and hand them over to a storage point separately. DO NOT THROW EQUIPMENT INTO THE MUNICIPAL WASTE BIN. Material recycling helps to preserve natural resources. For detailed information on how to recycle this product, please contact your local authority, the recycling company, or the shop where you bought it.

/DE/

DANE TECHNICZE

Close-up of a grater with a hand cursor pointing to the side panel (no text or symbols visible)

Close-up of a mechanical component with a curved arrow indicating rotation (no text or symbols visible)

GRILL KONTAKTOWY

Read the whole content of this user manual before using the appliance for the first time.

1. Connect the connection cord to a socket which complies with the specification provided in the manual.

2. Always disconnect the appliance from the mains by pulling the plug, not the power cord.

3. Disconnect the appliance from the mains whenever it is not used or before cleaning it.

4. Do not immerse the cord or the appliance in water.

5. Do not hang the cord on sharp edges and do not let it touch hot surfaces.

6. Do not use in open air.

7. Do not use nearby inflammable materials such as furniture, bedding, paper, clothes, lace curtains, linings etc.

8. Do not leave children without care nearby the appliance parts of the appliance become hot when the appliance is being used.

9. You should hold the appliance only by the handgrip.

10. Be careful when taking out the sandwiches. Ready made sandwiches are hot and can burn.

11. Do not leave the appliance unattended when it is being used.

12. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

13. Pay attention to make sure that the appliance is not played with by children.

14. Do not carry or move the appliance when it is being used.

15. Do not cover the appliance when it is being used,

16. Do not put any products in metal foils into the appliance.

17. Do not grasp the appliance with wet hands.
18. The appliance is intended for household use only.
19. A very hot stream of steam may come out of the appliance when the cover is being opened do not use the appliance.
20. If the power cord has been damages or when the appliance has fallen down or was damaged in another way.
21. The Appliance should be repaired by an authorized service shop; see the annexe or visit the site www.eldom.eu for the list of authorized service shops.
22. The appliance may be repaired only by an authorized service outlet.
23. Modernizing the appliance or using other spare parts or components for the appliance with the genuine ones is forbidden and threatens the safety of use.
24. Eldom Sp. z o. o. is not responsible for any potential damages caused by improper use of the appliance.

WARNING

• Opening the top cover is only allowed when the device is cold. Otherwise, there is a risk of burns.
• When opening the device route the power cord in such a way that it does not come into contact with the top cover.

This symbol is a warning against the high temperature of the appliance surface.

INSTRUCTION MANUAL

CONTACT GRILL GK170

EN

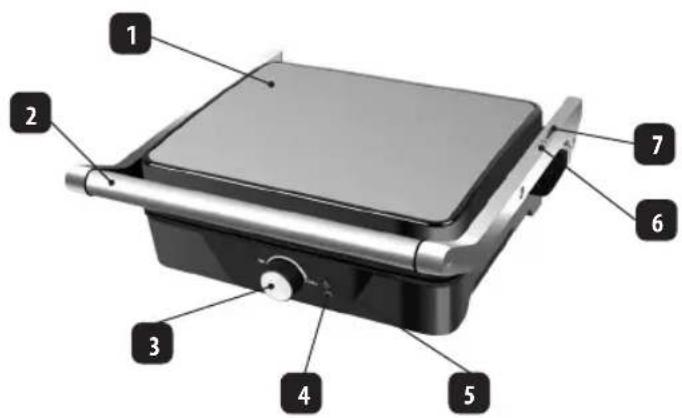

GENERAL DESCRIPTION

1. Top cover
2. Handle
3. Thermostat
4. Control lamp - work
5. Control lamp - connection
6. Plate lock
7. "180 degrees" lock
8. Base
9. Fat container
10. Spout
11. Heating plates

SPECIFICATION

• Power: 2000W
• Voltage: 220-240 V\~ 50/60 Hz

DESIGNATION

GK170 electric grill is designed for grilling, frying, heating, etc. of different types of food. Thanks to the moveable top cover, the device can be used as a contact grill (simultaneous, two-sided roasting of different thickness products) or as a traditional, horizontal grill (after opening to 180 degrees).

- SETTING UP THE APPLIANCE

• Before using the appliance, make sure that the appliance, the plug and the power cable are in good technical order and whether all parts of the package were removed.
• Before the first use, all parts of the appliance that are in contact with food must be thoroughly washed (see: Cleaning and maintenance).

Specific smell may be sensed during the first use, which results from the production process. It is a normal process and it will go away after a time. Ensure the proper ventilation in the room, e.g. opening the window. The first use of the appliance should be without products.

USE

Before using the device and plugging it in to the power supply mains with the parameters compliant with the ones indicated on the device, set the thermostat (3) in the "0" position.

Close-up of a grater with a handle and control panel, showing a black tray and a black piece (no text or symbols visible)

Close-up of a mechanical component with a curved arrow indicating rotation (no text or symbols)

CONTACT GRILL

- Set the device on a flat, stable and heat-resistant surface.

- Close the cover (1).

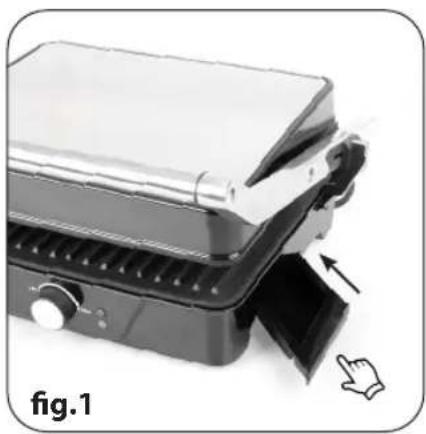

- Install the grease collector (9) in the base (8) - fig. 1.

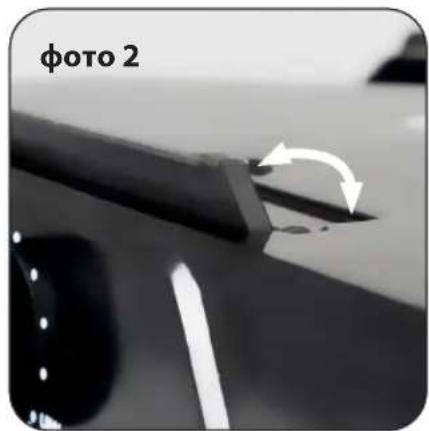

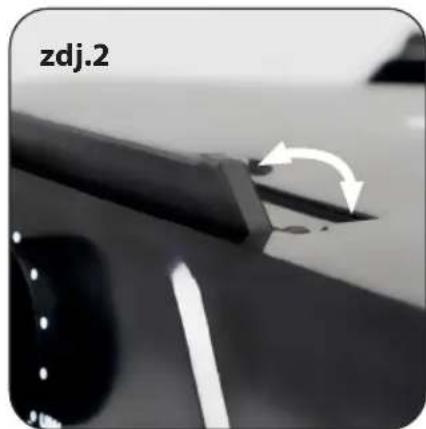

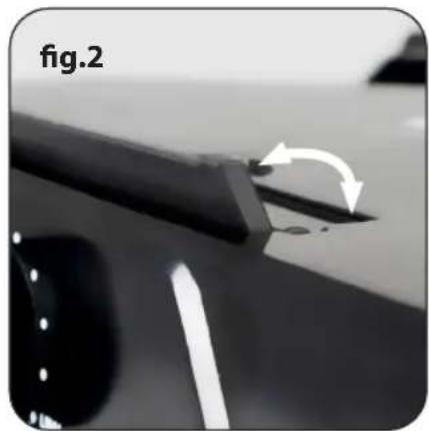

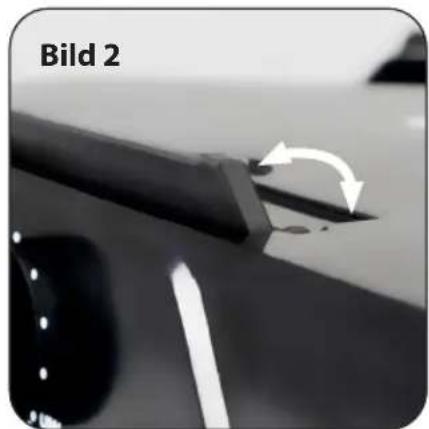

- If the products for grilling contain a large amount of fat you can lift the device by its moveable feet - fig. 2.

- Connect the device to a power supply. A red control lamp (5) will come on.

- Set the temperature using the thermostat (3). A green control lamp (4) is lit when the device is heating up, and it turns off, when the device reaches the desired temperature.

- Open the cover (1) holding it by the holder (2). Place the products and gently close the cover (1). Do not push the cover (1) down, as you may crush the products, and do not block it during operation (6). The cover (1) will automatically adjust to the thickness of the products.

- The green control lamp turns on and off during frying. The thermostat maintains a proper temperature.

- Remove the products when they are done frying. In order not to damage the heating plates, use wooden or plastic, heat-resistant utensils.

- During the preparation of new portions of products, close the cover (1) in order to maintain the temperature.

- Empty the container (9) regularly.

- After the full completion of roasting, disconnect the device from the power supply.

HORIZONTAL GRILL

- Set the device on a flat, stable and heat-resistant surface.

- Push the lock button (7) and open the top cover holding it by the holder (2).

WARNING

Opening the top cover is only allowed when the device is cold. Otherwise, there is a risk of burns. Route the power cord in such a way that it does not come into contact with the top cover.

• Connect the device to a power supply. A red control lamp (5) will come on.
• Set the temperature using the thermostat (3). A green control lamp (4) is lit when the device is heating up, and it turns off, when the device reaches the desired temperature.
• Place the products on the plates and grill turning them once in a while.
• The green control lamp turns on and off during frying. The thermostat maintains a proper temperature.
• Remove the products when they are done frying. In order not to damage the heating plates, use wooden or plastic, heat-resistant utensils.
• Empty the container (9) regularly.
• After the full completion of roasting, disconnect the device from the power supply.

• CLEANING AND MAINTENANCE

• disconnect the appliance from the mains and let it cool down before cleaning it,
• do not immerse any part of the appliance in water or other liquids
• first, rub the cooking plates with paper towels in order to remove grease,
• then, clean the appliance and the cord gently with a wet cloth
• do not use cleaning agents and dissolvents,
• in case of residue which is difficult to be removed, do not use sharp tools as they can destroy coatings on the plates of the appliance. The best way to remove dirt is to cover them with a wet cloth to dissolve the residue,
• clean and empty the tray (9) regularly. The tray can be taken out and washed in warm water with some washing liquid.

ENVIRONMENTAL PROTECTION

• the device is made of materials which can be reused or recycled,
• the device should be handled to a special point which deals with collecting and recycling of electric and electronic equipment

WARRANTY

• this appliance is designed for domestic use only,
• it cannot be used for professional purposes or for other than the intended use,
• improper use will nullify the guarantee.
