Product Type	Coffee Grinder
Brand	Eldom
Model	COFFEA MK150
Dimensions (HxWxD)	20 x 12 x 12 cm
Weight	0.5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	150 W
Capacity	50 g (coffee beans)
Grinding Mechanism	Stainless steel blades
Bowl Material	Stainless steel
Lid Material	Transparent plastic
Housing Material	Plastic
Operating Time	Up to 30 seconds continuous
Functions	Grind, Pulse
Cord Length	0.8 m
Cleaning	Wipe with damp cloth; bowl detachable
Safety Features	Overload protection, non-slip feet
Accessories Included	Cleaning brush
Warranty	2 years
Country of Origin	China

Frequently Asked Questions - COFFEA MK150 Eldom

What is the capacity of the Eldom COFFEA MK150 coffee grinder?

The grinder can hold up to 50 grams of coffee beans at a time.

Can I grind other ingredients like spices or nuts?

It is designed primarily for coffee beans. Grinding hard spices or nuts may damage the blades and void the warranty.

How do I clean the grinder?

Unplug the device. Wipe the housing with a damp cloth. The stainless steel bowl can be removed and washed with mild soap. Do not immerse the base in water. Use the included brush for fine coffee residue.

What is the maximum operating time?

Do not run the grinder continuously for more than 30 seconds. Let it cool for a few minutes between uses to prevent overheating.

Is it safe to use if I have children around?

Keep the grinder out of reach of children. The blades are sharp, and the device should only be operated by adults. Always unplug after use.

Can I adjust the grind coarseness?

The grind coarseness is controlled by the grinding time; longer pulses produce finer grind. There is no separate adjustment setting.

What type of power outlet does it need?

It operates on 220-240 V, 50/60 Hz. Use a compatible grounded outlet.

Does it come with a warranty?

Yes, the COFFEA MK150 comes with a 2-year warranty covering manufacturing defects.

Can I use it for grinding espresso beans?

Yes, it can grind espresso beans, but for fine espresso grind you may need to pulse several times to achieve desired consistency.

What is the noise level?

Typical noise level is around 75-85 dB, similar to a standard electric blender.

USER MANUAL COFFEA MK150 Eldom

Exterior view of a modern black and silver food blender with no visible text or symbols on its body.

ELEKTRYCZNY MŁYNEK DO KAWY • ELECTRICAL BURR GRINDER • ELEKTRICKÝ KÁVOMLÝNEK • ELEKTRISCHE KAFFEEMÜHLE • ЭЛЕКТРИЧЕСКАЯ КОФЕМОЛКА • ELEKTRICKÝ ŽARNOVOVÝ MLYNČEK • ELEKTROMOS KÁVÉDARÁLÓ • MOLINILLO ELÉCTRICO CON MUELAS

WSKAZANIA BEZPIECZEŃSTWA

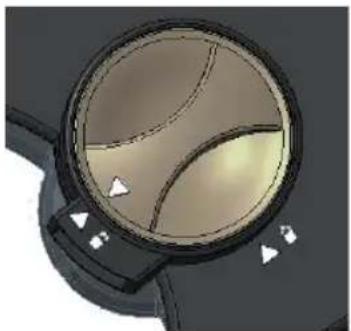

Illustration of a circular mechanical component with internal curved lines and triangular features (no text or symbols)

rys.1

Please read these instructions carefully before use.

1. Connect the coffee grinder only to a suitably earthed socket compatible with the parameters indicated in the instructions.
2. Do not touch any moving parts.
3. Do not use outdoors.
4. Never put your fingers or any objects in the container (2).
5. Do not use the device if the abrasive surfaces are damaged.
6. Do not exceed the continuous working time of the device (60 seconds).
7. Do not exceed the total working time, i.e. 2 cycles (1 cycle = 60s).
8. This appliance is for grind coffee beans only. Grind only coffee beans, otherwise you will damage the grinder and lose your warranty.
9. To disconnect the unit from the power supply never pull the cord, use the plug.
10. Unplug coffee grinder from outlet when not in use and before cleaning.
11. Home use only. Do not use for industrial purposes.
12. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
13. Never use the if the supply cord is damaged. If found damaged in any way, consult the producer's authorized

service centre. The list of service centres is to be found in the appendix and on www.eldom.eu.

1. Refer servicing to an authorized service centre. Modifying the appliance or using spare parts or elements other than the original ones is forbidden and can expose the user to hazard.

2. Eldom Sp. z o. o. shall waive any liability for any damages resulting from user's operating the device improperly.

EN

INSTRUCTION MANUAL ELECTRICAL BURR GRINDER MK150

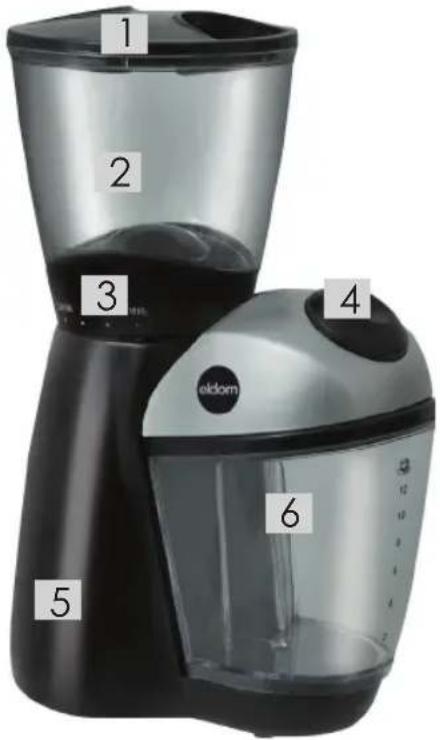

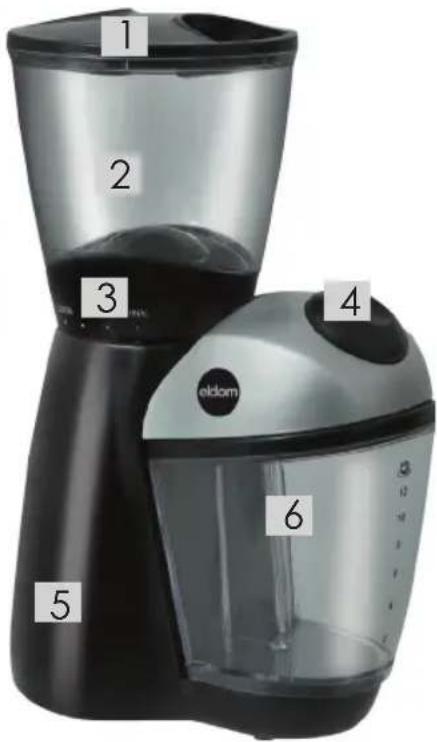

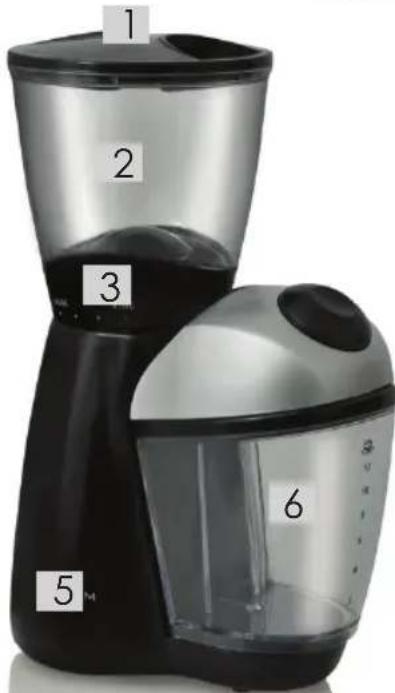

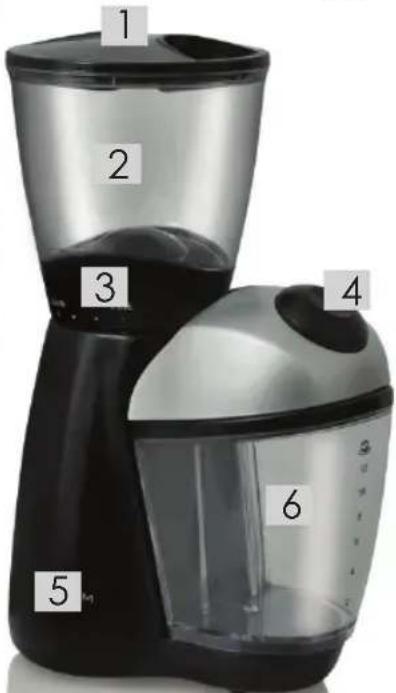

GENERAL DESCRIPTION

1. Cover of the coffee beans container
2. Coffee beans container
3. Grind scale
4. ON/OFF button
5. Housing
6. Ground coffee container
7. Cover of the ground coffee container
8. Knob
9. Intake hole

TECHNICAL DATA

• Power: 100 W
• Volume: 90g
• Total working time: 2 cycles, 60 s each, with a 60 s pause before starting the second cycle.
• Supply voltage: 230V \~ 50Hz

Close-up of a circular mechanical component with internal curved lines and triangular features (no text or symbols visible)

rys.1

INTENDED USE OF THE ELECTRIC BURR GRINDER

The burr grinder MK150 is intended for grinding coffee beans. The stainless steel grinding mechanism allows the user to adjust the fineness of the grind. You can enjoy aromatic coffee grind suitable both for espresso machines and as Turkish coffee.

USE

Before using the machine for the first time, please carefully read this manual. After unboxing the device, make sure it has not been damaged while transported. If in doubt, please refrain from using the device until you consult the service centre.

- Wash the containers (2) and (6) and the covers (1) and (7) (see: CLEANING AND MAINTENANCE);

- Put the device on a flat and stable surface;

- Mount the container (2) onto the housing (5) and turn it clockwise until a click sound is heard;

- Open the intake hole (9) on the cover (7) by turning the knob (8) clockwise;

- Mount the cover (7) onto the container (6) and insert it into the housing (5);

- Adjust the desired fineness of your grind by twisting the container (2). The scale (3) shows grind fineness grades:

COARSE,

MIDDLE

FINE

Twist the container until the desired grade corresponds to the index on the housing (5);

• Grind fineness should be always adjusted before you put coffee beans in the device;
• Put coffee beans in the container. The amount of coffee beans must not exceed the MAX index;
• Mount the cover (1);
• Plug the device to the grid with parameters as mentioned in this manual;
• Press the ON/OFF button (4) to grind the beans. Do not use the device for more than 60 seconds to prevent its engine from overheating. Wait at least 1 minute before using the device again. The total operation time must not exceed 2 cycles, each lasting 60s. Following the two cycles, let the engine cool off for a long enough period, i.e. about 10 minutes;
• After the coffee has been ground, wait until the abrasive surfaces come to a halt and then remove the container (6) and open the cover (7). The device is fitted with two safety features preventing the device from starting if the containers (2) and (6) are not mounted properly. Please adhere to the continuous working time of the device. Exceeding the working time or the lack of required working pauses might irreversibly damage the engine. A thermal safety feature will be activated in the case the engine starts to overheat and the grinder will turn off automatically. In that case, you can turn on the device only after the engine has cooled off. Do not put your fingers or any objects in the container (2).

USEFUL TIPS

• It is recommended to grind an exact amount of coffee needed at any given moment;
• If you prepare the grind for an espresso machine, please follow recommendations from the manufacturer of the espresso machine;
• You can store the unused grind in the container (6). You can close the hole (9) on the cover (7) by turning the knob (8) counter-clockwise;
• Before using the device, please make sure that the hole (9) on the cover (7) is open; otherwise, the device will work improperly;
• Fineness of the grind should be adjusted before you put the beans in the machine. If you want to readjust the fineness after the beans have been put in the device, you can do it only while the engine is operating. In the event that the abrasive surfaces of the machine get blocked, unplug the burr grinder, empty the container (2), unscrew it and clean the abrasive surfaces (see: CLEANING AND MAINTENANCE).

CLEANING AND MAINTENANCE

Do not clean the device with any abrasive substances, washing powders, acetone, alcohol etc. The abrasive surfaces of the burr grinder are not suitable for cleaning with a dishwasher.

• Unplug the device;
• Remove the container (6) from the housing (5);

• Remove the cover (1) from the container (2);

• Remove the unground coffee beans from the container (2);

• Disassemble the container (2) by twisting it counter-clockwise;
• Clean the abrasive surfaces located in the upper section of the housing (5) with a soft brush. Watch out for the sharp edges of the abrasive surfaces;
• Use a brush in cleaning the containers (2) and (6) and the covers (1) and (7) in warm water including an addition of a washing liquid and then rinse them under a stream of tap water;
• Be extremely cautious while cleaning the abrasive surfaces situated in the lower section of the container (2). The edges of abrasive surfaces are sharp and it is recommended to clean them with a soft brush;
• Dry the abrasive surfaces after cleaning;
• Before putting all elements together, make sure they are dry. Clean the housing of the device with a damp cloth. Never plunge the housing in water or rinse it under a stream of running water.

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be recovered or recycled
• the appliance should be handed over to the appropriate centre of collection and recycling of electrical and electronic equipment

DOPORUČENÍ BEZPEČNOSTI

Close-up of a circular mechanical component with internal curved surfaces and mounting points (no text or symbols visible)

rys.1

URČENÍ ELEKTRICKÉHO MLÝNKU S MLECÍMI KAMENY

Illustration of a circular mechanical component with internal curved lines and triangular features (no text or symbols)

rys.1

Illustration of a magnifying glass with curved glass blades and control buttons (no text or symbols)

rys.1

Close-up of a circular mechanical component with internal curved lines and triangular features (no text or symbols visible)

rys.1

URČENIE ELEKTRICKÉHO ŽARNOVOVÉHO MLYNČEKA

Illustration of a circular object with internal curved lines and directional arrows, no text or symbols present.

rys.1

A KÉSZÜLÉK HASZNÁLATA

Close-up of a circular mechanical component with internal curved lines and directional arrows, labeled 'rys.1' at bottom (no readable text or symbols)

DESCRIPCIÓN GENERAL
