MILL MK160 - Coffee grinder Eldom - Free user manual and instructions

Product Type	Burr Coffee Grinder
Brand	Eldom
Model	MILL MK160
Power Consumption	140 W
Supply Voltage	220-240 V ~ 50 Hz
Bean Hopper Capacity	100 g
Ground Coffee Capacity	2-12 cups adjustable
Grind Adjustment	Continuous (espresso to Turkish coffee)
Grind Amount Setting	2-12 cups
Safety Protection	Microswitch start-up protection
Housing Material	Plastic
Burr Material	Stainless steel
Cleaning Method	Hand wash; do not immerse body; use damp cloth
Dishwasher Safe	No (parts not dishwasher safe)
Intended Use	Grinding coffee beans only
Usage	Household use only
Indicator Light	Yes (operation)

Frequently Asked Questions - MILL MK160 Eldom

Can I grind spices or nuts in this grinder?

No, this grinder is designed for coffee beans only. Grinding other items may damage the burrs and void the warranty.

How do I adjust the grind size?

Turn the grinding thickness adjustment knob (3) to select the desired fineness, suitable for espresso or Turkish coffee.

How do I set the amount of coffee to grind?

Use the coffee grinding amount adjustment knob (6) to set the number of cups from 2 to 12.

Why won't the grinder start?

Ensure both the bean hopper (2) and ground coffee hopper (11) are correctly fitted so that the microswitches (4, 5) are pressed. The grinder has start-up protection.

How do I clean the grinder?

Unplug the unit. Remove hoppers and covers. Wipe the inside of the bean hopper with a soft, damp cloth. Wash removable parts in warm water with mild detergent, then dry thoroughly. Do not immerse the body.

Can I wash parts in a dishwasher?

No, none of the parts are dishwasher safe. Hand wash only.

What is the maximum capacity of the bean hopper?

The bean hopper holds up to 100 g (do not exceed the MAX level).

How do I stop grinding mid-cycle?

Press the power switch (8) to stop the grinder immediately.

Can I use an extension cord?

Yes, provided the extension cord has compatible parameters and is arranged safely to avoid tripping hazards.

What if the burrs become blocked?

Unplug the grinder, empty the bean hopper, unscrew it, and clean the abrasive surfaces as described in the cleaning section. Do not use lubricants.

USER MANUAL MILL MK160 Eldom

Black and white photo of a modern kitchen grater with clear glass casing and control panel (no visible text or symbols)

Disposal of used electrical and electronic equipment (applies to the European Union countries and other European countries with separate waste collection systems).

The symbol on the product or its packaging indicates that the product should not be classified as household waste. It should be handed over to a collection point that deals with the collection and recycling of electrical and electronic devices. Correct disposal of the product prevents potential negative consequences for the environment and human health that could be caused by improper disposal of the product. Material recycling helps to preserve natural resources. For detailed information on recycling of this product, please contact your local authority, a cleaning service provider or a shop where the product has been bought.

/CZ/

rys.1

OCHRONA ŚRODOWISKA

Before first use, please carefully read the entire content of this manual;

1. Connect the coffee grinder only to a suitably earthed socket compatible with the parameters indicated in the instructions.

2. Do not touch any moving parts.

3. Do not use outdoors.

4. Never put your fingers or any objects in the container (2).

5. Do not use the device if the abrasive surfaces are damaged.

6. This appliance is for grind coffee beans only. Grind only coffee beans, otherwise you will damage the grinder and lose your warranty.

7. To disconnect the unit from the power supply never pull the cord, use the plug.

8. Unplug coffee grinder from outlet when not in use and before cleaning.

9. Home use only. Do not use for industrial purposes.

10. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

11. Never use the if the supply cord is damaged. If found damaged in any way, consult the producer's authorized service centre. The list of service centres is to be found in the appendix and on www.eldom.eu.

12. Refer servicing to an authorized service centre. Modifying the appliance or using spare parts or elements other than the original ones is forbidden and can expose the user to hazard.

13. Eldom Sp. z o. o. shall waive any liability for any damages resulting from user's operating the device improperly.

NOTE:

The length of the power cord is designed to reduce the risk of injury from entanglement or tripping over a longer cord.

If a longer cord is required, the device can be connected to an extension cord, provided that caution is exercised when using it.

If an extension cord is used:

1. its parameters should correspond to the equipment parameters indicated on the rating plate and in this manual,
2. it shall be arranged in such a manner that it does not lie in a place where children or pets could accidentally pull or trip over it.

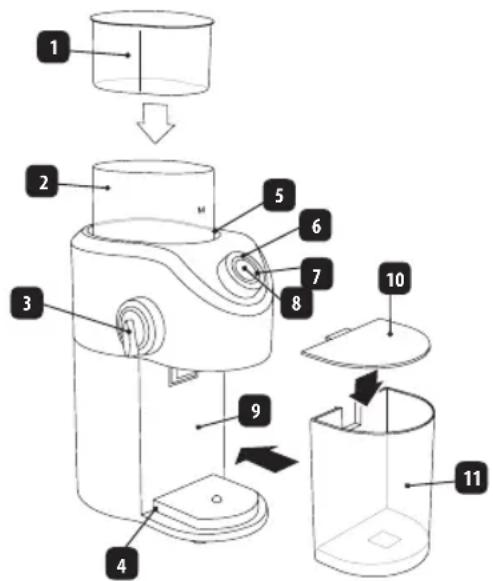

GENERAL INFORMATION

1 Bean hopper cover
2 Bean hopper
3 Coffee grinding thickness adjustment knob
4 Microswitch 1
5 Microswitch 2
6 Coffee grinding amount adjustment knob
7 Indicator light
8 Power switch
9 Housing
10 Ground coffee hopper cover
11 Ground coffee hopper

TECHNICAL DATA

Power: 140 W

Supply voltage: 220-240V \~ 50Hz

Volume: 100 g

INTENDED

The burr grinder MK160 is intended for grinding coffee beans. The grinding mechanism allows the user to adjust txə fineness of the grind. You can enjoy aromatic coffee grind suitable both for espresso machines and as Turkish coffee.

USE

Before using the machine for the first time, please carefully read this manual. After unboxing the device, make sure it has not been damaged while transported. If in doubt, please refrain from using the device until you consult the service centre.

NOTE:

Before using the device for the first time, thoroughly clean and dry any parts that come into contact with the coffee.

Before each use, check the hoppers (2, 11) for any undesirable objects or contaminants.

• Make sure that the device is disconnected from the power supply and switched off.
• Place the device on a flat and stable surface.
• Remove the cover (1) and pour the beans into the hopper (2) – do not exceed the MAX level marked on the hopper (2).
• Replace the cover (1) on the hopper (2) so that the microswitch (4) is pressed.
• Then insert the hopper (11) with the cover (10) in place into the body (9) so that the microswitch (5) is pressed.
• Set the grinding thickness using the knob (3).
• Set the amount of ground coffee using the knob (6). You can set the number of cups from 2 to 12.
• Connect the appliance to a main supply with the parameters specified in the manual.
• Press the power switch (8) to grind the coffee. When grinding the coffee, hold the cover (1) with your hand.
  • Óperation is indicated by the indicator light (7).
• The device will continue to operate until the amount of coffee specified using the knob (6) has been ground. Bean hopper. The coffee grinder can be stopped at any time by pressing the power switch (8).
  • After grinding the coffee, wait until the quern stops, slide out the hopper (11) and open the cover (10).

NOTE:

The device is equipped with start-up protection to prevent switching on without the hoppers being correctly fitted (2, 10).

- Switch off and disconnect the device from the mains after operation.

USEFUL TIPS

• It is recommended to grind an exact amount of coffee needed at any given moment;
• If you prepare the grind for an espresso machine, please follow recommendations from the manufacturer of the espresso machine;
• You can store the unused grind in the container
• In the event that the abrasive surfaces of the machine get blocked, unplug the burr grinder, empty the container (2), unscrew it and clean the abrasive surfaces (see: CLEANING AND MAINTENANCE).

CLEANING AND MAINTENANCE

• Do not use abrasives, cleaning powders, acetone, alcohol, etc. to clean the device.
• None of the parts of the grinder are suitable for washing in mechanical dishwashers.
• Never immerse the device body in water or wash under running water.
• Disconnect the device from the mains.
  • Pull the hopper (11) out of the body (9) and remove the cover (1) from the hopper (2).
• Remove the unground coffee beans from the hopper (2). Wipe the inside of the hopper (2) with a soft, damp cloth and then dry thoroughly.
• The hopper (11) and covers (1, 10) can be washed in warm water with a little bit of detergent using a toothbrush and rinsed under running water and then thoroughly dried.
• Clean the device body (9) using a damp cloth.
• All components must be dry before reassembly.
• Do not use any lubricants on the quern inside the hopper (2).

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be recovered or recycled
- the appliance should be handed over to the appropriate centre of collection and recycling of electrical and electronic equipment
