Product Type	Barcode Scanner
Model	303025
Brand	Aplic
Power Supply	DC 5V via USB
Scanning Modes	Manual, Automatic, Continuous
Resolution	Min. 0.1mm
Bluetooth Frequency / EIRP	2402-2480 MHz / -0.99 dBm
Laser Class	Class 1 (IEC 60825-1)
ESD Protection	15 kV air discharge
Shock Resistance	1m drop onto solid surface
Supported Barcodes	2of5 Datalogic, 2of5 Interleaved, 2of5 Industrial, CODABAR, Code93, Code11, Code39, Code128, EAN8, EAN13, EAN14, EAN128, ISBN, MSI, UCC-14, UPC-A, UPC-E, and more
Connectivity	Wired (USB via RJ45) and Bluetooth (HID/SPP)
Bluetooth Range	Up to 10m (typical)
Dimensions (approx.)	16.5 x 7.5 x 9.5 cm
Weight (approx.)	150 g
Battery Type	Rechargeable lithium-ion, 1200 mAh
Charging Time (approx.)	2-4 hours
Operating Time (approx.)	10-15 hours continuous scanning
Memory	Internal memory for inventory mode (stores scanned barcodes)
Indicators	Status LED, audible beeps
Material	ABS plastic
Accessories Included	Barcode scanner, RJ45 to USB cable, Bluetooth adapter, user manual
Cleaning	Wipe with a soft dry cloth; do not immerse in water
Safety Certifications	CE, WEEE, compliant with EU directive 2014/53/EU

Frequently Asked Questions - 303025 Aplic

How do I turn on the barcode scanner?

Press the Trigger button. The device will beep twice and the status LED will turn on.

How do I connect the scanner via Bluetooth to a Windows computer?

Insert the Bluetooth adapter into a USB port. Turn on the scanner and scan the 'scan and match' barcode or press the Trigger button for 10 seconds. Open Bluetooth settings, add a device, and select 'APLIC-303025' from the list.

How do I reset the scanner to factory settings?

Scan the 'Initialization Settings' barcode for Wired Mode or Bluetooth Mode as shown in the manual. This restores default settings.

Can I use the scanner without a Bluetooth connection?

Yes, you can use it in wired mode by connecting it via the RJ45 to USB cable to a USB port.

How do I change the sleep timeout?

First scan the 'Sleep Time' barcode, then scan the barcode for the desired duration (e.g., 5 minutes, 10 minutes, or no sleep).

How do I add a prefix or suffix to scanned barcodes?

Scan the 'Set to add prefix' or 'Set to add suffix' barcode, then scan the barcodes for the characters you want (up to 10). Finally, scan the 'TEST' barcode to verify.

How do I clean the barcode scanner?

Disconnect it from USB and wipe it carefully with a soft dry cloth. Do not immerse in water.

What should I do if the scanner does not read barcodes correctly?

Ensure the scanner is not held at a 90-degree angle to the barcode, the laser covers the entire barcode, and the barcode type is enabled in settings. Try resetting to factory defaults if issues persist.

How many barcodes can be stored in inventory mode?

The manual does not specify an exact number, but you can check the total using the 'Total Number of Data' barcode. It can store hundreds of barcodes.

Is the scanner safe for eyes?

Yes, it is a Class 1 laser product, which is safe under normal use. However, do not stare directly into the laser beam.

USER MANUAL 303025 Aplic

Abstract logo design featuring a blue lowercase 'a' and gray lettering 'aplic' (no text or symbols beyond the graphic elements)

User Manual

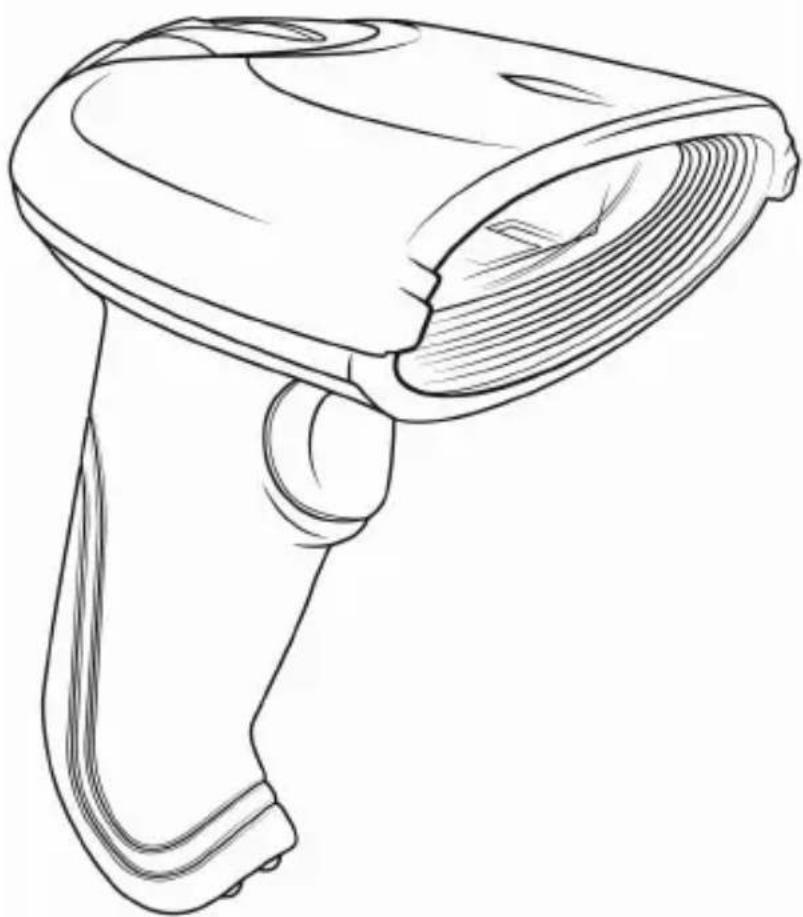

Line drawing of a handheld device with a pointed tip and handle (no text or symbols)

Barcodescanner

Initialization Settings (Wired Mode)
Initialization Settings (Bluetooth Mode)

Scan-Einstellungen

Total Number of Data

Clear Data (scan with caution)

Kabelgebundener Modus / Bluetooth Modus

Wired Mode

Bluetooth Mode

Sleep-Einstellungen

5 minutes 10 minutes

20 minutes

no sleep

Bluetooth-Modus

HID mode (default)

SPP mode

Auto continuous scan


Decode options reverse image-enable Decode options reverse image-disable

Code ID

Add ID code in front-enable

Add ID code behind-enable

Cancel ID Code

Exchange of Capital and Lower Case

Prefix / Suffix Einstellungen

Termination CHAR-CR

Cancel suffix CR

All codes add suffix ETX

All codes add prefix STX

All codes add leading CHAR - Disable

Set to add prefix

Clear all suffix CHARS

Set to add suffix

Clear all prefix CHARS

Hide the behind CHARS-disable

Set to hide behind CHARS

Hide the front CHARS-disable

Set to hide front CHARS

Barcode-Einstellungen

Code 11 /on Code 11/ off

Code 11

redundancy enable

Code 11 ID as 'u'

Code11 C verify

Code 11

Code 11

redundancy disable

Code11 auto CK verify

Code11 CK verify

Code 93

Code 93 /on Code 93 /off

Code 93 ID as "I"

Code 93

redundancy enable

Code 93 MOD47/on

Code 93

redundancy disable

Code 93 MOD47/off

Code 39

Code 39 on Code 39 off

Code 39 ID as "m"

Code 39 Full

ASCLL-or

Code 39 MOD43

verify Off

Code 39 transmit
verify ON

Code 39 Full

ASCLL-off

Code 39 MOD43
verify On

Code 39 transmit

verify ON

Code 39 transmit
CHARS On

Code 39 transmit

CHARS Off

Code 39
redundancy enable

Interleaved 25

Interleaved/ITF25-on

ITF25 redundancy enable

ITF25 ID as "n"

Interleaved/ITF25-off

ITF25
redundancy disable

Industrial 25/on

Industrial25
redundancy enable

Industrial 25

Industrial 25 ID as "o"

Industrial 25/off

Industrial25
redundancy disable

Matrix 25

Matrix 25 on

Postage Code 25 on

Aviation 25 off

Postage Code 25 ID as "r"

Matrix 25 off

Postage Code 25 off

Aviation 25 on

Aviation 25 ID as "p"

Matrix 25 ID as "q"

UPC-E

UPC-E/on UPC-E/off

Convert UPC-E into UPC-A enable

ID Character 'f
Convert UPC-E into UPC-A disable

EAN-13

EAN-13/on EAN-13/off

Convert EAN-13 into ISBN disable

Convert EAN-13 into ISBN enable

Transmit EAN13 check code enable

Transmit EAN13 check code disable

Convert EAN13 into ISSN enable

Convert EAN13 into ISSN disable

EAN13
redundancy enable

EAN13 redundancy disable

ID Character 'd'

EAN-8

UPC/EAN additional code

GS1

hide the front characters

Hide the behind characters

Thank you for choosing an aplic product. Please read the following user manual carefully so that you can enjoy your purchased product for a long time.

1 Scope of supply

• Barcodescanner
  • RJ45 to USB connection cable
• User manual

2 Technical data

Power supply DC 5V (via USB)
Scanning modes	Manual scanningAutomatic scanningContinuous scanning
Resolution	min. 0,1mm
Frequency range / EIRP	2402-2480MHz / -0.99dBm
Laser class	Class 1 laser safety regulations
ESD protection	15kV air discharge
Shock resistance	Falling height from 1m onto solid surface
2of5 Datalogic, 2of5 Interleaved, 2of5 Industrial, CODABAR, Code93, Code11, Code39, Code128, EAN8, EAN13, EAN14, EAN128, ISBN, MSI, UCC-14, UPC-A, UPC-E etc.

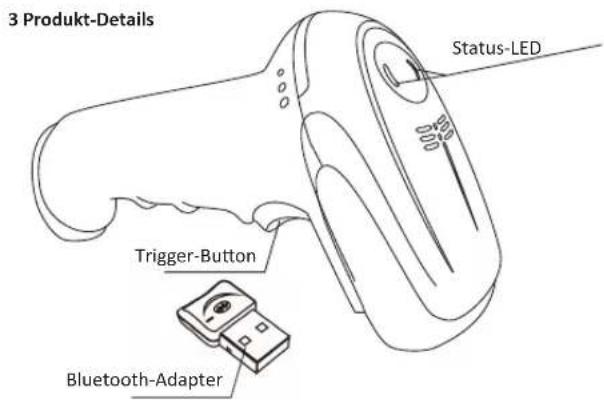

4 Setting up

Take the device and the accessories out of the package and remove all packaging material. First, charge the device completely by connecting the RJ45 to USB cable via the RJ45 port to the barcode scanner and the supplied charger. Press the "Trigger" button to turn on the device. The signal tone will beep twice and the status LED is switched on. Press the "Trigger" button for 5 seconds to switch off the device.

Note on code 39 and code 32: If you want to scan either "Code39" or "Code32", we advise you to disable the other code first. Otherwise it is difficult to rule out faulty scans!

5 Establishing a Bluetooth connection

Press the "Trigger" button for 10 seconds or scan the next barcode to activate the pairing mode.

scan and match

Android / iOS

Ensure that the pairing mode of the barcode scanner is enabled. If this is not the case, please turn on the pairing mode. Then open the Bluetooth settings on your Android or iOS device and start the Bluetooth scanning. Then establish connection with the barcode scanner.

Windows

Ensure that the pairing mode of the barcode scanner is enabled. If this is not the case, please turn on the pairing mode. Insert the Bluetooth adapter into a USB port on your computer. Open the Bluetooth settings and add a device. Turn the scanner on and scan the barcode "scan and match", or press and hold the "Trigger" button for 10 seconds. The status LED flashes quickly and the pairing mode is activated. Now press the "Add Bluetooth or other device" and then press "Bluetooth". In the following window, you will see all the Bluetooth devices that are currently within range. Connect with "APLIC-303025". The barcode scanner can now be used on your computer.

5 Scanning angle

To ensure correct scanning, make sure that the scanner is not held at a 90^ angle to the barcode. The scanner has to be pointed towards the barcode and the laser should cover the entire barcode. If this is not the case, errors might occur.

6 Advanced settings

You can use the advanced settings for additional settings such as enabling or disabling certain types of code. Scan the following barcodes to configure the scanner.

Note:

The Bluetooth barcode scanner is delivered with factory default settings. The device can be used straight away. Please do not scan any barcodes from the user manual to test the scanner. If you scanned an incorrect setup barcode, or there are unexpected errors, please scan the following barcodes to return the barcode scanner back to the factory settings.

Initialization Settings (Wired Mode)

Initialization Settings (Bluetooth Mode)

Scanner settings

The barcode scanner has a Normal mode and an Inventory mode. - The regular Normal mode transfers the read barcode to another device in realtime, e.g., a computer, notebook or tablet.
- In the Inventory mode, you can use the internal memory of the barcode scanner. The barcode scanner saves the read barcodes.
- "Upload data": You can read the saved barcodes with this barcode. They are displayed on your computer, notebook or tablet.
- "Total Number of Data": With this barcode, you can see how many barcodes are currently stored in the scanner.

- Clear Data": All the saved codes which have been saved with the "Inventory mode" can be deleted from the memory with this barcode.

Normal Mode

Inventory Mode

Upload Data

Total Number of Data

Clear Data (scan with caution)

Wired Mode/Bluetooth Mode

Wired Mode

Bluetooth Mode

Sleep settings

First scan the "Sleep Time" barcode and then the barcode with the desired duration.

Sleep Time

20 seconds

30 seconds

60 seconds

2 minutes

5 minutes 10 minutes

20 minutes

no sleep

Bluetooth mode

HID mode (default)

SPP mode

Language selection (Bluetooth module)

America Germany (default)

France

Bluetooth transfer speed

Low Speed

High Speed (default)

Switching off/Version information

Shutdown

Default value

Software Version

Hardware Version

Reading modes

Single scan

Auto continuous scan


Decode options reverse image-enable Decode options reverse image-disable

Code ID

Add ID code in front-enable

Add ID code behind-enable

Cancel ID Code

Language selection (Wired Mode Setting only)

America

Germany

France

Uppercase or lowercase

Capital Lower case

Exchange of Capital and Lower Case

Reset

Prefix / Suffix Einstellungen

Termination CHAR-CR

Cancel suffix CR

All codes add suffix ETX

All codes add prefix STX

All codes add leading CHAR - Disable

Set to add prefix

Clear all suffix CHARS

Set to add suffix

Clear all prefix CHARS

Hide the behind CHARS-disable

Set to hide behind CHARS

Hide the front CHARS-disable

Set to hide front CHARS

Barcode-Einstellungen
Code 11

Code 11 /on Code 11/ off

Code 11 redundancy enable

Code 11 ID as 'u'

Code11 C verify

Code11 CK verify

Code 93

Code 93 /on Code 93 /off

Code 93 ID as "I"

Code 93 ndancy enable

Code 93 MOD47/on

Code 93 redundancy disable

Code 93 MOD47/off

Code 39

Code 39 on Code 39 off

Code 39 ID as "m"

Code 39 Full ASCLL-on

Code 39 MOD43 verify Off

Code 39 transmit verify ON

Code 39 transmit CHARS On

Code 39 Full ASCLL-off

Code 39 MOD43 verify On

Code 39 transmit CHARS Off

Code 39 redundancy enable

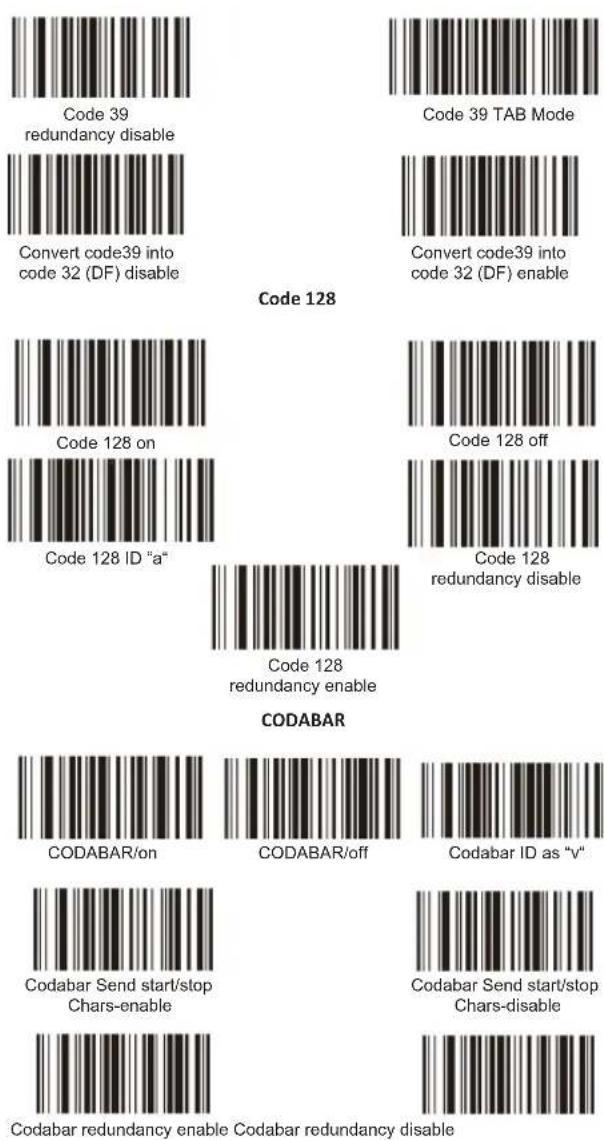

Code 39

redundancy disable

Convert code39 into code 32 (DF) disable
Code 128

Code 39 TAB Mode

Convert code39 into code 32 (DF) enable

Code 128 on

Code 128 ID "a"

Code 128
redundancy enable
CODABAR

CODABAR/on

CODABAR/off

Codabar ID as "v"

Codabar Send start/stop Chars-enable

Codabar Send start/stop Chars-disable

Codabar redundancy enable Codabar redundancy disable

Interleaved/ITF25-on

ITF25 redundancy enable

Interleaved 25

ITF25 ID as "n"

Interleaved/ITF25-off

ITF25 redundancy disable

Industrial 25/on

Industrial25
redundancy enable

Industrial 25

Industrial 25 ID as "o"

Industrial 25/off

Industrial25
redundancy disable

Matrix 25 on

Postage Code 25 on

Aviation 25 off

Postage Code 25 ID as "r"

Matrix 25

Matrix 25 off

Postage Code 25 off

Aviation 25 on

Aviation 25 ID as "p"

Matrix 25 ID as "q"

UPC-E

UPC-E/on UPC-E/off

Convert UPC-E into UPC-A disable

Convert UPC-E into UPC-A enable

ID Character 'f'

EAN-13

EAN-13/on EAN-13/off

Convert EAN-13 into ISBN disable

Convert EAN-13 into ISBN enable

Transmit EAN13 check code disable

Transmit EAN13 check code enable

Convert EAN13 into ISSN enable

Convert EAN13 into ISSN disable

EAN13 redundancy enable

EAN13 redundancy disable

ID Character 'd'

6.1 Adding a prefix

Proceed as follows to add a prefix: Scan the following code. This step results in the previous settings being reset at this point.

Then scan the barcodes of the desired characters (maximum 10 characters). For example, to configure a prefix with the letters "MG", you have to scan the character "M" and "G" one after the other.

If you scan a barcode now, the newly scanned code is displayed before the barcode. Scan the following "TEST" barcode to check whether the prefix setting has been accepted.

The barcode scanner displays "MGTEST" after scanning the test barcode. If this is not the case, repeat the procedure.

6.2 Adding a suffix

Proceed as follows to add a suffix:

Scan the following code. This step causes the previously configured settings to be reset at this point.

Then scan the barcodes of the desired characters (maximum 10 characters). To configure a suffix with the letters "OK", scan the characters "O" and "K" one after the other.

If you scan a barcode, the code just scanned is displayed after the barcode. Scan the following "TEST" barcode to check whether the suffix setting has been accepted.

If this is not the case, please repeat the procedure.

The barcode scanner displays "TESTOK" after scanning the test barcode.

If this is not the case, repeat the procedure.

6.3 Hiding the leading characters

Proceed as follows to hide the leading characters of a barcode: Scan the following code. This step results in the previous settings being reset at this point.

Hide the front characters

Scan the barcodes of the desired characters (maximum 10 characters). For example, to hide the first two characters, scan the following setting barcode "2".

If you now scan a barcode, the first two characters of the subsequently scanned barcodes will be hidden. Scan the following barcode as a test.

If you scan a barcode now, the newly scanned code is displayed as "3456789". If this is not the case, please repeat the procedure.

6.3 Hiding the trailing characters

Proceed as follows to hide the trailing characters of a barcode: Scan the following code. This step results in the previous settings being reset at this point.

Hide the behind characters

Then scan the barcodes of the desired characters (maximum 10 characters). For example, to hide the last three characters, scan the setting code "3".

If you now scan a barcode, the last two characters of the subsequently scanned barcodes will be hidden. Scan the following barcode as a test

If you subsequently scan a barcode, the newly scanned code is displayed as "987654". If this is not the case, repeat the procedure

7 Character table

The character table at the end of this user manual lists all the characters which can be configured with the barcode scanner, for example, as a suffix or prefix. Only the barcodes "0" to "9" are available for hiding the leading or trailing characters.

8 Cleaning and Maintenance

Before cleaning, ensure that the barcode scanner is not connected to any USB port. Use a soft dry cloth to clean and wipe the barcode scanner carefully. The device should never be immersed in water for cleaning!

9 Safety instructions and Disclaimer

Never try to open the device to carry out repairs or odifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures. Do not expose the device to sudden changes in temperature or heavy vibrations, as this could damage the electronic components. Check the device for damage before using it. The device should not be used if it has been subject to impact or has been damaged in some other manner. Please follow the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of reach of children or mentally disabled persons.

Any repair or modification to the device not carried out by the original supplier will void any warranty and guarantee claims. The device should be used only by persons who have read and understood this user manual. The specifications of the device may be changed without special prior notice.

10 Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not disposed of along with domestic waste. Their components have to be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol on the product, in the user manual or/and the packaging refers to these regulations. By sorting, recycling and disposing of used devices in this way, you make an important contribution towards protecting our environment.

11 Instructions on the disposal of batteries

With regard to the sale of batteries or the supply of devices containing batteries, the supplier is obliged to draw the customer's attention to the following:

As the end user, the customer has a statutory obligation to return used batteries. He can return old batteries stocked or previously stocked by the supplier in the form of new batteries to the supplier's despatch warehouse (despatch address) free of charge. The symbols shown on the batteries have the following meanings: Pb = battery contains more than 0.004 percent by mass of lead, Cd = battery contains more than 0.002 percent by mass of cadmium, Hg = battery contains more than 0.0005 percent by mass of quicksilver.

The symbol of the rubbish bin with a cross through it indicates that the battery may not be put in household waste.

WEEE Guideline: 2012/19/EU WEEE Register-No: DE 67896761

WD Plus GmbH, herewith declares that this product 303025/20191230F5014 conforms to the principle requirement of 2014/53/EU. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover, https://www.ganzeinfach.de

Character List

SOH	STX	ETX
EOT	ENQ	ACK
BEL	Backspace	TAB
Line feed	VT	FF
Enter	SO	SI
DLE	DC1	DC2
DC3	DC4	NAK
SYN	ETB	CAN
EM	SUB	ESC
FS	GS	RS
US	SPACE	!
"	#	$
%	&
(	)	*
+		-
	/	0
1	2	3
4	5	6
7	8	9
	;	<
=	>	?
@	A	B
C	D	E
F	G	H

	I	J	K
	L	M	N
	O	P	Q
	R	S	T
	U	V	W
	X	Y	Z
	[	\	]
		-	、
	a	b	c
	d	e	f
	g	h	l
	j	k	l

m	n	o
p	q	r
s	t	u
u	w	x
y	z	i
l	j	~
Delete	F1	F2
F3	F4	F5
F6	F7	F8
F9 F11	F10
F12 HOME	INSERT
Page up END	Delete

	Right arrow	Left arrowPage do
Down arrow	Up arrow

	Right arrow	Left arrowPage do
Down arrow	Up arrow

Notes

Notes

Notes

aplic

WD Plus GmbH
