Product Type	MIG/MAG Welding Machine (Shielding Gas Welding Set)
Brand	Einhell
Model	BT-GW 911 D
Power Supply	230 V / 400 V ~ 50 Hz (selectable via switch)
Welding Current Range	25 - 160 A (max. 190 A)
Duty Cycle (at 400 V)	10% (160 A), 15% (130 A), 25% (100 A), 35% (85 A), 60% (65 A), 100% (25 A)
Duty Cycle (at 230 V)	15% (115 A), 25% (90 A), 35% (70 A), 60% (60 A), 100% (40 A)
Rated Idling Voltage	41 V
Welding Wire Diameter	0.6 mm, 0.8 mm, 1.0 mm
Max. Wire Spool Capacity	5 kg
Shielding Gas	CO₂ or Argon/CO₂ mixture
Weight	36.3 kg
Fuse Rating	16 A (mains)
Protection Class	IP 21
Safety Features	Thermal overload protection (thermostat indicator)
Included Accessories	Welding screen (with safety glass), gas hose, pressure reducer, 3 contact pipes, adapter cable (230V), safety chain
Mains Connection	CeCon plug (400V) with adapter cable for 230V
Duty Cycle Based On	Ambient temperature of 40°C

Frequently Asked Questions - BT-GW 911 D EINHELL

What type of welding can I perform with the Einhell BT-GW 911 D?

The BT-GW 911 D is a MIG/MAG welding machine designed for welding steel using the MAG (Metal Active Gas) method with appropriate welding wires and shielding gases like CO₂ or Argon/CO₂.

How do I connect the gas bottle?

Secure the gas bottle on the support surface using the safety chain. Attach the pressure reducer to the bottle valve, then connect the shielding gas hose from the reducer to the gas supply connector on the welder using hose clips. Check for leaks with leak spray or soap suds. Only use bottles up to 20 liters on the machine; larger bottles must be placed next to the unit and secured.

What welding wire sizes can I use?

The machine supports welding wire diameters of 0.6 mm, 0.8 mm, and 1.0 mm. Ensure the feed roller and contact tube match the wire diameter. The feed roller has two grooves; turn it over if needed.

How do I set the wire feed speed?

The wire feed speed is automatically adjusted based on the current setting, but can be fine-tuned using the welding wire speed controller (item 29). Start at level 5 (middle) and adjust according to material thickness, penetration, and gap size.

How do I set the gas flow rate?

First release the pressure roller spring to prevent wire wear. Set the ON/OFF switch to position 1 and press the burner switch to start gas flow. Adjust the rotary knob on the pressure reducer: turn clockwise for higher flow, counter-clockwise for lower. Recommended flow: 5-15 l/min in draft-free rooms. Read the flow rate on the pressure gauge.

What should I do if the thermostat control lamp lights up?

The thermostat indicates the welder has overheated due to prolonged use or ignoring duty cycle limits. Turn off the machine and let it cool for 20-30 minutes before resuming work.

How do I change the welding wire spool?

Open the housing cover, place the wire spool on the holder ensuring the spool lock engages the cam pin in the spool opening. Thread the wire through the guide tube, between pressure and feed rollers, and into the hose package. Adjust the counter-pressure screw so the wire is held firmly but not crushed. Replace the contact tube and gas nozzle appropriately.

Why is my feed roller turning but not feeding wire?

Check roller pressure (adjust counter-pressure screw), ensure roller brake is not too tight, clean or replace dirty/damaged feed roller, inspect hose package for damage, and verify the contact tube is the correct size and clean. Also check if welding wire is welded to the gas nozzle or contact tube.

Can I use the welder in a residential area?

This equipment is Class A (EN 60974-10) and may cause interference on public low-voltage systems. In residential areas, use an electromagnetic filter. In industrial areas, no filter is needed. Ensure the supply impedance is ≤0.2 Ohm or the mains continuous current capacity is at least 100 A per phase.

How do I clean and maintain the welding machine?

Always unplug before cleaning. Keep vents and motor housing free of dust. Wipe with a damp cloth and mild soap; do not use solvents. No internal parts require maintenance. Order replacement parts by providing the machine type, article number, identification number, and part number from www.isc-gmbh.info.

USER MANUAL BT-GW 911 D EINHELL

2

3

Collection of industrial equipment including a cable, hose, pressure gauge, wheels, and chain link (no text or symbols visible)

2

Four mechanical parts labeled a, b, c, d: a bolt, b washer, and a clamp (no text or symbols on parts)

Top-down view of a black electronic device chassis with four wheels and a perforated vent (no text or symbols visible)

Close-up of a hand using a wrench to press a metal component on a surface, with no visible text or symbols.

Black plastic mechanical component with labeled parts (s and q), no readable text or symbols beyond labels

Top-down view of a black plastic boat hull with visible structural ribs and mounting holes (no text or symbols)

Close-up of a hand using a tool to switch a mechanical component, labeled with 'K' and number '28' (no readable text beyond labels)

Close-up of a mechanical assembly with labeled component G (no readable text or symbols beyond label)

Close-up of a hand holding a small mechanical component with a ruler and wire, no visible text or symbols

Inhaltsverzeichnis:

1. Safety regulations
2. Layout and items supplied
3. Intended use
4. Technical data
5. Before starting the equipment
6. Operation
7. Cleaning, maintenance and ordering spare parts
8. Disposal and recycling
9. Troubleshooting
10. Key to symbols

GB

Danger!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

Please refer to the booklet included in delivery for the safety information.

Danger!

Read all the safety information and instructions. Failure to follow the safety information and instructions may result in an electric shock, fire and/or serious injury.

Keep all the safety information and instructions in a safe place for future use.

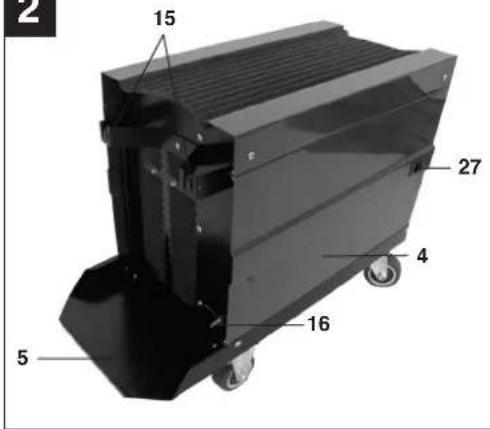

2. Layout and items supplied (Fig. 1-8)

1. Handle
2. Operating status indicator
3. Thermostat control lamp
4. Housing cover
5. Gas bottle support surface
6. Castors
7. Welding current switch
8. ON/OFF/Voltage selector switch
9. CeCon plug
10. Earth terminal
11. Hose package
12. Gas nozzle
13. Burner
14. Guide rollers
15. Chain hook
16. Gas supply connector
17. Welding screen
18. Shielding gas hose
19. Pressure reducer
20. Pressure gage (gas flow rate)
21. Screw connector
22. Safety valve
23. Shielding gas hose connector
24. Rotary knob
25. Burner switch
26. 3 x contact pipe

27. Handle for housing cover

28. Safety chain

29. Welding wire speed controller
30. Adapter cable
31. Pressure gage (bottle pressure)

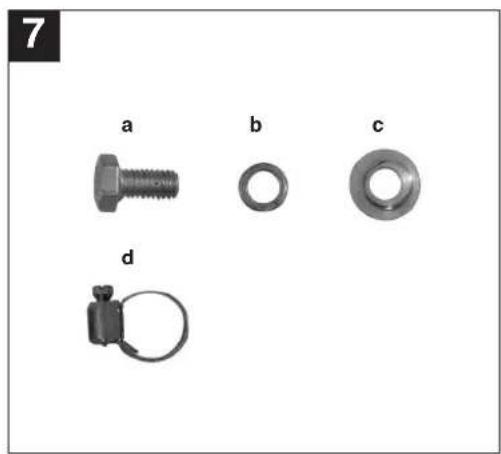

2.1 Assembly material

a. 16 x Screw for castors
b. 16 x Spring ring for castors
c. 16 x Washer for castors
d. 2 x Hose clip
k. 1 x Safety glass frame

I. 1 x Welding glass

m. 1 x Transparent safety glass

n. 2 x Safety glass retaining bushes

o. 3 x Nut for handle

p. 3 x Screws for handle

q. 2 x Safety glass retaining pin

r. 1 x Handle

s. 1 x Welding screen frame

2.2 Items supplied

●Open the packaging and take out the equipment with care.
- Remove the packaging material and any packaging and/or transportation braces (if available).
- Check to see if all items are supplied.
●Inspect the equipment and accessories for transport damage.
- If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

●Original operating instructions

●Safety instructions

3. Intended use

The shielding gas welding set is exclusively designed for welding steel with the MAG (Metal Active Gas) method using the appropriate welding wires and gases.

The machine is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

GB

Important information about the power connection

This equipment falls under Class A of the standard EN 60974-10, i.e. it is not designed for use in residential areas in which the power supply is based on a public low-voltage supply system because given unfavorable conditions in the power supply the equipment may cause interference. If you want to use the equipment in residential areas in the which the power supply is based on a public low-voltage supply system, you must use an electromagnetic filter which reduces the electromagnetic interference to the point where the user no longer notices any disturbance.

In industrial parks or other areas in which the power supply is not based on a public low-voltage supply system the equipment can be used without such a filter.

General safety information

It is the user's responsibility to install and use the equipment properly in accordance with the instructions issued by the manufacturer. If electromagnetic interference is noticed, it is the user's responsibility to eliminate said interference with the technical devices mentioned in the section "Important information about the power connection".

Reduction of emissions

Main current supply

The welder must be connected to the main current supply in accordance with the instructions issued by the manufacturer. If interference occurs, it may be necessary to introduce additional measures, e.g. fitting a filter to the main current supply (see above in the section "Important information about the power connection"). The welding cables should be kept as short as possible.

Pacemakers

Persons using an electronic life support device (e.g. a pacemaker) should consult their doctor before they go near electric sparking, cutting, burning or spot-welding equipment in order to be sure that the combination of magnetic fields and high electric currents does not affect their devices.

For commercial users the guarantee period is 12 months and for normal users 24 months, beginning from the date of purchase.

4. Technical data

Mains connection: 230 V/400 V \~ 50 Hz

Welding current: 25-160 A (max. 190 A)

Duty cycle X%: 10 15 25 35		60 100
Welding current I_2 (A):400 V: 160 130 100 85 65 /230 V: / 115 90 70 60 40 25
Rated idling voltage U_0 :					41
Max. welding wire drum:					5 kg
Welding wire diameter				0.6/0.8/1.0 mm
Fuse:					16 A
Weight:					36,3 kg

The welding times apply for an ambient temperature of 40^ C.

5. Before starting the equipment

5.1 Assembly (Fig. 5-21)

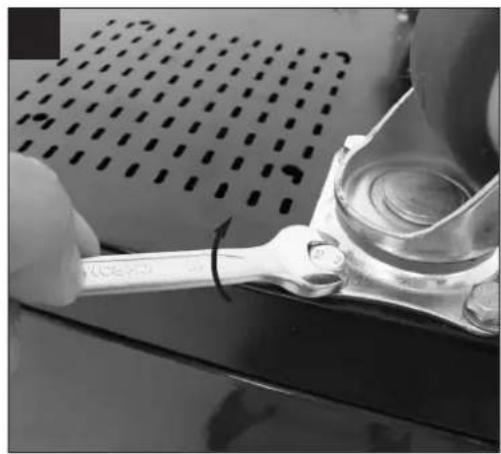

5.1.1 Installing the castors and guide rollers (6/14)

Install the castors (6) and guide rollers (14) as shown in Figures 7, 9, 10 and 11.

5.1.2 Fitting the welding screen (17)

• Place the welding glass (l) and the transparent safety glass (m) over it in the frame for the safety glass (k) (Fig. 12).
• Press the safety glass retaining pins (q) into the holes in welding screen frame (s) from the outside. (Fig. 13)
• Place the frame for the safety glass (k) with the welding glass (l) and transparent safety glass (m) from the inside into the recess in the welding frame (s), press the safety glass retaining bushes (n) on to the safety glass retaining pins (q) until they engage to secure the frame for the safety glass (k). The transparent safety glass (m) must be on the outside. (Fig. 14)
• Bend the top of the welding screen frame (s) inwards (Fig. 15/1) and fold down the top corners (Fig. 15/2). Now bend the outer sides of the welding screen frame (s) inwards (Fig. 15/3) and connect them by pressing the top corners and outer sides together. As the retaining pins engage, you should be able to hear to clear clicks on each side (Fig. 15/4).
• When the top corners of the welding screen are

GB

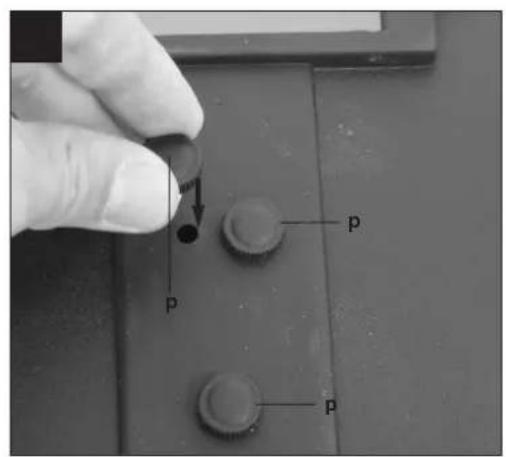

connected as shown in Figure 16, place the screws for the handle (p) from the outside through the three holes in the welding screen. (Fig. 17)

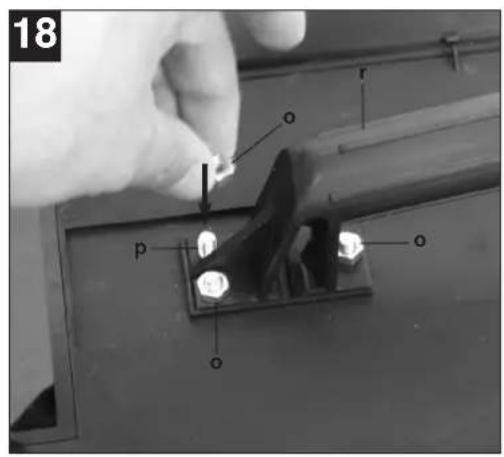

● Turn over the welding screen and place the handle (r) over the threads on the three screws for the handle (p). Secure the handle (r) to the welding screen the three nuts for the handle (o) (Fig. 18).

5.2 Gas connection (Fig. 4-6, 19-25)

5.2.1 Gas types

Gas shielding is required for welding with continuous wire, the composition of the shielding gas depends on the welding method you wish to use.

Shielding gas CO2 Argon/CO2
Metal to be welded
Non-alloyed steel X X

5.2.2 Fitting the gas bottle on the unit (Fig. 19-25) The gas bottle is not supplied.

Fit the gas bottle cables as shown in Figures 19 - 21. Ensure that the safety chain (28) is secure and that the welding set cannot tip over.

Important. Only gas bottles with a maximum capacity of 20 liters may be fitted on the gas bottle support area (Fig. 19/5). If you wish to use larger gas bottles, there is a risk that they will tip over and therefore they may only be placed next to the unit. In this case the gas bottle must be secured to prevent it tipping over.

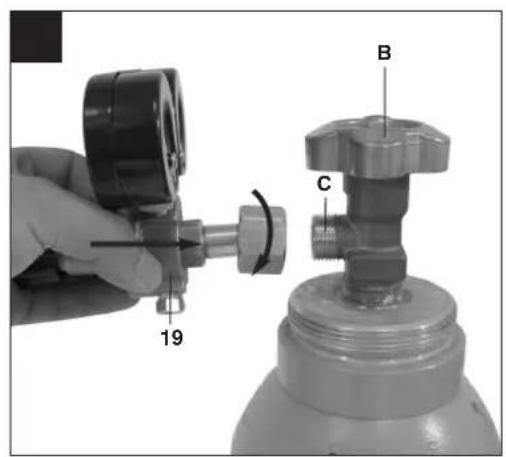

5.2.3 Connecting the gas bottle

After removing the protective cap (Fig. 22/A), open the bottle valve (Fig. 22/B) briefly, ensuring it is pointing away from your body. Clean any dirt off the connecting thread (Fig. 22/C) if necessary using a dry cloth without adding any cleaning products. Check whether there is a seal on the pressure reducer (19) and that it is in perfect condition. Turn the pressure reducer (19) clockwise on to the connection thread (Fig. 23/C) on the gas bottle (Fig. 23). Place the two hose clips (d) over the shielding gas hose (18). Connect the shielding gas hose (18) to the shielding gas hose connection (23) on the pressure reducer (19) and gas supply connector (16) on the welding set and secure it to both connectors using the hose clips (d). (Fig. 24-25) Important. Check all gas and other connection for leaks. Check the connections using leak spray or soap suds.

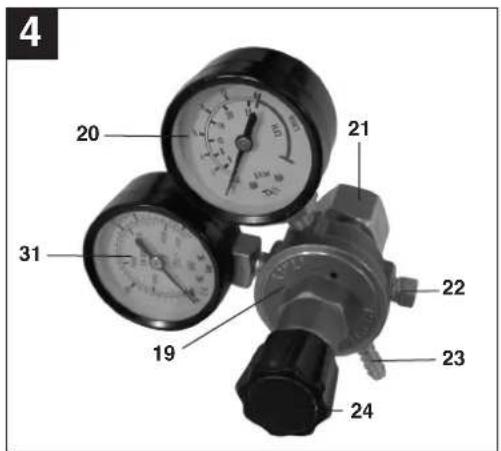

5.2.4 Information about the pressure reducer (Fig. 4/19)

The pressure gage (31) shows the bottle pressure in bar. The gas delivery rate can be adjusted using the rotary knob (24). The set gas delivery rate can be read off the pressure gage (20) in liters per minute (l/min). The gas is discharged at the shielding gas hose connector (23) and is then forwarded to the welding set through the shielding gas hose (Fig. 3/18). (see 5.2.3)

Important. Always proceed as described in point 6.1.3 for setting the gas delivery rate.

The pressure reducer is fitted on the gas bottle using the screw connector (21) (see 5.2.3).

Important. The pressure reducer may only be adjusted and repaired by trained personnel. Send defective pressure reducers to the service address if necessary.

5.3 Mains connection

Warning!

● Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.
● The equipment may only be operated from properly earthed and fused sockets.

Please read the following to prevent the risk of fire, an electric shock and personal injury:

● Never use the welding set with a rated voltage of 400 V if it is set to 230 V. Caution: Fire risk.
- Disconnect the welding set from the power supply before you adjust the mains voltage.
● Do not change the rated voltage whilst the welding set is operating.
● Before using the welding set, ensure that the rated voltage setting is identical to that from the power source.

Please note:

The welding unit is equipped with a 400 V \~ 16 A CeCon plug. Use the supplied adapter cable No. 30 to operate the welding unit with 230 V\~.

5.4 Fitting the wire spool (Fig. 1, 5, 6, 26 - 34)

The wire spool is not supplied.

GB

5.4.1 Wire types

Various welding wires are required for different applications. The welding set can be used with welding wires with a diameter of 0.6/0.8 and 1.0 mm. The appropriate feed rollers and contact tubes are supplied with the set. The feed roller, contact tube and wire cross-section must always match each other.

5.4.2 Wire spool capacity

Wire spools with a maximum weight of 5 kg can be fitted in the welding set.

5.4.3 Inserting the wire spool

• Open the housing cover (Fig. 2/4) by pushing the handle for the housing cover (Fig. 2/27) backwards and opening the housing cover (Fig. 2/4).
• Check that the windings on the spool do not overlap so as to ensure that the wire can be unwound evenly.

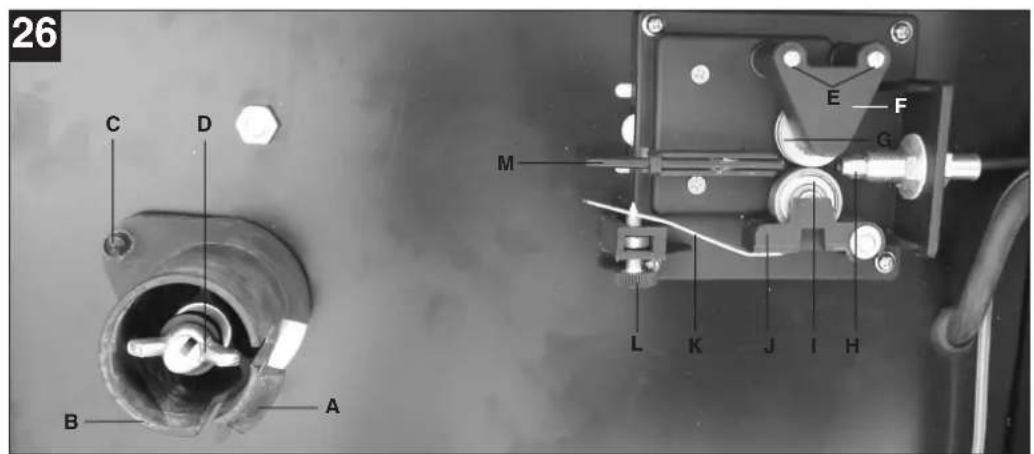

Description of the wire guide unit (Fig. 26-27)

A Spool lock
B Spool holder
C Cam pin
D Adjusting screw for roller brake
E Screws for feed roller holder
F Fee roller holder
G Feed roller
H Hose package mounting
1 Pressure roller
J Pressure roller holder
K Pressure roller spring
L Adjusting screw for counter-pressure
M Guide tube
N Wire spool
O Cam opening in wire spool

Inserting the wire spool (Fig. 26, 27)

Place the wire spool (N) on the spool holder (B). Ensure that the end of the welding wire is unwound on the side of the wire guide, see arrow. Ensure that the spool lock (A) is pushed in and the cam pin (C) is engaged in the cam opening in the wire spool (O). The spool lock (A) must engage again over the wire spool (N). (Fig. 27)

Inserting the welding wire and adjusting the wire guide (Fig. 28-34)

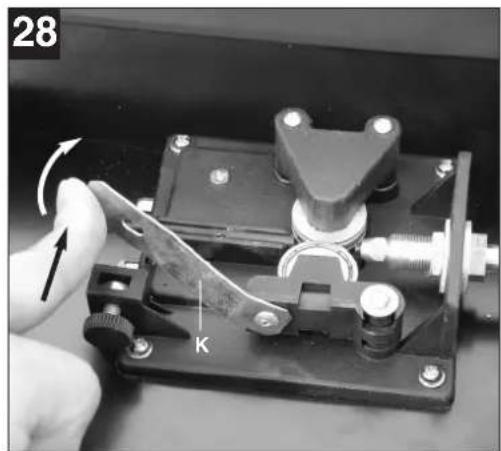

● Push the pressure roller spring (K) upwards and swing it forwards (Fig. 28).
- Pull the pressure roller holder (J) with the pressure roller (I) and pressure roller spring (K) downwards (Fig. 29).
● Undo the screws for the feed roller holder (E)

and pull off the feed roller holder (F) upwards (Fig. 30).

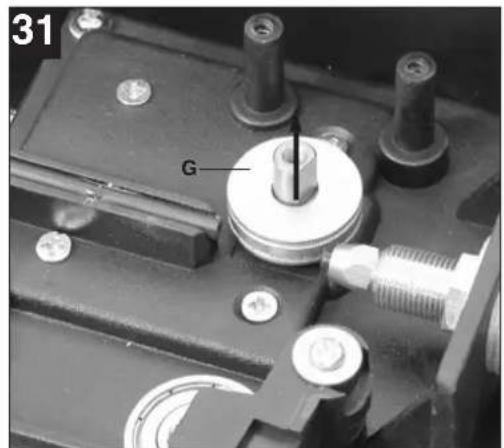

• Check the feed roller (G). The appropriate wire thickness must be specified on the top of the feed roller (G). The feed roller (G) is fitted with two guide grooves. Turn the feed roller (G) over if necessary or replace it. (Fig. 31)
• Position the feed roller holder (F) again and secure it.
• Remove the gas nozzle (Fig. 5/12) from the burner (Fig. 5/13) by turning it clockwise, unscrew the contact tube (Fig. 6/26). (Fig. 5 – 6). Place the hose package (Fig. 1/11) on the floor as straight as possible pointing away from the welding set.
  ● Cut off the first 10 cm of the welding wire to produce a straight cut with no shoulders, warping or dirt. Deburr the end of the welding wire.
• Push the welding wire through the guide tube (M) between the pressure and feed rollers (G/I) into the hose package mounting (H). (Fig. 32) Carefully push the welding wire by hand into the hose package until it projects out of the hose package by approx. 1 cm at the burner (Fig. 5/13).
• Undo the adjusting screw for counter-pressure (L) a few turns. (Fig. 34)
• Push the pressure roller holder (J) with pressure roller (I) and pressure roller spring (K) upwards again and attach the pressure roller spring (K) to the adjusting screw for counter-pressure (L) again (Fig. 33).
• Now set the adjusting screw for counter-pressure (L) so that the welding wire is positioned firmly between the pressure roller (I) and feed roller (G) without being crushed. (Fig. 34)
  ● Screw the appropriate contact tube (Fig. 6/26) for the welding wire diameter on to the burner (Fig. 5/13) and fit the gas nozzle, turning it clockwise (Fig. 5/12).
• Set the adjusting screw for the roller brake (D) so that the wire can still be moved and the roller stops automatically after the wire guide has been braked.

GB

6. Operation

6.1 Setting

Since the welding set must be set to suit the specific application, we recommend that the settings be made on the basis of a test weld.

6.1.1 Setting the welding current

The welding current can be set to 6 different levels using the welding current switch (Fig. 1/7). The required welding current depends on the material thickness, the required penetration depth and the welding wire diameter.

6.1.2 Setting the wire feed speed

The wire feed speed is automatically adjusted to the current setting. The final wire feed speed setting can be made on the welding wire speed controller (Fig. 1/29). We recommend that you start the setting work at level 5 which is the middle value, and then adjust it from there. The required quantity of wire depends on the material thickness, the penetration depth, the welding wire diameter and also of the size of the gap to be bridged between the workpieces you wish to weld.

6.1.3 Setting the gas delivery rate

The gas delivery rate can be infinitely adjusted on the pressure reducer (Fig. 4/19). It is shown on the pressure gage (Fig. 4/20) in liters per minute (l/min). Recommended gas delivery rate in rooms with no drafts: 5 – 15 l/min.

To set the gas flow rate, first release the clamp lever (Fig. 26/K) on the wire feed unit to prevent unnecessary wire wear (Fig. 5.4.3). Connecting to the mains (see point 5.3), set the ON/OFF/Welding current switch (Fig. 1/7;8) to setting 1; 230 V/400 V and press the burner switch (Fig. 5/25) to start the gas flow. Now set the required gas delivery rate on the pressure reducer (Fig. 4/19).

Turn the rotary knob (Fig. 4/24) counter-clockwise: Lower gas delivery rate

Turn the rotary knob (Fig. 4/24) clockwise: Higher gas delivery rate Secure the pressure roller spring (Fig. 26/K) to the wire feed unit again.

6.2 Electrical connection

6.2.1 Mains connection

See point 5.3

6.2.2 Connecting the earth terminal (Fig. 1/10)

Connect the welding set's earth terminal (10) in the immediate vicinity of the welding position if possible. Ensure that the contact point is bare metal.

6.3 Welding

When all the electrical connections for the power supply and welding current circuit have been made and the shielding gas has also been connected, you can proceed as follows:

The workpieces for welding must be clear of paint, metallic coatings, dirt, rust, grease and moisture in the area where they are to be welded.

Set the welding current, wire feed and gas flow rate (see 6.1.1 - 6.1.3) as required. Hold the welding screen (Fig. 3/17) in front of your face and move the gas nozzle to the point on the workpiece where you wish to complete the weld. Now press the burner switch (Fig. 5/25).

When the arc is burning, the welding set will feed wire into the weld pool. When the weld nugget is large enough, move the burner slowly along the required edge. Move it to and fro if necessary to enlarge the weld pool a little.

Find the ideal setting of the welding current, wire feed speed and gas delivery rate by carrying out a test weld. Ideally an even welding noise will be audible. The penetration depth should be as deep as possible, but the weld pool must not be allowed to fall through the workpiece.

6.4 Safety equipment

6.4.1 Thermostat

The welding set is fitted with an overheating guard that protects the welding transformer from overheating. If the overheating guard trips, the control lamp (3) on your set will be lit. Allow the welding set to cool for a time.

GB

7. Cleaning, maintenance and ordering of spare parts

Danger!

Always pull out the mains power plug before starting any cleaning work.

7.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  ●We recommend that you clean the device immediately each time you have finished using it.
  ●Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device.

7.2 Maintenance

There are no parts inside the equipment which require additional maintenance.

7.3 Ordering replacement parts

Please quote the following data when ordering replacement parts:

●Type of machine ●Article number of the machine
●Identification number of the machine
●Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

8. Disposal and recycling

The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system.

The unit and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

1. Troubleshooting

Fault Cause Remedy
Feed roller does not turn Power supply not connected	Wire feed controller set to 0	Check connectionCheck setting
Feed roller turns, but does not feed any wire	Incorrect roller pressure (see 5.4.3)Roller brake set too firmly (see 5.4.3)Dirty / damaged feed roller (see 5.4.3)Damaged hose packageContact tube wrong size / dirty / worn (see 5.4.3)Welding wire welded to the gas nozzle / contact tube	Check settingCheck settingClean or replaceCheck the wire guide jacketClean or replaceRelease
After a lengthy period of use the welding set does not work any longer, the thermostat (3) control light is lit	The welding set has overheated due to being used for too long and a failure to observe the reset time	Leave the set to cool down for at least 20 – 30 minutes
Very poor weld Incorrect current / feed setting (see 6.1.1/6.1.2)No / too little gas (see 6.1.3)		Check settingCheck setting and filling pressure of the gas bottle

GB

10. Key to symbols

EN 60974-1 European standard for arc welding sets and welding power supplies with limited on time	Standard for arc welding sets and welding power supplies with limited on time	Frequency		Do not store or use the appliance in wet or damp conditions or in the rain.
	Fuse with rated value in A in the mains connection			mains connection
U_1	Mains voltage 50 Hz Main s frequency
I_1 max Rated maximum mains current				Symbol for falling characteristic curve
	Read the operating instructions carefully before using the welding set and follow them			Metal inert and active gas welding including the use of filler wire
U_0	Rated idling voltage IP 21 Protection class
I_2	Welding current H Insulation class
∅ mm Welding wire diameter X On-load factor
^2(1) transformer

U0	Rated idling voltage IP 21

Notified Body: Notified Body No.: Reg. No.:

□ 2000/14/EC_2005/88/EC

□ Annex V

Annex VI

Noise: measured L_WA = dB(A) ; guaranteed L_WA = dB(A) P = KW; L/∅ = cm Notified Body:

2004/26/EC

Emission No.:

Standard references: EN 60974-1; EN 60974-10

First CE: 14 Archive-File/Record: NAPR011543

Art.-No.: 15.749.89 I.-No.: 11014

Subject to change without notice Wiesenweg 22, D-94405 Landau/Isar

Documents registrar: Roider Siegfried

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

©Nur für EU-Länder

Never place any electric tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the demand to return electrical devices:

As an alternative to returning the electrical device, the owner is obliged to cooperate in ensuring that the device is properly recycled if ownership is relinquished. This can also be done by handing over the used device to a returns center, which will dispose of it in accordance with national commercial and industrial waste management legislation. This does not apply to the accessories and auxiliary equipment without any electrical components which are included with the used device.

D

- The product meets the requirements of EN 60974-10 and is subject to special connection conditions. This means that use of the product at any freely selectable connection point is not allowed.

● Given unfavorable conditions in the power supply the product can cause the voltage to fluctuate temporarily.

● The product is intended solely for use at connection points that a) do not exceed a maximum permitted supply impedance Z_ = 0, 2 (Ohm) , or b) have a continuous current-carrying capacity of the mains of at least 100 A per phase.

- As the user, you are required to ensure, in consultation with your electric power company if necessary, that the connection point at which you wish to operate the product meets one of the two requirements, a) or b), named above.

D

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only

with the express consent of ISC GmbH.

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee conditions regulate additional guarantee services. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. Our guarantee only covers defects suffered by the device which have been verifiably caused by a material or manufacturing fault and is limited to the rectification of such defects or the replacement of the device at our discretion.

Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

1. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

- Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

- Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

1. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.
2. Please report the defective device on the following internet address to register your guarantee claim: www.isc-gmbh.info. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

© GARANTIEURKUNDE
