DC132U - Document Camera Lumens - Free user manual and instructions

Product Type	Document Camera
Brand	Lumens
Model	DC132U
Connectivity	USB 2.0 (USB cable included)
Power Supply	USB bus power (5V)
Focus	Auto focus via AF button on lens
Control Buttons	LAMP, FREEZE, CAPTURE, AUTO TUNE
Microphone	Built-in
LED Indicator	Illuminates when image is enabled
Software	Lumens Ladibug (downloadable from website)
Mounting	VESA 75x75mm compatible (optional base)
Microscope Adapter	Optional (eyepiece diameter 28mm)
Package Contents	DC132U, USB cable, 4-Step Instruction Card
Minimum OS	Windows XP SP2 or newer
Video Conference Support	Skype, Zoom, Teams, Google Meet
Safety Certifications	FCC Class A, ICES-003 Class A
Cleaning	Disconnect cables, wipe with dry cloth; do not use alcohol or solvents
User-Serviceable Parts	None; refer servicing to licensed personnel
Reparability	No user-serviceable parts inside; contact distributor or service center
Warranty	Refer to supplier for warranty information

Frequently Asked Questions - DC132U Lumens

How do I connect the DC132U to a computer?

Connect the included USB cable from the DC132U to a USB port on your computer. Ensure the Lumens Ladibug software is installed for full functionality.

Can I use the DC132U with Skype for video conferences?

Yes. After connecting the camera via USB, open Skype, go to Settings > Audio & Video, and select 'Lumens Video Camera' and 'Lumens Audio' as your devices.

How do I adjust the focus on the DC132U?

Press the AF button located on either side of the lens to activate auto focus. If the image is still blurry, move the document farther from the lens and try again.

Why is the output screen flickering?

Flickering may occur if the power frequency setting in Ladibug software does not match your local frequency (50Hz or 60Hz). Change the setting in Ladibug to match your region.

Does the DC132U work with Zoom or Microsoft Teams?

Yes, the DC132U is compatible with Zoom, Teams, Google Meet, and other video conferencing software. Select it as the camera and microphone in the app's settings.

How do I capture a still image?

Press the CAPTURE button on the control panel. The image will be saved to your computer via the Ladibug software.

How do I freeze the image on screen?

Press the FREEZE button to freeze the current image. Press again to unfreeze and return to live view.

What software do I need to use the DC132U?

You need the Lumens Ladibug software, available for download from the Lumens support website. It provides camera control, image capture, annotation, and more.

How should I clean the DC132U?

Disconnect all cables before cleaning. Wipe the surface with a dry, soft cloth. Do not use alcohol, volatile solvents, or any liquid cleaners.

What should I do if my computer does not recognize the DC132U?

Try connecting to a different USB port (preferably on the back of the computer). Ensure your operating system is Windows XP SP2 or newer. Also, check that the USB cable is securely connected.

USER MANUAL DC132U Lumens

User Manual - English

Line drawing of a desk lamp with adjustable arm and base (no text or symbols)

[Important]

To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens

https://www.MyLumens.com/support

Table of Contents

Chapter 1 Package Contents....2

Chapter 2 Product Overview .... 3

2.1 Description of LED Indicator ....3
2.2 Relative Operation Position....3

Chapter 3 Installation and Connections .... 4

3.1 Connecting to a computer....4
3.2 Connecting to an Interactive Whiteboard (IWB)....4
3.3 For use with VESA Installation Base ....4
3.4 Installing Application Software ....5

Chapter 4 Start Using....6

Chapter 5 Function Menu 7

5.1 Function Descriptions of Control Panel Button....7

Chapter 6 Descriptions of Major Functions ....8

6.1 Control the Camera....8
6.2 Use Skype for Video Conference....8

Chapter 7 Connecting to Microscope....9

Chapter 8 Troubleshooting....10

Chapter 9 Safety Instructions....11

Copyright Information.... 12

Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information... 13

Chapter 1 Package Contents

DC132U

USB cable

4-Step Instruction Card

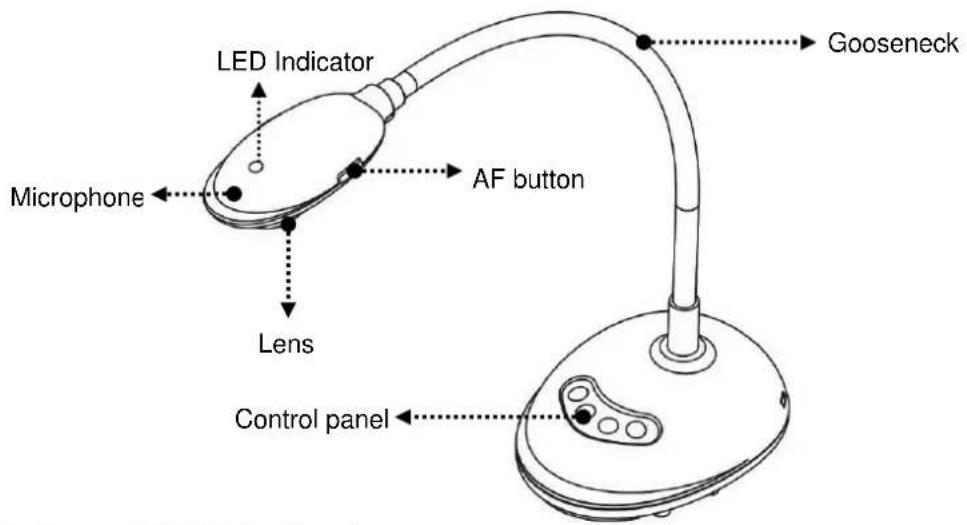

Line drawing of a desk lamp with adjustable arm and base (no text or symbols)

2.1 Description of LED Indicator

1. Enable the image, and LED indicator will light up
2. Display the image, and LED indicator will light up
3. Disable the image, and LED indicator is OFF

2.2 Relative Operation Position

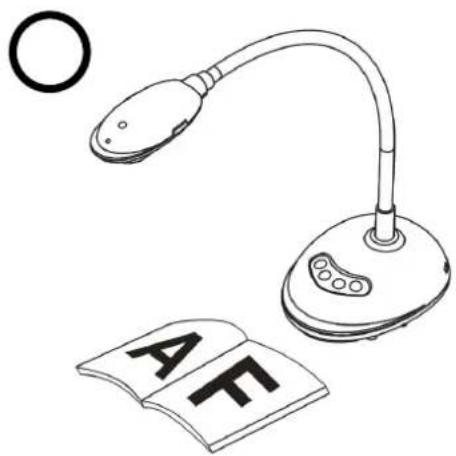

Correct use

Line drawing of a desk lamp with an open book and a magnifying glass nearby (no text or symbols)

Incorrect use

Line drawing of a desktop desk lamp with adjustable arm and base (no text or symbols)

Chapter 3 Installation and Connections

3.1 Connecting to a computer

3.2 Connecting to an Interactive Whiteboard (IWB)

3.3 For use with VESA Installation Base

1. Please purchase the standard VESA installation base
2. Please use appropriate screws: Screw length = 5 mm + base thickness (H1); M4 screw (P=0.7)

Technical line drawing of a mechanical assembly with mounting flanges and bolts (no text or symbols)

➢ VESA bolt pitch 75*75mm
➢ VESA base thickness (H1)
➢ Screw length = 5 mm + base thickness (H1)
▶ M4 screw (P=0.7)

3.4 Installing Application Software

The Lumens Ladibug software installed on the computer enables you to:

▶ Control the DC132U.
➢ Capture and record images.
➢ Annotate the image, highlight important details and save it.
▶ Support the full screen function.

[Remark] Please refer to the Ladibug 3.0 software user manual for installation steps and software operation.

Chapter 4 Start Using

Please make sure that the USB cable is connected and Ladibug™ application software is installed at first. Please refer to Chapter 3 Installation and Connections

1. After installing Ladibug software, double-click the icon to open the software to view the images and control DC132U

POWER Frequency setting page will display during the first use, please complete the settings following the instructions on the screen.

1. Place an object to be displayed under the camera.

2. Press [AUTO TUNE] AUTO or AUTO button to optimize the image.

3. You are ready to teach/present.

*Please download Ladibug software from Lumens website.

*When connected to a computer via a USB cable, DC132U can also be used with video software, such as Skype and Zoom.

Chapter 5 Function Menu

5.1 Function Descriptions of Control Panel Button

Icon	Name	Function Descriptions
	LAMP	Turn on/off LED indicator.
	FREEZE	Freeze the current image to remain temporarily on the screen. Press again to defreeze.
	CAPTURE	Capture the image to the computer.
	AUTO TUNE	Automatically adjust the image to have the best brightness and focusing performance.

6.1 Control the Camera

1. Please download Lumens Ladibug software at Lumens website.
2. Please refer to Ladibug Software User Manual for software-related functions.

6.2 Use Skype for Video Conference

Please refer to Chapter 3 Installation and Connections to finish connecting the

computer. Start Skype, select a contact, and press to start the video conference.

If it doesn't work, please refer to the following steps to setup the camera:

1. Start Skype -> [Setting] -> [Audio & Video]
2. Select [Lumens Video Camera]
3. Select [Lumens Audio]
   After the setting is completed, the video conference is ready to begin.
   ※It can also be used with Zoom, Teams, Google Meet, and other video software
   *If the image of the video software is opposite to the actual image (mirror image), please use Lumens
   Ladibug software to rotate the image

Chapter 7 Connecting to Microscope

※Microscope adapters are optional. Please contact Lumens sales to purchase them

1. Attach the microscope adapter to the microscope.

Microscope adapter accessories are applicable to eyepieces of 0 28 mm.

1. Connect the lens with the microscope adapter

Line drawing of a microscope with an adjustable arm and base, showing mechanical components (no text or symbols)

1. If the image is not clear

3.1 Press the [FOCUS] button on both sides of the lens to activate the auto focus.

Chapter 8 Troubleshooting

This chapter describes problems you may encounter while using DC132U. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact your distributor or the service center.

No.	Problems	Solutions
1.	Boot without power signal	Ensure that the USB cable is connected.
2.	Unable to focus	Probably the document is too close. Please pull the document away from the lens, and then press the [AF] button on both lateral sides of the lens.
3.	DC132U cannot operate normally	The machine cannot operate normally probably because the power supply of the USB port at the front end of the computer is insufficient. Try to connect to a USB port at the rear end or a USB hub with a power adapter.
4.	Cannot identify DC132U	Outdated or incomplete OS versions might not be able to identify USB devices like DC132U. Please use Windows XP SP2 or newer versions that are compatible.
5.	Output screen flicker	The presetting value of LadibugTM current frequency is 60 (Hz). If current frequency of your local country is 50 (Hz), output screen flicker may occur during the use of LadibugTM.Please refer toLadibug 3.0 software user manualto change Power frequency to 50 (Hz).
6.	When running Time Lapse function, Preview screen freezes	Connecting to USB Hub may cause insufficient band-width, leading to machine abnormalities. It is advised that the machine be connected to the computer directly via USB cable, without USB Hub.

Chapter 9 Safety Instructions

Always follow these safety instructions when setting up and using this Product:

1 Operation

1.1 Please use the product in the recommended operating environment, away from water or source of heat

1.2 Do not place the product on a tilted or unstable trolley, stand or table.

1.3 Do not block the slots and openings in the case of the product. They provide ventilation and prevent the product from overheating.

1.4 Do not open or remove covers, otherwise it may expose you to dangerous voltages and other hazards. Refer all servicing to licensed service personnel.

1.5 Unplug the product from the wall outlet and refer servicing to licensed service personnel when the following situations happen:

■ If the USB port becomes damaged or frayed.

■ If liquid is spilled into the product or the product has been exposed to rain or water.

2 Installation

2.1 For security considerations, please make sure the standard hanging rack you bought is in line with UL or CE safety approbations and installed by technician personnel approved by agents.

3 Storage

3.1 Do not place the product where the cord can be stepped on as this may result in fraying or damage to the lead or the plug.

3.2 Remove the USB cable during thunderstorms or when the product is not used for a long time.

3.3 Do not place this product or accessories on top of vibrating equipment or heated objects.

4 Cleaning

4.1 Disconnect all the cables prior to cleaning and wipe the surface with a dry cloth. Do not use alcohol or volatile solvents for cleaning.

■ Precautions

This symbol indicates that this equipment may contain dangerous voltage which could cause electric shock. Do not remove the cover (or back). No user-serviceable parts inside. Refer servicing to licensed service personnel.

This symbol indicates that there are important operating and maintenance instructions in this User Manual with this unit.

■ FCC Warning (A)

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

Notice :

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment..

■ IC Warning

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled "Digital Apparatus," ICES-003 of Industry Canada.

Operation of this equipment in a residential environment could cause radio interference.

Warning: Operation of this equipment in a residential environment may cause radio interference

Copyrights © Lumens Digital Optics Inc. All rights reserved.

Lumens is a trademark that is currently being registered by Lumens Digital Optics Inc.

Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product.

In order to keep improving the product, the information in this file is subject to change without prior notice.

To fully explain or describe how this product should be used, this manual may refer to names of other products or companies without any intention of infringement.

Disclaimer of warranties: Lumens Digital Optics Inc. is neither responsible for any possible technological, editorial errors or omissions, nor responsible for any incidental or related damages arising from providing this file, using, or operating this product.

Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information

Manufacturer : Lumens Digital Optics Inc.

Product Name : DC132U

Model Number : Document Camera

Responsible Party – U.S. Contact Information

Supplier : Lumens Integration, Inc.

4116 Clipper Court, Fremont, CA 94538, United States

e-mail : [e-mail]

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
