Product Type	Portable Evaporative Air Cooler
Brand	Be Cool
Model	BC580AC2401
Dimensions (W x D x H)	120 x 136 x 260 mm
Weight	0.8 kg
Rated Voltage	DC 5V, 1.5A
Power Consumption	7 W
Water Tank Capacity	480 ml
Operating Modes	Cooling, Natural Wind, Humidifier
Fan Speeds	Low, Medium, High
Ambient Lighting	7-color and warm white
Night Light	Yes, static lighting
Air Filter	Activated carbon filter, removable and washable
Auto Shut-off	After 8 hours of continuous operation
Control Type	Touch screen
Power Supply	USB-C (adapter not included, requires 5V 1.5A)
Cooling Method	Ultrasonic humidification with water evaporation
Safety Feature	Automatic switch to natural wind mode when water level low
Scope of Delivery	Air cooler, instruction manual, USB-C cable
Warranty	2 years (valid in Austria)
Manufacturer	Schuss Home Electronic GmbH, Vienna

Frequently Asked Questions - BC580AC2401 Be Cool

How do I activate the cooling mode?

Press the MODE button until the cooling indicator lights up. Ensure the water tank is filled above the minimum level. The unit will start pumping water to produce cool air.

How often should I clean the water tank?

It is recommended to clean the water tank every 2-3 weeks during use. Use a soft cloth with soapy water, rinse, and dry completely before refilling.

Can I use any USB adapter?

Use only a USB mains adapter with 5V and 1.5A output. Using an incorrect adapter may damage the unit or cause safety hazards.

Can I add essential oils to the water tank?

Yes, add a few drops of water-soluble essential oil or perfume to the water tank. Do not use oily essential oils as they may damage the product.

Does the unit have an automatic shut-off?

Yes, the unit automatically switches off after approximately 8 hours of continuous operation for safety and energy saving.

What is the water tank capacity?

The water tank capacity is 480 ml. Always fill between the minimum and maximum markings.

What are the dimensions of the air cooler?

The dimensions are 120 x 136 x 260 mm (width x depth x height).

How does the natural wind mode work?

Natural wind mode simulates random wind variations to create a comfortable, breezy feeling. Press the MODE button to activate it.

What is the warranty period?

The warranty period is 2 years from the date of purchase, valid in Austria. It covers repair or replacement of defects, excluding damage from misuse.

How do I clean the dust filter?

Remove the filter cover from the back, take out the dust filter. Use a hoover to remove dust, or soak in warm water (max 40°C) with neutral detergent if very dirty. Allow to dry before reinserting.

USER MANUAL BC580AC2401 Be Cool

White electric air conditioner unit with visible grille and control panel (no text or symbols)

HERZLICHEN GLÜCKWUNSCH!

Current operating instructions and other languages

Download current user manuals in various languages via the link www.becool.at/downloads or scan the displayed QR code. Follow the instructions on the website.

BE COOL

White portable air conditioner unit with visible control panel and ventilation grilles (no text or symbols)

CONGRATULATIONS!

THANK YOU FOR CHOOSING A PRODUCT FROM BE COOL. HAVE DECIDED.

BE COOL

PLEASE READ THE OPERATING INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION, OPERATION OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO FOLLOW INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND/OR LOSS OF WARRANTY COVERAGE!

IMPORTANT INFORMATION ON SAFETY, LOCATION AND ELECTRICAL CONNECTION

1. This appliance is intended solely for cooling domestic living spaces and must not be used for any other purpose.
2. The unit is not suitable for continuous or precision operation and should not be used for cooling electrical systems (e.g.: in server rooms).
3. Remove the packaging and make sure that the unit is not damaged. If in doubt, do not use the unit and contact the service centre or your dealer.
4. If the unit has a defect, switch it off and contact your dealer or the customer hotline.
5. If the power supply cable is damaged, it must be replaced by the manufacturer or an authorised service centre to avoid all possible risks.
6. Always and only contact customer service centres authorised by the manufacturer for any repairs. You can find the customer service centres online at www.becool.at.
7. Before connecting the appliance to the mains, check that the type of current and mains voltage correspond to the

BE COOL

specifications on the appliance type plate.

1. Avoid using an extension cord as it could overheat and cause a fire.

2. It is forbidden to adapt or modify the characteristics of this appliance in any way and use only spare parts and accessories recommended by the manufacturer (failure to do so will invalidate the guarantee and warranty).

3. Children must not play with the appliance.

4. Do not let children play with the packaging - THERE IS A DANGER OF CHICKENING IF SMALL PARTS ARE SPILLED!

5. Children under the age of 8 and persons with reduced physical, mental, sensory or spiritual capabilities or lack of experience and knowledge should not use this appliance unless they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

6. Do not operate the unit unattended. If you leave the room, always switch off the unit.

7. Do not use the appliance with wet hands.

8. Do not use the unit outdoors.

9. Never cover the unit.

10. Never operate the unit in rooms where gas, oil or sulphur are present.

11. Do not use the unit near water or high humidity, e.g. in damp basements, next to swimming pools, bathtubs or showers. Make sure that no water enters the unit.

12. Do not place the unit near heat sources (e.g.: next to heating systems) and avoid direct sunlight.

13. Keep a minimum distance of at least 50 cm from flammable substances (e.g. alcohol) or pressurised containers (e.g. spray containers).

14. Do not place heavy or hot objects on the appliance.

15. Place the unit on a stable and level surface.

BE COOL

1. Never insert fingers, pens or other objects into the unit and make sure that the air inlet and outlet are never blocked.
2. Change the water regularly.
3. Always fill the water tank above the minimum and never above the maximum.
4. Do not move the appliance quickly when there is water in the water tank to avoid water leakage or splashing.
5. Do not use the unit in "COOL" mode for a long time in an enclosed area without ventilation to avoid high humidity.
6. The cooling batteries are not toys - keep children and animals away from them.
7. Never try to open the cooling batteries. The liquid inside can be harmful to your health.
8. Unplug the appliance and empty the water tank when you are not using it.
9. Always switch off the appliance before unplugging it from the mains.
10. Keep the unit in good condition by maintaining and cleaning the unit. If you have any questions about maintenance, you can contact the customer hotline/service centre authorised by the manufacturer.

Recycling, disposal, declaration of conformity

	RECYCLINGThe packaging materials can be recycled. Therefore, it is recommended to dispose of them in sorted waste.
	DISPOSALThe symbol "crossed-out dustbin" requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally dangerous substances. Therefore, do not dispose of this in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment.

BE COOL

	By doing so, you will help to protect resources and the environment. For more information, please contact your dealer or the local authorities. Directive 2012/19/EU
CE	DECLARATION OF CONFORMITYWe hereby confirm that this article complies with the basic requirements, regulations and directives of the EU. You can view the detailed declaration of conformity at any time under the following link:https://www.schuss-home.at/downloads

Errors and technical modifications excepted.

BE COOL

SCOPE OF DELIVERY

In the scope of delivery of the BE COOL cooler you will receive:

• 1x air cooler
  • 1x instruction manual
• 1x USB-C cable

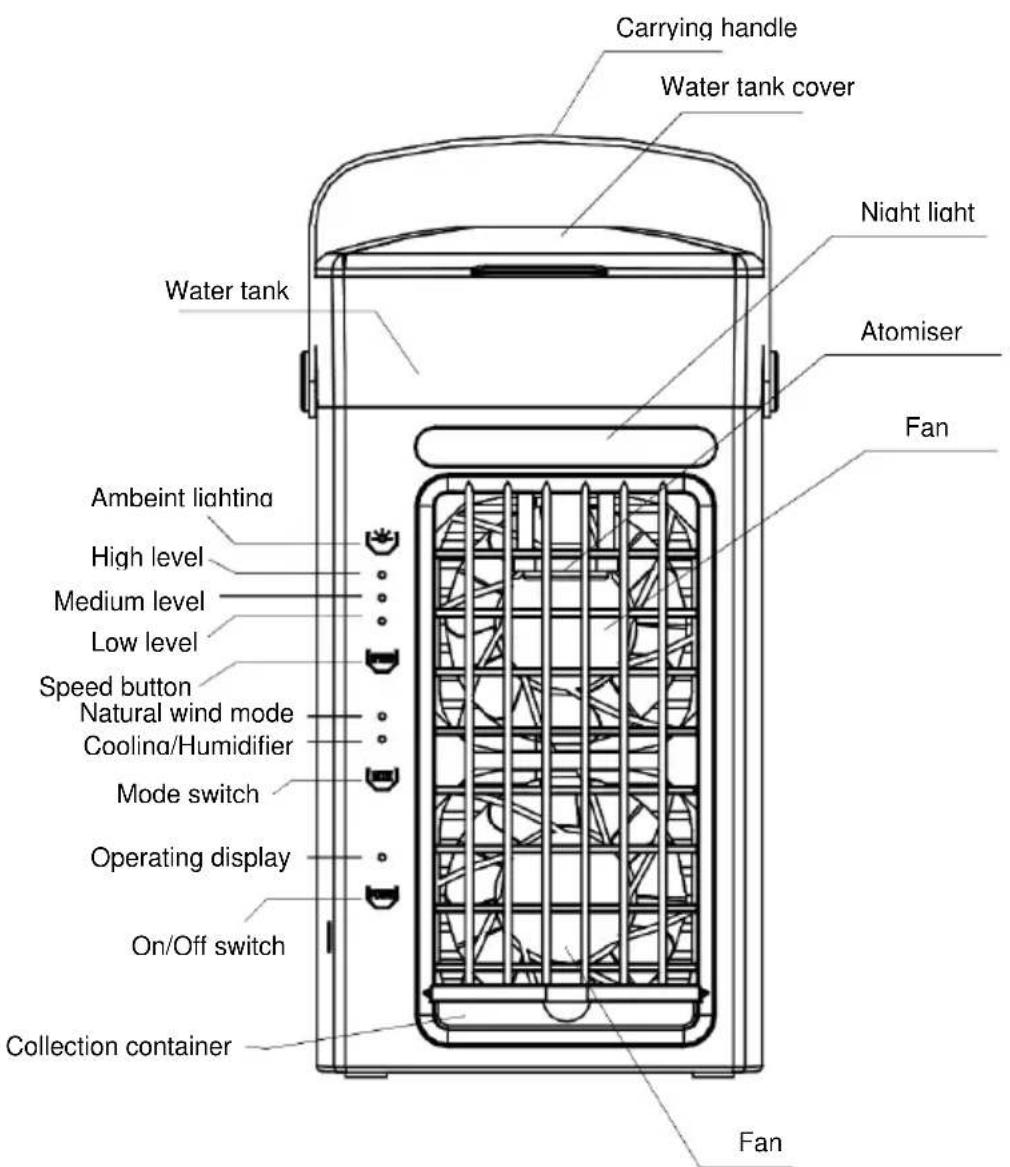

Description of the unit

BE COOL

Commissioning

Before the first commissioning

Unpack the unit

• Open the box and remove the unit.
• Remove the packaging completely from the unit.
• Unwind the USB charging cable completely, taking care not to damage it.

Attention: Only use a USB mains adapter with 5V and 1.5A power. The adapter is not included in the scope of delivery.

Operation

1. Connect the USB charging cable to the Type-C port on the side of the device and plug the other end into a DC5V 1.5A power supply. The indicator lights up dimly to indicate that it is receiving power.
2. Press the POWER button to switch on the unit. The indicator lights up and the appliance starts working. The default mode is set to "cooling" and low speed.
3. The unit switches off automatically after about 8 hours of continuous operation.
4. Press the POWER button to switch off the unit during operation.

BE COOL

FUNCTIONAL DESCRIPTION

SWITCH ON THE UNIT

• Press the "POWER" button to switch on the unit. The respective indicator lights up.
• If you want to put the unit into standby mode - press the "POWER" button again.

SET SPEED

• Use the "SPEED" button to set the speed of the fan.
  • The respective indicator on the display lights up:

1x Press → Average speed

Press 2x → High speed

Press 3x → Low speed

COOL/HUMIDIFIER MODE

• Use the "MODE" button to start the COOLING MODE/FOOD BOOSTER function the respective indicator lights up.
• The unit now starts pumping water out of the water tank to produce cold air, which is then blown out of the unit. The colder the water in the tank, the colder the air that flows out of the unit.

Note: In cooling mode, the unit automatically switches to natural wind mode when the water level in the water tank falls below the minimum water level.

NATURAL WIND MODE

• Use the "MODE" button to start the "Natural wind" function the respective indicator lights up.
• The natural wind function simulates natural wind variations that change randomly. This creates an airy feeling that resembles natural wind and provides more comfort.

Ambient lighting / night light

- Use the "AMBIENT LIGHTING" button to start the ambient lighting or the night light function.

BE COOL

- You can choose between 7-colour lighting or warm white lighting for the ambient lighting by pressing the button several times.

- The night light is a static lighting.

Product features

1. This air cooler offers various operating modes, including natural wind, cooling mode and humidifier. In natural wind and cooling mode, water protection is automatically activated and the air cooler automatically switches to natural wind mode when the water level in the tank is too low.
2. You can manually adjust the direction of the airflow up and down by moving the protective grille to the appropriate position.
3. The unit is operated via a touch screen.
4. The air cooler uses ultrasonic vibrations to transform the water in the tank into fine water vapour, which is thoroughly mixed with the air and blown out.
5. The water tank at the top is easy to open and clean.
6. The air cooler has atmospheric ambient lighting and a night light function.
7. The activated carbon filter on the air inlet can be removed and cleaned to remove odours and filter the air.
8. In natural wind mode, the air cooler mimics natural wind movements.
9. You can add a few drops of water-soluble essential oil or perfume to the water tank to diffuse the fragrance in the room. Do not use oily essential oil to avoid damaging the product.

BE COOL

FILLING THE WATER TANK

Please note the following when filling the water tank:

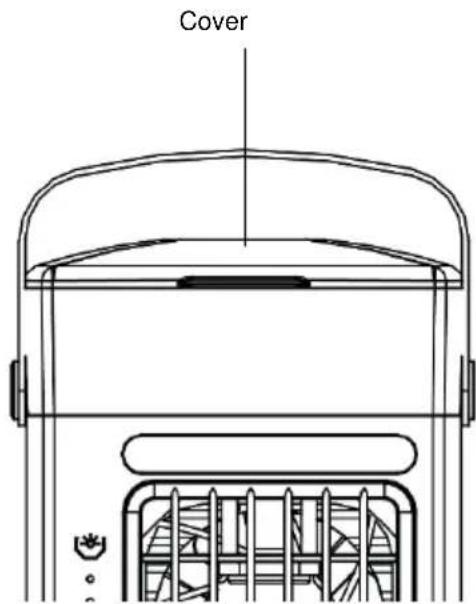

• Open the water tank cover on the top of the machine.
• Carefully fill the water tank with clean water using a watering can or similar container. Pay attention to the fill level of the tank.
• Make sure that the outside of the unit is not damp or wet and wipe it down if necessary.
• Close the water tank cover again.

TIPS FOR CORRECT APPLICATION

Find here some hints to achieve the optimal performance of the air cooler:

• Before activating the cooling mode, make sure that the water level in the water tank is sufficient.
• This air cooler works best at high temperatures and low humidity.
• Use clean tap water or mineral water for the water tank. Please do not use distilled or purified water as this may affect the cooling performance.
• It is advisable to clean the activated carbon filter regularly to prevent blockage of the air inlet.
• Note that when using the cooling function, there may be slight condensation on the surface of the fan and the air outlet grille, but this is completely normal.
• If the weather is rainy or the humidity is high, the spray water may evaporate more slowly and the cooling effect in cooling mode may decrease. In this case, condensation may form on the air outlet grille. We then recommend switching to natural wind mode.

BE COOL

MAINTENANCE AND CLEANING

ATTENTION!

Before cleaning, switch off the appliance, wait a few minutes and then unplug the appliance to disconnect it from the mains.

CLEAN DUST FILTER & WATER FILTER

To ensure efficient operation of the air cooler, clean the dust filter and water filter after each week of operation.

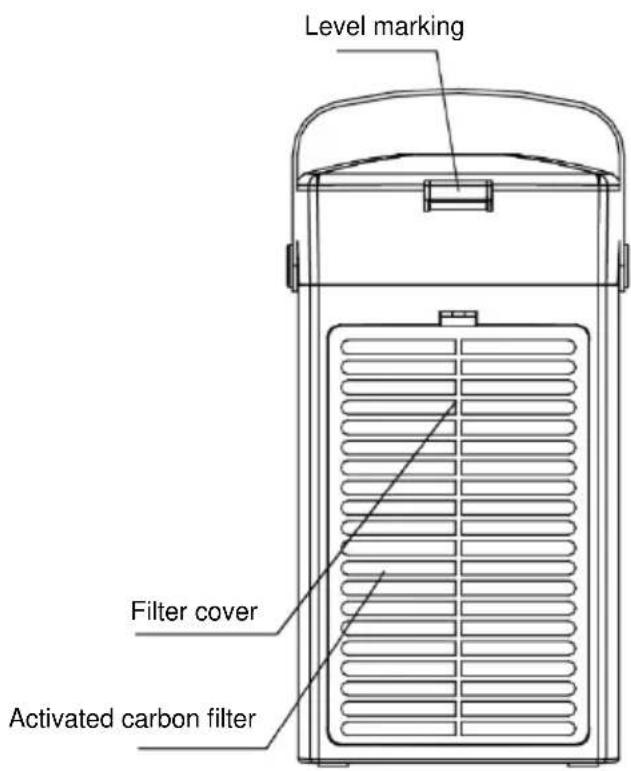

• Remove the filter cover from the back of the unit.
• Remove the dust filter

CLEAN DUST FILTER:

• To remove the dust accumulated in the filter, use a hoover.
• If the filter is very dirty, soak it in warm water and rinse it several times with neutral detergent - however, the water temperature should not exceed 40^ C.

CLEAN WATER TANK

It is recommended to clean the water tank every 2-3 weeks during use.

• Open the water tank cover on the top of the machine.
• Clean both the inside and outside of the tank with a soft cloth that you have previously dipped in soapy water.
• Then rinse the tank with warm and clear water.
• Allow the tank to dry completely before inserting and filling the water tank.

CLEANING OF THE HOUSING

• Clean the unit with a moderately damp cloth and then wipe it with a dry cloth.
• Never use petrol, alcohol or solvents to clean the appliance - these could be dangerous.
• Do not spray insecticides or similar agents on the air cooler.

BE COOL

TECHNICAL DATA

Technical information
Rated voltage	DC5V 1.5A
Rated input power	7W
Water tank capacity	480 ml
Dimensions
Product dimensions	120x136x260 mm
Weight:	0.8 kg
Contact addresses for further information and service line:	Schuss Horne Electronic GmbHScheringgasse 3, A-1140 Vienna Tel:[phone] - 0www.becool.atFB-No: 23697 4 t / FB-Court: Vienna

BE COOL

GUARANTEE

With this quality product from BE COOL, you have made a decision for innovation, durability and reliability.

For this BECOOL appliance we grant a guarantee period of 2 years from the date of purchase, valid in Austria! If, contrary to expectations, service work should nevertheless be necessary on your appliance during this period, we hereby guarantee to repair it free of charge (spare parts and labour) or (at the discretion of Schuss) to exchange the product. Should neither repair nor exchange be possible for economic reasons, we reserve the right to issue a current value credit note.

In the case of air conditioners, please contact the customer hotline as a first step (see sticker on the unit or cover page of the operating instructions), in the case of fans, please contact your specialist dealer or us directly. We would like to point out that repair work that has not been carried out by the authorised contract workshop in Austria will immediately terminate the validity of this warranty.

This warranty does not cover:

• We do not accept any liability for consequential damage in the event of improper use.
• Repair or replacement of parts due to normal wear and tear
• Damage due to non-observance of the operating instructions
• Devices that are used - even only partially - for commercial purposes
• equipment mechanically damaged by external influence (fall, impact, breakage, improper use, etc.) as well as wear and tear of an aesthetic nature.
• Equipment that has been improperly handled
• Units that have not been opened by our authorised service workshop.
- Damage caused as a result of improperly closed condensation drain valves of air conditioners or improperly inserted water tank.
• Consumer expectations not met.
• Damage caused by force majeure, water, lightning, overvoltage.
- Units where the type designation and/or serial number on the unit has been changed, deleted, made illegible or removed.
• services outside our authorised workshops, the transport costs to an authorised workshop or to us and back, and the associated risks.

We expressly point out that within the warranty period, a lump sum of € 60,- (indexed basis CPI 2010, June 2015) will be charged in case of operating errors or if no error was detected.

The provision of warranty service (repair or replacement of the appliance) does not extend the absolute warranty period of 2 years from the date of purchase.

The 2-year warranty is only valid on presentation of the purchase receipt (must contain the name and address of the dealer as well as the complete designation of the unit) and the corresponding warranty certificate, on which the type of unit as well as the serial number (visible on the box and on the back or bottom of the unit) must be noted! Without the warranty certificate, only the legal warranty applies!

We expressly point out that the statutory warranty rights are not affected by this guarantee and continue undiminished.

Schuss Home Electronic GmbH and its vicarious agents shall only be liable for damages in the event of gross negligence or intent. Liability for loss of profit, expected but not realised savings, consequential damage and damage from third party claims is excluded in any case. Damages to or for recorded data are always excluded from the liability for damages.

Congratulations on your choice. We hope you enjoy your BE COOL appliance!

ADDRESS

Schuss Home Electronic GmbH

A-1140 Vienna, Scheringgasse 3

Tel.: [phone]

Type designation: ....

Serial number: ....

In the event of a warranty claim, this warranty certificate must be handed over to the authorised service centre together with the unit.
