Product Type	Cart Seat for Balance Board
Brand	Be Cool
Model	BC-BB6521KRT
Maximum Load	100 kg
Net Weight	5.0 kg
Tire Size	4 inches
Recommended User Height	From 120 cm
Material	Plastic, Metal
Assembly Required	Yes
Controls	Dual handles (push/pull)
Direction Control	Forward, Backward, Turning
Attachment Method	Velcro straps
Included Accessories	Seat, handles, rubber pads, screws, tools
Care Instructions	Wipe with soft damp cloth
Storage	Dry cool place
Safety Warnings	Not for traffic, stunts, or wet conditions
Warranty	2 years (mechanical parts, Austria)
Compliance	EU Declaration of Conformity
Intended Use	Recreational riding with balance board

Frequently Asked Questions - BC-BB6521KRT Be Cool

What is the Be Cool BC-BB6521KRT?

The BC-BB6521KRT is a Cart Seat accessory that attaches to a balance board (hoverboard) to convert it into a go-kart-like ride.

How do I assemble the cart seat?

Assembly involves mounting the handles with M10 nuts, attaching rubber pads, fastening the seat with M8 screws, and securing the kart attachment to the balance board using Velcro straps. See the manual for detailed steps.

How do I ride the cart seat?

Push both handles forward to go forward, pull both back to reverse. Turn by pushing one handle forward and pulling the other back. Always adjust the handles to level before starting.

What is the maximum weight limit?

The maximum load is 100 kg. Never exceed this limit.

Can children use this product?

Yes, children from a height of 120 cm may use it under adult supervision. Detailed safety instructions must be provided.

What safety precautions should I take?

Always wear protective gear (helmet, knee pads). Avoid traffic, steep hills, wet conditions, and stunts. Never ride under influence. Inspect before use.

How do I clean and maintain the cart seat?

Clean with a soft damp cloth. Do not use alcohol, benzene, or high-pressure cleaners. Store in a dry cool place.

What is included in the package?

The package includes: front pole, extension pole, seat holder, handles, rubber pads, wheels, screws, nuts, Velcro straps, tools (wrench, Allen key), and seat.

Is the cart seat compatible with all balance boards?

It is designed for most balance boards. The included Velcro straps allow adjustment to fit different board widths. Check compatibility before use.

What is the warranty coverage?

The cart seat has a 2-year warranty on mechanical parts, valid in Austria. It covers repairs or replacement at the discretion of Schuss Home Electronic GmbH.

USER MANUAL BC-BB6521KRT Be Cool

Black and white photo of a black hovercraft with red visor and wheels (no text or symbols visible)

HERZLICHEN GLÜCKWUNSCH!

BE COOL

4. Montageanleitung

Montage der Griffe

Technical line drawing of a mechanical linkage system (no text or symbols)

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Line drawing of a mechanical device with levers and wheels (no text or symbols)

BE COOL

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

5. Bedienung

Technical line drawing of a mechanical device with rotating components and curved arms (no text or symbols)

8

BE COOL

Email: [e-mail]

www.becool.at/downloads

1. Special safety instructions 13
2. General safety instructions 14 - 15
3. Scope of delivery 16
4. Assembling instructions 17 - 18
5. Operation 18

5.1 19

1. Care and maintenance 19
2. Specifications & technical information 19
3. Declaration of conformity 20
4. Warranty 21

BE COOL

1. SPECIAL SAFETY INSTRUCTIONS

PLEASE READ THE OPERATING INSTRUCTIONS CAREFULLY BEFORE OPERATING OR SERVICING YOUR BE COOL BALANCE BOARD. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO FOLLOW INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE.

The exclamation point within the triangle is intended to alert the user to the presence of important operating and/or maintenance (servicing) instructions in the literature accompanying the appliance. Please read the operating instructions carefully before using the device.

WARNING!

To reduce the risk of electric shock, do not remove the case of this unit. There are no parts inside that can be repaired by the user. Therefore, do not attempt to repair or service internal parts yourself. Refer repairs to qualified service personnel.

ATTENTION!

• The Cart seat MUST NOT be used in traffic!
• Riding the cart seat must not endanger or obstruct other road users.
• Do not use for jumps or stunts!
• Do not use in wet, rainy or slippery conditions!
• Do not use under the influence of drugs or alcohol!
- Avoid paths with obstacles such as branches, rubbish or stones!
- Avoid steep inclines!
• Do not drive faster than recommended!
• Do not load the device more than permitted!

ATTENTION!

Persons with impaired vision, balance, coordination, reflexes, muscles or bones MUST NOT use this vehicle!

ATTENTION!

This cart Seat is suitable for children from a height of 120 cm - however, detailed instructions on how to use the Cart seat in a safe manner must be provided beforehand, as well as a description of the existing dangers.

BE COOL

2. GENERAL SAFETY INSTRUCTIONS

• Carefully remove the packaging and make sure that the Cart seat is not damaged.
• Do not use the device if it shows visible signs of damage.
• Do not open or modify the Cart seat, otherwise the manufacturer's warranty will be voided and malfunctions may occur that could result in serious physical injury - even death.
• Only ride the Cart seat in places where riding is expressly permitted. Never use the Cart seat when you are overtired or unfocused. Always have presence of mind and recognize the dangerous situation early.
• We recommend the wearing of qualified and according to own experience necessary protective clothing such as helmet, hand and knee protectors, etc. as in comparable sports.
• Avoid sudden changes of direction - especially at high speeds.
• Drive on sight and always be ready to brake.
• Do not drive in bad weather such as snow, rain, hail, icy roads or in extreme heat - DANGER OF CRASHING!
• Do not use the board in an ambient temperature above 50^ degrees and do not ride for too long in temperatures above 40^ degrees.
• Do not drive near swimming pools or other large accumulations of water.
• Do not ride the Cart seat near to other motor vehicles, public roads and streets.
• Do not talk on the phone or text while driving. Drive attentively and be consciously aware of your surroundings: road conditions, people, objects, etc.
• Do not ride the cart seat in places where there are many people. Ride with extreme consideration and pay attention to people and objects around you.
• Do not ride up and down steep hills ( >15^ ). For gentle hills and terrain with slight bumps, it helps to bend the knees slightly while riding to absorb shocks and vibrations. This will help you maintain balance on slight bumps up to a certain intensity.
• Never attempt to ride with more than one person at a time. The Cart seat is only suitable for riding with a single person.
• Do not transport any objects while driving.
• Do not pick up the switched-on Cart seat from the floor, as a rotating wheel (despite automatic switch-off) could lead to injuries.
• Do not ride the Cart seat during pregnancy.
• Children and the elderly may only ride under the supervision of experienced and adult persons.
• Never get on or off the cart seat with a jump. Do not attempt any stunts or tricks with the cart seat.
• Never drive in the dark or in poorly lit areas.
• Do not exceed or fall below the specified weight limit (weight restriction) of the Cart seat.
• Avoid driving in dangerous places to prevent fire and explosion accidents caused by, for example: flammable gases, vapours, liquids, dust, fibres.
• Follow all national and local laws that apply to your area regarding the use of your cart seat.
• Do not let anyone ride the Cart seat who is not familiar with its handling and has not

BE COOL

read the manual. The same guidelines apply to every user.

• Please check the Cart seat before each ride. If any parts are loose or damaged, or if there are any other abnormal operating conditions, the Cart seat must be put in order before it is operated.
  • However, there is always a risk of injury from a fall, collision or loss of control.
• If unusual noises or an alarm from the vehicle occur while driving, stop driving immediately.

RIDING THE CART SEAT IS AT YOUR OWN RISK AND RESPONSIBILITY.

NOT ALL HAZARDS THAT COULD LEAD TO INJURY OR EVEN DEATH CAN BE COVERED IN THIS MANUAL.

BE COOL

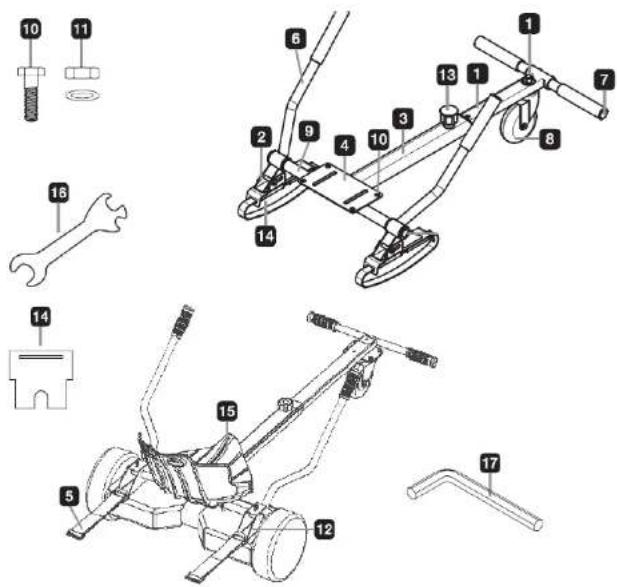

3. SCOPE OF DELIVERY

1. Front pole (1x)
2. Pedal cover (2x)
3. Extension pole (1x)
4. Seat holder (1x)
5. Velcro strap (4x)
6. Handle (2x)
7. Rubber plug (2x)
8. Wheel (1x)

9. Rear shaft (1x)

10. M8 x H16 screw (4x)

11. M10 nut + shim (2x)
12. Adjustment screw
13. Adjustment knob (1x)
14. Rubber pad (4x)
15. Seat (1x)
16. Wrench (1x)
17. Allen key (1x)

BE COOL

4. Assembly instructions

Mounting the handles

1. Remove the M10 nut and washer (11) which are already attached at delivery from the axis (9). Place the handle (6) on the axis Now put the washer over the axis again and fix the parts with the M10 nut (11). Use the wrench (16) to tighten the nut.
2. Mount the other handle in the same way as described in point 1.

Mounting the rubber pads

1. Attach the 4 rubber pads (14) to the contact surface on the bottom of the handle by sliding them over the edges.

Assembly of the seat

1. Attach the seat (15) to the seat bracket (4) using the Allen wrench (17) and the four M8 x H16 bolts (10). Make sure that the seat is firmly tightened.

Technical line drawing of a mechanical linkage system (no text or symbols)

Technical line drawing of a mechanical linkage device (no text or symbols)

Line drawing of a person wearing a seatbelt and standing on a chair (no text or symbols)

BE COOL

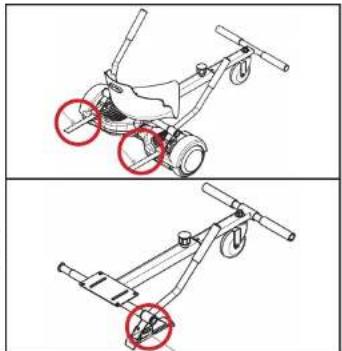

Mounting the kart attachment on the balance board

1. Add the kart attachment to the balance board using the Velcro strap.

2. To adjust the kart attachment to your balance board, loosen the nut marked in the picture with the wrench (16). Now adjust the length of the support to your balance board. Then tighten the nut again with the wrench (16).

Technical line drawing of a mechanical device with two views (top and side), no text or symbols present.

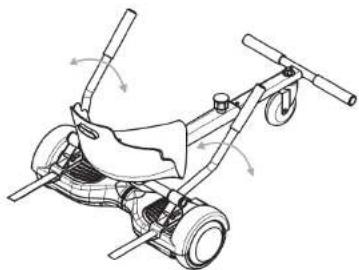

5. Operation

Go forward: Push both left and right handle forward.

Go backward: Pull both left and right handle back.

Turn: Push one handle forward and pull back the other handle. The go-kart turns around towards the direction you pull back.

Note: Before starting the cart-seat, adjust the handles to ensure the cart-seat is at a horizontal level. This is to avoid fast moving once it is started. Before switching off the balance board, lift the go-kart to make the balance board balanced, then turn it off.

Technical line drawing of a mechanical device with rotating components and mounting brackets (no text or symbols)

18 19

BE COOL

5.1 WEIGHT AND SPEED RESTRICTIONS

WARNING!

Please observe the weight and speed limits for your own safety. Never exceed or fall below the limits specified in this manual.

Weight Limit:

Maximum weight: 100kg

Minimum weight: Depending on the used balance board

6. CARE AND MAINTENANCE

Cleaning

Only use a soft and damp cloth for basic cleaning of the Cart seat. Dirt that cannot be removed in this way can be removed with a plastic polish or warm soapy water.

Never use alcohol, benzene, acetone or other corrosive and volatile chemical solvents that attack the surface. These substances can damage the appearance and the outer structure. Never clean the cart-seat with a strong water jet or high-pressure cleaner.

Storage

Store the cart-seat in a dry and cool place.

Do not store outdoors.

7. SPECIFICATIONS & TECHNICAL INFORMATION

Technical information

Item number BC-BB6521KRT
Model description Sitting Bull - Cart Seat
Tire size 4 inch
Max. load 100 kg
Weight 5,0 kg
Delivery - Cart seat incl. accessories	- User manual

BE COOL

Contact address for further information:

Schuss Home Electronic GmbH

Scheringgasse 3

A-1140 Vienna

Tel: [phone] - 544

www.becool.at

FB-No: 236974 t / FB-Court: Vienna

Serviceline:

DEC Digital-Electronic-Center Service GmbH

Kelsenstrasse 2

1030 Vienna

Tel. [phone]

Email: [e-mail]

Disposal and recycling

This product's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

8. DECLARATION OF CONFORMITY

We hereby confirm that this article complies with the basic requirements, regulations and directives of the EU.

You can view the detailed declaration of conformity at any time under the following link:

www.becool.at/downloads

Errors and technical modifications excepted.

www.becool.at

BE COOL

9. WARRANTY

With this quality product from BE COOL you have made a decision for innovation, durability and reliability. We grant the following warranty periods for this BE COOL device:

- On mechanical parts - 2 years from date of purchase valid in Austria!

If, contrary to expectations, service work should nevertheless be necessary on your device during this period, we hereby guarantee to repair it free of charge (spare parts and working time) or (at the discretion of Schuss) to exchange the product. Should neither repair nor exchange be possible for economic reasons, we reserve the right to issue a current value credit note.

Please contact your specialist dealer or us directly for this purpose. We would like to point out that repair work which has not been carried out by our authorised workshops in Austria will immediately terminate the validity of this warranty.

This warranty does not cover:

- In the case of improper use, we do not accept any liability for consequential damage Repair or replacement of parts due to normal wear and tear

• Damage due to non-observance of the operating instructions

- Water damage

• Equipment that is used - even only partially - for commercial purposes

• Equipment mechanically damaged by external influence (fall, impact, breakage, improper use, etc.) as well as wear and tear of an aesthetic nature.

• Devices that have been improperly handled

• Damage caused by force majeure, water, lightning, overvoltage.

• Devices where the type designation and/or serial number on the device has been changed, deleted, made illegible or removed.

• Services outside our authorised workshops, the transport costs to an authorised workshop or to us and back, as well as the associated risks.

- Compatibility issues with other devices, even if they are from the vendor.

We expressly point out that within the warranty period, a lump sum of € 60,- (indexed basis CPI 2015, June 2020) will be charged in case of operating errors or if no error was detected.

The provision of warranty service (repair or replacement of the device) does not extend the absolute warranty period of 2 years from the date of purchase.

The 2-year warranty is only valid on presentation of the purchase receipt (must contain the name and address of the dealer as well as the complete device designation) and the associated warranty certificate, on which the device type and serial number must be noted! Without presentation of the warranty certificate, only the statutory warranty applies. We expressly point out that the statutory warranty rights are not affected by this guarantee and continue to apply undiminished.

Schuss Home Electronic GmbH and its vicarious agents shall only be liable for damages in the event of gross negligence or intent. In any case, liability for lost profit, expected but not occurred savings, consequential damages and damages from third party claims is excluded. Damages to or for recorded data are always excluded from the liability for damages.

Congratulations on your choice. We wish you much pleasure with your BE COOL device!

ADDRESS

Type designation:

BE COOL Distribution

Schuss Home Electronic GmbH

A-1140 Vienna, Scheringgasse 3

In the event of a warranty claim, this warranty certificate must be handed over together with the device to the dealer from whom you purchased the device!
