Product Type	Garden Socket Outlet (4-gang)
Brand	Be Cool
Model	BC23GSD4
Dimensions (W x H x D)	200 x 215 x 200 mm
Weight	4.2 kg
Rated Voltage	230 V/AC, 50 Hz
Maximum Connected Load	3680 W (16 A)
Protection Class	IP44 (splash-proof for outdoor use)
Cable Type	H07RN-F 3G 1.5 mm²
Cable Length	5 m
Operating Temperature	-25 °C to +40 °C
Humidity	< 95% relative humidity
Number of Outlets	4
Intended Use	Outdoor connection of electrical appliances (e.g., pond aerators, fountains, garden lighting)
Safety Features	Overload protection (max 3680W), no daisy-chaining, keep uncovered, unplug during storms
Maintenance	Clean with damp cloth and mild detergent; no user-serviceable parts
Reparability	Repairs only by qualified specialist; 2-year warranty
Warranty	2 years (valid in Austria) on presentation of receipt and warranty certificate
Compliance	CE, EU Directive 2012/19/EU (WEEE), RoHS
Package Contents	Garden socket, operating instructions

Frequently Asked Questions - BC23GSD4 Be Cool

Can I use the BC23GSD4 outdoors in rain?

Yes, the socket has IP44 protection, meaning it is splash-proof. However, do not immerse in water or direct water jets. Ensure the enclosure is placed on a level surface to prevent water accumulation.

What is the maximum power I can connect?

The maximum total connected load is 3680 W (16 A at 230 V). Do not exceed this limit to avoid overload and fire hazard.

How do I clean the garden socket?

Unplug the socket from the mains. Use a slightly damp cloth with mild washing-up liquid for heavy soiling. Do not use high-pressure cleaners or aggressive chemicals.

What does the warranty cover?

The warranty covers free repair or replacement (at Schuss’s discretion) for 2 years from purchase in Austria. It does not cover improper use, commercial use, mechanical damage, or damage from force majeure.

Can I connect multiple sockets in a chain?

No, do not connect multiple sockets in series (daisy-chaining). This can cause overload and create a fire hazard. Plug the socket directly into a wall outlet.

Is the socket safe to use during a thunderstorm?

No, always unplug the socket from the mains during a thunderstorm to prevent damage from lightning strikes or power surges.

What is the cable length and type?

The cable is 5 meters long, type H07RN-F 3G 1.5 mm², designed for outdoor use with high durability.

Can I repair the socket myself?

No, the product has no user-serviceable parts. Do not open or disassemble it. Repairs must be carried out by a qualified specialist or authorized service workshop.

What should I do if the power cord is damaged?

If the cord is damaged, do not use the socket. Switch off the mains and carefully unplug it. Have the cord replaced only by a qualified specialist.

How should I dispose of the product?

Do not dispose of it in unsorted household waste. Take it to a designated collection point for Waste Electrical and Electronic Equipment (WEEE) to comply with Directive 2012/19/EU and protect the environment.

USER MANUAL BC23GSD4 Be Cool

Close-up of a white concrete electrical enclosure with four green circular components and bolt holes, showing internal structure and exterior space (no text or symbols visible)

Lieferumfang

Schuss Home Electronic GMBH

A-1140 Wien, Scheringgasse 3

Operating instructions

Operation manual

Garden socket outlet 4gang

Item No.: BC23GSD4

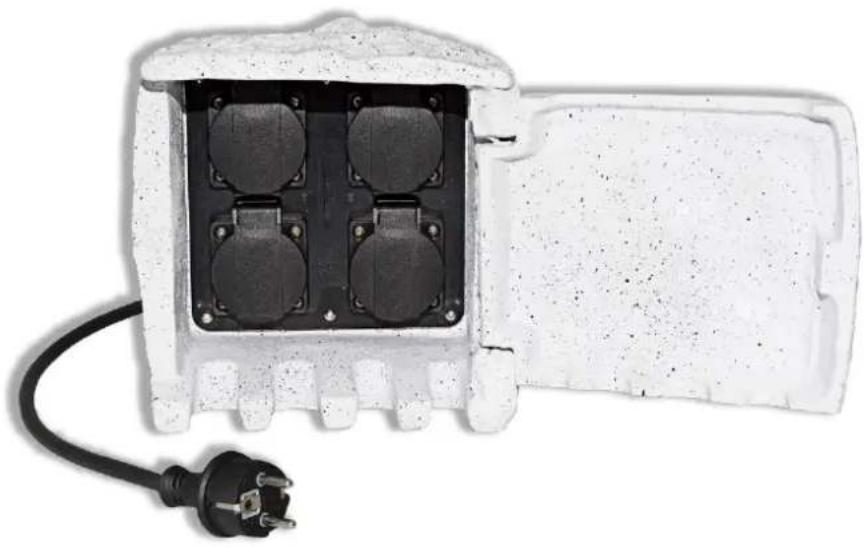

White electrical enclosure with four black socket outlets and a black power plug, no visible text or symbols

CONGRATULATIONS!

THANK YOU FOR CHOOSING A BECOOL PRODUCT.

BE COOL

Current operating instructions

Download current operating instructions via the link www.becool.at/downloads or scan the QR code shown. Follow the instructions on the website.

Scope of delivery

1. Garden socket
2. Operating instructions

Intended use

The product is a 4-outlet power strip suitable for outdoor use (IP44) and can be used to connect electrical appliances such as pond aerators, fountains, garden lighting, etc. It is important to note that the total power of all connected devices must not exceed 3680W. It is important to read the operating instructions carefully and to keep them and only pass the product on to third parties together with the operating instructions. Modification or alteration of the product is not permitted for safety and approval (CE) reasons and may result in damage or danger such as short circuit, fire or electric shock. The product complies with the applicable national and European requirements and all company and product names contained are trademarks of their respective owners. All rights reserved.

Symbol explanation

The symbol with the lightning bolt in a triangle is used when there is danger to your health, e.g. from electric shock.

The symbol with the exclamation mark in the triangle indicates important instructions in these operating instructions that must be followed.

BE COOL

Safety instructions

Please read the operating instructions carefully and pay particular attention to the safety instructions. If you do not follow the safety instructions and instructions for correct handling, we accept no responsibility for damage to persons or property. In addition, the warranty/guarantee becomes invalid in such cases.

• Only use the appliance with a proper mains socket.
• Make sure that the power socket is nearby and easily accessible.
• Never pull the mains plug out of the socket by the cable, but always by the handles.
• Unplug the appliance if it is not going to be used for a long time.
• Always pull the plug out of the socket during a thunderstorm.
• Make sure that the mains cable is not crushed, kinked, damaged or otherwise stressed. Avoid excessive heat or cold stress on the cable. Do not modify the power cord. A damaged mains cable can cause an electric shock.
• Do not use the product if the power cord is damaged. Switch off the power socket and carefully pull out the plug.
• Only have a damaged mains cable replaced by a qualified specialist.
• Do not plug in or unplug the mains plug with wet hands.
• Do not overload the product and observe the power specification in the technical data.
• Do not use multiple sockets or plug them in one after the other as this can lead to an overload and fire hazard.
• Do not operate the product covered, as it may overheat and catch fire.
• The product is only de-energised when the mains plug is disconnected.
• Do not point a jet of water at the product.
• The product is not a toy and should be kept away from children and animals.
• Dispose of the packaging material safely so that it does not become a dangerous toy.

BE COOL

• Protect the product from extreme temperatures, direct sunlight, strong vibrations, high humidity, moisture, flammable gases, vapours and solvents.
• Do not subject the product to mechanical stress.
• Remove the product from service if it shows visible damage, no longer functions properly, has been stored for a long time under unfavourable conditions or has been subjected to considerable transport loads.
• Handle the product carefully to avoid damage from knocks, impacts or falling.
• Also observe the safety instructions and operating instructions of the devices to which the product is connected.
• Consult a professional if you have any questions or are unsure how to use the product.

Installation site

• Do not place the product in a recess or depression as water may remain there.
• Instead, choose a firm, level and horizontal place from which the rainwater can run off without getting inside the enclosure.

BE COOL

Commissioning

• Connect the mains plug to a suitable socket.
• Connect the devices you want to connect to the sockets. Make sure that the cables are properly routed through the openings provided and are not pinched when you close the housing.
• Switch on the connected units.

Cleaning and care

• The product does not require user maintenance and should not be opened or disassembled. Repairs may only be carried out by a qualified specialist or workshop.
• Do not use aggressive cleaning agents or chemicals, as this may damage the housing or impair its operation.
• Avoid cleaning the product with water jets such as from a high-pressure cleaner.
• Before any cleaning, disconnect the product from the power supply and from any connected device.
• Use a slightly damp cloth to clean the housing and a few drops of mild washing-up liquid for heavier soiling.

Recycling, disposal, declaration of conformity

	RECYCLINGThe packaging materials can be recycled. Therefore, it is recommended to dispose of them in sorted waste.
	DISPOSALThe symbol "crossed-out dustbin" requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally dangerous substances. Therefore, do not dispose of this in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. By doing so, you will contribute to the protection of resources and the environment. For more information, please contact your dealer or local authorities. Directive 2012/19/EU
	DECLARATION OF CONFORMITY

BE COOL

We hereby confirm that this article complies with the basic requirements, regulations and directives of the EU. You can view the detailed declaration of conformity at any time under the following link:https://www.schuss-home.at/downloads

- Errors and technical modifications excepted

Technical data

Rated voltage	230 V/AC, 50 Hz
Connected load/current	Max. 3680 W / 16 A
Protection class	IP44
Cable type	H07RN-F 3G 1.5 mm ^2
Operating conditions	-25 to +40 °C, <95 % rH
Storage conditions	-25 to +40 °C, <95 % rH
Cable length	5 m
Dimensions (W x H x D)	200 x 215 x 200 mm
Weight	4,2 kg

BE COOL

GUARANTEE

With this quality product from BE COOL, you have made a decision for innovation, durability and reliability.

For this BE COOL appliance we grant a warranty period of 2 years from the date of purchase valid in Austria! If, contrary to expectations, service work should nevertheless be necessary on your device during this period, we hereby guarantee to repair the device free of charge (spare parts and labour) or (at the discretion of Schuss) to exchange the product. Should neither repair nor exchange be possible for economic reasons, we reserve the right to issue a current value credit note.

This warranty does not cover:

• In case of improper use, we do not assume any consequential damage, repair or replacement of parts due to normal wear and tear.
  • Damage due to non-observance of the operating instructions
  • Devices that are used - even only partially - for commercial purposes
  • equipment mechanically damaged by external influence (fall, impact, breakage, improper use, etc.) as well as wear and tear of an aesthetic nature.
  • Equipment that has been improperly handled
  • Units that have not been opened by our authorised service workshop.
• Consumer expectations not met.
  • Damage caused by force majeure, water, lightning, overvoltage.
• Units where the type designation and/or serial number on the unit has been changed, deleted, made illegible or removed.
  • services outside our authorised workshops, the transport costs to

An authorised workshop or to us and back, as well as the associated Risks.

Please note that the direct costs of returning the goods to the service centre are to be borne by the consumer.

The provision of warranty service (repair or replacement of the appliance) does not extend the absolute warranty period of 2 years from the date of purchase.

The 2-year warranty is only valid on presentation of the purchase receipt (must contain the name and address of the dealer as well as the complete designation of the unit) and the corresponding warranty certificate, on which the type of unit as well as the serial number (visible on the box and on the back or bottom of the unit) must be noted! Without the guarantee certificate, only the legal guarantee applies!

We expressly point out that the statutory warranty rights are not affected by this guarantee and continue undiminished.

Schuss Home Electronic GmbH and its vicarious agents shall only be liable for damages in the event of gross negligence or intent. Liability for loss of profit, expected but not realised savings, consequential damage and damage from third party claims is excluded in any case. Damages to or for recorded data are always excluded from the liability for damages.

Congratulations on your choice. We hope you enjoy your BE COOL appliance!

Be Cool Distribution

Schuss Home Electronic GMBH

A-1140 Vienna, Scheringgasse 3

In the event of a warranty claim, this warranty certificate must be handed over together with the unit to the authorised service workshop or the dealer from whom you purchased the unit!
