Product Type	Air Purifier
Brand	Be Cool
Model	BCLB703IKUHF01
Category	Air Purifier
Dimensions (L x W x H)	30 x 20 x 50 cm
Weight	4.5 kg
Power Supply	220-240V, 50Hz
Power Consumption	45 W
Coverage Area	Up to 30 m²
Filtration Type	True HEPA Filter
Filter Replacement Indicator	Yes
Fan Speeds	3 speeds (Low, Medium, High)
Timer	1-8 hours
Noise Level	25-50 dB
CADR (Clean Air Delivery Rate)	200 m³/h
Control Type	Touch Panel and Remote Control
Air Quality Sensor	Yes
Night Mode	Yes (ultra-quiet operation)
Child Lock	Yes
Maintenance	Clean pre-filter monthly; replace HEPA filter every 6-12 months
Safety Features	Overheat protection, auto shut-off when cover is opened
Accessories Included	Remote control, user manual

Frequently Asked Questions - BCLB703IKUHF01 Be Cool

How often should I replace the filters?

The HEPA filter should be replaced every 6-12 months, while the pre-filter should be cleaned monthly. The filter replacement indicator will alert you when it's time.

Can I wash the HEPA filter?

No, the HEPA filter is not washable. It must be replaced. Only the pre-filter can be cleaned with water and a soft brush.

What is the coverage area of this air purifier?

The Be Cool BCLB703IKUHF01 covers up to 30 square meters for efficient air purification.

Does it remove pet dander and allergens?

Yes, the True HEPA filter captures 99.97% of particles, including pet dander, pollen, dust mites, and other allergens.

How do I set the timer?

Press the timer button on the control panel or remote to cycle through options from 1 to 8 hours. The purifier will automatically shut off after the set time.

What is the noise level at high speed?

At maximum speed, the noise level is approximately 50 dB, similar to a quiet conversation. Night mode reduces it to 25 dB.

Can I use essential oils with this purifier?

No, this air purifier is not designed for essential oils. Adding oils can damage the filter and void the warranty.

How do I clean the pre-filter?

Turn off and unplug the purifier. Remove the back cover, take out the pre-filter, and rinse it under running water. Let it dry completely before reinstalling.

What does the air quality indicator mean?

The air quality sensor displays color-coded feedback: green for good, yellow for moderate, and red for poor air quality. The purifier adjusts fan speed automatically.

Is there a warranty?

Yes, the Be Cool BCLB703IKUHF01 comes with a 1-year limited warranty. Refer to the user manual for details on coverage and claims.

USER MANUAL BCLB703IKUHF01 Be Cool

White water purifier with digital display and control buttons (no visible text or symbols on main body)

BE COOL

www.becool.at/downloads

INBETRIEBNAHME

Diagram of a battery casing with an arrow indicating rotation or movement (no text or symbols)

WICHTIG

Simple line drawing of a rectangular device with internal components and a small outlet (no text or symbols)

Important information on safety, location and electrical connection	15-17
Recycling, Disposal and Declaration of Conformity	17
Delivery Content	17
Description of the device	18
Start Up	18-23
Safety Measurements	23
Cleaning Instructions	23-24
Activities at the beginning and end of the season	24-25
Trouble Shooting	25
Technical information	26
Warranty	27

PLEASE READ THE INSTRUCTIONS CAREFULLY, BEFORE USING THE PRODUCT. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. IF YOU ARE NOT FOLLOWING THE INSTRUCTIONS, IT MAY CAUSE PERSONAL AND/OR PROPERTY DAMAGE AND/OR LOSS OF WARRANTY!

IMPORTANT INFORMATION ON SAFETY, LOCATION AND ELECTRICAL CONNECTION.

1. Use this device only in accordance with the guidelines in the instruction manual. Any other use not recommended by the manufacturer could result in a fire, electric shock, or personal injury.
2. This device is intended exclusively for the humidification of living spaces in households and must not be used for any other purposes.
3. Remove the packaging and ensure that the humidifier is not damaged. If in doubt, do not use the device and contact the service center or your dealer.
   3.1 Before connecting to the mains, you must check whether the type of current and main's voltage match the information on the device nameplate.
4. The electrical socket in which you connect the device must not be defective or loose and must be suitable for the required current load and, above all, reliably earthed.
5. Avoid using an extension cord as it could overheat and cause a fire.
6. If the power supply cable is damaged, it must be replaced by the manufacturer or an authorized service center in order to avoid all possible risks. Do not twist or kink the power cord.
7. If in doubt, have your electrical installation checked by a qualified electrician.
8. The device must not be operated with an external timer or a separate remote control system.
9. It is forbidden to adapt or modify the properties of this device in any way and only use spare parts and accessories recommended by the manufacturer (non-observance will void the guarantee).
10. If the device is defective, switch it off and contact the customer hotline.
11. For repairs to the device, the mains plug or the cable, always and only contact customer service centers authorized by the manufacturer. You can call up the customer service points online at www.becool.at.
12. This device can be used by children aged 8 years and over and by persons with reduced physical, sensory or mental capabilities or a lack of experience and knowledge, provided they are

BE COOL

supervised or have been instructed in the safe use of the device and understand the resulting dangers.

1. Children are not allowed to play with the device.

14 In the event of an allergic respiratory disease, consult your doctor before using the device.

1. Talk to your doctor if you experience health problems with use. In this case, stop using the device immediately.

2. Do not operate the device unattended. If you leave the room, always switch the device off.

3. Children are not allowed to play with the device.

4. Keep children away from packaging material. There is a risk of suffocation if swallowed!

5. Only use the humidifier indoors and do not expose the humidifier to direct sunlight, high temperatures or the elements.

6. Place the device on an easily accessible, level, dry and heat-resistant surface.

7. Never operate it in damp rooms and do not set up the device in the immediate vicinity of a bathtub, shower or swimming pool - please observe the minimum distance of approx. 1 meter.

8. Do not place the device in close proximity to a heat source such as hot stove, open flames, or heating stoves.

9. Avoid heat build-up by not placing the humidifier directly against a wall or under cupboards or the like.

10. The ideal working environment for the humidifier is a temperature between 15 °C and 30 °C and a relative humidity below 55%.

11. Too intensive operation can lead to over saturation of the room air with moisture, which can condense on walls, windows and objects in the room. You should therefore regularly check with a hygrometer that the relative humidity does not exceed 55%.

12. Please note that the escaping steam could cause damage, so make sure that the mist does not hit furniture or electrical devices

13. Do not insert any objects into the mist outlet of the humidifier.

14. ONLY fill the water tank with WATER, do not use essential oils or other additives.

15. Only use fresh drinking water to operate the device. With hard, calcareous water, you also have the option of using demineralized water.

16. Clean the device regularly and remove limescale and other deposits in order to maintain its functionality. 31. Always switch off the device before pulling out the power plug.

17. Unplug the device when not in use, before cleaning it, it needs servicing.

18. Do not pull on the power cord to disconnect the device from the electrical outlet.

19. Always pull the plug to unplug the power cord.

20. To avoid electric shock, do not handle the plug with wet hands.

21. Never touch the power plug with a wet one.

22. Always let the device cool down before cleaning it.

ATTENTION

RISK OF INJURY

WARNING HOT STEAM

Never put your hand in the mist outlet or in the steam flowing out.

FIRE HAZARD & OVERHAUL

Never covert he device and make sure that the air inlet is free.

SAFETY DISTANCE

Hold minimum 1m safe distance from easily inflammable objects such as furniture, curtains, paper, etc.!

The mist outlet is rotatable. Make sure that the emerging mist is not directed towards other electrical devices, furniture or walls.

BE COOL

ATTENTION

Warning symbol with exclamation mark inside triangle (no text or numbers)

POSITION

Make sure that the humidifier is operated on a surface that is insensitive to moisture.

Always set up the device so that air can flow in and out unhindered.

Precipitation / deposits can occur especially when operating with mineral-containing water / aromatic essence.

RECYCLING

The packaging materials can be recycled. It is therefore recommended to dispose them in the sorted waste.

DISPOSAL

The symbol "crossed-out garbage can" requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic devices can contain dangerous and environmentally hazardous substances. Therefore, do not dispose of it in unsorted residual waste, but at a designated collection point for used electrical and electronic equipment. In this way you contribute to the protection of resources and the environment.

For more information, please contact your dealer or local authorities.

DECLARATION OF CONFORMITY

We hereby confirm that this article complies with the essential requirements, regulations and guidelines of the EU.

You can view the detailed declaration of conformity at any time under the following link:

www.becool.at/downloads

Subject to errors and technical changes.

www.becool.at

DELIVERY CONTENT

The scope of delivery of the BECOOL humidifier consists of:

• 1x Humidifier
  • 1x ION filter (already inserted in the base / tub)
  • 1x Limescale filter (already screwed onto the water tank lid)
  • 1x HEPA filter (already inserted in the bottom)
• 4x Feet
  • 1x Instructions for use
• 1x Remote control

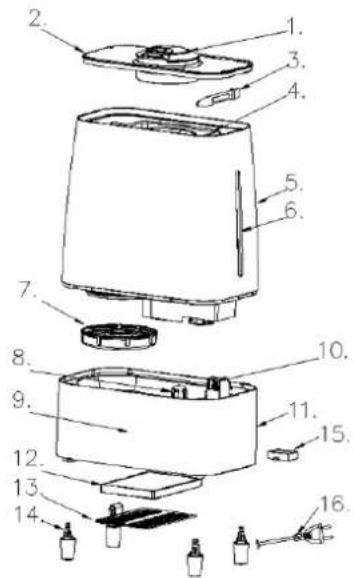

DESCRIPTION OF THE DEVICE

1. Mist outlet nozzle

2. Cover

3. Cleaning Brush

4. Water tank handle

5. Water tank

6. Water level window

7. Water tank lid

8. Water level indicator

9. Control panel & Display

10. Air outlet

11. Base

12. HEPA air filter

13. HEPA filter cover

14. Feet

15. Aroma compartment

16. Power cord

START UP

The installation and operation of the BE COOL humidifier is very quick and uncomplicated:

1. INSTALLATION

1. Take the humidifier out of the packaging and remove all packaging materials.

2. Check the device for possible damage.

3. Unwind the power cord and check it for damage.

4. Turn the feet into the openings provided on the underside of the humidifier.

5. Place the humidifier on a stable, level and heat-insensitive surface so that it cannot tip over.

6. Now insert the power plug into a suitable socket.

CAUTION

Please carefully follow the instructions for setting up the device in the safety instructions

BE COOL

2. COMMISSIONING

• Fill the water tank as follows:

1. Remove the top cover of the humidifier.
2. You can now lift the water tank out of the base by lifting it by the handle.

3. Turn it upside down and open it by turning the water tank lid counterclockwise.

4. Then fill the water tank with water, being careful not to overfill it.

5. Close the water tank again by tightening the tank cap clockwise.

6. Now dry the outside of the water tank and put it back into the base.

7. Finally, replace the top cover and turn the mist nozzles to any position.

Diagram of a battery casing with an arrow indicating rotation or movement (no text or symbols)

IMPORTANT

Please note the following when filling the water tank:

• Do not use any essential oils in the water tank (e.g.: eucalyptus or menthol) as these could damage the device.
• Do not put metals, chemicals or detergents in the water tank.
• Never fill the water tank completely.
• Never fill the water tank with water with a temperature over 40^ to avoid deformation.
• Fill water only into the water tank and never into the other parts of the humidifier.
• Never fill the water through the steam outlet.
• If the room temperature is less than 0^ , empty the water tank as freezing water could damage the humidifier.
• If there is a lot of water in the water tank, do not move the humidifier excessively, otherwise water could leak out and penetrate other parts of the humidifier and cause irreparable damage.
• Discoloration of the device is normal due to the evaporating water.

• Use of aromatic oil:

1. ou can use aromatic oil to give the escaping steam a pleasant scent.
2. Push the aroma oil compartment on the back of the device to pull it out.

3. Then dribble a little oil into the sponge provided and put the aroma oil compartment back in.

4. As soon as you switch on the device, the aroma diffuser function is activated automatically.

5. You can wash the aroma oil sponge and use it again as soon as it is dry.

Line drawing of a rectangular electronic device with internal components and a small base (no text or symbols)

BE COOL

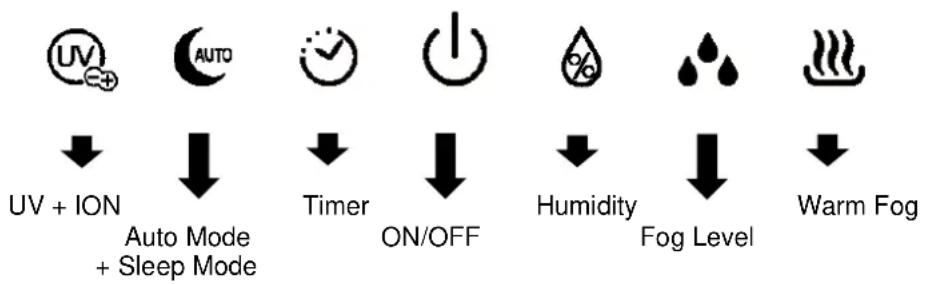

3. DESCRIPTION OF THE CONTROL PANEL AND REMOTE CONTROL

The buttons on the control panel and the remote control are identical.

You can set the functions of the humidifier using the remote control or directly on the device.

When using the remote control, this must be pointed directly at the sensor on the housing to ensure that it functions properly.

4. INSTALLATION OF THE REMOTE CONTROL

Please refer to the following instructions:

To use the remote control for the first time, please pull the plastic protection out of the battery compartment.

To change the battery, do the following:

1. Pull out the battery holder on the back of the remote control, remove the old battery and then insert a new one:

1. Please always pay attention to the polarity markings (+/-) on the battery and the battery holder.

1. Then slide the battery holder all the way back into the remote control.

5. SET FUNCTIONS

1. ON/OFF

Use the on / off button to turn the device on and off. As soon as you switch on the device, mist emerges from the mist nozzles on the top of the device and the current temperature in C ° and humidity in% are shown alternately on the display.

NOTE

When you switch on the device and the water tank is empty indicator lights up on the display.

2. FOG LEVEL

Use the Fog Level button to set the strength of the mist.

You can choose between three different levels:

• 1 x Press → Lowest Level → appears on the display as below
• 2 x Press → Middle Level → appears on the display as below
• 3 x Press → Highest Level → appears on the display as below

Lowest level: ---

Middle level: --

Highest level:

3. WARM FOG

Activate the warm fog by pressing this button. The PTC heating element in the machine will

now start to heat the mist in the device → the display lights 🎨 up. If you want to turn the function off, press the WARM FOG button again.

4. TIMER

You can use the timer to switch off the device in a time-controlled manner. Each time you press the button, the timer increases by 1 hour to a maximum of 10 hours → the display lights H up.

To switch off the timer, press until "0" appears on the display.

5. ADJUST HUMIDITY

Set the desired humidity level. Each time the button is pressed, the humidity increases by 5% from 40% to a maximum of 80%. → Auf dem Display leuchtet ☑ auf. As soon as the desired humidity is reached, the device stops producing fog. Once the desired humidity level is reached, the device stops working and enters the Standby Mode. If the humidity level is 5%RH lower than the desired humidity level, the device will automatically start working again to keep the target humidity level. When desired humidity level is set and start working, it will keep humidifying for 2 minutes no matter the room humidity reach the desired humidity or not. After 2 minutes, it will stop if the humidity level is higher than the desired level.

6. UV-MODE

The humidifier is also equipped with a UV function, this cleans the air and frees it from bacteria, germs and viruses. The emerging mist is thus disinfected.

To start the UV function, press the UV button → the display lights up. To stop the function, press the UV button.

BE COOL

7. ION+MODE

The humidifier is equipped with a negative ionizer. This distributes ionized air into the rooms and removes static electricity.

To start the ION function, press and hold the UV button fo approx. 3 seconds→ the display lights + up.

To stop the function, press the ION button.

8. AUTO-MODE

This product maintains the relative humidity at 55%\~68%. The humidifier will choose the best humidifying method according to different room ambient humidity.

To activate the auto mode, press and hold the AUTO button for approx. 3 seconds → the display lights AUTO up.

To stop the function, press the AUTO button again.

9. NIGHT-MODE

When the humidifier is switched to night mode, the display switches off and the device continues to run in the mode you have set. To switch the night mode on press the NIGHT MODE button for approx. 3 seconds.

To stop the function, press any key.

6. FILTER

The device has three different filters that are included in the scope of delivery:

1. SILVER ION FILTER

The silver ION filter is located in the base of the air humidifier and, with the silver it contains, ensures an anti-bacterial effect and thus optimal water quality.

2. LIME FILTER

The lime filter is screwed onto the water tank and cleans the water from calcium and magnesium ions. Maintenance extends the service life of the room humidifier. The water filter filters water through acid ion exchange resin. Acid ion exchange resin has a chemical reaction with calcium and magnesium ions that softens and demineralises water. Please clean the water filter weekly or every 15 days (depends on your local water hardness), simply soak it in 5% saline water for 24 hours and dry it cool.

3. HEPAFILTER

The Hepa filter is located on the back of the humidifier and cleans the room air by removing dust, pollen, animal hairs, airborne particles and bad smells or polluted air.

All filters can be bought separately, the article numbers are, the item numbers are:

We recommend replacing the filters regularly: SILVER ION FILTER → Every 2 months of operation LIME FILTER → Every 2 months of operation (depending on your local water hardness) HEPA FILTER → Every 2 months of operation

SAFETY MEASUREMENTS

The BECOOL humidifier is equipped with a protective device that is intended to protect the device from possible damage.

SHUTDOWN FUNCTION

As soon as the water tank is empty or it is removed, the device switches off automatically.

CLEANING INSTRUCTIONS

Before cleaning the device, switch off the humidifier, pull the power plug and then wait approx. 10 minutes until the device has completely cooled down.

Cleaning Reminder:

• The BECOOL air humidifier has an automatic cleaning reminder, which after approx. 50 operating hours signals that the device needs to be cleaned.
  • The device locks itself until you have finished cleaning.
  • The LED indicator flashes every 2 seconds to remind you to clean the humidifier.
• Now clean the device according to the instructions below.
• As soon as you have finished cleaning, press and hold the ON / OFF button for approx. 3 seconds to exit the cleaning mode.
• Press the ON / OFF button again to start up the device as usual.

Cleaning the case:

- Clean the device with a soft, moderately damp cloth and then wipe it with a dry cloth.

Cleaning the base/water pan:

• Remove the water tank from the base to expose it.
  • Always empty the water in the direction of the marking in the base, otherwise water could get inside the device and damage the device:
• If dirt remains in the base, pour some clear, fresh water into the base and use a sponge to remove the dirt. Then pour the water out over the marking again.
• Now wipe the inner part of the base with a moderately damp cloth and then dry it with a soft cloth.

BE COOL

Cleaning the water-mist converter

• The mist converter is located in the middle of the water tub - this must be cleaned regularly so that the device generates the mist correctly.
• If the water quality at your location is hard, use a lime and scale dissolving cleaner such as white vinegar or cider vinegar. (do not use dark vinegar)
• Depending on how dirty it is, put more or less cleaner on the surface of the converter and fill the tub with water.
• Leave the cleaner and water on the converter for 10 to 15 minutes act.
• Clean the converter with a brush until the deposit is removed.
• Rinse twice with water.
• Do not use any metallic or hard objects for cleaning, which could damage the converter!

Cleaning the water tank:

Please note

THE WATER TANK MUST BE CLEANED AFTER EVERY THIRD OPERATING DAY.

• First remove the steam outlet nozzles on the top of the water tank.
• Now lift the water tank out of the base of the humidifier.
• Now turn it upside down and open it by turning the water tank lid counterclockwise.
• Now clean the inside by using a sponge with a little soap.
• Then rinse the water tank well.
• Do not use any metallic or hard objects for cleaning, which can damage the tank

WARNING

• Do not dip the device in water or splash it with any other liquid.
• Do not use gasoline, alcohol or solvents for cleaning the device.
• Do not spray insecticides or similar means on the device.
• Do not use the device in rooms with high humidity.
• Do not cover the device – risk of fire!

ACTIVITIES AT THE BEGINNING / END OF THE SEASON

END OF SEASON ACTIVITIES

• Switch off the device and pull out the power plug.
• Drain any water from the tub and water tank and dry all components thoroughly before putting them back together.
• Package the device and store it in a cool, dry place.

BE COOL

CHECKS AT THE START OF THE SEASON

• Check whether the power supply cable is OK and whether the grounding is functional.
• Follow the installation and safety instructions carefully.

TROUBLESHOOTING

Before you contact our customer hotline / service center, please check whether the error can be remedied using the information below.

PROBLEM	SOLUTION
No steam comes out of the humidifier.	Check whether the device is correctly connected to the mains.Check whether you have set the rotary switch correctly.Check that there is enough water in the water tank
There is an unpleasant smell during operation.	When you use the device for the first time, it may emit an unpleasant smell. Remove the water tank, open it and let it air for about 12 hours.Check whether the water in the water tank is dirty or stale.Clean the water tank and fill it with clean water.
The device is very noisy during operation.	Check whether the water tank is inserted correctly.Check the surface on which the device is standing.

IMPORTANT

Never try to repair the device yourself. This can lead to the immediate loss of the guarantee.

TECHNICAL INFORMATION

Technische Informationen
Item no.:	BCLB703IKUHF01
Power consumption:	105 Watt
Input voltage:	220-240V
Working temperature:	15 °C – 30 °C
Mist/h (cold mist):	300 ml/h
Mist/h (warm mist):	400 ml/h
Noise level:	35dB
Tank volume:	5,3L
Weight:	2,3 kg
Measurements:	255 x 368 x 150 mm
Contact adresses and further information:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 WienTel: [phone] – 0Serviceline: [phone] – 544www.becool.atFB-Nr: 236974 t / FB-Gericht: Wien

WARRANTY

By purchasing a BECOOL quality product you have acquired an innovative, long - lasting and reliable item.

For this BECOOL device we grant a warranty of 2 years from the date of purchase, valid in Austria only.

In the unlikely event that service work is required on your device in this period we warrant free repair (spare parts and labour) or (subject to Schuss's decision) to replace the product. In the event that neither repair nor exchange make sense from an economical perspective we reserve the right to issue a credit based on current value.

When dealing with air conditioning devices you should always contact the customer hotline first (see label on the device or the title page of the instruction manual), in case of fans contact your dealer or us directly. Please note that repair not performed by the authorized workshop in Austria immediately renders this warranty void.

This warranty does not include:

• Repair of replacement of parts due to normal wear
• Damage due to non-compliance with the instruction manual
• Devices that are used commercially – even in part
• Devices damaged by external forces (falling, impact, cracking, improper use etc.) as well as aesthetic wear
• Devices that have been used improperly
• Devices that were not opened by our authorized workshop.
• Unfulfilled customer expectations.
• Damage caused by force majeure, water, lightning and overvoltage.
- Devices on which type denomination and/or serial number on the device have been erased, rendered illegible or removed.
- Service work not performed by our authorized workshops, transport costs to an authorized workshop or us and back as well as associated risks.

Please note that within the warranty period we charge a flat rate of 60 € (indexed as per consumer price index 2015, June 2020) in case of operating errors or if no fault can be found.

The total warranty period of 2 years is not extended if warranty service is performed (repair or device replacement).

The 2 year warranty is only valid if the original invoice (must contain name and address of the dealer as well as full device name) and the respective warranty certificate are produced, on which the device type and serial number (can be found on the box and the device's rear or bottom) are to be noted! Only the statutory warranty coverage applies if the warranty certificate cannot be produced!

Please note that the statutory warranty coverage is not altered by this warranty and that it applies in full regardless.

Schuss Home Electronic GmbH and its vicarious agents are only liable for damages in case of gross negligence or intent. Liability for loss of profit, expected but not incurred savings, consequential damages and damages from third party claims is excluded in any case. Damages to or for recorded data are always excluded from the liability for damages.

Congratulations on your choice. We hope you will enjoy using your SHE device!

ADDRESS

BECOOL Sales

Schuss Home Electronic GmbH

A-1140 Vienna, Scheringgasse 3

Tel.: [phone]

Type designation:

Serial number:

Together with the device, this warranty certificate must be handed to the authorized workshop or dealer you bought the device from in the event of a warranty claim!
