Product Type	Portable HiFi USB DAC and Headphone Amplifier
Model Number	992051
Dimensions	Approx. 100 x 60 x 20 mm (estimated)
Weight	Approx. 150 g (estimated)
Power Source	Built-in 2200 mAh rechargeable Li-polymer battery or USB VBUS (selectable via switch)
Battery Life	Up to 24 hours (headphone amplifier mode) / Up to 4 hours (USB DAC mode)
Charging Time	Approx. 2 hours
DAC Chip	CS4392
USB Input	Micro USB (USB 2.0)
Audio Output	3.5 mm stereo headphone jack
Line In/Out	3.5 mm combo jack (line in or line out)
Headphone Impedance Range	16 – 600 ohms
Max Output Power	210 mW @ 16 ohms / 190 mW @ 32 ohms (1 kHz, single channel)
Signal-to-Noise Ratio	≈ 110 dB (A-weighted)
Supported Audio Formats	PCM up to 384 kHz / 32-bit; DSD64/128 (2.8/5.6 MHz) via native or DoP
USB Transfer Mode	Asynchronous
Volume Control	Analog rotary knob (also power on/off)
LED Indicators	Power/charge (red charge, green low battery, green on), USB link (blue), PCM and DSD sample rate LEDs
Compatible Operating Systems	Windows 10/8.1/8/7/Vista/XP (32/64-bit), macOS X, Android (with OTG adapter), iOS (with Camera Kit)
Bundled Software	JRiver Media Center license key, driver CD
Additional Accessories	USB cable, Micro USB OTG cable, user manual
Safety Warning	High volume can cause hearing damage; always start at minimum volume
Maintenance	Clean with soft dry cloth; avoid liquids
Spare Parts / Repairability	No spare parts specified; contact retailer for service
General Information	Ultra-mastering grade digital audio playback; bypasses phone's soundcard; metallic case with de-pop function

Frequently Asked Questions - 99205I InLine

How do I connect the InLine 99205I to my Android phone?

Use the included Micro USB OTG cable. Connect the Micro USB end to the amplifier and the other Micro USB end to your phone. If your phone does not have a Micro USB port, you may need an adapter. The amplifier should be set to 'Battery' power mode if your phone cannot supply enough power via USB.

Can I use the 99205I with iPhone/iPad?

Yes, but you will need an Apple Lightning to USB Camera Kit (not included). Connect the Camera Kit to your iOS device, then plug the included Micro USB cable into the Camera Kit and the amplifier. Set the amplifier's power switch to 'Battery' for best performance.

How do I charge the built-in battery?

Connect the amplifier to a USB power source (e.g., a computer USB port or a USB charger) using the included Micro USB cable. When charging, the power LED will be red. A full charge takes about 2 hours. The LED turns green when charging is complete.

What is the battery life in different modes?

In headphone amplifier mode (using only the amplifier section without USB DAC), battery life is up to 24 hours. In USB DAC mode (converting digital audio from a computer/phone), battery life is up to 4 hours. Actual time depends on volume and headphone impedance.

How do I play DSD audio files on Windows?

First, install the driver from the included CD or download from drivers-download.com (DL code: DL-070001). Then install JRiver Media Center. In JRiver, go to Player > Playback Options > Audio. Select 'BRAVO-HD [ASIO]' as the audio device. Click Device Settings, check 'DSD bitstream in DoP format'. Then under Settings > Bitstreaming, select Custom and check only 'DSD'. You can now play DSD files.

Why is there no sound from my headphones?

Check that the volume knob is turned up and the amplifier is powered on (green LED should be solid). Ensure the power switch is set correctly (USB or Battery). Verify that your audio source is playing and that the USB connection is secure. On mobile devices, you may need to enable USB audio output in the app settings (e.g., Onkyo HF Player).

Can I use the 99205I with a computer without installing drivers?

On macOS, no driver installation is required; it works as a class-compliant USB audio device. On Windows, you must install the provided driver for full functionality (ASIO and high-resolution playback). Without the driver, Windows may still output audio but only up to 48 kHz/16-bit.

What does the 'Power Select Switch' do?

The switch on the rear panel lets you choose the power source. In 'USB' position, the amplifier draws power from the connected USB host (computer/phone). In 'Battery' position, it uses the internal battery. Use 'Battery' when the host cannot supply enough current (e.g., some phones) or when you want to preserve battery life of the host device.

How to use the line-in and line-out combo jack?

The 3.5 mm combo jack can function as either a line input or line output. By default, it is a line output (to connect to external speakers). To use it as a line input (e.g., from an MP3 player), you may need a special cable that grounds the correct pin. Refer to the manual for details. Typically, the jack automatically detects the connection type.

Is the InLine 99205I compatible with high-impedance headphones (300 ohms)?

Yes, the amplifier supports headphones from 16 to 600 ohms. For high-impedance headphones, especially those above 300 ohms, you may need to turn the volume up higher. The output power is around 190 mW at 32 ohms, which is sufficient for most high-impedance headphones.

USER MANUAL 99205I InLine

Black InLine Headphone Amplifier device with indicator lights and ports (no readable text or symbols beyond branding)

Bedienungsanleitung

Art.-Nr. 992051

InLine® Mobile AmpUSB, HiFi DSD Kopfhörer-Verstärker, USB Digital Audio Konverter, 384kHz/32-Bit

Achtung:

Zu hohe Lautstärken

können das Gehör

http://www.drivers-download.com

Black InLine Headphone Amplifier device with control knobs and speaker grille (no visible text or symbols on body)

User manual

Item number 992051

InLine® Mobile AmpUSB HiFi DSD USB Audio DAC, Headphone amplifier, 384kHz/32bit

Caution:

High volumes can cause ear-damages! Please make sure, the volume knob is minimized at beginning.

Always take care of a suitable volume.

A. DISCLAIMER

We strongly recommend you to backup all the data in the hard drive before installing the product onto your computer. We do not take responsibility for any data loss due to improper installation, misuse, abuse, or neglect.

Intended use:

The InLine® Mobile AmpUSB HiFi DSD Headphone Amplifier is connected to a mobile phone via USB and is used for reproducing and amplifying audio signals. Headphones are connected to the unit via a stereo jack and the playback volume is adjusted via a rotary control. Too loud playback can damage your hearing, so you should always start playback at a reduced volume and avoid loud playback.

B. INTRODUCTION

InLine® Mobile AmpUSB HiFi DSD Headphone Amplifier is an ultra-mastering grade digital audio playback system. It is capable of converting high resolution PCM audio (up to 384 kHz) and DSD audio (up to 128x DSD). The DAC allows you to bypass your mobile phone's soundcard or headphone output and send digital audio signal through the USB interface. With this perfect digital interface between your mobile phone and the music system, the sound quality is pushed to another higher level in your overall music environment.

C. FEATURES & SPECIFICATION

• Supports DSD128 2.8/5.6 MHz playback
• Supports PCM 384KHz/32bit playback
• Supports DSD native or DoP (DSD over PCM)
- Asynchronous transfer mode
• Works with Apple (with camera kit) and Android portable devices (with OTG adapter)
• SNR: Around 110dB (A-weighting)
- Max. headphone output power (at 1 KHz and single channel):
- around 210 mW / 16ohm
- around 190 mW / 32ohm
• Headphone drive ability: 16 – 600ohm
• High quality DAC - CS4392
• High quality headphone amplifier
• 3.5mm headphone output
• 3.5mm line-in and line-out combo jack
- Analog volume control
• Built-in 2200mah rechargeable lithium polymer battery
- Battery Life: up to 24 hours (use as headphone amplifier) and up to 4 hours (use as USB DAC)
- Charging time: around 2 hours after discharge
- Switch select power from VBUS or built-in lithium polymer battery
- Supports ASIO
• LED indicators for DSD and PCM playback
• Very fine finishing metallic case
- Integrated de-pop function for suppress pop noise during PC power-up and shutdown.
- Supported operating systems: Windows 10, 8.1, 8, 7, Vista, XP (32/64-Bit) and MAC OS X, works with Apple (with optional camera kit) and Android portable devices (with OTG adapter). Compatible Apps with DSD audio playback are available in the App stores and possibly connected with full functionality with additional costs (in-App purchases, such as App “Onkyo HF Player”)

D. PACKAGE CONTENTS

Please check whether the package contains the following items:

• InLine® Mobile AmpUSB HiFi DSD USB Audio DAC, Headphone Amplifier
• USB cable

• User manual

• Micro USB OTG cable

• Driver and software CD with JRiver Media Center license key

If any item is missing or damaged, please contact the retailer as soon as possible.

E. PRODUCT OVERVIEW

Black wireless audio amplifier device with no visible text or symbols on the device body

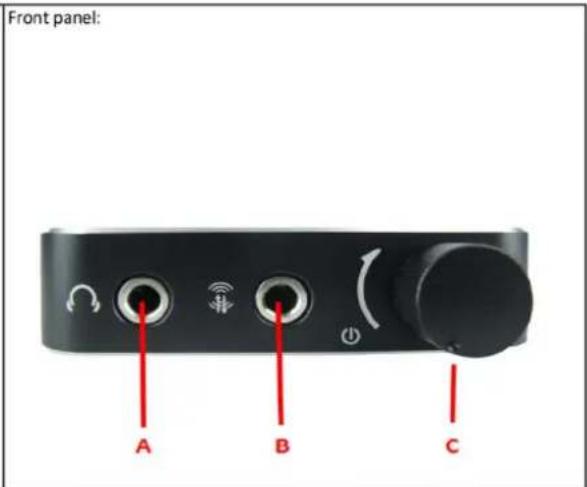

A. 3.5mm Stereo headphone output
B. 3.5mm Line input or output
C. Output volume control and power on / off switch

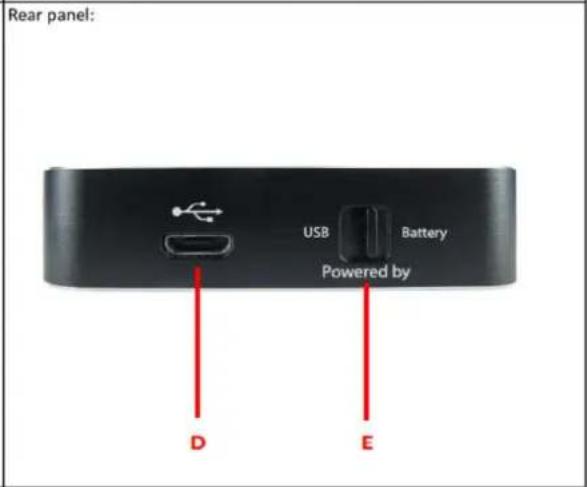

D. Micro USB input
E. Power Select Switch (USB: Powered from PC/Mobile; Battery: Powered from built-in battery)

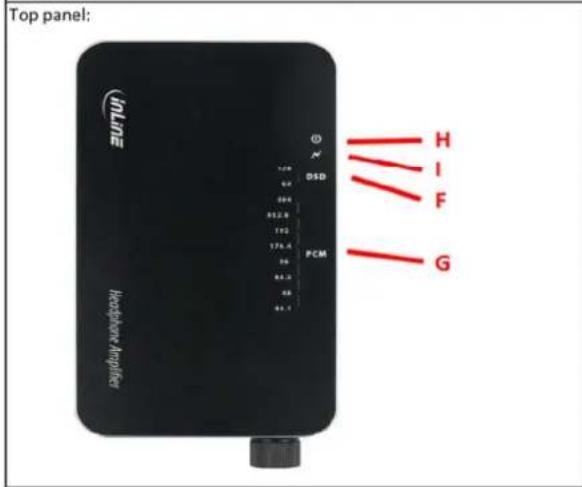

F. DSD 64 (2.8MHz) / DSD128 (5.6MHz) playback LEDs
G. PCM 384 / 352.8 / 192 / 176.4 / 96 / 88.2 / 48 / 44.1 KHz playback LEDs
H. Power on and Charge LED indication(Red LED: Charging; Green LED Blink: Battery low; Green LED On: Power on)
I. USB link LED(Blue)

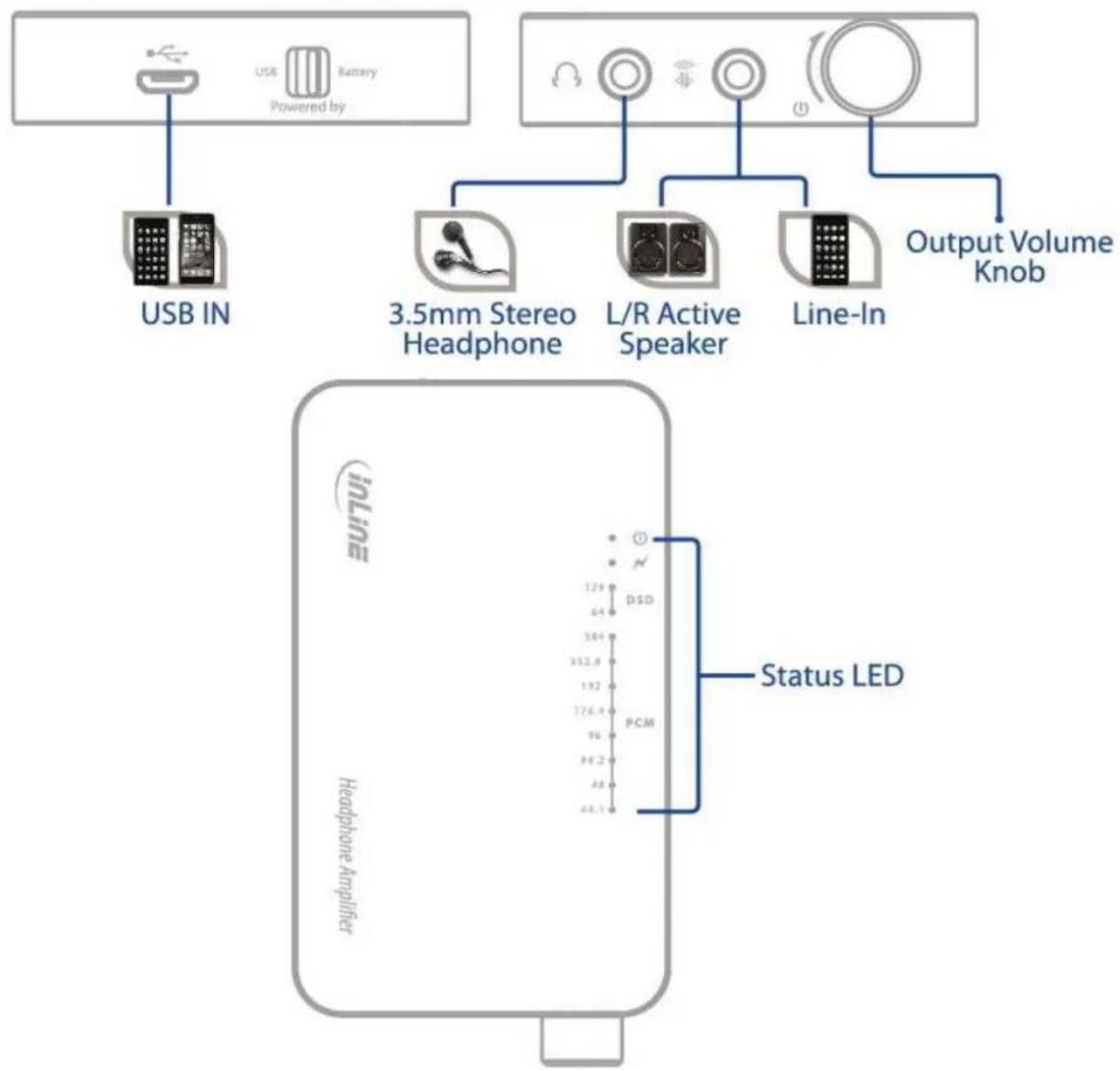

F. HARDWARE INSTALLATION

G. DRIVER INSTALLATION

Compatible Apps with DSD audio playback are available in the app stores and possibly connected with full functionality with additional costs (in-app purchases, such as App "Onkyo HF Player") Installation of this App we recommend to use full device functionality, here we show how to install:

Android OS:

Please download and install ONKYO HF Player by yourself. And in order to play the DSD music, the in-app function is needed to be purchased, too.

1. Plug in InLine® Mobile AmpUSB to the Micro USB port of your Android device by the included Micro USB OTG cable (both sides are Micro USB connector).

2. Click the ONKYO HF Player icon to open the app

1. Click OK in the pop-up dialog box.

2. Click the following icon and select Settings to enter the settings interface

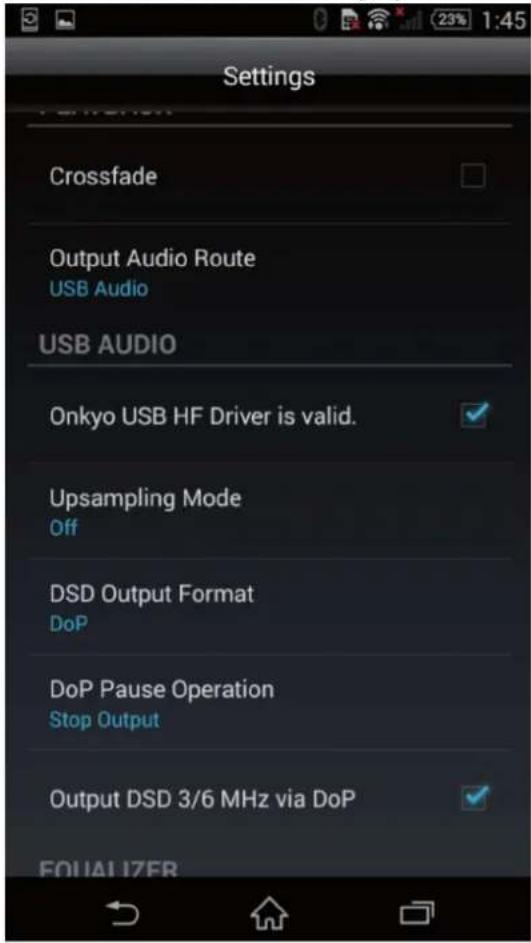

1. Set as shown in the following options

1. Set after return ONKYO HF Player main interface

1. Now you can play the PCM or DoP formatted music.

iOS:

Please download and install ONKYO HF Player by yourself. And in order to play the DSD music, the in-app function is needed to be purchased, too. Furthermore to connect, an optional Camera Kit cable is needed.

1. Click the ONKYO HF Player icon to open the app

1. Click the following icon to enter the settings interface

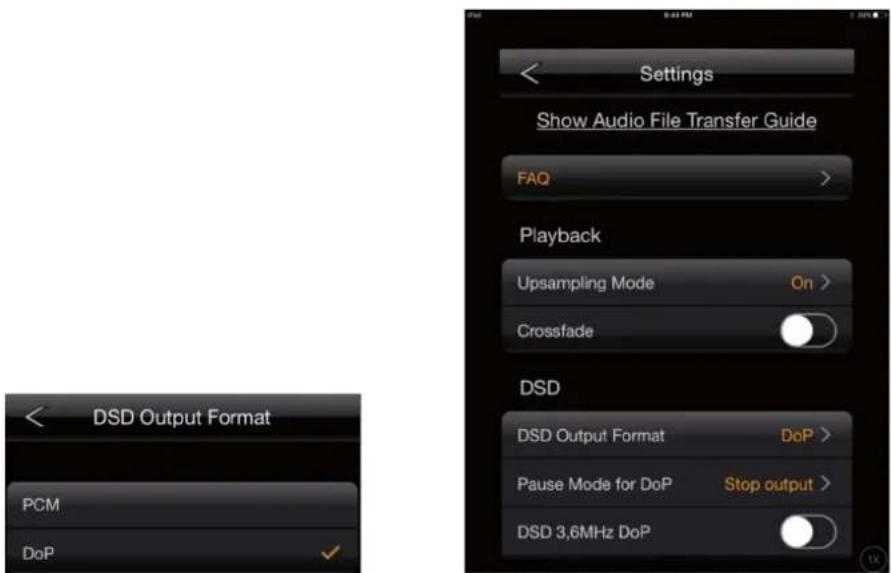

1. Select DSD Output Format in the Settings interface

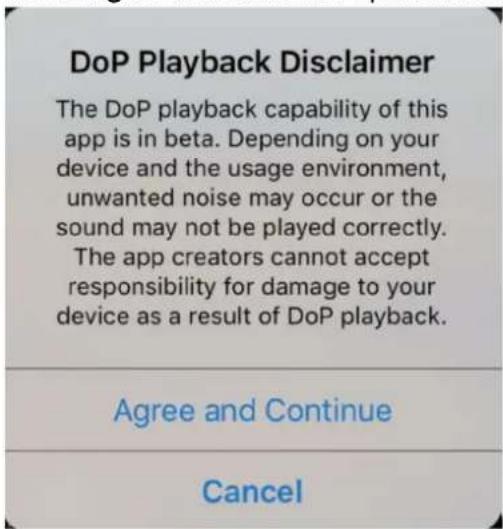

1. Select Agree and Continue option in the dialog box

1. Select DoP option and click back arrows to return the Settings interface

1. Click back arrow again to return the main interface

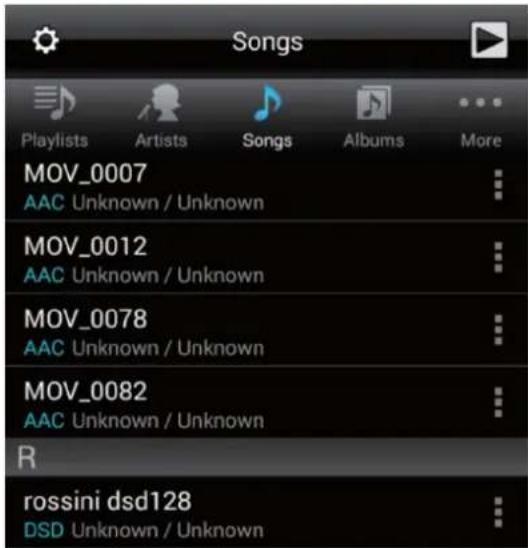

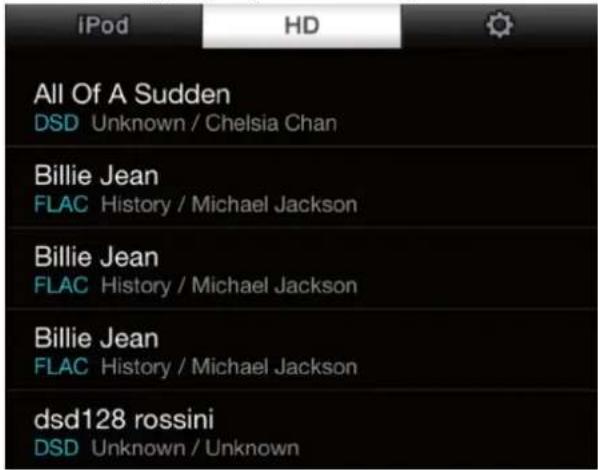

2. Select a song to play in the HD option

1. Important: Please always adjust the volume of the app to maximum in order to use with our product smoothly and then close the app, now. (You only control the correct listening volume later on the InLine® Mobile AmpUSB)

1. Plug in InLine® Mobile AmpUSB to the lightning port of your iPhone/iPod/iPad through the Apple Camera Kit (not included) and Micro USB cable (included). Now you can enjoy and playback the music through our product and app.

Installing Windows 10 / 8.1/ 8 / 7 / Vista 32/64-bit and XP 32bit driver:

1. Insert the driver CD disc into your optical drive. Assume the optical drive letter is D:
2. Go to the driver folder D:\Savitech\SA9227
3. Double click on Setup.exe
4. The Installation Wizard will guide you through the setup process. Please follow the on-screen instruction until the installation is completed.

For Mac OS, no driver installation is required.

H. JRiver Media Center Installation

After the successful installation of the driver, please install the JRiver Media Center which is included in the bundled CD in order to playback Hi-Resolution music on your computer

Before installing the JRiver Media Center software, please make sure that your computer fulfills the minimum system requirement listed as below:

• 4GB of RAM or more
• Windows XP or later / OS X 10.6 or later.

Installing JRiver Media (Windows):

1. Insert the driver CD into your optical drive. Assume the optical driver letter is D:
2. Go to the driver folder D:\JRiver\Windows\
3. Double click on the executable file.
4. The installation wizard will guide you through the setup process. Follow the on-screen instruction until the installation is completed.

JRiver Media Center DSD DoP setting on Windows OS:

We suggest the user to choose DoP mode for playing back the DSD in JRiver Media Center software in order to have the best experience of music enjoyment:

1. Plug in InLine® Mobile AmpUSB into one of your USB 2.0 ports of your PC (the USB port with good USB signal integrity is preferred for the playback of Hi-Resolution music)

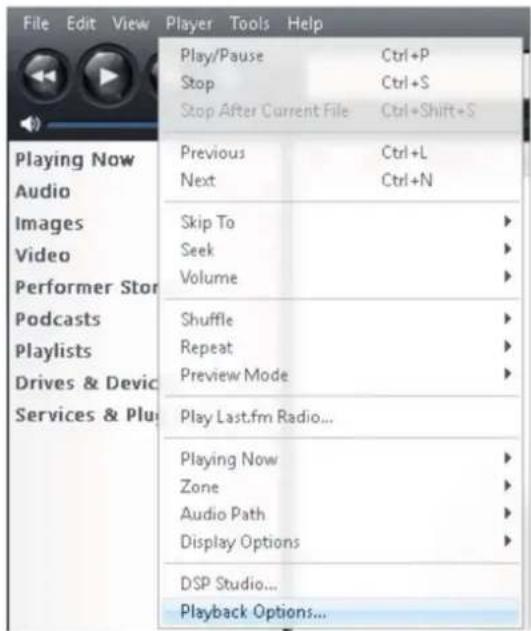

2. Please Run JRiver Media Center. Inside JRiver Media Center Locate and CLICK the Player Tab and select PLAYBACK OPTIONS at the top of the screen.

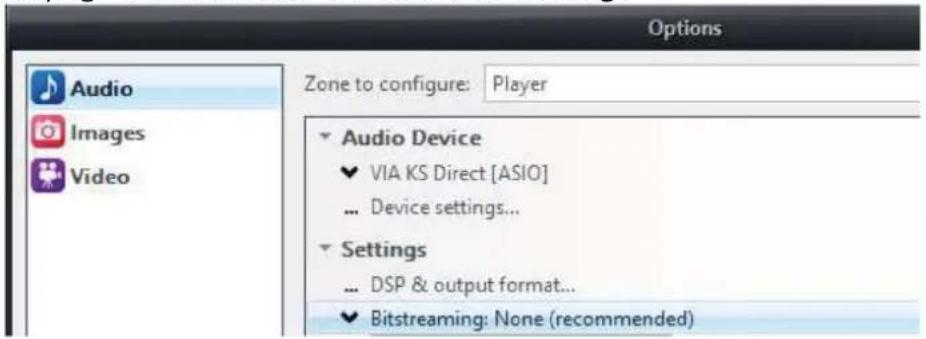

10. Click the Audio Tab

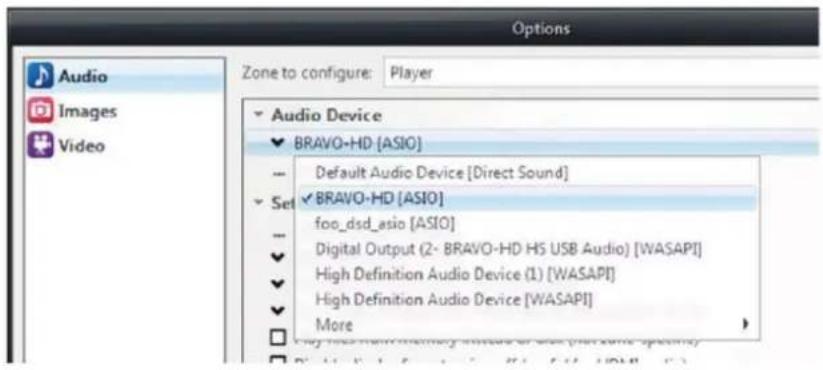

11. Under Audio Device choose BRAVO-HD [ASIO]

12. Staying inside the Audio Tab click Device Settings

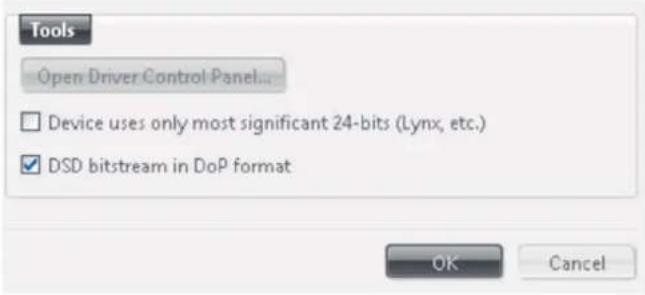

13. Inside the Device Settings Dialog box in Tools Tab select (V) box: DSD bitstream in DoP format. Click OK to accept the changes

14. Go to Audio Tab Click Settings

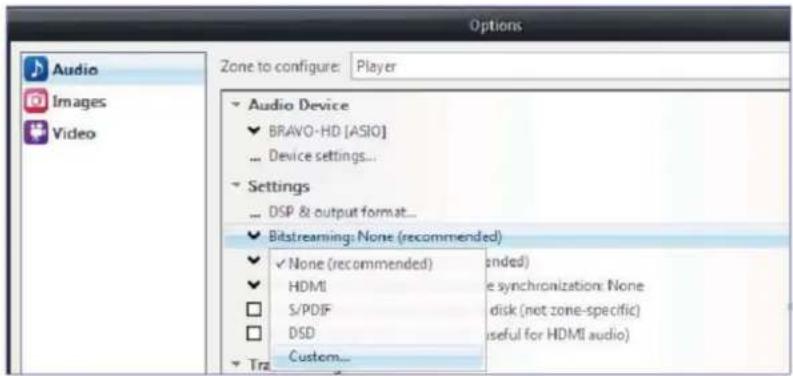

15. Under Settings click the Bitstreaming box and select Custom...

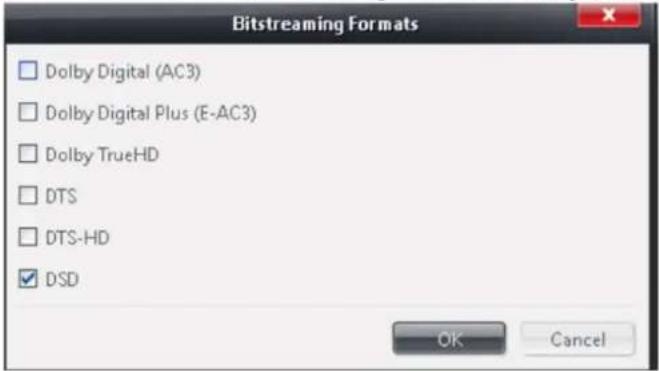

1. Inside the Bitstreaming formats dialog box, select the DSD box only. Click OK.

1. You are now configured to stream DSD files and even PCM files directly to the 384KHz / 32bit DSD USB Audio DAC.

Installing JRiver Media Center Software unter Mac OS:

1. Insert the driver CD disc into your optical drive
2. Go to the driver folder \JRiver\Mac\
3. Run the package file in the folder
4. The Installation Wizard will guide you through the setup process. Follow the on-screen instruction until the installation is completed.

JRiver Media Center DSD setting on Mac OS:

1. Plug in InLine® Mobile AmpUSB into one of your USB 2.0 ports of your PC (the USB port with good USB signal integrity is preferred for the playback of Hi-Resolution music)

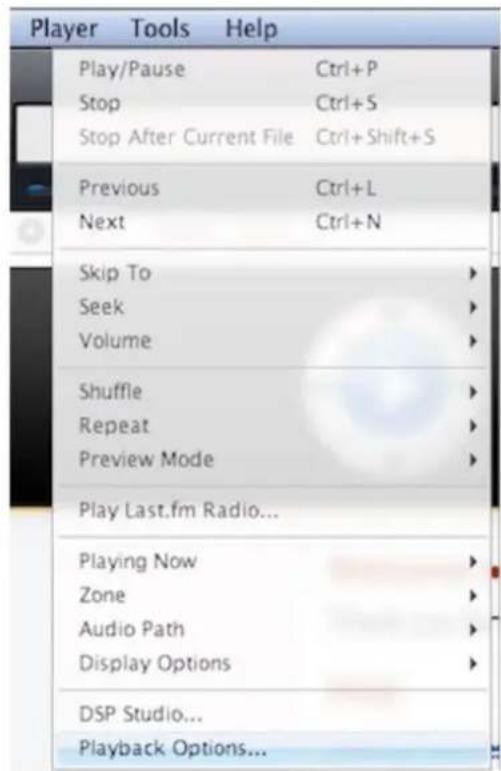

2. Please Run JRiver Media Center. Inside JRiver Media Center Locate and CLICK the Player Tab and select PLAYBACK OPTIONS at the top of the screen

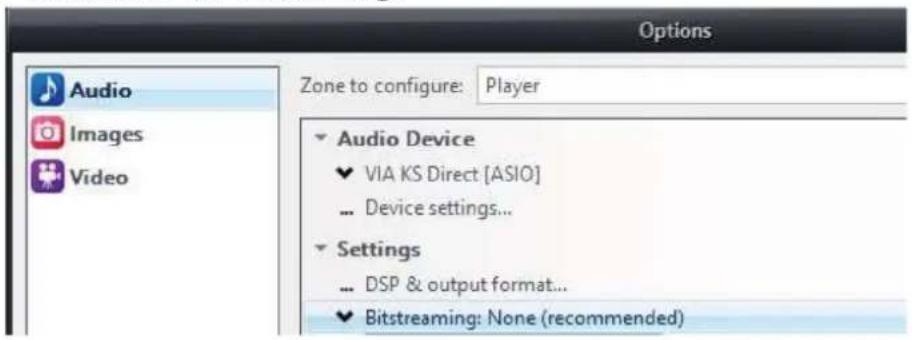

1. Click the Audio Tab

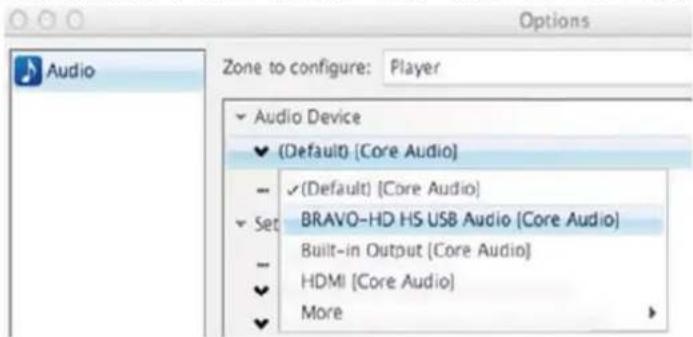

1. Under Audio Device choose "BRAVO-HD HS USB Audio [Core Audio]"

1. Staying inside Audio Tab under Audio Device CLICK Device settings

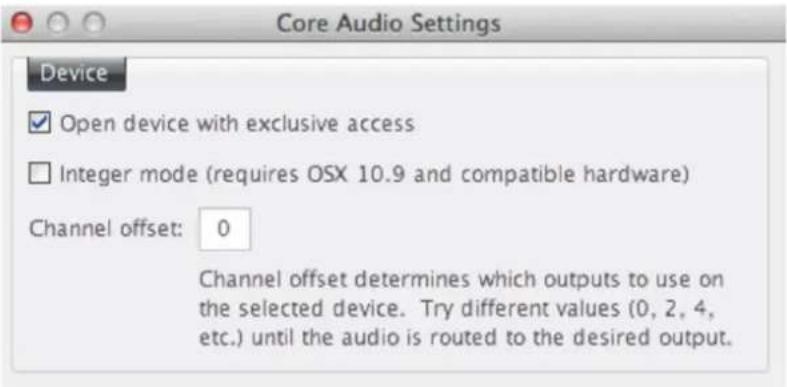

1. Inside the Device setting dialog box, select "Open device with exclusive access" and click OK.

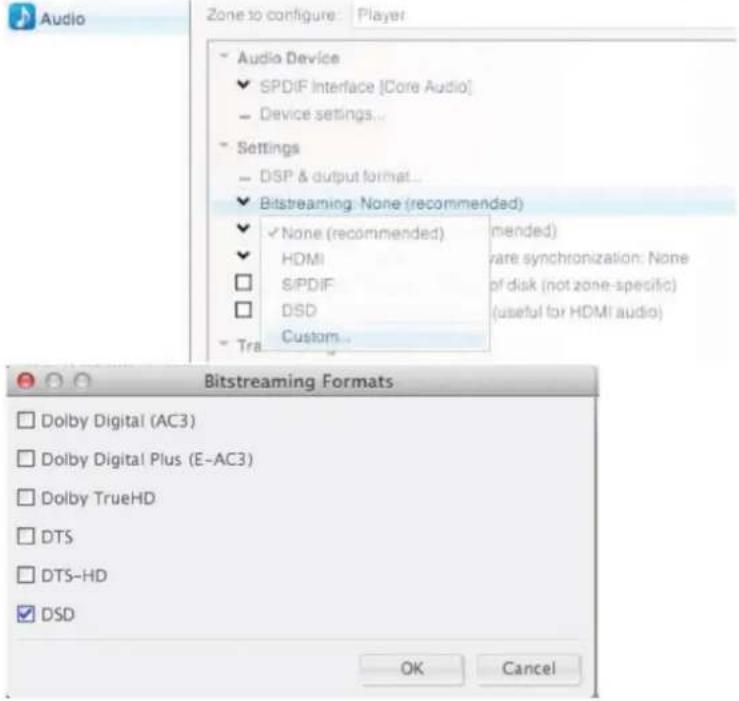

1. Under Audio Tab SELECT Settings Tab, CLICK Bitstreaming settings and SELECT Custom...
2. Inside the Bitstreaming Formats dialog box, select DSD box. And then CLICK OK inside the Bitstreaming Formats dialog box and OK in the Options dialog.

1. Close JRiver Playback Options and begin playing DSD and PCM files directly from the computer!

GETTING THE LATEST SOFTWARE & DOCUMENT

To get the latest driver, software and document, please visit the following website:

http://www.drivers-download.com

In "Drivers Search" section, please enter the Download code (DL code): DL-070001 to search for the latest driver, software and document.
