Product Type	LED Solar Light
Model Numbers	10392A, 10392B, 10392C, 10392D
Dimensions (10392A/B)	Approx. 50 x 10 x 10 cm (h x w x d) without ground stake
Dimensions (10392C/D)	Approx. 15 x 40 cm (diameter x height) without ground stake
Light Source	4 x LED, non-replaceable, 0.025 W each
Total Rated Output	Approx. 0.1 W
Rechargeable Battery	Ni-MH, AA, 600 mAh, 1.2 V
Protection Type	IP44 (splash-proof)
Intended Use	Outdoor ambient/decorative lighting, not for residential room lighting
Charging Method	Solar cell converts sunlight to electricity
Automatic Operation	Automatically switches on at dusk, off at dawn
Mounting	Ground stake for insertion into lawn/soil
Scope of Delivery	1 x LED solar light, 1 x rechargeable battery, 1 x set of assembly and usage instructions
Battery Replacement Interval	Every 12 months for optimal performance
Maintenance	Clean with dry, lint-free cloth; slightly damp cloth if very dirty
Safety Notices	Keep away from children; use only recommended battery type; do not short-circuit
Warranty	36 months from date of purchase
Manufacturer	Uni-Elektra GmbH, Kirchstr. 48, DE-72145 Hirrlingen, Germany
Service Contact	00800 888 11 333 or email per region (UK, IE, NI)
Disposal	Product and packaging recyclable; batteries must be disposed of separately

Frequently Asked Questions - IAN 295693 Livarno Lux

How do I assemble the solar light?

For models 10392A/B: Pull the solar cell housing with lampshade out of the lamp body, push the ground stake into the lamp body, stake into ground, set ON/OFF switch to 'ON', and reassemble. For 10392C/D: similar but twist the solar cell housing counter-clockwise to access switch.

How do I replace the rechargeable battery?

Remove the lampshade, access the solar cell housing, switch off, remove screws, open battery cover, replace with a new Ni-MH AA 600 mAh 1.2V battery, observing polarity. Reassemble and switch on.

Why doesn't the light turn on after a sunny day?

Possible causes: interference from other light sources (e.g., street lights) or insufficient battery charge. Relocate the light away from artificial light and ensure the solar cell gets direct sunlight.

How long does it take to fully charge the battery?

Charging time varies with sunlight intensity and angle. For best results, place the solar cell perpendicular to sunlight. The battery reaches full capacity after several charge/discharge cycles.

Can I use a different type of battery?

No, only use the recommended Ni-MH rechargeable battery (AA, 600 mAh, 1.2V). Other types may explode or cause fire.

The light only stays on for a short time. What can I do?

The battery may be old or there wasn’t enough daylight. Replace the battery (recommended every 12 months) or move the light to a sunnier location.

Is the product safe for children?

Children aged 8+ can use it under supervision. Rechargeable batteries pose choking and chemical burn hazards; keep out of reach of small children.

Can I replace the LEDs?

No, the LEDs are built-in and non-replaceable. The solar lamp is otherwise maintenance-free except for battery changes.

What does IP44 mean?

IP44 means the product is protected against solid objects larger than 1mm and splashing water from any direction. It is suitable for outdoor use but not submersion.

How do I clean the solar light?

Clean the solar cell and housing with a dry, lint-free cloth. For heavy dirt, use a slightly damp cloth. Ensure the solar cell is free of snow and ice in winter.

USER MANUAL IAN 295693 Livarno Lux

Black woven object with a circular top, resembling a lampshade or decorative item (no text or symbols visible)

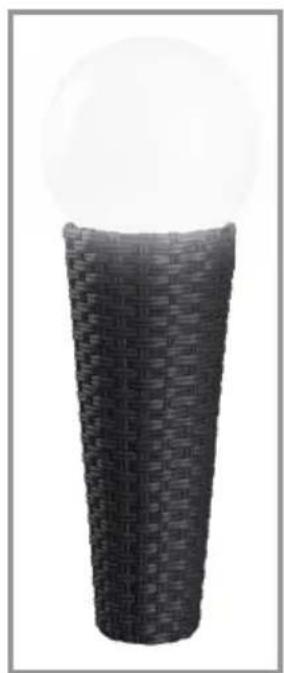

Close-up of a black textured object with a white spherical top, resembling a medical or dental implant (no text or symbols visible)

Close-up of a dark textured rectangular object with woven pattern, possibly a container or lamp (no text or symbols visible)

Stacked cylindrical object with woven texture, no visible text or symbols

LED SOLAR LIGHT

GB IE NI

LED SOLAR LIGHT

Assembly, operating and safety instructions

DE AT CH

LED-SOLARLEUCHTE

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB/IE/NI Assembly, operating and safety instructions Page 5

List of pictograms used....Page 6

Introduction......Page 6

Intended use....Page 6

Parts description Page 6

Scope of delivery....Page 7

Technical data....Page 7

Safety notices....Page 7

Product-specific safety instructions Page 7

Safety instructions for rechargeable batteries....Page 7

Functionality Page 8

Initial use Page 8

Mounting the light....Page 8

Installing the light Page 8

Replacing the rechargeable battery Page 9

Charging......Page 9

Maintenance and Cleaning....Page 9

Troubleshooting Page 9

Disposal Page 10

Warranty and Service......Page 10

Service address......Page 11

Manufacturer......Page 11

List of pictograms used
	Read the instructions! LED operating
	Volt (direct current) Lighting duration
	Watt (effective power) Caution! Fire	rd!
	Observe the warnings and Safety notices!		Wear safety gloves!
KKK7]	This product is not suitable as residential room lighting.		Caution - Hot surfaces!
	Accident hazard and risk of fatal injury for infants and children!		Dispose of the packaging and product in an environmentally-friendly manner!
[Y03A] WARNING!	Severe or fatal injuries may occur.		Improper disposal of rechargeable batteries may result in environmental damage!
	Caution! Explosion hazard!

LED solar light

- Introduction

Familiarise yourself with the device before using it for the first time. In addition, please carefully refer to the instructions

for use and the safety instructions below. Only use the product as described and for the indicated purpose. Keep these instructions in a safe place. If you pass the device on to anyone else, please ensure that you also pass on all the documentation.

Intended use

The solar light is intended as outdoor ambient/decorative lighting. The integrated solar cell and the

rechargeable battery allow usage independent from the electricity grid. Any modification to the product are considered improper use and may result in considerable hazards. The manufacturer assumes no liability for damages due to improper use. This device is not intended for commercial use.

- Parts description

1 Lamp shade
2 Solar cell housing
3 Lamp body
4 Ground stake
5 Adapter
6 Solar cell
7 ON/OFF switch
8 Fastening screw

9 Battery compartment 10 Rechargeable battery

- Scope of delivery

1 LED solar light
1 Rechargeable Ni-MH battery, AA, 600 mAh, 1.2V=
1 Set of assembly instructions and instructions for use

- Technical data

Model no.: 10392A/10392B/ 10392C/10392D

Dimensions (without

ground stake): 10392A/10392B:

approx. 50 x 10 x 10 cm (h x w x d)

10392C / 10392D:

approx. 15 x 40 cm

(∅ x h)

Rechargeable battery: 1 x Ni-MH, AA, 600 mAh, 1.2 V===

Light bulb: 4 x LED (not replaceable)

Rated output LED: approx. 0.025 W per LED

Protection type: IP44 (splash-proof)

Safety notices

PLEASE READ THE INSTRUCTIONS PRIOR TO USE! PLEASE KEEP THE INSTRUCTIONS IN A SAFE PLACE! IF PASSING THIS PRODUCT ON TO A THIRD PARTY, INCLUDE ALL DOCUMENTS!

This product may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance should not be performed by children without supervision.

• Do not use the product if you detect any type of damage.
• Switch the product off whilst storing in a dark environment to prevent draining the battery.

● Product-specific safety instructions

■ Make sure the solar cell is free of dirt and free of snow and ice in winter. Otherwise the performance of the solar panel will be diminished.
- Cold temperatures negatively impact the battery operating time. If the solar garden light will not be used for extended periods, e.g. in winter, it should be cleaned and stored in a dry, warm location.

This product is not suitable as residential room lighting.

Safety instructions for rechargeable batteries

WARNING! RISK OF AC- CIDENT AND DANGER TO LIFE FOR INFANTS AND CHIL-

DREN! Rechargeable batteries are not intended to be in the hands of children. Do not leave the batteries lying around. There is a danger that these will be swallowed by children or pets. If they are accidentally swallowed seek immediate medical attention.

CAUTION! EXPLOSION HAZ-ARD! Only use the recommended type of rechargeable batteries.

Other rechargeable or single-use batteries could explode during charging.

FIRE HAZARD! Never short-circuit rechargeable batteries. Otherwise the rechargeable batteries may overheat, become a fire hazard or explode.

CAUTION! EXPLOSION HAZ-ARD! Never throw rechargeable batteries into fire or water.

- Expired or drained rechargeable batteries may leak chemicals which will damage the product. Remove, therefore, the rechargeable battery when the lamp is not required for any length of time.

WEAR PROTECTIVE GLOVES!

Leaked or damaged rechargeable batteries could cause chemical burns on contact with the skin; you should therefore wear suitable protective gloves at all times if such an event occurs.

Only use rechargeable batteries of the correct size and the recommended type (see section "Technical data").

■ Ensure correct polarity, indicated in the battery compartment.

- Functionality

The solar cell built into the product converts sunlight into electricity and stores it in a Ni-MH rechargeable battery. The light switches on at dusk. The built-in LED is an energy-saving light bulb with a very long life. The light duration depends on the amount of sunlight, the angle at which light hits the solar panel, and the temperature (the battery capacity varies by temperature). A vertical angle of light at temperatures above the freezing point is ideal. The rechargeable battery will only achieve its maximum capacity after several charging and discharging cycles.

- Initial use

- Mounting the light

WEAR PROTECTIVE GLOVES!

Wear protective gloves when assembling and setting up the light!

10392A/B:

☐ Pull the solar cell housing 2 including lampshade 1 out of the lamp body 3.
☐ Push the ground stake 4 out of the adapter 5 and into the lamp body 3.

☐ Push the ground stake 4 into the ground in the desired location and attach the lamp body 3.
☐ Set the ON/OFF switch 7 to the position marked „ON“ to allow the product to switch on in the dark.
☐ Reattach the solar cell housing 2 with lamp shade 1 to the lamp body 3. Your solar light is now ready to use.

10392C/D:

☐ Pull the solar cell housing 2 including lamp-shade 1 out of the lamp body 3.
☐ Push the ground stake 4 out of the adapter 5 and into the lamp body 3.
☐ Push the ground stake 4 into the ground in the desired location and attach the lamp body 3.
☐ Turn the solar cell housing 2 out of the lamp-shade 1 counter-clockwise.
☐ Set the ON/OFF switch 7 to the position marked „ON“ to allow the product to switch on in the dark.
☐ Insert the solar cell housing 2 into the lampshade 1 and tighten clockwise. Your solar light is now ready to use.

- Installing the light

☐ Push the ground stake 4 far enough into the ground (lawn, flower bed) so it is firmly positioned upright in the ground. Then attach the assembled solar light to the ground spike 4.
☐ Make sure it is firmly positioned. Do not use force when assembling or setting up the product, e.g. hammer blows. This will damage the product. In order to achieve the best result, set the solar garden lamp up in a place where the solar cell will get direct sunlight for as long as possible.
☐ Make sure the solar cell is not impacted by other light sources, e.g. yard or street lighting, or the light will not switch on at dusk.
☐ The light will automatically switch on in low light and switch off in normal daylight.

● Replacing the rechargeable battery

The batteries should be replaced every 12 months to ensure optimum performance.

10392A/B:

☐ Remove the lampshade 1 from the lamp body 3.
☐ Pull the solar cell housing ☐ out of the lampshade ☐ 1.
☐ Switch off the light using the ON/OFF switch 7 by setting the switch to the „OFF“ position.
☐ Remove the fastening screws 8 using a small cross-tip screwdriver. Then open the battery cover on the solar cell housing 2 using a flat-head screwdriver.
☐ Replace the old battery 10 with a new rechargeable battery, taking care not to damage the cables. Please note the polarity when inserting the battery. This is shown inside the battery compartment 9. Use only rechargeable batteries of the recommended type (see „Technical data”).
☐ Close the battery cover and tighten the retaining screws 8 using a small cross-tip screw-driver. Set the ON/OFF switch 7 to the "ON" position.
☐ Reattach the solar cell housing 2 to the lamp shade 1. Then assemble the remaining parts of the lamp.

10392C/D:

☐ Remove the lampshade 1 from the lamp body 3.
☐ Turn the solar cell housing 2 out of the lampshade 1 counter-clockwise.
☐ Switch off the light using the ON/OFF switch 7 by setting the switch to the „OFF“ position.
☐ Remove the fixing screws 8 using a small cross-tip screwdriver.
☐ Replace the old battery 10 with a new rechargeable battery, taking care not to damage the cables. Please note the polarity when inserting the battery. This is shown inside the battery compartment 9. Use only rechargeable

batteries of the recommended type (see „Technical data“).

☐ Tighten the retaining screws 8 with a small cross-tip screwdriver. Set the ON/OFF switch 7 to the „ON” position.
☐ Reattach the solar cell housing 2 to the lamp shade 1. Then assemble the remaining parts of the lamp.

- Charging

Please note, the solar garden light must be switched on when the battery is charging. The charging time via the solar cell varies by the intensity of the sunlight and the incidence angle of light onto the solar cell. Place the solar cell as perpendicular as possible to incidence angle of light. This will ensure the brightest light.

● Maintenance and Cleaning

The LEDs cannot be replaced. The solar lamp is maintenance-free, except for any necessary change of battery.

☐ Routinely clean the solar light with a dry, lint-free cloth. Use a slightly moist cloth if very dirty.

- Troubleshooting

Note: The device contains sensitive electronic components. Radio transmitting equipment in the immediate vicinity may therefore cause interference. If you notice the device is malfunctioning, remove any sources of interference from the area around the device.

Note: Electrostatic discharge can cause malfunctions. In the event of such malfunctions, briefly remove and reinsert the rechargeable batteries.

Error Cause Solution
The light will not switch on even though the sun shone on the lamp all day.	Artificial sources of light, e.g. street lighting, is interfering with the light.	Place the light in a location where it will not be affected by other light sources.
The light does not come on or comes on only briefly.	The rechargeable battery is broken or there was not enough daylight.	Replace the battery or install the light in a location where it has greater exposure to sunlight.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibre-board/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.at a local collection point.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries/rechargeable batteries and/or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries/rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

● Warranty and Service

Note: this product includes a 36 month warranty from the date of purchase. The product has been produced to the highest standards and thoroughly checked before dispatch. However, if defects in manufacturing or material arise during the warranty period, please contact your retailer immediately.

The warranty does not cover damages due to improper handling, failure to comply with the operating instructions, or manipulation by unauthorised persons. Most malfunctions are caused by incorrect operation. Therefore please first refer to the operating instructions if a malfunction occurs.

Please contact the Uni-Elektra GmbH service address with any questions. The product can only be returned to us after contacting us. Postage due shipments will not be accepted. Warranty services do not extend or restart the warranty period of 36 months.

- Service address

Uni-Elektra GmbH

Kirchstr. 48

DE-72145 Hirrlingen

GERMANY

Tel.: [phone]

GB [e-mail]
IE [e-mail]
NI [e-mail]

IAN 295693

Please have your receipt and the item number (e.g. IAN 12345) ready as your proof of purchase when enquiring about your product.

Manufacturer

Uni-Elektra GmbH

Kirchstr. 48

DE-72145 Hirrlingen

GERMANY
