Product Type	Freestanding Cooker
Brand	Bomann
Model	EHC 7939
Dimensions (W x D x H)	60 x 60 x 85 cm
Weight	Approx. 40 kg
Power Supply	230 V, 50/60 Hz
Total Power Consumption	Approx. 10 kW
Hob Type	Electric Ceramic Hob
Number of Cooking Zones	4
Oven Type	Electric Oven
Oven Capacity	Approx. 65 L
Oven Functions	Conventional, Grill, Fan-assisted
Control Type	Rotary Knobs
Cleaning	Easy-clean enamel interior
Safety Features	Child lock, Automatic shut-off, Overheat protection
Energy Efficiency Class	A (Oven)
Spare Parts Availability	Replacement heating elements, knobs, and thermostats
Repairability Index	High (standard components)
Manual Languages	DE, EN, and others available

Frequently Asked Questions - EHC 7939 BOMANN

How do I clean the ceramic hob?

Use a specialized ceramic hob cleaner and a soft cloth. Avoid abrasive sponges.

Can I use aluminum foil in the oven?

Yes, but avoid covering the entire rack to prevent heat circulation issues.

What should I do if a cooking zone doesn't heat?

Check the power supply and ensure the zone is turned on. If it persists, contact support.

How do I set the oven timer?

Turn the timer knob to the desired time; a bell will sound when done. Refer to manual for end-of-cooking function.

Is the oven self-cleaning?

No, this model has easy-clean enamel. Wipe with damp cloth after use.

What is the maximum oven temperature?

The oven can reach up to 250°C (approx. 482°F).

Can I replace the oven light myself?

Yes, use a standard 40W oven bulb (G9 fitting) after disconnecting power.

Why does the hob indicator light stay on?

It indicates residual heat; do not touch until it turns off.

How do I activate the child lock?

Press and hold the lock button for 3 seconds until indicator appears.

Where can I find spare parts?

Contact Bomann service or authorized dealers; common parts available online.

USER MANUAL EHC 7939 BOMANN

Exterior view of a white HOMAN electric oven with open doors and control knobs (no visible text or symbols)

General notes ...... page 21

Special safety information for this unit ...... page 22

Transport and packaging ...... page 24

Appliance equipment page 24

Installation ...... page 25

Startup / Operation ...... page 26

Cleaning and maintenance ...... page 30

Troubleshooting page 32

Technical data page 32

Disposal page 33

EU product data sheet page 34

Einleitung

1 Bedienblende

5 Standardblech

2 Backraum

6 Grillrost

3 Gerätetür

7 Kochfeld

4 Geschirrfach

Kochfeld

i HINWEIS:

Pure technical line drawing of a wire mesh structure without any text, numbers, or symbols

VORSICHT!

Technical line drawing of a steel rebar assembly with circular detail (no text or symbols)

Geschirrfach

Isometric line drawing of a square frame with directional arrows indicating orientation (no text or symbols)

Technical line drawing of a square component with mounting holes and a directional arrow indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand pressing a button on a mechanical component (no text or symbols)

Simple line drawing of a hand pointing at a rectangular box with directional arrows (no text or symbols)

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these instructions for use

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General notes

Read the operating instructions very carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this appliance to other people, also pass on the operating instructions.

i NOTE:

• Due to constant product modifications, your appliance may differ slightly from these operating instructions; Functions and methods of use remain unchanged.
• The illustrations in these operating instructions are for illustrative purposes only and may differ from the original appliance.

- The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.

- The appliance is only to be used as described in the user manual. Do not use the appliance for any

other purpose. Any other use is not intended and can result in damages or personal injuries.

• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• Do not operate the appliance without supervision.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• To ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special safety information for this unit

WARNING: Danger from electrical current! Contact with live leads or components can be fatal!

• The connection of the appliance must satisfy the relevant standards and regulations and may only be performed by an authorized specialist.
• The hob may not be used if the glass surface has cracks or is broken.
• Make sure that the appliance is turned off from the power supply (fuse) before changing the bulb in the oven.
• The use of high-pressure cleaners or steam cleaners is prohibited. Ingress of liquids can lead to electric shock. Put the appliance never under water.

WARNING: Hot surface! Risk of Burning!

- During operation the appliance and its accessible parts become hot. Special care must be taken to avoid touching heating elements. Children younger than 8 years must be kept away from the appliance.

- Grasp the oven only on the door handle and switches. Use potholders if you want to remove or insert the accessories.

- Let the appliance cool down before cleaning or maintenance.

WARNING: Risk of Fire!

- Do not leave the oven unattended; unattended cooking with fat or oil can be dangerous and cause fires. NEVER try to extinguish a fire with water. In the event of fire, switch off the appliance and disconnect it from the power supply. Use a suitable fire extinguisher or a fire blanket to extinguish the fire.

WARNING: Risk of Fire!

• CAUTION: The cooking process must be observed. A short cooking operation is to be observed continuously.
• Never store objects on the cooking surface.

• Only use hob guards designed by the manufacturer of the cooking appliance or those specified by the manufacturer in the appliance instructions as suitable or included in the appliance. The use of unsuitable guards may cause accidents.

• The appliance is not intended for operation with an external timer or a separate remote-control system.

• Make sure that with installing adequate air circulations ensured and the ventilation slots are not blocked.
• To avoid overheating, do not install the appliance behind decorative doors.
• Only grill with the appliance door closed.
• Never pour liquids into a hot oven! Scalding by rising water vapor as well as possible damage to enamel.
• Do not place any objects on the open appliance door.
• Do not store any cleaning agents or flammable materials in the appliance or in the immediate vicinity.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children, unless they are older than 8 years and are supervised.

• Do not use harsh abrasive cleaners or sharp metal objects for cleaning the glass surface. The glass can be scratched or destroyed.
• Do not try to repair the appliance on your own. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons avoid a hazard.

Transport and packaging

Transport the appliance

If possible, transport the appliance in a vertical position. Secure the appliance sufficiently and protect it against weather during transport.

Unpacking the appliance

• Remove the appliance from its packaging.
• Remove all packaging material, such as foils, filler and cardboard packaging.
  Dispose of packaging materials that are no longer required in accordance with the locally applicable regulations.
• To prevent hazards, check the appliance for any transport damage.
• In case of damage, do not put the appliance into operation. Contact your distributor.

i NOTE:

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter "Cleaning and maintenance".

Appliance equipment

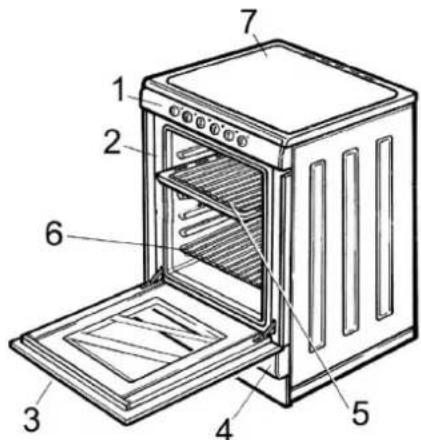

Appliance overview

Oven

1 Control panel 5 Standard oven tray
2 Oven chamber 6 Grill grid
3 Oven door 7 Hob
4 Dish compartment

Hob

i NOTE:

The listed power settings may vary depending on the material and/or size of the cookware.

1 Residual heat 3 ∅155 mm / 1200W

indicator 4 ∅185 mm / 1700W

2 ∅185 mm / 1700W 5 ∅155 mm / 1200W

Delivery scope

1x standard oven tray	1x grill grid
fixing material (dowel, hook)

Installation

WARNING:

The installation as well as the connection to the mains may only be carried out by an authorized specialist.

CAUTION:

• The appliance must be installed in such a way that heat can be dissipated. The ventilation openings must not be blocked.
• Place the appliance on a level, stable, safe and heat-resistant surface.
• The appliance must not be placed on a socket or other elevation.
• Adjacent kitchen furniture must be heat resistant (up to min. 100°C).

- Place the appliance in such a way that all operating elements can be easily reached and the appliance door can be fully opened.

Safety distances

CAUTION:

Ensure that sufficient air circulation is guaranteed and that the ventilation openings are not blocked. It is essential to maintain appropriate safety distances!

• Keep a sufficient distance behind the appliance at the installation site so that the appliance can work efficiently and well.
• The appliance can be placed between two pieces of furniture of the same height. The lateral distance between a piece of furniture and the appliance must be at least 3 cm.
• The distance between hob and cooker hood must be at least 650 mm or as large as specified in the installation instructions for the hood!

Aligning the appliance

The screw feet can be used to compensate for slight unevenness of the floor.

Check whether the appliance is balanced. If the appliance is not balanced, the screw feet must be adjusted.

Fastening the appliance

WARNING:

The appliance must be properly secured to the wall before start-up to protect it from tipping over and to ensure safe use.

i NOTE:

The appliance is equipped with pre-mounted safety chains on the back of the appliance.

- First determine the position of the appliance in accordance with the specified minimum distances.

Three-step diagram showing a drill, hook fastening, and hook attachment (no text or symbols)

• Secure the appliance at a height of approx. 750 mm measured from the floor using the securing chains pre-mounted on the back of the appliance.
• To do this, drill fastening holes of ∅7 mm at the corresponding positions in the wall. Sink the dowels into it and screw in the fastening hooks (delivery scope).
• Connect the chains to the hooks.

Electrical connection

Information for the authorized expert!

WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock!
• Before connecting, ensure that the power supply corresponds with the information on the rating label (door frame) and the wiring diagram.
• The connection must be made to a 3-phase alternating current with neutral and protective conductor.
• Select a suitable cord as mains cable, considering the connection type and rated power of the oven.
  • Fix the mains cable in the tension relief.
• Make sure to connect the protective ground to the terminal of the marked terminal block.
• The electrical installation of the oven should be equipped with an emergency switch, which switches off the whole appliance from the mains supply in an emergency. The distance between the contacts of the emergency switch must be at least 3 mm.
• Arrange the mains cable in such a way that it does not get in contact with any hot components of the appliance. Do not lead it over sharp edges or corners.

Connection wiring diagram

CAUTION:

The protective conductor MUST be connected to terminal

i NOTE:

L1, L2, L3 = Phase | N = Neutral = Protective ground

3N AC 380/400/415 V

For this connection, a mains cable of type H05VV-F must be used.

Startup / Operation

Before initial use

• Clean the oven interior with all therein located accessories. Follow the instructions that we give you in the chapter "Cleaning and maintenance".
• To burn off possible production residues, heat the closed oven for approx. 30 minutes at maximum temperature (240°C_top/bottom heat).

i NOTE:

The occurring odor and possibly a slight smoke development cannot be avoided. So, ensure that the room is well ventilated during the heating process.

Operation overview

The detailed description of the individual controls can be found in the following sections.

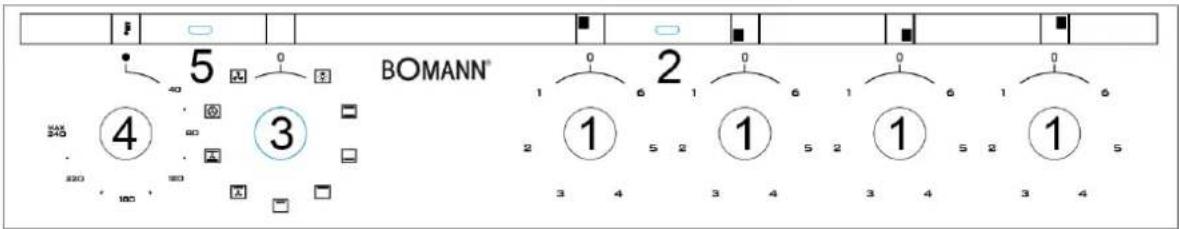

Control panel

1 Cooking zone level controls
2 Cooking zone operating control lamp
3 Oven function selector control
4 Oven temperature selector control
5 Oven temperature control lamp

Cooking zone level controls

The temperature of the cooking zones is set separately for each cooking zone via the assigned control.

■ Position of cooking zone
0 Off-position
1 keep warm
2 - 3 stew, simmer
4 - 6 quick heating, cooking, roasting, boiling

Operating control lamp

The operation control lamp shows the operation of the cooking zones. It lights up as soon as a cooking zone is put into operation and goes out when all the level controls point to the off position.

Function selector control

The function selector control is used to set the heating mode. To set a function, turn the control to the symbol with the desired heating mode.

Temperature selector control

△ CAUTION:

Only turn the temperature selector control clockwise and back again. The control will otherwise be damaged.

The temperature selector control is used to set the oven temperature. The thermostat allows temperature setting in the range from 40°C to 240°C.

Temperature control lamp

The control lamp indicates heating operation. If the light goes out, the set oven temperature has been reached.

During operation, the oven must be reheated again and again to maintain the set temperature. During reheating, the control lamp lights up (thermostat function).

i NOTE:

If the recipe recommends placing the food in the preheated oven, this should not be done before the control light first goes out.

Switching operation on and off

Oven

The oven is equipped with various functions, see "Oven functions". Set the required operating conditions.

• Turn the function selector control to the appropriate position.
• Turn the temperature selector control to the desired temperature.
• To switch off the oven, turn both controls back to the off position.

The cooling fan will continue running for some time after heating is complete. Do not interrupt the power supply to the appliance during this process.

Oven chamber lighting

The oven lighting switches on automatically during oven operation. The lighting can also be switched on

separately via the function selector switch, independently of operation.

Hob

• Place suitable cookware on the cooking zone to be used, see "Selecting appropriate cookware".
• Turn the corresponding level control to the desired power level.
• Turn the level controls back to the off position when cooking is finished.

Residual heat indicator

WARNING: Risk of burns!

Do not touch the cooking zones while the residual heat indicator lights up.

After switching off the cooking zones the residual heat indicator of the corresponding cooking zone lights up. This warns against touching the zone.

Oven functions

Symbol	Description
0	Off position: oven operation is switched off.
	Lighting: the oven lighting can be switched on independently of the oven operation, e.g. for cleaning the oven.
	Top/bottom heat*: the heating is done in a conventional way. The heat is evenly brought to the food from above and below. Suitable for baking and roasting on one level.
	Bottom heat: the heat is only brought to the food from below. To be used when baking from below e.g. Pizza.
	Top heat: heating takes place with the top heat switched on. The heat is only applied to the food from above. To be used for re-baking from above or for keeping warm.

Symbol	Description
	Grill: the grill heating element is in operation. Ideal for grilling or grilling meat, casseroles, toast, etc.
	Circulating grill: in operation is the grill heating element and the circulating air fan for rapid heat circulation. The circulating grill system e.g. replaces the rotisserie when preparing meat.
	Circulating: the heat generated by the top and bottom heating elements is evenly distributed by an additional fan. Ideal for faster cooking on several levels. The reduction in temperature with circulating compared to top/bottom heat is approx. 20 to 30 degrees Celsius for the same cooking time.
	Convection: with an additional ring heating element behind the circulating air fan, the food is heated evenly from all sides by a hot air stream. Suitable for simultaneous cooking on several levels.
	Defrosting (circulating air fan): room temperature air circulation allows quick defrosting of frozen food (without using heating elements). It is a gentle but quick way to speed up the defrosting time of e.g. vegetables or pre-cooked food.WARNING! Do not defrost meat or fish in the oven, there is a risk that the number of dangerous micro-organisms such as salmonella will increase.

*This type of heating is used to determine the energy consumption in conventional mode.

Using the accessory

CAUTION:

Always insert the accessory right way and completely into the oven; the glass door can be scratched.

In the cooking chamber there are levels for inserting the accessories at different heights.

The accessories are safely used between these levels.

Pure technical line drawing of a wire mesh structure without any text, numbers, or symbols

Technical line drawing of a structural frame with grid lines and a circular detail (no text or symbols)

ATTENTION!

Slide the grill grid in the right way with the curvature facing upwards and backwards into the oven.

Dish compartment

The compartment beneath the oven chamber is used to store the accessories.

Selecting appropriate cookware

CAUTION:

The cooking surface and the base of the cookware must always be clean and dry.

Wrong!

Cookware is too small.

Heat loss!

Cookware ground uneven.

Poor heat transfer!

Lid does not close properly.

Heat loss!

Correct! To save time and energy!

Diameter of the cookware corresponds with the diameter of the hob.

The cookware base is fully resting, and the lid closes properly.

The right ovenware

• Pots with heat-resistant handles, recognisable by the marking "temperature-resistant up to 280°C".
• Fireproof moulds made of glass, porcelain, ceramic, clay or cast iron.
• In particular, ovens with top and bottom heat need moulds and trays with good heat transfer, preferably made of black lacquered metals. Cakes brown particularly well in these.
• Aluminium trays, with or without coating, give good results.
• Unsuitable is cookware of bright, shiny aluminum, unglazed clay and tableware made of plastic or with plastic handles.

General notes for baking, cooking and grilling in the oven

i NOTE:

• Use the accessories included in the delivery.
• Temperature and duration depend on quantity and recipe. Always follow the instructions for the duration of the completion in your recipes and preparation instructions on the product packaging.

Baking

• For good baking results, preheating is recommended up to the desired temperature.
• After finishing the baking process, we recommend resting the food for about 5 minutes in the oven.
• Before removing the cake, check if it is done by using a wooden stick. When the cake is done, no dough residue will stick to the wooden stick.

Cooking and roasting meat & fish

- Only cook meat of maximum 1 kg in the oven. We recommend roasting or cooking smaller portions on the cooking hob.

• When using the grill grid for roasting, we recommend placing a baking sheet with some water on the lower level.
• At least once after half of the cooking time, the roast should be reversed; sprinkle the roast during cooking now and then with the resulted roast liquid or with hot, salty water, thereby not using cold water.

Grilling

CAUTION:

• Grill exclusively with the oven door closed!
• Supervise the grilling process, the grilling food can burn rapidly due to the intense heat!
  • Preheat the oven for approx. 5 minutes.
• Brushes the grill grid with a little oil, so that the grilling food does not stick on it.
• Slide an empty baking tray for dripping grease to directly lower level, below the grill grid. Pour some water into the baking tray for later easily cleaning.

Energy saving tips

Information to reduce the environmental effect of cooking (acc. VO (EU) No. 66/2014 appendix I, No. 2)

Oven

• We recommend the use of dark baking molds and plates because they conduct the heat better.
• Any unnecessary accessories should be removed from the baking chamber before using the appliance.
• During cooking, the oven door should remain closed to avoid unnecessary heat loss.
• Only preheat the oven if required by the recipe.
• If a selection of cooking time is specified, always use the lowest recommended temperature.

• Use the residual heat by switching back to minimum temperature shortly before the end of the cooking time.

• Save electricity! If you do not need the oven, switch off functions such as interior lighting, program, temperature.

• Clean the oven after each application, to keep the cleaning effort as low as possible. We recommend the use of biological cleaners.

Hob / Induction hob

• Use pans and pots with flat floors. Uneven floors increase the energy consumption. The diameter of the pot and pan floors should be according to the size of the cooking zone, or bigger.
• Pans and pots, which are too small on the cooking zone leads to energy losses. Note: Dishes producer partly indicate the upper pot diameter. It is usually larger than the diameter of the pot floor.
• Use a small pot for small quantities. A large pot, which is only slightly filled, required a lot of energy.
• Use as little water as possible. This saves energy. Vegetables retain their vitamins.
• Always close pots with a suitable lid. When cooking without lid you need four times more energy. When using glass lids, more energy can be saved because you can see into the pot without open the lid.
• Use a quick cooker to clearly reduce the cooking time and save energy.

Cleaning and maintenance

WARNING:

• Always switch off the appliance completely before cleaning and maintenance work and disconnect it from the power supply if necessary.
• Allow the unit to cool down before cleaning.
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components. Risk of electric shock! Hot steam could damage the plastic parts.

WARNING:

• Never use flammable substances, such as thinner, kerosene, gasoline or acids for cleaning.
• The appliance must be dry before restarting operation.

△ CAUTION:

• Do not use a wire brush or other sharp, abrasive items.
• Do not use harsh abrasive cleaners or sharp metal objects for cleaning the glass surface. The surfaces can be scratched or destroyed.
• Always consider the application and safety notes of the detergent.

Cleaning the hob

• Remove food residues while the hob is still warm with a damp cloth or paper towel.
• Wash the hob with a soft sponge and a little water and dry thoroughly with a soft cloth.

Cleaning agent for glass ceramic surfaces:

For burnt-on residues, help yourself to products from the specialist departments of stores.

Staining	Cleaning method	Cleaning tools
Dirt has accumulated	Use warm water and a sponge to rub dry.	Special cleaning sponge for glass ceramic
Pools and lime deposits	Apply warm vinegar and wipe off with a dry cloth or use special cleaning agent.	Special cleaning agent for glass ceramic
Sugar, melted aluminum, or plastic	Remove by using a glass ceramic scraper.	special cleaning agent and scraper for glass ceramic

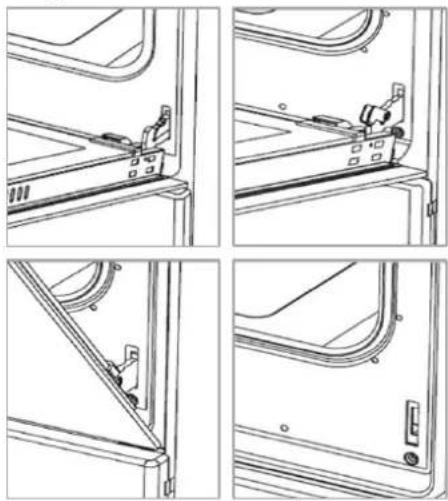

Removing the oven door

You may remove the oven door to facilitate cleaning and to get better access to the oven interior.

• Open the appliance door completely.
• Fold the opposite hinge brackets upwards.
• Slightly close the door and lift it up to remove it.
• When reinstalling the door, make sure the notch of the hinge is properly aligned with the protrusion of the hinge holder.
• Then fold the brackets down again, otherwise the hinges can be damaged while closing the appliance door.

Cleaning the oven

i NOTE:

By cleaning after each use, you avoid that cooking residues, soiling burn in during the next operation. Cleaning is then only possible with a lot of effort.

• Depending on the degree of soiling and the surface, clean the appliance and accessories only with a soft, damp cloth and commercially available, food-safe cleaners.
• Soak stiffly soiled areas with a little warm dish-washing liquid or vinegar cleaner.
• Wipe off grease residues on the seal surrounding the cooking chamber.
  • After cleaning, use a soft absorbent cloth to dry.

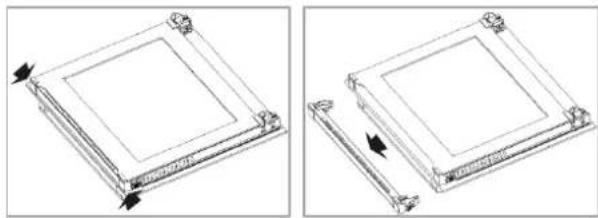

Cleaning the glass pane

If necessary, clean the inside of the glass panes.

Technical line drawing of a square mechanical component with mounting holes and directional arrows indicating assembly (no text or symbols)

Pure technical line drawing of a mechanical assembly with no text or symbols

• Open the oven door.
• Press in the opposite plastic fasteners of the retaining strip and remove the strip to the front at the same time.
• Carefully remove the glass pane from the holder towards the front.
• Replace the glass pane after you have cleaned and thoroughly dried the glass.
• Press the retaining strip firmly back into place.

Changing the bulb

WARNING:

• Make sure that the appliance is turned off from the power supply (fuse).
• Allow the lamp to cool down before replacing the bulb. There is risk of burns!

i NOTE:

Use the correct bulb, heat resistant up to 300^ C:

Type G9 - 220-240 V\~ - 15 W

Illustration showing a hand pressing down on a car seatbelt with a close-up of the right side showing a hand inserting a valve (no text or symbols present)

• Unscrew the lamp cover, clean it with a dry cloth.
• Change the bulb.
• Screw the lamp cover on tightly and check for proper operation.

Troubleshooting

Before you contact an authorized specialist

Problem	Possible cause / Action
Unit does not work	Check the power supply.
Oven lamp does not work	Bulb is defective, was inserted incorrectly, is not securely seated in the socket, see “Changing the bulb”.
Strong smoke development	Grease residues in the oven chamber, switch off the oven, allow to cool before cleaning.

i NOTE:

If a problem persists after following the steps above, contact your distributor or an authorized technician.

Technical data

Electrical connection....

Connection voltage: 380-415 V 3N\~ 50 Hz

Rated power: 7600 W

Rated current: 3 x 16 A

Protection class: I / IP20

Dimension H x W x D / weight.....

Oven dimension: 86,0 x 50,0 x 61,0 cm

Oven interior: .....approx. 31,5 x 34,5 x min. 40,0 cm

Net weight: 35,0 kg

The right to make technical and design modifications during continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.

WARNING:

Remove or disable any existing snap and bolt locks if you take the unit out of operation or dispose it.

Information to professional users for disassembly (acc. VO (EU) No. 66/2014 appendix I, No. 2)

Information for non-destructive disassembly for maintenance purposes

Oven

• Remove the lamp as described in the manual.
• For maintenance purposes, the oven door can be unhinged out and reinstalled, for the procedure please refer to the manual.
• A further disassembly for maintenance purposes is not provided.
• If you would like to exchange defective components, please contact our customer service.

- Motors must be expertly replaced by customer service in accordance with the repair instructions and disposed accordingly.

• Accumulators are not included.

Hob

• A further disassembly for maintenance purposes by the user is not provided. Do not disassemble the unit.
• For repair and replacement of defective parts, please contact our customer service.
  • Accumulators are not included.

Information for disassembly in terms of recycling, recovery and disposal at the end of the life of the appliance

Oven / Hob / Induction hob

• The disassembly of appliances with a gas connection should only be carried out by a licensed gas and water installer.
• The disassembly of appliances with electrical connections should be carried out by a licensed electrician.
• For the recycling and recovery of resources give the appliance to:
• a communal collection point waste disposal authority,
• a dedicated disposal company, offering a re-turn system,
• a resident electric trader, who voluntary withdraws electrical appliances.

EU Product data sheet

Product information for domestic electric hobs according to EU 66/2014

	Position	Symbol	Value	Unit
Brand			BOMANN
Model identification			EHC 7939
Type of hob			electrical hob
Number of cooking zones and/or areas	4
Heating technology (induction cooking zones and cooking areas, radiant cooking zones, solid plates)			radiant cooking zones
For circular cooking zones or area: diameter of useful surface area per electric heated cooking zone, rounded to the nearest 5 mm	Rear left	∅	15,5	cm
	Rear right 18,5
	Front right 15,5
	Front left 18,5
For non-circular cooking zones or areas: length and width of useful surface area per electric heated cooking zone or area, rounded to the nearest 5 mm		LW	- cm
Energy consumption per cooking zone or area calculated per kg	Rear left	EC_electric cooking	193,0	Wh/kg
	Rear right		194,0
	Front right		193,0
	Front left		194,0
Energy consumption for the hob per kg	EC	electric hob 193,5 Wh/kg

Product information for domestic ovens according to EU 65-66/2014

	Symbol	Value	Unit
Brand		BOMANN
Model identification		EHC 7939
Type of oven		free standing oven
Mass of the appliance	M	35,0	kg
Number of cavities 1
Heat source per cavity (electricity or gas) electricity
Volume per cavity V 43 l
Energy consumption (electricity) required to heat a standardized load in a cavity of an electric heated oven during a cycle in conventional mode per cavity (electric final energy)	EC_electric cavity	0,69 kWh/cycle
Energy consumption required to heat a standard-ized load in a cavity of an electric heated oven during a cycle in fan-forced mode per cavity (electric final energy)	EC_electric cavity	0,68 kWh/cycle
Energy consumption required to heat a standard-ized load in a gas-fired cavity of an oven during a cycle in conventional mode per cavity (gas final energy)	EC_gas cavity	-	MJ/cycle kWh/cycle (1)
Energy consumption required to heat a standard-ized load in a gas-fired cavity of an oven during a cycle in fan-forced mode per cavity (gas final energy)	EC_gas cavity	-	MJ/cycle kWh/cycle
Energy efficiency index per cavity	EEI_cavity	93,2
Energy efficiency class (2)		A

(1) 1 kWh/cycle = 3,6 MJ/cycle
(2) A+++ (highest efficiency) to D (lowest efficiency)

Tested acc. to: EN 60350-1

EN 60350-2

EN 50564

BOMANN®

C. Bomann GmbH

www.bomann-germany.de

Made in Turkey
