Brand	Izzy
Model	IZ-6103
Product Type	Drip Coffee Maker
Power Consumption	1000W
Voltage / Frequency	220-240V ~50-60Hz
Water Tank Capacity	1.8 L
Carafe Capacity	15-17 cups
Control Type	Electronic with LCD display
Programmable Timer	Yes (up to 24 hours)
Keep Warm Function	Yes (0, 15, or 30 minutes)
Coffee Strength Options	Regular, Bold, 1-4 Cups
Anti-Drip Valve	Yes (30 seconds)
Filter Type	Permanent filter (included) + paper filter compatible
Auto Shut-Off	Yes (after brew or keep warm cycle)
Descaling Function	Yes (clean cycle)
Safety Features	Overheat protection, auto shut-off, cool-touch exterior
Material	Plastic body, glass carafe
Included Accessories	Carafe, permanent filter, coffee spoon
Warranty	2 years

Frequently Asked Questions - IZ-6103 Izzy

How do I set the current time on the Izzy IZ-6103?

Plug in the coffee maker. Press and hold the HOUR button until you hear a beep. Use the HOUR button to set the hour (note AM/PM indicator). Press the MINUTE button to set minutes. The time will flash and then stabilize.

How do I program the automatic start brewing?

First, set the current time. Then press and hold the PROGRAM button until a beep. Use HOUR and MINUTE to set the desired start time. The display shows PROGRAM. The coffee maker will start automatically at the set time.

How do I descale the coffee maker?

Mix 6 cups of white vinegar with 4 cups of cold water in the carafe. Pour into the water tank. Place a paper filter and permanent filter. Close lid. Press and hold HOUR and MINUTE together until CLEAN appears. Press BREW/OFF. After cycle, discard vinegar and run 2-3 full cycles with fresh water.

What does the coffee strength button do?

Press the STRENGTH button to cycle through REG (regular), BOLD (stronger flavor with longer brew time), and 1-4 CUPS (optimized for small batches).

How do I activate the keep warm function?

Press the KEEP WARM button. Then use the MINUTE button to select 0, 15, or 30 minutes. The coffee will stay warm for that duration after brewing completes.

Can I use the coffee maker without setting the keep warm function?

Yes. If you do not press KEEP WARM or set it to 0, the coffee maker will turn off automatically after brewing. The carafe should be removed at least one minute after brewing ends.

Why is my coffee weaker than expected?

Ensure you are using the correct amount of coffee (1 level scoop per cup). Use BOLD strength setting for stronger flavor. Also, descale regularly if the water is hard, as scale buildup can reduce extraction.

How do I clean the coffee maker after use?

Unplug and let cool. Wash removable parts (carafe, filter basket, permanent filter) with warm soapy water. Do not use dishwasher. Wipe the exterior with a damp cloth. Do not immerse the main unit.

What should I do if the coffee maker stops dripping when I remove the carafe?

This is normal. The anti-drip valve automatically stops dripping when the carafe is removed for up to 30 seconds. Replace the carafe to resume brewing.

Is the coffee maker safe to leave unattended?

No, never leave the appliance unattended while operating. It has auto shut-off, but close supervision is required, especially near children. Always unplug after use.

USER MANUAL IZ-6103 Izzy

Exterior view of a modern glass coffee maker with digital clock (no visible text or symbols)

Thank you for having chosen an appliance from the IZZY range.

Safety interlocks

Please read these instructions carefully before using the appliance and save them for future reference. Please keep the sales receipt for guarantee purposes (pls see below “Guarantee and Customer Service”) Any us which does not conform to the instructions will absolve IZZY from an liability.

• Make sure your electricity supply is the same as the one shown on the underside of the appliance.
  • Always plug your device into an outlet that is earthed. Failure to comply with this requirement may result in electric shock and possible serious injury.
• Never leave the appliance unattended when it is operating.
• Close supervision is necessary when your appliance is being used near children or infirm people. Ensure that they do not play with the appliance.
• This appliance is not intended for use by people with reduced physical, sensory or mental capabilities, children or those with lack of experience and knowledge, unless they have been given supervision or instructic concerning use of the appliance by a person responsible for their safety.
• Switch off and unplug:
• Before filling with water
• Before cleaning
• After each use
• Before moving
• Allow the appliance to cool down completely before putting on or taking off parts and before cleaning and storage the appliance.
• Never use the appliance for any other use than indicated.
• The device is intended for indoor use. Do not use the device outdoors.
• The device is intended only for domestic use. Any other use will cancel the warranty.

- Always use the appliance on a secure, dry, clean and heat resistance surface.

- Do not operate or place the device or parts in places of high humidity or where it may get wet.

- Watch out for steam, never lift the tank lid during the brewing cycle.

- Never touch the plate or surrounding area.

• Always lift the lid using the tab at the front.

- Do not touch the hot parts.

- Do not let the power cord of the appliance hang over the edge of a table or bench top or where a child could grab it. Do not let the power cord to touch any hot surface.

- Never leave the power cable wrapped during use. Unwind it completely.

- Never use highly corrosive or abstractive cleaning agents. Never use metal scouring pads for cleaning.

- Never let the power unit, cord or plug get wet.

- If the appliance does get wet, immediately remove the power cord from the wall outlet and do not put your hands in the water. Never run the wet appliance and contact one of the authorized BENRUBI service centers.

- Do not let the cord touch hot parts.

- Never place this appliance on or near a hot gas or electric burner or whe it could touch a heated appliance.

• Always make sure there is water in the tank before switching on.

- This coffee maker is only suitable for use with the type of carafe supplied.

- Do not leave the appliance switched on with an empty carafe on the plate

- Never put the carafe in the microwave.

- Do not move the appliance when it is in operation.

- Do not touch the appliance with wet or damp hands.

- Do not use an extension power cord.

- Check the power cord periodically for possible damages.

- If the power cord or the plug of the appliance have been damaged, do no use the appliance and contact an authorized BENRUBI Service Center.

- In case of a possible damage, do not attempt to repair the appliance by yourself. Please contact one of the authorized BENRUBI service centers.

- Any repair made by an unauthorized BENRUBI Service Center CANCELS THE GUARANTEE.

- Any misuse of the device cancels the warranty.

- Only use original spare parts.

• The appliance conforms to EU directive 2014/30/EU on Electromagnetic

Compatibility, the 2014/35/EU Low Voltage Directive, the2011/65/EU RoHS Directive, the directive 2009/125/EC for eco-design and the EC regulation no. 1935/2004 on materials intended to contact with food.

SAVE THESE INSTRUCTIONS

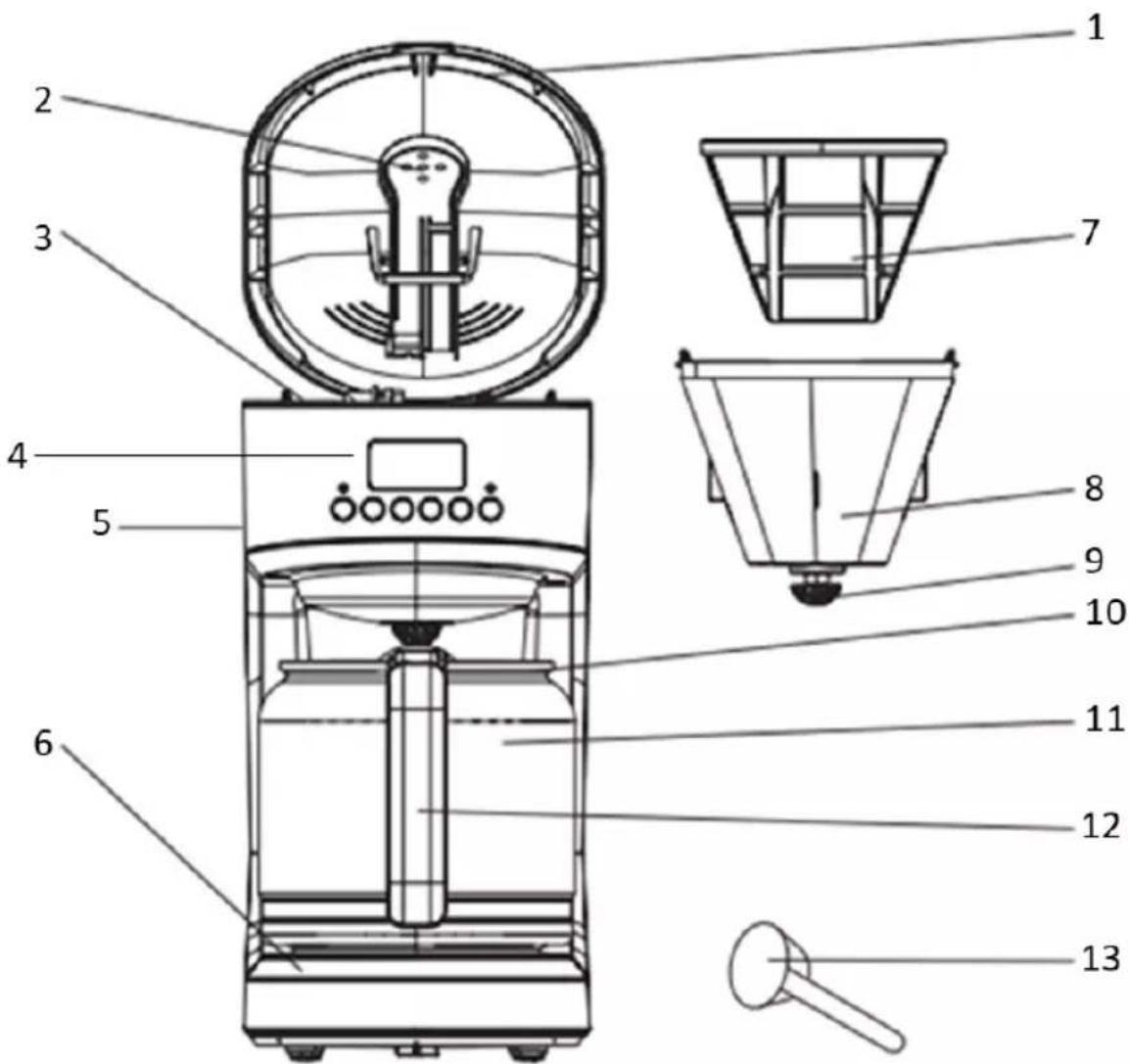

Parts of the Appliance

1. Lid
2. Water flow (shower)
3. Water tank
4. Control panel
5. Water level indicator
6. Insulating plate

7. Permanent filter

8. Filter holder

9. Anti-drip valve
10. Carafe lid
11. Carafe
12. Carafe handle
13. Coffee spoon

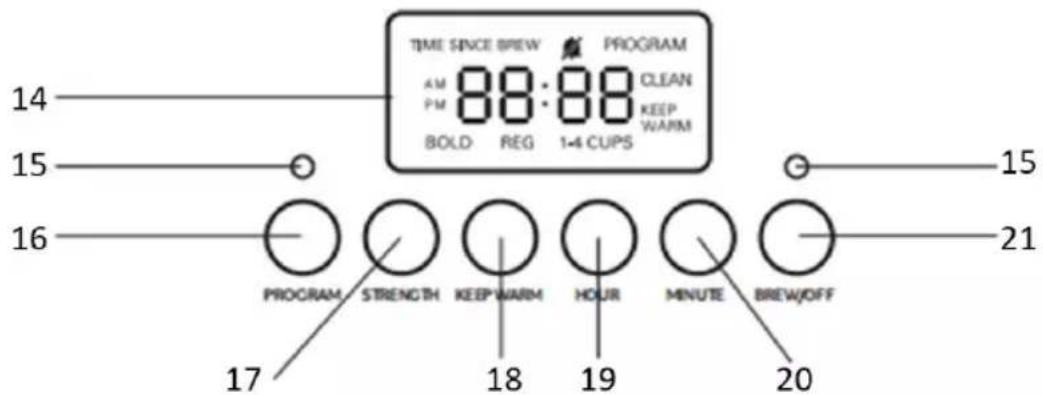

CONTROL PANEL

1. LCD screen
2. Indication lights
3. "PROGRAM" button
4. "STRENGTH" button
5. "KEEP WARM" button
6. "HOUR" button
7. "MINUTE" button
8. Power button "BREW/OFF"

Before the First Use

• Wash the parts of the appliance. See "Cleaning and maintenance".
• Run two full tanks of water (without coffee) through the coffee maker to clean it. See "Use your coffee machine".

Note: At the end of the first cycle, let the device cool down for 15 minutes.

Time Setting

Note: In the event of a power failure or after unplugging the device from the outlet, the time setting is disabled.

1. Plug in. The display (14) will turn, "12:00" will briefly flash and then will stabilize and flash the colon.
2. Press and hold the "HOUR" button (19) until a beep is heard. The time on the display will flash.
3. Press the "HOUR" button (19) successively until you set the current time. The upper left corner of the screen will alternate between "AM" (before noon) and "PM" (after noon).

Example: If you want to set the time to 1:00 PM, make sure that "PM" is displayed in the upper left corner of the screen.

1. Press the "MINUTE" button (20) successively until you set the minutes.

2. Once you set the current hour and minutes, the set time will flash 4 times and then will stabilized.

Note: In the event of a power failure or after unplugging the appliance from the outlet, the tim setting is disabled.

Using the Coffee Machine

1. Lift the lid (1) using the tab at the front of the lid.
2. Fill the water tank (3) with the desired amount of water.

Attention! Do not fill above the MAX level.

Note: Use cold water. We recommend using filtered water as it reduces lime scale and prolongs the life of your coffee maker. Never use ware or frizzy water.

1. Fit either the permanent filter (7) supplied or a paper filter into the filter holder (8).
   Note: Ensure the filter holder (8) is positioned correctly.
2. Add the coffee using the spoon supplied (13) (approximately 1 level spoon (7gr.) per cup).
3. Close the lid (1) and put the carafe (11) on the plate (6).

4. If you want to adjust the strength of the coffee, press "STRENGTH" button (17), otherwise go to step "7". You have 3 options:

5. REG: Default setting for regular coffee strength.

6. BOLD: The BOLD setting adjusts the brewing cycle of a full pot of coffee. It allows more time for the coffee to "boil" to extract the oils and coffee flavor. This results in a pot of coffee with strong aromas and taste.

7. 1-4 CUPS: Recommended for preparing small amounts of coffee (1-4 cups) with maximum flavor.

8. If you want the temperature to be maintained after the coffee has been brewed, you must set the "KEEP WARM" function: To set, follow the steps below, otherwise proceed to step "8".

i. Press the "KEEP WARM" button (18). The display will show "KEEP WARM" and 0:00 will flash. ii. Press the "MINUTE" button successively to select the time you want your coffee to be kept warm. Options are 0, 15 & 30 minutes.

Note: If you do not want the appliance to go into KEEP WARM mode, make sure the time is set to "0:00".

Note: If coffee brewing starts you cannot set the KEEP WARM function. You should switch off the appliance by pressing the BREW/OFF button (21), activate the KEEP WARM function and start the coffee brewing function by pressing the BREW/OFF button (21) again.

1. Switch on the coffee maker by pressing the BREW/OFF button (21). The power indication light will turn on.

- The operating process can be stopped at any time by pressing the BREW/OFF button (21). The operation indicator and the display (14) will turn off. The appliance will restart the process pressing the BREW/OFF button (21) once.

Note: You can take out the carafe, pour and serve at any time. The coffee maker will stop dripping automatically for 30 seconds.

If you have activated the KEEP WARM mode:

i. Once the process is complete, a sound will be heard 3 times, the “BREW/OFF” indication light (15) will remain on. The display will show “TIME SINCE BREW” and “0:00”. The appliance will start counting the temperature retention time you have selected.

ii. As soon as the temperature maintenance time is finished, a sound will be heard 2 times, the "BREW/OFF" indication light (15) and the "TIME SINCE BREW" indication will turn off. The appliance will turn off.

If you have not activated the KEEP WARM function:

i. When the coffee brewing cycle is complete, the power indication light and the display will turn off. Remove the carafe from the plate at least one minute after the coffee has finished brewing. When the jug is empty, switch off and unplug the appliance.

Note: The amount of brewed coffee after the brewing process will always be slightly less than the amount of water placed into the coffee maker, since some water is absorbed by the coffee ground

or evaporates. Add a little extra water at the beginning so that you end up with the exact number of cups desired.

Note:

- If you have not used the appliance for a while, run one full tank of water (without coffee) through to clean it out.

Automatic Coffee Brewing Operation

For the automatic coffee brewing operation, you must have set the current time (see section "Setting the time").

First follow steps 1-7 from the “Use the coffee machine” section and then follow the steps below to schedule the operation:

1. Press "PROGRAM" button (16) continuously until a sound is heard. The indication light and the display (14) will turn on. The time will flash on the display.
2. Press the "HOUR" (19) and "MINUTE" (20) buttons successively to set the time you want the coffee brewing process to start. The upper left corner of the screen will alternate between "AM" (before noon) and "PM" (after noon).
3. The time you set will flash for a few seconds, then the display will show the current time and "PROGRAM".
4. If you want the temperature to be maintained after the coffee has been brewed, you must set the "KEEP WARM" function: To set, follow the steps below, otherwise proceed to step "8".
   i. Press the "KEEP WARM" button (18). The display will show "KEEP WARM" and 0:00 will flash. ii. Press the "MINUTE" button successively to select the time you want your coffee to be kept warm. Options are 0, 15 & 30 minutes.
   Note: If you do not want the appliance to go into KEEP WARM mode, make sure the time is set to "0:00".
   Note: If coffee brewing starts you cannot set the KEEP WARM function. You should switch off the appliance by pressing the BREW/OFF button (21), activate the KEEP WARM function and start the coffee brewing function by pressing the BREW/OFF button (21) again.
5. When the time has elapsed, the indication light and the "PROGRAM" indication will turn off and the "BREW/OFF" indication light (15) will turn on and the appliance will start operating.
   NOTE: You can cancel the auto start by pressing the "BREW/OFF" button twice.

If you have activated the KEEP WARM mode:

i. Once the process is complete, a sound will be heard 3 times, the "BREW/OFF" indication light (15) will remain on. The display will show "TIME SINCE BREW" and "0:00". The appliance will start counting the temperature retention time you have selected.
ii. As soon as the temperature maintenance time is finished, a sound will be heard 2 times, the "BREW/OFF" indication light (15) and the "TIME SINCE BREW" indication will turn off. The appliance will turn off.

If you have not activated the KEEP WARM function:

i. When the coffee brewing cycle is complete, the power indication light and the display will turn off. Remove the carafe from the plate at least one minute after the coffee has finished brewing. When the jug is empty, switch off and unplug the appliance.

Note: The amount of brewed coffee after the brewing process will always be slightly less than the

amount of water placed into the coffee maker, since some water is absorbed by the coffee ground or evaporates. Add a little extra water at the beginning so that you end up with the exact number of cups desired.

Note:

- If you have not used the appliance for a while, run one full tank of water (without coffee) through to clean it out.

Tips for Great-Tasting Coffee

A clean coffee maker is essential for making great-tasting coffee. Regularly clean the coffee maker as specified in the “Cleaning and Maintenance” paragraph.

• Always use fresh, cold water in the coffee maker.
- Fine-cut coffee ensures better filtration, intense aroma and rich flavor. If the coffee is not grinded well enough, add more coffee per cup to ensure the same taste performance.
- Keep coffee in a cool and dry place. When you open the package of coffee, keep tightly closed in refrigerator to keep the freshness.
- For optimal result, buy whole coffee beans and grind them just before the filtering process.
- Do not use the same coffee for the second time, as this would destroy its aroma.
- It is not recommended reheating coffee. Coffee has the maximum aroma, immediately after preparation.
- Small oil stains on the surface of the filtered coffee are due to the extraction of oil from the coffee beans. The oil may also be due to the heavy roast of the coffee.

Descaling

Descaling your coffee machine is recommended at least once a month, depending on the frequency of use and the hardness of the water. If the water in your area is particularly hard, the following cleaning procedure should be done every 2 weeks, otherwise it may reduce the intensity of the coffee flavor and lengthen the brewing time.

• We recommend cleaning your coffee maker once a month.

1. Mix 6 cups of white vinegar and 4 cups of cold water in the carafe.
2. Pour the mixture into the water tank (3).
3. Place a paper filter on the filter base (8) and place the permanent filter (7) on top.
4. Close the lid (1) and place the empty carafe (11) on the plate (6).
5. Simultaneously press and hold the HOUR (19) and MINUTE (20) keys until a "beep" is heard and the display shows "CLEAN".
6. Press the BREW/OFF button (21). A “beep” will be heard and the power indication light will turn on.
7. Once the cleaning cycle is complete the power indication light will turn off and a beep will be heard.
8. Discard the vinegar and water mixture.
9. Repeat the brewing cycle 2-3 times with cold water before brewing coffee again.

Cleaning and Maintenance

• Always switch off, unplug and allow to cool before cleaning.
• Don't wash parts of the appliance in the dishwasher
• Clean all removable parts of the device after each use with warm soapy water.
• Clean the outer parts of the device with a soft, damp cloth.

CAUTION: Do not immerse the coffee maker in water or any other liquid.

- Do not clean the inside of the water tank with a cloth while may cause remnants of the fabric fibers and clog the coffee maker.

- For intense stains, use a synthetic sponge with a light detergent. Do not use wire and abrasive cleaners.

- Water droplets may be created in the region over the filter holder and drip onto the base of the product during operation. Wipe the area with a clean, dry cloth after each use of the device.

- Use a damp cloth to gently wipe the plate. Never use abrasive detergents for cleaning.

Descaling

1. Buy a suitable descaler from a supermarket.
2. Please follow the instructions indicated on the packaging of the descaler to descale the machine.
3. After descaling, run the coffee machine, at least three times with full tanks of water (without coffee), to clean it out.
4. Wash the parts. See "Cleaning and maintenance" section.

Technical Characteristics

Model: Coffee Maker IZ-6103 IZZY

Rated voltage / Frequency: 220-240V \~50-60Hz

Power: 1000W

Water tank capacity: 1.8L

Carafe capacity: 15-17 cups

Important Information for Correct Disposal of the Product in Accordance with EC Directive 2002/96/EC

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

Guarantee & Customer Service

• BENRUBI Company guarantees its products for any manufacturing defect or defective materials for a period of two (2) years from the date of purchase or delivery by presenting purchase receipt. If your product malfunctions or you find any defects, please revert to the retail location you have purchased it from or contact an authorized BENRUBI Service Centre. To find the nearest authorized BENRUBI Service Centre, visit our website www.benrubi.gr. It is in the discretion of BENRU Company to replace or repair the defective product.
• The warranty does not cover damages resulting from normal wear, breakage, scaling, improper installation or maintenance of the product, mishandling, abnormal working conditions, failure implement the instructions, conversion or repair of the product by an unauthorized technician who does not belong to the BENRUBI Service Centers.

Also, the warranty does not cover the following indicative factors:

• Stains, discoloration or scratches.
- Burns due to exposure to heat or flame.
- Damage from thermal shock (sudden temperature change or change of voltage).

FOR MORE INFORMATION PLEASE CONTACT:

(NEW) H. BENRUBI & FILS SA

27 Aghiou Thoma str, GR15124, Maroussi – Athens,

Tel./Customer Support: [phone]

e-mail: [e-mail]
