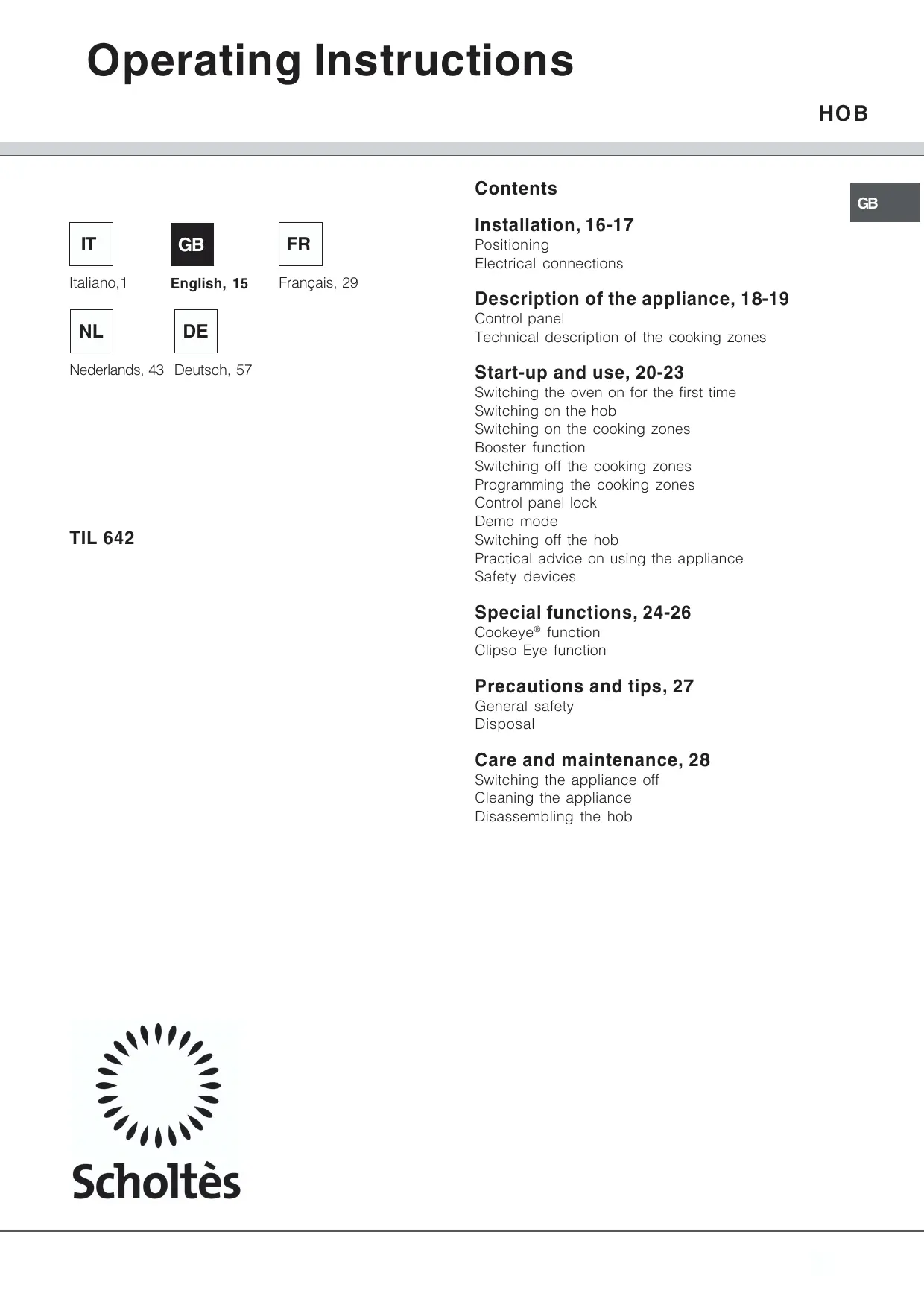

USER MANUAL TIL 642 SCHOLTES

Electrical connections

Description of the appliance, 18-19

Control panel

Technical description of the cooking zones

Start-up and use, 20-23

Switching the oven on for the first time

Switching on the hob

Switching on the cooking zones

Booster function

Switching off the cooking zones

Programming the cooking zones

Control panel lock

Demo mode

Switching off the hob

Practical advice on using the appliance

Safety devices

Special functions, 24-26

Cookeye® function

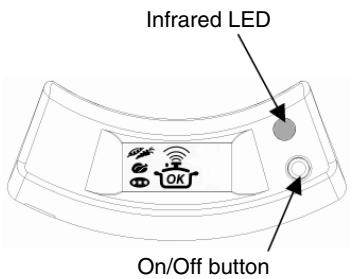

Clipso Eye function

Precautions and tips, 27

General safety

Disposal

Care and maintenance, 28

Switching the appliance off

Cleaning the appliance

Disassembling the hob

Scholtès

GB

GB

! Before operating your new appliance please read this instruction booklet carefully. It contains important information concerning the safe operation, installation and maintenance of the appliance.
! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Positioning

! Keep all packaging materials out of the reach of children. It may present a choking or suffocation hazard (see Precautions and tips).
! The appliance must be installed by a qualified professional in accordance with the instructions provided. Incorrect installation may damage property or cause harm to people or animals.

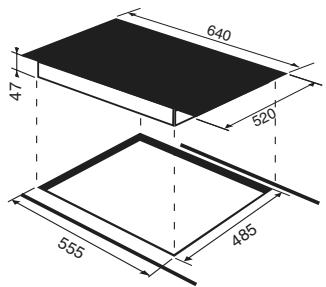

Built-in appliance

Use the appropriate cabinet to ensure that the appliance functions properly.

• The supporting surface must be heat-resistant up to a temperature of approximately 100^ .
• If the appliance is to be installed above an oven, the oven must have a forced ventilation cooling system.
• Avoid installing the hob above a dishwasher: if this cannot be avoided, place a waterproof separation device between the two appliances.
• The cabinet compartment must possess the following measurements:

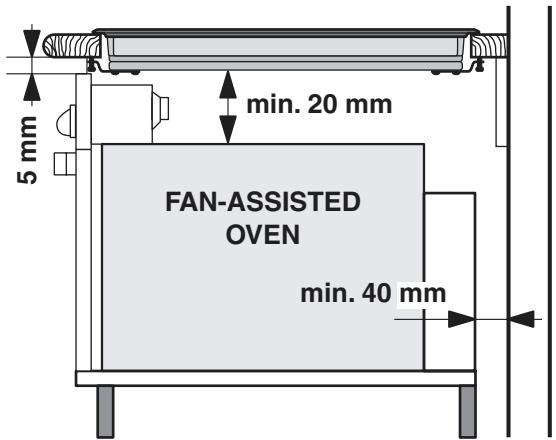

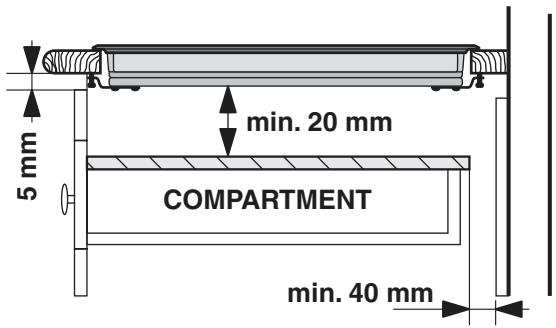

Ventilation

To allow adequate ventilation and to avoid overheating of the surrounding surfaces the hob should be positioned as follows:

• At a minimum distance of 40 ~mm from the back panel or any other vertical surfaces.
• So that a minimum distance of 20mm is maintained between the installation cavity and the cabinet underneath.

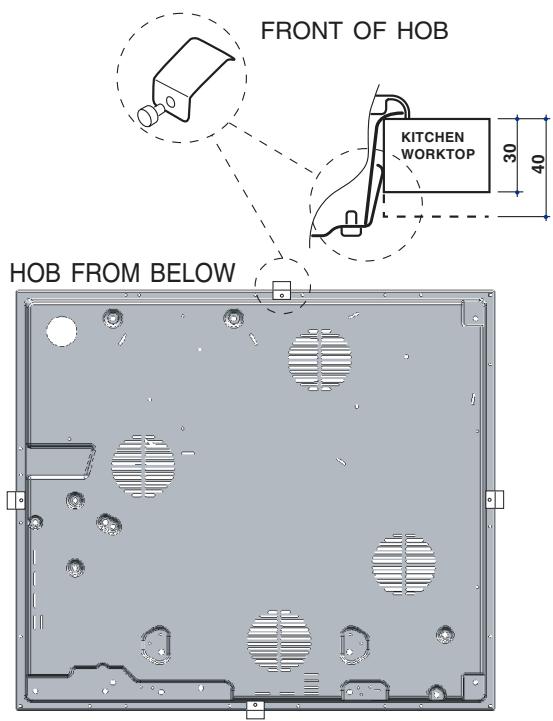

Fixing

The appliance must be installed on a perfectly level supporting surface.

Any deformities caused by improper fixing could alter the features of the hob and consequently affect its performance.

Fix the hob as follows:

1. Use short flat-bottomed screws to fix the 4 alignment springs in the holes provided at the central point of each side of the hob.
2. Place the hob in the cavity, make sure it is in a central position and push down on the whole perimeter until the hob is stuck to the supporting surface.

! The screws for the alignment springs must remain accessible.
! In order to adhere to safety standards, the appliance must not come into contact with electrical parts once it has been installed.
! All parts that ensure the safe operation of the appliance must not be removable without the aid of a tool.

Electrical connection

! The electrical connection of the hob and any built-in oven must be carried out separately, both for safety purposes and to make extracting the oven easier.

Single-phase connection

The hob is equipped with a pre-connected electricity supply cable, which is designed for single-phase connection. Connect the wires in accordance with the instructions given in the following table and diagrams:

Voltage and mains frequency	Electrical cable	Wire connection
230V 1+N ~ 50 Hz	N L	±: yellow/green; N: the two blue wires together L: brown and black together

Other types of connection

If the mains supply corresponds with one of the following:

Voltage and mains frequency

380V+N\~50Hz
230V 3 ~ 50 Hz
380V + 2N 50Hz

Connect the wires in accordance with the instructions given in the following table and diagrams:

Voltage and mains frequency	Electrical cable	Wire connection
400V - 2+N ~ 50 Hz	N L1 L2	L: yellow/green; N: the two blue wires together L1: black L2: brown
230V 3 ~ 50Hz
400V - 2+2N ~ 1 50 Hz	N1 N2 L1 L2	L: yellow/green; N1: blue N2: blue L1: black L2: brown

Connecting the electricity supply cable to the mains

The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3mm installed between the appliance and the mains, suitable for the load indicated and complying with current electrical regulations (the earthing wire must not be interrupted by the circuit-breaker). The supply cable must not come into contact with surfaces with temperatures higher than 50^ .

! The installer must ensure that the correct electrical connection has been made and that it is fully compliant with safety regulations.

Before connecting the appliance to the power supply, make sure that:

• The appliance is earthed and the plug is compliant with the law.
• The socket can withstand the maximum power of the appliance, which is indicated on the data plate located on the appliance itself.
• The voltage is in the range between the values indicated on the data plate.
• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.
! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced by authorised technicians only.
! The manufacturer declines any liability should these safety measures not be observed.

GB

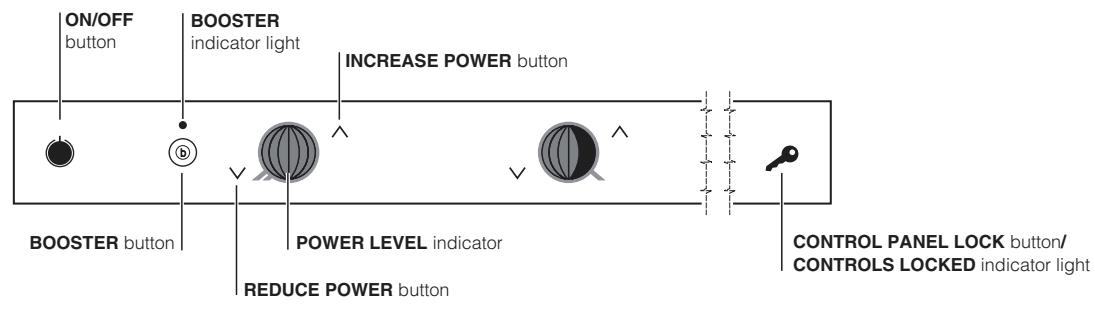

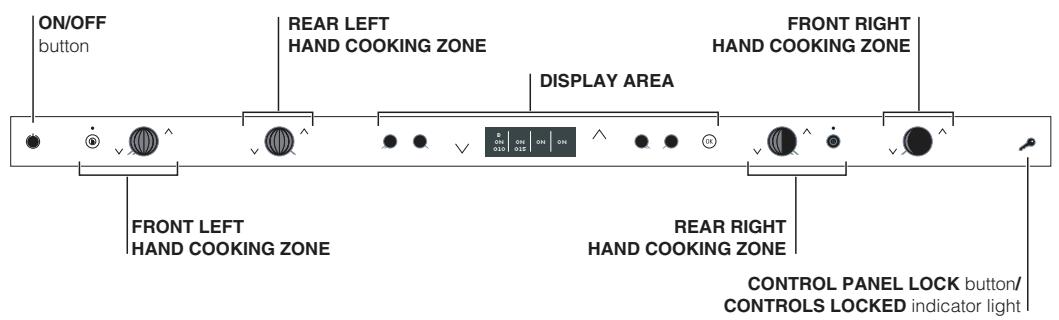

Control panel

• ON/OFF button switches the appliance on and off.
• BOOSTER button switches on the booster function - 3000W - of the cooking zone (see Start-up and use).
• BOOSTER indicator light shows the booster function has been switched on for a particular cooking zone.
• REDUCE POWER button controls the power and switches off the hotplate (see Start-up and use).

• POWER indicator provides a visual display for the current heat level.

• INCREASE POWER button switches on the hotplate and controls the power (see Start-up and use).

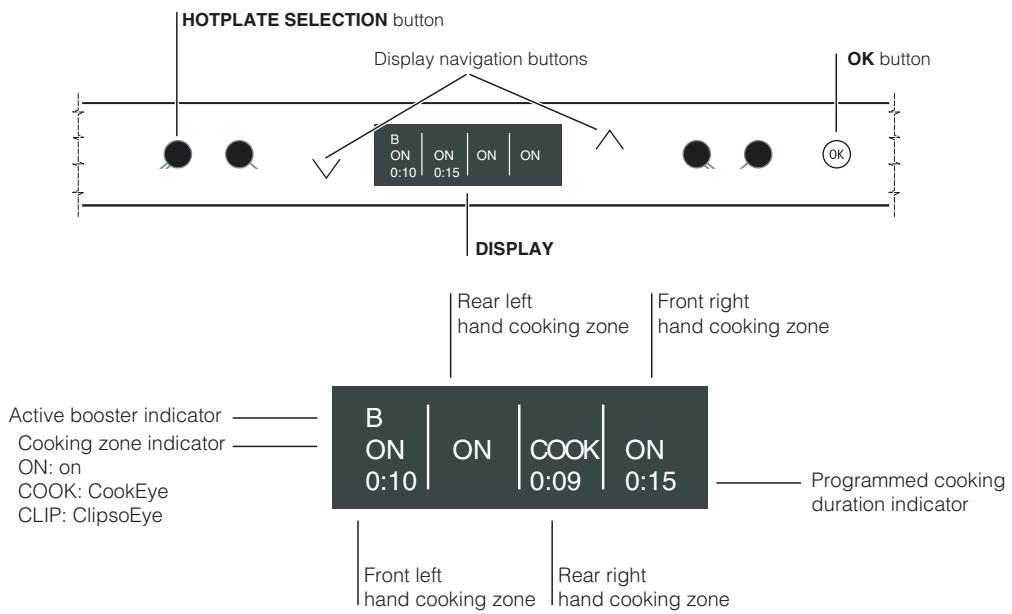

• HOTPLATE SELECTOR buttons are used to enter the menu for each cooking zone (see Start-up and use).
• OK button confirms each selection.
• CONTROL PANEL LOCK button prevents accidental changes to the hob settings (see Start-up and use).
• CONTROL PANEL LOCK indicator light shows the control panel has been locked (see Start-up and use).

Technical description of the cooking zones

The induction system is the quickest existing way of cooking. Unlike traditional hotplates where the cooking zone heats up, with the induction system heat is generated directly inside pans which have ferromagnetic bases.

HOBS	TIL 642
Cooking zone	Wattage
Back right	DI 2400 W – B 3000 W
Front right	I 1200 W – 600 W if*
Front left	DI 2400 W – B 3000 W
Back left	I 1200 W – 600 W if*
Maximum total wattage	7200 W

Key:

I = single induction cooking zone

DI = double induction cooking zone

B = booster: the power of the cooking zone may be boosted to 3000W

• = the maximum power is limited to 600 W until the booster is activated for the appropriate rear cooking zone (see Start-up and use).

! The glue applied on the gaskets leaves traces of grease on the glass. Before using the appliance, we recommend you remove these with a special non-abrasive cleaning product. During the first few hours of use there may be a smell of rubber which will disappear very quickly.

! A few seconds after the hob is connected to the electricity supply, a buzzer will sound. The hob may now be switched on.

Switching the oven on for the first time

After the appliance has been connected to the electricity supply, the first time it is switched on a list of languages appears. To set the desired language select it using the and buttons at the side of the display. The character in bold indicates which language has been selected. To confirm press the "OK" button.

Once the selection has been made, the display will show the following parameters:

LANGUAGE Language selection

KEY TONE Control panel volume adjustment

CONTRAST Contrast adjustment

FINE TUNING Power level adjustment (6 or 12)

TIMER Timer setting function

EXIT Exit the main menu

Key tone

Enables the volume of the control panel to be adjusted. To set the desired level, select a value using the and buttons at the side of the display and press the "OK" button to confirm. There are 3 available options:

OFF: volume off (although the buzzer remains active).

MIN: minimum volume.

MAX: maximum volume.

Contrast

Enables the contrast of the display to be adjusted. To set the desired brightness level, select a value using the and buttons at the side of the display and press the "OK" button to confirm. There are 6 different brightness levels to choose from.

Fine tuning

Enables the number of the power level for each cooking zone to be adjusted.

To set the desired level, select a value using the and buttons at the side of the display and press the "OK" button to confirm. There are 2 available options:

6: the power level indicator will be divided into 6 equal parts.

12: the power level indicator will be divided into 12 equal parts.

Timer

Enables the timer to be set independently of the cooking zone operation. Adjust the minutes by pressing the and buttons and press "OK" to confirm. The timer begins counting down immediately. When the set time period has elapsed a buzzer will sound (for 1 minute).

! During the setting process, press the and buttons at the side of the display to reset the time value to zero.

! The modification of the general operating parameters of the hob may only take place when the hob is switched on and the buttons at the side of the display are not lit up. Press the and buttons at the side of the display to access the options detailed above.

Switching on the hob

To switch the hob on, press and hold the button for approximately one second.

Switching on the cooking zones

Each cooking zone is controlled by a device consisting of two buttons (√ and ∧) at the side of the power level indicator.

• Press the button to activate the hotplate, then set the power to the level required using the and buttons.
• To set the power to maximum, hold down the button briefly.

Booster function

The booster function may be used to shorten heating-up times. It is activated by pressing the (b) button.

This function boosts the power of the relevant zone to 3000 W.

It stops automatically after 4 minutes. While the booster is activated, the relevant front or rear cooking zone has a maximum power of 600W (e.g. if the right rear hotplate booster is activated, the power of the right front hotplate decreases). Higher power levels are indicated by the flashing of the excess power levels, which will be restored after the booster function has stopped.

Switching off the cooking zones

• Press the button at the side of the power level indicator: the power of the cooking zone will progressively decrease until it is switched off.
• Alternatively, the and buttons may be pressed simultaneously. The cooking zone will switch off.

Programming the cooking zones

Cooking programme duration

! The cooking zone must be switched on.

! All the cooking zones may be programmed for a length of time between 1 minute and 3 hours.

1. Press the button at the side of the display which corresponds to the hotplate you wish to programme.
2. Press the and buttons at the side of the display to select the "DURATION" command and press "OK" to confirm.
3. Adjust the minutes by pressing the and buttons.
4. Press "OK" to confirm.
5. Select the "EXIT" command and press "OK" to confirm. This setting will be memorised.

! If the setting is not confirmed by pressing the "OK" button within 20 seconds, the duration will be memorised automatically.

! During the setting process, press the and buttons at the side of the display to reset the time value to zero.

The timer begins counting down immediately. A buzzer sounds for approximately 1 minute and the cooking zone switches off when the set programme has finished.

Repeat the above procedure for each hotplate you wish to programme.

! The buzzer may be stopped by pressing any button on the hob.

Power level

! The cooking zone must be switched off.

Enables a pre-set power level top be selected when the cooking zone is switched on.

1. Press the button at the side of the display which corresponds to the hotplate you wish to programme.
2. The display will show the menu dedicated to that cooking zone.
3. Press the and buttons to select the “POWER LEVEL” command and press “OK” to confirm.

4. The display will present the following options:
   DEFAULT: factory setting
   HIGH: maximum power
   MEDIUM: 50% power
   LOW: minimum power.

5. Press the and buttons to select the desired option and press "OK" to confirm. This setting will be memorised.

6. Select the "EXIT" command and press "OK" to confirm.

For example: if the MEDIUM option has been selected by pressing the or buttons at the side of the power level indicator, the hotplate will switch on at half power.

Memorising information

! The cooking zone must be switched off.
! A single sequence for all the cooking zones may be memorised.
The maximum duration of this entry is 3 and a half hours.

! It is not possible to recall more than one memo function at a time.

It enables an entire cooking cycle to be recorded. This includes power levels and all relevant durations.

1. Press the button at the side of the display which corresponds to the hotplate you wish to programme.
2. The display will show the menu dedicated to that cooking zone.
3. Press the and buttons to select the "MEMORISE" command and press "OK" to confirm.
4. The display will present the following options: RECORD: enables the memorisation process to begin.

CANCEL: enables the user to exit the memorise function.

1. Press the and buttons to select the "RECORD" option and press "OK" to confirm. The display will show "MEMORISE REC". This means memorisation has started.
2. Select the desired power level. The function will record all subsequent changes.
3. Press the "OK" button to confirm the memorisation process.
4. The display will present the following options: SAVE: enables the recently completed sequence to be memorised.

CANCEL: enables the user to exit the memorise function without entering the recently completed sequence.

1. Press the and buttons to select the desired option and press "OK" to confirm. If you select SAVE the memorised sequence will be entered automatically with the name "MEMO".
2. Select the "EXIT" command and press "OK" to confirm.

! During the memorisation process, it is possible to operate the other cooking zones, but it is not possible to programme them.

A memorised programme may be recalled only if the cooking zone is switched off.

1. Press the button at the side of the display which corresponds to the cooking zone for which a sequence has been memorised.
2. The display will show the menu dedicated to that cooking zone.
3. Press the and buttons to select the "MEMO" command and press "OK" to confirm.
4. Press the and buttons to select the "START" command and press "OK" to confirm.
5. The cooking zone switches on and repeats the sequence memorised previously, until it is complete and switches off. Each change in power level is indicated by the sounding of a buzzer.

Once the MEMO mode has been activated, to return to the manual mode press the and buttons at the side of the power level indicator. From this moment on the power level will be set manually. A memorised programme may be deleted only if the cooking zone is switched off.

1. Press the button at the side of the display which corresponds to the cooking zone for which a sequence has been memorised.
2. The display will show the menu dedicated to that cooking zone.
3. Press the and buttons to select the "MEMO" command and press "OK" to confirm.

4. Press the and buttons to select the "DELETE" command and press "OK" to confirm.

5. The sequence memorised previously will be deleted.

It is also possible to delete the sequence by memorising a new one.

! The function may record a maximum of 10 changes in the power level. Updating occurs every 10 seconds.

Control panel lock

It is possible to lock the oven controls in order to avoid accidental changes to the settings (these may be made by children, during cleaning, etc.). If the button is pressed for 3 seconds the controls are locked, the display shows "CONTROL PANEL LOCKED" and the CONTROLS LOCKED indicator light illuminates. To use any of the controls (e.g. to stop cooking), you must switch off this function. Press the button for 3 seconds and the lock function will be removed.

When the controls are locked it is still possible to switch off the hob. To deactivate it, switch the hob on and press the illuminated button for 3 seconds.

DEMO mode

The oven is able to operate in DEMO mode: all heating elements are deactivated, and controls remain operative.

To activate the DEMO mode:

1. Switch on the hob ;

2. Press the and buttons simultaneously and hold for 6 seconds. A buzzer sounds and the display shows the text DEMO ON.

3. The hob is now operating in Demo mode.

To deactivate the DEMO mode:

1. To deactivate the DEMO mode ;
2. Press the and and buttons in sequence, then press the button and hold for 2 seconds. A buzzer sounds and the display shows the text DEMO OFF.
3. The hob will now operate normally.

Switching off the hob

Press the button to switch the appliance off. If the control panel lock has been activated, the controls will continue to be locked even after the hob is switched on again. In order to switch the hob on again, you must first remove the lock function.

Practical advice on using the appliance

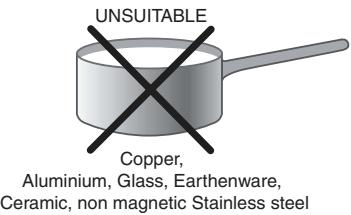

! Use cookware made from materials that are compatible with the induction principle (ferromagnetic material). We especially recommend pans made from: cast iron, coated steel or special stainless steel adapted for induction. Use a magnet to test the compatibility of the cookware.

In addition, to obtain the best results from your hob:

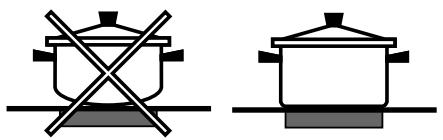

- Use pans with a thick, flat base to fully utilise the cooking zone.

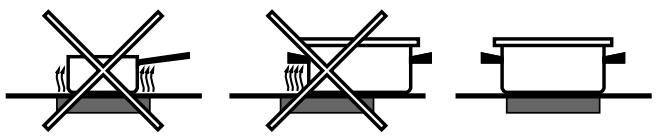

• Always use pans with a diameter that is large enough to cover the hotplate fully, in order to use all the available heat.

• Make sure that the base of the cookware is always dry and clean, to fully utilise and extend the life of both the cooking zones and cookware.
• Avoid using the same cookware that has been used on gas burners: the heat concentration on gas burners may distort the base of the pan, causing it not to adhere correctly.

Safety devices

Pan sensor

Each cooking zone is equipped with a pan sensor device. The hotplate only emits heat when a pan with suitable measurements for the cooking zone is placed on it.

If the indicator light is flashing, it may indicate:

• An incompatible pan
  A pan whose diameter is too small
• The pan has been removed from the hotplate.

Residual heat indicators

After the pan has been removed from one of the cooking zones, part of the power level indicator will flash while the temperature of that particular zone remains above 60^ . This reduces the risk of burns and scalds.

Overheating protection

If the electronic components overheat, the hob switches off automatically and the power level indicator will show the two external parts or the two internal and the two external parts as active. When the temperature has reached a more appropriate level, this message disappears and the hob may be used again.

Safety switch

The appliance has a safety switch that automatically switches off the cooking zones when they have been in operation for a certain amount of time at a given power level. When the safety switch has been triggered, the display shows "0".

For example: the right rear hotplate is set to 5 and will switch off after 3 hours of continuous operation, while the front left hotplate is set to 2 and will switch off after 10 hours.

Buzzer

Can also indicate several irregularities:

• An object (a pan, cutlery, etc.) has been placed on the control panel for more than 10 seconds.
• Something has been spilt on the control panel.
• A button has been pressed for too long. All of the above situations may cause the buzzer to sound. Remove the cause of the malfunction to stop the buzzer. The control panel locks automatically in the above situations. To unlock it press the [key icon] button, the settings will have been maintained. If the cause of the problem is not removed, the buzzer will keep sounding and the hob will switch off.

Cookey® function

Cookeye® enables the power of the hotplate to be automatically controlled via a sensor, and allows the optimum temperature for the selected cooking programme to be reached. The hob has five assisted cooking functions, controlled by the two Cookeye® modules which are supplied with the appliance.

WATER

Informs you when the water has reached boiling point and it is time to add the food you wish to cook.

SAUCE

This function is designed for simmering sauces on a low heat.

MILK

Milk can be heated without boiling over.

OIL

Preheats oil without altering its properties before food is added to the pan.

BUTTER

Melts butter without altering its properties before food is added to the pan.

Starting the Cookeye® function

! The Cookeye® module is only compatible with saucepans, frying pans and casseroles in the "Perfection" range by Tefal.

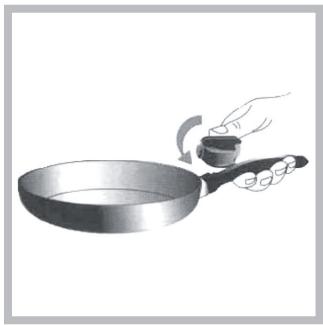

1. Clip the Cookeye onto the handle of the cookware, turning it towards the centre (see figure).

2. Switch the hob on and place the cookware on the required cooking zone.

3. Switch on the Cookeye® by pressing the red button.

4. The display shows "SELECT A COOKING ZONE" and the 4 hotplate selection buttons at the side of the display (corresponding to the inactive cooking zones) will flash at the same time.

5. Press the button corresponding to the desired cooking zone.

6. The display will show the menu with the list of possible cooking programmes:

WATER

SAUCE

MILK

OIL

BUTTER

1. Select the cooking function by pressing the and buttons and press "OK" to start cooking.

The power level indicator for the selected hotplate will display the different power levels during the assisted cooking function.

! Depending on the initial temperature recorded by the CookEye®, the hob may also automatically activate the booster for the relevant hotplates.

Cooking with CookEye

It is not possible to programme a cooking time when using the MILK, OIL and BUTTER cooking programmes.

When the contents of the pan reach the optimal temperature, the hob buzzer will sound, a short beep will be emitted every 15 seconds and the display will show the text COOK OK.

Food may then be placed in the pan in the OIL and BUTTER cooking programmes; the sound and visual signals are interrupted and the automatic adjustment of the hob continues.

When the WATER and SAUCE cooking programmes are started the display requests that a duration is set. Adjust the minutes by pressing the and buttons at the side of the display and press "OK" to confirm. During the WATER cooking programme, once the boiling temperature has been reached, the hob emits an alarm: two short beeps will be emitted every seconds and the display will show the text COOK OK. The timer begins counting down once food has been placed inside the pan.

During the SAUCE cooking programme the timer begins counting down once the optimal reduction temperature has been reached and the hob emits a sound signal.

When the set time has elapsed the cooking zone switches off.

To modify the duration set previously, press the button at the side of the display corresponding to the cooking zone being used.

Press the and buttons to select the

"DURATION" option and press "OK" to confirm.

Adjust the minutes by pressing the and buttons at the side of the display and press "OK" to modify the time.

! During the setting process, press the and buttons at the side of the display to reset the time value to zero.

To display the previously set function during the cooking programme, press the button at the side of the display corresponding to the cooking zone being used. The display will show the name of the active function and the remaining time, if set.

! The power level of the cooking zone cannot be modified while any of the CookEye® functions are in operation.

If the manual controls are not adjusted, the automatic control maintains its temperature and both the visual and sound alarms continue. If you do not interrupt this automatic process within ten minutes, the hotplate switches off.

The buzzer may be stopped by pressing any button on the hob.

! Do not use Cookeye® with a lid over the cookware or a utensil inside it (ladle, spoon, whisk, etc.). Make sure that steam from the pan is not blown towards the Cookeye® lens, as this could disrupt its "observation" function.

Switching off the Cookeye

Press and hold the red button for 3 seconds.

Alternatively, press the button at the side of the display corresponding to the cooking zone being used.

Press the and buttons to select the active function and press "OK" to confirm.

Select the OFF option by pressing the and buttons at the side of the display and press the "OK" button to stop the active function.

Clipso Eye function

Enables completely automated pressure cooking. The Clipso Eye module should be used with the Clipso Control pan to automatically regulate

pressure and to automatically switch the hotplate off after the cooking programme has ended.

Starting the Clipso Eye function

The Clipso Eye module can only be used with the Clipso Control pan.

1. Insert the Clipso Eye into the space provided in the Clipso pan.
2. Switch on the hob and put the Clipso pan on one of the two cooking zones at the rear right hand side or the front left hand side of the hob..
3. Press the on/off button on the Clipso Eye.
4. The display shows "SELECT A COOKING ZONE" and the 2 hotplate selection buttons at the side of the display will flash at the same time.
5. Select one of the 3 cooking programmes on the lid of the Clipso pan.
6. The display requests that a duration is set. Adjust the minutes by pressing the and buttons at the side of the display and press "OK" to confirm.

Cooking with Clipso Eye

Cooking will start automatically once the programme has been confirmed. The power level indicators for the relevant hotplate will remain lit and the following symbol will be shown on the module display: (see diagram).

Once the optimal pressure has been reached (the pan releases steam) the timer begins to count down automatically. At the end of the cooking programme, the buzzer sounds and the hotplate switches off. The Clipso Eye module remains active. For instructions on how to switch it off, please refer to the paragraph entitled "Deactivating the Clipso Eye".

The buzzer may be stopped by pressing any button on the hob.

If it is necessary to interrupt the cooking programme (for example, to add ingredients), switch off the Clipso Eye Module and programme the cooking time again.

The maximum cooking time which can be set for this function is one hour.

To modify the set duration:

1. Press the button at the side of the display which corresponds to the hotplate you wish to programme.
2. Press the and buttons to select the “DURATION” option and press “OK” to confirm.
3. Adjust the minutes by pressing the and buttons.
4. Press "OK" to confirm. This setting will be memorised.

! During the setting process, press the and buttons at the side of the display to reset the time value to zero.

Deactivating the Clipso Eye

Press and hold the red button for 3 seconds.

Alternatively, press the button at the side of the display corresponding to the cooking zone being used.

Press the and buttons to select "CLIPSO EYE" and press "OK" to confirm.

Select the OFF option by pressing the and buttons at the side of the display and press the "OK" button to stop the cooking programme.

This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

CE This appliance conforms to the following European Economic Community directives:

• 73/23/EEC dated 19/02/73 (Low Voltage) and subsequent amendments;
• 89/336/EEC dated 03/05/89 (Electromagnetic Compatibility) and subsequent amendments;
• 93/68/EEC dated 22/07/93 and subsequent amendments.
• 2002/96/EEC

General safety

! Make sure that the air inlet behind the fan grille is never obstructed. The built-in hob should, in fact, be provided with suitable ventilation for the cooling of the electronic components used in the appliance.

! We advise against the installation of an induction hob above an under-the-counter refrigerator (heat) or above a washing machine (vibrations). In fact, there would be insufficient space for the ventilation of electronic components.

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
• Do not touch the appliance with bare feet or with wet or damp hands and feet.
• The appliance must be used by adults only for the preparation of food, in accordance with the instructions provided in this booklet. Do not use the hob as a worktop or chopping board.
• The glass ceramic hob is resistant to mechanical shocks, but it may crack (or even break) if hit with a sharp object such as a tool. If this happens, disconnect the appliance from the electricity mains immediately and contact a Service Centre.
• If the surface of the hob is cracked, switch off the appliance to prevent electric shocks from occurring.
• Ensure that power supply cables of other electrical appliances do not come into contact with the hot parts of the hob.
• Remember that the cooking zones remain relatively hot for at least thirty minutes after they have been switched off. An indicator light provides a warning when residual heat is present (see Start-up and use).
• Keep any object which could melt away from the hob, for example plastic and aluminium objects, or products with a high sugar content. Be especially careful when using plastic film and aluminium foil or

packaging: if placed on surfaces that are still hot, they may cause serious damage to the hob.

• Always make sure that pan handles are turned towards the centre of the hob in order to avoid accidental burns.
• When unplugging the appliance, always pull the plug from the mains socket; do not pull on the cable.
• Never perform any cleaning or maintenance work without having disconnected the appliance from the electricity mains.
• Do not place metal objects (knives, spoons, pan lids, etc.) on the hob as they may become hot.
• Warning for people who have been fitted with pacemakers or other active internal medical devices:

The hob conforms to all current legislation relating to electromagnetic interference.

This product therefore fully conforms with all legal requirements (directive 89/336/EEC). It was designed not to create interference with other electrical equipment used nearby, provided that the other equipment also conforms fully with all the above legislation.

The induction hob generates short range electromagnetic fields.

To avoid all risks of interference between the hob and the pacemaker, the pacemaker should be made in accordance with all current legislation.

We can only guarantee the conformity of our product in this matter. For further information on conformity or any incompatibility problems, please contact your G.P. or the pacemaker manufacturer.

Disposal

• When disposing of packaging material: observe local legislation so that the packaging may be reused.
• The European Directive 2002/96/EC relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling the materials inside the machine, while preventing potential damage to the atmosphere and to public health. The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection.

For further information relating to the correct disposal of exhausted household appliances, owners may contact the public service provided or their local dealer.

Switching the appliance off

Disconnect your appliance from the electricity supply before carrying out any work on it.

Cleaning the appliance

! Do not use abrasive or corrosive detergents (for example, products in spray cans for cleaning barbecues and ovens), stain removers, anti-rust products, powder detergents or sponges with abrasive surfaces: these may scratch the surface beyond repair.

! Never use steam cleaners or pressure cleaners on the appliance.

• It is usually sufficient simply to wash the hob using a damp sponge and dry it with absorbent kitchen roll.
• If the hob is particularly dirty, rub it with a special glass ceramic cleaning product, then rinse well and dry thoroughly.
• To remove more stubborn dirt, use the scraper provided. Remove spills as soon as possible, without waiting for the appliance to cool, to avoid residues forming crusty deposits. You can obtain excellent results by using a rust-proof steel wire sponge - specifically designed for glass ceramic surfaces - soaked in soapy water.

The scraper provided is sharp: be careful when using it.

• If the plastic or sugary substances are accidentally melted on the hob, remove them immediately with the scraper, while the surface is still hot.
• Once it is clean, the hob may be treated with a special protective maintenance product: the invisible film left by this product protects the surface from drips during cooking. This maintenance should be carried out while the appliance is warm (not hot) or cold.
• Always remember to rinse the appliance well with clean water and dry it thoroughly: residues can become encrusted during subsequent cooking processes.

Stainless steel frame

(only in models with outer frame)

Stainless steel can be marked by hard water that has been left on the surface for a long time, or by cleaning products containing phosphorus.

After cleaning, it is advisable to rinse the surface well and dry it thoroughly. If water is spilt on the surface, dry it quickly and thoroughly.

! Some hobs have an aluminium frame which is similar to stainless steel. Do not use any cleaning or degreasing products which are not suitable for use with aluminium.

Disassembling the hob

If it is necessary to disassemble the hob:

1. Loosen the screws fixing the alignment springs on each side.
2. Loosen the screws holding the fixing hooks in each corner.
3. Take the hob out of its installation cavity.

! Do not attempt to repair the appliance yourself. If the appliance breaks down, contact a Service Centre.

Cookeye® Maintenance

• Clean the Cookeye® regularly with a damp sponge that has been soaked in washing up liquid and dry it with absorbent kitchen roll or a dry cloth.
• Make sure the lens is always clean. If there are spots of grease on it, clean it with a cotton bud soaked in non-abrasive, non-corrosive glass cleaner.
• Do not wash the Cookeye® under running water or in the dishwasher.

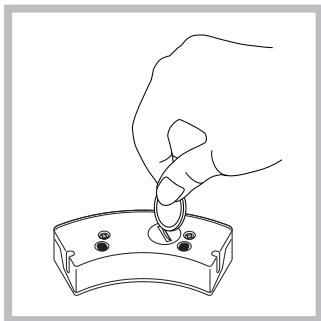

Changing the Clipso Eye batteries

The life span of the Clipso Eye batteries depends on the frequency of its use. As soon as you notice Clipso Eye is not working as it should, remove the batteries and change them (reference LR54). To take out the batteries, open the compartment with a coin (see picture).

! The two batteries are alkaline manganese and contain mercury: as soon as they have been changed, put the old batteries in a specific collection container.

Italiano, 1

English, 15

Français, 29

Nederlands, 43 Deutsch, 57

Deutsch, 57

TIL 642

Sommaire

Installation, 30-31

Positionnement

Description technique des foyers

I = foyer à induction simple

ID = foyer à induction double
