USER MANUAL MULTIPLO.1 SF SCHOLTES

MULTIPLO.1 F MULTIPLO.1 SF

Nederlands, 51 MULTIPLO.1 F MULTIPLO.1 SF Potenza (in W) I 1400 W I 1400 W

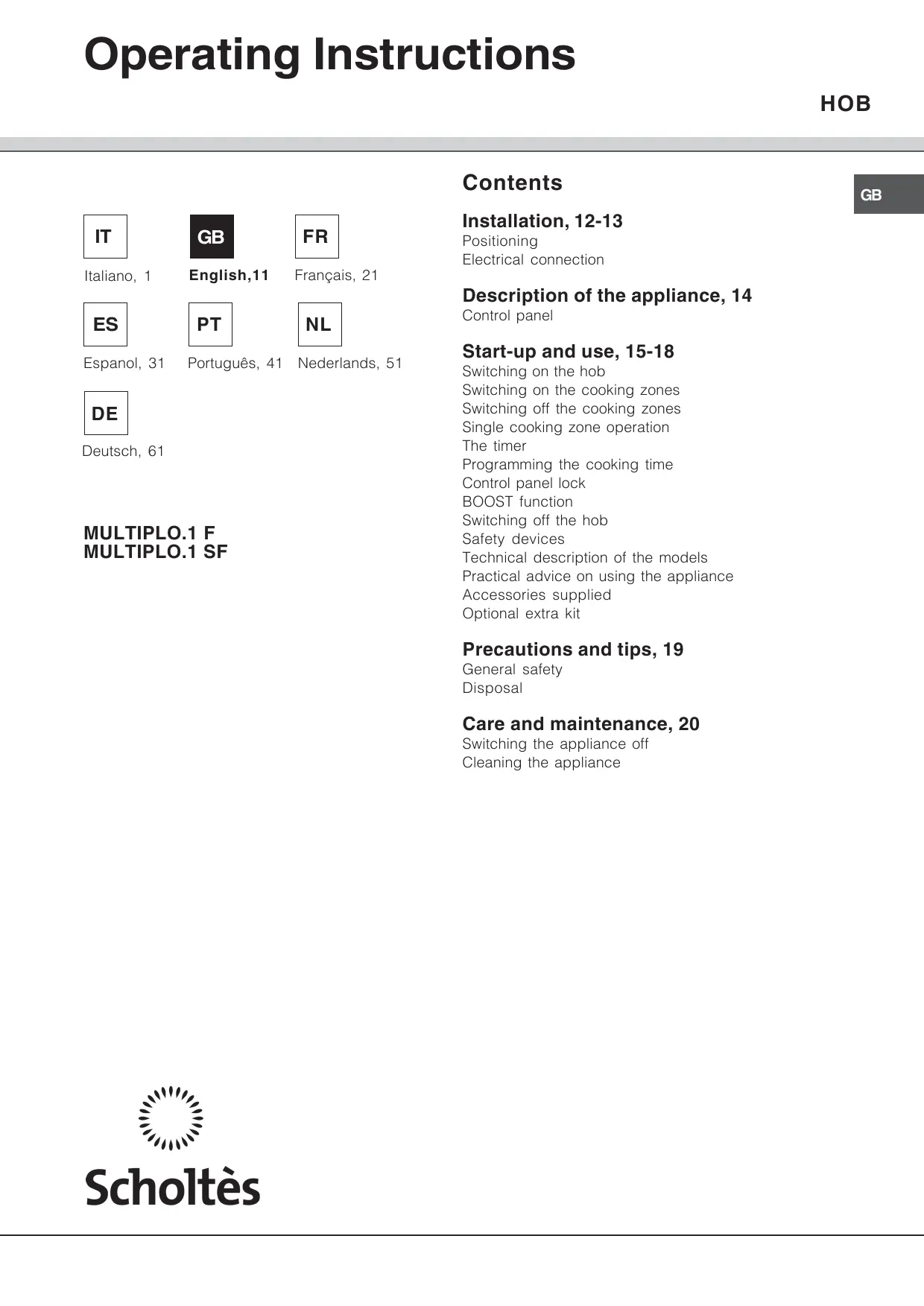

Operating Instructions HOB Installation, 12-13 Positioning Electrical connection Description of the appliance, 14 Espanol, 31

Deutsch, 61 MULTIPLO.1 F MULTIPLO.1 SF

Nederlands, 51 Control panel Start-up and use, 15-18 Switching on the hob Switching on the cooking zones Switching off the cooking zones Single cooking zone operation The timer Programming the cooking time Control panel lock BOOST function Switching off the hob Safety devices Technical description of the models Practical advice on using the appliance Accessories supplied Optional extra kit Precautions and tips, 19 General safety Disposal Care and maintenance, 20 Switching the appliance off Cleaning the appliance

! Before operating your new appliance please read this instruction booklet carefully. It contains important information concerning the safe operation, installation and maintenance of the appliance. ! Please keep these operating instructions for future reference. Pass them on to any new owners of the appliance. 700 min 50 min 50 min Positioning ! Keep all packaging material out of the reach of children. It may present a choking or suffocation hazard (see Precautions and tips). ! The appliance must be installed by a qualified professional in accordance with the instructions provided. Incorrect installation may damage property or cause harm to people or animals. Built-in appliance Use an appropriate cabinet to ensure that the appliance operates properly.

• The supporting surface must be heat-resistant up to a temperature of approximately 100°C.
• Avoid installing the hob above a dishwasher: if this cannot be avoided, place a waterproof separation device between the two appliances.
• Depending on the hob you want to install (see figure), the cabinet must have the following dimensions: Securing the appliance to the cabinet The appliance must be installed on a perfectly level supporting surface. Any deformities caused by improper fixing could affect the features and operation of the hob.
• Before fitting the hob to the worktop, position the seal provided along the perimeter of the hob, as illustrated in the figure. MULTIPLO.1 SF

Installing semi-flush hobs (MULTIPLO.1 SF) All the necessary precautions must be taken in order to install the appliance in conformity with current accident-prevention regulations (CEI-UNI-CIG) relating to gas and electrical connections. To ensure sit-on hobs installed in kitchen cabinets operate correctly, the minimum distances indicated should be observed (see figure). All adjacent surfaces and the back panel should also be able to withstand an overheating temperature of 65°C.

• The installation cavity should have the dimensions indicated in the figure accompanying the previous paragraph. Fix the hob as follows:

1. Use the screws supplied to fit the 4 alignment

springs in the holes provided at the central point of each side of the part underneath the hob.

2. Place the hob in the cavity, make sure it is in a

central position and push down on the whole perimeter until the hob is stuck to the supporting surface. Single-phase connection Blue Brown Green/Yellow

If the hob is fitted with a supply cable, connect it to the mains, observing the colour coding of the wires (see diagram). The yellow- green earth wire must be 5 cm longer than the other wires. Live

Earth Neutral Connecting the electricity supply cable to the mains ! The screws for the alignment springs must remain accessible. ! In order to adhere to safety standards, the appliance must not come into contact with electrical parts once it has been installed. ! All parts that ensure the safe operation of the appliance must not be removable without the aid of a tool. ! To maximise the efficiency of all maintenance procedures, the area around the hob must be easily accessible after it has been installed (i.e. there are no completely closed-off elements). Electrical connection Hobs equipped with a three-pole power supply cable are designed to operate with alternating current at the voltage and frequency indicated on the data plate (this is located on the lower part of the appliance). The earth wire in the cable has a green and yellow cover. If the appliance is to be installed above a built-in electric oven, the electrical connection of the hob and the oven must be carried out separately, both for electrical safety purposes and to make extracting the oven easier. The appliance must be directly connected to the mains using an omnipolar switch with a minimum contact opening of 3 mm installed between the appliance and the mains. The switch must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the switch). The supply cable must be positioned so that it does not come into contact with temperatures higher than 50°C at any point. ! The installer must ensure that the correct electrical connection has been made and that it is fully compliant with safety regulations. Before connecting the appliance to the power supply, make sure that:

• The appliance is earthed and the plug is compliant with the law.
• The socket can withstand the maximum power of the appliance, which is indicated on the data plate located on the appliance itself.
• The voltage falls within the range of values indicated on the data plate.
• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets. ! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. ! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by authorised technicians only. ! The manufacturer declines any liability should these safety measures not be observed.

Description of the appliance

Control panel The control panel described in this manual is only a representative example: it may not exactly match the panel on your appliance. SELECTED COOKING ZONE indicator light PROGRAMMED COOKING ZONE indicator light ON/OFF indicator light

• PROGRAMME TIMER display shows the programmes selected (see Start-up and use).
• PROGRAMME TIMER buttons activate the programmes for each cooking zone (see Start-up and use).
• COOKING ZONE PROGRAMMED indicator light shows that a particular cooking zone has been programmed (see Start-up and use).
• ON/OFF button switches the appliance on and off.
• The ON/OFF indicator light signals that the appliance is turned on.
• CONTROL PANEL LOCK button prevents accidental changes to the hob settings (see Startup and use).

• CONTROLS LOCKED indicator light shows the control panel has been locked (see Start-up and use).
• COOKING ZONE SELECTOR button shows a particular cooking zone has been selected and therefore various adjustments are possible.
• COOKING ZONE SELECTOR button is used to select the desired cooking zone.
• POWER indicator provides a visual display for the set heat level.
• INCREASE POWER button switches on the hotplate and controls the power (see Start-up and use).
• REDUCE POWER button controls the power and switches off the hotplate (see Start-up and use). Start-up and use ! The glue applied on the gaskets leaves traces of grease on the glass. Before using the appliance, we recommend you remove these with a special nonabrasive cleaning product. During the first few hours of use there may be a smell of rubber which will disappear very quickly. The appliance has 2 cooking zones and its various functions are activated by touching the corresponding c ontrols. Each selection must be activated within 10 seconds, otherwise the display will switch off again. Switching on the hob The hob is switched on by activating the button. Selecting the cooking zones To select the desired cooking zone, press the cooking mode selector button button

to select the single cooking zone. Once the desired cooking zone has been selected, set the desired power level using buttons and

1. Select the cooking zone using the corresponding

2. Adjust the power to the desired level.

3. Activate the

4. Set the desired cooking duration using the

5. Confirm the selection using the

indicator light corresponding to the programmed cooking zone will start flashing. The timer begins counting down immediately. When the programmed cooking duration has elapsed, a buzzer sounds (for 1 minute) and the cooking zone switches off. Repeat the procedure described above for every hotplate you wish to programme. The corresponding COOKING ZONE PROGRAMMED INDICATOR LIGHT will switch on for every cooking zone. When both cooking zones have been programmed, the display visualises the remaining time for the cooking zone with lower duration and indicates the position of the latter with the corresponding flashing indicator light. The indicator light for the other programmed zone emits a steady light. To visualise the time remaining for the other Switching off the cooking zones programmed cooking zones, press button Activate the repeatedly: the times for all the programmed hotplates will be displayed sequentially. button; the power of the cooking zone will progressively decrease until it is switched off. Alternatively, activate the Changing the programme and buttons simultaneously; the power level will revert to 0 immediately and the cooking zone will switch off.

1. Press button

visualises the hotplate time that must be modified.

2. Press buttons

Single cooking zone operation Switch on the hob. Press button and to select the desired power level. to switch from the single cooking zone to separate cooking zones. It will then be possible to select one of the two separate cooking zones. Programming the cooking duration ! All the cooking zones may be programmed for a length of time between 1 and 99 minutes. repeatedly until the display and

3. Confirm by pressing button

to set the new time.

To cancel a programme, follow the above instructions. At step 2, press button : the duration decreases progressively to 0 then turns off. The programme resets and the display exits the programming mode. The timer The hob must be switched on. The timer allows for setting a time of up to 99 minutes.

1. Press the programming button

indicator light turns on.

2. Set the desired duration using buttons

3. Confirm by pressing button

The timer begins counting down immediately. When the time has elapsed, a buzzer will sound (for 10 seconds). cooking process by pressing selector button Control panel lock

select the desired power level by pressing buttons When the hob is switched on, the oven controls may be locked in order to prevent the settings from being changed accidentally. To activate the function, press and hold button the cooking recipient may be maintained until the cooking process is complete. Alternatively, once the correct boiling/frying temperature has been reached and the hotplate switched off using the relevant buttons, the cooking recipient may be rotated by 90°, returning it to a horizontal position on the front cooking zone and keeping the temperature constant (see figure). The free cooking zone may be used to start another for 2 seconds; the controls will be locked and the indicator light above the button will switch on. To use any of the controls (e.g. to stop cooking), and

button is pressed, the appliance switches off. If the appliance controls have been locked, they you must switch off this function. Press the button for a few moments, the indicator light will switch off and the lock function will be removed. BOOST function The extreme flexibility and versatility of the Multiplo means it is possible to cook any type of dish quickly, without compromising its quality. The "Boost" function in particular speeds up cooking times for dishes such as pasta or any fried food, reducing the overall time required by approximately 50% in comparison with the time required when using a cooking recipient with a single cooking zone (horizontal position). To bring the water to the boil or to fry food quickly, simply switch on the hob, placing the single cooking recipient centrally and in a vertical position with respect to the text "boost" (see figure). Press button

select the single cooking zone then press buttons and to select the maximum power level "16". The vertical position of

will continue to be locked even after the hob has been switched back on. In order to switch the hob on again, you must remove the lock function. Safety devices Pan sensor Each cooking zone is equipped with a cooking recipient sensor device. The hotplate only emits heat when a cooking recipient is placed on it. If, once the appliance has been switched on and the cooking zone and corresponding power level selected, the numerical indicator flashes, this means that the cooking recipient should be placed in the corresponding position. Heat indicators If, after the appliance has been used, the letter “H” remains lit on the corresponding display, this means that the heating zone is still hot (temperature over 60°C); do not touch it. This indication will disappear once the hotplate has cooled down. Buzzer This can also indicate several irregularities:

• Something has been spilt on the control panel.
• A button has been pressed for too long. All of the above situations may cause the buzzer to sound. Remove the cause of the malfunction to stop the buzzer. The control panel locks automatically in the above situations. If the cause of the problem is not removed, the buzzer will keep sounding and the hob will switch off. Overheating protection The hob is fitted with a protection device for electronic components; in the event of overheating the power of the hotplates is limited automatically. This could influence cooking times slightly. Safety switch The appliance has a safety switch which automatically switches off the cooking zones when they have been in operation for a certain amount of time at a given power level. When the safety switch has been triggered, the display shows “0”. For example: the rear hotplate is set to 5 and will switch off after 3 hours of continuous operation, while the front hotplate is set to 2 and will switch off after 10 hours. Power level

Maximum operating time in hours 9,5 8,5 7,5 6,5 5,5

Technical description of the models Hobs Cooking zone Rear Front Total power

MULTIPLO.1 F MULTIPLO.1 SF Power (W) I 1400 W I 1400 W

Key: I = single induction cooking zone Practical advice on using the appliance The appliance comes with a series of accessories (dishwasher safe) which can be used for various types of cooking methods. These make it possible to:

• Fry fish, potatoes, meat, etc...
• Steam cook vegetables, fish, etc...
• Boil pasta, vegetables, rice, etc…
• Cook at low temperatures. Thanks to the separate cooking recipients, it is possible to prepare two dishes at the same time (for example, pasta in the front recipient and a pan-roast dish on the rear hotplate). REAR RECIPIENT FRONT RECIPIENT Recommended power levels for various types of cooking: Levels 1-2-3 4-5-6-7 6-7-8 8-9-10 13-14-15

Cooking methods Melting chocolate Low temperature Reducing sauces Steam cooking Stirring Pan frying/Browning Deep frying/Boiling Boiling/Deep frying Notes Stir occasionally E.g. risotto Stir occasionally Quick heating, then select the most suitable level

Accessories supplied Cooking recipient This may be used as a normal saucepan, to cook panroasted dishes, sauces, etc… The maximum fill levels for each cooking method are marked on the inside of the recipient:

• WATER and OIL: Maximum water and oil levels help to prevent spills.
• VAPOR: Water level required for steam cooking. Recipient divider Separates the two cooking recipients supplied while keeping them stable. Frying basket Pour the oil into the cooking recipient and insert the frying basket. The handle may be removed and the recipient covered with the glass lid. Once you have finished cooking, remove the basket and rest it on the handle of the cooking recipient so that the oil drains off. Pasta basket Pour the water into the cooking recipient and insert the pasta basket. The handle may be removed and the recipient covered with the glass lid. Once you have finished cooking, remove the pasta basket from the cooking recipient and drain the pasta.

Steamer basket with special rest and handles Pour water into the cooking recipient and insert the steamer basket and its special rest, as shown in the figure. Close the glass cover supplied. Once you have finished cooking, remove the basket using the special handles, remove the cooking recipient and pour the water away. Cover As well as serving a visual purpose, this can also be used as a resting surface for the cooking recipients. Liquid drainer Once you have finished cooking, this can be used to empty the recipient of water, oil, etc… Optional extras kit If you wish to cook large quantities of food, you should consider purchasing this kit (available from Technical Assistance Centres or authorised retailers), which consists of the following items:

• Large cooking recipient (uses both cooking zones).
• Large steamer basket with special rest. The handles supplied for the standard steamer basket may also be used with the large steamer basket included in this kit. Precautions and tips ! This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully. This appliance conforms to the following European Economic Community directives: - 2006/95/EEC dated 12/12/06 (Low Voltage) and subsequent amendments; - 2004/108/EEC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments; - 93/68/EEC dated 22/07/93 and subsequent amendments.

General safety ! Make sure that the air inlet behind the fan grille is never obstructed. The built-in hob should, in fact, be provided with suitable ventilation for the cooling of the electronic components used in the appliance. ! We advise against the installation of an induction hob above an under-the-counter refrigerator (heat) or above a washing machine (vibrations). In fact, there would be insufficient space for the ventilation of electronic components.

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
• Do not touch the appliance when barefoot or with wet or damp hands and feet.
• The appliance must be used by adults only for the preparation of food, in accordance with the instructions provided in this booklet. Do not use the hob as a worktop or chopping board.
• Ensure that power supply cables of other electrical appliances do not come into contact with the hot parts of the hob.
• When unplugging the appliance, always pull the plug from the mains socket; do not pull on the cable.
• Never perform any cleaning or maintenance work without having disconnected the appliance from the electricity mains.
• Warning for people who have been fitted with pacemakers or other active internal medical devices: The hob conforms to all current legislation relating to electromagnetic interference. This product therefore fully conforms with all legal requirements (directive 2004/108/EEC). It was designed not to create interference with other

electrical equipment used nearby, provided that the other equipment also conforms fully with all the above legislation. The induction hob generates short range electromagnetic fields. To avoid all risks of interference between the hob and the pacemaker, the pacemaker should be made in accordance with all current legislation. We can only guarantee the conformity of our product in this matter. For further information relating to conformity or any incompatibility problems, please contact your G.P. or the pacemaker manufacturer. The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance. Do not let children play with the appliance. If the surface of the hob is cracked, switch off the appliance to prevent electric shocks from occurring. Do not place metal objects (knives, spoons, pan lids, etc.) on the hob as they may become hot. After using the hob, switch it off using the corresponding control device; do not rely solely on the pan sensor. Disposal

• When disposing of packaging material: observe local legislation so that the packaging may be reused.
• The European Directive 2002/96/EC relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling the materials inside the machine, while preventing potential damage to the atmosphere and to public health. The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection. For further information relating to the correct disposal of exhausted household appliances, owners may contact the public service provided or their local dealer.

Care and maintenance

Switching the appliance off Disconnect your appliance from the electricity supply before carrying out any work on it. Cleaning the appliance ! Do not use abrasive or corrosive detergents (for example, products in spray cans for cleaning barbecues and ovens), stain removers, anti-rust products, powder detergents or sponges with abrasive surfaces: these may scratch the surface beyond repair. ! Never use steam cleaners or pressure cleaners on the appliance. Stainless steel can be marked by hard water which has been left on the surface for a long time, or by cleaning products containing phosphorus. After cleaning, it is advisable to rinse the surface well and dry it thoroughly. If water is spilt on the surface, dry it quickly and thoroughly. The surface on which the cooking recipients are placed is made using glass ceramic material. When cleaning this hob, proceed as follows:

• It is usually sufficient simply to wash the hob using a damp sponge and dry it with absorbent kitchen towel.
• If the hob is particularly dirty, rub it with a special glass ceramic cleaning product, then rinse well and dry thoroughly.

• To remove more stubborn dirt, use a suitable scraper (this is not supplied with the appliance). Remove spills as soon as possible, without waiting for the appliance to cool, to avoid residues forming crusty deposits. You can achieve excellent results by using a rustproof steel wire sponge - specifically designed for glass ceramic surfaces - soaked in soapy water.
• Once it is clean, the hob may be treated with a special protective maintenance product: the invisible film left by this product protects the surface from drips during cooking. This maintenance task should be carried out while the appliance is warm (not hot) or cold.
• Always remember to rinse the appliance well with clean water and dry it thoroughly: residues can become encrusted during subsequent cooking processes.
• To prevent any burnt-on residue from building up on the frying basket and its special rest, clean both items using a stainless steel wire sponge which has been soaked in soapy water. Glass ceramic hob cleaners Available from Window scraper Razor blade scrapers DIY Stores Replacement blades DIY Stores, supermarkets, chemists COLLO luneta HOB BRITE Hob Clean SWISSCLEANER Boots, Co-op stores, department stores, Regional Electricity Company shops, supermarkets MULTIPLO.1 F MULTIPLO.1 SF MULTIPLO.1 F MULTIPLO.1 SF MULTIPLO.1 F MULTIPLO.1 SF Potenza (in W) I 1400 W I 1400 W

Clean, Vitroceramic, Sidol Inox Kuhn-Rikon Española MULTIPLO.1 F MULTIPLO.1 SF
