! Before operating your new appliance please read this instruction booklet carefully. It contains important information for safe use, installation and care of the appliance.
! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Positioning

! Keep packaging material out of the reach of children. It can become a choking or suffocation hazard (see Precautions and tips).
! The appliance must be installed by a qualified professional according to the instructions provided. Incorrect installation may cause harm to people and animals or may damage property.
! This unit may be installed and used only in permanently ventilated rooms in accordance with British Standard Codes Of Practice: B.S. 6172 / B.S. 5440, Par. 2 and B.S. 6891 Current Editions. The following requirements must be observed:
- The room must be equipped with an air extraction system that expels any combustion fumes. This may consist of a hood or an electric fan that automatically starts each time the appliance is switched on.

In a chimney stack or branched flue. (exclusively for cooking appliances) Directly to the Outside

- The room must also allow proper air circulation, as air is needed for combustion to occur normally. The flow of air must not be less than 2 m^3/h per kW of installed power.

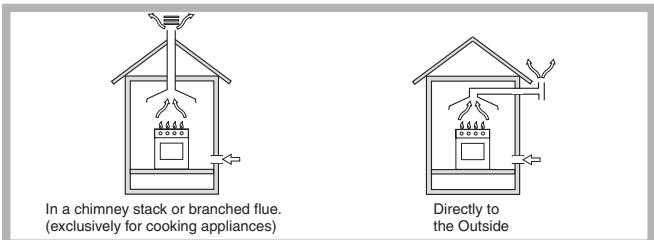

Examples of ventilation holes for combustant air.

The air circulation system may take air directly from the outside by means of a pipe with an inner cross section of at least 100 cm ^2 ; the opening must not be vulnerable to any type of blockages.

Adjacent Room Room to be Vented Enlarging the ventilation slot between window and floor.

The system can also provide the air needed for combustion indirectly, i.e. from adjacent rooms fitted with air circulation tubes as described above. However, these rooms must not be communal rooms, bedrooms or rooms that may present a fire hazard.

- Liquid petroleum gas sinks to the floor as it is heavier than air. Therefore, rooms containing LPG cylinders must also be equipped with vents to allow gas to escape in the event of a leak. As a result LPG cylinders, whether partially or completely full, must not be installed or stored in rooms or storage areas that are below ground level (cellars, etc.). It is advisable to keep only the cylinder being used in the room, positioned so that it is not subject to heat produced by external sources (ovens, fireplaces, stoves, etc.) which could raise the temperature of the cylinder above 50°C.

Fitting the appliance

Gas and mixed hobs are manufactured with type X degree protection against overheating. The following precautions must be taken when installing the hob:

• Kitchen cabinets adjacent to the appliance and taller than the top of the hob must be at least 600 mm from the edge of the hob.
• Hoods must be installed according to their relative installation instruction manuals and at a minimum distance of 650 mm from the hob.

- Place the wall cabinets adjacent to the hood at a minimum height of 420 mm from the hob (see figure). If the hob is installed beneath a wall cabinet, the latter must be situated at a minimum of 700 mm above the hob (see figure).

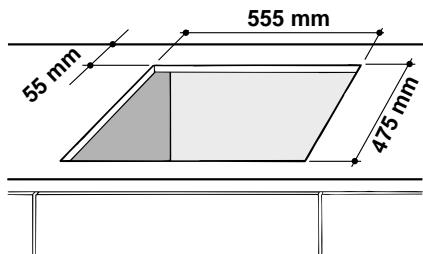

- The installation cavity should have the dimensions indicated in the figure.

Fastening hooks are provided, allowing you to fasten the hob to tops that are between 20 and 40 mm thick. To ensure the hob is securely fastened to the top, we recommend you use all the hooks provided.

55 mm 55 mm 555 mm 475 mm

Hook fastening diagram

Technical cross-sectional diagram of a mechanical assembly (no text or labels)

Hooking position for top H=20 mm

Technical cross-sectional diagram of a mechanical assembly (no text or labels)

Hooking position for top H=30 mm

Technical cross-sectional diagram of a mechanical assembly (no text or labels)

Hooking position
for top H=40 mm

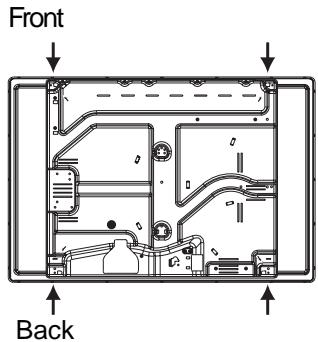

Front Back

! Use the hooks contained in the “accessory pack”

- Where the hob is not installed over a built-in oven, a wooden panel must be installed as insulation. This must be placed at a minimum distance of 20 mm from the lower part of the hob.

Ventilation

To ensure adequate ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x 560 mm (see diagrams).

Architectural line drawing of a cabinet or enclosure with structural beams and doorways (no text or symbols)

560 mm. 45 mm.

! The hob can only be installed above built-in ovens with a cooling ventilation system.

Electrical connection

Hobs equipped with a three-pole power supply cable are designed to operate with alternating current at the voltage and frequency indicated on the data plate (this is located on the lower part of the appliance). The earth wire in the cable has a green and yellow cover. If the appliance is to be installed above a built-in electric oven, the electrical connection of the hob and the oven must be carried out separately, both for electrical safety purposes and to make extracting the oven easier.

Connecting the supply cable to the mains

Install a standardised plug corresponding to the load indicated on the data plate.

The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3 mm installed between the appliance and the mains. The circuit-breaker must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the circuit-

breaker). The supply cable must not come into contact with surfaces with temperatures higher than 50^ C.

! The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.

Before connecting to the power supply, make sure that:

• The appliance is earthed and the plug is compliant with the law.
• The socket can withstand the maximum power of the appliance, which is indicated on the data plate.
• The voltage is in the range between the values indicated on the data plate.
• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.

! The cable must not be bent or compressed.

! The cable must be checked regularly and replaced by authorised technicians only (see Assistance).

! The manufacturer declines any liability should these safety measures not be observed.

Gas connection

The appliance should be connected to the main gas supply or to a gas cylinder in compliance with current national regulations. Before carrying out the connection, make sure the cooker is compatible with the gas supply you wish to use. If this is not the case, follow the instructions indicated in the paragraph “Adapting to different types of gas.”

When using liquid gas from a cylinder, install a pressure regulator which complies with current national regulations.

! Check that the pressure of the gas supply is consistent with the values indicated in Table 1 (“Burner and nozzle specifications”). This will ensure the safe operation and longevity of your appliance while maintaining efficient energy consumption.

Connection with a rigid pipe (copper or steel)

! Connection to the gas system must be carried out in such a way as not to place any strain of any kind on the appliance.

There is an adjustable L-shaped pipe fitting on the appliance supply ramp and this is fitted with a seal in order to prevent leaks. The seal must always be replaced after rotating the pipe fitting (seal provided with appliance). The gas supply pipe fitting is a threaded 1/2 gas cylindrical male attachment.

Connecting a flexible jointless stainless steel pipe to a threaded attachment

The gas supply pipe fitting is a threaded 1/2 gas cylindrical male attachment.

These pipes must be installed so that they are never longer than 2000 mm when fully extended. Once connection has been carried out, make sure that the flexible metal pipe does not touch any moving parts and is not compressed.

! Only use pipes and seals that comply with current national regulations.

Checking the tightness of the connection

! When the installation process is complete, check the pipe fittings for leaks using a soapy solution. Never use a flame.

Adapting to different types of gas

To adapt the hob to a different type of gas other than default type (indicated on the rating plate at the base of the hob or on the packaging), the burner nozzles should be replaced as follows:

1. Remove the hob grids and slide the burners off their seats.
2. Unscrew the nozzles using a 7 mm socket spanner, and replace them with nozzles for the new type of gas (see table 1 "Burner and nozzle characteristics").
3. Reassemble the parts following the above procedure in the reverse order.
4. Once this procedure is finished, replace the old rating sticker with one indicating the new type of gas used. Sticker are available from any of our Service Centres.

Replacing the nozzles on separate "double flame" burners:

1. remove the grids and slide the burners from their housings. The burner consists of 2 separate parts (see figure);

3D technical illustration of a mechanical assembly with no visible text or symbols

3D technical diagram of a mechanical assembly with no visible text or symbols

1. unscrew the burers with a 7 mm wrench spanner. The internal burner has a nozzle, the external burner has two (of the same size). Replace the nozzle with models suited to the new type of gas (see table 1).

2. replace all the components by repeating the steps in reverse order.

3. Adjusting the burners' primary air :
   Does not require adjusting.

4. Setting the burners to minimum:

5. Turn the tap to the low flame position.

6. Remove the knob and adjust the adjustment screw, which is positioned in or next to the tap pin, until the flame is small but steady.
7. Having adjusted the flame to the required low setting, while the burner is alight, quickly change the position of the knob from minimum to maximum and vice versa several times, checking that the flame does not go out.
8. Some appliances have a safety device (thermocouple) fitted. If the device fails to work when the burners are set to the low flame setting, increase this low flame setting using the adjusting screw.
9. Once the adjustment has been made, replace the seals on the by-passes using sealing wax or a similar substance.

! If the appliance is connected to liquid gas, the regulation screw must be fastened as tightly as possible.
! Once this procedure is finished, replace the old rating sticker with one indicating the new type of gas used. Stickers are available from any of our Service Centres.
! Should the gas pressure used be different (or vary slightly) from the recommended pressure, a suitable pressure regulator must be fitted to the inlet pipe (in order to comply with current national regulations).

Diagram of a mechanical valve or pump assembly with a handle and lever, no text or symbols present

Diagram of a faucet with two valves and a handle, no text or symbols present

Burner and nozzle specifications

Table 1				Liquid Gas					Natural Gas
Burner	Diameter (mm)	Thermal power kW (p.c.s.*)		By-Pass 1/100 (mm)	Nozzle 1/100 (mm)	Flow* g/h		Thermal power kW (p.c.s.*) Nomin.	Nozzle 1/100 (mm)	Flow* l/h
		Nomin.	Ridot.			***	**
Fast (R)	100	3,00	0,70	40	86	218	214	3,00	116	286
Reduced Fast (RR)	100	2,60	0,70	40	80	189	186	2,60	110(Y)	248
Semi Fast (S)	75	1,90	0,40	30	70	138	136	1,90	106	181
Auxiliary (A)	55	1,00	0,40	30	50	73	71	1,00	79	95
Triple Crown (TC)	130	3,30	1,30	57	87	240	236	3,60	131	343
Ultrarapid (UR)	100	3,40	0,70	40	91	240	236	3,40	123	314
Double flame (DCDR internal)	30	0,90	0,40	30	44	65	64	0,90	70	86
Double flame (DCDR external) 2 nozzle	130	4,10	1,30	57	70	298	293	4,10	110	390
Supply Pressures	Nominal (mbar)Minimum (mbar)Maximum (mbar)					28-302035	372545		201725

* At 15°C and 1013 mbar - dry gas
** Propane P.C.S. = 50.37 MJ/Kg
*** Butane P.C.S. = 49.47 MJ/Kg

Natural P.C.S. = 37.78 MJ/m ^4

SR SR AUX R

TGL 640

SR SR AUX TC

TGL 641

RR SR UR SR AUX

TGL 750

RR SR SR DCDR AUX

TGL 751
! The hob can only be installed above built-in ovens with a cooling ventilation system.

DATA PLATE
Electrical connections	voltage of 220-240V ~ 50/60Hz (see data plate)
	This appliance conforms to the following European Economic Community directives:-73/23/EEC dated 19/02/73 (Low Voltage) and subsequent amendments- 89/336/EEC dated 03/05/89 (Electromagnetic Compatibility) and subsequent amendments- 93/68/EEC dated 22/07/93 and subsequent amendments.- 90/336/EEC dated 29/06/90 (Gas) and subsequent amendments.- 2002/96/EC

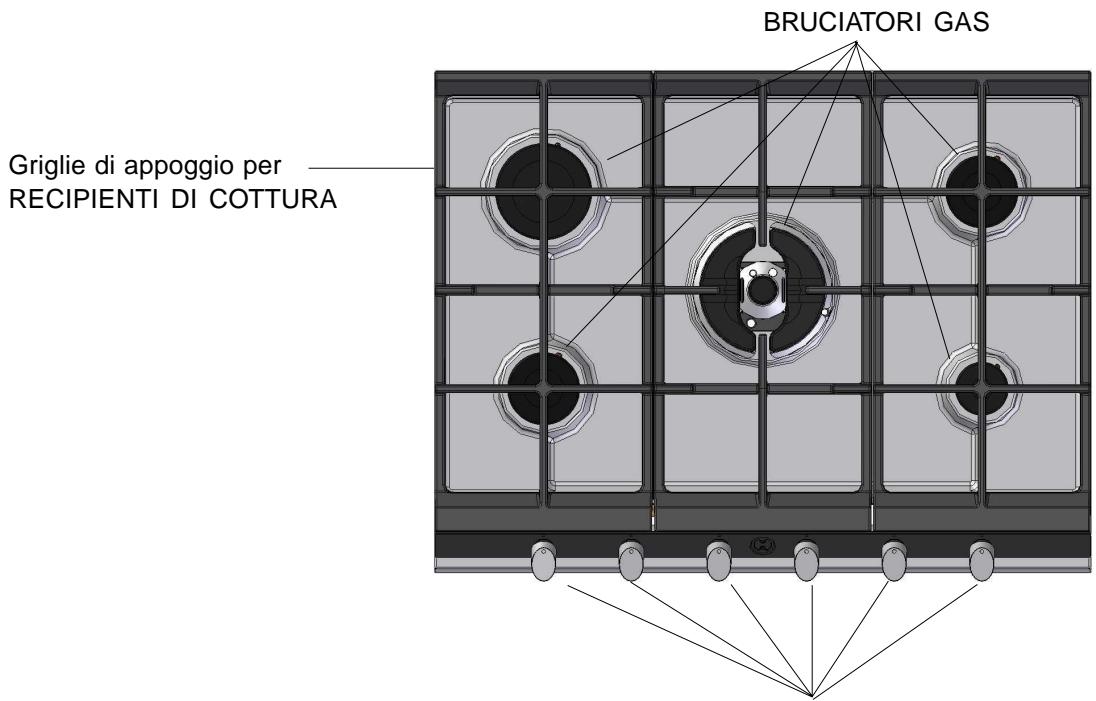

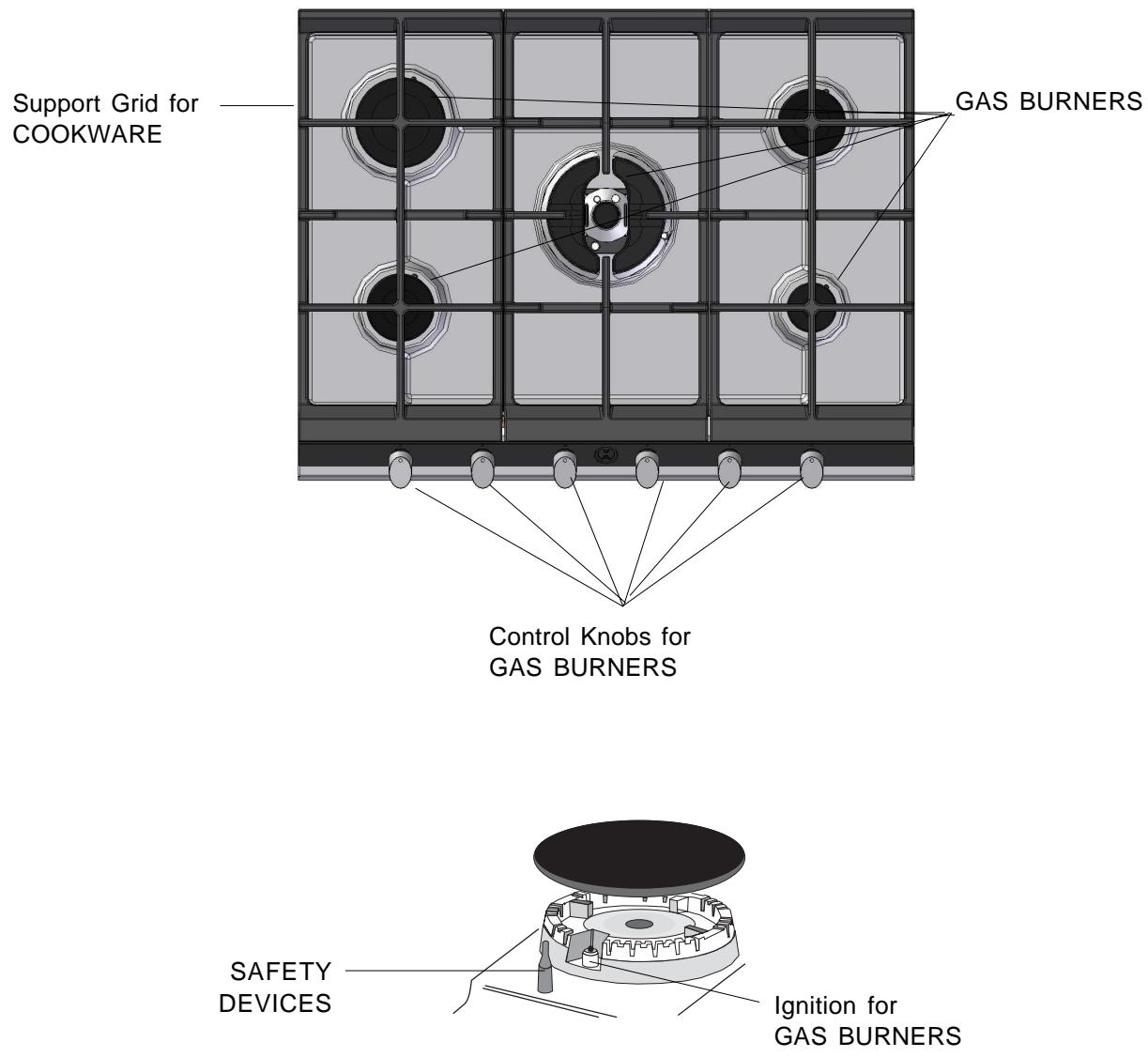

Overall view

• GAS BURNERS differ in size and power. Use the diameter of the cookware to choose the most appropriate burner to cook with.
• Control Knobs for GAS BURNERS adjust the power or the size of the flame.
• GAS BURNER ignition enables a specific burner to be lit automatically.
• SAFETY DEVICE stops the gas flow if the flame is accidentally extinguished.

! The position of the corresponding gas burner or electric hotplate is shown on every knob.

Gas burners

Each burner can be adjusted to one of the following settings using the corresponding control knob:

0

Off

Maximum

Minimum

To light one of the burners, hold a lit match or lighter near the burner and, at the same time, press down and turn the corresponding knob anti-clockwise to the maximum setting.

Since the burner is fitted with a safety device, the knob should be pressed for approximately 2-3 seconds to allow the automatic device keeping the flame alight to heat up.

When using models with an ignition button, light the desired burner pressing down the corresponding knob as far as possible and turning it anticlockwise towards the maximum setting.

! If a flame is accidentally extinguished, turn off the control knob and wait for at least 1 minute before trying to relight it.

To switch off the burner, turn the knob in a clockwise direction until it stops (when reaches the "0" position).

The “separate double flame” burner*

This burner consists of two concentric burners which can operate either together or separately.

Use of the double flame on the maximum setting gives a very high power which reduces cooking times with respect to conventional burners.

Moreover the double flame crown provides a more uniform distribution of heat on the bottom of the pan, when using both burners on minimum.

To ensure that the double-flame burner is used to its full potential, never set the inside ring to minimum and the outside ring to maximum at the same time.

Pots and pans of all sizes can be used. In the case of the smaller pots and pans we recommend the use of only the internal burner.

There is a separate control knob for each of the "separate double flame" burners.

The knob marked by the symbol Ⓞ operates the external burner;

The knob marked by the symbol Ⓞ operates the internal burner.

To turn on one of the rings, press the relative knob in all the way and turn it anti-clockwise to the high

setting ⚙. The burner is fitted with an electronic igniter that automatically starts when the knob is pressed in.

Since the burner is equipped with a safety device, after lighting the burner keep the knob pressed in for about 2-3 seconds to allow the device which keeps the flame lit automatically to heat up.

The selected burner can be regulated using the corresponding knob, as follows:

0 Off

Maximum

Minimum

To switch off the burner, turn the knob in a clockwise direction until it stops (when reaches the "0" position).

Practical advice on using the burners

To ensure the burners operate efficiently:

• Use appropriate cookware for each burner (see table) so that the flames do not extend beyond the bottom of the cookware.
  • Always use cookware with a flat base and a cover.
• When the contents of the pan reach boiling point, turn the knob to minimum.

Burner	ø Cookware diameter (cm)
A. Auxiliary	6 – 14
B. Semi-Rapid	15 – 20
C. Rapid	21 – 26
U. Ultra Rapid	21 – 26
C. Rapid Reduced	21 – 26
C. Triple Ring	24 – 26
D. Double Flame (DC DR internal)	10-14
D. Double Flame (DC DR external)	24-28

! On the models supplied with a reducer shelf, remember that this should be used only for the Double flame external (DCDR external) burner when you use casserole dishes Wook To identify the type of burner, refer to the designs in the section entitled, "Burner and Nozzle Specifications".

! This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

General safety

• This is a class 3 built-in appliance.
- Gas appliances require regular air exchange to maintain efficient operation. When installing the hob, follow the instructions provided in the paragraph on “Positioning” the appliance.
- These instructions are only valid for the countries whose symbols appear in the manual and on the serial number plate.
- The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
- The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
- Do not touch the appliance with bare feet or with wet or damp hands and feet.
- The appliance must be used by adults only, to cook food according to the instructions in this manual.
- Ensure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven.
- The openings used for ventilation and dispersion of heat must never be covered.
- Always make sure the knobs are in the "0" position when the appliance is not in use.
- When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.
- Never carry out any cleaning or maintenance work without having detached the plug from the mains.
- In case of malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact a Service Centre (see Assistance).
- Always make sure that pan handles are turned towards the centre of the hob in order to avoid accidental burns.
- Do not close the glass cover (if present) when the gas burners or electric hotplates are still hot.
- Do not leave the electric hotplate switched on without a pan placed on it.

• Do not use unstable or deformed pans.
• Remove any liquid from the lid before opening it.
• Prevent children and the disabled from coming into contact or having access at the ceramic glass cooking surface (if present) immediately before and after use, as the cooking surface will remain hot for at least a half hour after being turned off;
• Contact service centers authorized by the manufacturer in the event the ceramic glass cooking surface breaks.
• It is recommended that you follow the guidelines below:
• Disconnect the appliance from the electrical supply in the event the ceramic glass cooking surface breakds.

Disposal

• When disposing of packaging material: observe local legislation so that the packaging may be reused.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.
  Consumers may take their old appliance to public waste collection areas, other communal collection areas, or if national legislation allows return it to a retailer when purchasing a similar new product. All major household appliance manufacturers are active in the creation of systems to manage the collection and disposal of old appliances.

Switching the appliance off

Disconnect your appliance from the electricity supply before carrying out any work on it.

Cleaning the appliance

! Do not use abrasive or corrosive detergents such as stain removers, anti-rust products, powder detergents or sponges with abrasive surfaces: these may scratch the surface beyond repair.

! Never use steam cleaners or pressure cleaners on the appliance.

• It is usually enough to wash the hob with a damp sponge and dry it with absorbent kitchen roll.
• The removable parts of the burners should be washed frequently with warm water and soap and any burnt-on substances removed.
• For hobs which ligth automatically, the terminal part of the electronic instant lighting devices should be cleaned frequently and the gas outlet holes should be checked for blockages.
• Stainless steel can be marked by hard water that has been left on the surface for a long time, or by aggressive detergents containing phosphorus. After cleaning, rinse and dry any remaining drops of water.

Gas tap maintenance

Over time, the taps may become jammed or difficult to turn. If this happens, the tap must be replaced.

! This procedure must be performed by a qualified technician authorised by the manufacturer.

It may happen that the appliance does not function properly or at all. Before calling the service centre for assistance, check if anything can be done. First, check to see that there are no interruptions in the gas and electrical supplies, and, in particular, that the gas valves for the mains are open.

Problem

The burner does not light or the flame is not even around the burner.

The flame dies in models with a safety device.

The burner does not remain lit when set to minimum.

The cookware is unstable.

Possible causes/Solution

• The gas holes on the burner are clogged.

• All the movable parts that make up the burner are mounted correctly.
  • There are draughts near the appliance.

• You pressed the knob all the way in.

• You keep the knob pressed in long enough to activate the safety device.

• The gas holes are not blocked in the area corresponding to the safety device.

• The gas holes are not blocked.

• There are no draughts near the appliance.

• The minimum setting has been adjusted properly.

• The bottom of the cookware is perfectly flat.

• The cookware is positioned correctly at the centre of the burner.
• The pan support grids have been positioned correctly.

If, despite all these checks, the hob does not function properly and the problem persists, call the nearest Customer Service Centre. Please have the following information handy:

• The appliance model (Mod.).
• The serial number (S/N).
This information can be found on the data plate located on the appliance and/or on the packaging.

! Never use unauthorised technicians and never accept replacement parts which are not original.

Italien, 1

English,13

Français, 23

Español, 36

TGL 640

TGL 641

TGL 750

TGL 751

Sommaire

Installation, 24-28

Positionnement

Circular arrangement of black oval shapes on white background (no text or symbols)

Scholtès

Technical cross-sectional diagram of a mechanical assembly (no text or labels)

Technical cross-section diagram of a mechanical assembly (no text or labels)

Cross-sectional diagram of a device casing with internal components and mounting holes (no text or labels)

Derrière

Isometric line drawing of a cabinet or enclosure with two horizontal bars and a dashed floor, no text or symbols present.

560 mm. 45 mm.

3D technical illustration of a mechanical assembly with no visible text or symbols

3D technical diagram of a mechanical assembly with no visible text or symbols

Diagram of a hand holding a valve or lever against a plain background (no text or symbols)

Diagram of a faucet with two handles and a handle, no text or symbols present

SR SR AUX R

TGL 640

SR SR AUX TC

TGL 641

RR SR UR SR AUX

TGL 750

RR SR SR DCDR AUX

TGL 751

Causes / Solutions possibles

Circular pattern composed of evenly spaced black oval shapes on white background (no text or symbols)

Scholtès

Technical cross-section diagram of a mechanical assembly (no text or labels)

Technical line drawing of a mechanical or electronic component with no visible text, numbers, or symbols

Isometric line drawing of a cabinet or shelf with structural components (no text or symbols)

560 mm. 45 mm.

3D technical illustration of a mechanical assembly with no visible text or symbols

Isometric diagram of a dual-chamber sink with internal fixtures and control valves (no text or labels)

Simple line drawing of a hand holding a pipe with a handle, no text or symbols present

Line drawing of a hand holding a valve with two handles, partially submerged in water (no text or symbols)

SR SR AUX R

TGL 640

SR SR AUX TC

TGL 641

RR SR UR SR AUX

TGL750

RR SR SR DCDR AUX

TGL751
