Product Type	Electric Fan Heater
Brand	Vivax
Model	PH-1502
Power Output	1500 W (max.)
Heating Element	Ceramic PTC
Voltage	220-240 V ~ 50 Hz
Dimensions (W x D x H)	25.0 x 20.0 x 30.0 cm
Weight	2.5 kg
Thermostat	Adjustable mechanical thermostat
Modes	Heat, Fan only
Safety Features	Overheat protection, Tip-over switch
Noise Level	~45 dB
Cord Length	1.5 m
Color	White
Material	Plastic housing
Carrying Handle	Yes
Power Indicator Light	Yes
Cleaning	Wipe with dry cloth, do not use water
Storage	Store in dry place, avoid dust
Repairability	User-replaceable fuse; other repairs by service center
Warranty	2 years (depending on region)

Frequently Asked Questions - PH-1502 Vivax

What power consumption does the Vivax PH-1502 have?

The Vivax PH-1502 has a maximum power output of 1500 W, which corresponds to 1.5 kWh per hour at full power.

How do I clean the heater?

Unplug the heater and allow it to cool. Wipe the exterior with a dry cloth. Do not use water or cleaning agents. Clean the air intakes with a vacuum cleaner if needed.

Does the Vivax PH-1502 have a remote control?

No, the PH-1502 is controlled manually via knobs or buttons on the unit. It does not include a remote control.

Is this heater suitable for a large room?

The PH-1502 is ideal for small to medium rooms up to about 15-20 m². For larger spaces, consider a higher power model.

Can I leave the heater unattended?

It is not recommended to leave any heater unattended. While the PH-1502 has safety features like overheat protection and tip-over switch, always turn it off when not in the same room.

What is the warranty period?

The warranty typically covers 2 years for manufacturing defects. Check your local terms or contact Vivax support for exact details.

How do I reset the overheat protection?

If the overheat protection activates, unplug the heater and let it cool down for at least 15 minutes. Then plug it back in and turn it on normally.

Does the heater have a fan-only mode?

Yes, the PH-1502 includes a fan-only mode for air circulation without heating. Use this in summer or when you just need airflow.

What is the maximum room size this heater can warm?

For effective heating, the PH-1502 is recommended for rooms up to 20 m² with normal insulation. Larger rooms may require additional heating.

How does the adjustable thermostat work?

The thermostat allows you to set a desired temperature. Once the room reaches that temperature, the heater automatically turns off and cycles on/off to maintain it.

USER MANUAL PH-1502 Vivax

White electric heater with black wheels and ventilation grille, no visible text or symbols on the device body.

PH-1502 1500W

PH-2002 2000W

ZA VRIJEME RADA NIJE DOZVOLJENO OKRETANJE GRIJALICE

UVOD

VAŽNA UPOZORENJA I SIGURNOSNE UPUTE

Munja sa simbolom strelice unutar jednakostraničnog trokuta upozorava korisnika na prisutnost opasnog i neizoliranog napona unutar proizvoda koji može biti dovoljno snažan da predstavlja opasnost od strujnog udara.

Uskličnik unutar jednakostraničnog trokuta upozorava korisnika na prisutnost važnih uputa za uporabu i održavanje u dokumentu priloženom uz proizvod.

OPREZ

OPASNOST OD STRUJNOG UDARA NE OTVARATI

Ne skidajte poklopac uređaja. Ni u kojem slučaju korisniku nije dozvoljeno da provodi bilo kakve radnje popravka ili prepravke uređaja. Prepustite taj posao kvalificiranom ovlaštenom serviseru. Kako bi se smanjio rizik od požara, električnog udara ili povreda kad upotrebljavate uređaj, uvijek se pridržavajte osnovnih mjera predostrožnosti, uključujući slijedeće:

SIGURNOSNA UPOZORENJA I SAVJETI

1. UPOZORENJE: Ne prekrivati.
2. UPOZORENJE: Kako bi izbjegli opasnost od pregrijavanja, nemojte pokrivati grijalicu.

Diagram showing a device with two hanging weights and a base, no text or symbols present

G1

Close-up of a white industrial control panel with rotary dials and a red indicator knob (no visible text or symbols)

Čim se željena temperatura postigne okrenite termostat u smjeru obrnutom od smjera kazaljke na satu dok ne čujete klik (termostat je isključio grijanje). Za uštedu energije, po želji možete ugoditi snagu grijanja na poziciju “I” (niža snaga) ili “II” (viša snaga).

White electric heater with black wheels and ventilation grille, no visible text or symbols on the device body.

PH-1502 1500W

PH-2002 2000W

ZA VREME RADA NIJE DOZVOLJENO PREVRTANJE GREJALICE

UVOD

VAŽNA UPOZORENJA I SIGURNOSNA UPUTSTVA

Simbol - munja unutar jednakostraničnog trougla upozorava korisnika na prisustvo opasnog napona unutar proizvoda, koji može da bude dovoljno snažan da predstavlja opasnost od strujnog udara.

Uzvičnik unutar jednakostraničnog trougla upozorava korisnika da postoje važna uputstva za upotrebu i održavanje u (ovom) dokumentu, priloženom uz proizvod.

OPREZ

OPASNOST OD STRUJNOG UDARA!

NE OTVARATI!

SIGURNOSNA UPOZORENJA I SAVETI

1. UPOZORENJE: Ne prekrivati.
2. UPOZORENJE: Kako bise

Diagram showing a battery with two hanging weights and a separate container, both downward (no text or symbols)

G1

UPOZORENJE: Ako se grejalica koristi kao prenosni uređaj, nemojte koristiti grejalicu ako nogice s kotačićima nisu pravilno montirane.

OPIS DELOVA

1. Prednja zaštitna rešetka grejalice
2. Nosač točkića
3. Točkić
4. Okretna kontrola uključenja grejača
5. Okretno dugme Termostata
6. Poklopac kontrolne ploče
7. Zadnja strana
8. Utor za vešanje na zid (*opcija)
9. Gumeni zidni odstojnik

UPOTREBA

Postavite grejalicu na pod udaljen minimalno 100 cm od zida i drugih predmeta poput pokućstva, zavesa ili biljaka.

(Proverite odgovaraju li karakteristike električnog napajanja vašeg domaćinstva karakteristikama navedenima na pločici s tehničkim podacima).

Uključite grejalicu u utičnicu kada su termostat i prekidač za podešavanje snage grejanja u položaju "0".

• Postavite grejalicu na ravnu stabilnu površinu.
• Postavite okretno dugme termostata i okretno dugme za uključenje i podešavanje snage grejanja u poziciju isključeno ("0")

- Priključite kabl napajanja grejalice u utičnicu.

Zakretanjem dugmeta termostata u smeru kazaljke na satu ili suprotnom smeru podešavate željenu temperaturu. Za brzo grejanje prostora podesite termostat na maksimalnu temperaturu i podesite snagu grejanja na poziciju "II".

Close-up of a white industrial control panel with rotary dials and a red indicator knob (no visible text or symbols)

White electric heater with black wheels and ventilation grille, no visible text or symbols on the device body.

PH-1502 1500W

PH-2002 2000W

НЕМОЈТЕ ДА ГО ПРЕВРТУВАТЕ РАДИЈАТОРОТ ЗА ВРЕМЕ НА НЕГОВОТО РАБОТАЊЕ

ВОВЕД

Diagram showing a device with two hanging weights and arrows indicating downward motion (no text or symbols)

G1

КОРИСТЕЊЕ НА УРЕДОТ

Close-up of a white industrial control panel with rotary dials and a red indicator knob (no visible text or symbols)

White electric heater with black wheels and ventilation grille, no visible text or symbols on the device body.

PH-1502 1500W

PH-2002 2000W

MOS TË KTHEHET NGROHËS GJATË OPERACIONIT

HYRJE

Diagram of a battery with two terminals and a switch, showing downward force arrows (no text or symbols)

G1

PËRSHKRIMI

Close-up of a white industrial control panel with rotary dials and a red indicator knob (no visible text or symbols)

White electric heater with black wheels and ventilation grille, no visible text or symbols on the device body.

PH-1502 1500W

PH-2002 2000W

MED OBRATOVANJEM NI DOVOLJENO OBRAČANJE GRIJALICE

UVOD

UPORABA GRELNIKA

Postavite grelec na tla, da je oddaljen najmanj 90 cm od stene in drugih predmetov, kot so pohištvo, zavese ali rastline.

Close-up of a white industrial control panel with rotary dials and a red indicator knob (no visible text or symbols)

White horizontal electric heater with black wheels and ventilation grille (no visible text or symbols)

PH-1502 1500W

PH-2002 2000W

DO NOT TURN HEATER UPSIDE-DOWN DURING OPERATION.

INTRODUCTION

Thank you for purchasing our Oil-Filled Radiator. Each unit has been manufactured to ensure safety and reliability.

Before first use, please read the instructions carefully and keep them for further reference.

WELCOME!

Thank you on purchase Vivax product.

This device meets the highest standards, innovative technology and high comfort use.

Read these instructions carefully before using your new unit, and keep it carefully.

If you follow the instructions, your new appliances will provide you with many years of good service.

READ CAREFULLY THIS MANUAL AND KEEP THEM FOR FUTURE REFERENCE!

IF YOU SELL OR TRANSFER DEVICE TO OTHER PEOPLE, BE SURE TO INCLUDE THESE INSTRUCTIONS!

IMPORTANT SAFETY INSTRUCTIONS WARNING

The flash with the symbol of arrowhead, inside an equilateral triangle alerts the user about the presence of a dangerous tension not isolated inside the product which can be sufficiently powerful to constitute a risk of electrocution.

The point of exclamation inside an equilateral triangle alerts the user about the presence of important operating instructions and maintenance in the document enclosed in the package.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

Do not open the cover. In no case the user is allowed to operate inside the unit. Only a qualified technician from the manufacture is entitled to operate. By ignoring the safety instructions, the manufacturer cannot be hold responsible for the damage.

IMPORTANT SAFETY PRECAUTIONS

1. WARNING: Do not cover.
2. WARNING: In order to avoid overheating, do not cover the heater.
3. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool. The heater is to be installed so that switches and other control touched by a person in the bath or shower

1. Do not use this heater if it has been dropped.

2. Do not use if there are visible signs of damage to the heater.

3. Use this heater on horizontal and stable surface, or fix it to the wall, as applicable.

4. WARNING: To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance od 1m from the air outlet.

5. The heater must not be located immediately below a socket-outlet.

6. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

7. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction

8. Children being supervised not to play with the appliance

9. Children shall not play with the appliance.

10. Cleaning and user maintenance shell not be made by children without supervision.

11. Children of less than 3 years should be kept away unless continuously supervised.

12. Children aged from 3 years and less than 8 years shall only switch On/Off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

13. CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
14. WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
15. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
16. Never unplug the feed cable from the plug by tugging on the cable. Do not touch the feed cable with wet hands. Never move the appliance by pulling the cord and make sure the cord cannot become entangled.
17. Always place the device on a stable and flat surface to prevent roll over or fall.
18. This appliance is only to be used for household purposes and only for the purpose it is made for.
19. This appliance is intended for indoor use only. Do not use item outdoors.
20. Do protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
21. The appliance is not intended to be operated by means of an programmer, external timer or a separate remote-

control system or any other device that switches the heater on automatically, since a fire risk exist if the heater is covered or positioned incorrectly.

1. Your device must not be used connected to the same power cable or fuse with another device.
2. Only use the appropriate power plug and power socket for this device.
3. Power cord must not be left on the hot body of the device or near it. Do not let cord hang over edge of table or counter. Do not allow the cord to touch sharp edges and hot surfaces
4. Steam cleaner is not to be used.
5. Do not leave the heater “ON” unattended. Always disconnect the heater from the main supply when not in use and when cleaning.
6. It must be ensured that the device has cooled down. Store your device in dry and enclosed locations.
7. Device must be unplugged from the mains during mounting and maintenance or repair works
8. Do not store explosive substances such as aerosol cans with flammable propellant near this appliance. Do not place on or near a hot gas or electric burner.
9. Do not plug the item in before its not wall mounted or set on castors.

WARNING: Keep the heater a distance of at least 100 cm from any combustible material, such as furniture, curtains, bedding cloths or papers.

Keep the heater clean. Do not allow objects to enter the ventilation, as this may cause electric shock, fire or damage the heater.

If the heater used in the bathroom, then it must be installed on the wall, and must be in a place where couldn't be touched once in bathtub or shower bath.

WARNING: Electric Shock Hazard Improper use of the grounding can result in electric shock.

Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

Before you connect your new device to the power supply 220-240V, 50Hz, make sure the voltage in your household and socket type correspond to the voltage indicated on the nameplate. If you have any doubt, consult with a licensed electrician.

Before using for the first time

1. Remove the packaging.
2. Make sure that the packaging and the bags must be kept out of reach of small children. Do not allow children to play with packaging because there is a risk of suffocation and injury.

Electrical connection

• Make sure that the voltage (see name plate) and the line voltage match.
• The mains plug should only be inserted into a correctly installed 220-240 V \~ 50Hz socket with earthing contact.

Connected Wattage

The total power consumption of this device can be up to 2500W (please check rating plate of the product). With this connected load a separate supply line protected by a 16A household circuit breaker is recommended.

CAUTION: OVERLOAD:

• If you use extension leads, these should have a cable cross-section of at least 2.5mm^2 .
• Do not use any multiple sockets, as this device is too powerful.

ASSEMBLY

Remove the heater and all the accessories from the carton.

The panel convector heaters should be wall-mounted or can be also set on castors

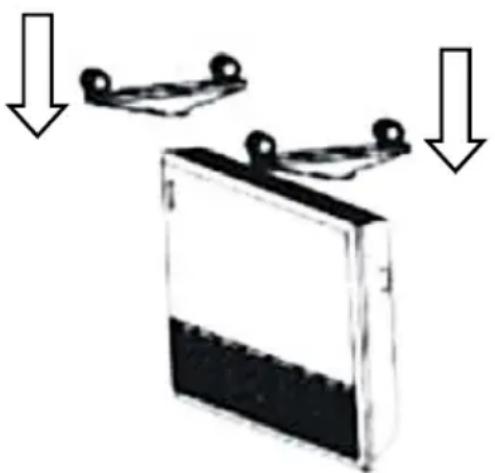

- Mount castors on the baseboard in accordance with scheme G1.

Diagram showing a battery with two terminals and a switch, no text or symbols present

G1

WARNING: Do not use the heater unless the feet are correctly attached if the heater is used as portable appliance

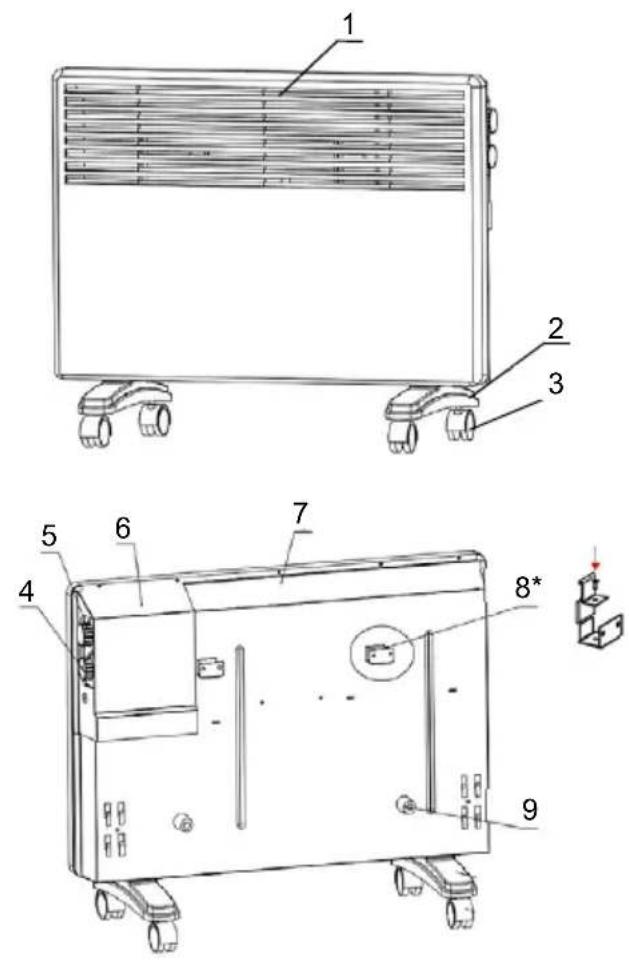

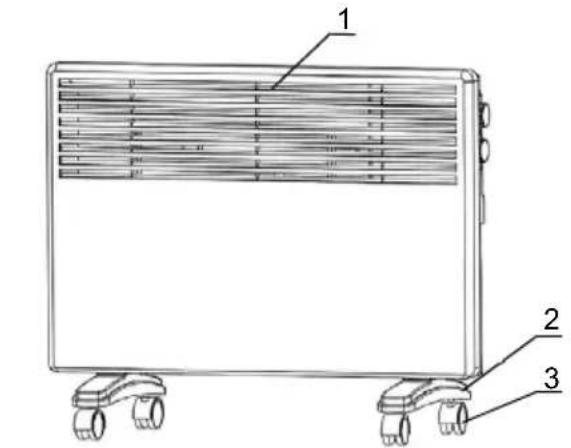

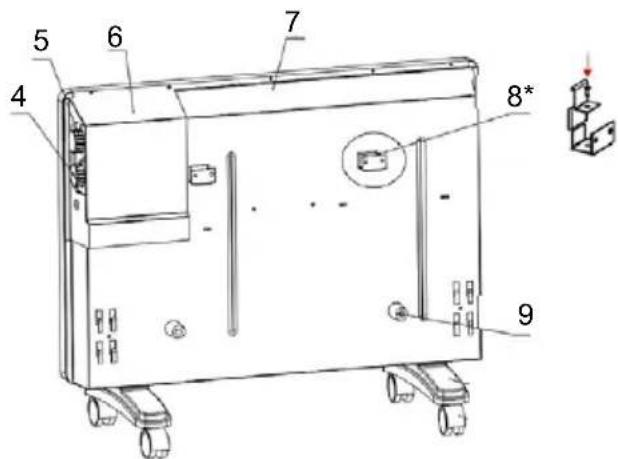

PARTS DESCRIPTION

1. Front protection grill
2. Support base
3. Castors
4. Power Switch control
5. Temperature control
6. Control panel cover
7. Rear panel
8. Wall mount bracket (*option)
9. Rubber wall post

OPERATING

Place the heater on the floor at least 100 cm away from the wall and any other objects such as furniture, curtains or plants.

(Make sure the power supply used corresponds to the one on the rating label)

With the thermostat control switch and the power setting switches in the '0' position, plug the heater into the main power supply.

● Place the heater on flat stable surface
- Switch thermostat knob and Heater Power knob in off position ("0")
- Plug the heater in

- By turning, the handle of thermostat clockwise or counter clockwise set the required temperature. For fast heating of the room set the thermostat handle at maximum level and turn heater switch on position II. For Energy save, turn Heating knob on position "I" (lower heater power).

Close-up of a white industrial control panel with rotary dials and a red indicator knob (no visible text or symbols)

As soon as required temperature will be reached, turn thermostat handle counter clockwise until you hear click. The heating elements will switch off. Indicator light will be also off.

• Convector will automatically switch on when temperatures decreases and it will automatically switch off when temperature increases. The comfortable ambient temperature is maintained.
• If the appliance is not used for a long time--switch it off with power switch and plug the item out
• Attention! Do not cover the product! Convector should not be place under shower or in swimming pool

CLEANING AND MAINTAINING

Always pull out the plug from the mains socket before cleaning and wait until the unit has cooled down.

1. Clean the outside of the heater by wiping with a damp cloth and buff with a dry cloth. It is necessary to remove dust from the surface regularly.
2. Do not use waxes or polishes as these may react with the heater and cause discoloration.

TRANSPORT AND STORAGE

WARNING

Handling and transportation. It is required to perform transportation of device in its own original box. Plastic parts may be broken during Incorrect packaging. Its electrical parts may be damaged.

1. Save the box for off season storage.
2. Clean the heater following the cleaning instructions above.
3. Remove the wheel base assemblies.
4. Place the heater, and wheel assemblies in the original box, and store in a cool and dry place.
5. If you choose to store your heater fully assembled be sure to cover it to protect it from dust.

SPECIFICATION

Model PH-1502 PH-2002
Max Power 1500W 2000W
Protection class IPX4
Power supply 220-240V / 50Hz
Class I

DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT

To protect our environment and to recycle the raw materials used as completely as possible, the consumer is asked to return unserviceable equipment to the public collection system for electrical and electronic.

The symbol of the crossed indicates that this product must be returned to the collection point for electronic waste to feed it by

recycling the best possible raw material recycling.

By ensuring this product you will prevent possible negative effects on the environment and human health, which could otherwise be caused due to improper disposal of that product. The recycling of materials from this product, you will help to preserve a healthy environment and natural resources.

For detailed information about the collection of EE products contact the dealer where you purchased the product.

EU DECLARATON OF CONFORMITY

This device is manufactured in accordance with the applicable European standards and in accordance with all applicable Directives and Regulations.

EU declaration of conformity can be downloaded from the following link: www.msan.hr/dokumentacijaartikala

POŠTOVANI!

Zahvaljujemo na kupnji Vivax uređaja i nadamo se da ćete biti zadovoljni odabirom. Ako u jamstvenom roku bude potreban popravak proizvoda, molimo savjetujte se sa ovlaštenim prodavačem koji Vam je proizvod prodao ili nas kontaktirajte na dolje navedene brojeve i adrese. MOLIMO VAS DA PRIJE UPORABE PROIZVODA PAŽLJIVO PROČITATE UPUTE PRILOŽENE UZ PROIZVOD!

JAMSTVENI LIST

VIVAX

HR

MODEL UREĐAJA

SERIJSKI BROJ

DATUM PRODAJE

BROJ RAČUNA PRODAVATELJA

POTPIS I PEČAT PRODAVATELJA

1. Ovim jamstvom M SAN Grupa kao davatelj jamstva u Republici Hrvatskoj jamči besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom jamstvenom listu.
   Ovim jamstvom jamčimo da će predmet ovog jamstva raditi bez pogreške uzrokovane eventualnom lošom izradom ili lošim materijalom izrade. Svi, eventualno nastali, kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u jamstvenom roku.

2. UVJETI JAMSTVA Jamstveni rok počinje od dana kupnje proizvoda i traje 12 mjeseci, osim za Vivax Imago televizore za koje jamstvo traje 24 mjeseca.

3. U slučaju kvara na proizvodu koji je predmet ovog jamstva, obvezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Jamstvo će biti produženo za vrijeme trajanja popravka.

4. Jamstvo se priznaje samo uz račun o kupnji, te uz ovaj jamstveni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.

5. JAMSTVO NE OBUHVAĆA

POTPIS I PEČAT PRODAVCA

1. Ovom izjavom o saobraznosti proizvođač proizvoda, preko KIM TEC CG d.o.o., kao uvoznika i davaoca prava u Crnoj Gori besplatan popravak istog u skladu s vazećim propisima i u skladu s uslovima opisanim u ovoj izjavi o saobraznosti. Ovom izjavom o saobraznosti istićemo da će predmet ovog prava raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biće besplatno otklonjeni u ovlašćenom servisu u predviđenom roku za reklamaciju.
2. USLOVI REKLAMACIJE: Rok za reklamaciju počinje teći od dana kupovine proizvoda i traje 24 mjeseca.
3. U slučaju kvara na proizvodu koji je predmet reklamacije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 15 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 15 dana, biće zamijenjen novim.
4. Pravo na reklamaciju se priznaje uz fiskalni račun o kupovini, ili uz ovu izjavu o saobraznosti koji mora biti ispravno popunjen odnosno mora sadržati datum prodaje, pečat i potpis prodavca.
5. Davalac izjave o saobraznosti osigurava servis i rezervne djelove 7 godina od datuma kupovine.
6. PRAVO NA REKLAMACIJU NE OBUHVATA

POTPIS I PEČAT PRODAVATELJA

GARANCIJSKA IZJAVA

1. Ovom garancijom garantira proizvođač proizvoda, preko KIM TEC d.o.o., kao uvoznika i davatelja garancije u Republici Bosni i Hercegovini besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom garantnom listu. Ovom garancijom garantiramo da će predmet ove garancije raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u garantnom roku.

UVJETI GARANCIJE:

Garantni rok počinje teći od dana kupnje proizvoda i traje 12 mjeseci, osim za Vivax Imago televizore (CRT, LCD, PDP) za koje jamstvo traje 24 mjeseca

1. U slučaju kvara na proizvodu koji je predmet ove garancije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Ako popravak proizvoda traje duže od 10 dana, garancija se produljužuje za vrijeme trajanja popravka.
2. Garancija se priznaje samo uz račun o kupnji, te uz ovaj garantni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.
3. Davalac garancije osigurava servis i rezervne dijelove 7 godina od datuma kupnje.

GARANCIJA NE OBUHVAĆA:

Kosova Electronic Service Center

Kosova Electronic Service Center

VIVAX Air Conditioners; White Goods and Small Home appliances
