QH-1203 - Heating Vivax - Free user manual and instructions

Brand	Vivax
Model	QH-1203
Product Type	Electric Heater
Heating Method	Convection / Fan
Power Consumption	1500 W
Voltage	220-240 V
Frequency	50/60 Hz
Heat Settings	2 levels (low, high)
Thermostat	Adjustable
Timer	1-12 hours
Oscillation	Yes
Dimensions (W x H x D)	20 x 25 x 15 cm
Weight	1.2 kg
Cord Length	1.5 m
Safety Features	Overheat protection, tip-over switch
Material	Plastic, metal
Color	White / Black
Control Type	Mechanical dials
Noise Level	<45 dB
Suitable Room Size	Up to 20 m²
Energy Efficiency Class	A
Cleaning	Wipe with a soft dry cloth
Spare Parts Available	No
Warranty	2 years
Certification	CE

Frequently Asked Questions - QH-1203 Vivax

How do I clean the QH-1203 heater?

Always unplug the heater before cleaning. Use a soft dry cloth to wipe the exterior. Do not use water or harsh chemicals.

Can I use the heater in a bathroom?

No, the QH-1203 is not designed for humid environments. It is suitable for dry indoor areas only.

The heater turns off unexpectedly. What should I check?

This may be due to the overheat protection activating. Ensure the air inlet and outlet are not blocked. Let it cool down before restarting.

What is the recommended room size?

The QH-1203 is effective for rooms up to 20 square meters (approximately 215 square feet).

Does the heater have a timer function?

Yes, it includes a timer that can be set from 1 to 12 hours.

How do I adjust the temperature?

Turn the thermostat dial to your desired temperature setting. The heater will maintain that temperature automatically.

Can I use an extension cord?

It is recommended to plug the heater directly into a wall outlet. If you must use an extension cord, ensure it is rated for at least 1500W.

What does the oscillation feature do?

The oscillation function moves the heater left and right to distribute heat more evenly across the room.

Is the heater safe for pets or children?

The heater has a tip-over switch that automatically turns it off if knocked over. However, keep pets and children at a safe distance.

How can I download the full user manual?

You can download the PDF manual for the QH-1203 from notice-facile.com by visiting the product page and clicking 'Download'.

USER MANUAL QH-1203 Vivax

Exterior view of a VIVAX rectangular heater with mesh grille and control panel (no text or symbols on body)

1000W - 1200W, 220-240V, 50Hz

ZA VRIJEME RADA NIJE DOZVOLJENO OKRETANJE GRIJALICE

UVOD

VAŽNA UPOZORENJA I SIGURNOSNE UPUTE

Munja sa simbolom strelice unutar jednakostraničnog trokuta upozorava korisnika na prisutnost opasnog i neizoliranog napona unutar proizvoda koji može biti dovoljno snažan da predstavlja opasnost od strujnog udara.

Uskličnik unutar jednakostraničnog trokuta upozorava korisnika na prisutnost važnih uputa za uporabu i održavanje u dokumentu priloženom uz proizvod.

OPREZ

OPASNOST OD STRUJNOG UDARA

NE OTVARATI

Ne skidajte poklopac uređaja. Ni u kojem slučaju korisniku nije dozvoljeno da provodi bilo kakve radnje popravka ili prepravke uređaja. Prepustite taj posao kvalificiranom ovlaštenom serviseru. Kako bi se smanjio rizik od požara, električnog udara ili povreda kad upotrebljavate uređaj, uvijek se pridržavajte osnovnih mjera predostrožnosti, uključujući slijedeće:

SIGURNOSNA UPOZORENJA I SAVJETI

1 (l) = 600W
2 (II) = 600W
3 (III) = 1200W

Ukoliko primjetite prilikom rada uređaja da se pojavljuje lagana vibracija koja postepeno nestaje, nemojte se zabrinuti. Ovo je dio normalnog ponašanja uređaja.

ČIŠĆENJE I ODRŽAVANJE

Prije bilo kakvog čišćenja ili održavanja uređaja, uvijek prvo odspojite uređaj sa napajanja i pričekajte da se uređaj potpuno ohladi.

1. Ovaj uređaj ne zahtjeva nikakvo posebno održavanje. Za čišćenje se preporuča korištenje mekane vlažne krpe i neutralnog deterdženta. Ne koristite abrazivna sredstva ili uređaje koji mogu utjecati na vanjski izgled uređaja. Provjerite da li su dijelovi izloženi toplini i ventilacija čisti od prašine i prljavštine.
2. Tokom čišćenja pripazite da ne dodirujete kvarcne grijače elemente..
3. Ne koristite voskove ili sredstva za poliranje jer mogu reagirati na toplinu i uzrokovati promjenu boje.

SPECIFKACIJE

Model	QH-1202
Maks Snaga	1000W - 1200W
Klasa	I
Klasa zaštite	IP21
Napajanje	220-240V / 50Hz

ZBRINJAVANJE ELEKTRIČNE I ELEKTRONIČKE OPREME

Proizvodi označeni ovim simbolom označavaju da proizvod spade u grupu električne I elektroničke opreme (EE Proizvodi) te se ne smiju odlagati zajedno s kućnim ili glomaznim otpadom.

Ispravnim postupanjem, zbrinjavanjem i recikliranjem proizvoda, sprječavate potencijalne negativne posljedice na ljudsko zdravlje i okoliš, koji mogu nastati zbog neadekvatnoga zbrinjavanja ili bacanja ovog

proizvoda. Za više informacija o recikliranju i zbrinjavanju ovog proizvoda, molim kontaktirajte M SAN Grupu, vaš lokalni

Exterior view of a VIVAX portable heater with grid-patterned insulation (no text or symbols visible)

1000W - 1200W, 220-240V, 50Hz

ZA VREME RADA NIJE DOZVOLJENO PREVRTANJE GREJALICE

UVOD

VAŽNA UPOZORENJA I SIGURNOSNA UPUTSTVA

Simbol - munja unutar jednakostraničnog trougla upozorava korisnika na prisustvo opasnog napona unutar proizvoda, koji može da bude dovoljno snažan da predstavlja opasnost od strujnog udara.

Uzvičnik unutar jednakostraničnog trougla upozorava korisnika da postoje važna uputstva za upotrebu i održavanje u (ovom) dokumentu, priloženom uz proizvod.

OPREZ

OPASNOST OD STRUJNOG UDARA! NE OTVARATI!

SIGURNOSNA UPOZORENJA I SAVETI

1. UPOZORENJE: Ne prekrivati.
2. UPOZORENJE: Kako bi se

1 (l) = 600W
2 (II) = 600W
3 (III) = 1200W

Ukoliko primetite prilikom rada uređaja da se pojavljuje lagana vibracija koja postepeno nestaje, nemojte da se brinete. Ovo je deo normalnog ponašanja uređaja.

ČIŠĆENJE I ODRŽAVANJE

Exterior view of a VIVAX portable heater with grid-patterned grille and control panel (no text or symbols visible)

1000W - 1200W, 220-240V, 50Hz

НЕМОЈТЕ ДА ГО ПРЕВРТУВАТЕ РАДИЈАТОРОТ ЗА ВРЕМЕ НА НЕГОВОТО РАБОТАЊЕ

ВОВЕД

$$ 0 = \text { Off } $$

$$ 1 (I) = 6 0 0 W $$

$$ 2 (\text { II }) = 6 0 0 \mathrm{W} $$

$$ 3 (\mathrm{III}) = 1 2 0 0 \mathrm{W} $$

Exterior view of a VIVAX solar heating device with grid-patterned casing (no text or symbols visible)

1000W - 1200W, 220-240V, 50Hz

MOS TË KTHEHET NGROHËS GJATË OPERACIONIT

HYRJE

Pure mechanical diagram showing a rotating component with curved arrows indicating motion (no text or symbols)

Fig.3 Fig.4

Diagram of a mechanical device with multiple parallel wires connected to a vertical rod, mounted on a base (no text or symbols present)

KOMPONENTËT E PRODHIMIT

Fig 3: 1. Elementi ngrohës

Exterior view of a VIVAX portable heater with grid-patterned glass filter (no text or symbols visible)

1000W - 1200W, 220-240V, 50Hz

MED OBRATOVANJEM NI DOVOLJENO OBRAČANJE GRIJALICE

UVOD

Exterior view of a VIVAX portable air conditioner unit (no visible text or symbols on body)

1000W - 1200W, 220-240V, 50Hz

DO NOT TURN HEATER UPSIDE-DOWN DURING OPERATION.

INTRODUCTION

Thank you for purchasing our heater. Each unit has been manufactured to ensure safety and reliability.

Before first use, please read the instructions carefully and keep them for further reference.

WELCOME!

Thank you on purchase Vivax product.

This device meets the highest standards, innovative technology and high comfort use.

Read these instructions carefully before using your new unit, and keep it carefully.

If you follow the instructions, your new appliances will provide you with many years of good service.

READ CAREFULLY THIS MANUAL AND KEEP THEM FOR FUTURE REFERENCE!

IF YOU SELL OR TRANSFER DEVICE TO OTHER PEOPLE, BE SURE TO INCLUDE THESE INSTRUCTIONS!

IMPORTANT SAFETY INSTRUCTIONS WARNING

The flash with the symbol of arrowhead, inside an equilateral triangle alerts the user about the presence of a dangerous tension not isolated inside the product which can be sufficiently powerful to constitute a risk of electrocution.

The point of exclamation inside an equilateral triangle alerts the user about the presence of important operating instructions and maintenance in the document enclosed in the package.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

Do not open the cover. In no case the user is allowed to operate inside the unit. Only a qualified technician from the manufacture is entitled to operate. By ignoring the safety instructions, the manufacturer cannot be hold responsible for the damage.

IMPORTANT SAFETY PRECAUTIONS

1. WARNING: Do not cover.

2. WARNING: In order to avoid overheating, do not cover the heater.

3. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool. The heater is to be installed so that switches and other controls touched by a person in the bath or shower.

1. Statement: heater is not located immediately below a socket-outlet

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

3. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction

4. Children shall not play with the appliance.

5. Cleaning and user maintenance shell not be made by children without supervision.

6. Children of less than 3 years should be kept away unless continuously supervised.

7. Children aged from 3 years and less than 8 years shall only switch On/Off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

8. CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

9. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
10. Never unplug the feed cable from the plug by tugging on the cable. Do not touch the feed cable with wet hands. Never move the appliance by pulling the cord and make sure the cord cannot become entangled.
11. This appliance is only to be used for household purposes and only for the purpose it is made for.
12. This appliance is intended for indoor use only. Do not use item outdoors.
13. Do protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
14. The appliance is not intended to be operated by means of an programmer, external timer or a separate remote-control system or any other device that switches the heater on automatically, since a fire risk exist if the heater is covered or positioned incorrectly.
15. Your device must not be used connected to the same power cable or fuse with another device.
16. Only use the appropriate power plug and power socket for this device.
17. Power cord must not be left on the hot body of the device or near it. Do not let cord hang over edge of table or counter.
18. Steam cleaner is not to be used.
19. Do not leave the heater “ON” unattended. Always disconnect the heater from the main supply when not in use and when cleaning.

20. Device must be unplugged from the mains during mounting and maintenance or repair works

21. Do not store explosive substances such as aerosol cans with flammable propellant near this appliance. Do not place on or near a hot gas or electric burner.

22. Do not plug the item in before its not wall mounted.
23. Avoid positioning the heater behind a door. Position the appliance only in a horizontal position, minimum 1,8m from the floor.

WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

WARNING: Keep the heater a distance of at least 1m from any combustible material, such as furniture, curtains, bedding cloths or papers.

Keep the heater clean. Do not allow objects to enter the ventilation, as this may cause electric shock, fire or damage the heater.

WARNING: Electric Shock Hazard Improper use of the grounding can result in electric shock.

Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

Before you connect your new device to the power supply 220-240V, 50Hz, make sure the voltage in your household

and socket type correspond to the voltage indicated on the nameplate. If you have any doubt, consult with a licensed electrician.

Before using for the first time

1. Remove the packaging.
2. Make sure that the packaging and the bags must be kept out of reach of small children. Do not allow children to play with packaging because there is a risk of suffocation and injury.

Electrical connection

• Make sure that the voltage (see name plate) and the line voltage match.
• The mains plug should only be inserted into a correctly installed 220-240 V \~ 50Hz socket with earthing contact.

Connected Wattage

The total power consumption of this device can be up to 1200W (please check rating plate of the product). With this connected load a separate supply line protected by a 16A household circuit breaker is recommended.

CAUTION: OVERLOAD:

• If you use extension leads, these should have a cable cross-section of at least 2.5mm ^2 .
• Do not use any multiple sockets, as this device is too powerful.

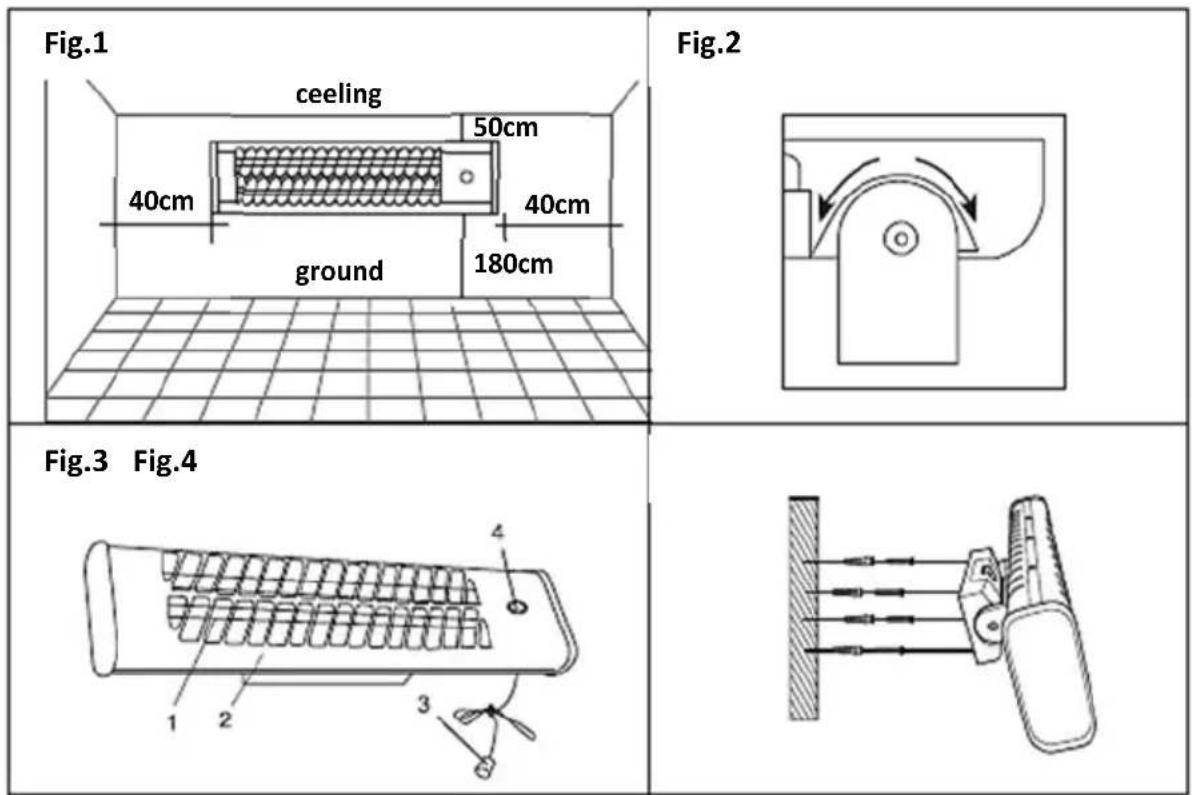

ASSEMBLY

Remove the heater and all the accessories from the carton.

The panel convector heaters should be wall-mounted only.

1. Remove both safety elements on the front grid, used as transport protection.
2. The quartz heater must be installed in a horizontal position only. Do not install at the ceiling or vertically. During installation respect the minimum distances indicated in Fig.1.
3. Find the most appropriate position so as not to block access to the pull switch cord and the switch, at all time respecting the safety distances indicated in Fig.1. Mark the holes for mounting on the wall where the heater is to be installed: 77mm for the horizontal position and 64 mm for the vertical position. Fix the quartz heater with the attached dowel screws to the wall.
4. After assembly and electric installation on the wall the upper part can be swivelled to an angle of max.60°.
5. Arrange a convenient angle for the device and fix the mechanism by tightening both lateral screws(Fig.2).
6. Now you can use the quartz heater.

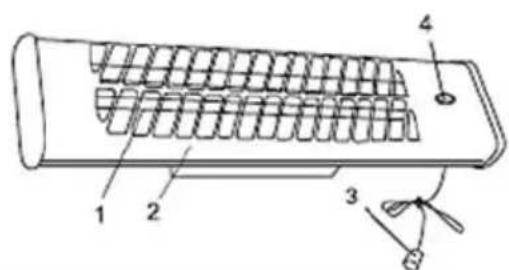

PARTS DESCRIPTION

Fig 3:

1. Heating element

2. Bracing wire

3. Outer cover

4. Indicator

OPERATING

Turn the appliance on by turning the switch to following settings:

$$ 0 = \text { Off } $$

$$ 1 (I) = 6 0 0 W $$

$$ 2 (\text { II }) = 6 0 0 \mathrm{W} $$

$$ 3 (\text { III }) = 1 2 0 0 \mathrm{W} $$

If you notice while turning on the appliance that there are slight vibrations which then gradually fade away, don't become unduly alarmed. This is part of the normal behavior of the appliance.

CLEANING AND MAINTAINING

Always pull out the plug from the mains socket before cleaning and wait until the unit has cooled down.

1. This appliance does not require any particular maintenance. For cleaning it is recommended to use a soft moist rag and neutral detergent. Do not use an abrasive cloth or devices which could effect the outward appearance of the appliance. Check that the parts exposed to the heat rays and the ventilation are free of dust and dirt.
2. During cleaning, be careful not to touch the quartz heating elements.
3. Do not use waxes or polishes as these may react with the heater and cause discoloration.

SPECIFICATION

Model QH-1202
Max Power 1000W - 1200W
Class I
Protection class	IP21
Power supply	220-240V / 50Hz

DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT

To protect our environment and to recycle the raw materials used as completely as possible, the consumer is asked to return unserviceable equipment to the public collection system for electrical and electronic.

The symbol of the crossed indicates that this product must be returned to the collection point for electronic waste to feed it by recycling the best possible raw material recycling.

By ensuring this product you will prevent possible negative effects on the

environment and human health, which could otherwise be caused due to improper disposal of that product. The recycling of materials from this product, you will help to preserve a healthy environment and natural resources.

For detailed information about the collection of EE products contact the dealer where you purchased the product.

EU DECLARATON OF CONFORMITY

This device is manufactured in accordance with the applicable European standards and in accordance with all applicable Directives and Regulations.

EU declaration of conformity can be downloaded from the following link: www.msan.hr/dokumentacijaartiklala

POŠTOVANI!

Zahvaljujemo na kupnji Vivax uređaja i nadamo se da ćete biti zadovoljni odabirom. Ako u jamstvenom roku bude potreban popravak proizvoda, molimo savjetujte se sa ovlaštenim prodavačem koji Vam je proizvod prodao ili nas kontaktirajte na dolje navedene brojeve i adrese. MOLIMO VAS DA PRIJE UPORABE PROIZVODA PAŽLJIVO PROČITATE UPUTE PRILOŽENE UZ PROIZVOD!

JAMSTVENI LIST

VIVAX

HR

MODEL UREĐAJA

SERIJSKI BROJ

DATUM PRODAJE

BROJ RAČUNA PRODAVATELJA

POTPIS I PEČAT PRODAVATELJA

1. Ovim jamstvom M SAN Grupa kao davatelj jamstva u Republici Hrvatskoj jamči besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom jamstvenom listu.
   Ovim jamstvom jamčimo da će predmet ovog jamstva raditi bez pogreške uzrokovane eventualnom lošom izradom ili lošim materijalom izrade. Svi, eventualno nastali, kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u jamstvenom roku.

2. UVJETI JAMSTVA Jamstveni rok počinje od dana kupnje proizvoda i traje 12 mjeseci, osim za Vivax Imago televizore za koje jamstvo traje 24 mjeseca.

3. U slučaju kvara na proizvodu koji je predmet ovog jamstva, obvezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Jamstvo će biti produženo za vrijeme trajanja popravka.

4. Jamstvo se priznaje samo uz račun o kupnji, te uz ovaj jamstveni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.

5. JAMSTVO NE OBUHVAĆA

POTPIS I PEČAT PRODAVCA

1. Ovom izjavom o saobraznosti proizvođač proizvoda, preko KIM TEC CG d.o.o., kao uvoznika i davaoca prava u Crnoj Gori besplatan popravak istog u skladu s vazećim propisima i u skladu s uslovima opisanim u ovoj izjavi o saobraznosti. Ovom izjavom o saobraznosti istićemo da će predmet ovog prava raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biće besplatno otklonjeni u ovlašćenom servisu u predviđenom roku za reklamaciju.
2. USLOVI REKLAMACIJE: Rok za reklamaciju počinje teći od dana kupovine proizvoda i traje 24 mjeseca.
3. U slučaju kvara na proizvodu koji je predmet reklamacije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 15 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 15 dana, biće zamijenjen novim.
4. Pravo na reklamaciju se priznaje uz fiskalni račun o kupovini, ili uz ovu izjavu o saobraznosti koji mora biti ispravno popunjen odnosno mora sadržati datum prodaje, pečat i potpis prodavca.
5. Davalac izjave o saobraznosti osigurava servis i rezervne djelove 7 godina od datuma kupovine.
6. PRAVO NA REKLAMACIJU NE OBUHVATA

POTPIS I PEČAT PRODAVATELJA

GARANCIJSKA IZJAVA

1. Ovom garancijom garantira proizvođač proizvoda, preko KIM TEC d.o.o., kao uvoznika i davatelja garancije u Republici Bosni i Hercegovini besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom garantnom listu. Ovom garancijom garantiramo da će predmet ove garancije raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u garantnom roku.

UVJETI GARANCIJE:

Garantni rok počinje teći od dana kupnje proizvoda i traje 12 mjeseci, osim za Vivax Imago televizore (CRT, LCD, PDP) za koje jamstvo traje 24 mjeseca

1. U slučaju kvara na proizvodu koji je predmet ove garancije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Ako popravak proizvoda traje duže od 10 dana, garancija se produljužuje za vrijeme trajanja popravka.
2. Garancija se priznaje samo uz račun o kupnji, te uz ovaj garantni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.
3. Davalac garancije osigurava servis i rezervne dijelove 7 godina od datuma kupnje.

GARANCIJA NE OBUHVAĆA:

Kosova Electronic Service Center

Kosova Electronic Service Center

VIVAX Air Conditioners; White Goods and Small Home appliances
