Product Type	Contact Grill
Brand	Vivax
Model	EG-4030RC
Power	2200W
Voltage / Frequency	220-240V ~ 50/60Hz
Cooking Plate Size	385 x 290 mm
Non-Stick Coating	Yes (anti-stick surface)
Temperature Control	Adjustable thermostat with indicator light
Glass Lid	Tempered glass with handle and lock mechanism
Cool-Touch Handles	Yes
Oil Drip Tray	Yes (removable)
Indicator Light	Shows when heating; cycles to maintain temperature
Safety Features	Grounded plug, auto temperature regulation, hot surface warning
Cleaning Instructions	Wipe with damp cloth; do not immerse or use abrasives
Storage	Dry thoroughly; ensure drip tray is in place
Dimensions (approx.)	40 x 30 x 15 cm
Weight (approx.)	2.5 kg
Cord Length (approx.)	1.0 m
Warranty	2 years (subject to terms)

Frequently Asked Questions - EG-4030RC Vivax

How do I preheat the Vivax EG-4030RC contact grill?

Turn the thermostat knob to the highest setting and wait for about 5 minutes until the indicator light turns off. The grill is then ready for cooking.

Can I use metal utensils on the non-stick plate?

No, never use sharp or metal objects as they can damage the non-stick coating. Use wooden or silicone utensils instead.

How should I clean the grill after use?

Unplug the appliance and let it cool completely. Wipe the interior and edges with a paper towel or damp cloth. Do not use abrasive cleaners or immerse in water.

What should I do before first use?

Remove all stickers and protective film. Wipe removable parts with a damp cloth. Heat the grill on the highest setting for 5 minutes without food to burn off any residue.

How do I store the grill?

Ensure the grill is completely dry and the oil drip tray is properly positioned. Store it on a flat, dry surface.

Is it safe to open the lid during cooking?

Be cautious as steam may escape. Open the lid slowly and keep your face and hands away from the steam to avoid burns.

Why does the indicator light turn on and off while cooking?

This is normal. The thermostat maintains a constant temperature by cycling the heating element, causing the indicator to turn on and off.

Can I submerge the grill or thermostat probe in water?

No, never immerse the power cable, thermostat probe, or the grill itself in water or any liquid. Only clean with a damp cloth.

Should I use a heat-resistant mat under the grill?

Yes, it is recommended to place the grill on a heat-resistant coating to protect your table or countertop from heat damage.

What voltage does the grill require?

The grill operates on 220-240V ~ 50/60Hz. Always check that your local voltage matches the rating on the device before plugging in.

USER MANUAL EG-4030RC Vivax

Black VIVAX electric grill with open lid and grating (no text or symbols visible)

Važno je da prije uporabe uređaja u potpunosti pročitate ove upute te ih sačuvate na sigurnom mjestu za buduću potrebu.

DOBRODOŠLI!

Ovaj uređaj potpuno je u skladu s najvišim standardima, posjeduje inovativnu tehnologiju i nudi visoku udobnost uporabe.

Djeca mlađa od 8 godina treba držati podalje od uređaja osim ako nisu pod stalnim nadzorom.

1. UPOZORENJE: Nemojte instalirati uređaj u zatvorene prostore, sobe, na ploču za kuhanje ili druge aparate koji proizvode toplinu.

UPORABA

• Zagrijte uređaj na najvećoj snazi grijanja nekoliko minuta dok se indikator rada grijača ne isključi.
• Ploču koja se zagrijava treba premazati s malo ulja.
• Ugodite željenu temperaturu na termostatu.
• Termostat regulira stalnu temperaturu. Tijekom pečenja, svjetlosna oznaka rada grijača pali se i gasi. To je normalno. Na taj način se održava stalna temperatura grijače ploče. Nikada nemojte koristiti oštre predmete budući da oni mogu oštetiti površinu grijače ploče. To je poseban materijal koji onemogućava ljepljenje hrane za ploču.

Black VIVAX electric grill with open lid and grating tray (no text or symbols visible)

Važno je da pre upotrebe uređaja u potpunosti pročitate ova uputstva te ih sačuvate na sigurnom mestu za buduću upotrebu.

DOBRODOŠLI!

Ovaj uređaj, kao proizvod inovativnih tehnologija, u skladu je sa najvišim standardima i lako se koristi.

Cross-sectional view of a mechanical device showing internal components and a highlighted part (no text or symbols visible)

Posuda za sakupljanje ulja

UPOTREBA

• Pred-zagrejte svoj uređaj na najvećoj temperaturi, nekoliko minuta, dok se indikator temperature ne ugasi.
• Ploču koja se greje trebalo bi premazati sa malo ulja.
• Koristite sondu za temperaturu sa termostatom kako biste odabrali željenu temperaturu.
• Termostat reguliše stalnu temperaturu. Tokom kuvanja, svetlo se pali i gasi. Ovo je uobičajeno. Temperatura se uvek prilagođava. Nikada nemojte da upotrebljavate oštre predmete na grilu kako ne bi oštetili oblogu koji omogućava da se hrana ne lepi.

UPOZORENJE: Tokom kuvanja, proverite da li je umak ili sok ili bilo koja druga tečnost koja se ne može lako očistiti nakon hladjenja aparata prolivena po uređaju. Ako se to dogodi, sačekajte da se uređaj ohladi i odmah očistite uređaj, ploču i ostale delove navlaženom krpom. Nemojte koristiti abrazivna sredstva, ona mogu oštetiti površinu ili ploču grijača uređaja.

UPOZORENJE: Može izazvati naglo podizanje pare ako se poklopac iznenada otvori. Vodite računa da vaše ruke ili lice ne dođu u kontakt sa parom.

ČIŠĆENJE I ODRŽAVANJE

• Pre čišćenja, isključite uređaj i čekajte da se ohladi.
• Nikada nemojte da sipate hladnu vodu na vreo tanjir jer to može da oštetiti uređaj ali i da izazove opekotine od prskanja vrele vode.
• Obrišite unutrašnjost i ivice uređaja papirnatim ubrusima ili mekanom krpom.
• Očistite uređaj vlažnom krpom. Nikada nemojte da upotrebljavate gruba ili abrazivna sredstva, strugalice ili čelični sunder jer će da izazovu oštećenje površine uređaja
• Nikada nemojte da potapate uređaj u vodu ili bilo koju tečnost. Uređaj nije dozvoljeno stavljati u mašinu za pranje.
• Ako nije u upotrebi, obavezno ga isključite iz struje.

ČUVANJE

Uvek osušite gril pre odlaganja. Pobrinite se da je posuda za mast pravilno pozicionirana.

Black VIVAX electric grill with open lid and grating (no text or symbols visible)

Close-up of a mechanical device with internal components and a highlighted section (no visible text or symbols)

Black VIVAX electric grill with open lid and grating (no text or symbols visible)

Cutaway view of a black plastic printer internal structure showing ventilation slots and internal compartments (no text or symbols visible)

Tabaku i vajit

Indicator light up when Thermostat knob turn on. After the indicator Turn Off, unit is ready for cooking. The Indicator will periodically turn on/turn off, to keep hot plate temperature on adjusted temperature level.

NUK DUHET TË E PASTRONI TERMOSTATIN DHE KABINETIN E ENERGJISË NË UJË OSE LËNDËVE TË TJERA!

PARA PËRDORIMIT TË PARË

PËRDORIMI

Black VIVAX electric grill with open lid and grating (no text or symbols visible)

Close-up of a black plastic printer holder with ventilation slots and internal compartments (no text or symbols visible)

UPORABA

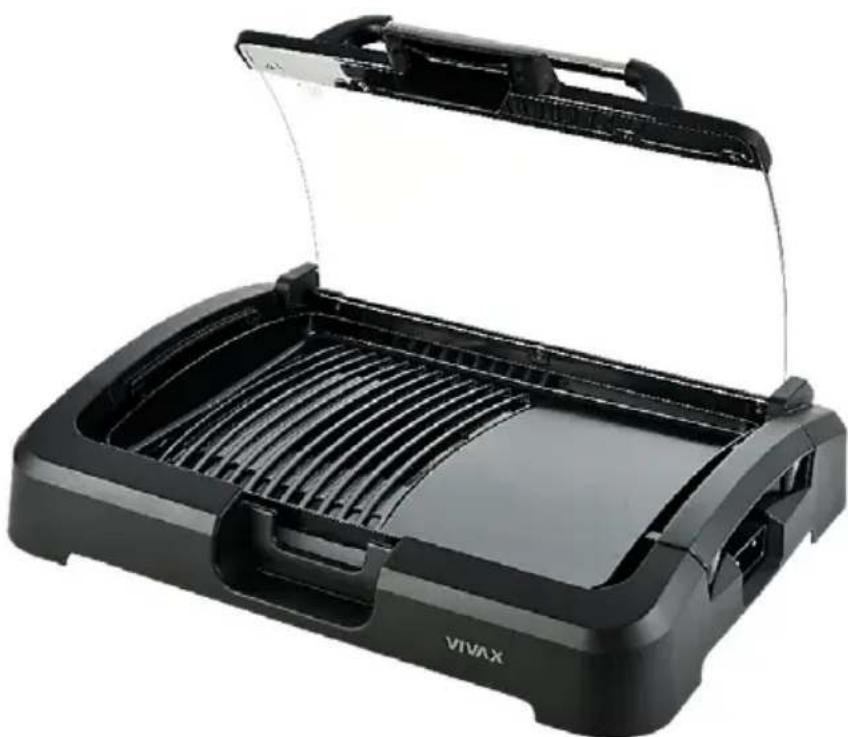

Electric Grill EG-4030RC

Black VTVAX electric grill with open lid and side panel (no text or symbols visible)

It is important that you read these inst before using your product and we strongly recommend that you keep them in a safe place for future reference.

WELCOME!

This device meets the highest standards, innovative technology and high comfort use.

Read these instructions carefully before using your Grill, and keep it carefully.

If you follow the instructions, your Grill will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY IF YOU SELL OR TRANSFER DEVICE TO OTHER PEOPLE, BE SURE TO INCLUDE THESE INSTRUCTIONS!

IMPORTANT SAFETY INSTRUCTIONS WARNING

The flash with the symbol of arrowhead, inside an equilateral triangle alerts the user about the presence of a dangerous tension not isolated inside the product which can be sufficiently powerful to constitute a risk of electrocution.

The point of exclamation inside an equilateral triangle alerts the user about the presence of important operating instructions and maintenance in the document enclosed in the package.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

Do not open the back cover. In no case the user is allowed to operate inside the unit. Only a qualified technician from the manufacture is entitled to operate. By ignoring the safety instructions, the manufacturer can not be hold responsible for the damage.

SAFETY PRECAUTIONS

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

4. Keep the appliance and its cord out of reach of children less than 8 years.

5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

6. Never move the appliance by pulling the cord and make sure the cord can not become entangled.

7. The appliances must be placed on a stable, level surface.

8. The user must not leave the device unattended while it is connected to the supply.

9. This appliance is only to be used for indoor usage, for household purposes and only for the purpose it is made for. Do not place unit close to the flammable or explosive materials.

10. To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.

11. The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

12. Only use the appropriate connector incorporating Thermostat to connect device to power supply.

13. Do not use this grill near water, in a wet basement or near a swimming pool.

14. Do not let cord hang over edge of table or counter.

15. Failure to maintain the grill in a clean condition could lead to damage of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. Such damages are not included in the warranty.

16. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8

years of age shall be kept away unless continuously supervised.

1. WARNING: Do not install Grill in the closed spaces, rooms, over a range cooktop or other heat-producing appliance.

The accessible surface is hot during operation

1. Steam cleaner is not to be used.

2. This appliances is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and others working environments;

- Farm houses;

- by clients in hotels, motels and other residential type environments;

- Bed and breakfast type environments.

READ CAREFULLY THIS MANUAL AND KEEP THEM FOR FUTURE REFERENCE!

WARNING: Electric Shock Hazard Improper use of the grounding can result in electric shock.

Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

DO NOT IMMERSE POWER CABLE AND CABINET IN WATER OR ANY LIQUID

SETTING UP YOUR GRILL

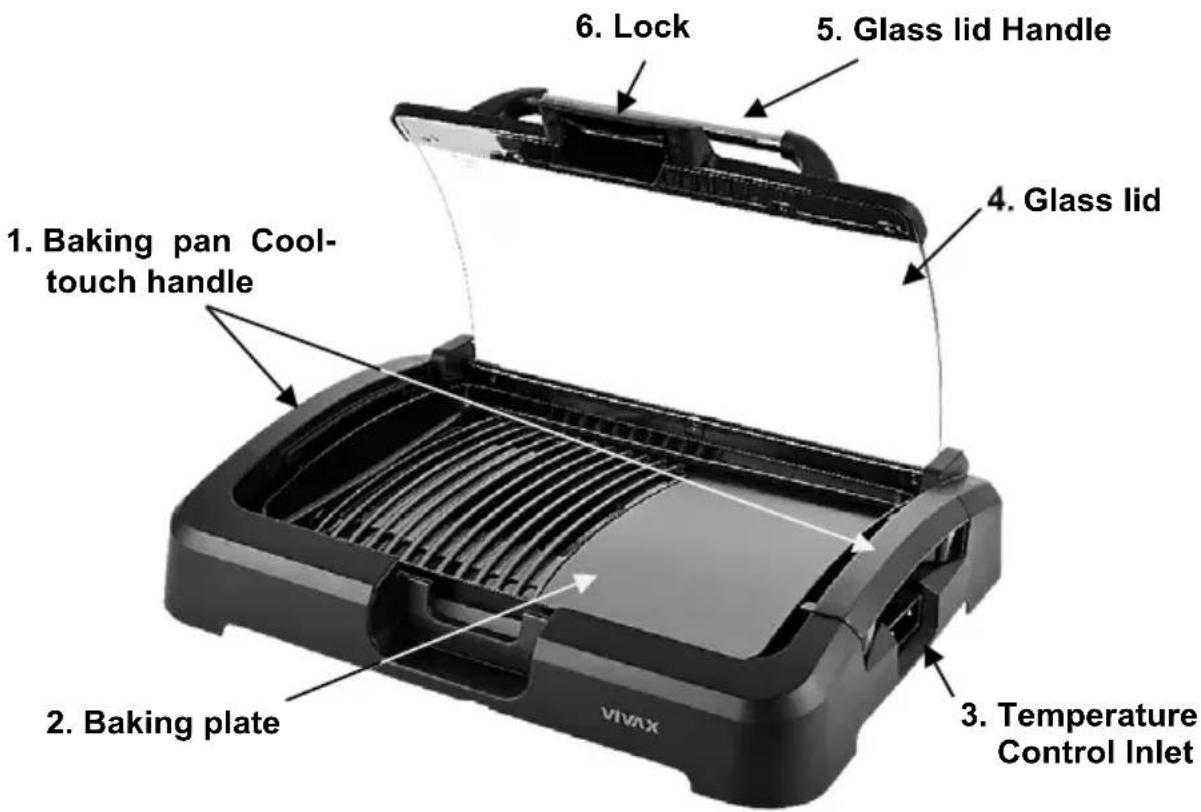

Names of Grill Parts and Accessories

1. Cool-touch handles

For easy carrying. Supports the hot plate and Thermostat socket terminal.

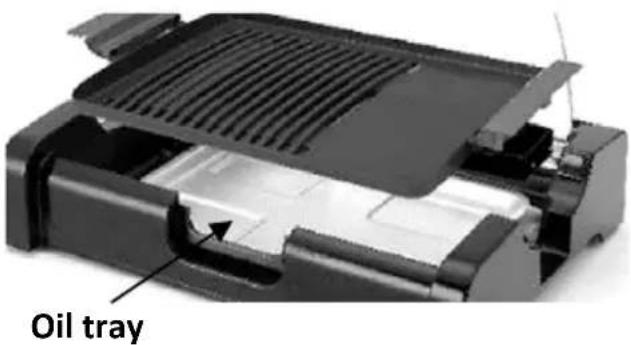

2. Baking plate with embedded O-shape heater

Flat plate : Ideal for cooking a variety of foods including meat, eggs, bacon, onions, mushrooms and tomatoes.

Cutaway view of a mechanical device showing internal components and a labeled oil tray (no text or symbols beyond label)

3. Socket for Thermostat control probe with power cable

The control probe is thermostatically controlled to ensure constant temperature, and is removable for portability and easy cleaning.

4. 5., 6.: Glass Lid with handle and Lock mechanism

To keep constant and higher temperature and make more efficient grilling or baking, close the Tempered Glass Lid.

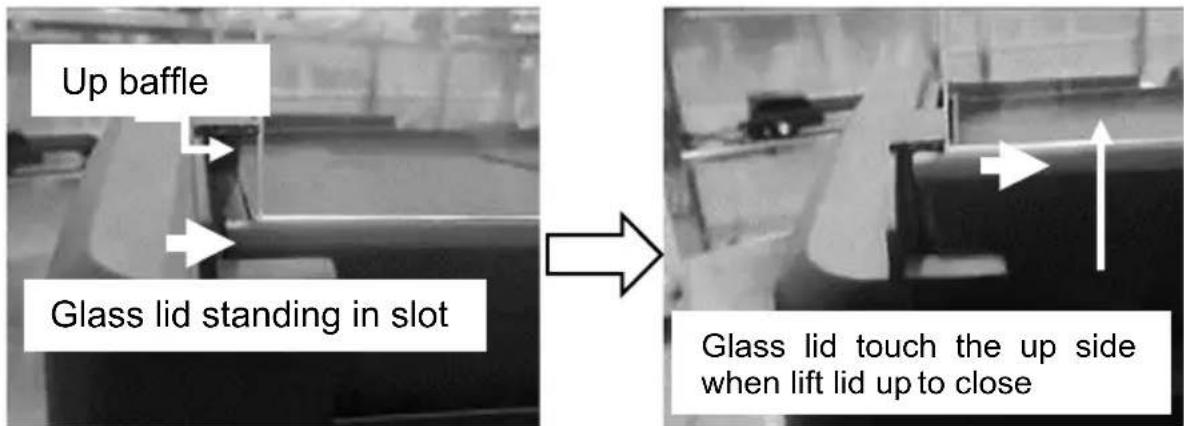

How to close glass lid :

PIs be sure lift up glass lid to up baffle as per belowing instruction in order to close glass lid smooth .The lid will be damaged if you press downward glass lid forcefully.

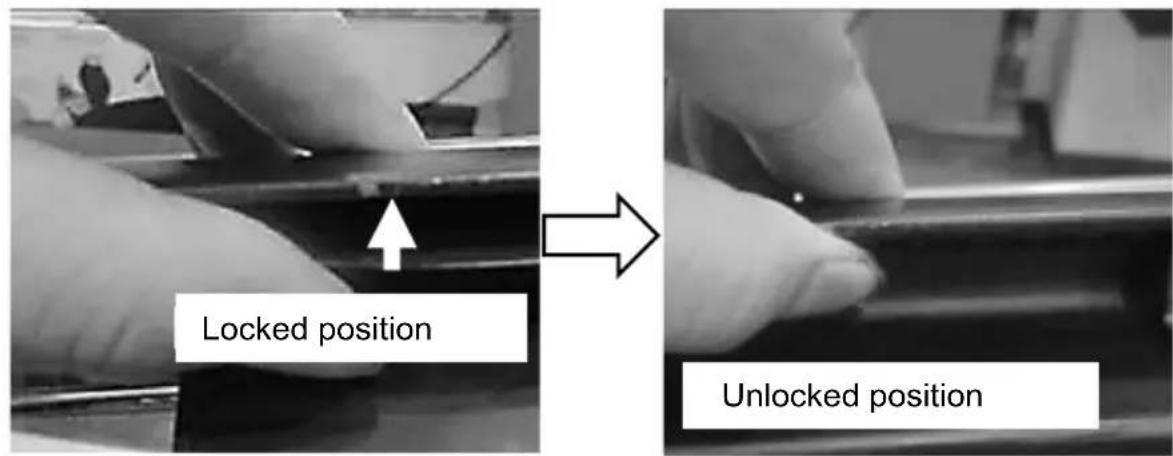

How to open glass lid:

Have one lock under handle to clamp the bottom housing when close clamshell glass lid.

Please use hand to clamp to loose lock when you open the shell glass lid .then slip glass lid to slot for standing. Please refer to attachment below.

Heat up Indicator

Indicator light up when Thermostat knob turn on. After the indicator Turn Off, unit is ready for cooking. The Indicator will periodically turn on/turn off, to keep hot plate temperature on adjusted temperature level.

DO NOT IMMERSE THERMOSTAT PROBE OR POWER CABLE INTO WATER OR ANY OTHER LIQUID!

BEFORE FIRST USE

Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.

• Before using your appliance for the first time, wipe off all removable parts with a damp cloth. Never use abrasive products.
• Place the supplied thermostat in the connection of the thermostat.
• Put the power cable into the socket. (Note: Make sure the voltage which is indicated on the device matches the local voltage before connecting the device. Voltage 220-240V, 50/60Hz, 2200W).
• Turn the thermostat clockwise to the highest setting and allow the device heating at least 5 minutes without food.
• When the device is turned on for the first time, a slight odor will occur.
• This is normal, ensure adequate ventilation. This fragrance is only temporary and will disappear soon.
• We advise to place a heat resistant coating between your table and the appliance (this way you don't get burns on your table or table cloth).
• Place the device in a well ventilated space.

Installation

1. Use Grill on open and dry places
2. Select a level surface that provide enough open space for the intake and/or outlet vents.
3. Plug your Grill into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the unit rating label.

WARNING: Do not install Grill in the closed spaces, rooms, over a range cooktop or other heat-producing appliance.

The accessible surface is hot during operation

USE

- Pre-heat your appliance on the highest level for a few minutes until the temperature indicator goes off.

- The heating plate should be rubbed in with some food oil.

- Use the temperature know on the thermostat to choose the desired temperature.

- The thermostat regulates a constant temperature. During cooking the indicator light on and off, this is normal, the temperature is always constant adjusted.

Never use sharp objects on the grill plate, this will damage the anti-stick coating.

WARNING: When cooking, be careful not spilling sauce or juice or any liquid that not easy cleaning after cooling down to the gap between baking pan and housing.

WARNING: Steam may be released between the cooking plates. Caution should be taken to prevent hands or face from coming into contact with the steam.

CLEANING AND MAINTENANCE

• Before cleaning, unplug the appliance from power supply and wait for the appliance to cool down.
• Never poor cold water on a hot plate, this could damage the device and can cause splashing hot water.
• Wipe the inside and the edges of the appliance with a paper towel or a soft cloth.
• Clean the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the device.
• To remove the rest of the food or oil, do not use metal utensils, they can indeed damage the nonstick coating. Always use a spatula, wooden utensils or silicone heat resistant
• Never immerse the electrical device in water or any other liquid. The device is not dishwasher proof Be sure to unplug the appliance from the power supply.

STORAGE

Always dry the Grill before storing. Ensure the drip tray is correctly positioned. Store the Grill on a flat surface on your bench top or cupboard.

Important: Before inserting control probe in probe socket, ensure the interior of the socket is fully dry. To do this, wipe interior of socket with a dry cloth or shake out excess water vigorously.

TECHNICAL SPECIFICATION

Model	Voltage	Frequency	Power	Cooking Plate Size
EG-4030RC	220V-240V~	50/60Hz	2200W	385x290 mm

Disposal of electrical and electronic equipment

To protect our environment and to recycle the raw materials used as completely as possible, the consumer is asked to return unserviceable equipment to the public collection system for electrical and electronic.

The symbol of the crossed indicates that this product must be returned to the collection point for electronic waste to feed it by recycling the best possible raw material recycling.

By ensuring this product you will prevent possible negative effects on the environment and human health, which could otherwise be caused due to improper disposal of that product. The recycling of materials from this product, you will help to preserve a healthy environment and natural resources.

For detailed information about the collection of EE products contact M SAN Grupa dd or the dealer where you purchased the product.

EU Declaraton of Conformity

This device is manufactured in accordance with the applicable European standards and in accordance with all applicable Directives and Regulations.

EU declaration of conformity can be downloaded from the following link: www.msan.hr/dokumentacijaartikala

POŠTOVANI!

Zahvaljujemo na kupnji Vivax uređaja i nadamo se da ćete biti zadovoljni odabirom. Ako u jamstvenom roku bude potreban popravak proizvoda, molimo savjetujte se sa ovlaštenim prodavačem koji Vam je proizvod prodao ili nas kontaktirajte na dolje navedene brojeve i adrese. MOLIMO VAS DA PRIJE UPORABE PROIZVODA PAŽLJIVO PROČITATE UPUTE PRILOŽENE UZ PROIZVOD!

JAMSTVENI LIST

VIVAX

HR

MODEL UREĐAJA

SERIJSKI BROJ

DATUM PRODAJE

BROJ RAČUNA PRODAVATELJA

POTPIS I PEČAT PRODAVATELJA

POTPIS I PEČAT PRODAVCA

6. PRAVO NA REKLAMACIJU NE OBUHVATA

1. Ovom izjavom o saobraznosti proizvođač proizvoda, preko KIM TEC CG d.o.o., kao uvoznika i davaoca prava u Crnoj Gori besplatan popravak istog u skladu s vazećim propisima i u skladu s uslovima opisanim u ovoj izjavi o saobraznosti. Ovom izjavom o saobraznosti istićemo da će predmet ovog prava raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biće besplatno otklonjeni u ovlašćenom servisu u predviđenom roku za reklamaciju.
2. USLOVI REKLAMACIJE: Rok za reklamaciju počinje teći od dana kupovine proizvoda i traje 24 mjeseca.
3. U slučaju kvara na proizvodu koji je predmet reklamacije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 15 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 15 dana, biće zamijenjen novim.
4. Pravo na reklamaciju se priznaje uz fiskalni račun o kupovini, ili uz ovu izjavu o saobraznosti koji mora biti ispravno popunjen odnosno mora sadržati datum prodaje, pečat i potpis prodavca.
5. Davalac izjave o saobraznosti osigurava servis i rezervne djelove 7 godina od datuma kupovine.

POTPIS I PEČAT PRODAVATELJA

GARANCIJSKA IZJAVA

1. Ovom garancijom garantira proizvođač proizvoda, preko KIM TEC d.o.o., kao uvoznika i davatelja garancije u Republici Bosni i Hercegovini besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom garantnom listu. Ovom garancijom garantiramo da će predmet ove garancije raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u garantnom roku.

UVJETI GARANCIJE:

Garantni rok počinje teći od dana kupnje proizvoda i traje 12 mjeseci, osim za Vivax Imago televizore (CRT, LCD, PDP) za koje jamstvo traje 24 mjeseca

1. U slučaju kvara na proizvodu koji je predmet ove garancije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Ako popravak proizvoda traje duže od 10 dana, garancija se produljužuje za vrijeme trajanja popravka.
2. Garancija se priznaje samo uz račun o kupnji, te uz ovaj garantni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.
3. Davalac garancije osigurava servis i rezervne dijelove 7 godina od datuma kupnje.

GARANCIJA NE OBUHVAĆA:

Kosova Electronic Service Center

Kosova Electronic Service Center

VIVAX Air Conditioners; White Goods and Small Home appliances
