Product Type	Built-in Electric Oven
Model	BO-658FXHTD G / BO-658FXHTD X
Brand	Vivax
Cavity Volume	65 L
Product Dimensions (HxWxD)	595 x 595 x 575 mm

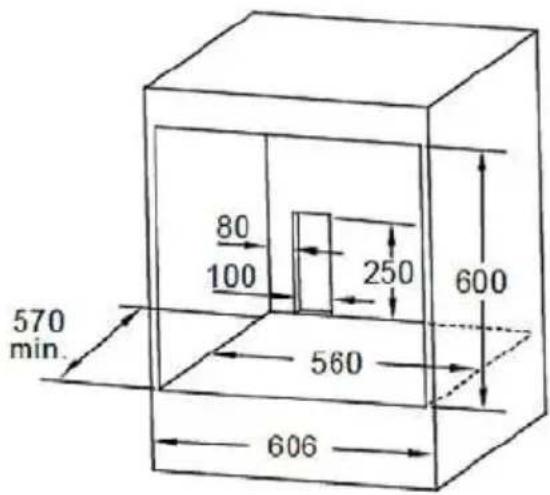

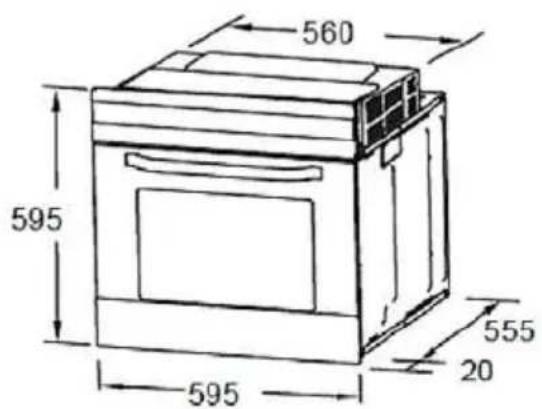

Built-in Dimensions (HxWxD)	560 x 600 x 570 mm
Weight	31.2 kg
Power Supply	220-240 V ~ 50/60 Hz
Total Power	3.0 kW
Energy Class	A
Energy Consumption (Conventional)	0.91 kWh/cycle
Energy Consumption (Fan-Forced)	0.76 kWh/cycle
Cooking Programmes	8 + Light (Defrost, Bottom Heater, Conventional, Convection with Fan, Grill, Double Grill, Double Grill with Fan, ECO)

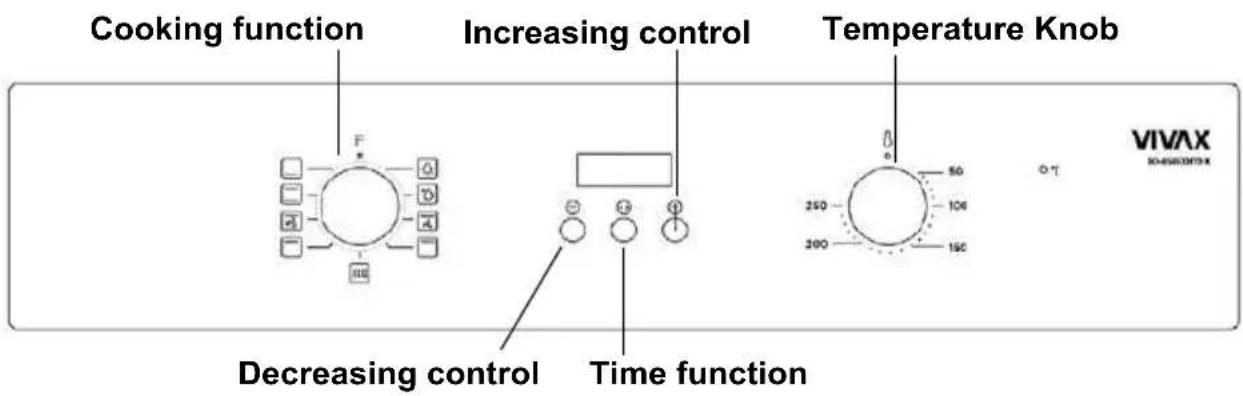

Timer	Digital (Minute Minder, Cooking Duration, End Time, Full-Automatic)
Convection Fan	Yes
Cooling Fan	Yes
Oven Lamp	Yes (25-40W / 220-240V, T300°C halogen)

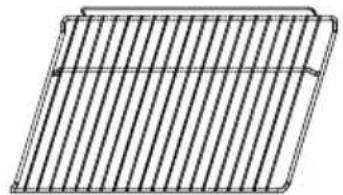

Accessories Included	Wire shelf, Universal pan, Telescopic runners (depending on model)
Safety Features	Child safety (supervision required), automatic shut-off, residual heat warning
Cleaning	Manual cleaning with warm water and mild detergent; do not use abrasive cleaners or steam cleaners
Warranty	3 years (standard) / 5 years for certain components (as per local regulations)

Frequently Asked Questions - BO-658FXHTD G Vivax

How do I set the time on the oven?

When the oven is first connected, the display shows '12:30' with the hour flashing. Press '+' or '-' to adjust the hour, then press '<>' to confirm. Repeat for minutes. If the display is not flashing, press and hold '+' and '-' simultaneously for 3 seconds to enter time setting mode.

How do I use the minute minder function?

Press '+' or '-' to set the desired time (up to 10 hours). Press '<>' to confirm. When time is up, an audible warning sounds and the symbol flashes. Press any button briefly to stop the alarm.

What should I do if the oven gives off a smell during first use?

It is normal. Run the empty oven at 250°C for 90 minutes using the conventional cooking function to burn off any residues. Ensure good ventilation. The smell will dissipate.

How do I replace the oven light bulb?

Disconnect the oven from the power supply. Unscrew the glass lamp cover counterclockwise (it may be stiff). Replace with a 25-40W, 220-240V, T300°C halogen bulb. Screw the cover back on. Only use bulbs of the specified type.

Can I use the oven for room heating?

No. This oven is designed only for cooking food and for indoor domestic use. Using it for room heating is dangerous and may cause fire or damage.

What is the maximum cooking duration for the timer?

The maximum settable cooking period (Dur) is 10 hours. The finish time (End) can be set up to 23:59 hours after the start time.

How do I clean the oven interior?

Clean after each use when the oven is still warm but not hot. Use a soft cloth with warm water and mild detergent. Avoid abrasive cleaners, sharp metal scrapers, or steam cleaners. Dry thoroughly.

The oven is not heating. What could be wrong?

Check if the oven is properly connected to the power supply and that the mains switch is turned on. Ensure the temperature knob is set to a value above 0. If the problem persists, contact an authorized service technician.

What accessories are included with the oven?

The oven includes a wire shelf, a universal pan, and depending on the model, telescopic runners. Additional accessories are listed in the manual. Do not use accessories not specified for this oven.

How do I transport the oven safely?

Use the original packaging if available. Tape all movable parts to prevent damage. Follow transport markings. If original packaging is not available, use a sturdy box that protects external surfaces. Ensure the appliance is not exposed to rain or extreme temperatures.

USER MANUAL BO-658FXHTD G Vivax

BO-658FXHTD G BO-658FXHTD X

HR

Upute za uporabu

Warning symbol with exclamation mark inside a triangle (no text or numbers)

VAŽNA I SIGURNOSNA UPOZORENJA

- Ovaj aparat nije namijenjen da ga koriste osobe (uključujući djecu) sa smanjenim fizičkim, osjetilnim ili mentalnim sposobnostima ili nedostatkom iskustva i znanja, osim ako im je osoba koja je odgovorna za njihovu sigurnost dala nadzor ili uputu o sigurnoj uporabi uređaja.

Pure geometric diagram of a 3D rectangular prism with vertical slats, no text or symbols present

Pure technical diagram of a heat exchanger or cooling unit with no text, numbers, or symbols

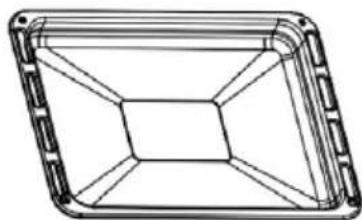

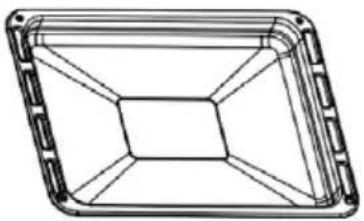

Univerzalna plitka posuda *: za pečenje većih količina namirnica kao što su vlažni kolači, peciva, smrznuta hrana itd. Ili za sakupljanje masnoće s gornjih polica.

Technical line drawing of a rectangular frame with internal hexagonal grid pattern (no text or symbols)

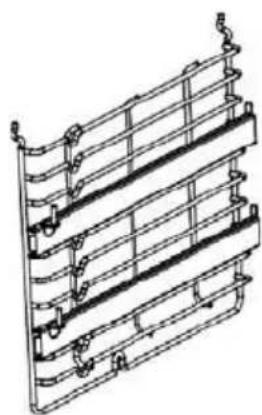

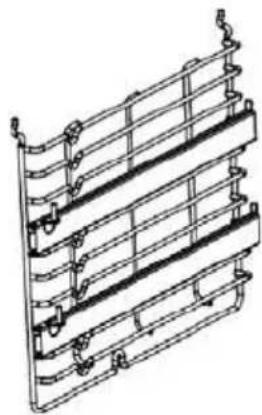

Teleskopske vodilice *: Neki modeli mogu imati teleskopske vodilice kako bi olakšali izvlačenje posuda i uporabu pećnice. Teleskopske vodilice i nosače vodilica može se rastaviti. Nakon rastavljanja, posude i plitke posude mogu se staviti na dno pećnice, koristeći funkcije pečenja: Gril, Dvostruki Gril i Gril sa ventilatorom.

Technical line drawing of a multi-tiered metal frame structure (no text or symbols)

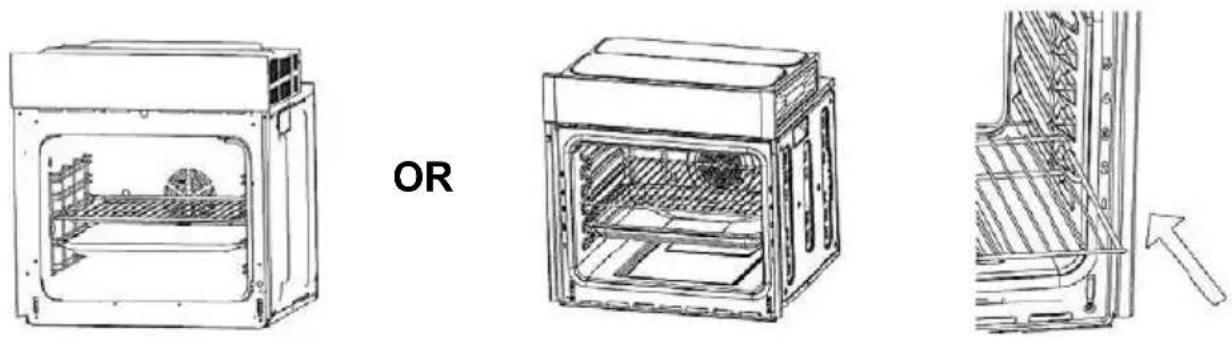

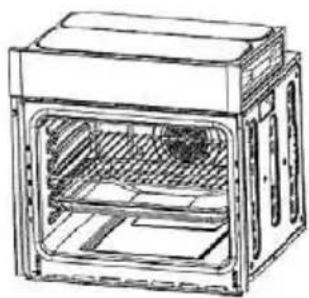

Technical line drawing of a mechanical oven or enclosure with internal structure (no text or symbols)

ILI

Technical line drawing of a multi-section mechanical housing or enclosure with internal compartments (no text or symbols)

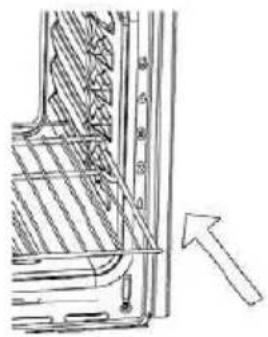

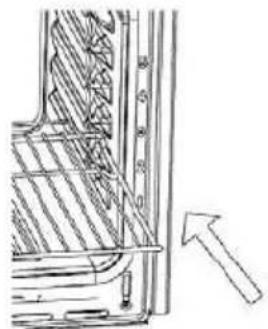

Technical line drawing of a mechanical component with hatched areas and an arrow indicating direction (no text or symbols)

ZAMJENA ŽARULJE

Za zamjenu žarulje unutar prostora za pečenje, slijedite donje korake:

Simple line drawing of a mechanical component with a circular arrow indicating rotation (no text or symbols)

NAPOMENA: Koristite samo halogene žarulje od 25-40W / 220V-240V, T300°C.

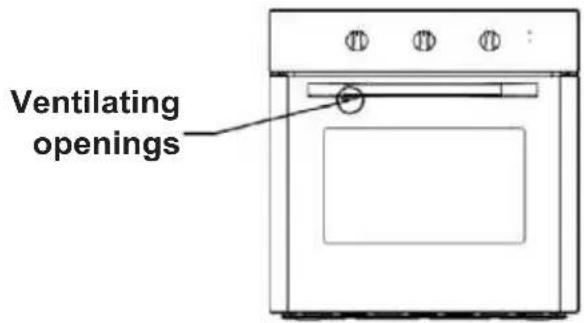

Otvori za ventilaciju (samo modeli bez ventilatora hlađenja)

NAPOMENA:

Recepti i uporaba ECO moda rada

Recept	Temperatura (°C)	Nivo držanja posude u pećnici	Vrijeme (min)	Predzagrijavanje
Krumpir, Sir 180	1 90-100 Ne
Kolači, Torta 160	1 100-150 Ne
Mesna štruca 190	1 110-130 Ne

TRANSPORT

Warning symbol with exclamation mark inside a triangle (no text or numbers)

VAŽNA I SIGURNOSNA UPOZORENJA

Pure geometric diagram of a rectangular plate with diagonal lines, no text or symbols present

Pure technical line drawing of a container with internal channels and a side outlet (no text or symbols)

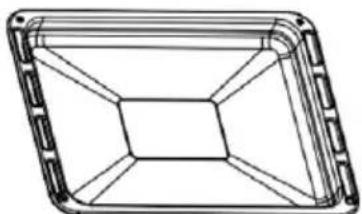

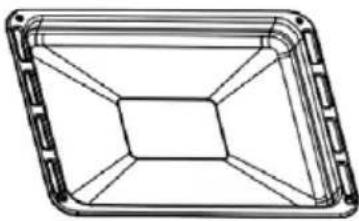

Univerzalna plitka posuda *: za pečenje većih količina namirnica kao što su vlažni kolači, peciva, smrznuta hrana itd. Ili za sakupljanje masnoće sa gornjih polica.

Technical line drawing of a rectangular frame with internal hexagonal grid pattern (no text or symbols)

Teleskopske vodice *: Neki modeli mogu imati teleskopske vodice kako bi olakšali izvlačenje posuda i upotrebu rerne. Teleskopske vodice i nosače vodica mogu se rastaviti. Nakon rastavljanja, posude i plitke posude mogu se staviti na dno rerne, koristeći funkcije pečenja: Gril, Dvostruki Gril i Gril sa ventilatorom.

NAPOMENA: Kada stavljate posude na dno rerne, NEMOJTE KORISTITI funkcije pečenja sa donjim grejačem kako biste sprečili preveliku toplotu.

Technical line drawing of a multi-tiered metal frame structure (no text or symbols)

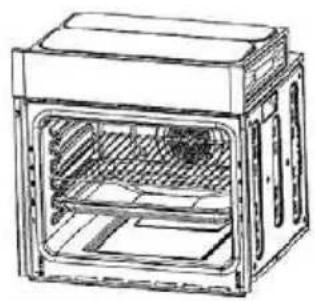

Technical line drawing of a mechanical oven or incubator with internal components (no text or symbols)

ILI

Technical line drawing of a multi-chamber oven or refrigerator unit (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)

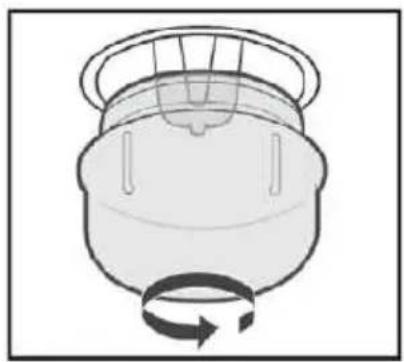

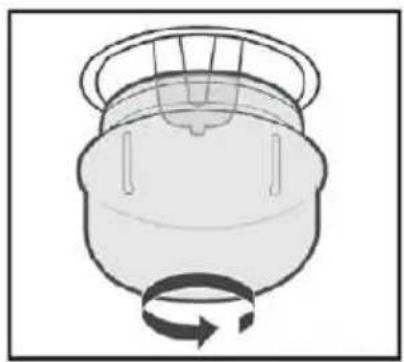

ZAMENA SIJALICE

Za zamenu sijalice unutar prostora za pečenje, pratite donje korake:

1. Odspojite utikač električnog napajanja ili isključite osigurač napajanja rerne.

2. Odvijte poklopac staklene svetiljke okrećući ga suprotno od smera kazaljke na satu (imajte na umu da je stakleni polopac usled dugotrajnog zagrejavanja i masnih isparavanja malo zaglavljen, tako da sa krajnim oprezom odvijte poklopac) i zamenite sijalicu sa novom istih karakteristika.

3. Vratite stakleni poklopac svetiljke na svoje mesto.

Simple line drawing of a container with a rotating arrow, no text or symbols present

Otvori za ventilaciju (samo modeli bez ventilatora hlađenja)

NAPOMENA:

Recepti i upotreba ECO moda rada

Recept	Temperatura (°C)	Nivo držanja posude u rerni	Vreme (min)	Predzagrejavanje
Krompir, Sir 180 1 90-100 Ne
Kolači, Torta 160 1 100-150 Ne
Meso 190 1 110-130 Ne

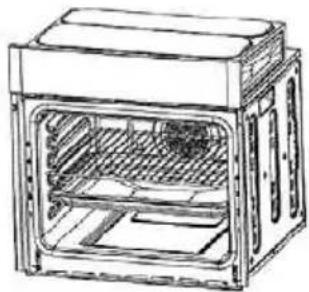

TRANSPORT

Ako trebate transportovati proizvod, upotrebite originalno pakovanje proizvoda i nosite ga u originalnom pakovanju. Pratite transportne znakove na pakovanju.

Osigurajte i zalepite sve pokretne i slobodne delove na proizvod kako bi sprečili oštećenje proizvoda tokom transporta.

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Pure geometric diagram of a rectangular plate with diagonal lines, no text or symbols present

Pure technical line drawing of a heat exchanger or cooling unit with no text, numbers, or symbols

Pure geometric diagram of a rectangular frame with internal hexagonal divisions (no text or symbols)

Technical line drawing of a metal lattice structure with no text or symbols

Line drawing of a portable oven with internal shelves and a fan (no text or symbols)

ИЛИ

Technical line drawing of an oven or refrigerator unit with internal compartments and ventilation ducts (no text or labels)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)

Simple line drawing of a container with a rotating arrow, no text or symbols present

Warning symbol with exclamation mark inside a triangle (no text or numbers)

PARALAJMËRIME TË RËNDËSISHME DHE TË SIGURISË

Pure geometric diagram of a rectangular grid with diagonal lines, no text or symbols present

Pure diagram of a container with horizontal lines and a wavy top section, no text or symbols present.

Technical line drawing of a rectangular frame with internal hexagonal grid pattern (no text or symbols)

Technical line drawing of a multi-layered structural frame or panel structure (no text or symbols)

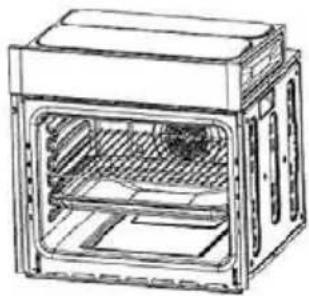

Line drawing of a simple oven or incubator with internal structure (no text or symbols)

OSE

Technical line drawing of a multi-chamber oven or refrigerator unit (no text or symbols visible)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)

ZËVENDËSIMI I POQIT/ LLAMPËS

Simple line drawing of a mechanical component with a rotating arrow (no text or symbols)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

POMEMBNA OPOZORILA IN VARNOST OPOZORILA

Pure geometric diagram of a rectangular plate with diagonal lines, no text or symbols present

Pure technical diagram of a heat exchanger or cooling unit with no text, numbers, or symbols

Technical line drawing of a rectangular frame with internal hexagonal cutouts (no text or symbols)

Technical line drawing of a multi-tiered metal frame structure (no text or symbols)

OPOMBA: Ko posodo postavljate na tla pečice, prosimo NE uporabite funkcije s spodnjim grelcem, da preprečite zbiranje toplote na dnu.

(samo za določene modele)

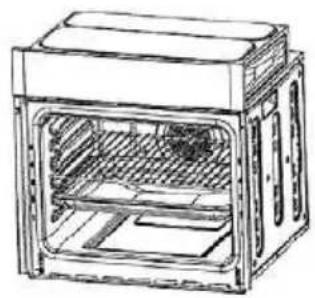

Technical line drawing of a mechanical enclosure or enclosure with internal components (no text or symbols)

ALI

Technical line drawing of a multi-chamber oven or refrigerator unit (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)

ZAMENJAVA ŽARNICE

Simple line drawing of a container with a rotating arrow indicating rotation (no text or symbols)

OPOMBA: Uporabljajte samo halogenske žarnice 25-40W / 220V-240V, T300 °C.

PREZRAČEVALNE ODPRTINE

(samo modeli brez hladilnega ventilatorja)

OPOMBA:

Pieces of packaging (plastic bags, polystyrene etc.) must not be left within reach of children, as they are potentially dangerous.

Please dispose of packaging thoughtfully by the appropriate means.

To this effect, we recommend that you read the entire guide carefully before operating the product and keep it as a reference. If you transfer the device to a third party, please give them this manual, to the new owner familiar with the device functions and warnings relevant to the safe use of the device.

THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH THE REGULATIONS IN FORCE AND ONLY USED IN A WELL VENTILATED SPACE. READ THE INSTRUCTIONS BEFORE INSTALLING OR USING THIS APPLIANCE

MAINTENANCE

When the oven is first switched on, it may give off an unpleasant smell. This is due to the bonding agent used for the insulating panels within the oven.

Please run up the new empty product with the conventional cooking function, 250 °C, 90 minutes to clean oil impurities inside the cavity.

During the first use, it is completely normal that there will be a slight smoke and odors. If it does occur, you merely have wait for the smell to clear before putting food into the oven.

WARNING:

The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Keep children less than 8 years of age away unless they are continually supervised.

Warning symbol with exclamation mark inside a triangle (no text or numbers)

IMPORTANT AND SAFETY WARNINGS

- The Appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

• Children being supervised not to play with the appliance

- This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance should not be made by children without supervision.

WARNING: Accessible part may become hot during use. Care should be taken to avoid touching heating elements inside the oven. Children less than 8 years of age shell be kept away unless continuously supervised..

- Handles and control panel may get hot after a short period during use.

WARNING: Ensure that appliance is switched off before replace the lamp to avoid the possibility of electric shock.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system

- Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

- For oven with incorporated a fan, before cleaning the oven must be switched off before removing the oven guard and after cleaning, the guard must be replaced in accordance with instructions.

- ⚠️! WARNING: Danger of fire: Do not store items on the cooking surfaces.

- WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

- Do not operate the appliance with an external timer or separate remote-control system.

- Do not use steam cleaners for cleaning the appliance.

- WARNING: To avoid the possibility of electric shock, make sure that the appliance is switched off before replacing the lamp.

- Your appliance is produced in accordance with all applicable local and international standards and regulations.

- Maintenance and repair work should only be carried out by authorised service technicians. Installation and repair work that is carried out by unauthorised technicians may be dangerous. Do not alter or modify the specifications of the appliance in any way. Inappropriate hob guards can cause accidents.

CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic household use only. It should not be used for any other purpose or in any other application, such as for non-domestic use, in a commercial environment or for heating a room.

- Do not use the oven door handles to lift or move the appliance.

- All possible measures have been taken to ensure your safety. Since the glass may break, care should be taken while cleaning to avoid scratching. Avoid hitting or knocking the glass with accessories.

• Make sure that the supply cord is not trapped or damaged during installation. Keep the electrical cable of your oven away from the hot areas; do not let them touch the appliance. Keep them away from sharp sides and heated surfaces If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent a hazard.
• This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating. All our appliances are only for domestic use, not for commercial use.
• Do not let children climb on the oven door or sit on it while it is open.

Installation Warnings

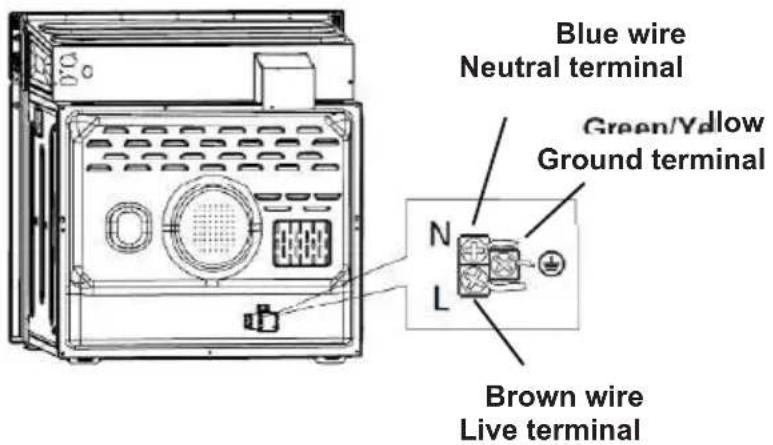

- WARNING: This appliance must be earthed! An all-pole disconnection means must be incorporated in the fixed wiring in accordance with the wiring rules

- Please find required information as power and ratings for your cooker from rating label is which located behind of appliance.

- Do not operate the appliance before it is fully installed and fixed in cabinet.

- The oven may be located in a kitchen, a kitchen/diner or bed-sitting room but not in a room containing a bath or shower.

- The oven must be supplied via a suitable double pole isolating switch, having contact separation of at least 3 mm in all poles placed in a readily accessible position adjacent to the unit.

- Before connecting your appliance, make sure that the local distribution conditions (electricity voltage and frequency) and the specifications of the appliance are compatible.

- The specifications for this appliance are stated on the label.

- The appliance must be installed by an authorised technician. The manufacturer is not responsible for any damage that might be caused by defective placement and installation by unauthorised people.

• When the appliance is unpacked, make sure that it is has not been damaged during transportation. In case of any defect do not use the appliance and contact a qualified service agent immediately. The materials used for packaging (nylon, staplers, Styrofoam, etc.) may be harmful to children and they should be collected and removed immediately.
• Protect your appliance from the atmosphere. Do not expose it to effects such as sun, rain, snow, dust or excessive humidity.
• Any materials (i.e. cabinets) around the appliance must be able to withstand a minimum temperature of 100^ .

During Use

- When you first use your oven you may notice a slight smell. This is perfectly normal and is caused by the insulation materials on the heater elements. We suggest that, before using your oven for the first time, you leave it empty and set it at maximum temperature for 45 minutes. Make sure that the environment in which the product is installed is well ventilated. Take care when opening the oven door during or after cooking. The hot steam from the oven may cause burns.

- Do not put flammable or combustible materials in or near the appliance when it is operating.

- Always use oven gloves to remove and replace food in the oven.

- CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

- Do not leave the cooker unattended while cooking with solid or liquid oils. They may catch fire under extreme heating conditions. Never pour water on to flames that are caused by oil, instead switch the cooker off and cover the pan with its lid or a fire blanket.

- If the product will not be used for a long period of time, turn the main control switch off.

- Make sure the appliance control knobs are always in the “0” (stop) position when it is not in use.

• The trays incline when pulled out. Take care not to spill or drop hot food while removing it from the ovens.
• Do not place anything on the oven door when it is open. This could unbalance the oven or damage the door.
• Do not place heavy or flammable items (e.g. nylon, plastic bag, paper, cloth, etc.) into the drawer. This includes cookware with plastic accessories (e.g. handles).
• Do not hang towels, dishcloths or clothes from the appliance or its handles.

During Cleaning and Maintenance

• Make sure that your appliance is turned off at the mains before carrying out any cleaning or maintenance operations.
• Do not remove the control knobs to clean the control panel.
• To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call our authorised service agents in case of need.
• Do not attempt to repair the appliance yourself, please contact an authorized service center. Contact an authorized service center and insist on the use of original spare parts

POSITION OF THE APPLIANCE

Before you start to use appliance, please carefully read "IMPORTANT AND SAFETY WARNINGS" chapter!

Before using oven, please remove all flammable tapes, styrofoam or any other ambalage materials. Also take out user manual and other flammable materials from appliance.

This device should use only after you installed into kitchen cabinet or base.

Allow disconnection of the appliance after installation, by accessible plug or switch in the fixed wiring.

CONTROL PANEL

Symbol	Function description
	Oven Lamp: Which enables the user to observe the progress of cooking without opening the door. Oven lamp will light for all cooking functions except ECO function.
	Defrost: The circulation of air at room temperature enables quicker thawing of frozen food (without the use of any heat). It's a gentle but quick way to speed up the defrosting time and thawing of ready-made dishes and cream filled produce etc.
	Bottom heater: Heat is applied only by the bottom side of the oven. Use this option for browning the bottom side of the food. This function is suitable for slow cooking recipes or for warming up meals.
	Conventional cooking: Heaters from the upper and the lower side uniformly heat the exposed food. Baking and roasting is possible only at single level.
	Convention with fan: The top heating element and the bottom heating element are working with fan. The appliance to be cooked is evenly and quickly cooked all around.
	Grill-small: This cooking method is normal grilling, utilizing the inner part only of the top heating element, which directs heat downwards onto the food.
	Double grilling: The inner heating element and the outer heating element in the top ofthe oven are working. Suitable for grilling larger quantities.
	Double grilling with fan (at the rear panel): The inner heating element and the outer heating element in the top of the oven are working with fan. It is suitable for grilling large amount of meat.
	For energy-saved cooking. Cooking the selected ingredients in a gentle manner, and the heat comes from the top and the bottom.

Note: Some functions maybe will not be available on your model.

OPERATION INSTRUCTIONS

When the oven is first connected to the electrical supply, wait for the display automatically show "12.30", a beep sound once and the "12"". flash.

Ensure the correct time of the day is set before using the oven. please note: that is 24 hour clock, for example 2PM shown as 14.00.

To set the correct time of day

- Press " + " " - " button to adjust the hour setting.

- Press " to confirm the hour setting.

- Press " + " " - " button to adjust the minute setting.

- Press " <> " to confirm the minute setting and the timer will be in standby mode.

Note: If the display does not flash, adjust the time of day by pressing the " + " and " - " buttons at the same time for more than 3 seconds.

Oven ON and OFF

If the timer is in standby mode, press " <> " for more than 3 seconds, the timer will enter manual mode and the symbol "###" will light up continuously.

- Set the desired cooking function and the temperature degree.

- Set the time function, then the oven will on.

If you set Dur or End, after cooking, the oven will automatically turn off.

If you set manual or minute minder, after cooking, bring the cooking function and oven temperature knob to "0" position.

Press " <> " and " + " buttons for more than 3 seconds to return to standby mode.

Time function setting

In manual mode, pressing " <> " can enter the time function setting, the sequence of the function setting is Manual mode - Minute minder-Dur-End-Manual mode. Then selected cooking function and adjust the cook temperature if required.

Manual mode: 🏠

In manual mode, only the day's time and the symbol " lights up. The cooking duration has to be controlled by the user.

Notes:

In manual mode, to ensure the oven is not left on accidentally, after 5 hours no any button pressed, the timer will flash once a second to warn you the oven will enter standby mode. After a total of 10 hours, the timer will enter standby mode.

When the timer is flashing in manual mode, press any button to reset the timer if you intend to continue using the oven. Or, press " <> " and " + " together for more than 3 seconds to enter standby mode if oven will not be used.

Audible warning time adjustment: 📄

This function can be used to receive audible warning at the completion of the adjusted time period.

- Press " <> " button to select the minute minder function. The relevant " 🔊 " " . " symbol will flash.

- Use " + " " - " button to adjust minute minder. (Refer to the instructions for setting the correct time of day).

Press "◀" button to confirm, the "◀" symbol will begin to light continuously. When the "◀" symbol begins to light continuously, the audible warning time adjustment is done.

- When the time is up, the timer gives an audible warning and the " " symbol begins to flash on the screen.

Press any button less than 3 seconds, it will stop the audible warning and the symbol disappears on the screen.

Audible warning time adjustment is for warning purposes only. Press " ⚙ and " + " together for more than 3 seconds to enter standby mode if oven will not be used.

Semi-automatic programming according to cooking period: Dur

This function is used to cook in the desired time range. The food to be cooked are put into the oven, The oven is adjustment to the desired cooking function and temperature degree. The maximum setting of cooking period is 10 hours.

- Press " <> " button until you see " Dur " on the timer screen. (Before setting cooking period.)

- Use " + " " - " button to adjust cooking period for the food you wish to cook. ( Refer to the instructions for setting the correct time of day .)

Press " ©" button to confirm, the day's time will appear on the screen and the symbols " A " " , " will light on the screen. While doing this, the oven will also start to operate.

- At the completion of the set duration, the time will stop the oven and give an audible warning. Also, the symbol "A" will begin to flash on the screen. After bringing the cooking function and oven temperature knob to "0" position. Pressing any button less than 3 seconds, it will stop the audible warning. Pressing " <> " for more than 3 seconds set the oven to Manual mode again to use the oven.

Semi-automatic programming accroding to finishing time: End

This function is used to cook according to the desired cooking time. The food to be cooked is put into the oven. The oven is adjusted to the desired cooking function and temperature degree.

• Press " <> " button until you see " End " on the timer screen. (Before setting finished time).
• Use " + " " - " button to adjust cooking time. (Refer to the instructions for setting the correct time of day).
• Press "button to confirm, the day's time will appear on the screen and the symbols "A" "will light on the screen. While doing this, the oven will also start to operate.
• At the completion of the set duration, the timer will automatically stop the oven and give an audible warning. Also, the symbol "A" will begin to flash on the screen. After bringing the cooking function and oven temperature knob to "0" position. Pressing any button less than 3 seconds, it will stop the audible warning. Pressing "② for more than 3 seconds set the oven to Manual mode again to use the oven.

Full-automatic programming:

This function is used to cook after a certain period of time, with a certain duration. The food to be cooked is put into the oven. The oven is adjusted to the desired cooking function. The oven temperature is adjusted to the desired degree depending on the food to be cooked.

1. Press " button until you see " Dur " on the timer screen. Use "+" - " button to adjust cooking period for the food you wish to cook.
2. Press " <> " button to confirm, the day's time will appear on the screen and the symbols " A " will begin to continuously light on the screen.
3. Keep pressing on " 🔒 " button until you see " End " on the timer screen. When you see " End " on the time screen, Use " + " " - " button to adjust finishing time, Press " 🔒 button to confirm, the day's time will appear on the screen and the symbol " A " will begin to continuously light on the screen. The symbol " 🔒 disappears until the time cooking starts.

Note: You can set a time which can be up 23.59 hours after the time obtained by adding the cooking period to the day's time.

• The oven will start operating at the time calculated by deducting the cooking period (Dur settings) from the set finishing time (End time settings), and will stop at the set finishing time.
• When End time is reached, the timer will give an audible warning and the symbol "A" will begin to flash.
• After bringing the cooking function and oven temperature knob to "0" position. Pressing and button less than 3 seconds, it will stop the audible warning.
• Pressing " <> " for more than 3 seconds set the oven to Manual mode again to use the oven.

Please note:

Once setting full-automatic mode, all the time can not be changed. Change time means cancle automatic programme and enter into corresponding mode. If you need to reset automatic mode, need to stop setting the current mode, to set the automatic mode according to the above steps again.

Other operations

• When setting the date of each function, long press on "+" or "-" for more than 3 seconds, the date will progressively and rapidly increase or decrease.
• When setting each of the time function, if there is none operation for 5 minutes then it will return to manual mode.
• When settling each of the time function, pressing on" <> " for more than 3 seconds can cancel current setting and enter manual mode.
• During time function setting, pressing on " + " and " <> " for more than 3 seconds, a beep sounds it can cackle the current time function setting and enter standby mode.

ACCESSORIES

Wire shelf *: For grill, dishes, cake pan with items for roasting and grilling

Slider bracket*: For cooking larger size food, these shelf support rails on the right and left sides of the oven can be removed, dishes and tray can be put on the oven floor, using functions as Radiant grilling, Double grilling, Double grill with fan.

NOTE: When placing dishes on the oven floor, please DO NOT use functions with bottom heater to prevent heat gathering at bottom.

Pure geometric diagram of a rectangular plate with diagonal lines, no text or symbols present

Pure technical line drawing of a container or rack structure without any text, numbers, or symbols

Universal pan*: For cooking large quantities of food such as moist cakes, pastries, frozen food etc, or for collecting fat/ spillage and meat juices.

Technical line drawing of a rectangular frame with internal hexagonal grid pattern (no text or symbols)

Telescopic runner *: Some models might with telescopic runners to facilitate the use of oven. These telescopic runners and slider brackets could be disassembled by unscrewing the screws used to fix it. After disassembled, dishes and tray can be put on the oven floor, using functions as Radiant grilling, Double grilling, Double grill with fan.

NOTE: When placing dishes on the oven floor, please DO NOT use functions with bottom heater to prevent heat gathering at bottom.

Technical line drawing of a multi-tiered metal frame structure (no text or symbols)

(only for specific models)

* Note: The number of accessories included depends on the particular appliance purchased.

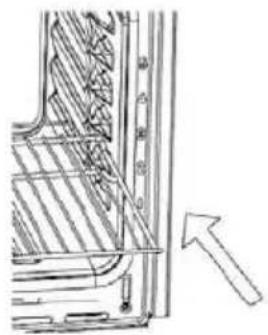

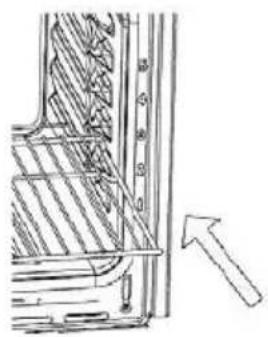

SHELF PLACEMENT WARNING

To ensure the oven shelves operate safely, correct placement of the shelves between the side rail is imperative. Shelves and the pan only can be used between the first and fifth layers.

The Shelves should be used with the right direction, it will ensure that during careful removal of the shelf or tray, hot food items should not slide out.

BULB REPLACEMENT

For replacement, process as follows:

1. Disconnect power from the mains outlet or switch off the circuit breaker of the unit's mains outlet.
2. Unscrew the glass lamp cover by turning it counter clockwise (note, it may be stiff) and replace the bulb with a new one of the same type.
3. Screw the glass lamp cover back in place.

NOTE: Only use 25-40W/220V-240V, T300°C halogen lamps.

Simple line drawing of a mechanical component with a rotating arrow (no text or symbols)

VENTILATING OPENINGS (models without Cooling Fan only)

NOTE:

Due to no cooling fan motor, the oven will exhaust through the ventilating openings at the bottom of the handle directly.

Please take care of the possible high temperature of the handle, glass door or control panel during using.

INSTALLATION

Electrical connection

WARNING

Before any connection, disconnect Main power supply!

An all-pole disconnection means must be incorporated in the fixed wiring in accordance with the wiring rules

Fit oven into the cabinet recess

1. Only plus deviations are admissible for all dimension.

2. The cabinet is not include the power switch or socket.

3. Open the oven door.

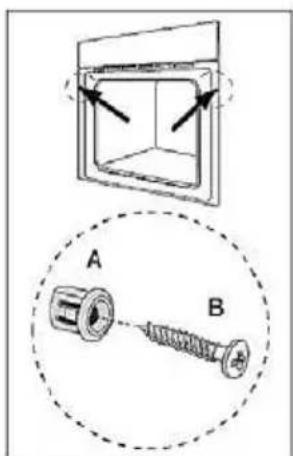

4. Secure the oven to the kitchen cabinet with two distance holders "A" which fit the holes in the oven frame and fit the two screws "B".

Recipes for ECO mode

Recipes	Temperature (°C)	Level Time (min)	Pre-heat
Potato Cheese Gratin	180 1 90-100 No
Cheese Cake	160 1 100-150 No
Meatloaf 190	1 110-130 No

TRANSPORT

If you need to transport the product, use the original product packaging and carry it using its original case. Follow the transport signs on the packaging. Tape all independent parts to the product to prevent damaging the product during transport. If you do not have the original packaging, prepare a carriage box so that the appliance, especially the external surfaces of the product, is protected against external threats.

MAINTENANCE and CLEANING

1. Disconnect the plug supplying electricity for the oven from the socket.
2. While oven is operating or shortly after it starts operating, it is extremely hot. You must avoid touching from heating elements.
3. Never clean the interior part, panel, lid, trays and all other parts of the oven by the tools like hard brush, cleaning mesh or knife. Do not use abrasive, scratching agents and detergents.
4. After cleaning the interior parts of the oven with a soapy cloth, rinse it and then dry thoroughly with a soft cloth.
5. Clean the glass surfaces with special glass cleaning agents.
6. Do not clean your oven with steam cleaners.
7. Before opening the top lid of the oven, clean spilled liquid off the lid. Also, before closing the lid, ensure that the cooker table is cooled enough.
8. Never use inflammable agents like acid, thinner and gasoline when cleaning your oven.
9. Do not wash any part of your oven in dishwasher.

Clean the inside of the oven after each use. When oven is still warm, removing deposits is easier. For cleaning, you can use warm water with a detergent or some of the spray oven cleaning agents. Do not spray the cleaning substance directly on the heater or mats parts inside the oven because you can damage the material and

always read the manufacturer's instructions for cleaning. Clean the trays and plates in the oven with warm water and detergent.

Clean residues with a light abrasive cleaning powder.

Never cover the parts of the oven with aluminum foil. This could result overheating which can affect the result of the baking and damage the oven enamel.

TROUBLESHOOTING

If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician.

Problem	Possible Cause	Solution
Oven does not switch on.	Power is switched off. Check	whether there is power supplied. Also check that other kitchen appliances are working.
No heat or oven does not warm up.	Oven temperature control is incorrectly set.Oven door has been left open.	Check that the oven temperature control knob is set correctly.
Cooking is uneven within the oven.	Oven shelves are incorrectly positioned.	Check that the recommended temperatures and shelf positions are being used.Do not frequently open the door unless you are cooking things that need to be turned. If you open the door often, the interior temperature will be lower and this may affect the results of your cooking.
Oven light (if available) does not operate.	Lamp has failed.Electrical supply is disconnected or switched off.	Replace lamp according to the instructions.Make sure the electrical supply is turned on at the wall socket outlet.
The oven fan (if available) is noisy.	Oven shelves are vibrating.	Check that the oven is level.Check that the shelves and any bake ware are not vibrating or in contact with the oven back panel.

ENERGY SAVING TIPS - OVEN

• Cook the meals together, if possible.
• Keep the pre-heating time short.
• Do not elongate cooking time.
• Do not forget to turn-off the oven at the end of cooking.
• Do not open oven door during cooking period.

TECHNICAL INFORMATION

Model	BO-658FXHTD GBO-658FXHTD X
Type of Oven Electric
Power Supply 220-240V~ 50-60Hz
Product size 595 x 595 x 575mm
Built in dimensions 560 x 600 x 570mm
Cavity Volume 65L
Power 3,0 kW
Cooking Programmes 8 + Light
Timer Yes, Digital
Convection Fan Yes
Cooling Fan Yes

Disposal of Electrical and Electronic Equipment

To protect our environment and to recycle the raw materials used as completely as possible, the consumer is asked to return unserviceable equipment to the public collection system for electrical and electronic.

The symbol of the crossed indicates that this product must be returned to the collection point for electronic waste to feed it by recycling the best possible raw

material recycling.

By ensuring this product you will prevent possible negative effects on the environment and human health, which could otherwise be caused due to improper disposal of that product. The recycling of materials from this product, you will help to preserve a healthy environment and natural resources.

For detailed information about the collection of EE products contact the dealer where you purchased the product.

EU Declaraton of Conformity

This device is manufactured in accordance with the applicable European standards and in accordance with all applicable Directives and Regulations.

EU declaration of conformity can be downloaded from the following link: www.msan.hr/dokumentacijaartikala

CE

JAMSTVENI LIST

VIVAX

HR

MODEL UREĐAJA

SERIJSKI BROJ

DATUM PRODAJE

BROJ RAČUNA PRODAVATELJA

POTPIS I PEČAT PRODAVATELJA

1. Ovim jamstvom M SAN Grupa kao davatelj jamstva u Republici Hrvatskoj jamči besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom jamstvenom listu.
   Ovim jamstvom jamčimo da će predmet ovog jamstva raditi bez pogreške uzrokovane eventualnom lošom izradom ili lošim materijalom izrade. Svi, eventualno nastali, kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u jamstvenom roku.

2. UVJETI JAMSTVA Jamstveni rok počinje od dana kupnje proizvoda i traje:

60 MJESECI (5 godina)	HLADNJACI,VERTIKALNE I HORIZONTALNE LEDENICE
36 MJESECI (3 godine)	SAMOSTOJEĆI ŠTEDNJACI, PERILICE I SUŠILICERUBLJA, PERILICE SUĐA, KUHINJSKE NAPEUGRADBENE PEĆNICE I PLOČE, KUHINJSKE NAPEGRIJALICE VODE

1. U slučaju kvara na proizvodu koji je predmet ovog jamstva, obvezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Jamstvo će biti produženo za vrijeme trajanja popravka.

2. Jamstvo se priznaje samo uz račun o kupnji, te uz ovaj jamstveni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.

3. JAMSTVO NE OBUHVAĆA

POTPIS I PEČAT PRODAVATELJA

GARANCIJSKA IZJAVA

1. Ovom garancijom garantira proizvođač proizvoda, preko KIM TEC d.o.o., kao uvoznika i davatelja garancije u Bosni i Hercegovini besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom garantnom listu. Ovom garancijom garantiramo da će predmet ove garancije raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u garantnom roku.

2. UVJETI GARANCIJE: Garantni rok počinje teći od dana kupnje proizvoda i traje:

60 MJESECI (5 godina)	HLADNJACI,VERTIKALNE I HORIZONTALNE ŠKRINJE
36 MJESECI (3 godine)	ŠTEDNJACI, PERILICE I SUŠILICE RUBLJA, PERILICESUĐA, KUHINJSKE NAPE, UGRADBENE PEĆNICE IPLOČE, GRIJALICE VODE

1. U slučaju kvara na proizvodu koji je predmet ove garancije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim.
2. Garancija se priznaje samo uz račun o kupnji, te uz ovaj garantni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.
3. Davalac garancije osigurava servis i rezervne dijelove 7 godina od datuma kupnje.

GARANCIJA NE OBUHVAĆA:

MODEL: BO-658FXHTD G BO-658FXHTD X

A	PRODUCT FICHEINFORMACIJSKI LIST
B	Brand	Robna marka	VIVAX
C	Oven Type (Elec. = Electric, Gas = Gas)	Vrsta Pećnice (Elec. = Električna, Gas = Plinska)	Elec.
D	Model Identification	Naziv modela	BO-658FXHTD GBO-658FXHTD X
E	Mass of the appliance (kg)	Masa uređaja (kg)	31,2
F	Number of cavities	Broj prostora za pečenje	1
G	Heat source per cavity (Electric or Gas)	Izvor topline po prostoru za pečenje (Elec. = Električna, Gas = Plinska)	Elec.
H	Volume per cavity (L)	Zapremlna po prostoru za pečenje (L)	65
I	Energy consumption EC_electric cavity required to heat a standardised load in a cavity of an electric heated oven during a cycle in conventional mode per cavity (electric final energy) (kWh/cycle)	Potrošnja energije EC_električni prostor za pečenje potrebna za zagrijavanje pri standardnom opterećenju u prostoru za pečenje električne pećnice za vrijeme ciklusa pri uobičajenom načinu rada po prostoru za pečenje (konačna električna energija) (kWh/ciklus)	0,91
J	Energy consumption EC_electric cavity required to heat a standardised load in a cavity of an electric heated oven during a cycle in fan-forced mode per cavity (electric final energy) (kWh/cycle)	Potrošnja energije EC_električni prostor za pečenje potrebna za zagrijavanje pri standardnom opterećenju u prostoru za pečenje električne pećnice za vrijeme ciklusa pri načinu rada s ventilatorom po prostoru za pečenje (konačna električna energija) (kWh/ciklus)	0,76
K	Energy consumption EC_gas cavity required to heat a standardised load in a gas-fired cavity of an oven during a cycle in conventional mode per cavity (gas final energy) (MJ/cycle kWh/cycle* *1 kWh/cycle = 3,6 MJ/cycle)	Potrošnja energije EC_plinski prostor za pečenje potrebna za zagrijavanje pri standardnom opterećenju u prostoru za pečenje plinske pećnice za vrijeme ciklusa pri načinu rada s ventilatorom po prostoru za pečenje (konačna energija plina) (MJ/ciklus kWh/ciklus* *1 kWh/ciklus = 3,6 MJ/ciklus)	-
L	Energy consumption EC_gas cavity required to heat a standardised load in a gas-fired cavity of an oven during a cycle in fan-forced mode per cavity (gas final energy) (MJ/cycle kWh/cycle)	Potrošnja energije EC_plinski prostor za pečenje potrebna za zagrijavanje pri standardnom opterećenju u prostoru za pečenje plinske pećnice za vrijeme ciklusa pri uobičajenom načinu rada po prostoru za pečenje (konačna energija plina) (MJ/ciklus kWh/ciklus)	-
M	Energy Efficiency Index per cavity EEI_cavity	Indeks energetske učinkovitost po prostoru za pečenje EEI_prostor za pečenje	100,2 Conventional 92,0 ECO
N	The energy efficiency class of the model for each cavity	Razred energetske učinkovitosti modela za svaki prostor za pečenje	A
